URAN 6521-4 LED AT

URAN 6521-4 LED AT
add to favorites
4 Wluminaire power
300 kd/m2average luminance
code4502002560
operating time in emergency mode1 h
type of operation / type of operation of the emergency luminaireпостоянного действия
  1. main page
  2. catalog
  3. by product type
  4. emergency lighting
  5. evacuation signs
  6. URAN LED
  7. URAN 6521-4 LED AT
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
light flow
200 lm
average luminance
300 kd/m2
light source type
LED
energy efficiency
50 lm/W
emission color
Белый
illuminating
light flow
200 lm
average luminance
300 kd/m2
light source type
LED
energy efficiency
50 lm/W
emission color
Белый
electrical
maximum cross-section of the connected cable
2.5 mm2
supply voltage
230 V
supply voltage, alternating current
230-240 V
constructional
material
Поликарбонат
ballast
Без драйвера
weight
1.1 kg
length
335 mm
width
125 mm
height
65 mm
shock resistance (IK)
IK02/0,2 Дж
ingress protection (IP)
IP65
climatic performance
УХЛ2
emergency
type of operation / type of operation of the emergency luminaire
постоянного действия
operating time in emergency mode
1 h
common
ETIM class
Светильник аварийный
warranty
36 month
temperature range
от 0 до +40 C
energy efficiency class
A
code
4502002560
model files
model files
CAD/BIM files
model 3dMax216 kB

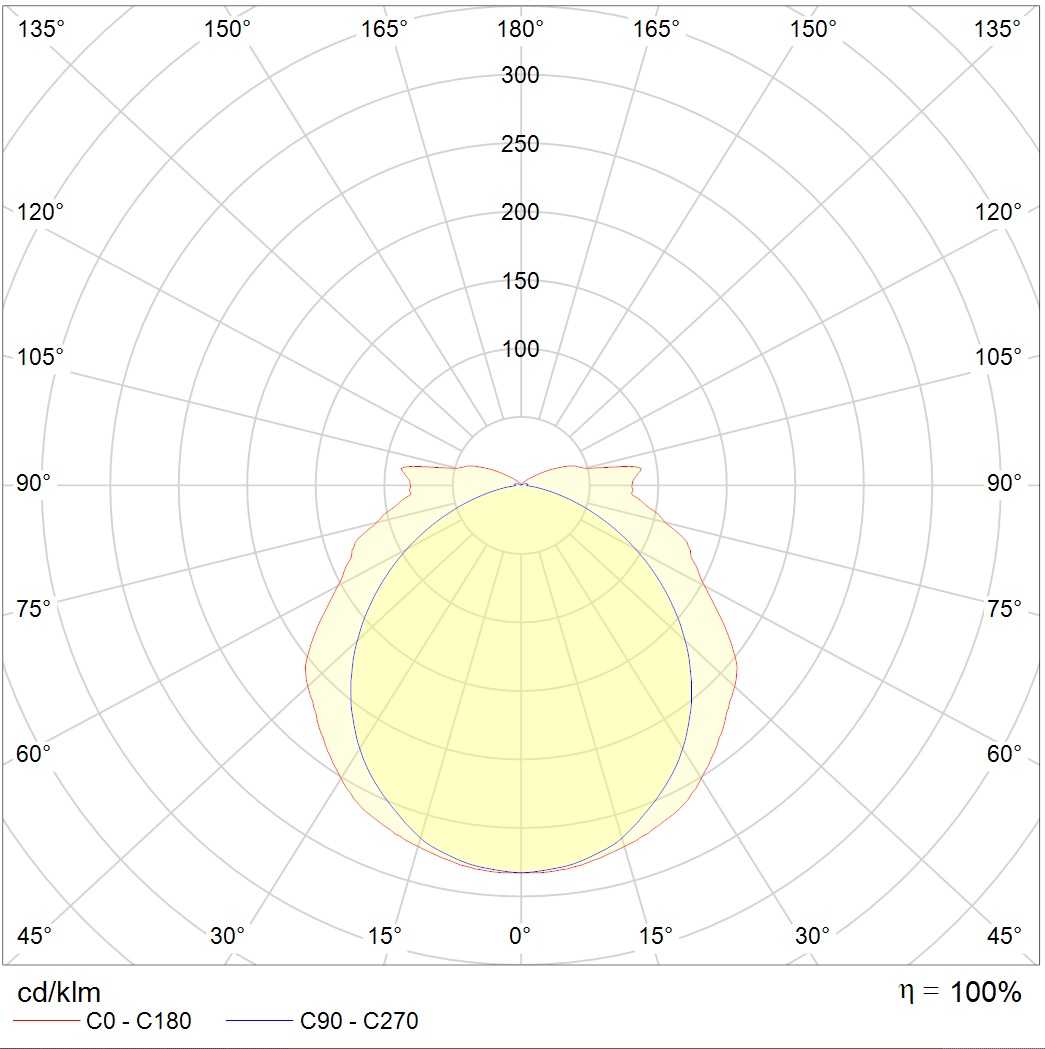

photometric files
ies134.1 kB
jpg170.1 kB
ldt112.3 kB
documents
passport281.4 kB
сертификаты
Voluntary certificate316.5 kB
Certificate of conformity TRTS 020/2011, TRTS 004/2011292.7 kB
Declaration of Conformity EAEU TR 037/2016291.1 kB
CAD/BIM files
model 3dMax216 kB
photometric files
ies134.1 kB
jpg170.1 kB
ldt112.3 kB
documents
passport281.4 kB
сертификаты
Voluntary certificate316.5 kB
Certificate of conformity TRTS 020/2011, TRTS 004/2011292.7 kB
Declaration of Conformity EAEU TR 037/2016291.1 kB
