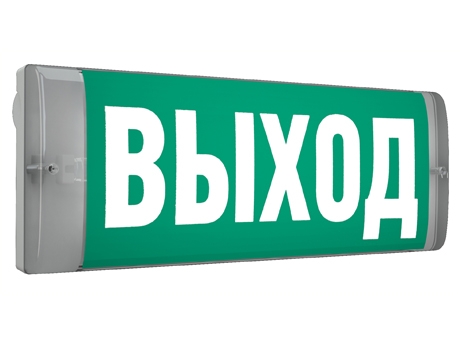

URAN 6500-4 LED

URAN 6500-4 LED
add to favorites
4 Wluminaire power
300 average luminance
code4501007120
battery / battery Ni-CdНет аккумулятора
type of operation / type of operation of the emergency luminaireцентрализованного электропитания
  1. main page
  2. catalog
  3. by product type
  4. emergency lighting
  5. evacuation signs
  6. URAN LED
  7. URAN 6500-4 LED
options
свернуть все
electricalconstructionalcommonilluminatingemergency
rated supply voltage, alternating current
220 V
supply voltage, alternating current
230-240 V
luminaire power
4 W
electric shock protection
II
maximum cross-section of the connected cable, sq. mm
2.5
supply voltage
230 V
electrical
rated supply voltage, alternating current
220 V
supply voltage, alternating current
230-240 V
luminaire power
4 W
electric shock protection
II
maximum cross-section of the connected cable, sq. mm
2.5
supply voltage
230 V
constructional
ingress protection (IP)
IP65
material
Поликарбонат
weight
0.7 kg

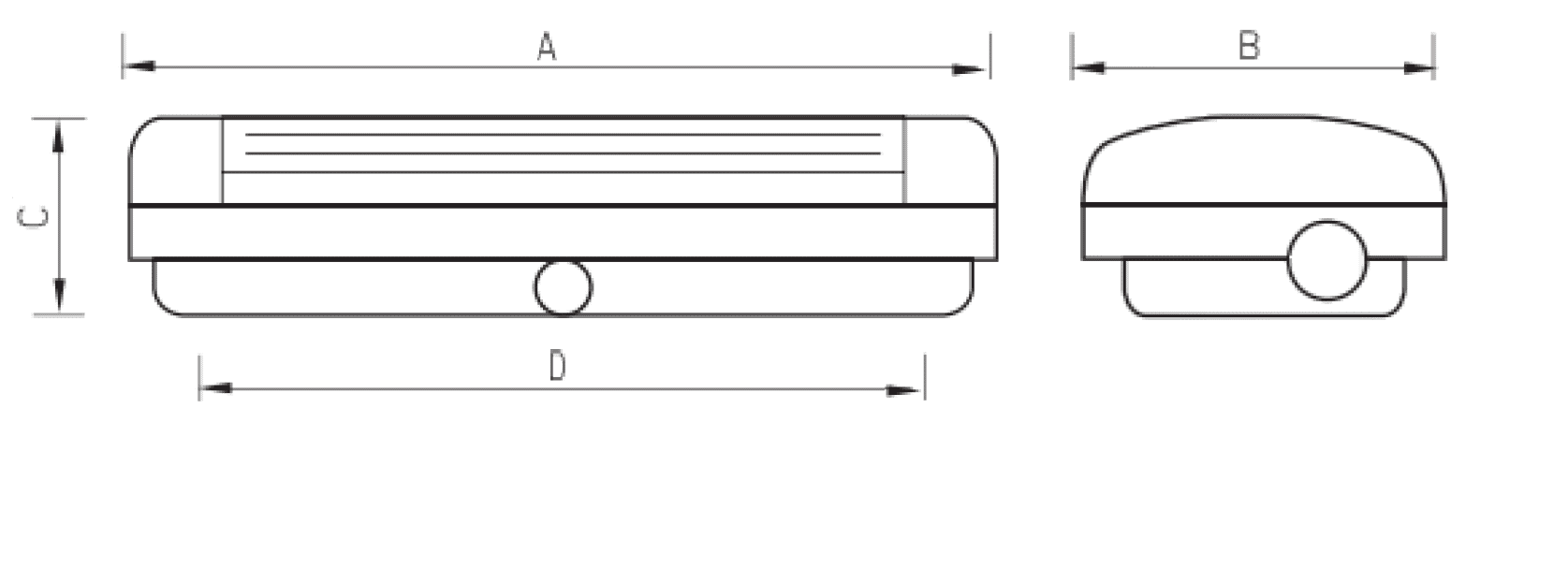

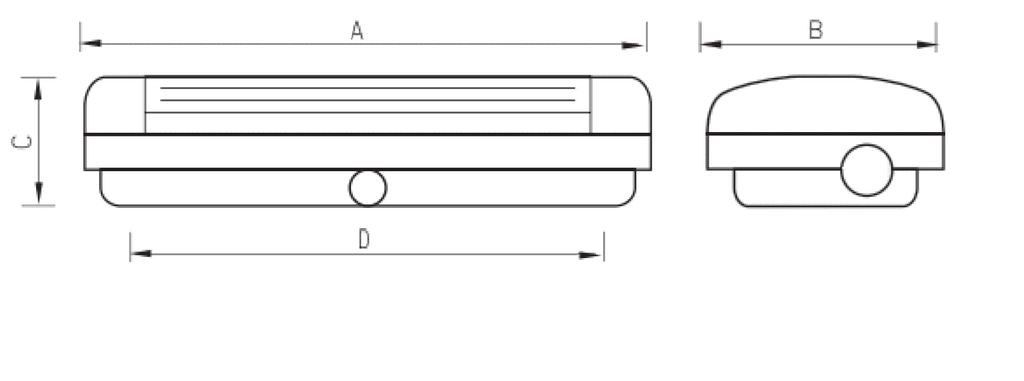

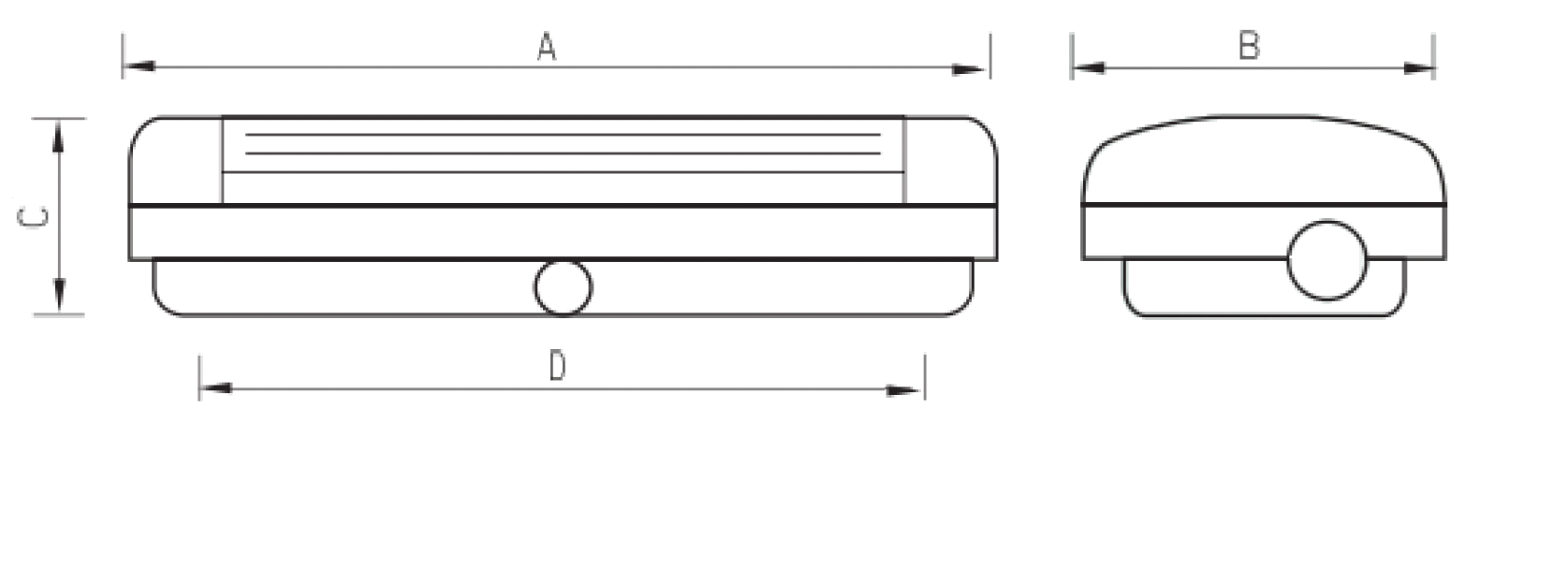

length, mm
335 mm
width, mm
125 mm
height, mm
65 mm
housing color
Белый
climatic performance
УХЛ2
shock resistance (IK)
IK02/0,2 Дж
ballast
Драйвер
common
ETIM class
Светильник аварийный
warranty
36 month
temperature range
от -30 до +40 C
energy efficiency class
A
service life, hour
50 000 h
code
4501007120
illuminating
light flow
200 lm
average luminance
300
light source type
LED
energy efficiency
50 lm/W
emission color
Белый
emergency
type of operation / type of operation of the emergency luminaire
централизованного электропитания
battery / battery Ni-Cd
Нет аккумулятора
model files
model files
CAD/BIM files
CAD model 3DS52.7 kB
model 3dMax216 kB

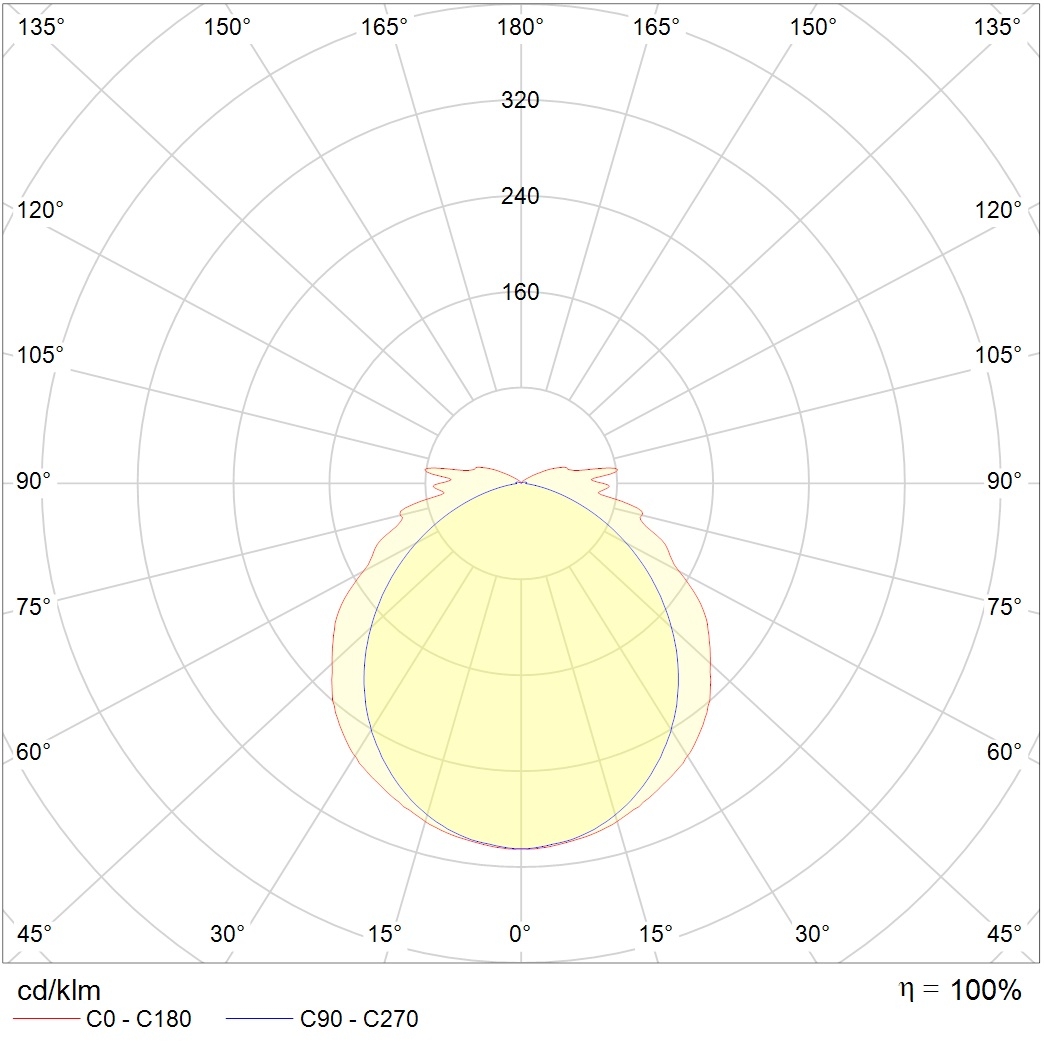

photometric files
ies134.1 kB
jpg153.5 kB
ldt112.3 kB
documents
passport394.9 kB
сертификаты
Voluntary certificate316.5 kB
Certificate of conformity TRTS 020/2011, TRTS 004/2011292.7 kB
Declaration of Conformity EAEU TR 037/2016291.1 kB
Fire Safety Certificate974.2 kB
CAD/BIM files
CAD model 3DS52.7 kB
model 3dMax216 kB
photometric files
ies134.1 kB
jpg153.5 kB
ldt112.3 kB
documents
passport394.9 kB
сертификаты
Voluntary certificate316.5 kB
Certificate of conformity TRTS 020/2011, TRTS 004/2011292.7 kB
Declaration of Conformity EAEU TR 037/2016291.1 kB
Fire Safety Certificate974.2 kB
accessories
Grid URAN/LYRA0.66kgarticle: 2501003130
PEU 091 Left-hand door indicator (130х260) URAN/ANTARES0.0092kgarticle: 2502000260

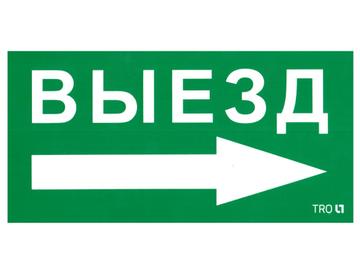

PEU 003 Pointer arrow (130х260) URAN/ANTARES0.0092kgarticle: 2502000240
