SIRAH 6523-3 LED

SIRAH 6523-3 LED
3 Wluminaire power
200 average luminance
code4502003600
operating time in emergency mode, hours3 h
battery / battery Ni-CdRB 6,0 V 0,8 A*h Ni-Cd
type of operation / type of operation of the emergency luminaireпостоянного действия
options
свернуть все
constructionalelectricalcommonilluminatingemergency
ingress protection (IP)
IP65
material
Поликарбонат
housing color
Белый
length, mm
271 mm
width, mm
146 mm
height, mm
75 mm
weight
0.904 kg
climatic performance
УХЛ4
shock resistance (IK)
IK02/0,2 Дж
ballast
Без драйвера
constructional
ingress protection (IP)
IP65
material
Поликарбонат
housing color
Белый
length, mm
271 mm
width, mm
146 mm
height, mm
75 mm
weight
0.904 kg
climatic performance
УХЛ4
shock resistance (IK)
IK02/0,2 Дж
ballast
Без драйвера
electrical
electric shock protection
II
starting current
15 A
rated supply voltage, alternating current
220 V
luminaire power
3 W
supply voltage
230 V
common
ETIM class
Светильник аварийный
warranty
36 month
temperature range
от 0 до +40 C
service life, hour
24 000 h
code
4502003600
energy efficiency class
B
illuminating
light flow
100 lm
average luminance
200
flickering factor
<5%
light source type
LED
energy efficiency
33 lm/W
emission color
Белый
emergency
type of operation / type of operation of the emergency luminaire
постоянного действия
battery / battery Ni-Cd
RB 6,0 V 0,8 A*h Ni-Cd
operating time in emergency mode, hours
3 h
model files
model files

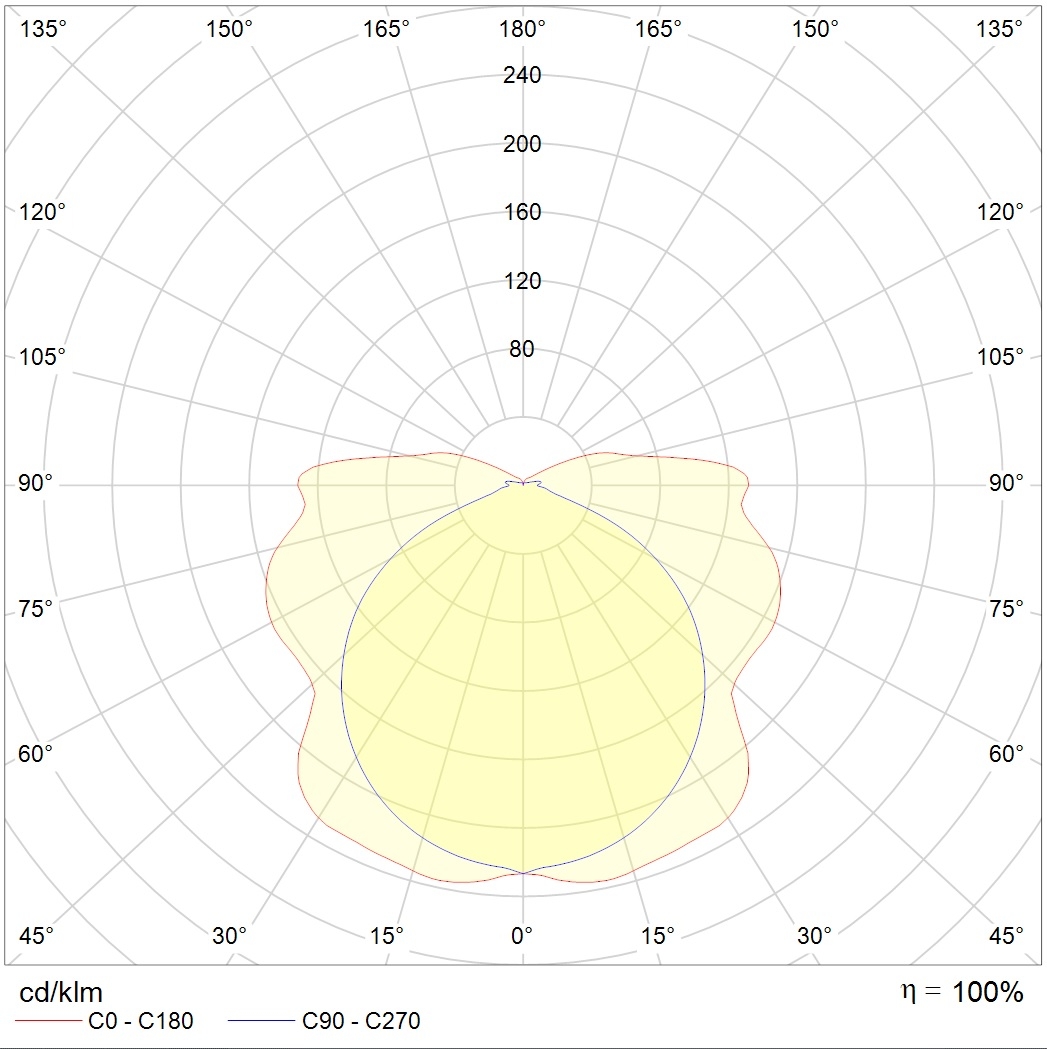

photometric files
ies54.6 kB
jpg170.9 kB
ldt47.8 kB
documents
passport312.7 kB
сертификаты
Voluntary certificate316.5 kB
Certificate of conformity TRTS 020/2011, TRTS 004/2011292.7 kB
Declaration of Conformity EAEU TR 037/2016291.1 kB
Fire Safety Certificate974.2 kB
photometric files
ies54.6 kB
jpg170.9 kB
ldt47.8 kB
documents
passport312.7 kB
сертификаты
Voluntary certificate316.5 kB
Certificate of conformity TRTS 020/2011, TRTS 004/2011292.7 kB
Declaration of Conformity EAEU TR 037/2016291.1 kB
Fire Safety Certificate974.2 kB
accessories
PEU 011 Exit (135х260) SIRAH IP650.0092kgarticle: 2502002680
PPB 0003 Fire extinguisher (135х260) SIRAH IP650.0092kgarticle: 2502002580
PEU 001 Exit to the left (135х260) SIRAH IP650.0092kgarticle: 2502002590
