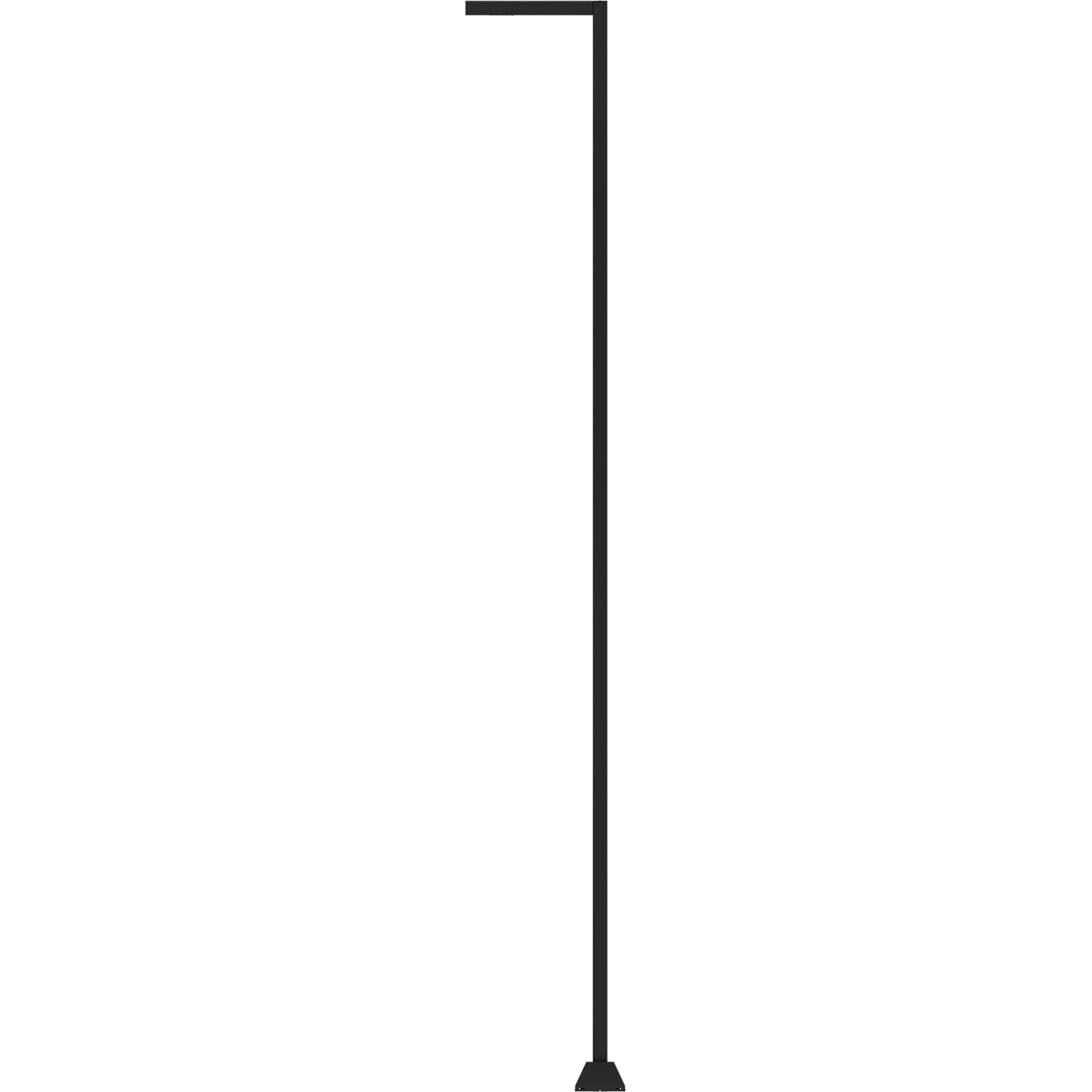

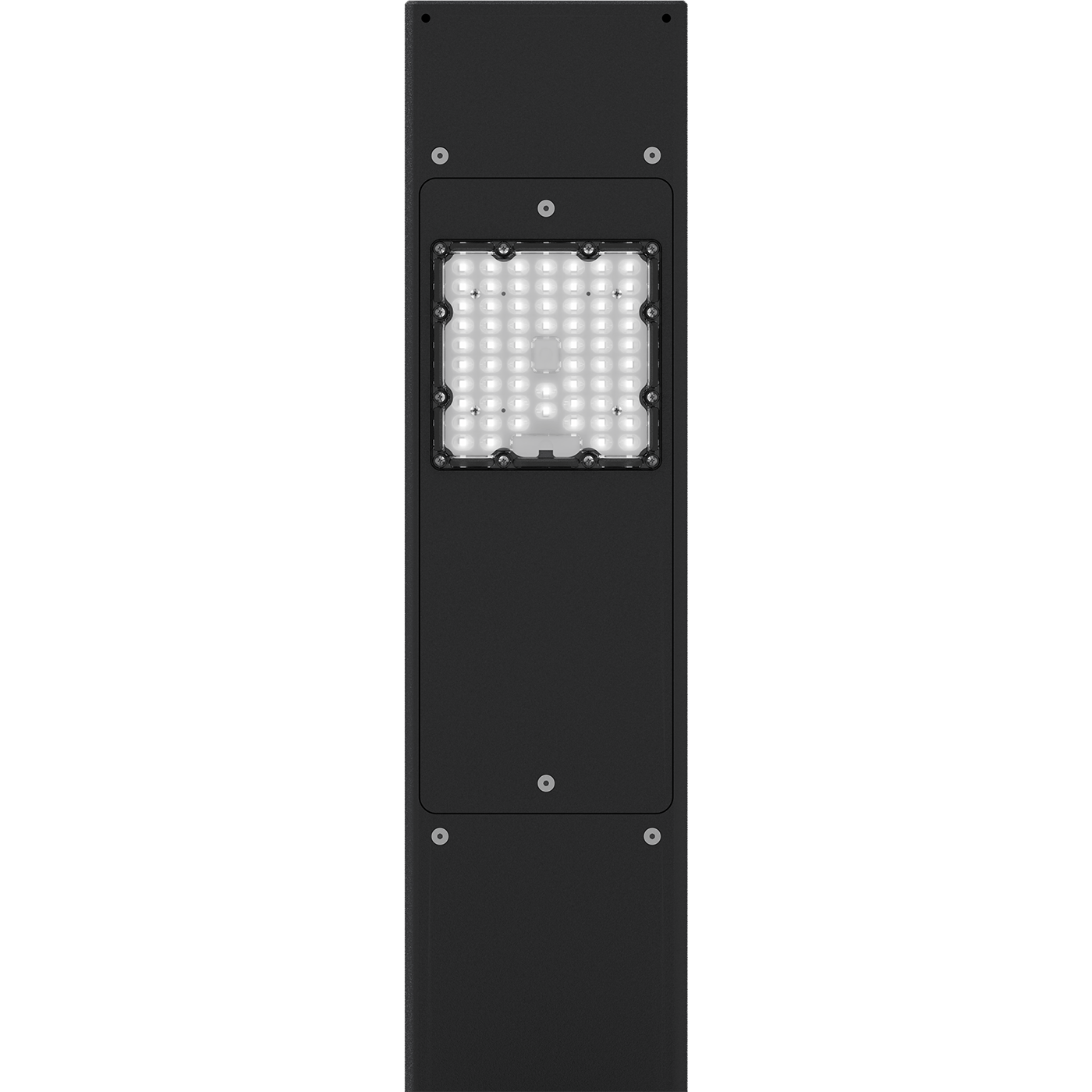

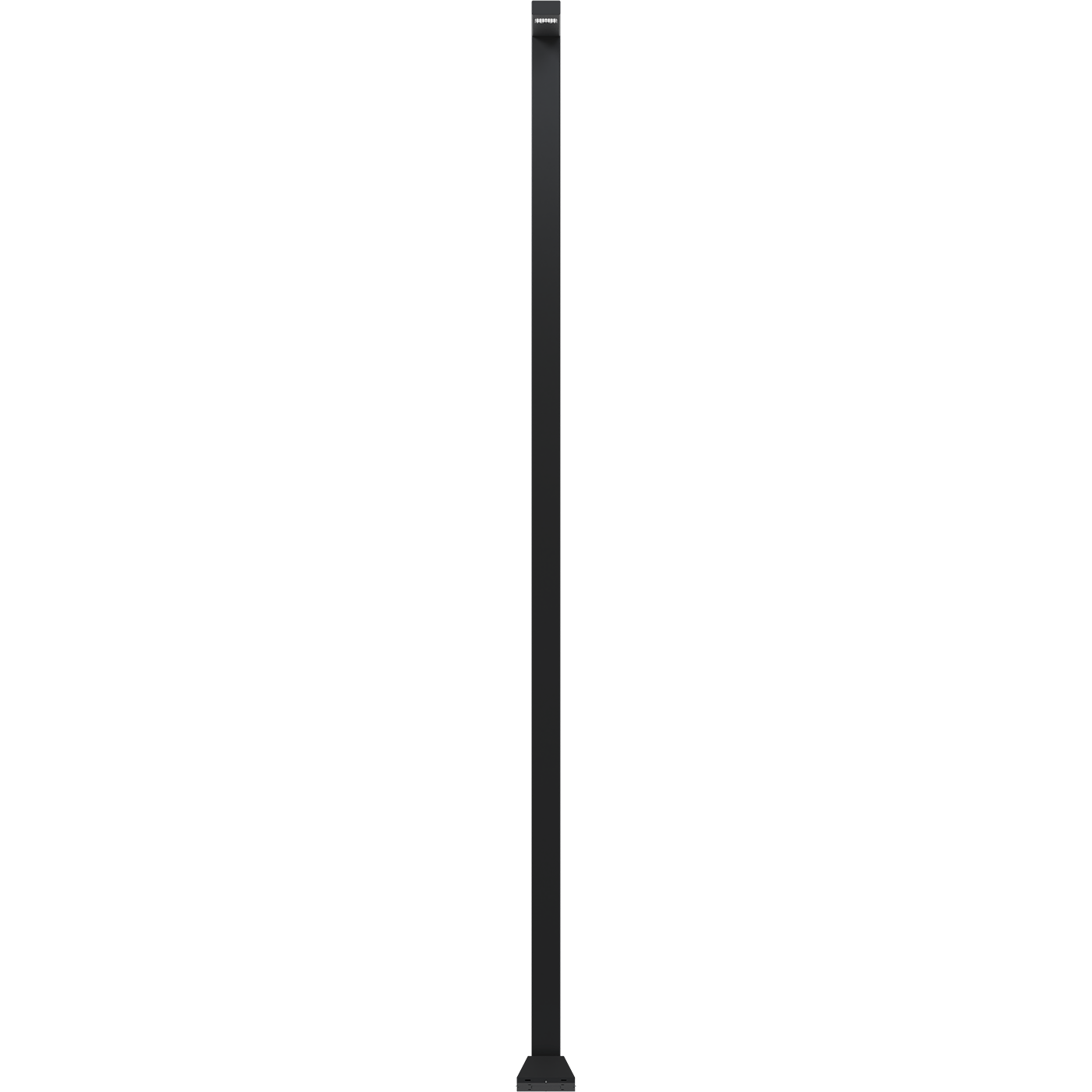

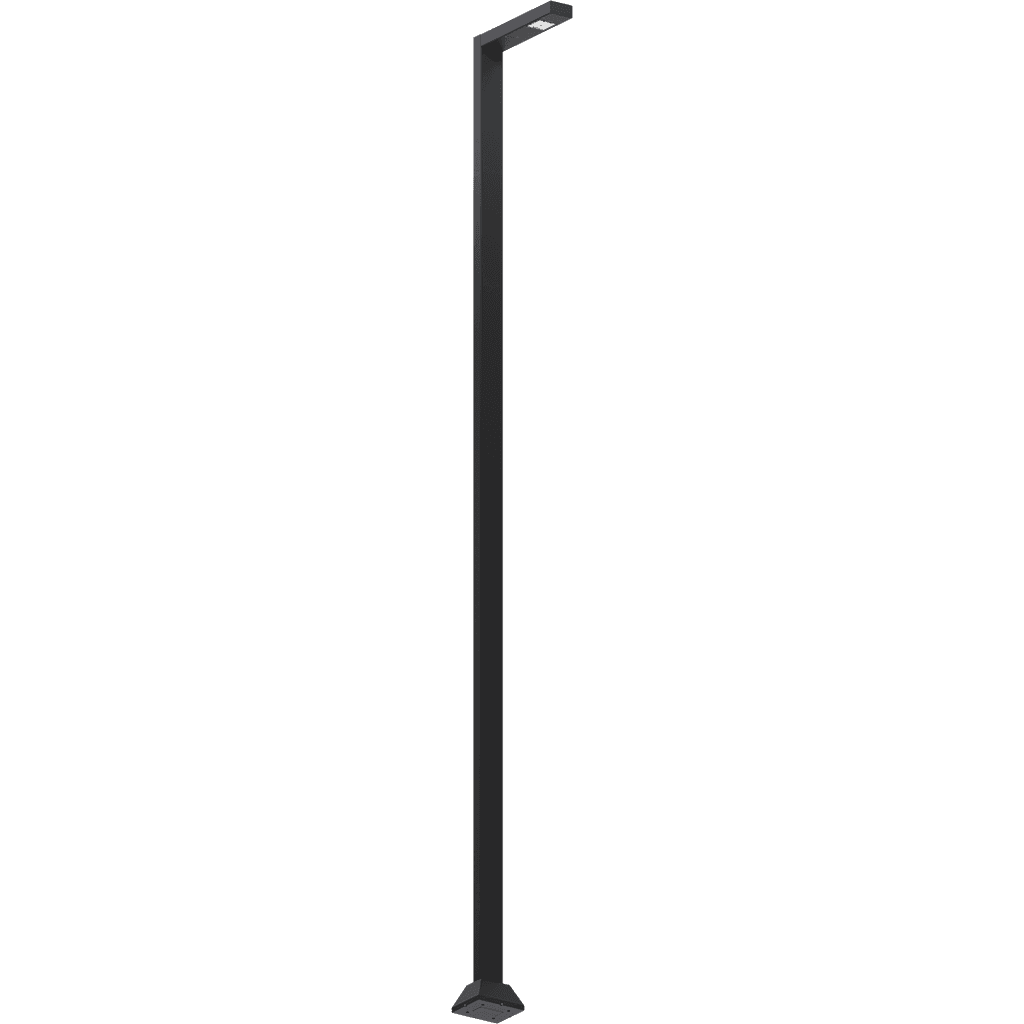

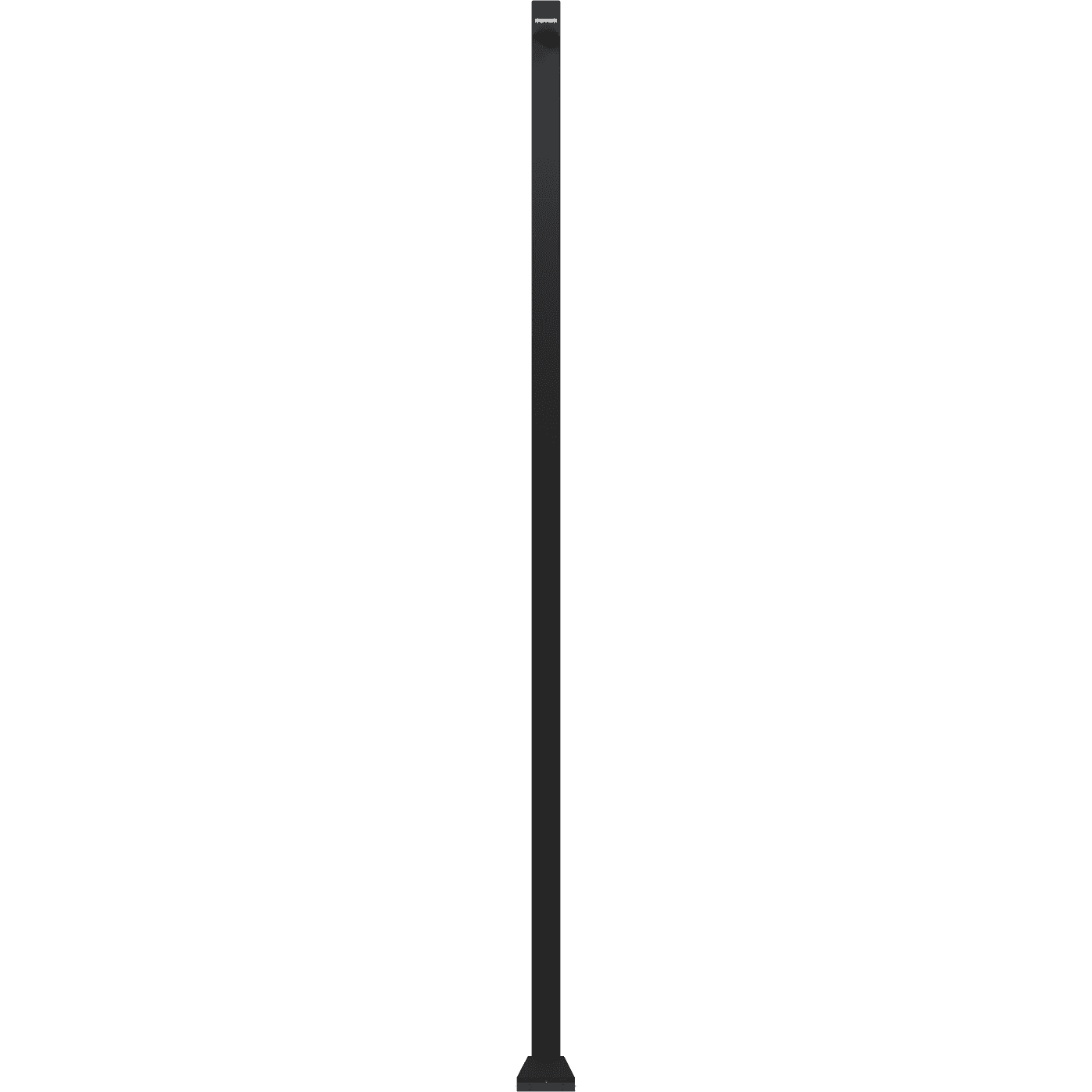

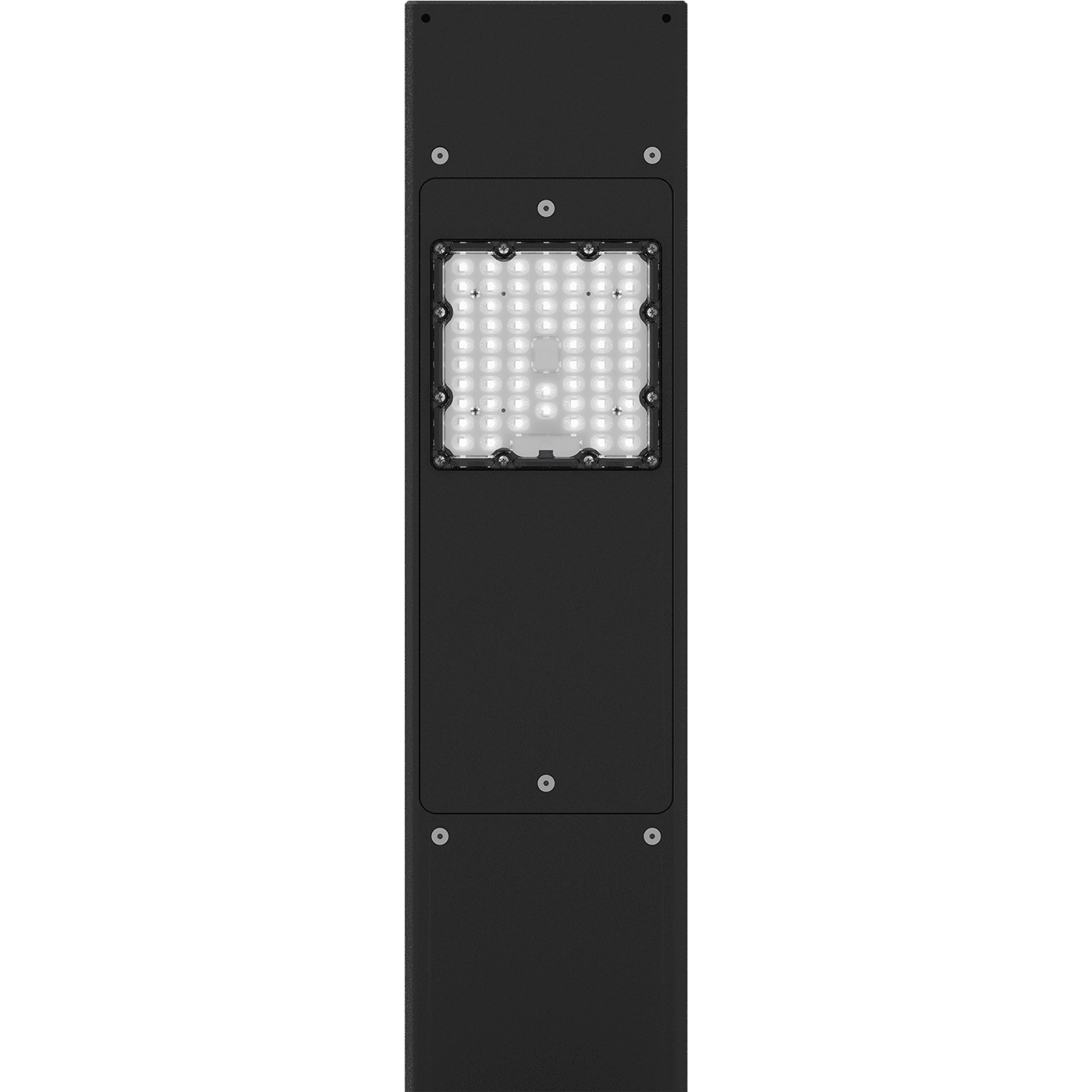

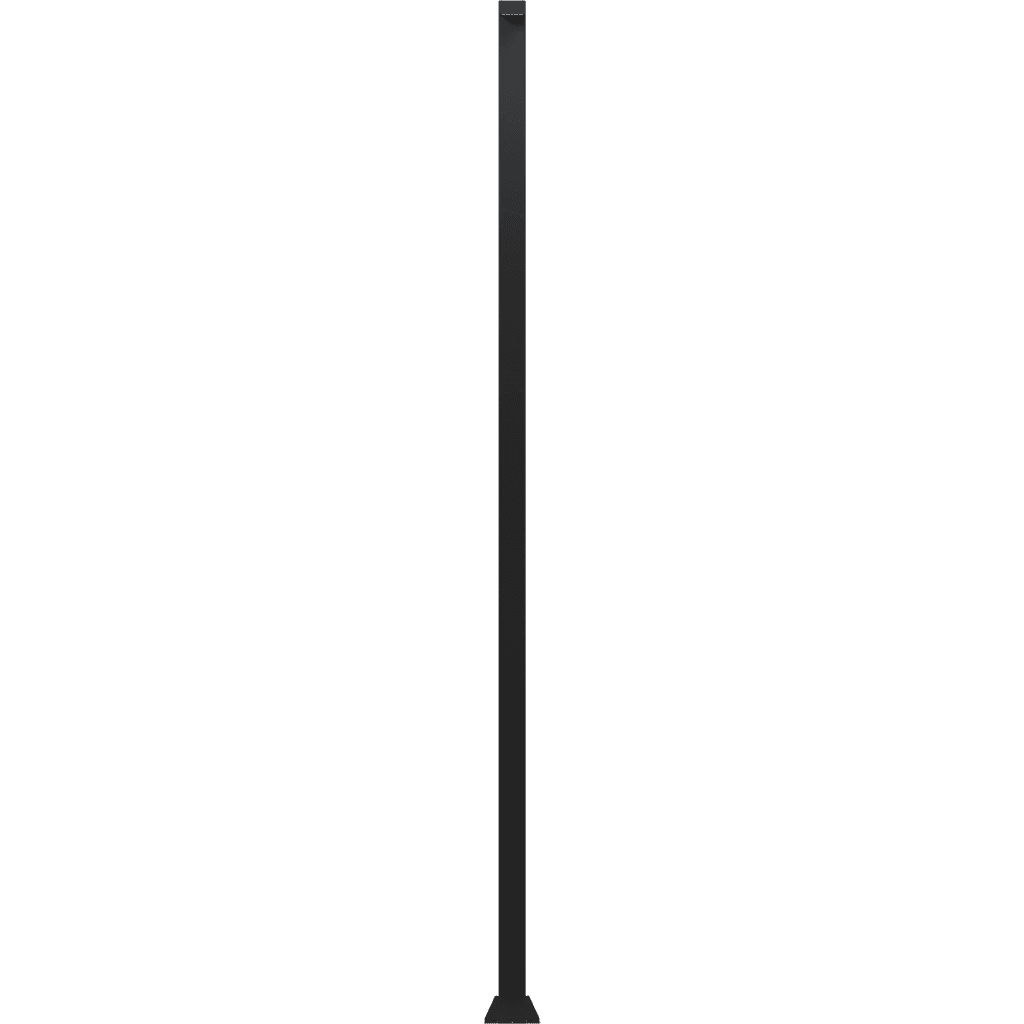

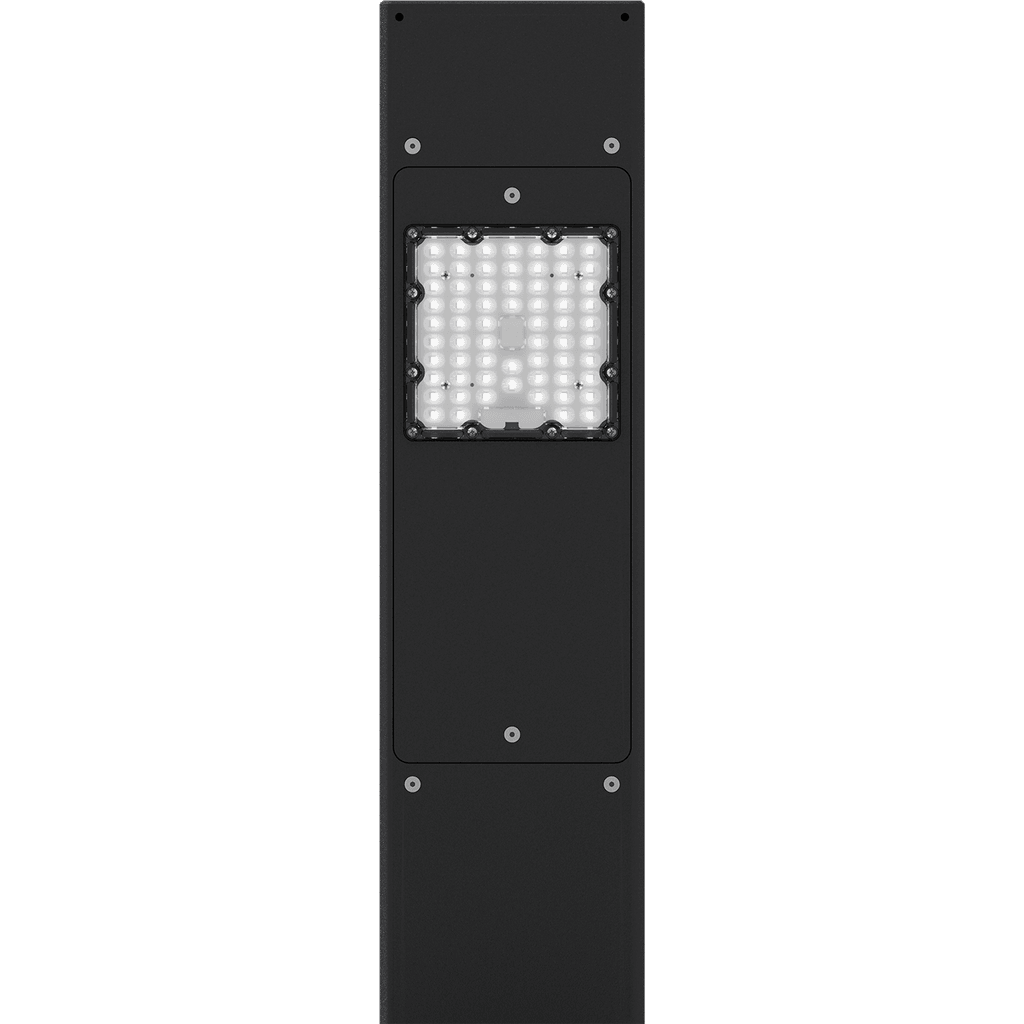

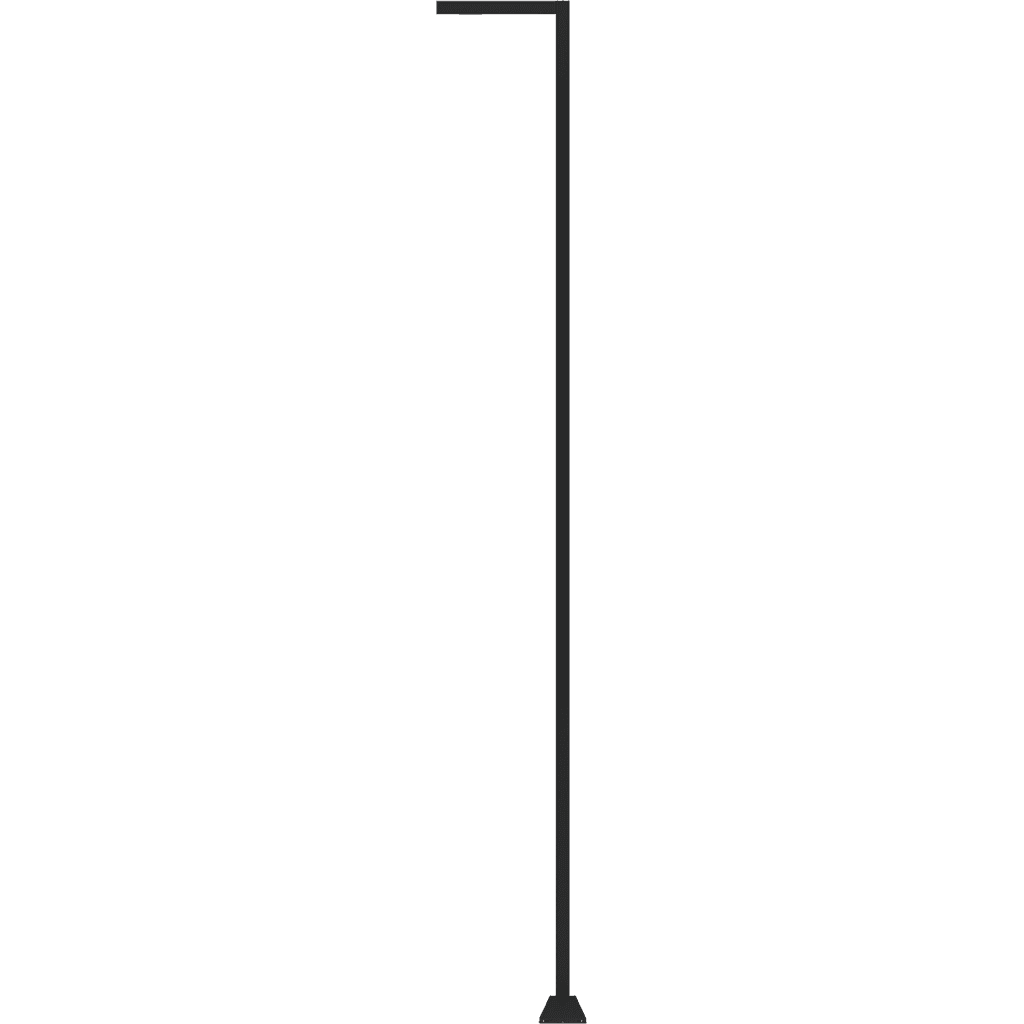

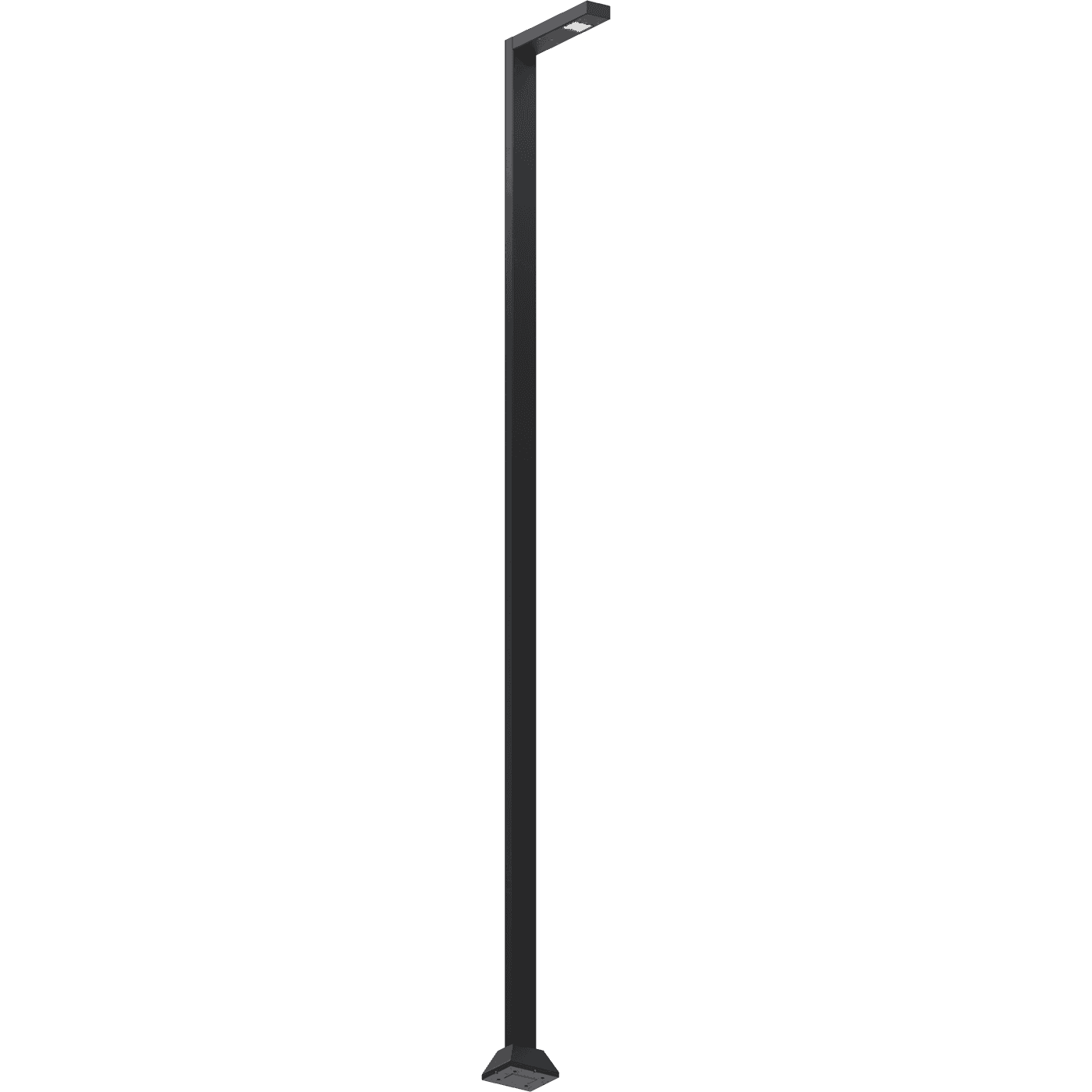

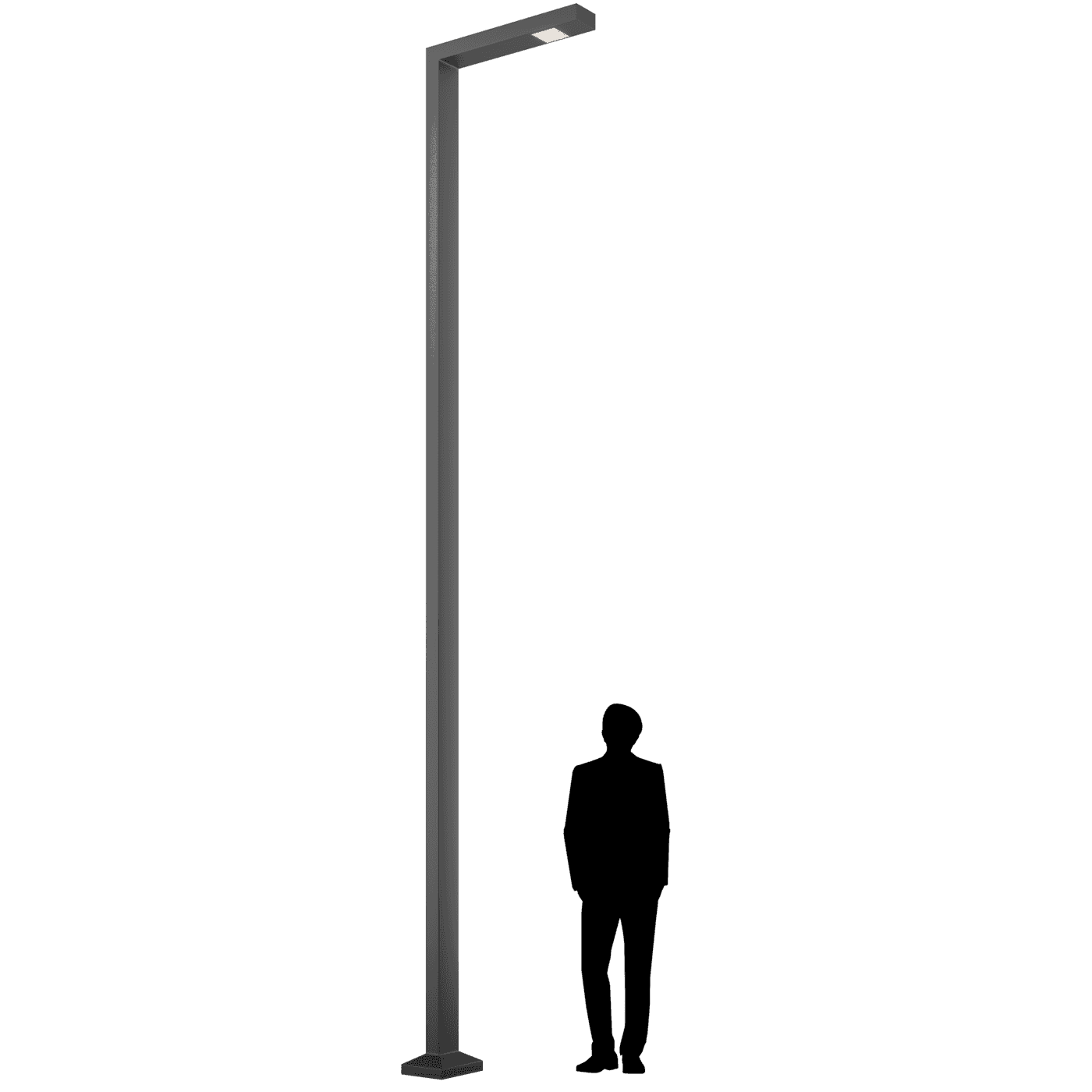

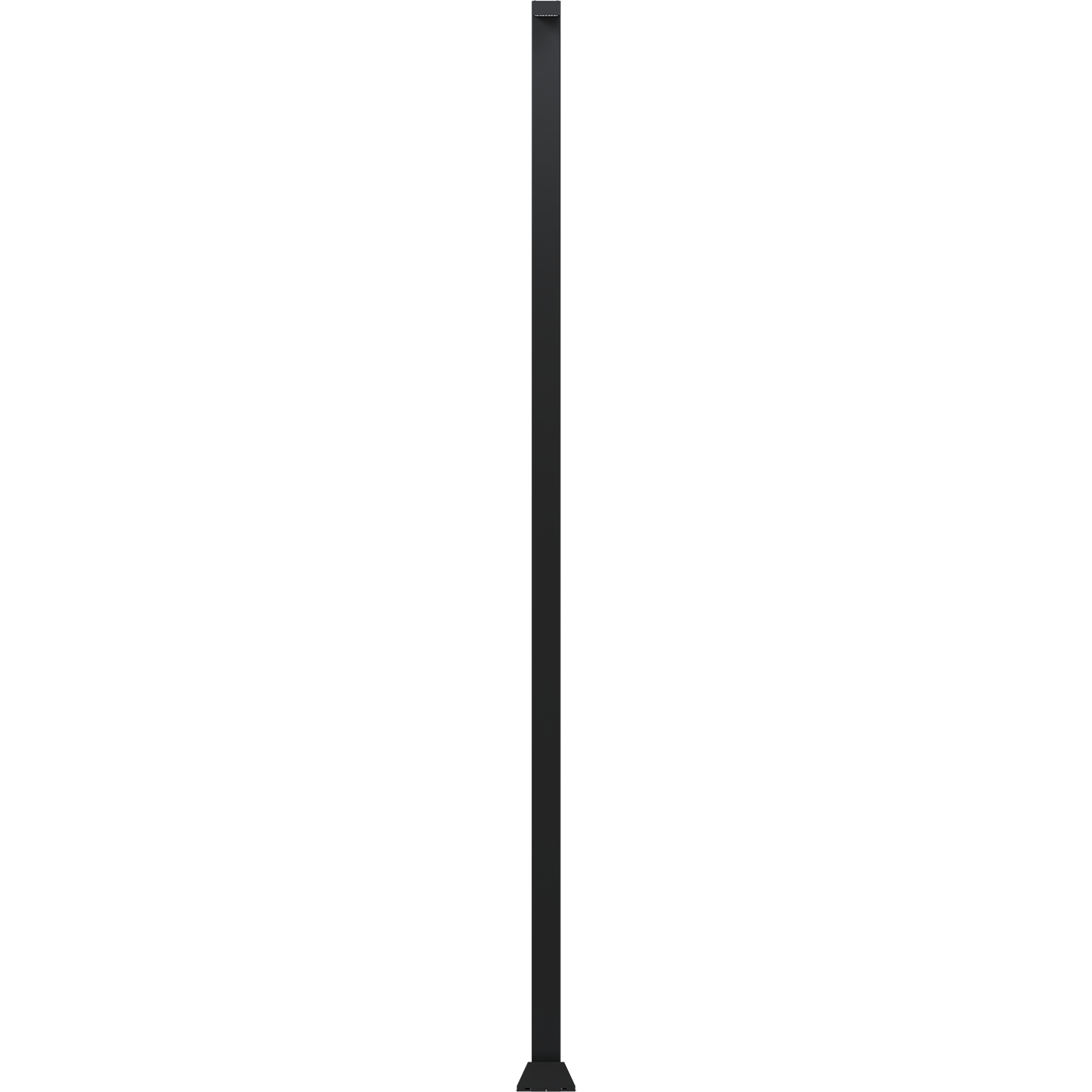

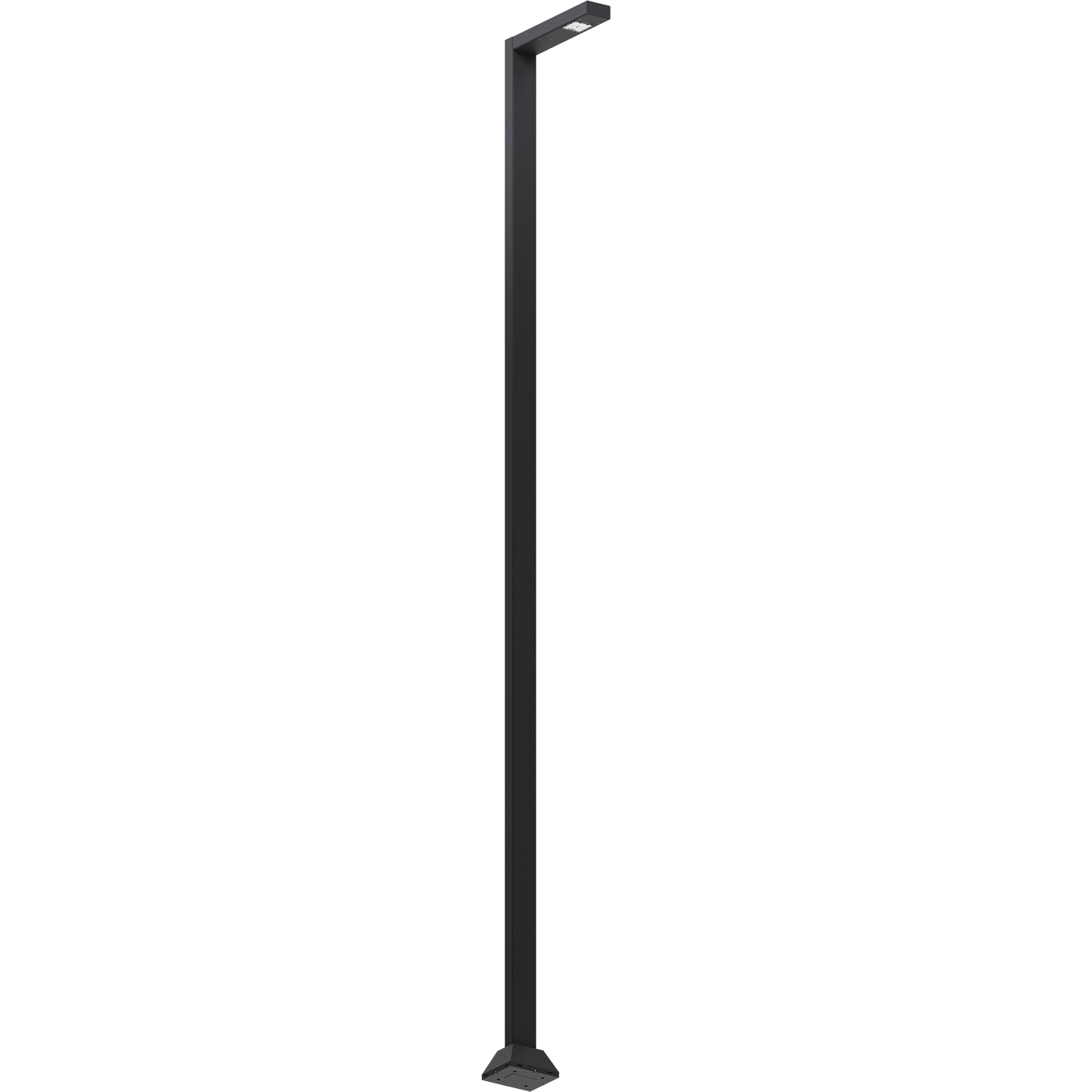

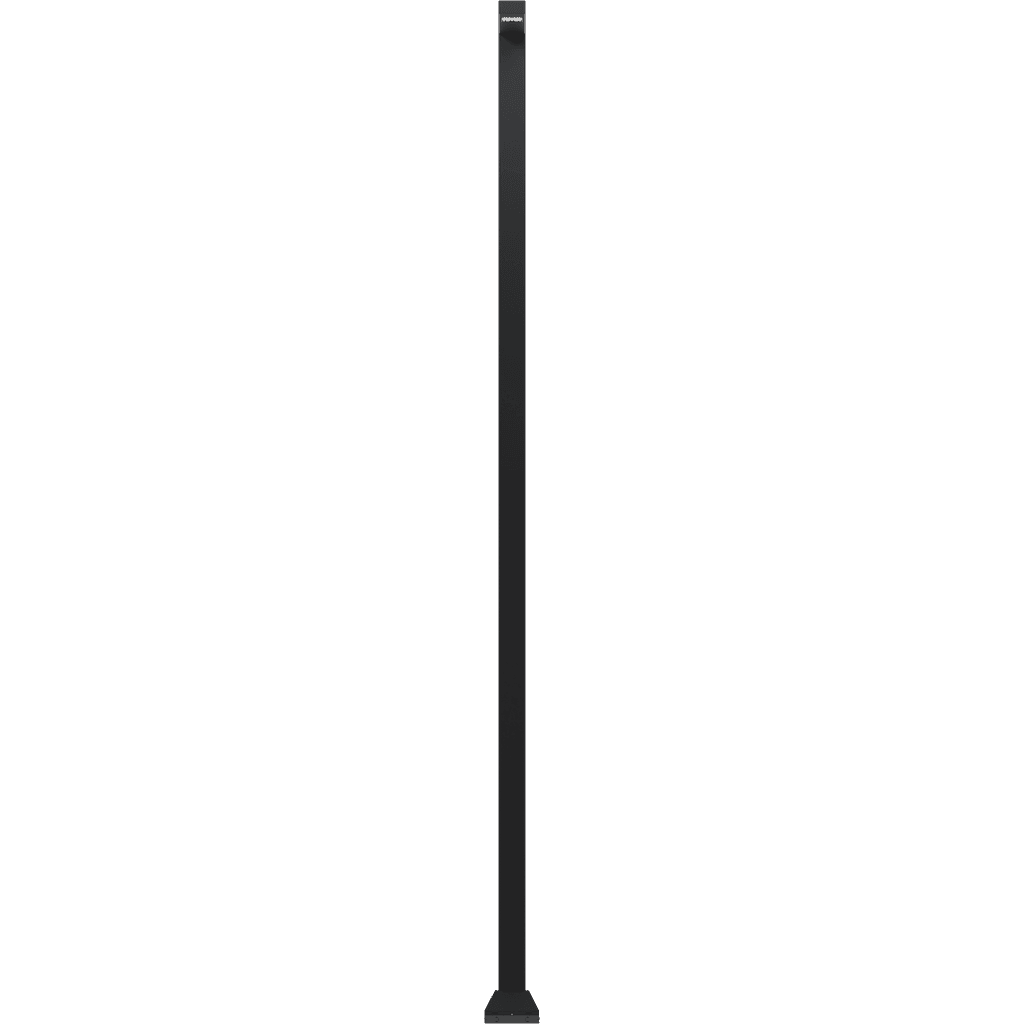

POKER LED 55W DW 740 RAL9005 L-SHAPE 6M (в комплекте ЗДФ)
_l-shape_180-0-180.png&w=1920&q=100)
_l-shape_0-325-110.png&w=1920&q=100)
_l-shape_0-0-90.png&w=1920&q=100)
_l-shape_90-0-90.png&w=1920&q=100)
_l-shape_0-90-100.png&w=1920&q=100)
_l-shape_180-0-180.png&w=1024&q=75)
_l-shape_0-325-110.png&w=1024&q=75)
_l-shape_0-0-90.png&w=1024&q=75)
_l-shape_90-0-90.png&w=1024&q=75)
_l-shape_0-90-100.png&w=1024&q=75)
POKER LED 55W DW 740 RAL9005 L-SHAPE 6M (в комплекте ЗДФ)
56 Wluminaire power
7300 lmlight flow
130 lm/Wenergy efficiency
code1739000050
beam angleD150/80
color temperature4000
weight160 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
130 lm/Wcolor rendition index (CRI)
>70light flow
7300 lmflickering factor
<5%beam angle
D150/80color temperature
4000light source type
LEDemission color
Белыйilluminating
energy efficiency
130 lm/W
color rendition index (CRI)
>70
light flow
7300 lm
flickering factor
<5%
beam angle
D150/80
color temperature
4000
light source type
LED
emission color
Белый
electrical
luminaire power
56 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable, sq. mm
2.5
power factor
> 0,95
constructional
climatic performance
УХЛ1
width, mm
160 mm
height, mm
84 mm
housing color
Черный
lamp socket
LED
number of lamps
1
ballast
Драйвер
length, mm
880 mm
material
Сталь
ingress protection (IP)
IP66
shock resistance (IK)
IK10/20 Дж
weight
160 kg
common
code
1739000050
warranty
36 month
energy efficiency class
A+
temperature range
от -40 до +60 C
service life, hour
50 000 h
ETIM class
Светильник для освещения улиц и площадей
model files
model files
photometric files
сертификаты
photometric files
ies107.1 kB
jpg86.4 kB
ldt66.2 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
