FLORA LED 300 D120 Universal 380V

model is discontinued
model is discontinued
FLORA LED 300 D120 Universal 380V
add to favorites
300 Wluminaire power
46600 lmlight flow
155 lm/Wenergy efficiency
code1338000110
color temperature3000 K
beam angleD120
  1. main page
  2. catalog
  3. by product type
  4. special application
  5. greenhouse lighting
  6. FLORA LED
  7. FLORA LED 300 D120 Universal 380V
options
свернуть все
illuminatingelectricalconstructionalcommon
light flow
46600 lm
flickering factor
<1%
energy efficiency
155 lm/W
beam angle
D120
color temperature
3000 K
light source type
LED
emission color
Белый
illuminating
light flow
46600 lm
flickering factor
<1%
energy efficiency
155 lm/W
beam angle
D120
color temperature
3000 K
light source type
LED
emission color
Белый
electrical
electric shock protection
I
luminaire power
300 W
power factor
> 0,98
maximum cross-section of the connected cable
2.5 mm2
starting current
56 A
supply voltage
380 V
starting current pulse time
360 µs
constructional
length
1600 mm
width
134 mm
height
80 mm
material
Алюминий
housing color
Металлик
climatic performance
УХЛ3.1
installation length
1600 mm
weight
3.6 kg
ingress protection (IP)
IP54
shock resistance (IK)
IK02/0,2 Дж
common
code
1338000110
ETIM class
Светильник для освещения высоких пролетов (хайбей)
energy efficiency class
A++
service life
50 000 h
temperature range
от -10 до +40 C
model files
model files

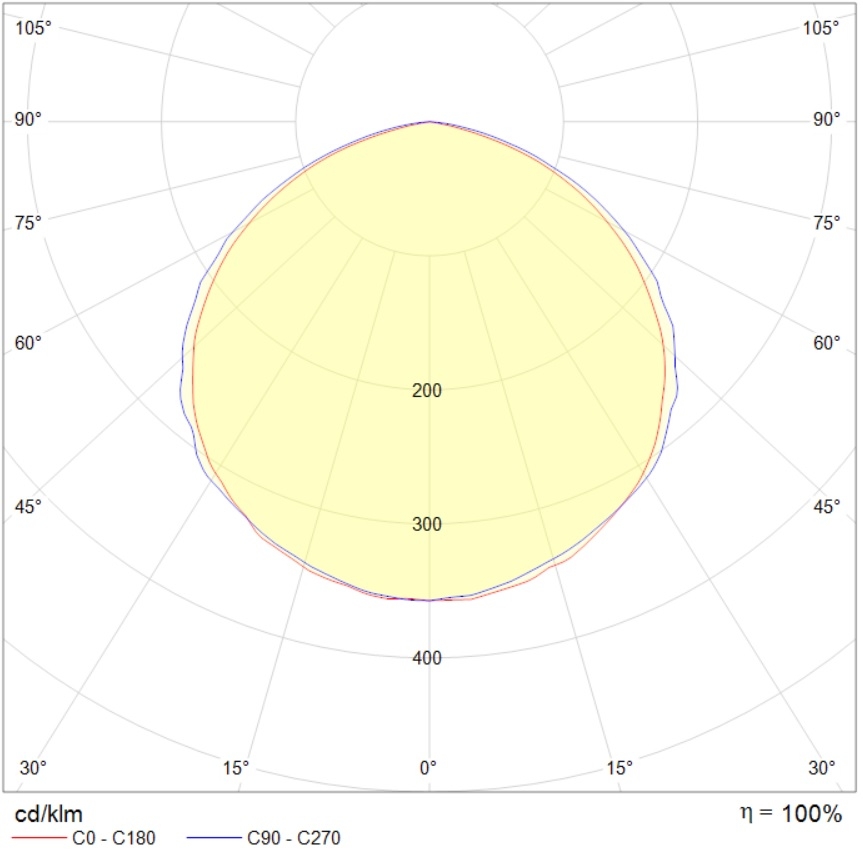

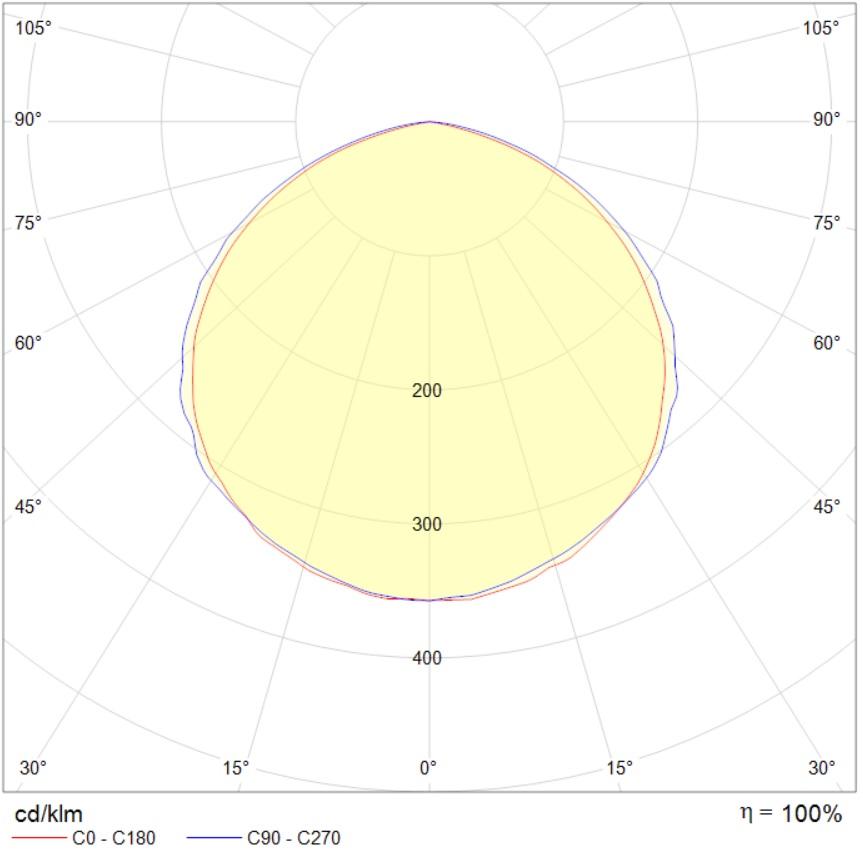

photometric files
ies107.1 kB
jpg79.8 kB
ldt66.3 kB
documents
passport551.1 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
photometric files
ies107.1 kB
jpg79.8 kB
ldt66.3 kB
documents
passport551.1 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
