FLORA LED 100 D120 Universal
220 Wluminaire power
28300 lmlight flow
129 lm/Wenergy efficiency
code1338000090
color temperature3000
beam angleD120
options
свернуть все
electricalcommonilluminatingconstructionalemergency
supply voltage, alternating current
100-240 Velectric shock protection
Iluminaire power
220 Wmaximum cross-section of the connected cable, sq. mm
2.5power factor
> 0,98supply voltage
230 Velectrical
supply voltage, alternating current
100-240 V
electric shock protection
I
luminaire power
220 W
maximum cross-section of the connected cable, sq. mm
2.5
power factor
> 0,98
supply voltage
230 V
common
warranty
60 month
code
1338000090
ETIM class
Светильник для освещения высоких пролетов (хайбей)
temperature range
от -10 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
flickering factor
<1%
energy efficiency
129 lm/W
beam angle
D120
color temperature
3000
light source type
LED
emission color
Белый
constructional
ingress protection (IP)
IP54
material
Алюминий
housing color
Металлик

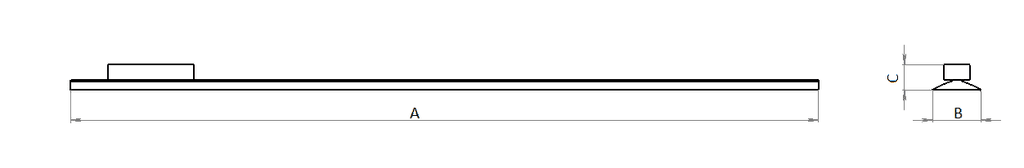

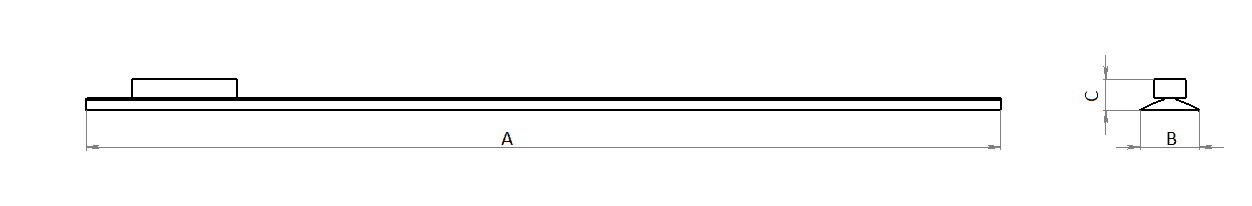

length, mm
1620 mm
width, mm
134 mm
height, mm
80 mm
weight
3.6 kg
climatic performance
УХЛ3.1
shock resistance (IK)
IK02/0,2 Дж
installation length, mm
925 mm
emergency
light flow
28300 lm
