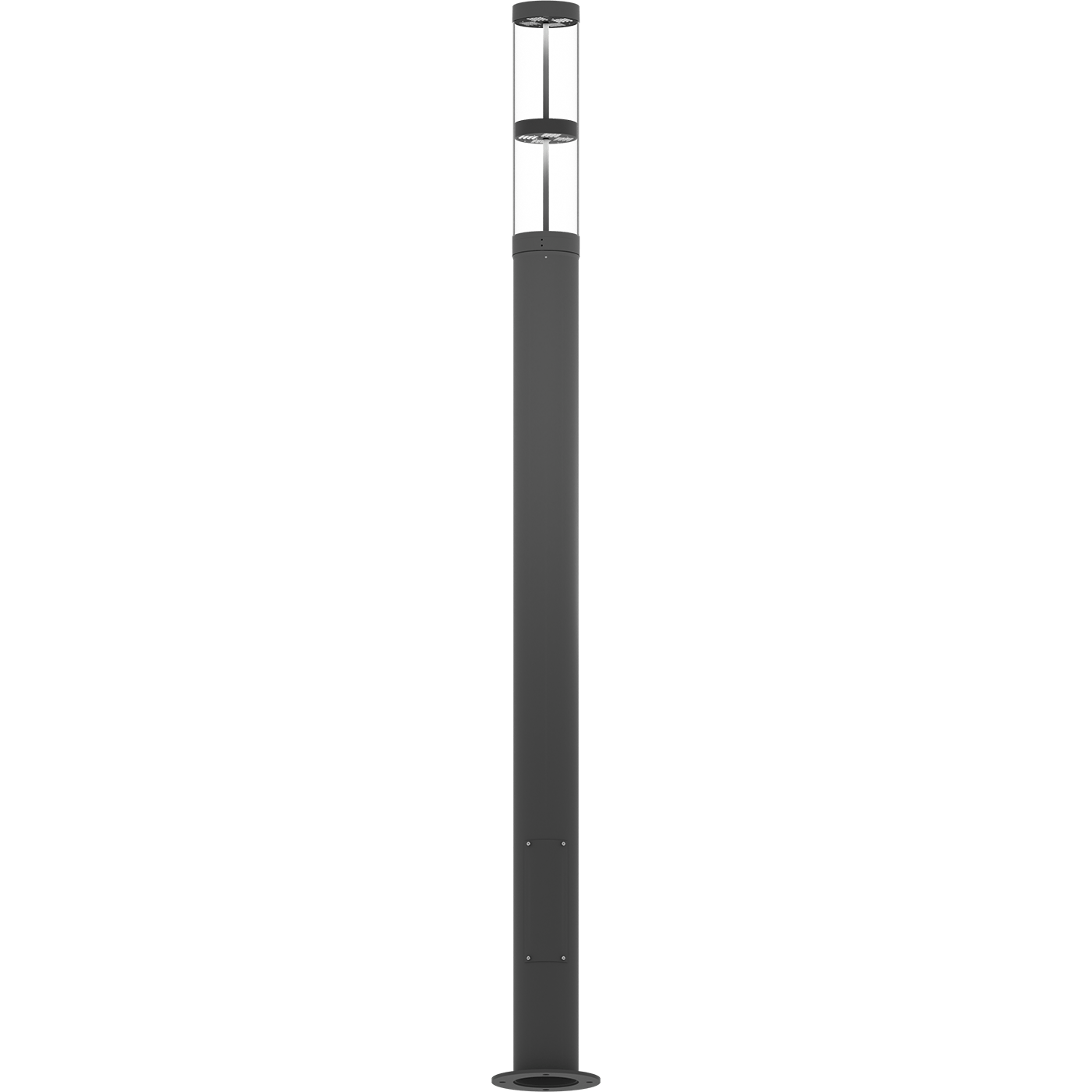

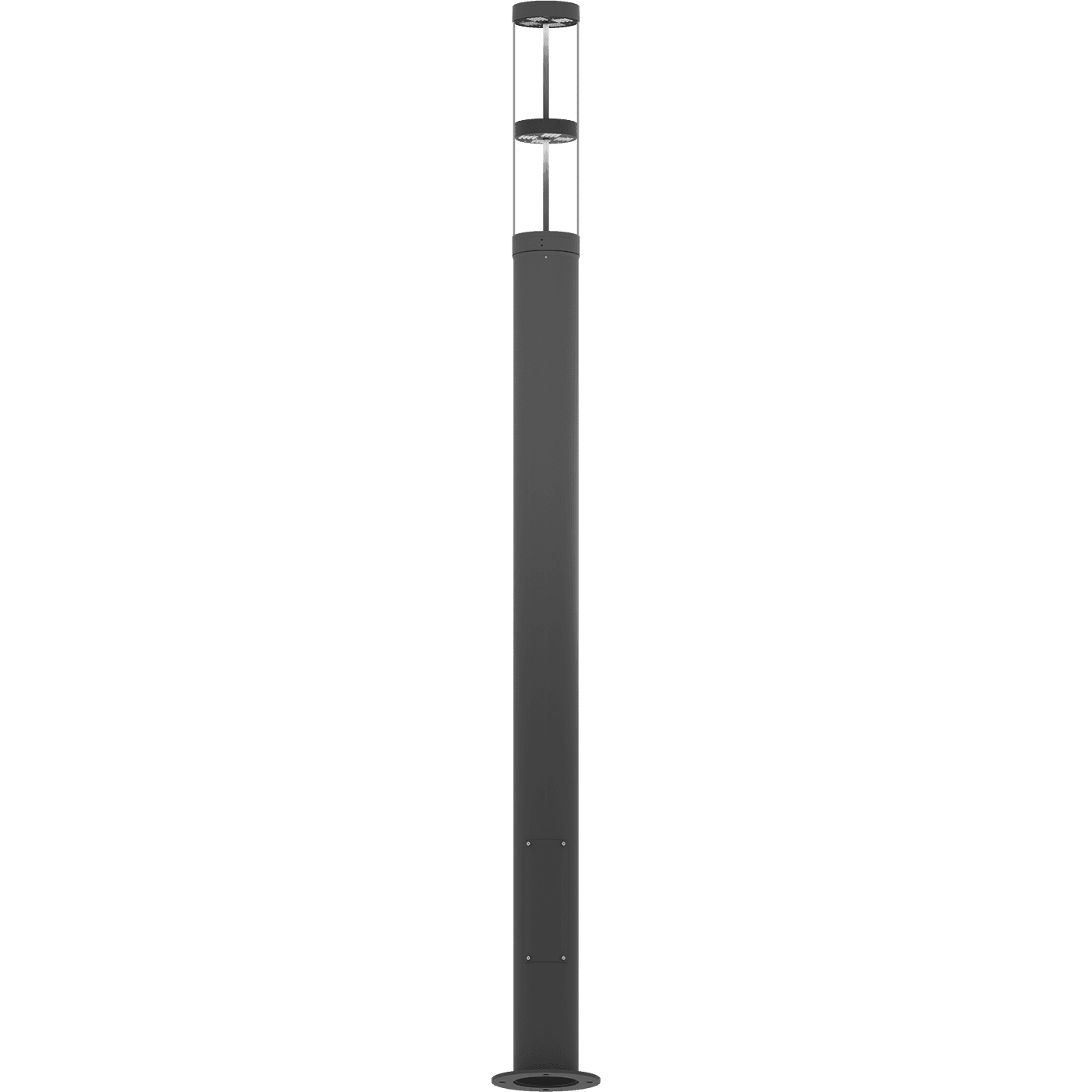

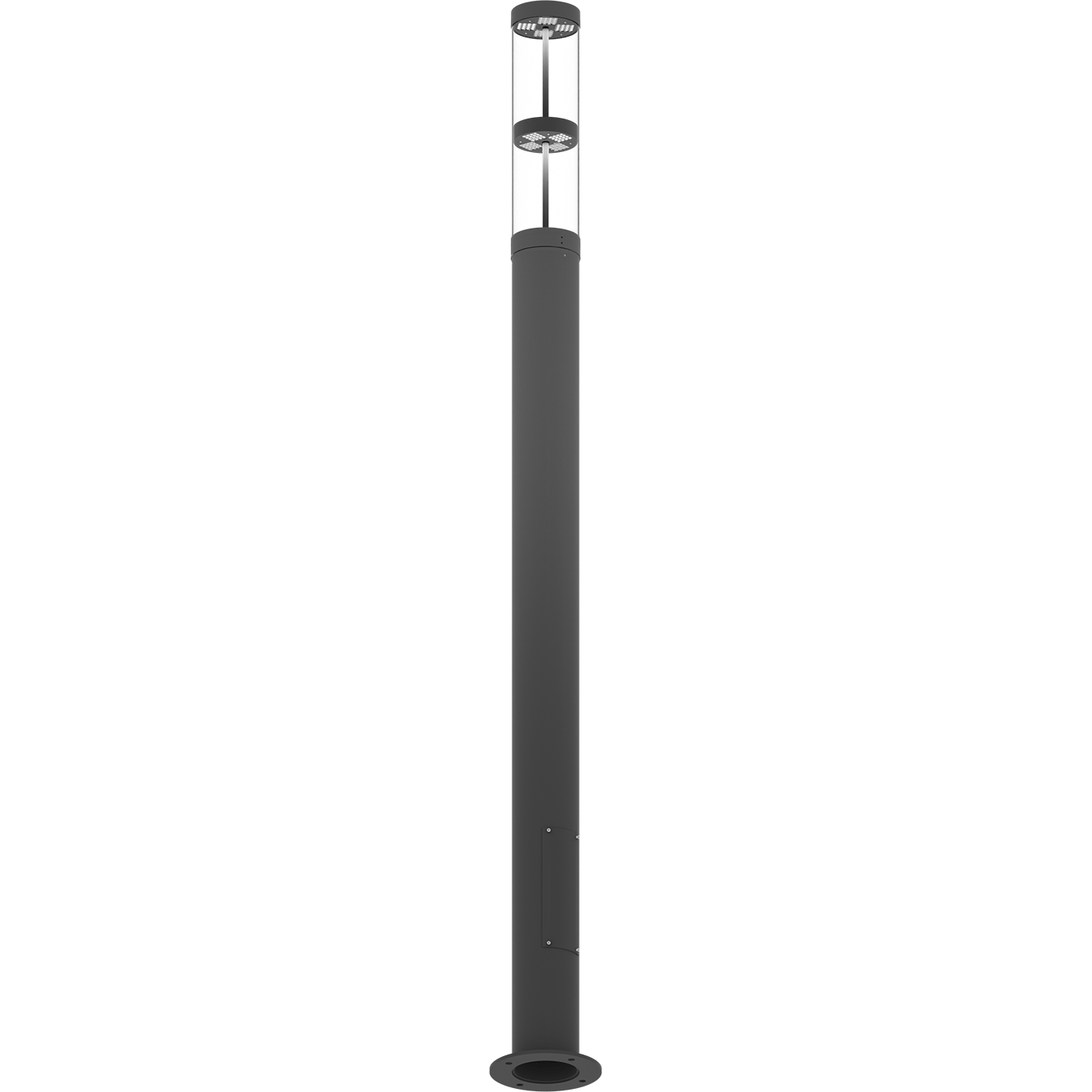

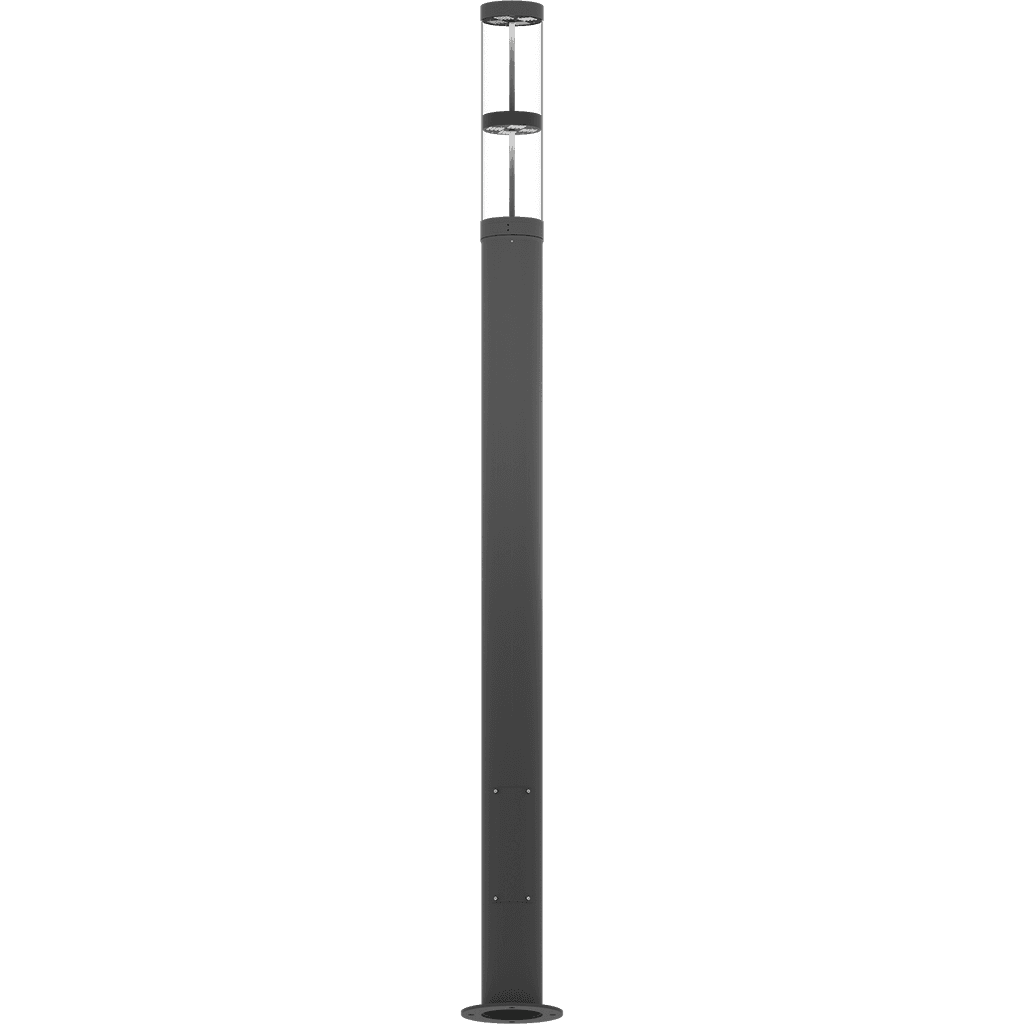

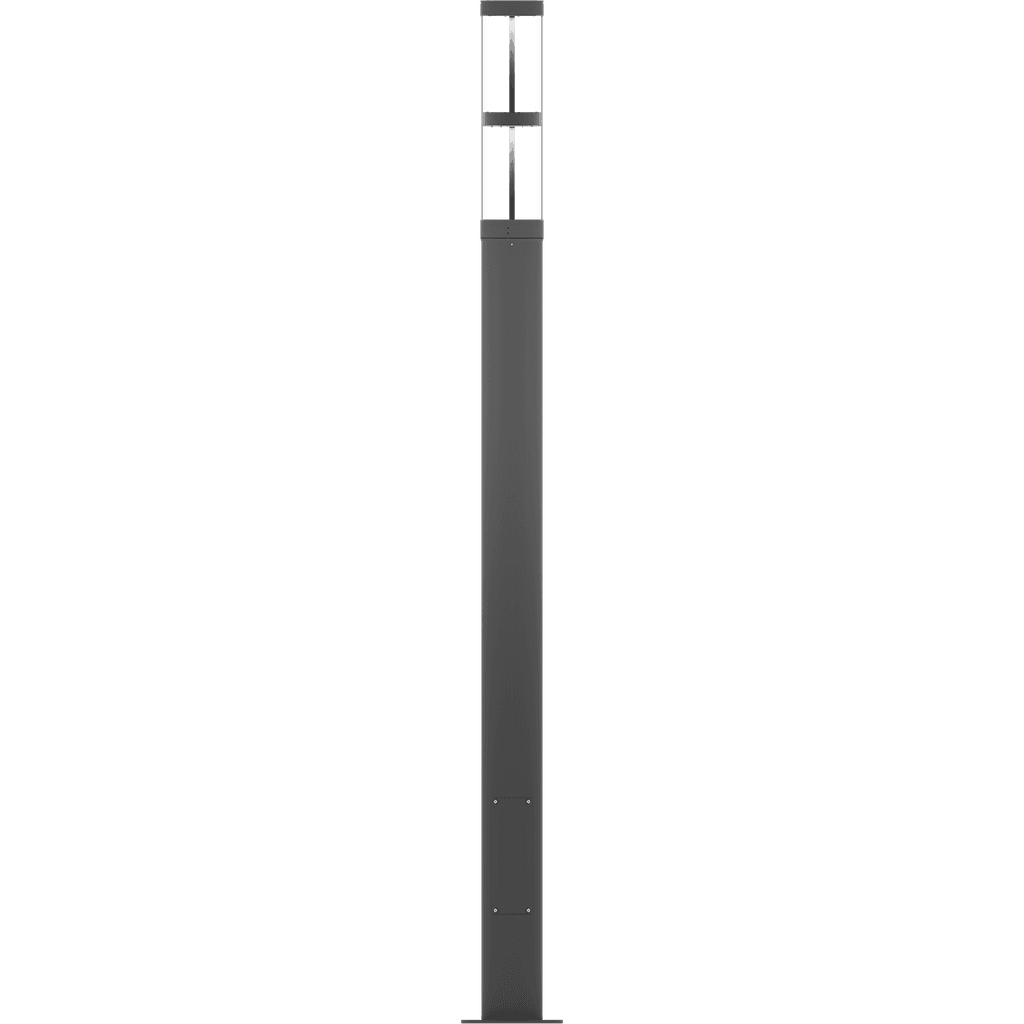

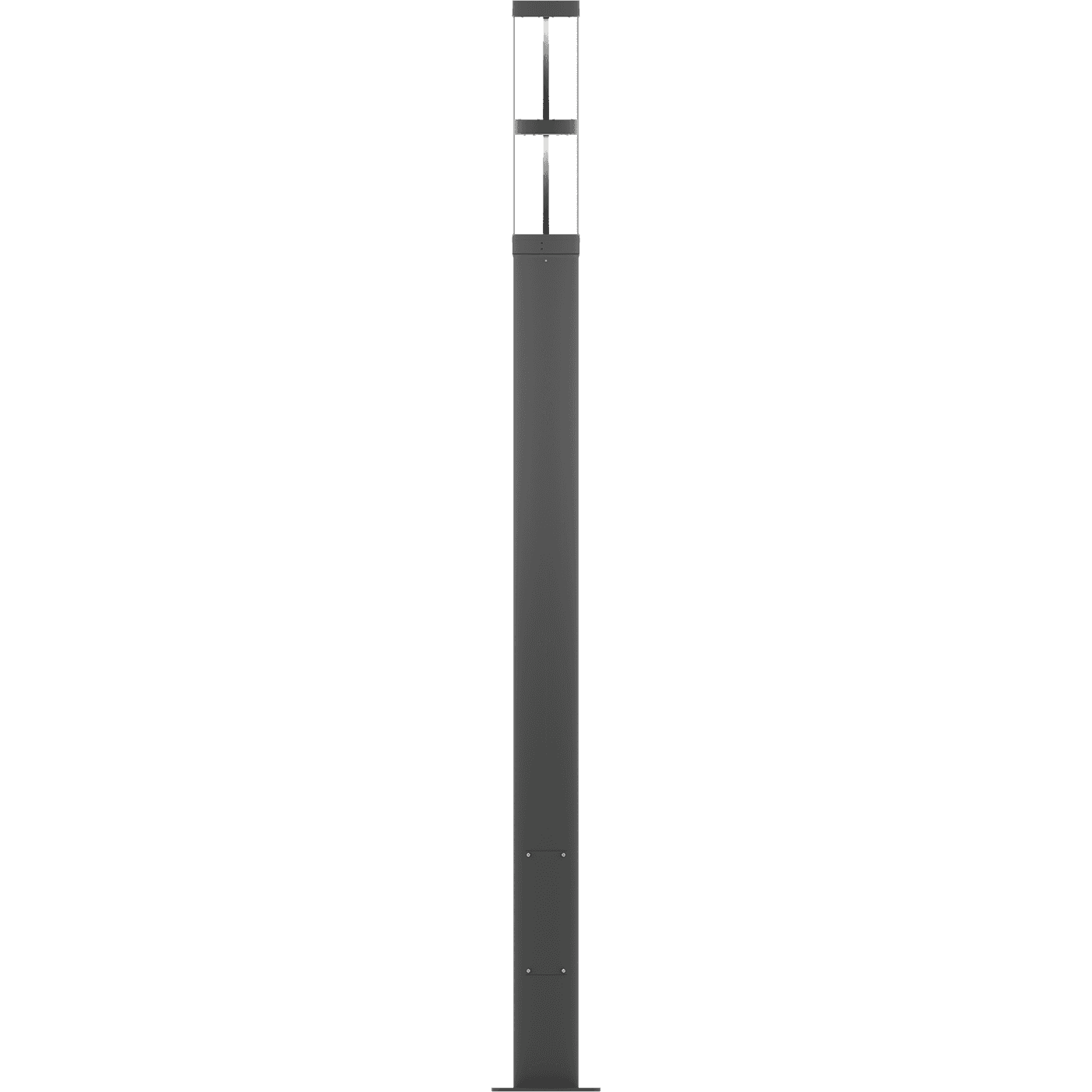

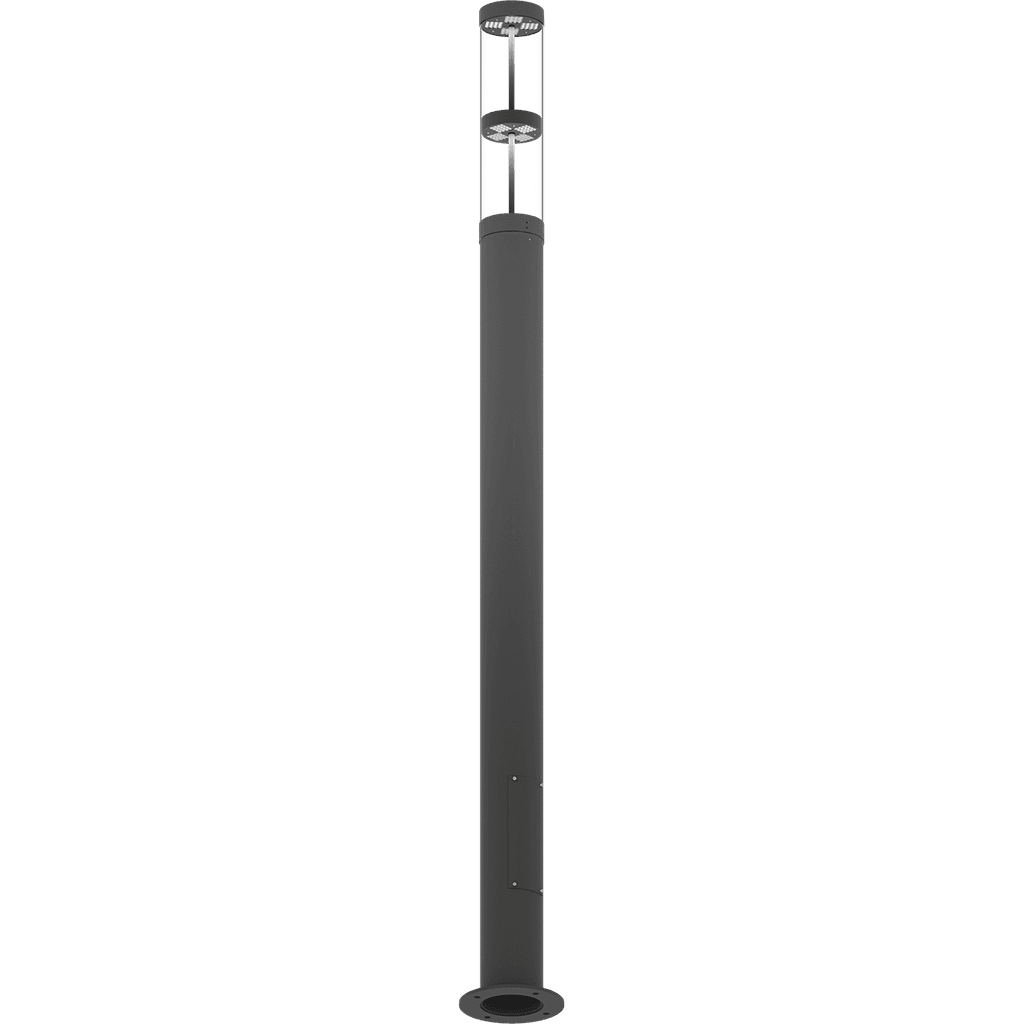

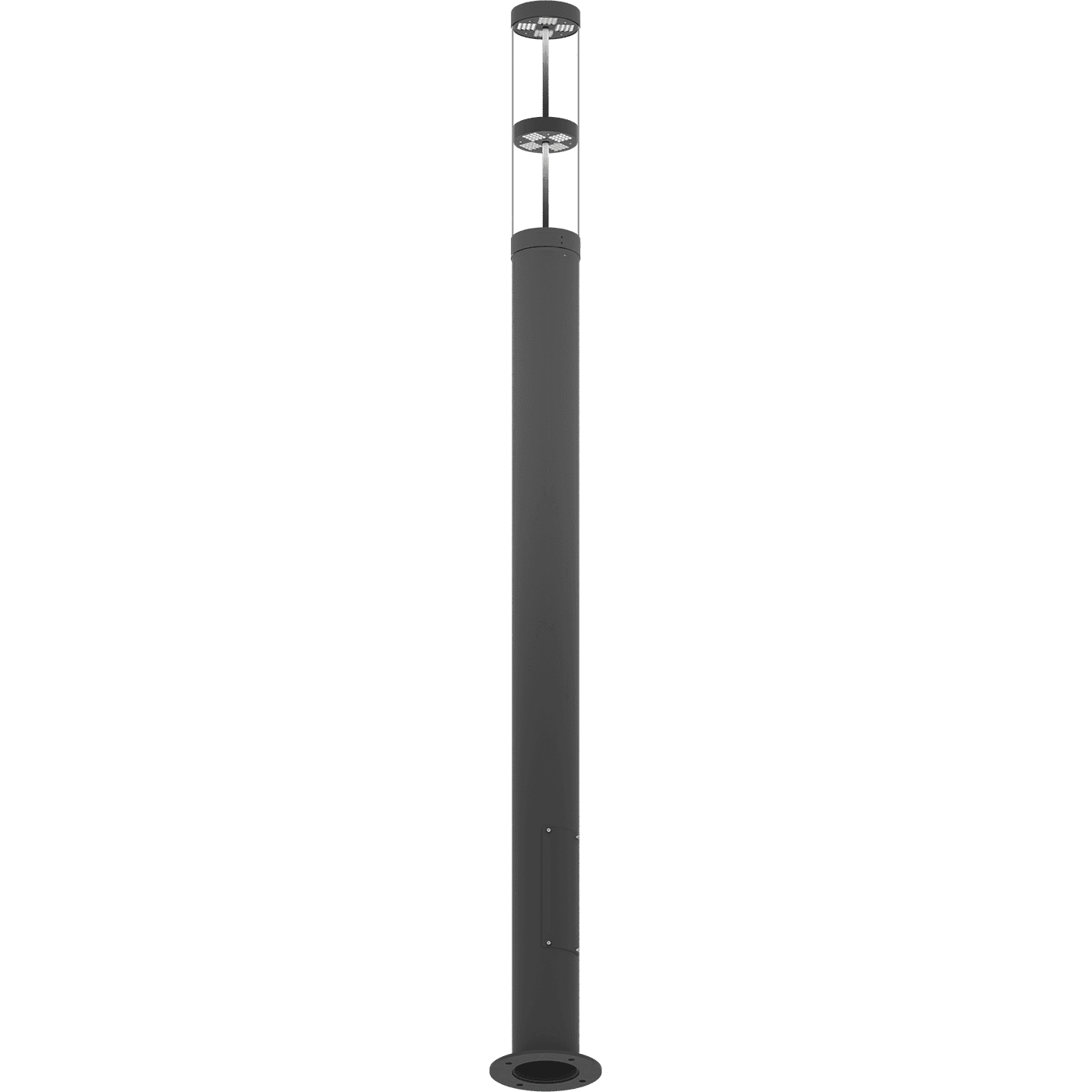

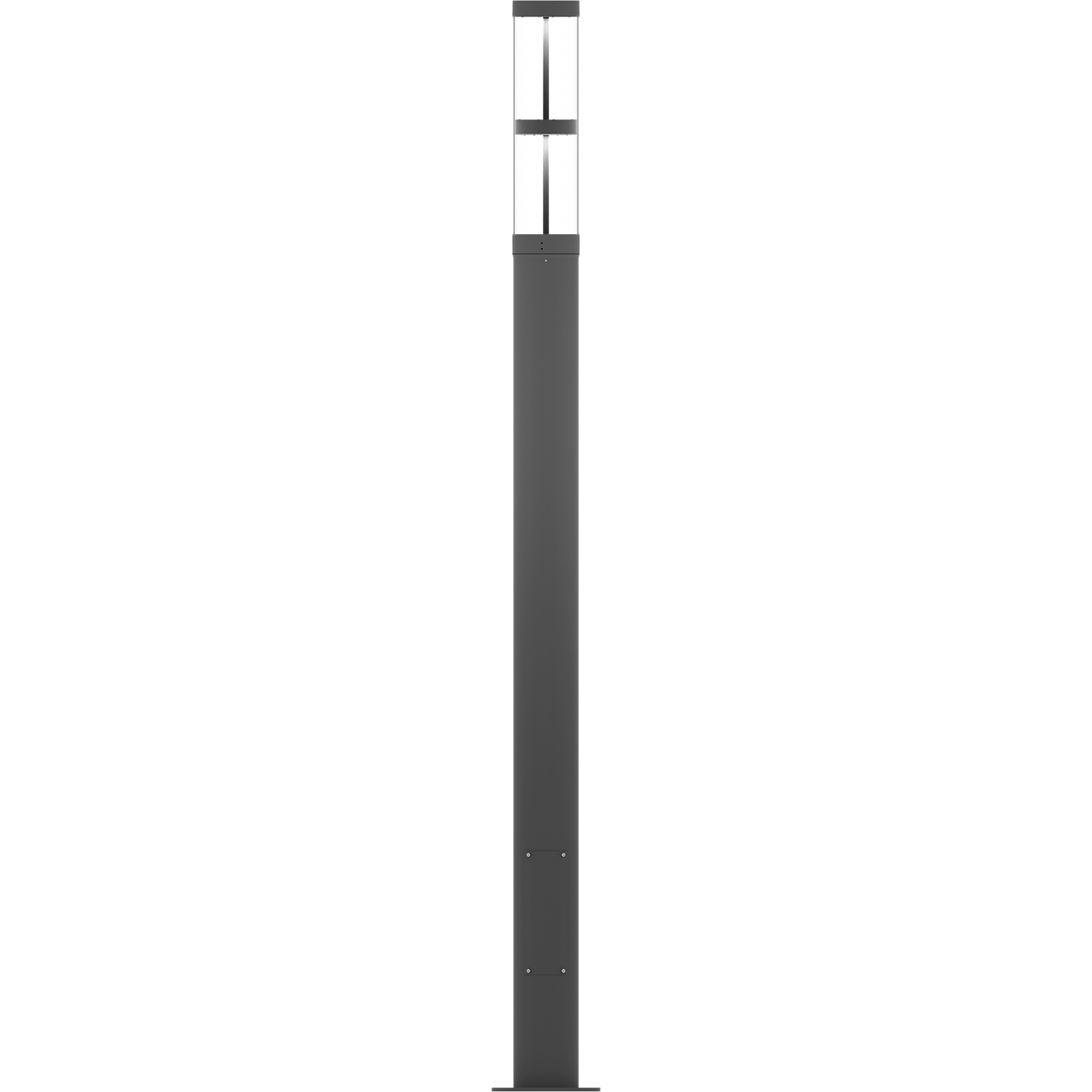

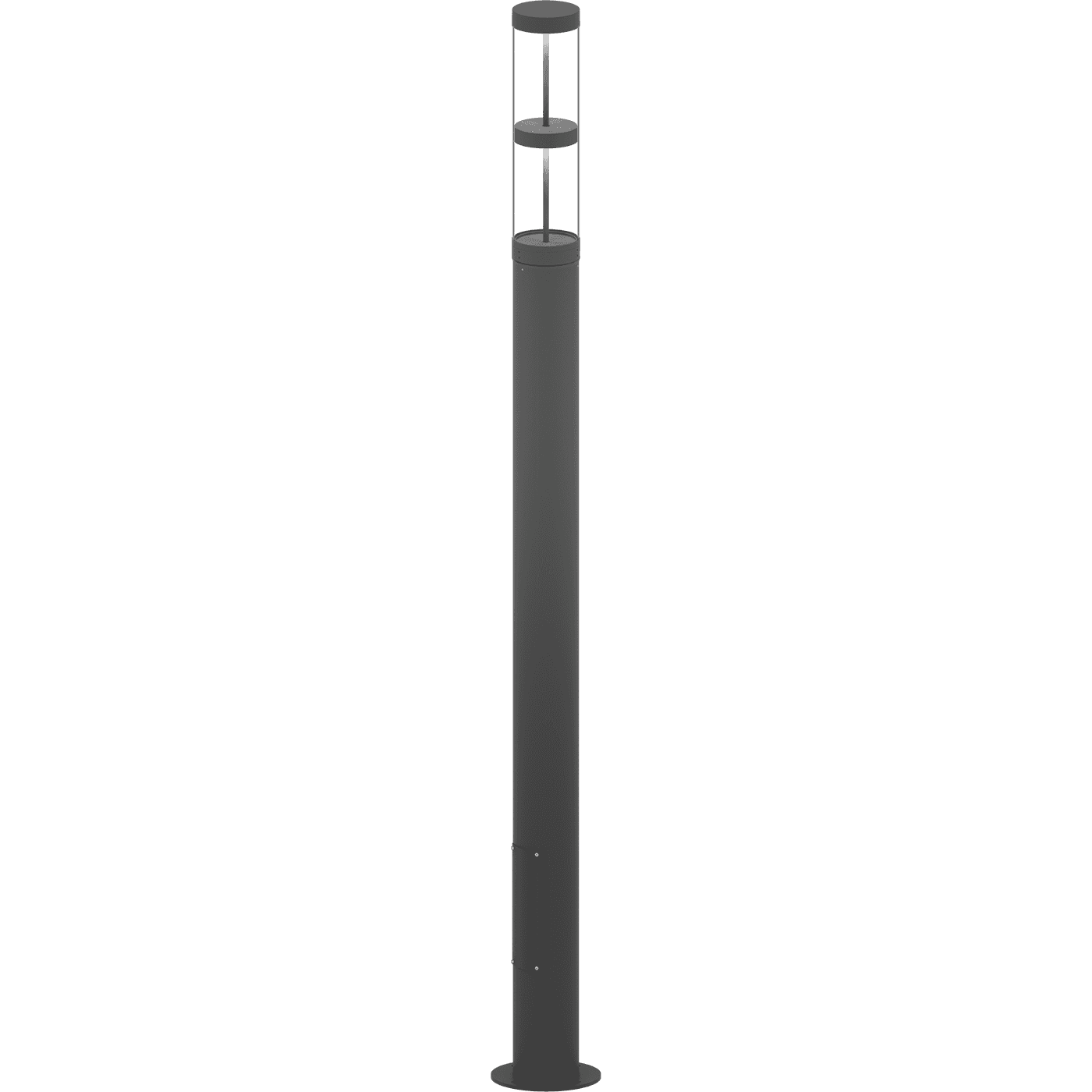

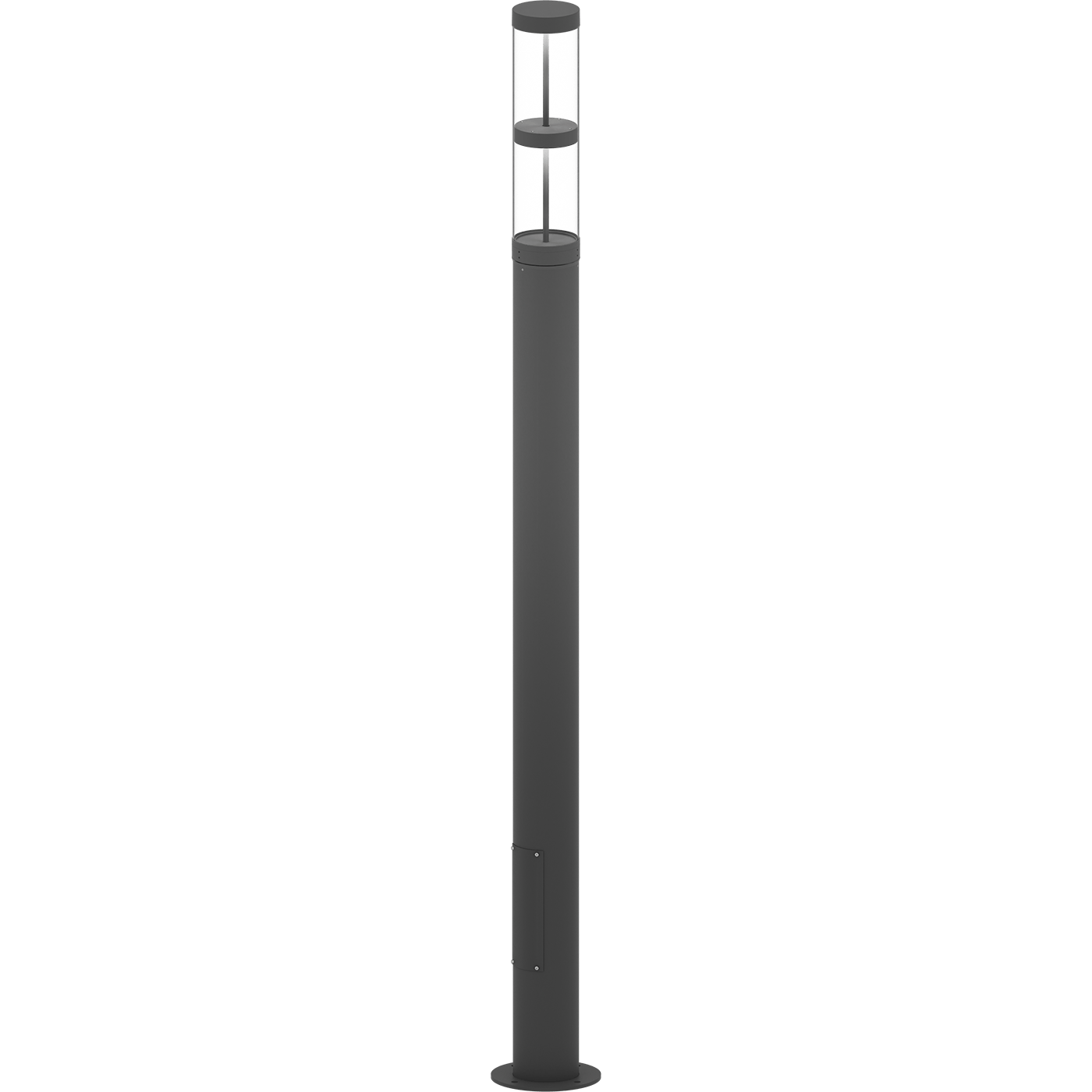

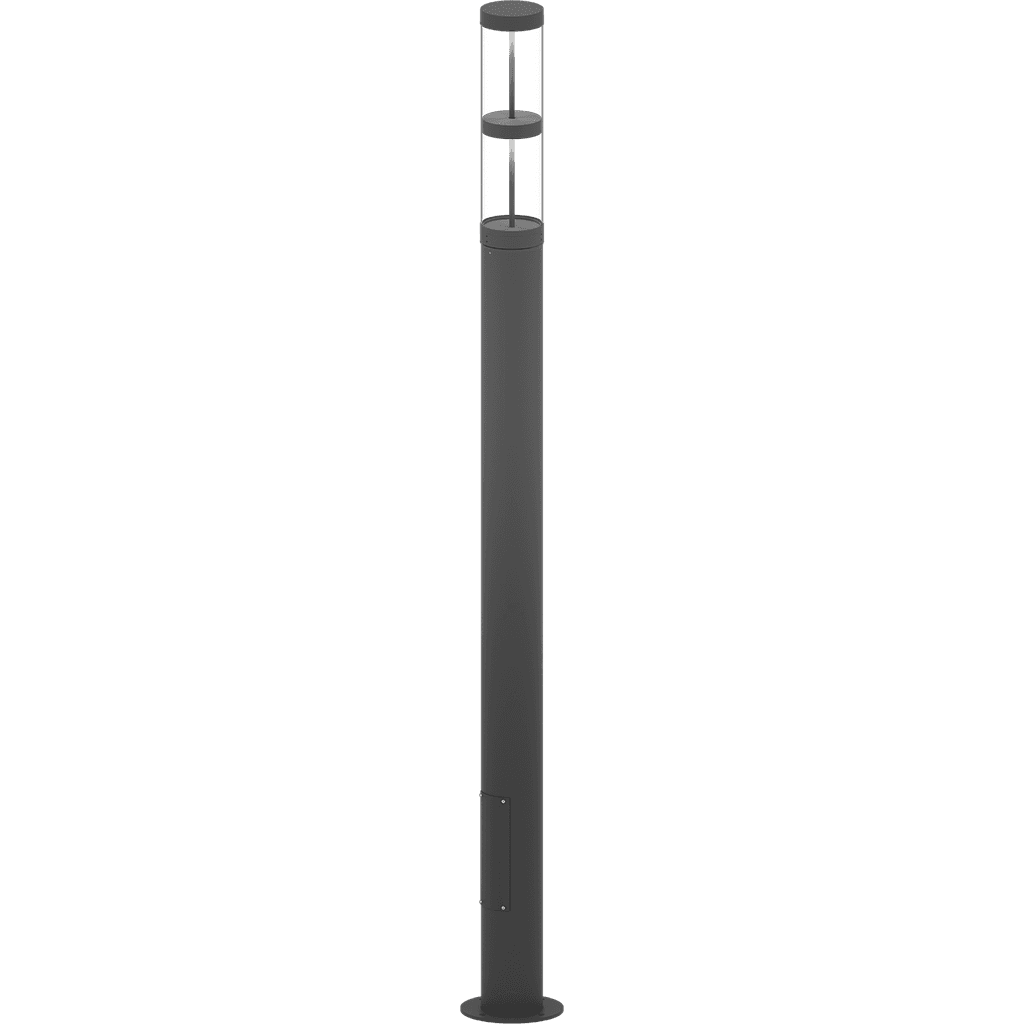

COLOSS LED 50W RW 840 RAL9005 POLE 4M (без ЗДФ)
.jpg&w=1920&q=50)
.jpg&w=1024&q=50)
COLOSS LED 50W RW 840 RAL9005 POLE 4M (без ЗДФ)
48 Wluminaire power
5400 lmlight flow
113 lm/Wenergy efficiency
code4798000040
beam angleD145/65
color temperature4000
weight8 kg
options
свернуть все
constructionalelectricalcommonilluminating
ingress protection (IP)
IP65housing color
Черныйdiameter, mm
186 mmheight, mm
726 mmweight
8 kgclimatic performance
УХЛ1maximum cross-section of the connected cable, sq. mm
1.5material
Стальshock resistance (IK)
IK08/6,5 Джinstallation diameter, mm
108 mmlamp socket
LEDnumber of lamps
1ballast
Драйверconstructional
ingress protection (IP)
IP65
housing color
Черный
diameter, mm
186 mm
height, mm
726 mm
weight
8 kg
climatic performance
УХЛ1
maximum cross-section of the connected cable, sq. mm
1.5
material
Сталь
shock resistance (IK)
IK08/6,5 Дж
installation diameter, mm
108 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
electrical
electric shock protection
I
starting current
50 A
starting current pulse time, µs
300 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
48 W
power factor
> 0,95
supply voltage
230 V
common
code
4798000040
ETIM class
Светильник ландшафтный торшерного типа/ светильник-столбик/ световая тумба
warranty
36 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
color rendition index (CRI)
>80
light flow
5400 lm
energy efficiency
113 lm/W
flickering factor
<1%

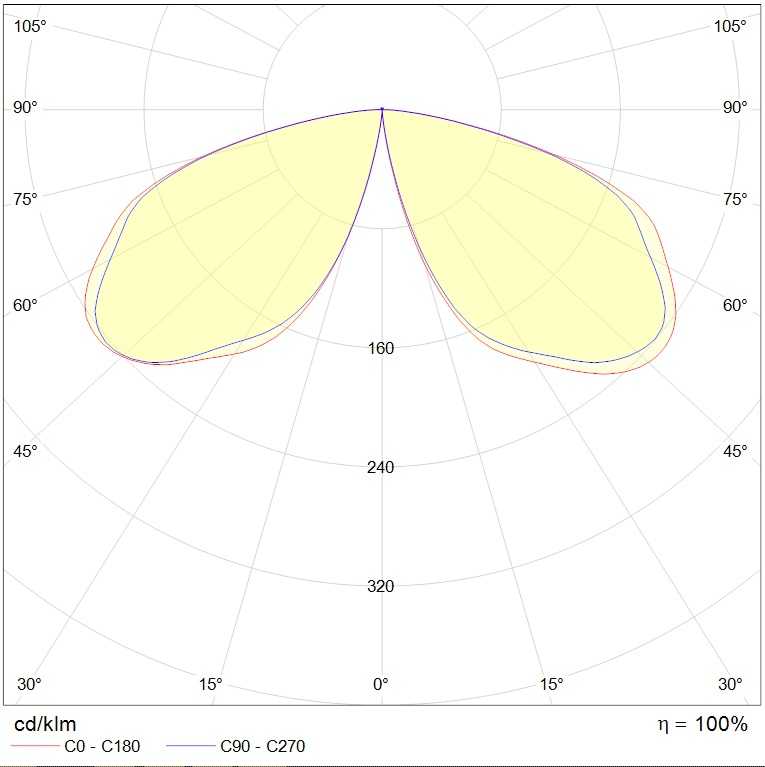

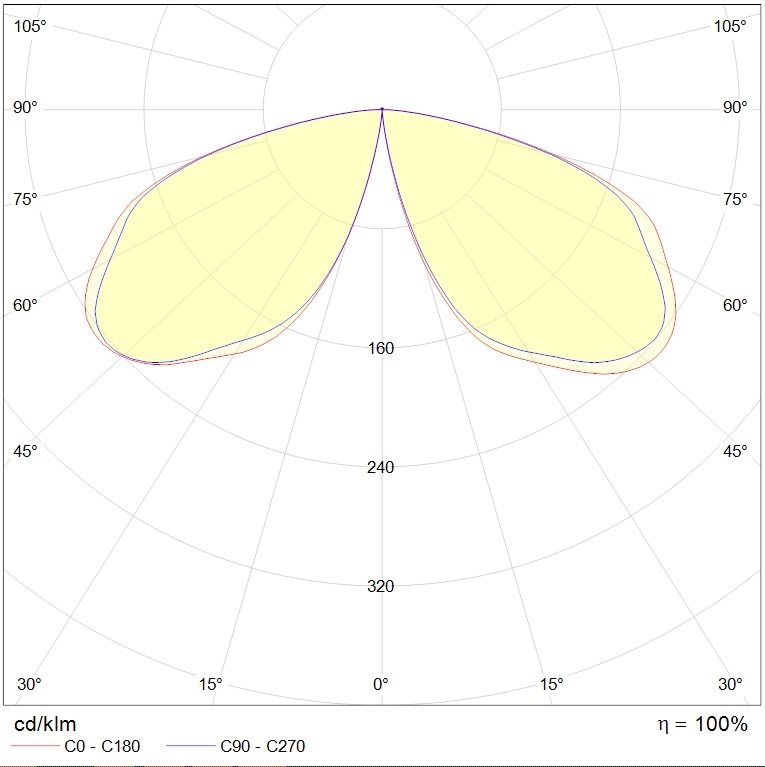

beam angle
D145/65
color temperature
4000
light source type
LED
emission color
Белый
