зарегистрирована в реестре российской промышленной продукции
ZENITH LED Ex G2/PL 90W D270 850 HG
зарегистрирована в реестре российской промышленной продукции
ZENITH LED Ex G2/PL 90W D270 850 HG
76 Wluminaire power
12200 lmlight flow
161 lm/Wenergy efficiency
code
1226001270
number from the register of Russian industrial products
10815623
color temperature
5000 K
gas marking
1 Ex db op is IIC T6 Gb X
dust marking
Ex tb IIIC T85 C Db
beam angle
D270
weight
7.8 kg
- main page
- catalog
- by product type
- explosion-proof equipment
- explosion-proof lamps
- zone 1
- ZENITH LED Ex G2
- ZENITH LED Ex G2/PL 90W D270 850 HG
options
свернуть все
illuminatingelectricalconstructionalexplosion-proofemergencycommonpackage
Synchronization of flashing mode
Нетcolor rendition index (CRI)
>80light flow
12200 lmenergy efficiency
161 lm/Wflickering factor
<5%beam angle
D270color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
Synchronization of flashing mode
Нет
color rendition index (CRI)
>80
light flow
12200 lm
energy efficiency
161 lm/W
flickering factor
<5%
beam angle
D270
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
electric shock protection
I
maximum cross-section of the connected cable
2.5 mm2
luminaire power
76 W
power factor
> 0,95
constructional
weight
7.8 kg
length
322 mm
width
227 mm
height
310 mm
installation length
42 mm
installation width
35 mm
material
Сплав алюминиевый
fire safety class
П-ІІа
climatic performance
УХЛ1*
shock resistance (IK)
IK08/5 Дж
mounting type
housing color
Серый
explosion-proof
gas marking
1 Ex db op is IIC T6 Gb X
dust marking
Ex tb IIIC T85 C Db
gas explosion-proof (type)
Ex db op is
gas explosion-proof (zones)
1
gas explosion-proof (groups of equipment)
IIC
T6 - temperature class
T6
emergency
emergency power supply
Нет
common
code
1226001270
warranty
36 month
temperature range
от -60 до +55 C
energy efficiency class
A++
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
package
Package contents
Светильник - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
model files
model files
photometric files
documents
сертификаты
media

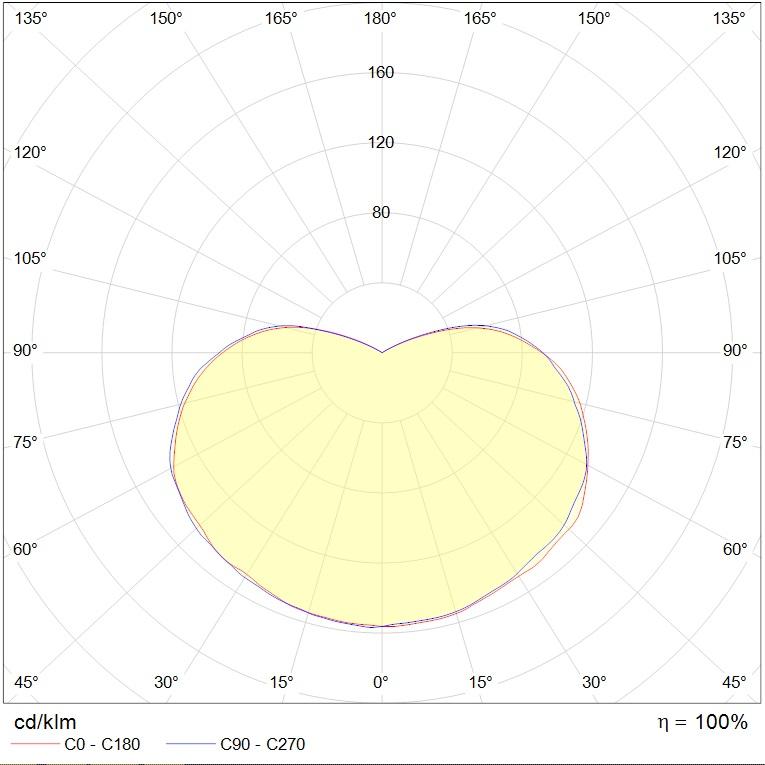

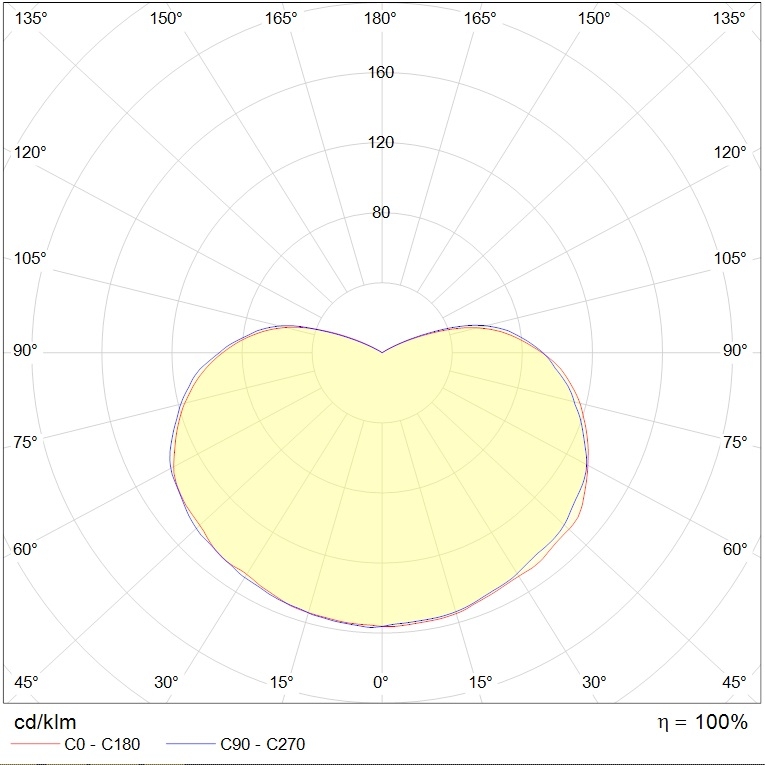

photometric files
ies107 kB
jpg97.1 kB
ldt80.7 kB
csv427 B
documents

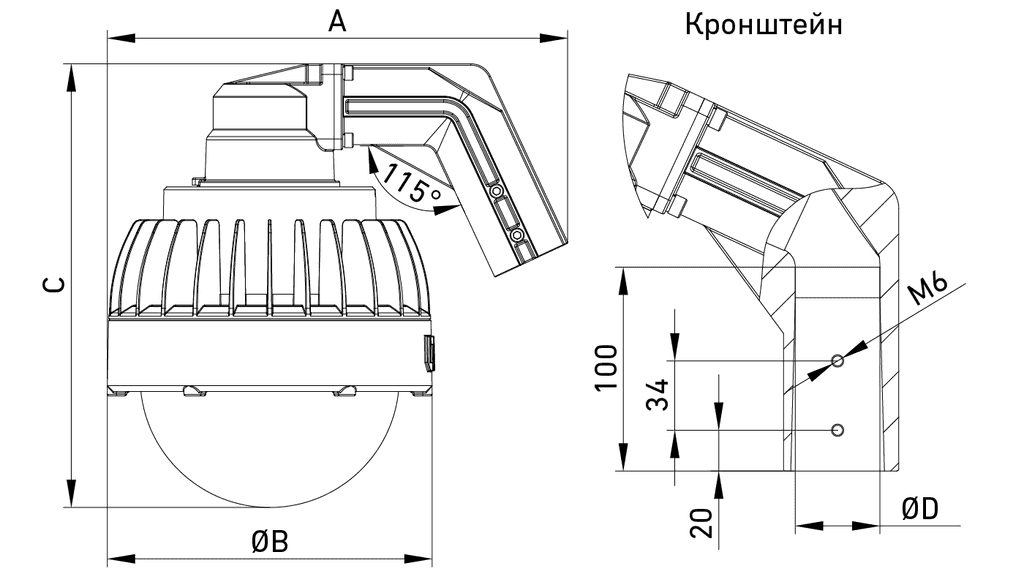

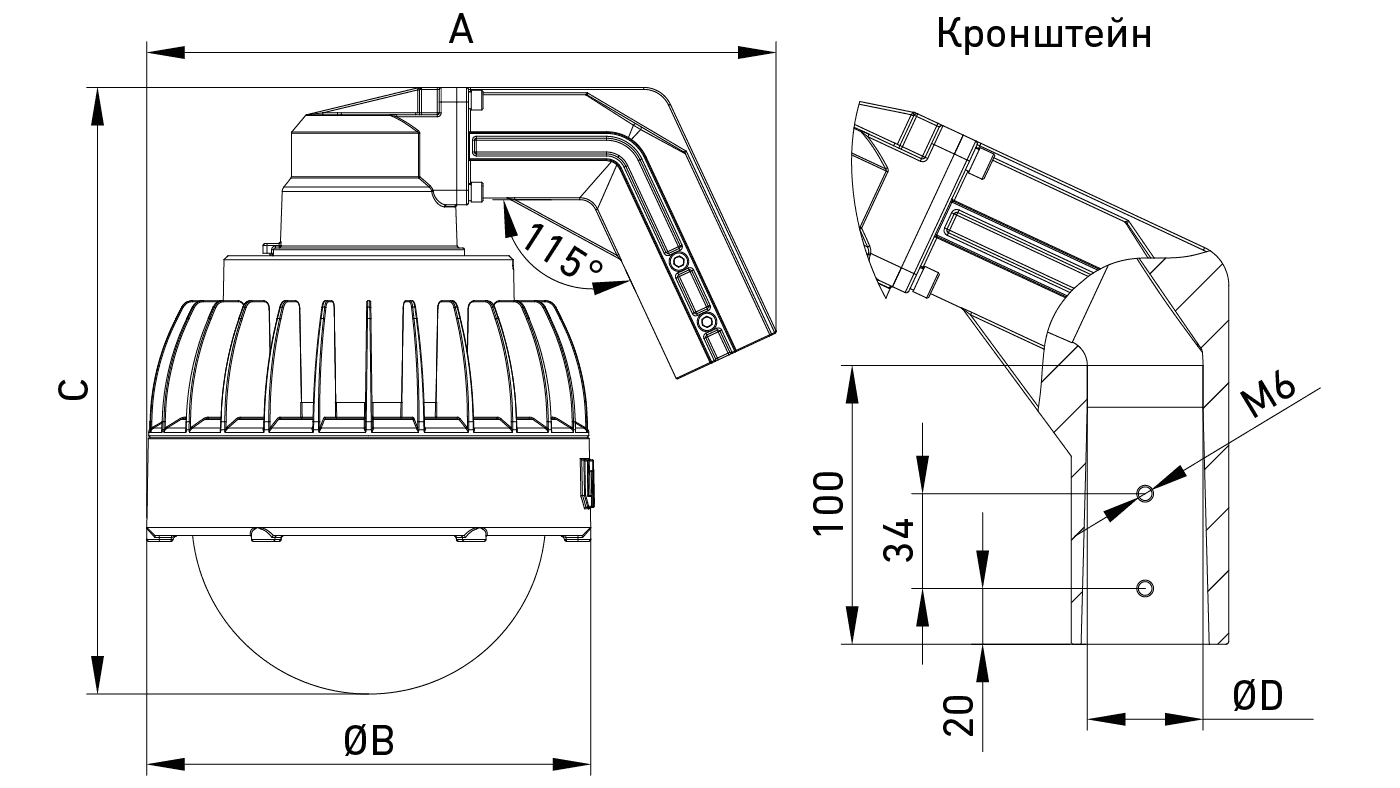

чертеж93.5 kB
