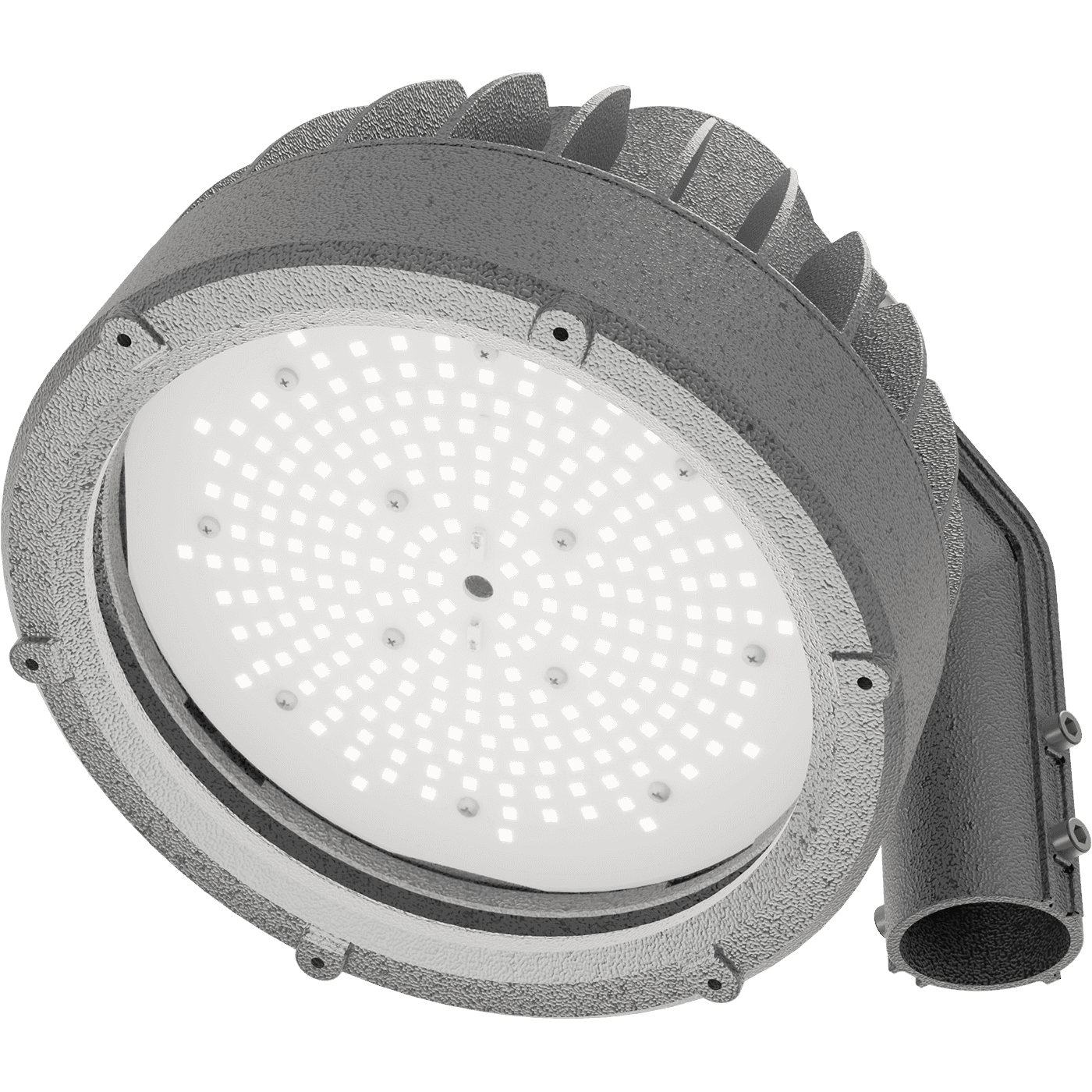

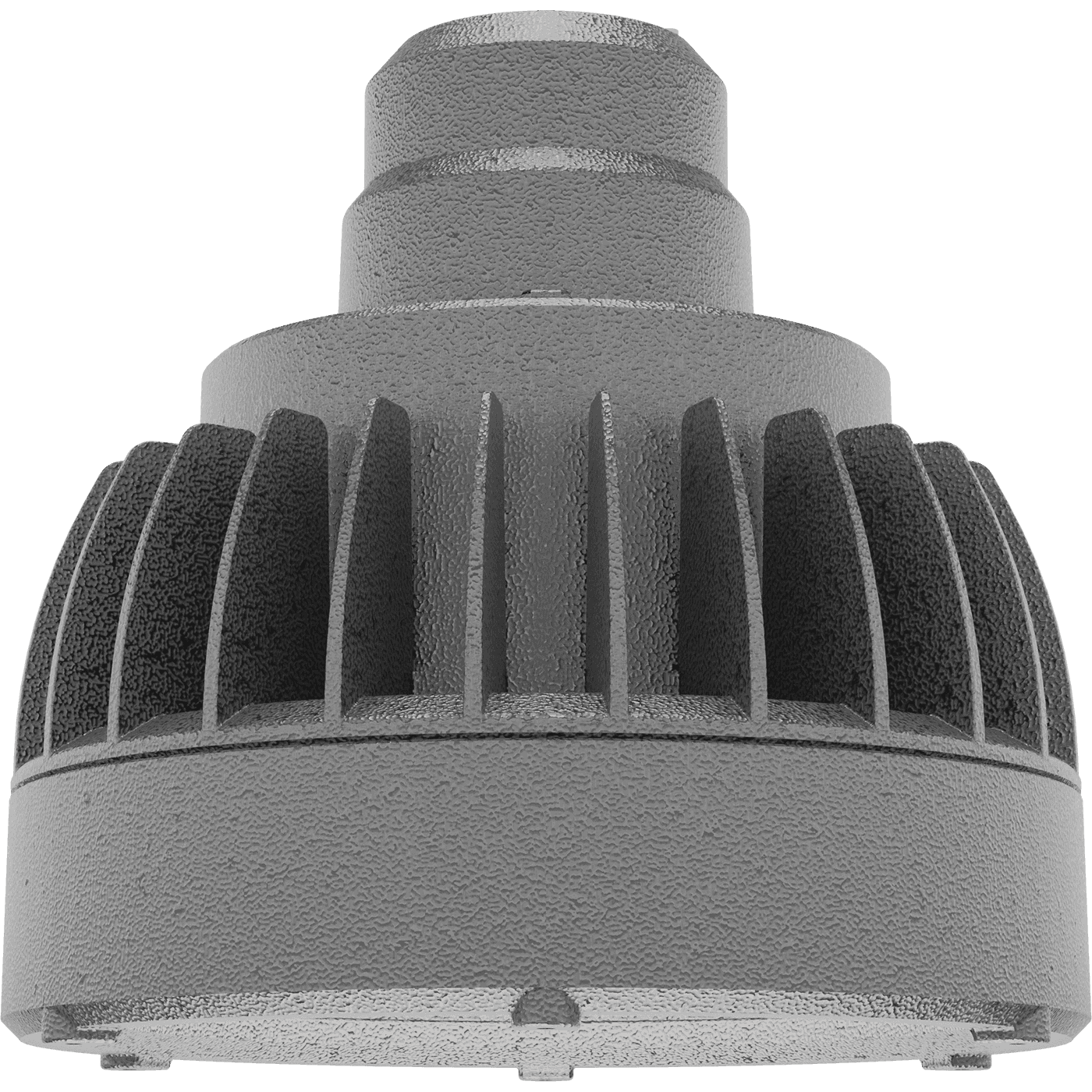

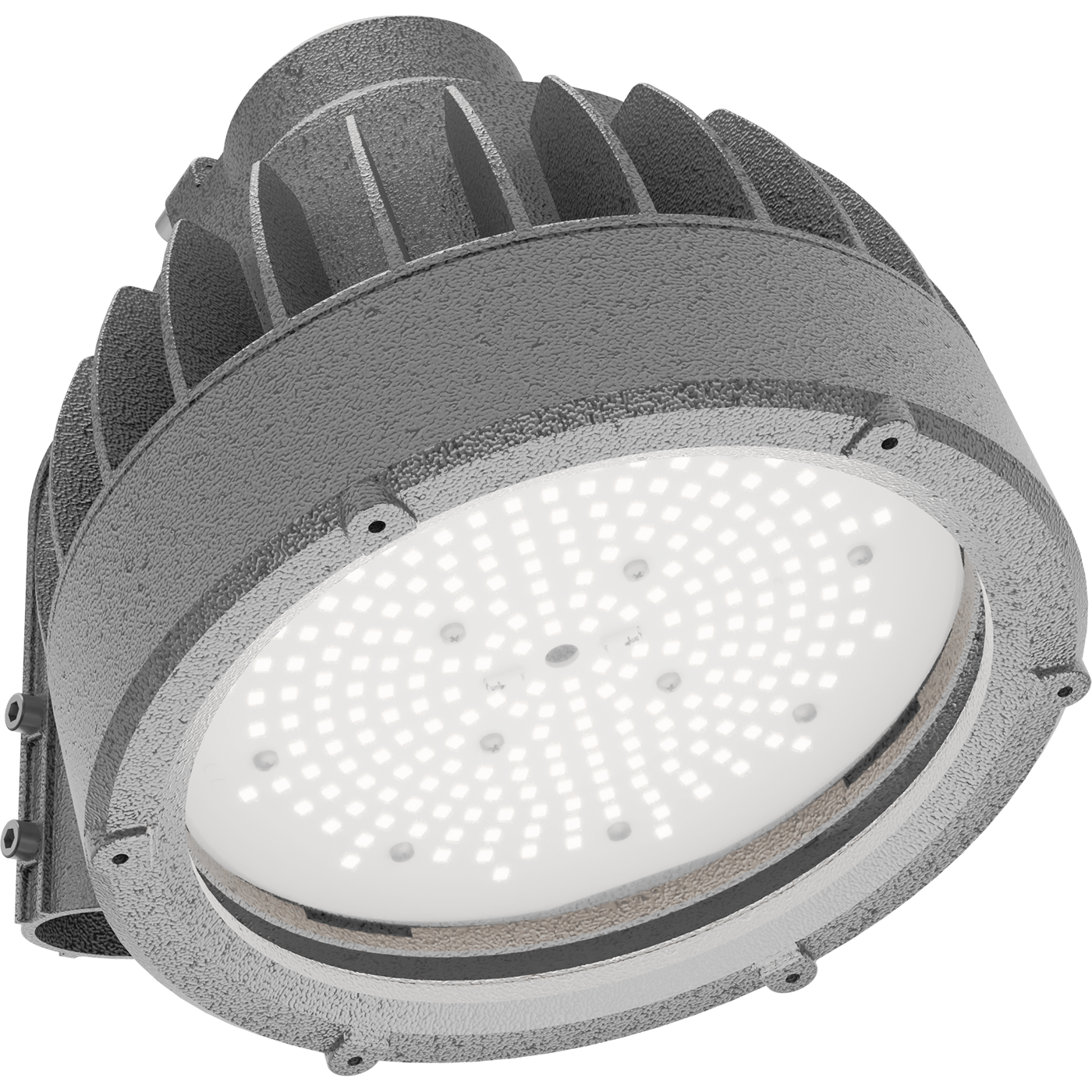

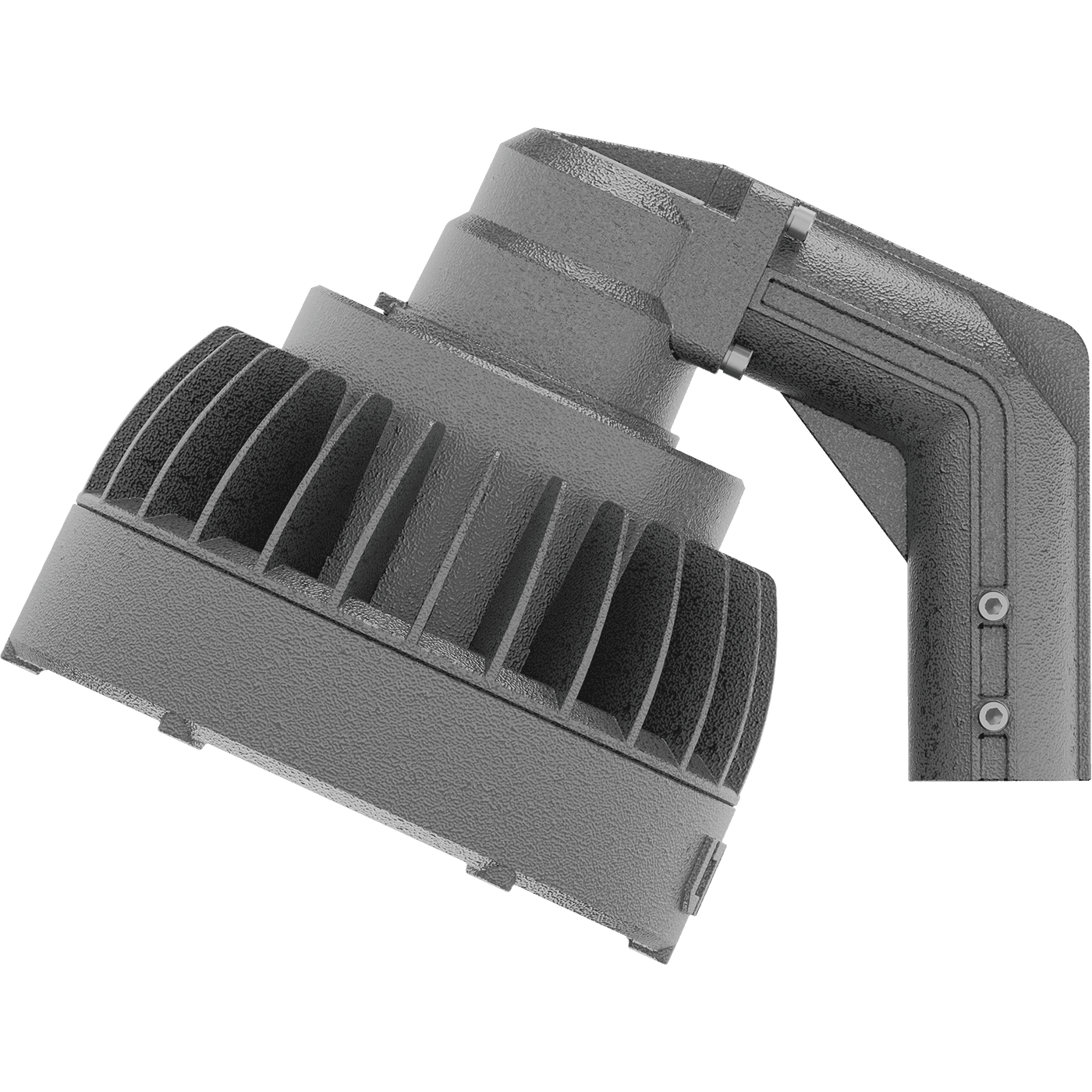

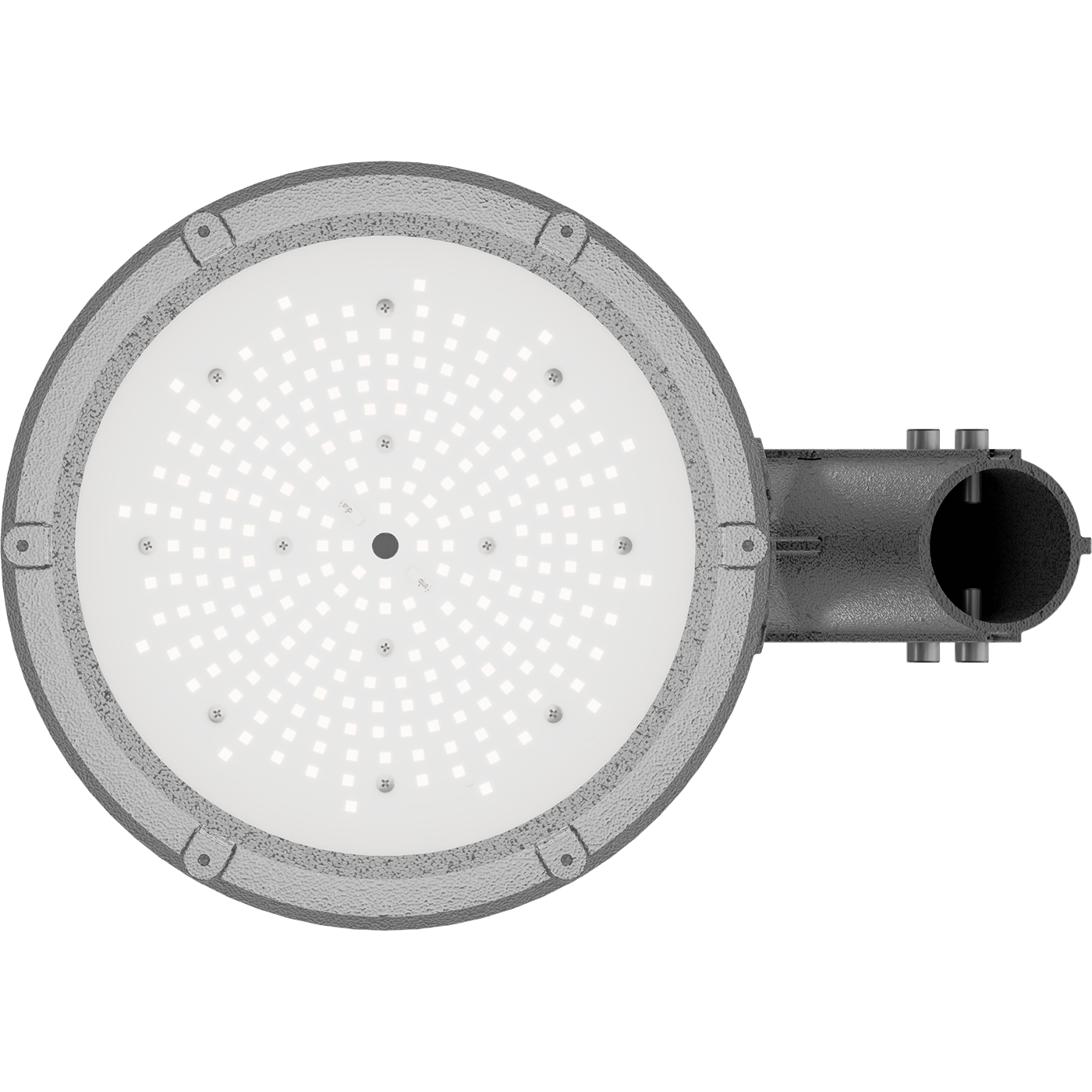

ZENITH LED Ex G2/PL 70W D120 850 HG
ZENITH LED Ex G2/PL 70W D120 850 HG
62 Wluminaire power
8400 lmlight flow
135 lm/Wenergy efficiency
code1226001240
color temperature5000
gas marking1 Ex db IIC T5 Gb
dust markingEx tb IIIC T100 C Db
beam angleD120
weight7.1 kg
options
свернуть все
constructionalcommonilluminatingelectricalexplosion-proof
ingress protection (IP)
IP66climatic performance
УХЛ1*fire safety class
П-ІІаmaterial
Сплав алюминиевыйweight
7.1 kglength, mm
322 mmwidth, mm
227 mmheight, mm
270 mmhousing color
Серыйinstallation length, mm
42 mminstallation width, mm
35 mmshock resistance (IK)
IK08/7 Джconstructional
ingress protection (IP)
IP66
climatic performance
УХЛ1*
fire safety class
П-ІІа
material
Сплав алюминиевый
weight
7.1 kg

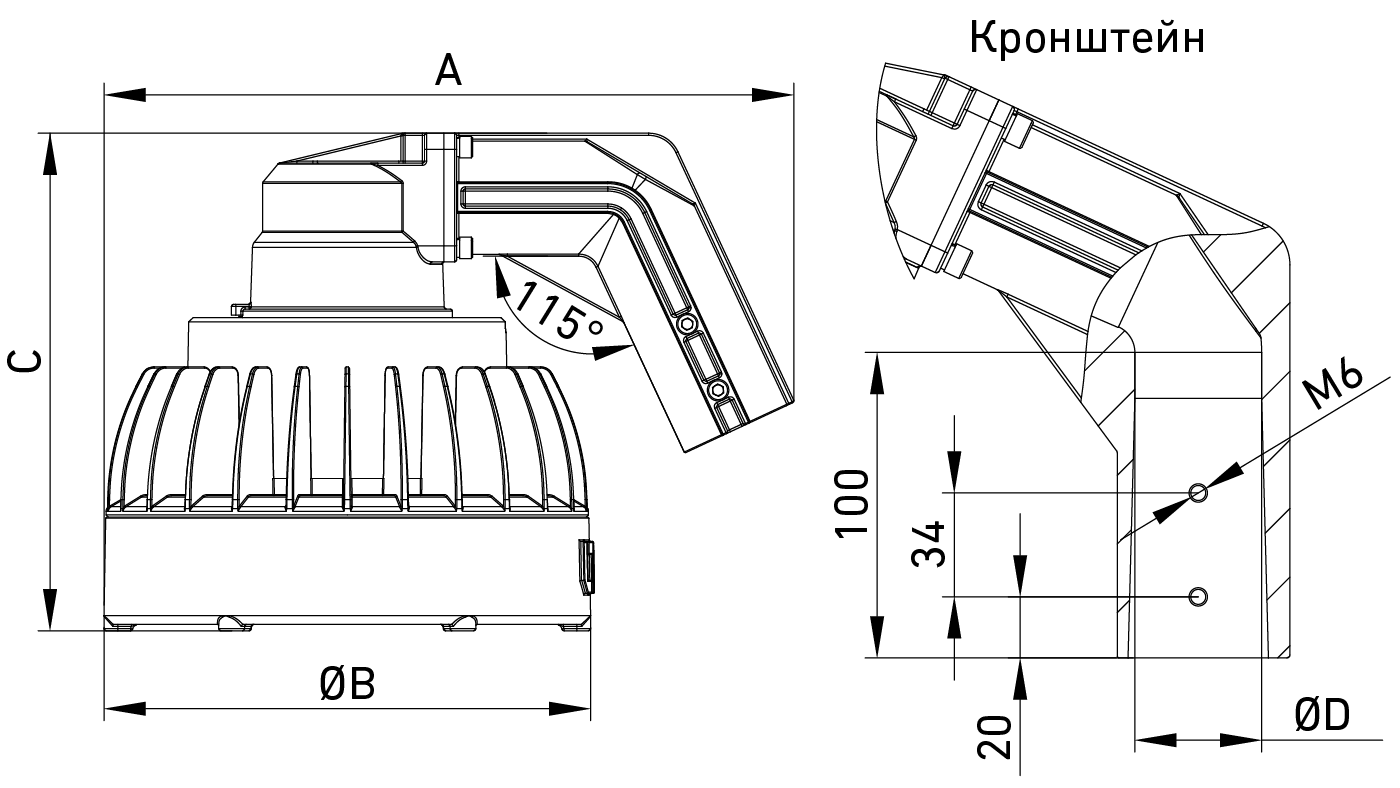

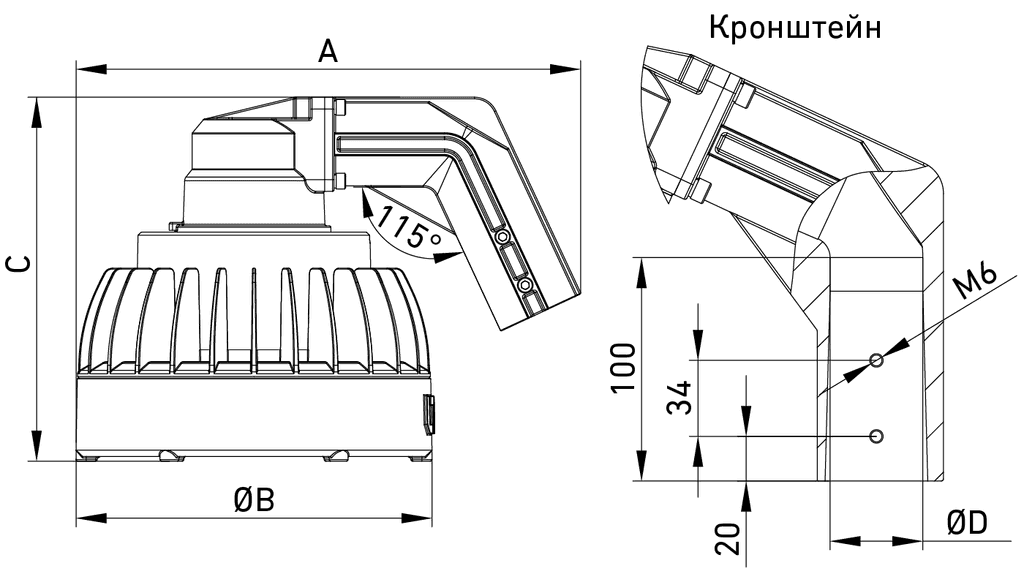

length, mm
322 mm
width, mm
227 mm
height, mm
270 mm
housing color
Серый
installation length, mm
42 mm
installation width, mm
35 mm
shock resistance (IK)
IK08/7 Дж
common
code
1226001240
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
warranty
36 month
temperature range
от -60 до +55 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
color rendition index (CRI)
>80
light flow
8400 lm
energy efficiency
135 lm/W
flickering factor
<1%

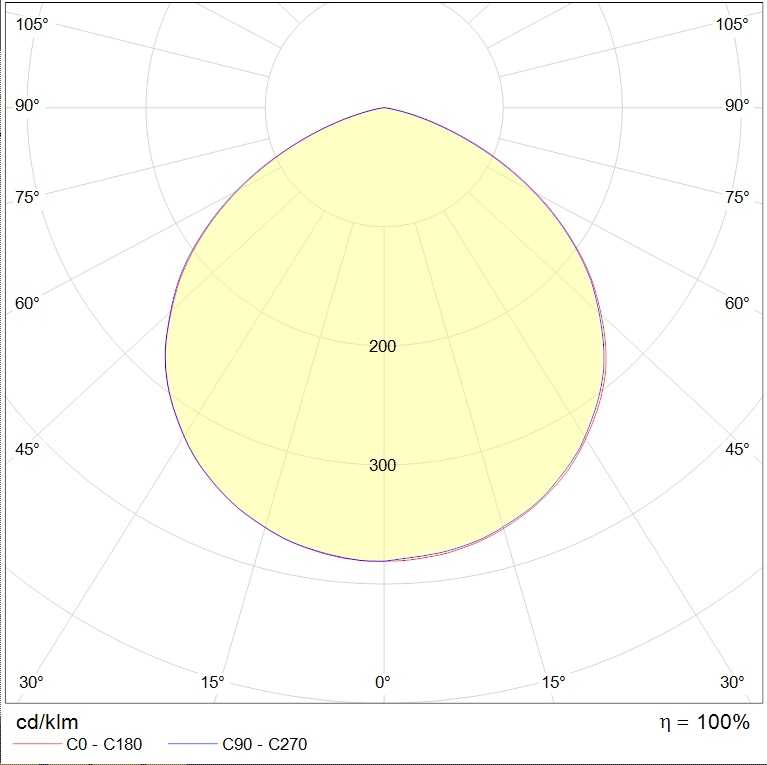

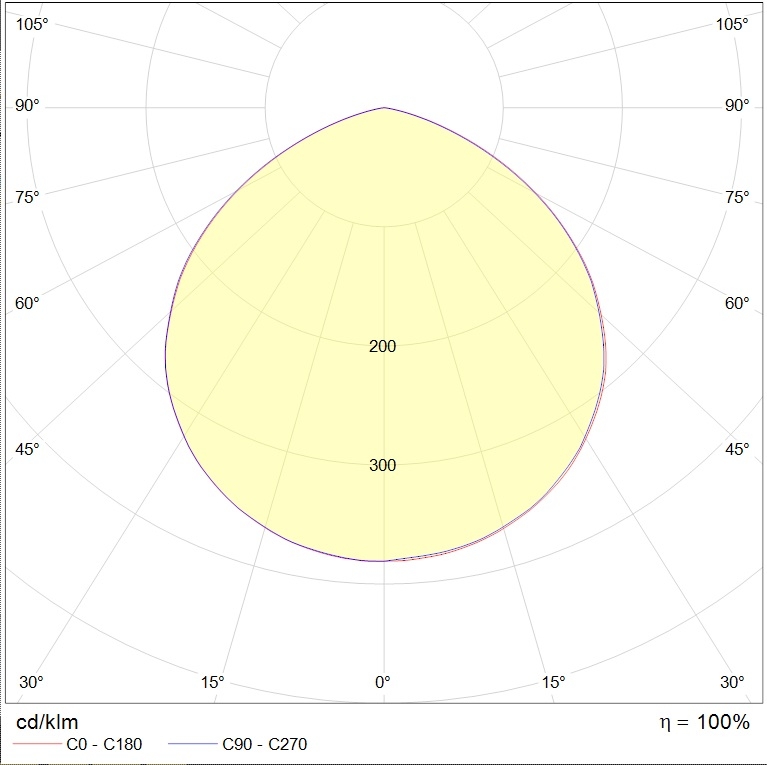

beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
Synchronization of flashing mode
Нет
electrical
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
2.5
luminaire power
62 W
power factor
> 0,95
explosion-proof
gas marking
1 Ex db IIC T5 Gb
dust marking
Ex tb IIIC T100 C Db
gas explosion-proof (type)
Ex db
gas explosion-proof (zones)
1
gas explosion-proof (groups of equipment)
IIC
T6 - temperature class
T5
