ZENITH LED Ex G2/B 50W D120 850 HG GI
ZENITH LED Ex G2/B 50W D120 850 HG GI
42 Wluminaire power
6000 lmlight flow
143 lm/Wenergy efficiency
code1226001360
color temperature5000
gas marking1 Ex db IIC T5 Gb
dust markingEx tb IIIC T100 C Db
beam angleD120
weight7.1 kg
options
свернуть все
electricalconstructionalcommonilluminatingexplosion-proof
rated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Velectric shock protection
Imaximum cross-section of the connected cable, sq. mm
2.5starting current
5 Astarting current pulse time, µs
2000 mksluminaire power
42 Wsupply voltage, alternating current
90-300 Vsupply voltage, direct current
90-300 Vpower factor
> 0,95electrical
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
2.5
starting current
5 A
starting current pulse time, µs
2000 mks
luminaire power
42 W
supply voltage, alternating current
90-300 V
supply voltage, direct current
90-300 V
power factor
> 0,95
constructional
ingress protection (IP)
IP66
climatic performance
УХЛ1*
fire safety class
П-ІІа
material
Сплав алюминиевый
weight
7.1 kg
length, mm
227 mm
width, mm
227 mm
height, mm
320 mm
housing color
Серый
installation length, mm
70 mm
installation width, mm
35 mm
shock resistance (IK)
IK08/7 Дж
common
code
1226001360
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
warranty
36 month
temperature range
от -60 до +55 C
energy efficiency class
A++
service life, hour
50 000 h
illuminating
color rendition index (CRI)
>80
light flow
6000 lm
energy efficiency
143 lm/W
flickering factor
<1%
beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
Synchronization of flashing mode
Нет
explosion-proof
gas marking
1 Ex db IIC T5 Gb
dust marking
Ex tb IIIC T100 C Db
gas explosion-proof (type)
Ex db
gas explosion-proof (zones)
1
gas explosion-proof (groups of equipment)
IIC
T6 - temperature class
T5
model files
model files

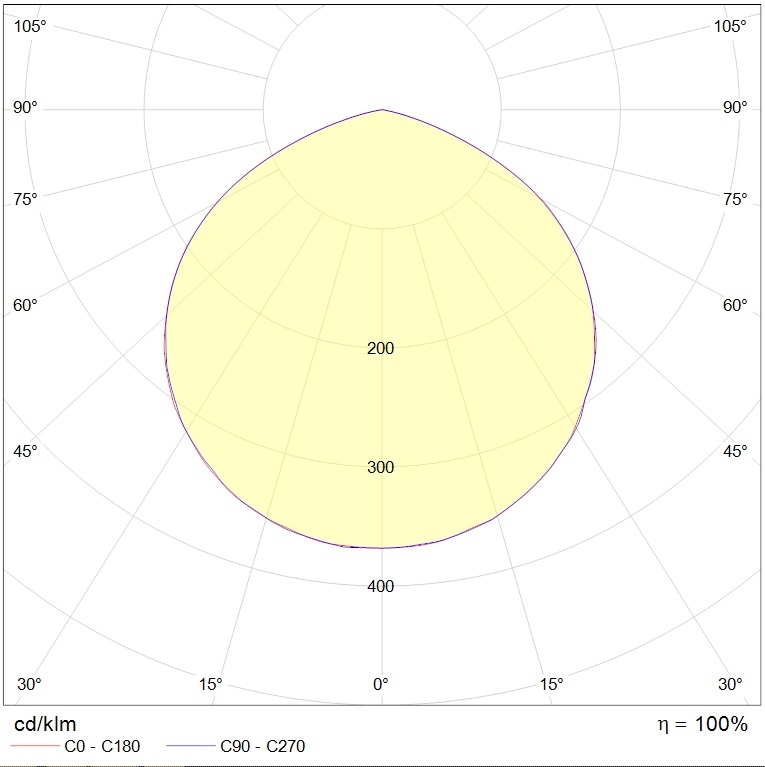

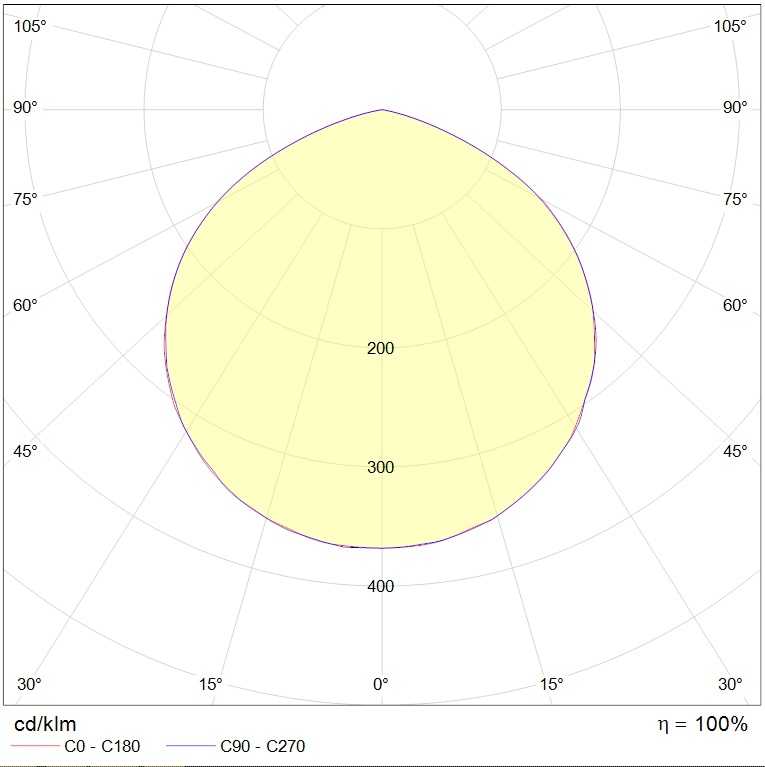

photometric files
сертификаты
photometric files
ies107 kB
jpg77.7 kB
ldt64.2 kB
сертификаты
Russian origin649.4 kB
Certificate of Russian maritime register of shipping1.5 mB
Certificate of conformity TRTS 012/2011421.8 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Certificate of seismic resistance834.7 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
Fire Safety Certificate471.1 kB
