зарегистрирована в реестре российской промышленной продукции

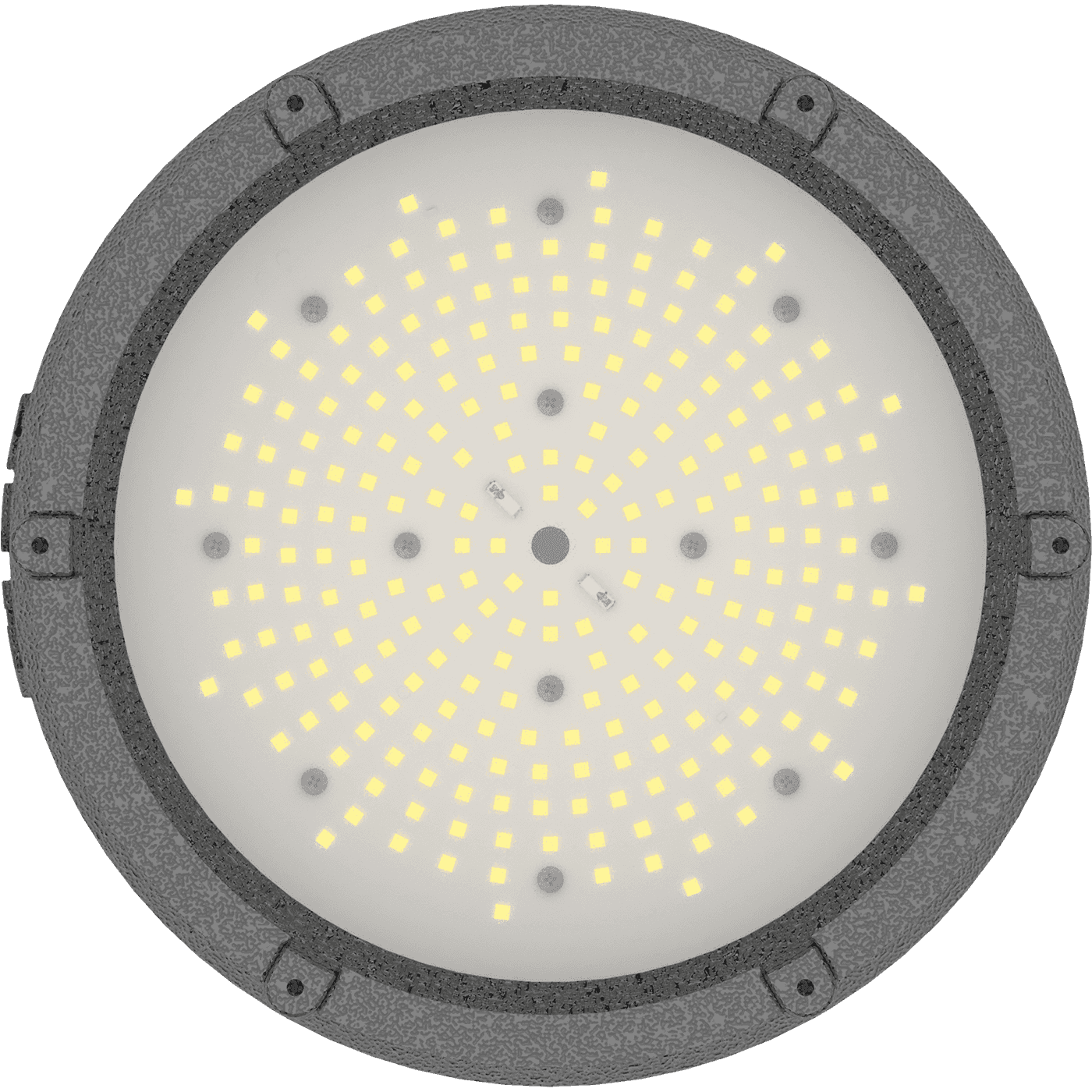

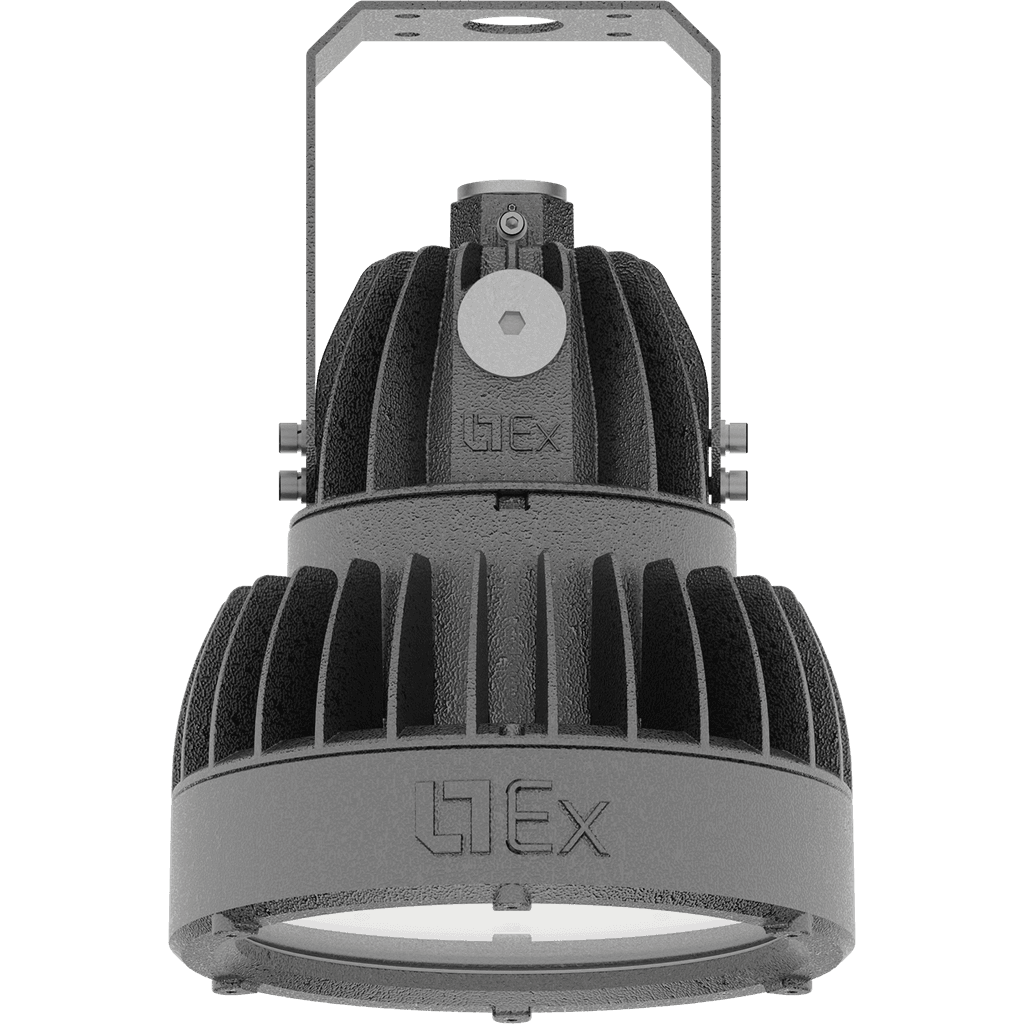

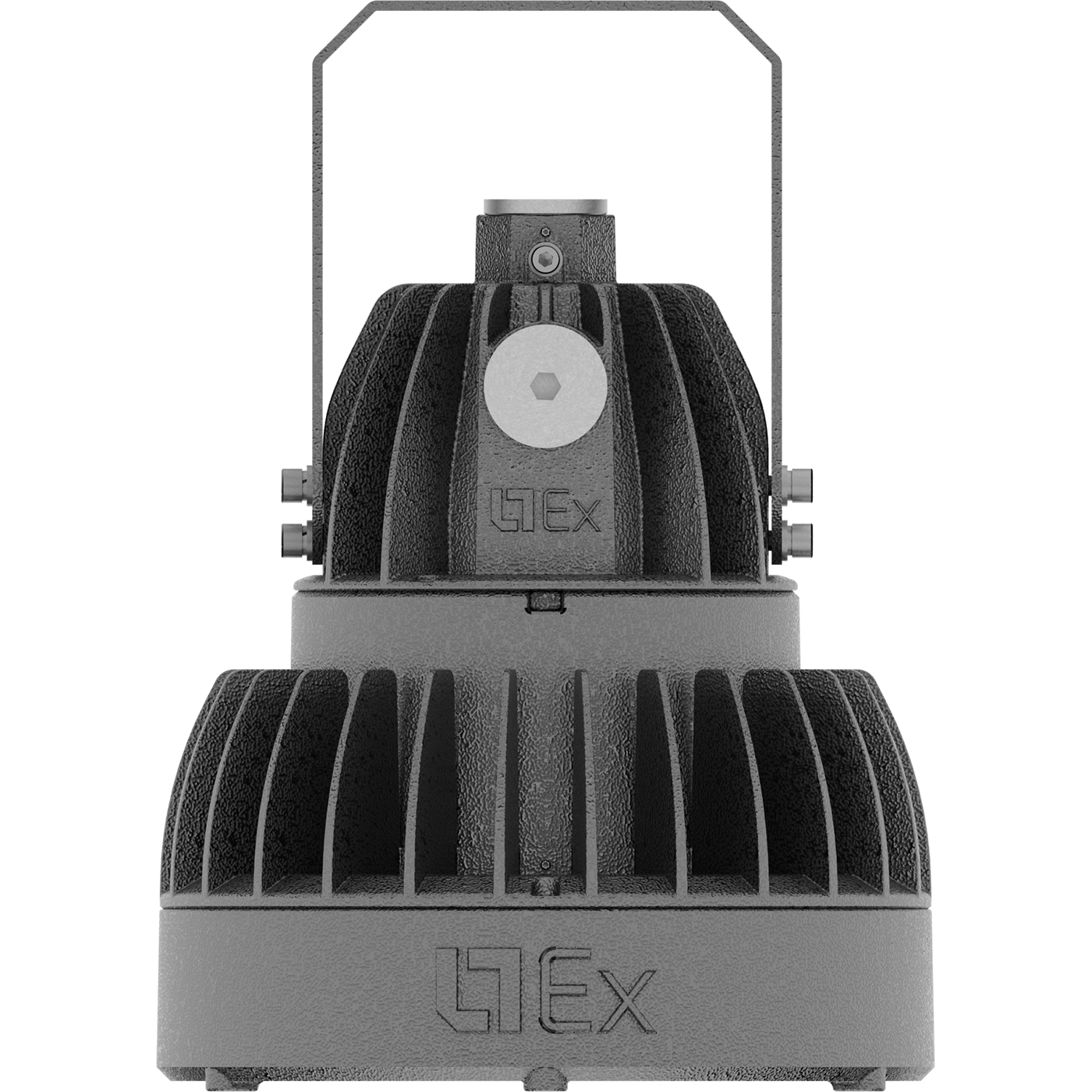

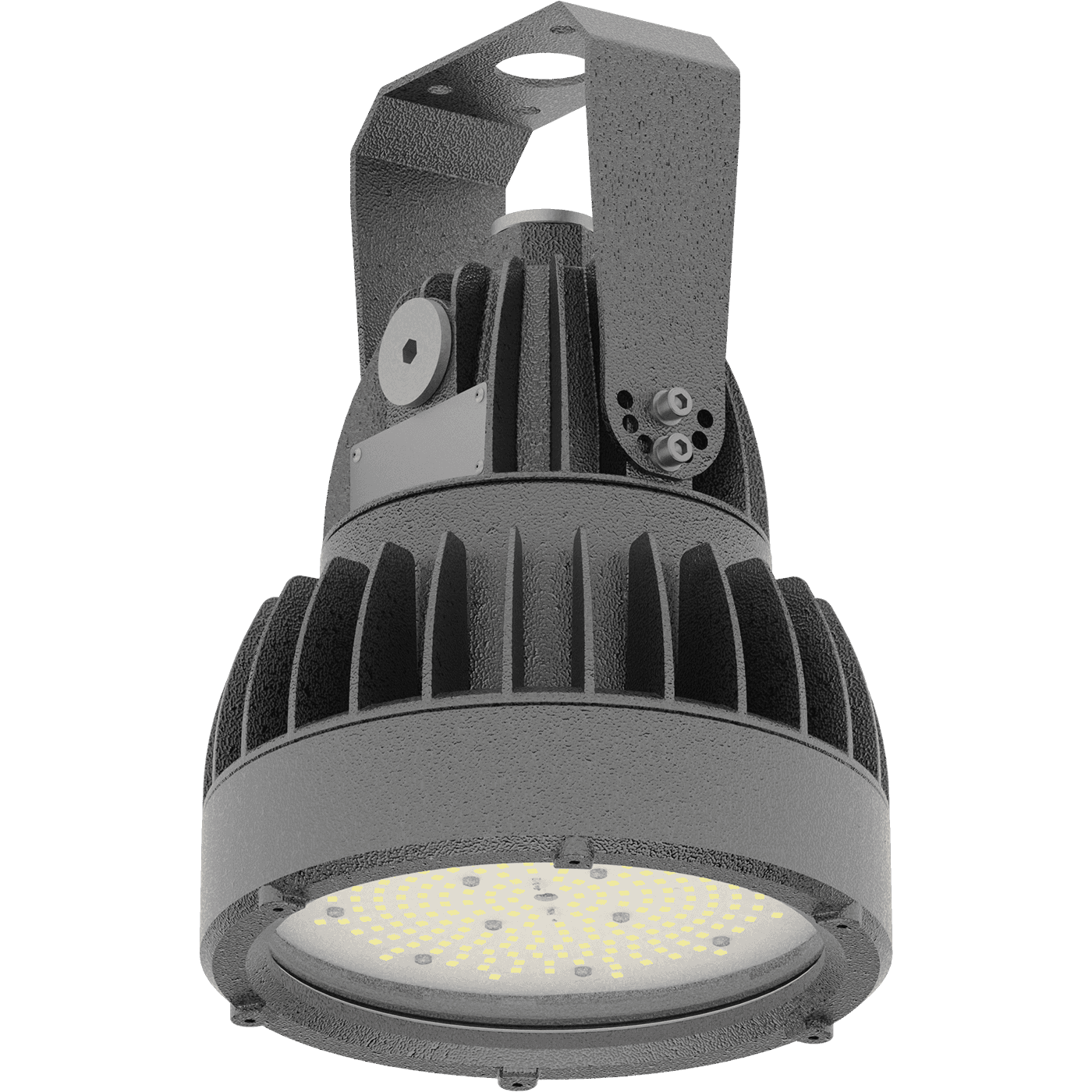

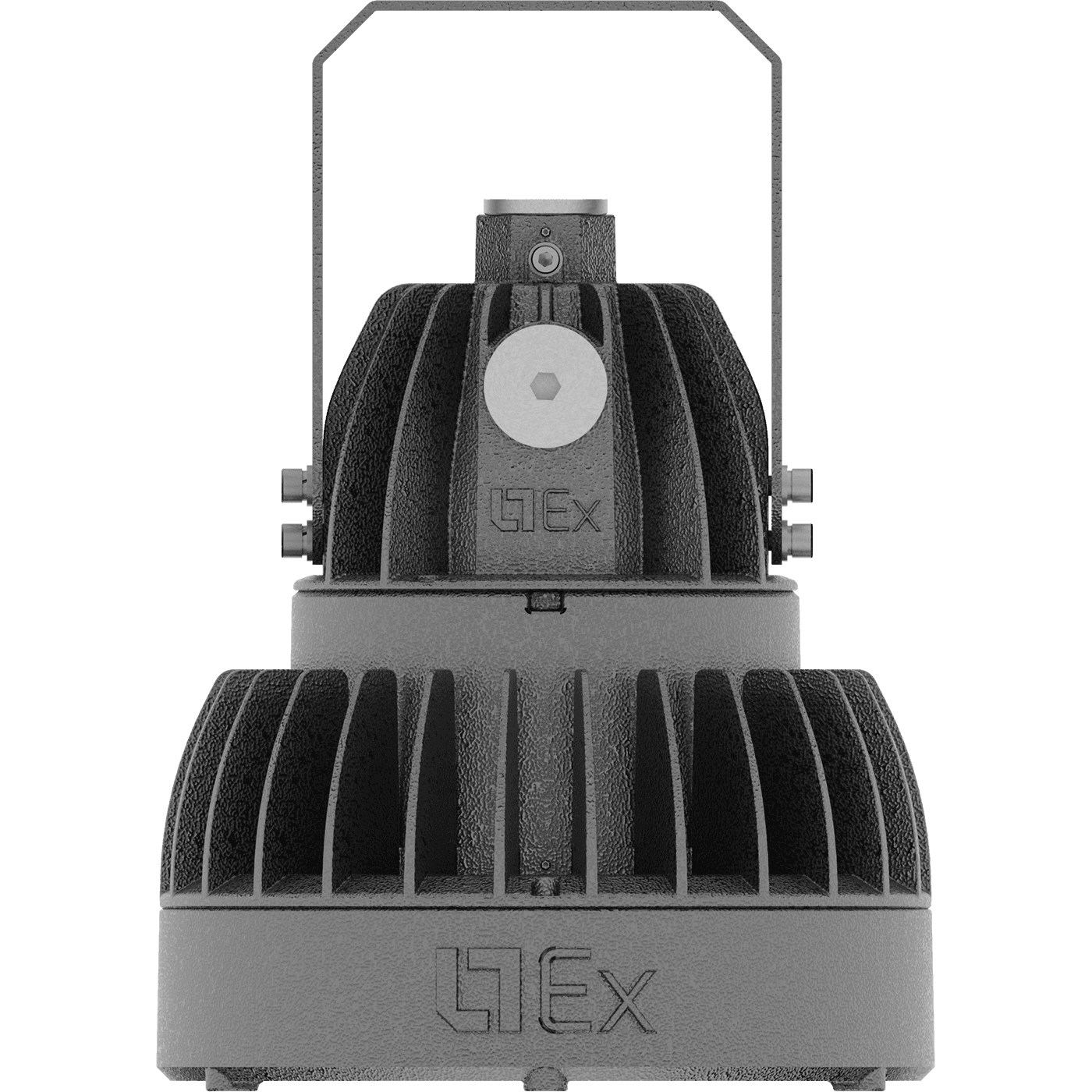

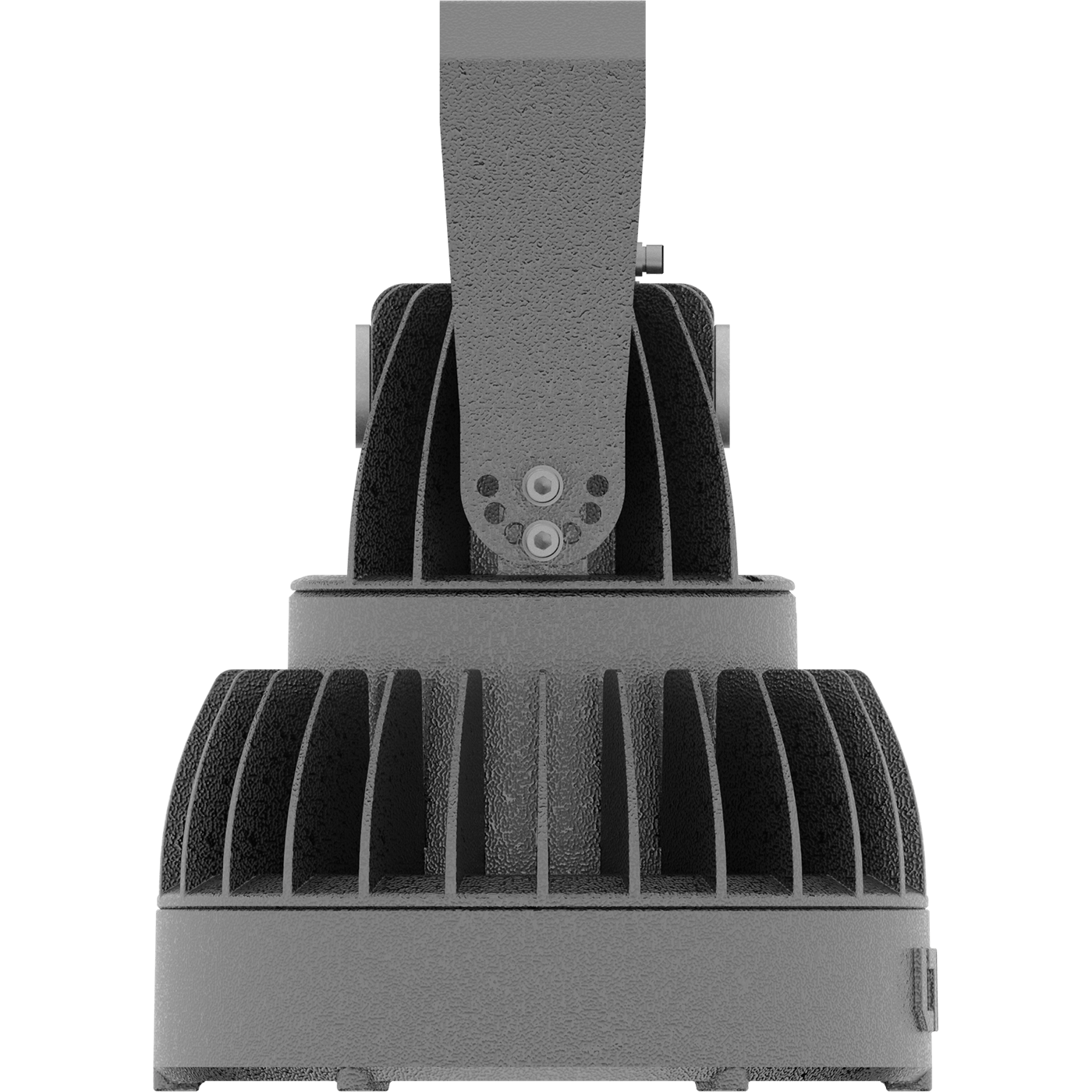

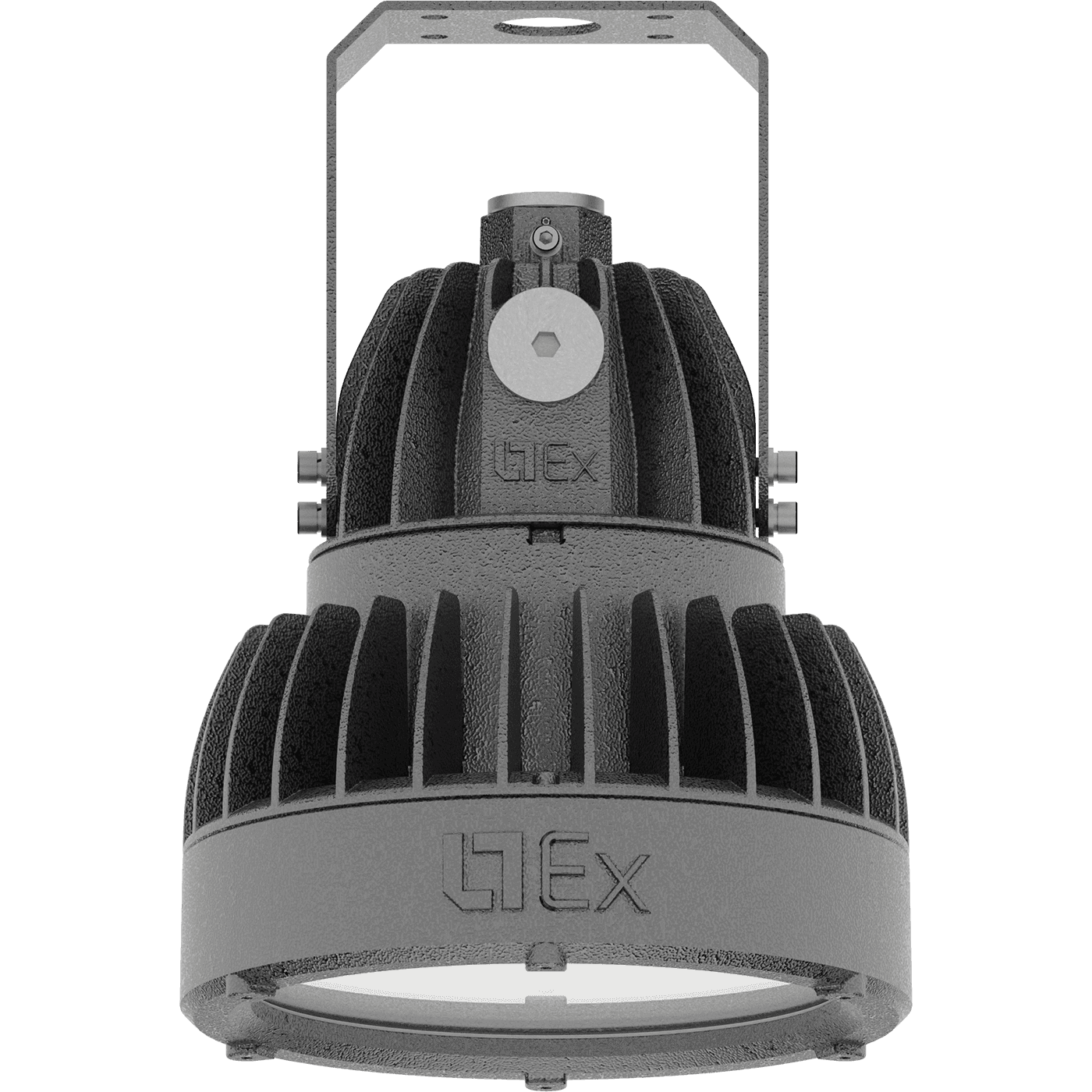

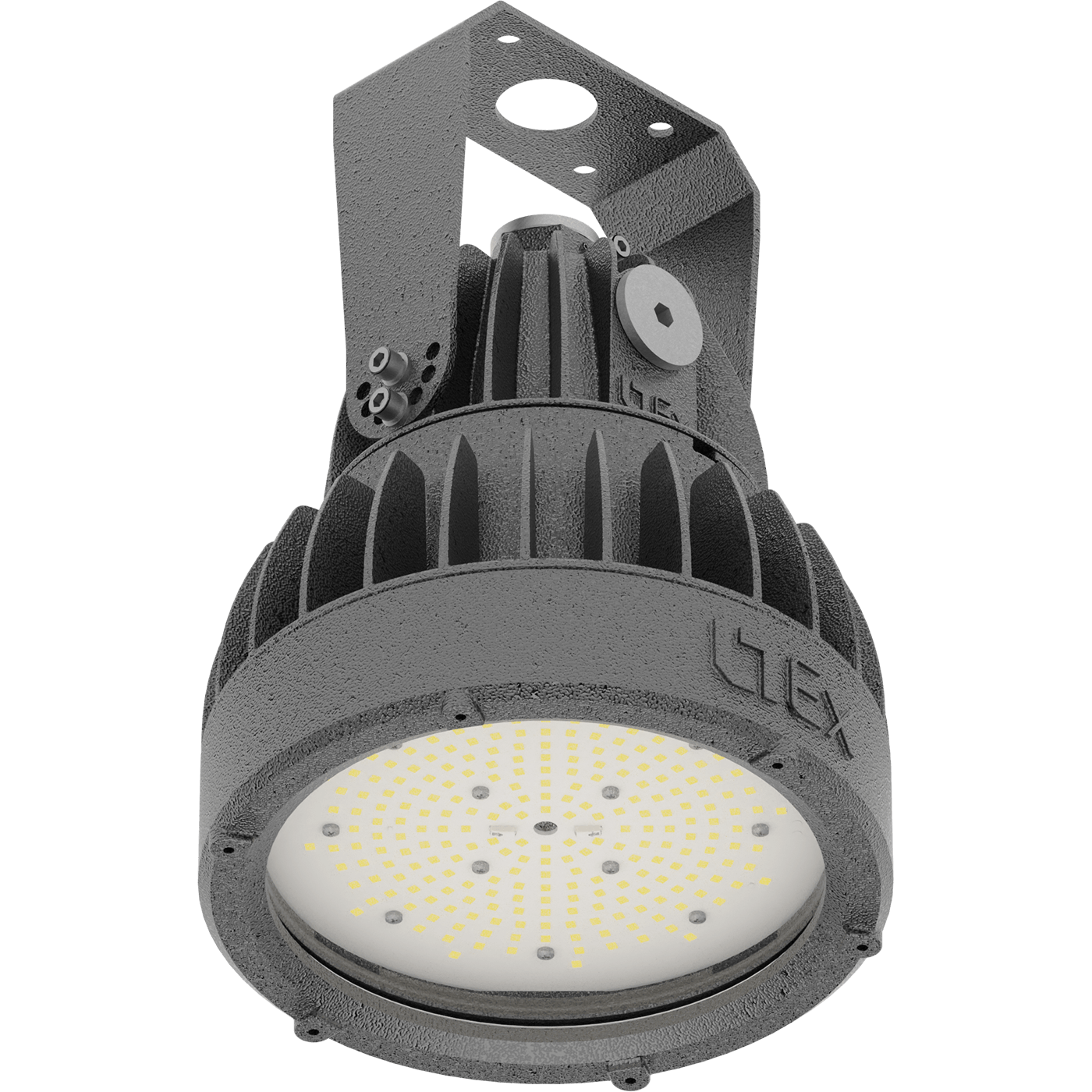

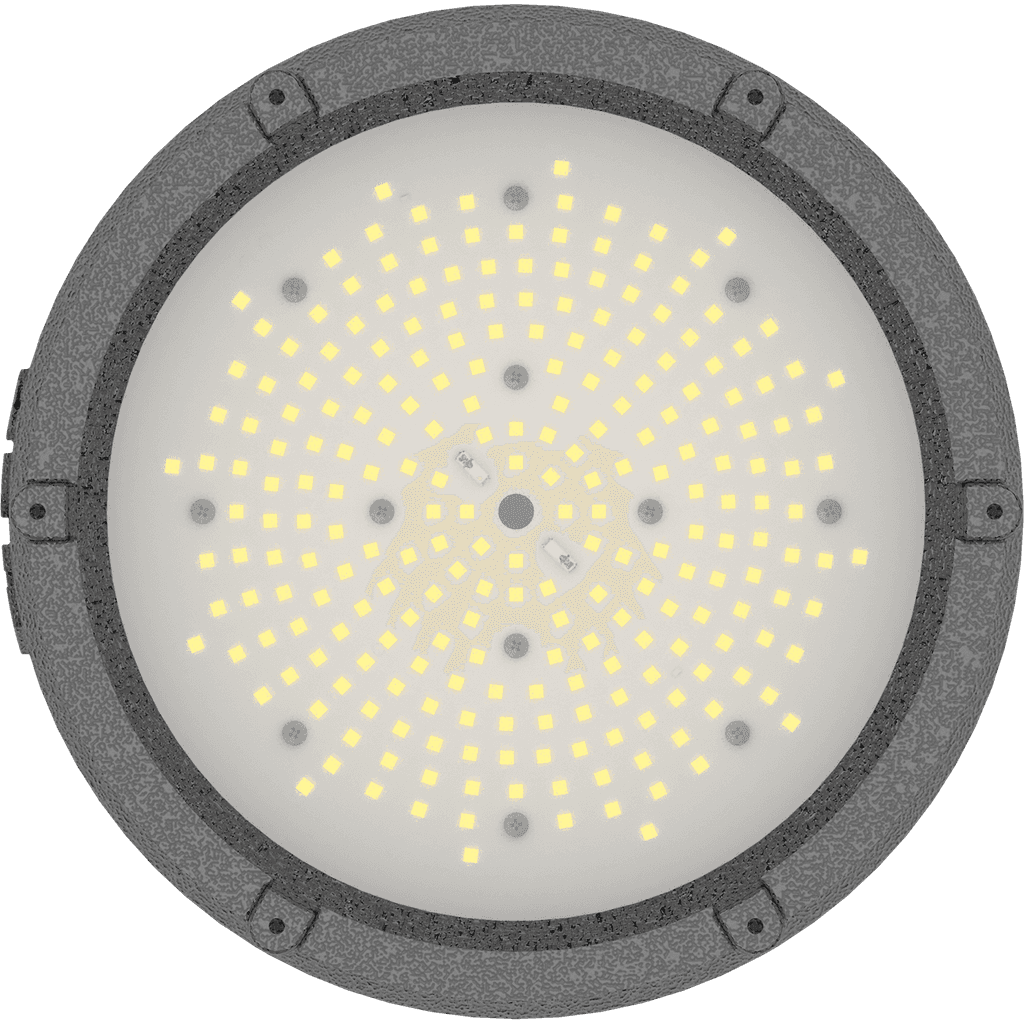

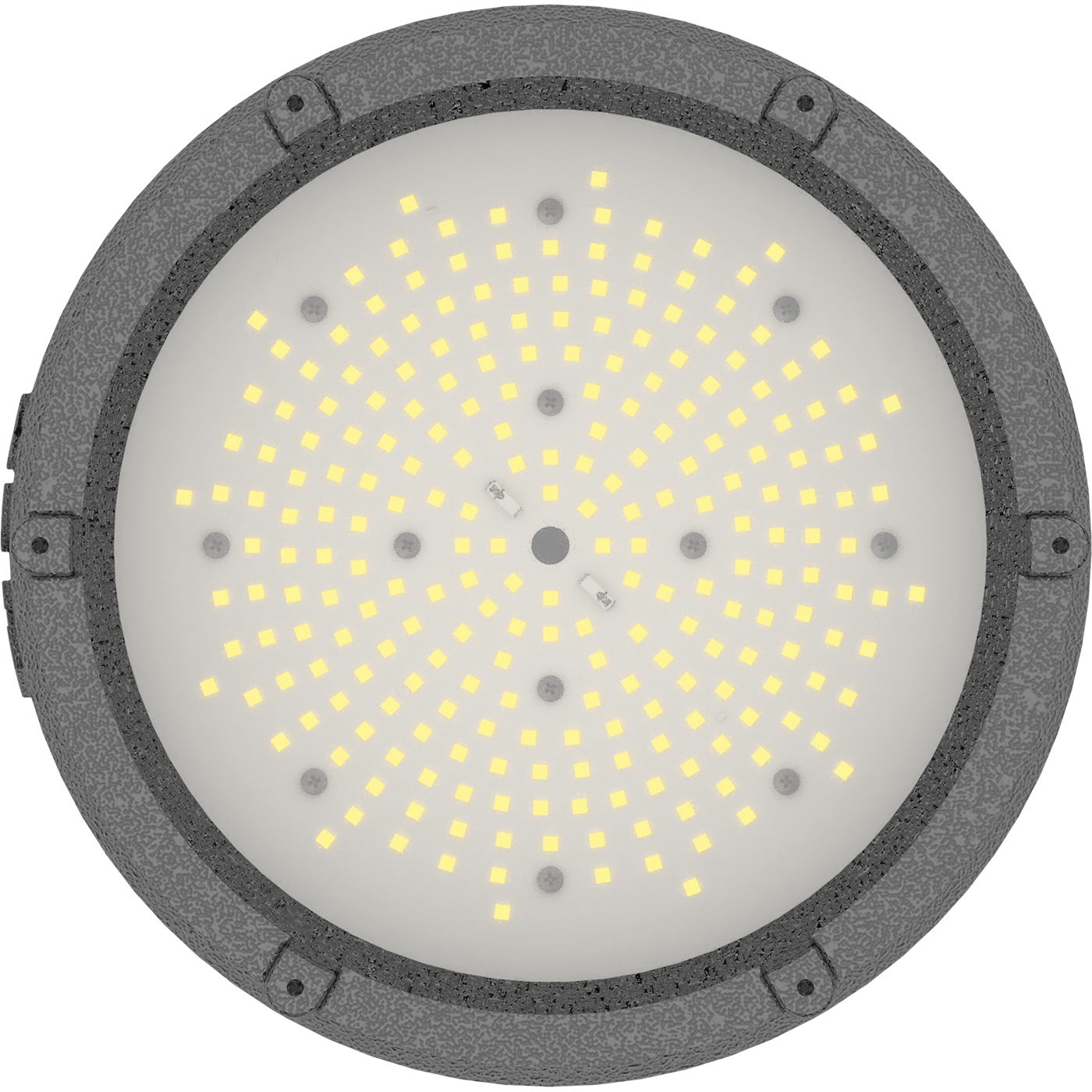

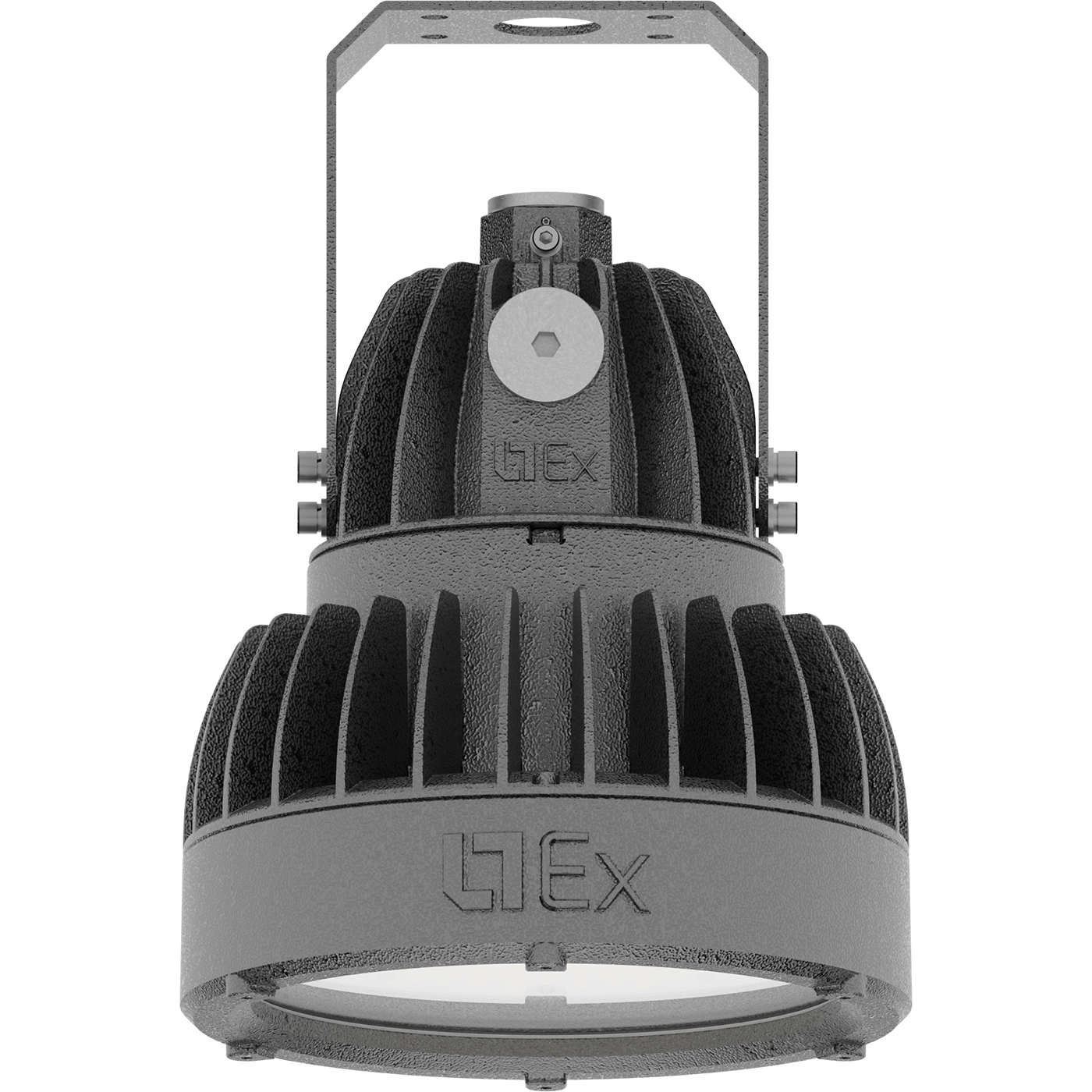

ZENITH LED Ex G2/B 30W D120 850 HG
зарегистрирована в реестре российской промышленной продукции
ZENITH LED Ex G2/B 30W D120 850 HG
32 Wluminaire power
4800 lmlight flow
150 lm/Wenergy efficiency
code
1226000680
number from the register of Russian industrial products
10815620
color temperature
5000 K
gas marking
1 Ex db op is IIC T6 Gb X
dust marking
Ex tb IIIC T85 C Db
beam angle
D120
weight
7.1 kg
- main page
- catalog
- by product type
- explosion-proof equipment
- explosion-proof lamps
- zone 1
- ZENITH LED Ex G2
- ZENITH LED Ex G2/B 30W D120 850 HG
options
свернуть все
illuminatingelectricalconstructionalexplosion-proofemergencycommonpackage
Synchronization of flashing mode
Нетcolor rendition index (CRI)
>80light flow
4800 lmenergy efficiency
150 lm/Wflickering factor
<1%beam angle
D120color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
Synchronization of flashing mode
Нет
color rendition index (CRI)
>80
light flow
4800 lm
energy efficiency
150 lm/W
flickering factor
<1%
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
electric shock protection
I
supply voltage, direct current
128-391 V
supply voltage, alternating current
99-264 V
maximum cross-section of the connected cable
2.5 mm2
starting current pulse time
40 µs
luminaire power
32 W
power factor
> 0,97
starting current
9 A
constructional
weight
7.1 kg
length
227 mm
width
227 mm
height
320 mm
installation length
70 mm
installation width
35 mm
material
Сплав алюминиевый
fire safety class
П-ІІа
climatic performance
УХЛ1*
shock resistance (IK)
IK08/7 Дж
mounting type
housing color
Серый
explosion-proof
gas marking
1 Ex db op is IIC T6 Gb X
dust marking
Ex tb IIIC T85 C Db
gas explosion-proof (type)
Ex db op is
gas explosion-proof (zones)
1
gas explosion-proof (groups of equipment)
IIC
T6 - temperature class
T6
emergency
emergency power supply
Нет
common
code
1226000680
warranty
36 month
temperature range
от -60 до +55 C
energy efficiency class
A++
service life
50 000 h
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
package
Package contents
Светильник - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
model files
model files

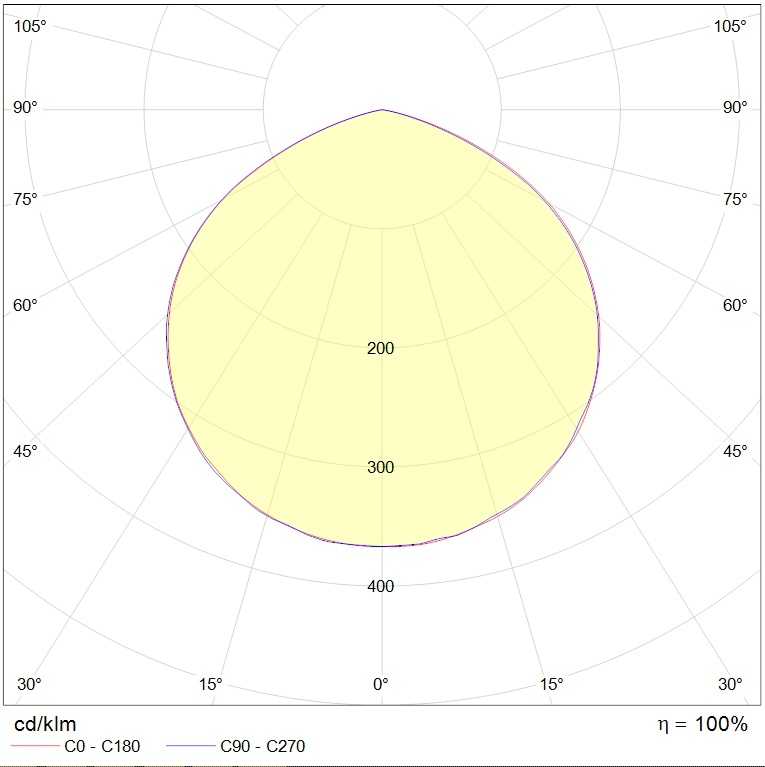

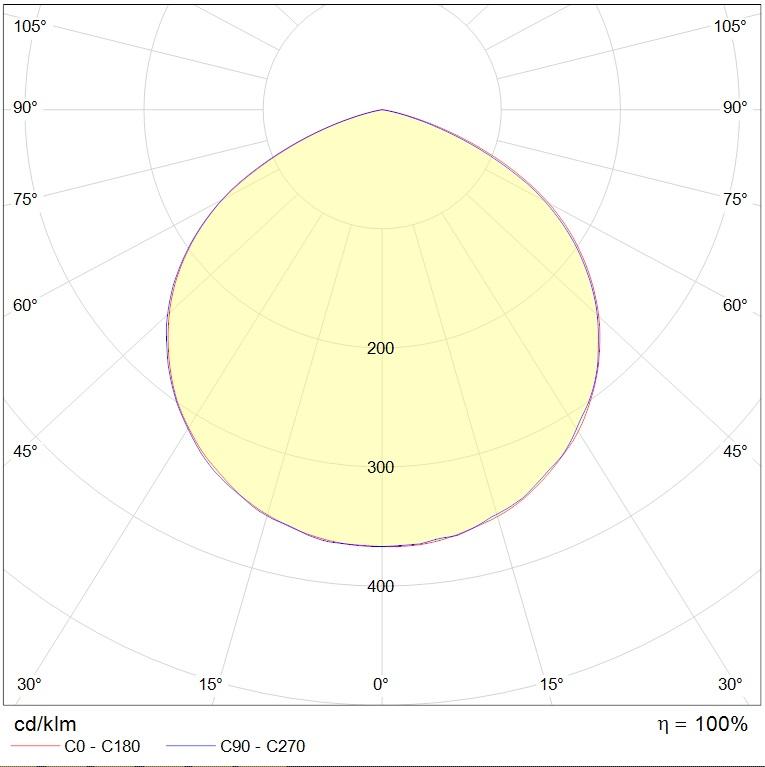

photometric files
documents
сертификаты
media

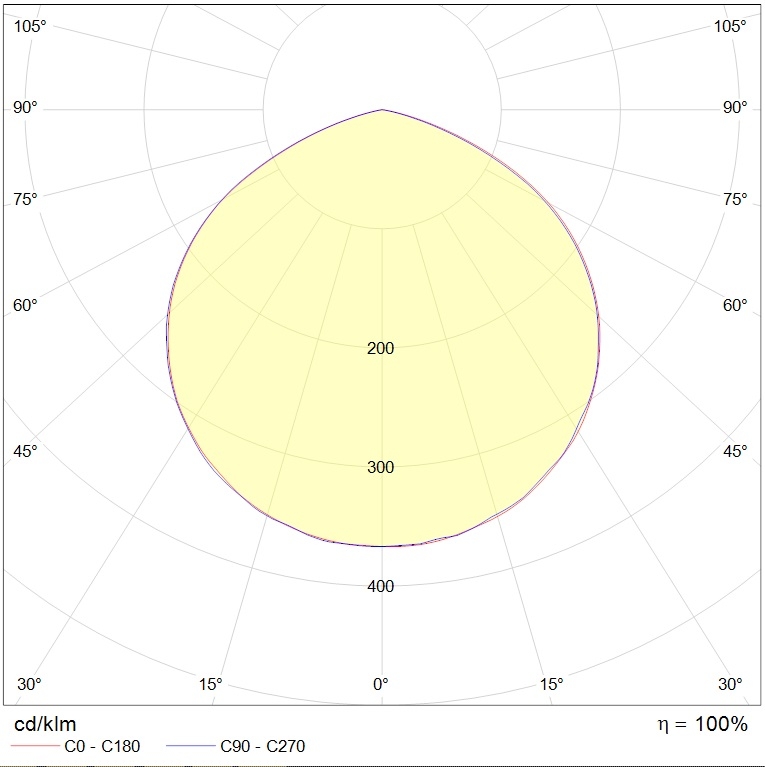

photometric files
ies107 kB
jpg78.6 kB
ldt63.9 kB
csv442 B
documents
passport5.6 mB

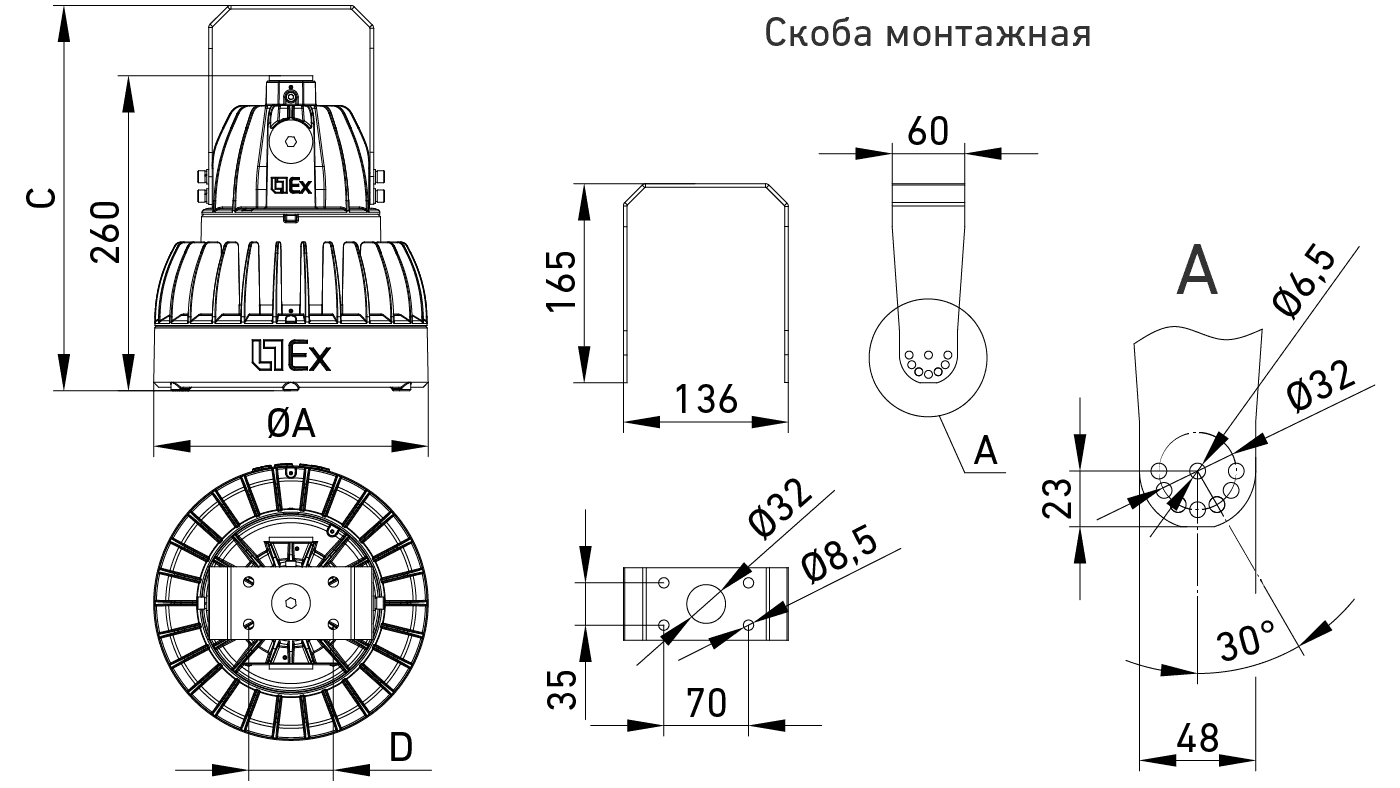

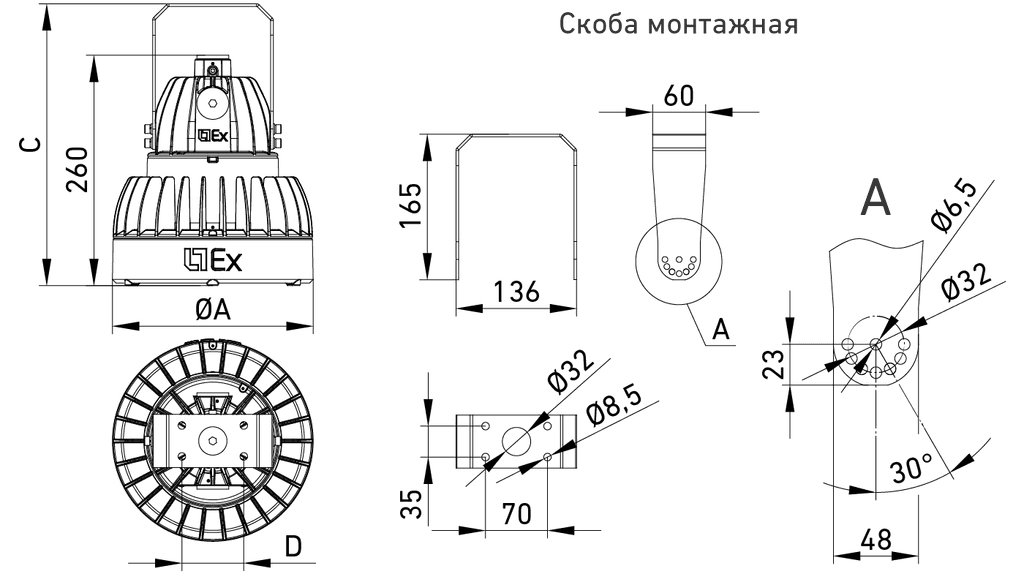

чертеж125.2 kB
сертификаты
Russian origin330.3 kB
Certificate of Russian maritime register of shipping1.5 mB
Certificate of conformity TRTS 012/20111.5 mB
Declaration of Conformity TRTS 020/2011774.6 kB
Certificate of seismic resistance283.6 kB
Declaration of Conformity EAEU TR 037/2016295.1 kB
Fire Safety Certificate922.7 kB
media
brochure5.7 mB
accessories
Cable entry explosion-proof М25х1,5 DSA2SMBNS0.19kgarticle: 2327017400color: Неокрашенныйø cable internal: 10,0-14,5ø cable external: 12,5-20,5
Cable entry explosion-proof М25х1,5 NA2MBNS0.05kgarticle: 2327009380color: Неокрашенныйø cable internal: 11,3-19,9
Cable entry explosion-proof М25х1,5 DSA2MBNS0.164kgarticle: 2327010070color: Неокрашенныйø cable internal: 11,3-19,9ø cable external: 19,9-26,2
