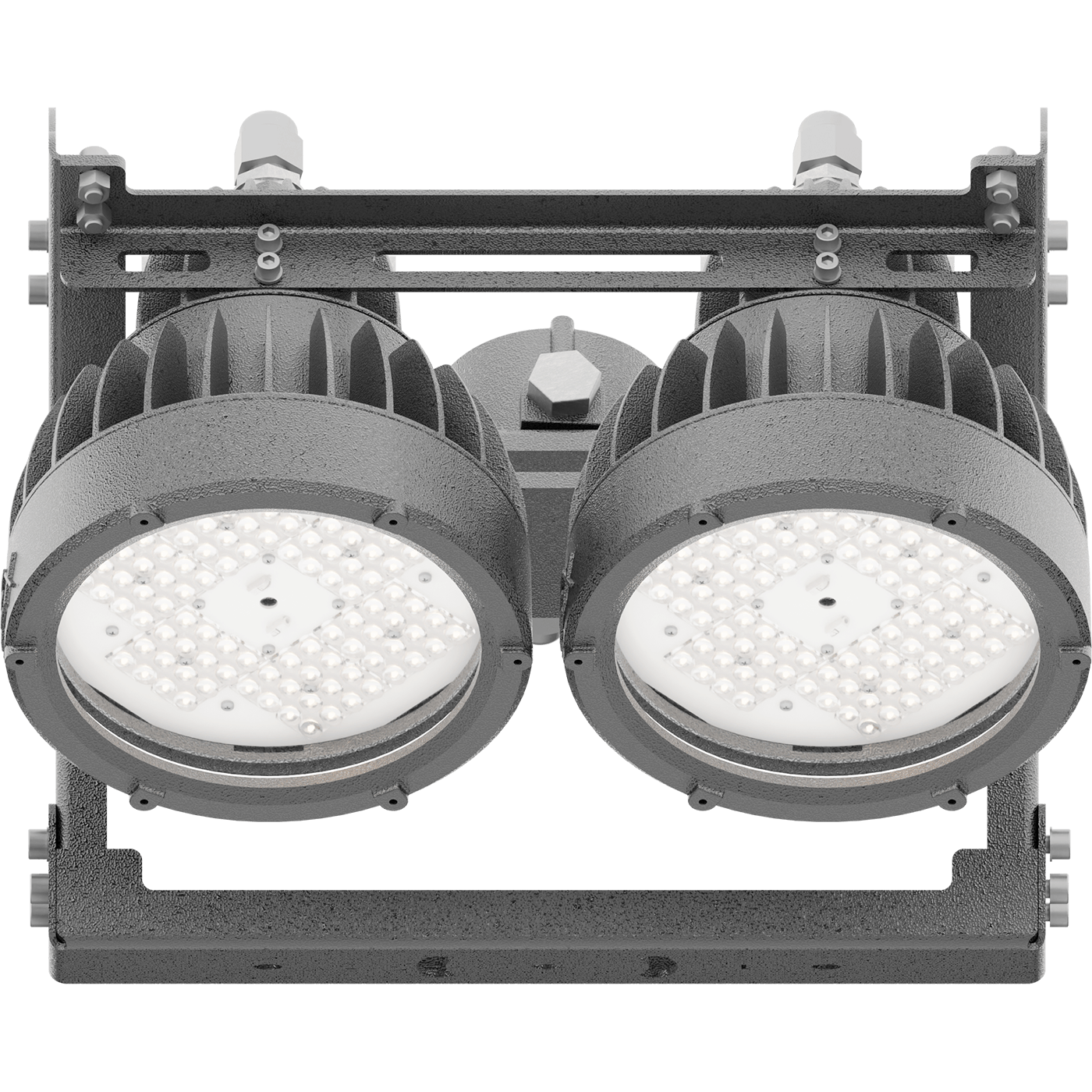

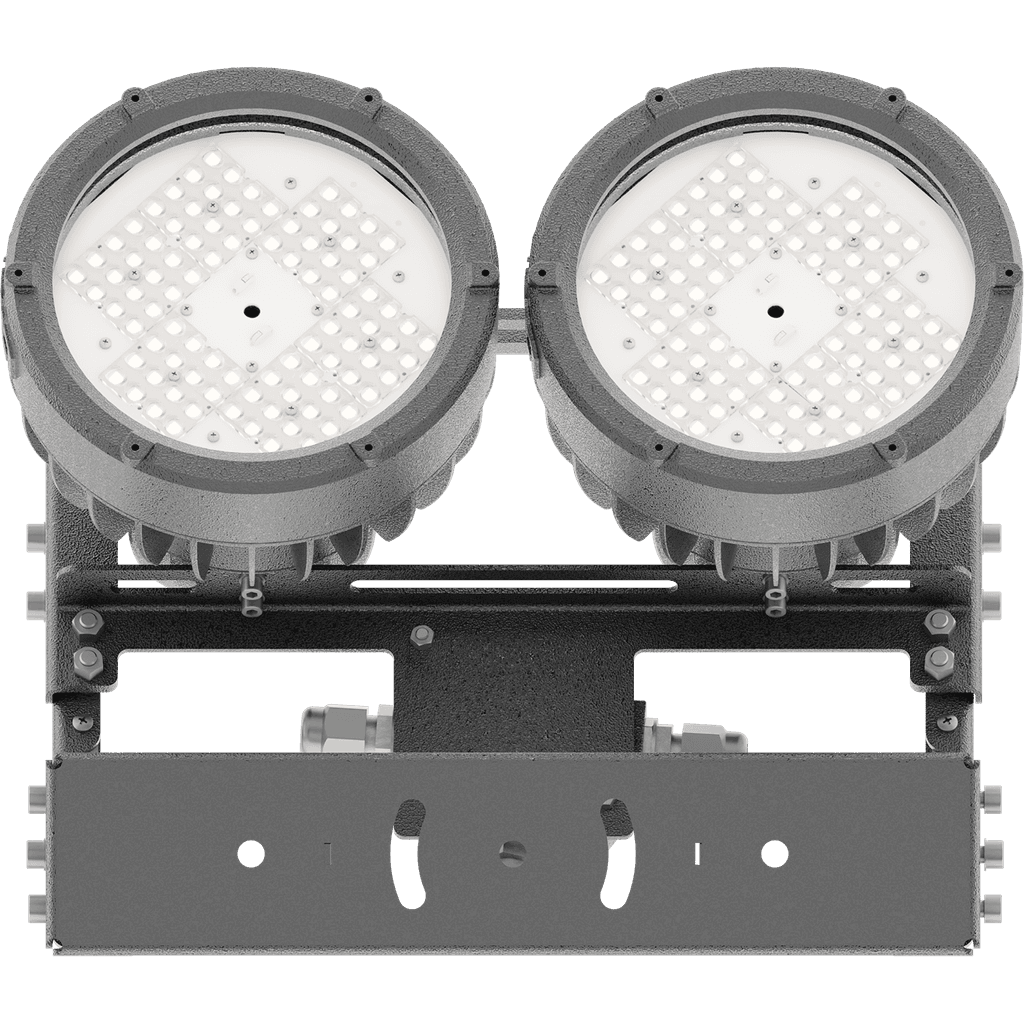

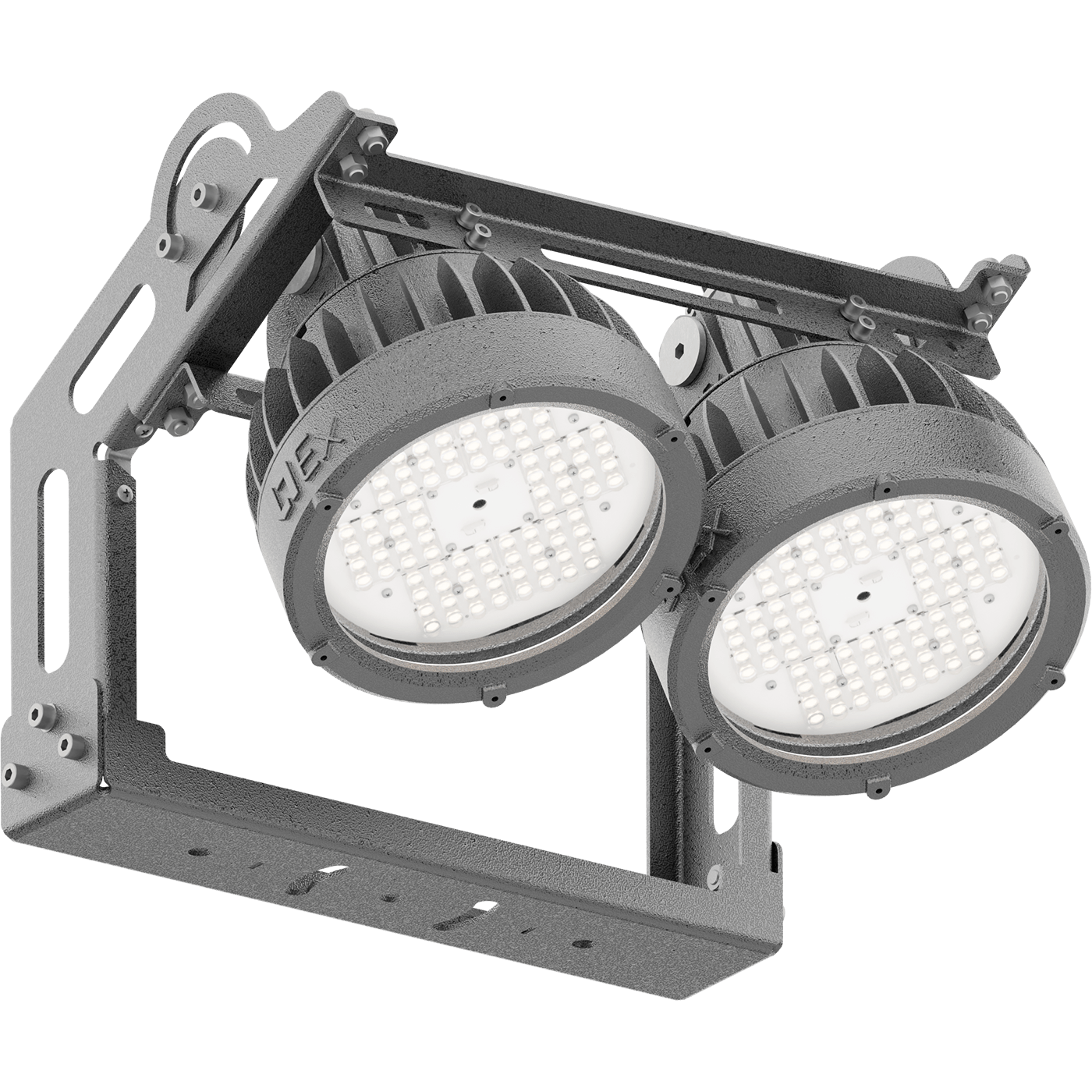

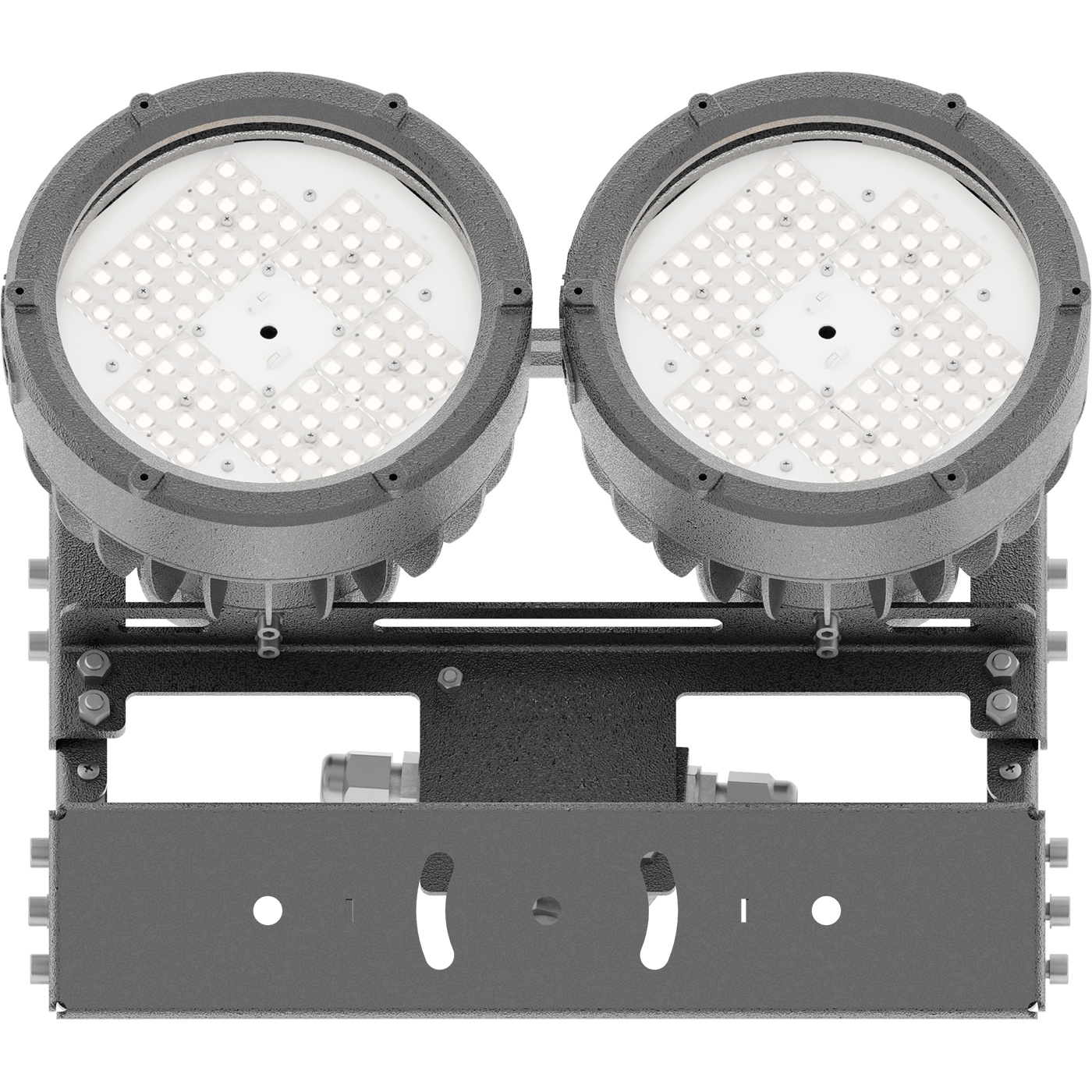

ZENITH LED Ex FLOODLIGHT G2/B 90Wх2 D30 850 HG (DA)

ZENITH LED Ex FLOODLIGHT G2/B 90Wх2 D30 850 HG (DA)
add to favorites
180 Wluminaire power
22200 lmlight flow
123 lm/Wenergy efficiency
code1226000950
color temperature5000
gas marking1 Ex db IIC T5 Gb
dust markingEx tb IIIC T100 C Db
beam angleD30
weight21.05 kg
  1. main page
  2. catalog
  3. by product type
  4. explosion-proof equipment
  5. explosion-proof lamps
  6. zone 1
  7. ZENITH LED Ex FLOODLIGHT G2
  8. ZENITH LED Ex FLOODLIGHT G2/B 90Wх2 D30 850 HG (DA)
options
свернуть все
constructionalelectricalcommonilluminatingexplosion-proof
ingress protection (IP)
IP66
material
Сплав алюминиевый
housing color
Серый

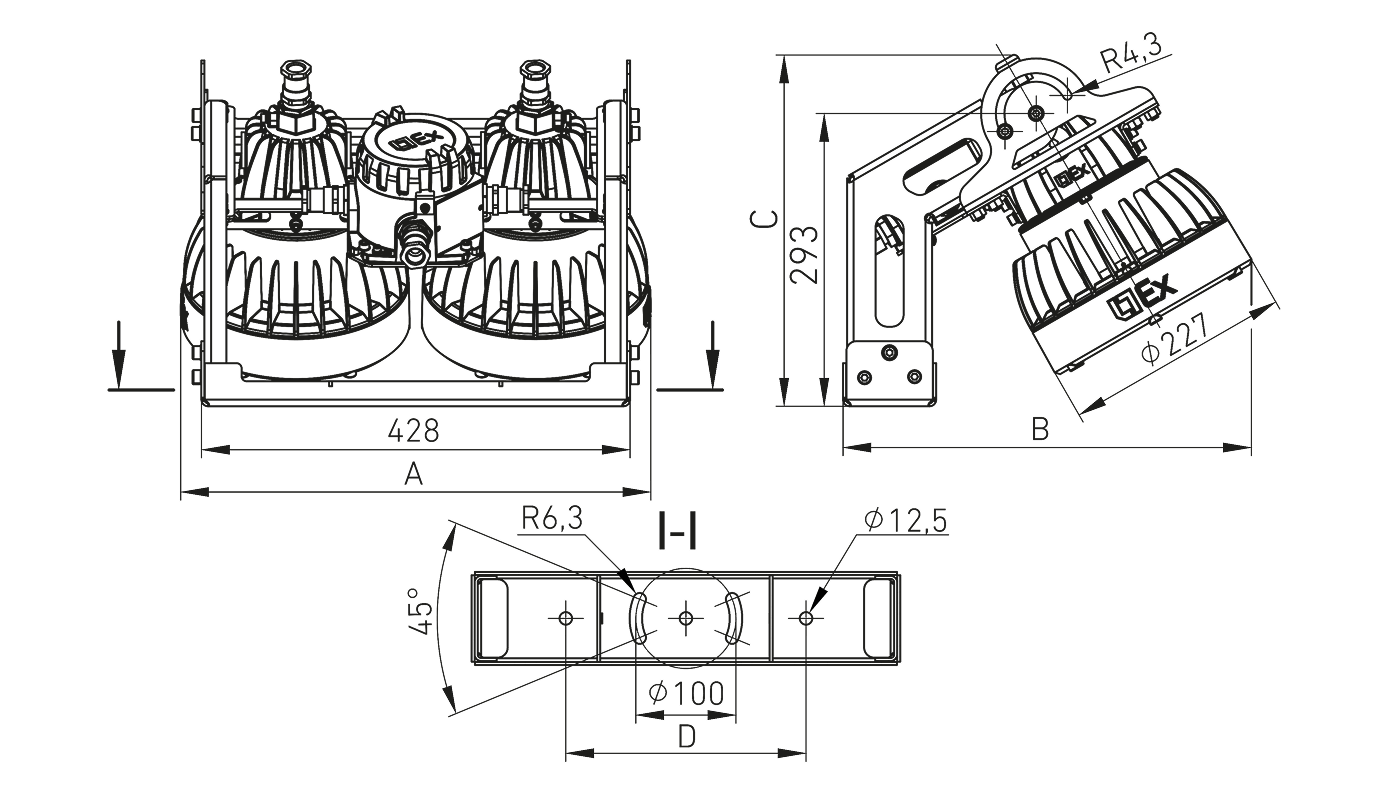

length, mm
408 mm
width, mm
467 mm
height, mm
350 mm
weight
21.05 kg
fire safety class
П-ІІа
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK08/7 Дж
installation length, mm
70 mm
installation width, mm
35 mm
constructional
ingress protection (IP)
IP66
material
Сплав алюминиевый
housing color
Серый
length, mm
408 mm
width, mm
467 mm
height, mm
350 mm
weight
21.05 kg
fire safety class
П-ІІа
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK08/7 Дж
installation length, mm
70 mm
installation width, mm
35 mm
electrical
electric shock protection
I
luminaire power
180 W
power factor
> 0,95
common
code
1226000950
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
warranty
12 month
temperature range
от -60 до +55 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
color rendition index (CRI)
>80
light flow
22200 lm
energy efficiency
123 lm/W
flickering factor
<1%
beam angle
D30
color temperature
5000
light source type
LED
emission color
Белый
Synchronization of flashing mode
Нет
explosion-proof
gas marking
1 Ex db IIC T5 Gb
dust marking
Ex tb IIIC T100 C Db
gas explosion-proof (type)
Ex db
gas explosion-proof (zones)
1
gas explosion-proof (groups of equipment)
IIC
T6 - temperature class
T5
model files
model files

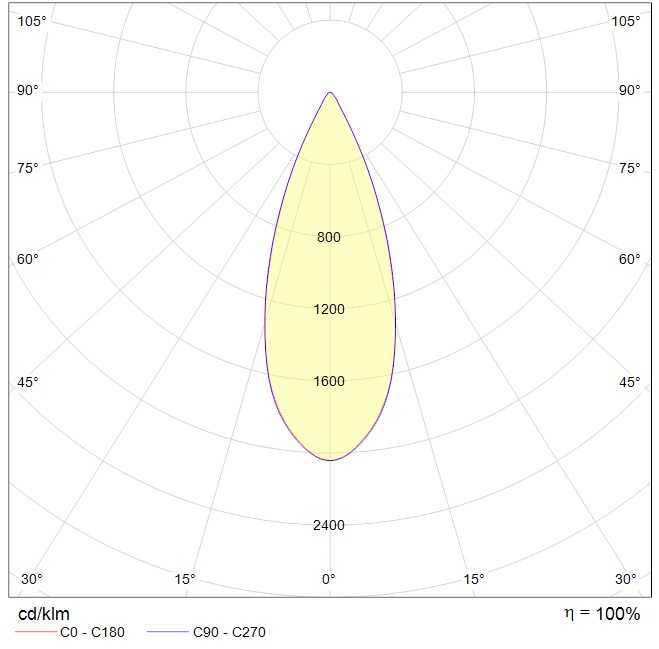

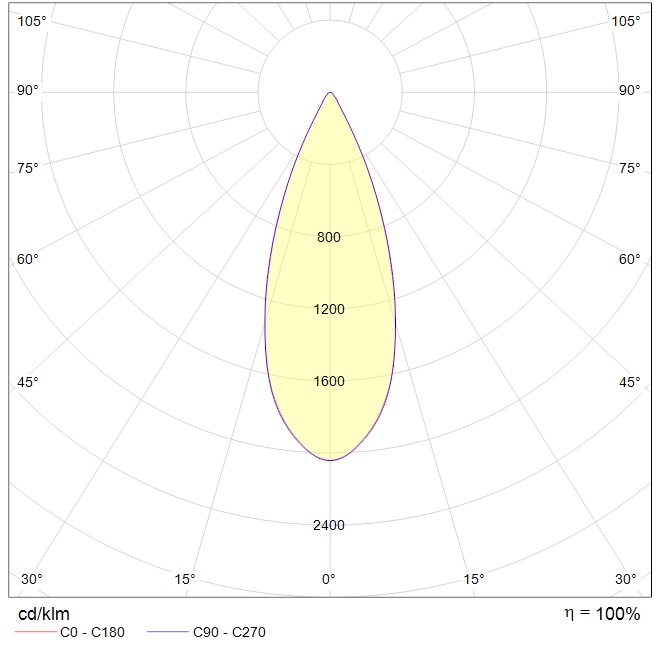

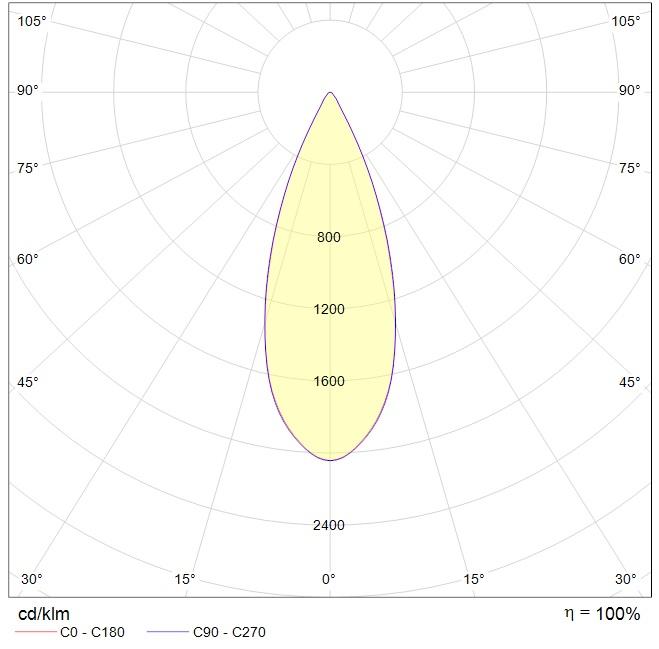

photometric files
ies134.1 kB
jpg63.6 kB
ldt82.9 kB
сертификаты
Certificate of Russian maritime register of shipping1.5 mB
Certificate of conformity TRTS 012/2011421.8 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Certificate of seismic resistance834.7 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
Fire Safety Certificate471.1 kB
photometric files
ies134.1 kB
jpg63.6 kB
ldt82.9 kB
сертификаты
Certificate of Russian maritime register of shipping1.5 mB
Certificate of conformity TRTS 012/2011421.8 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Certificate of seismic resistance834.7 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
Fire Safety Certificate471.1 kB
accessories
Cable entry explosion-proof М20х1,5 NA1MBNS0.056kgarticle: 2327009370color: Неокрашенныйø cable internal: 6,5-13,9
Cable entry explosion-proof М25х1,5 NA2MBNS0.05kgarticle: 2327009380color: Неокрашенныйø cable internal: 11,3-19,9
Cable entry explosion-proof М20х1,5 DSA1MBNS0.164kgarticle: 2327010060color: Неокрашенныйø cable internal: 6,5-13,9ø cable external: 12,5-20,9
