ZENITH LED Ex FLOODLIGHT G2/B 50W D30 850 HG

ZENITH LED Ex FLOODLIGHT G2/B 50W D30 850 HG
add to favorites
48 Wluminaire power
6200 lmlight flow
129 lm/Wenergy efficiency
code1226001280
color temperature5000 K
gas marking1 Ex db IIC T5 Gb
dust markingEx tb IIIC T100 C Db

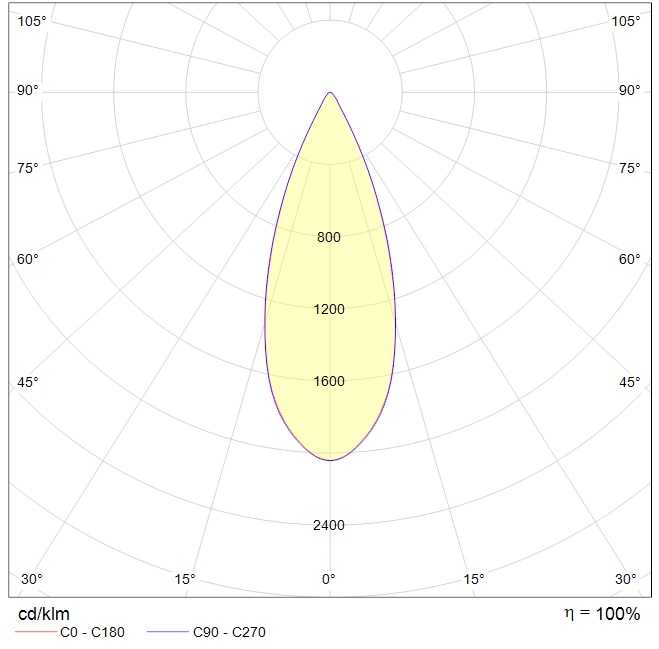

beam angleD30
weight8.5 kg
  1. main page
  2. catalog
  3. by product type
  4. explosion-proof equipment
  5. explosion-proof lamps
  6. zone 1
  7. ZENITH LED Ex FLOODLIGHT G2
  8. ZENITH LED Ex FLOODLIGHT G2/B 50W D30 850 HG
options
свернуть все
illuminatingelectricalconstructionalexplosion-proofcommon
Synchronization of flashing mode
Нет
color rendition index (CRI)
>80
light flow
6200 lm
energy efficiency
129 lm/W
flickering factor
<1%
beam angle
D30
color temperature
5000 K
light source type
LED
emission color
Белый
illuminating
Synchronization of flashing mode
Нет
color rendition index (CRI)
>80
light flow
6200 lm
energy efficiency
129 lm/W
flickering factor
<1%
beam angle
D30
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
electric shock protection
I
supply voltage, direct current
90-300 V
supply voltage, alternating current
90-300 V
maximum cross-section of the connected cable
2.5 mm2
starting current pulse time
2000 µs
luminaire power
48 W
power factor
> 0,95
starting current
5 A
constructional
weight
8.5 kg
length
410 mm
width
227 mm
height
351 mm
installation length
70 mm
installation width
35 mm
material
Сплав алюминиевый
fire safety class
П-ІІа
climatic performance
УХЛ1*
shock resistance (IK)
IK08/7 Дж
housing color
Серый
explosion-proof
gas marking
1 Ex db IIC T5 Gb
dust marking
Ex tb IIIC T100 C Db
gas explosion-proof (type)
Ex db
gas explosion-proof (zones)
1
gas explosion-proof (groups of equipment)
IIC
T6 - temperature class
T5
common
code
1226001280
warranty
12 month
temperature range
от -60 до +55 C
energy efficiency class
A+
service life
50 000 h
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
