WASHLINE MINI LED (1000) 16W D40 827 SL
archive
_16w_d40_827_sl.jpg&w=1920&q=50)
_16w_d40_827_sl.jpg&w=1024&q=50)
archive
WASHLINE MINI LED (1000) 16W D40 827 SL
16 Wluminaire power
1000 lmlight flow
63 lm/Wenergy efficiency
code1100001910
beam angleD40
color temperature2700
weight1.4 kg
options
свернуть все
electricalconstructionalcommonilluminating
luminaire power
16 Welectric shock protection
IIImaximum number of luminaires in a line
4power factor
> 0,98supply voltage
24 Velectrical
luminaire power
16 W
electric shock protection
III
maximum number of luminaires in a line
4
power factor
> 0,98
supply voltage
24 V
constructional
ingress protection (IP)
IP65
fire safety class
П-ІІІ
material
Алюминий
weight
1.4 kg
length, mm
1013 mm
width, mm
25 mm
height, mm
15 mm
housing color
Металлик
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
1.5
shock resistance (IK)
IK08/6,5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1100001910
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от -40 до +40 C
energy efficiency class
A
service life, hour
50 000 h
illuminating
energy efficiency
63 lm/W
color rendition index (CRI)
>80
light flow
1000 lm
beam angle
D40
color temperature
2700
light source type
LED
emission color
Белый
model files
model files

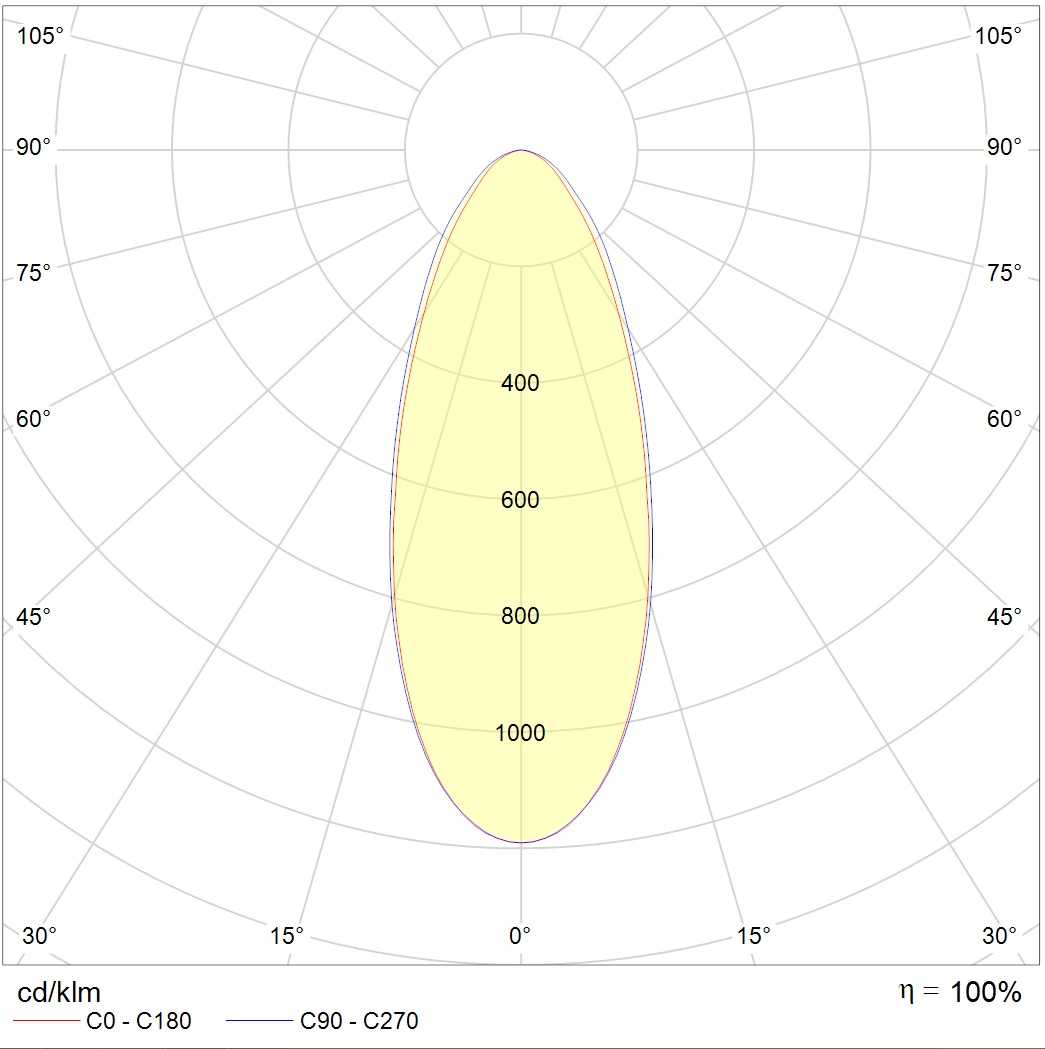

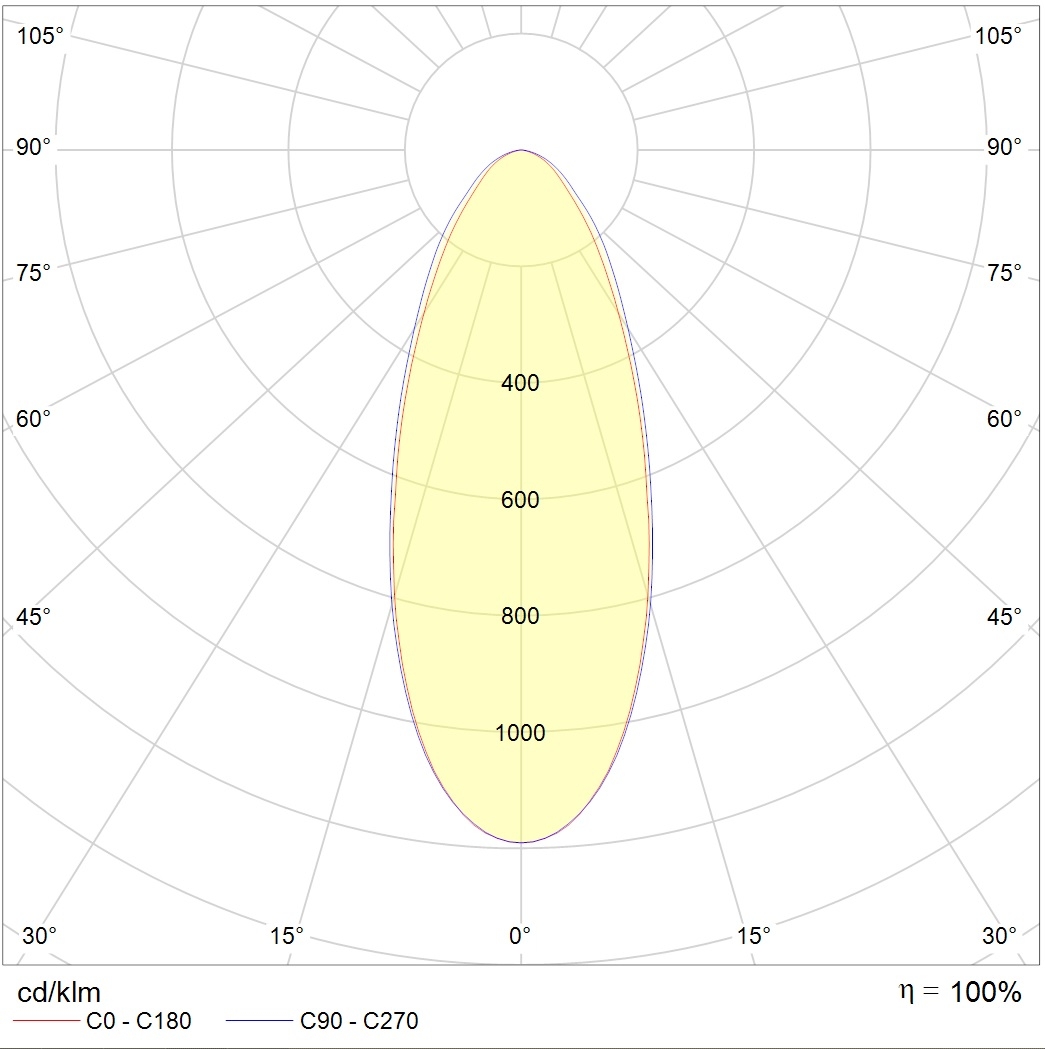

photometric files
сертификаты
photometric files
ies221.4 kB
jpg130.6 kB
ldt138.5 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
