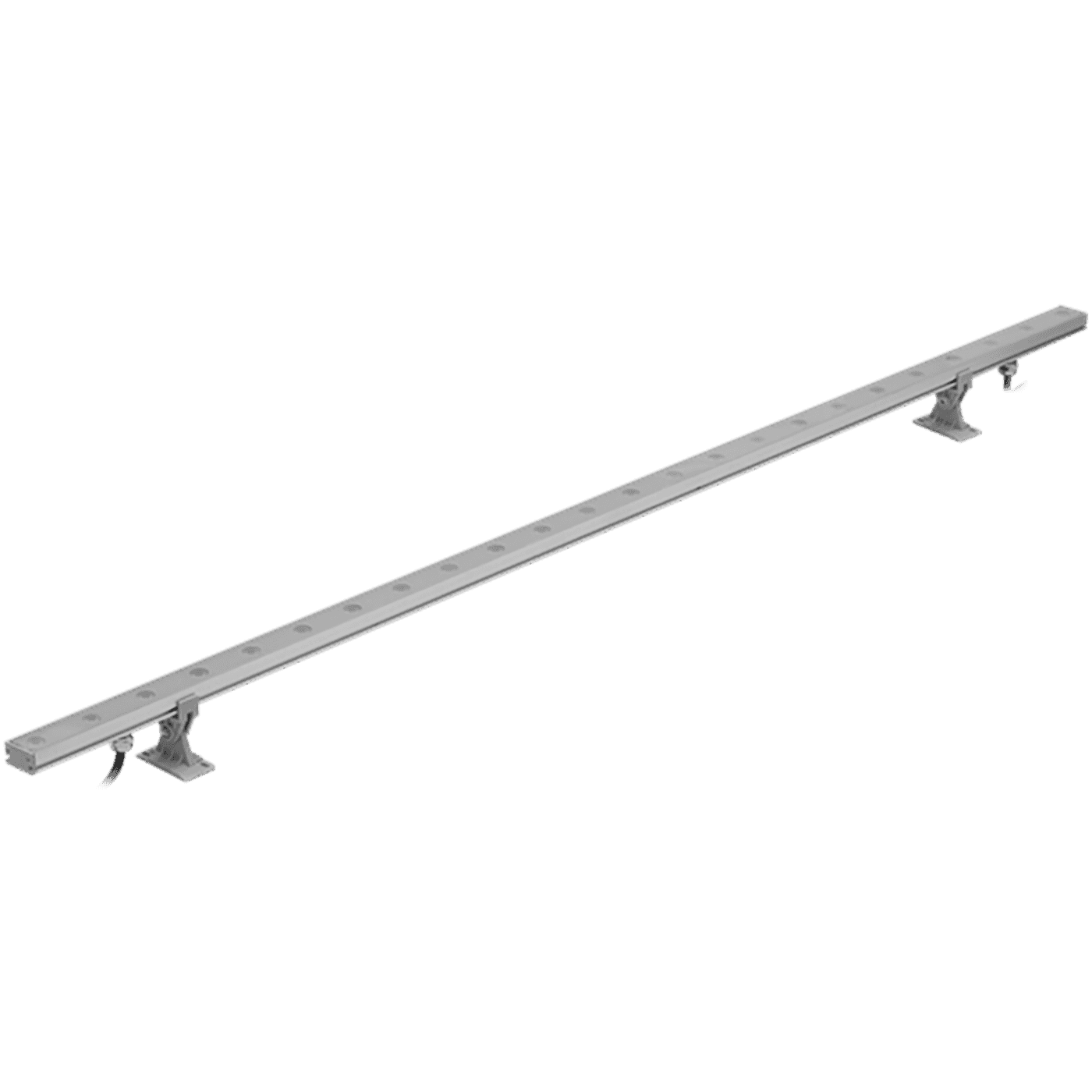

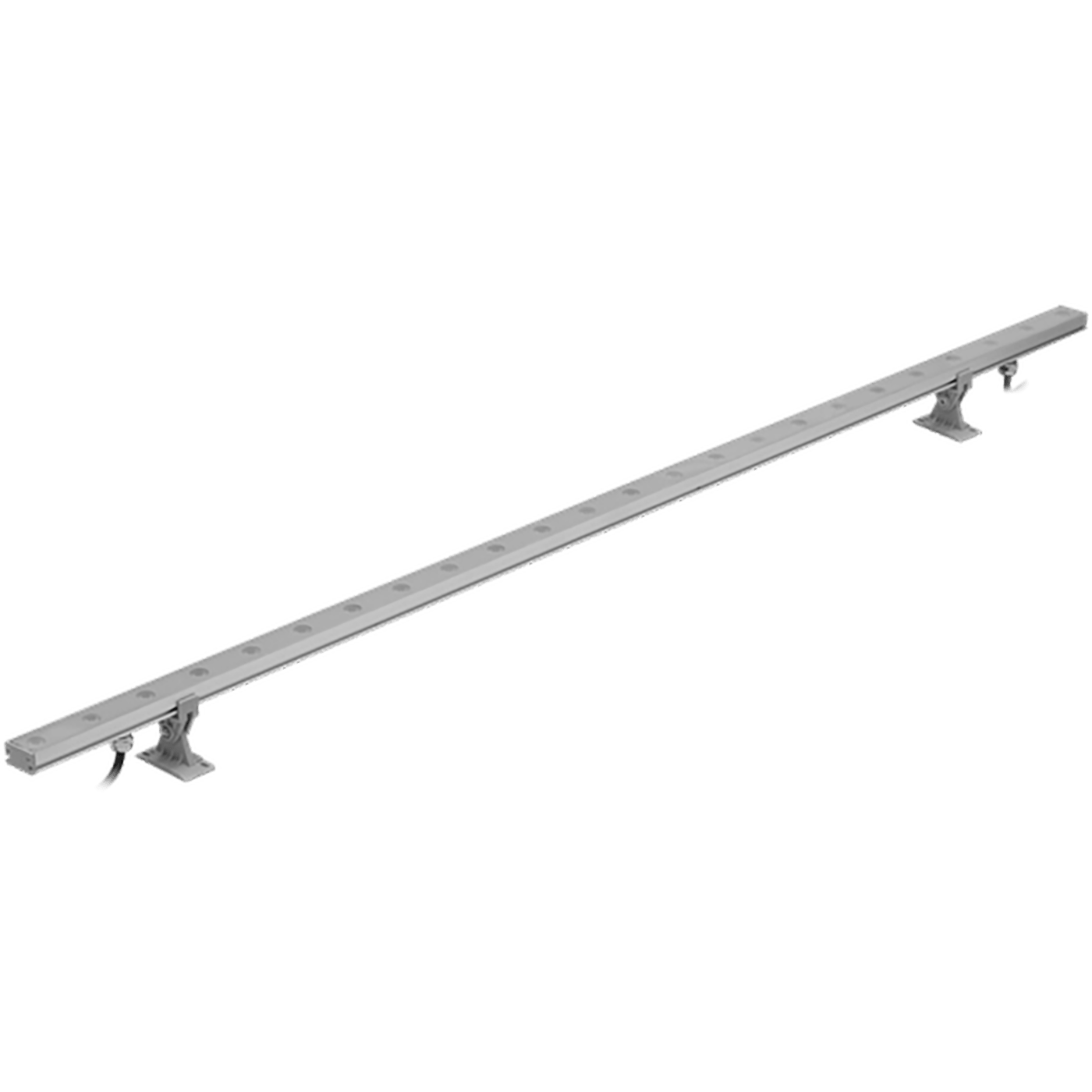

WASHLINE MINI LED (1000) 16W D120 827 SL
18 Wluminaire power
900 lmlight flow
50 lm/Wenergy efficiency
code1100002040
beam angleD120
color temperature2700
weight0.8 kg
options
свернуть все
constructionalelectricalcommonilluminating
ingress protection (IP)
IP65housing color
Металликlength, mm
1013 mmwidth, mm
25 mmheight, mm
15 mmweight
0.8 kgfire safety class
П-ІІІclimatic performance
УХЛ1*maximum cross-section of the connected cable, sq. mm
1.5material
Алюминийshock resistance (IK)
IK08/6,5 Джlamp socket
LEDnumber of lamps
1ballast
Без драйвераconstructional
ingress protection (IP)
IP65
housing color
Металлик
length, mm
1013 mm
width, mm
25 mm
height, mm
15 mm
weight
0.8 kg
fire safety class
П-ІІІ
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
1.5
material
Алюминий
shock resistance (IK)
IK08/6,5 Дж
lamp socket
LED
number of lamps
1
ballast
Без драйвера
electrical
electric shock protection
III
rated supply voltage, direct current
24 V
supply voltage, direct current
24 V
luminaire power
18 W
maximum number of luminaires in a line
4
power factor
> 0,98
supply voltage
24 V
common
code
1100002040
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от -40 до +40 C
energy efficiency class
B
service life, hour
50 000 h
illuminating
color rendition index (CRI)
>80
light flow
900 lm
energy efficiency
50 lm/W
beam angle
D120
color temperature
2700
light source type
LED
emission color
Белый
model files
model files

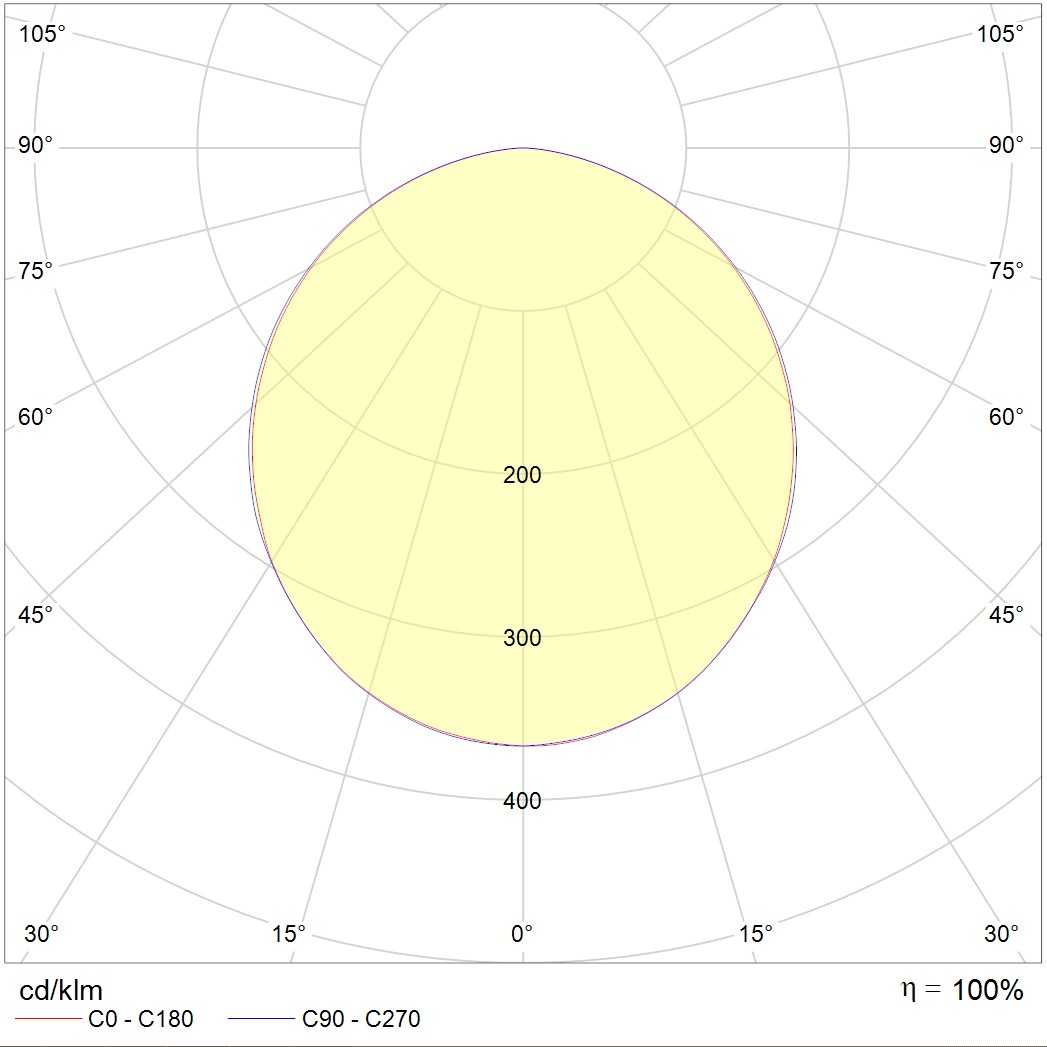

photometric files
documents
сертификаты
photometric files
ies263.2 kB
jpg116.7 kB
ldt165.8 kB
documents
passport585.7 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
