VULCANO 600 3000K
VULCANO 600 3000K
67 Wluminaire power
3700 lmlight flow
55 lm/Wenergy efficiency
code1665000030
color temperature3000 K
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
55 lm/Wcolor rendition index (CRI)
>80light flow
3700 lmflickering factor
<5%beam angle
D120color temperature
3000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
55 lm/W
color rendition index (CRI)
>80
light flow
3700 lm
flickering factor
<5%
beam angle
D120
color temperature
3000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
600 µs
electric shock protection
I
luminaire power
67 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
15 A
constructional
length
910 mm
width
910 mm
height
250 mm
installation length
850 mm
installation width
850 mm
weight
19.9 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Гипс
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от 0 до +40 C
service life
50 000 h
energy efficiency class
B
ETIM class
Настенно-потолочный светильник
code
1665000030
model files
model files
CAD/BIM files
photometric files
сертификаты
CAD/BIM files
model 3dMax2 mB

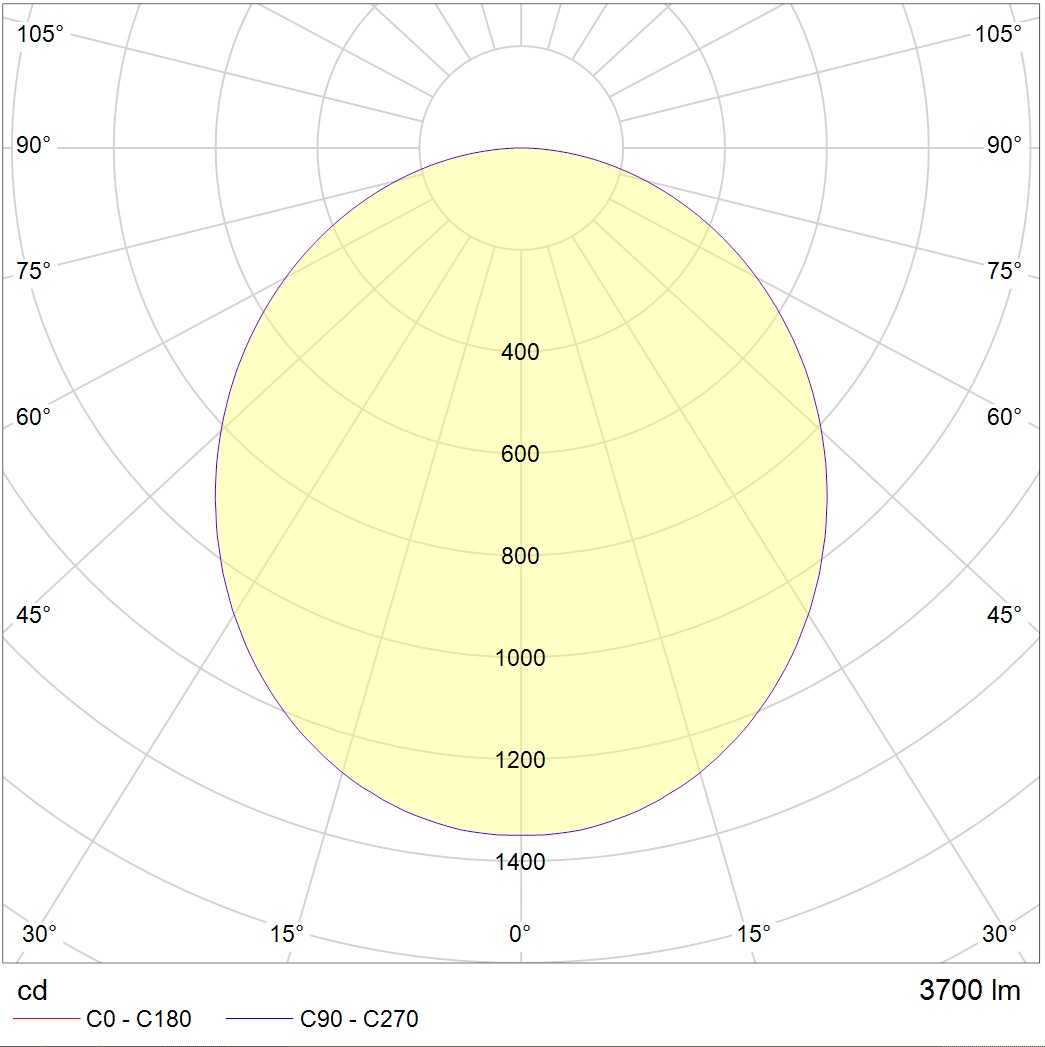

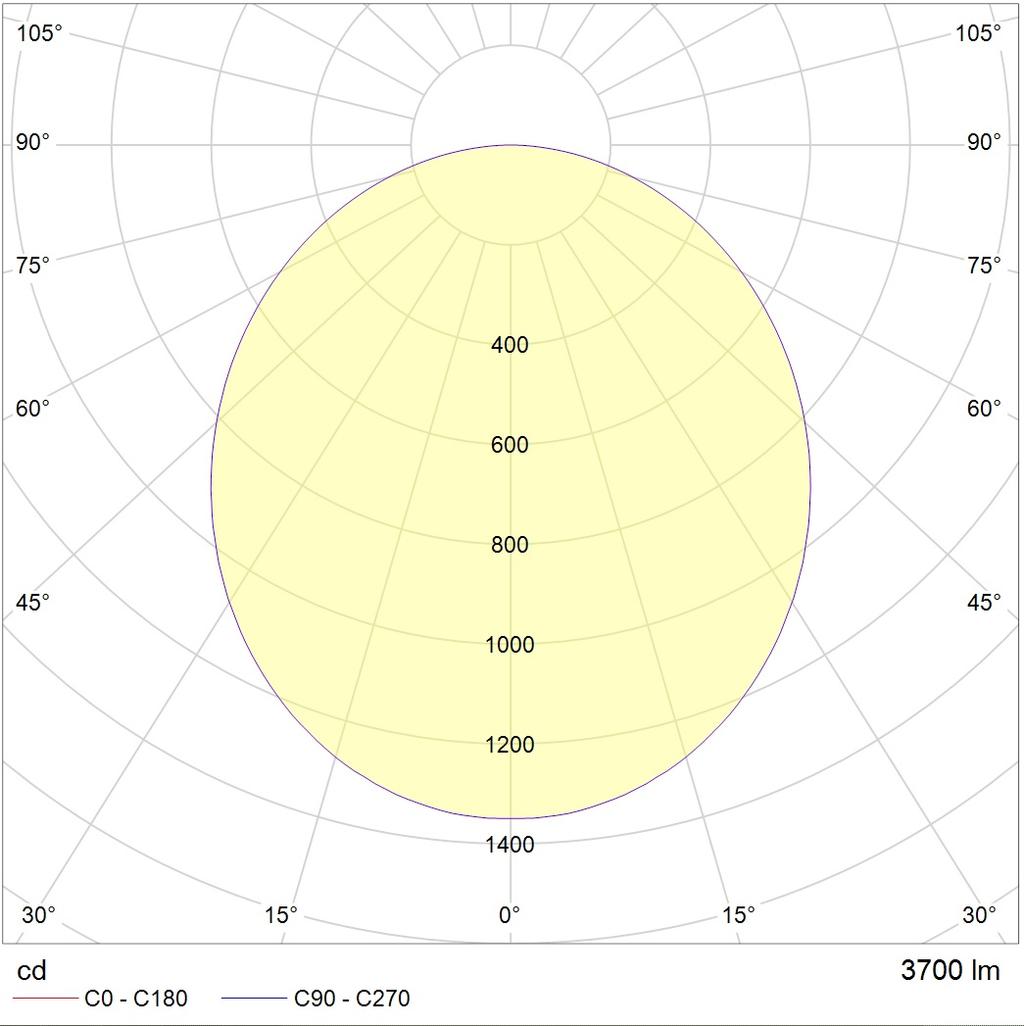

photometric files
ies3.1 kB
jpg136.1 kB
ldt3 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016583.2 kB
Fire Safety Certificate1.7 mB
