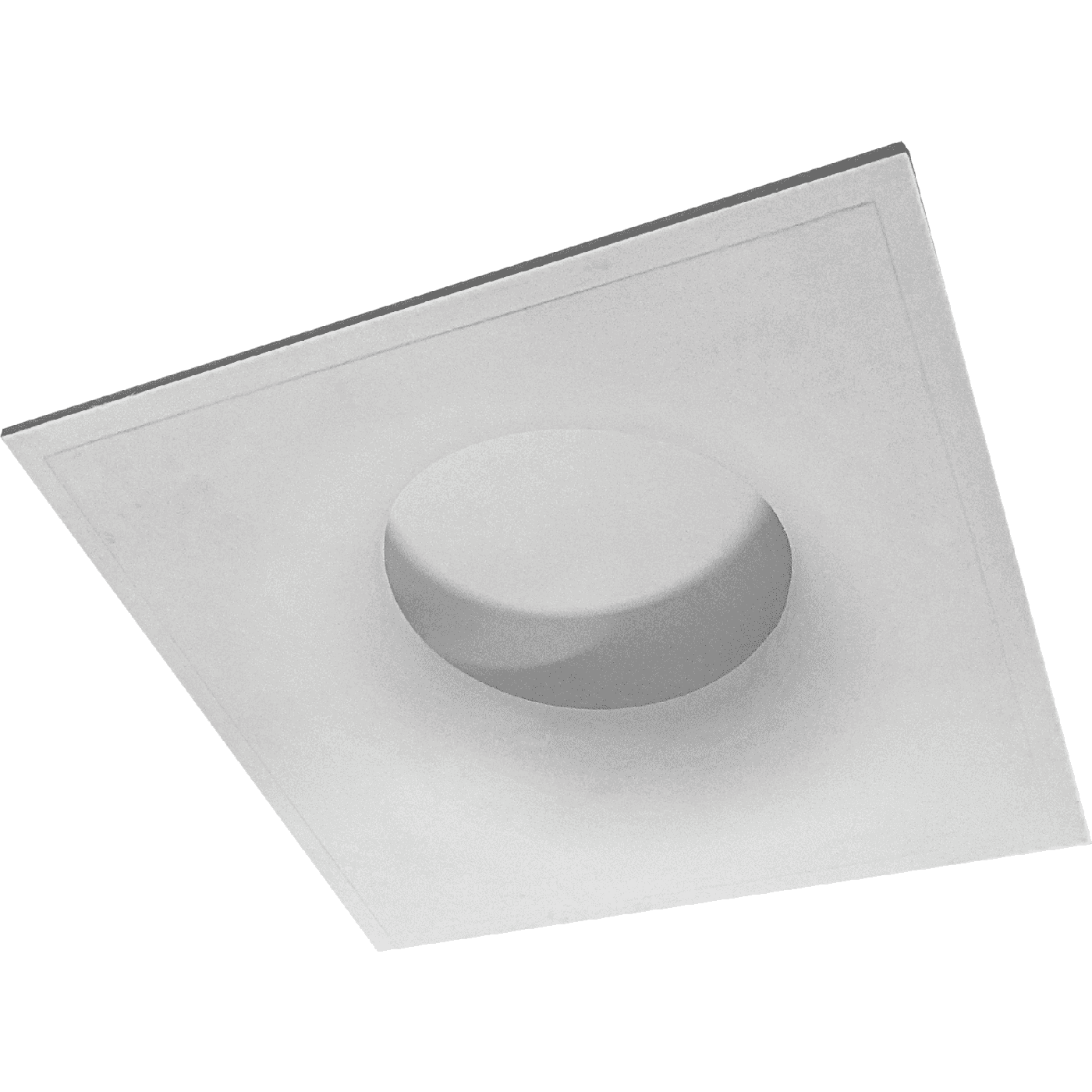

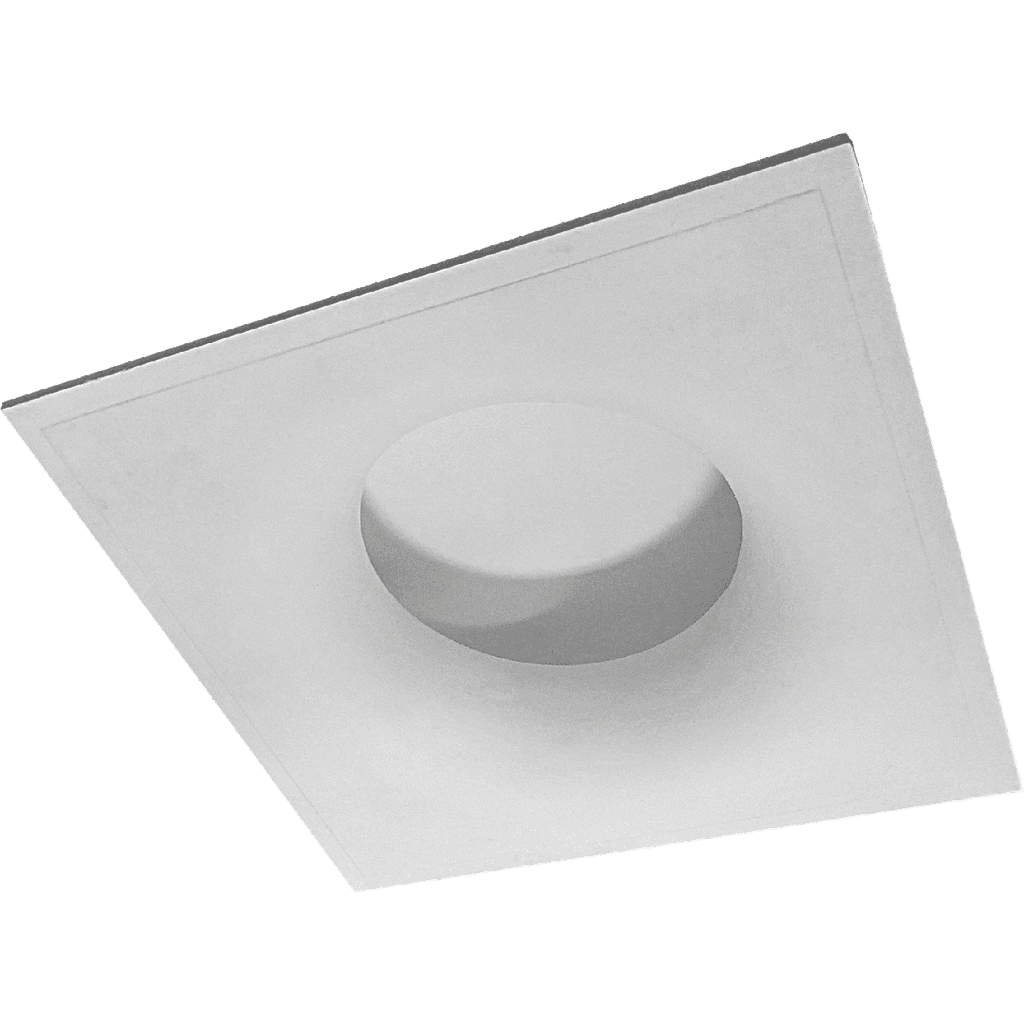

VULCANO 450 3000K
VULCANO 450 3000K
56 Wluminaire power
2500 lmlight flow
45 lm/Wenergy efficiency
code1665000020
color temperature3000
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
45 lm/Wcolor rendition index (CRI)
>80light flow
2500 lmflickering factor
<5%beam angle
D120color temperature
3000light source type
LEDemission color
Белыйilluminating
energy efficiency
45 lm/W
color rendition index (CRI)
>80
light flow
2500 lm
flickering factor
<5%
beam angle
D120
color temperature
3000
light source type
LED
emission color
Белый
electrical
starting current pulse time, µs
600 mks
electric shock protection
I
luminaire power
56 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
15 A
constructional
length, mm
775 mm
width, mm
800 mm
height, mm
240 mm
installation length, mm
760 mm
installation width, mm
760 mm
weight
16.8 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Гипс
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от 0 до +40 C
service life, hour
50 000 h
energy efficiency class
B
ETIM class
Настенно-потолочный светильник
code
1665000020
model files
model files
CAD/BIM files
photometric files
сертификаты
CAD/BIM files
model 3dMax712 kB
photometric files
ies3.1 kB
jpg119.2 kB
ldt3 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016583.2 kB
Fire Safety Certificate1.7 mB
