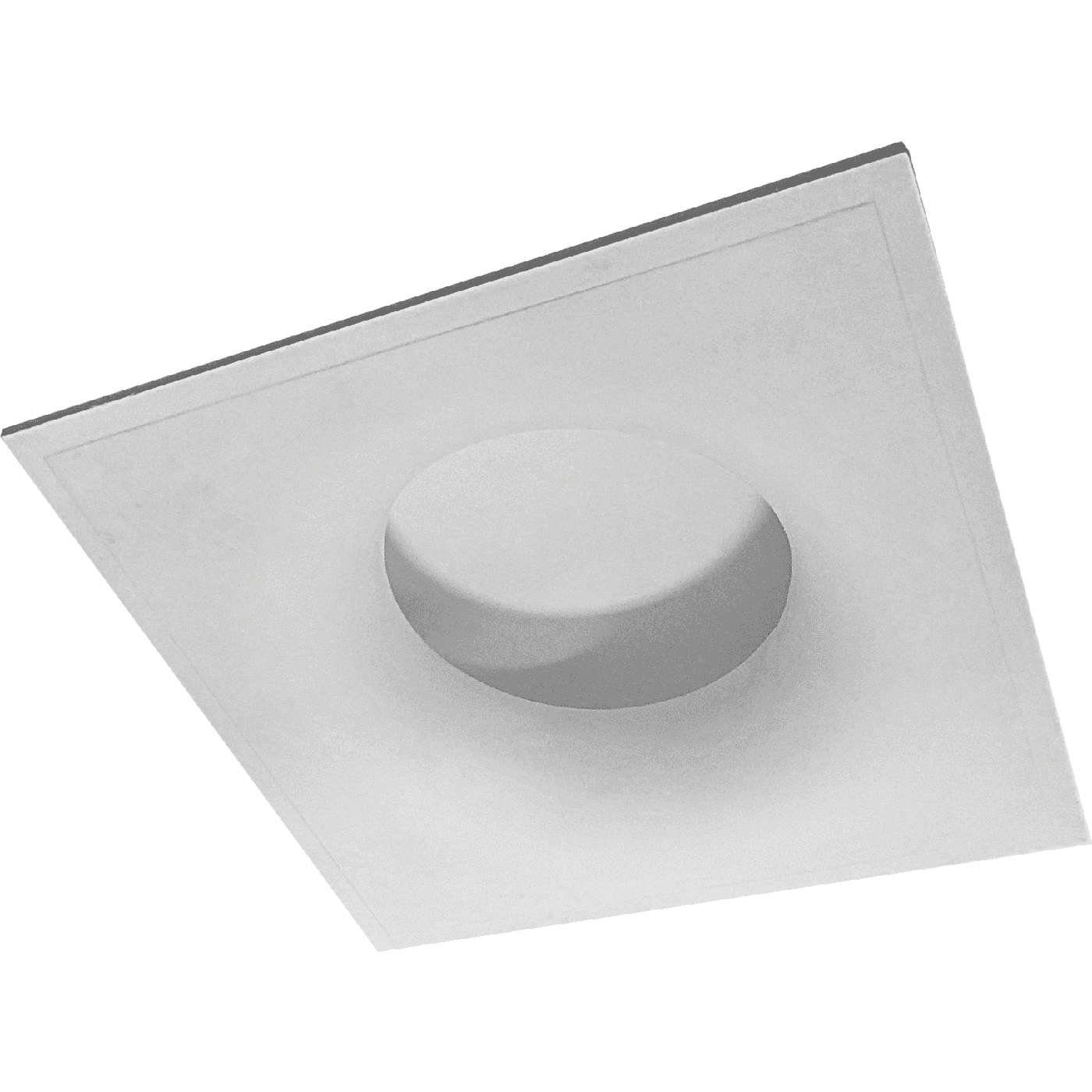

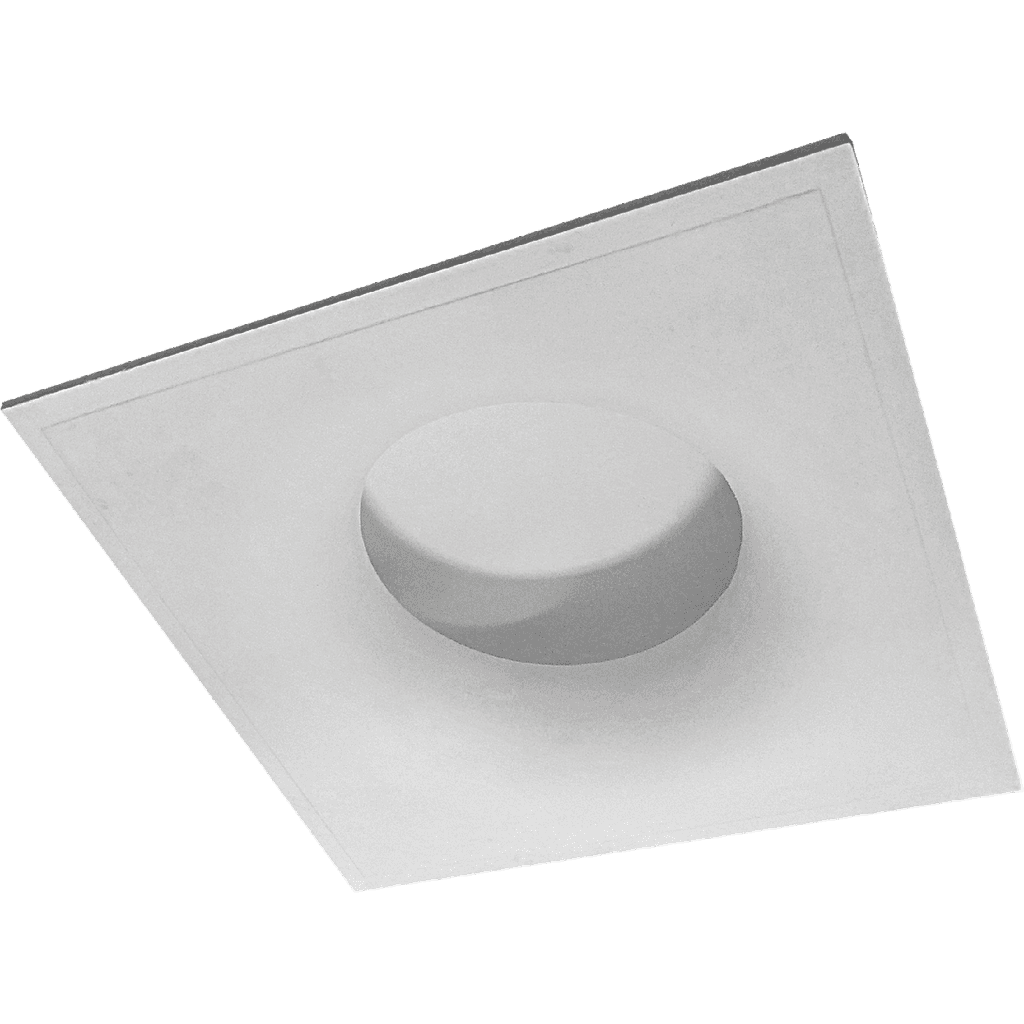

VULCANO 300 3000K
VULCANO 300 3000K
32 Wluminaire power
2200 lmlight flow
69 lm/Wenergy efficiency
code1665000010
color temperature3000
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
69 lm/Wcolor rendition index (CRI)
>80light flow
2200 lmflickering factor
<5%beam angle
D120color temperature
3000light source type
LEDemission color
Белыйilluminating
energy efficiency
69 lm/W
color rendition index (CRI)
>80
light flow
2200 lm
flickering factor
<5%
beam angle
D120
color temperature
3000
light source type
LED
emission color
Белый
electrical
starting current pulse time, µs
300 mks
electric shock protection
I
luminaire power
32 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
starting current
15 A
constructional
length, mm
605 mm
width, mm
605 mm
height, mm
200 mm
installation length, mm
545 mm
installation width, mm
545 mm
weight
10.7 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Гипс
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от 0 до +40 C
service life, hour
50 000 h
energy efficiency class
A
ETIM class
Настенно-потолочный светильник
code
1665000010
model files
model files
CAD/BIM files
photometric files
сертификаты
CAD/BIM files
model 3dMax2 mB

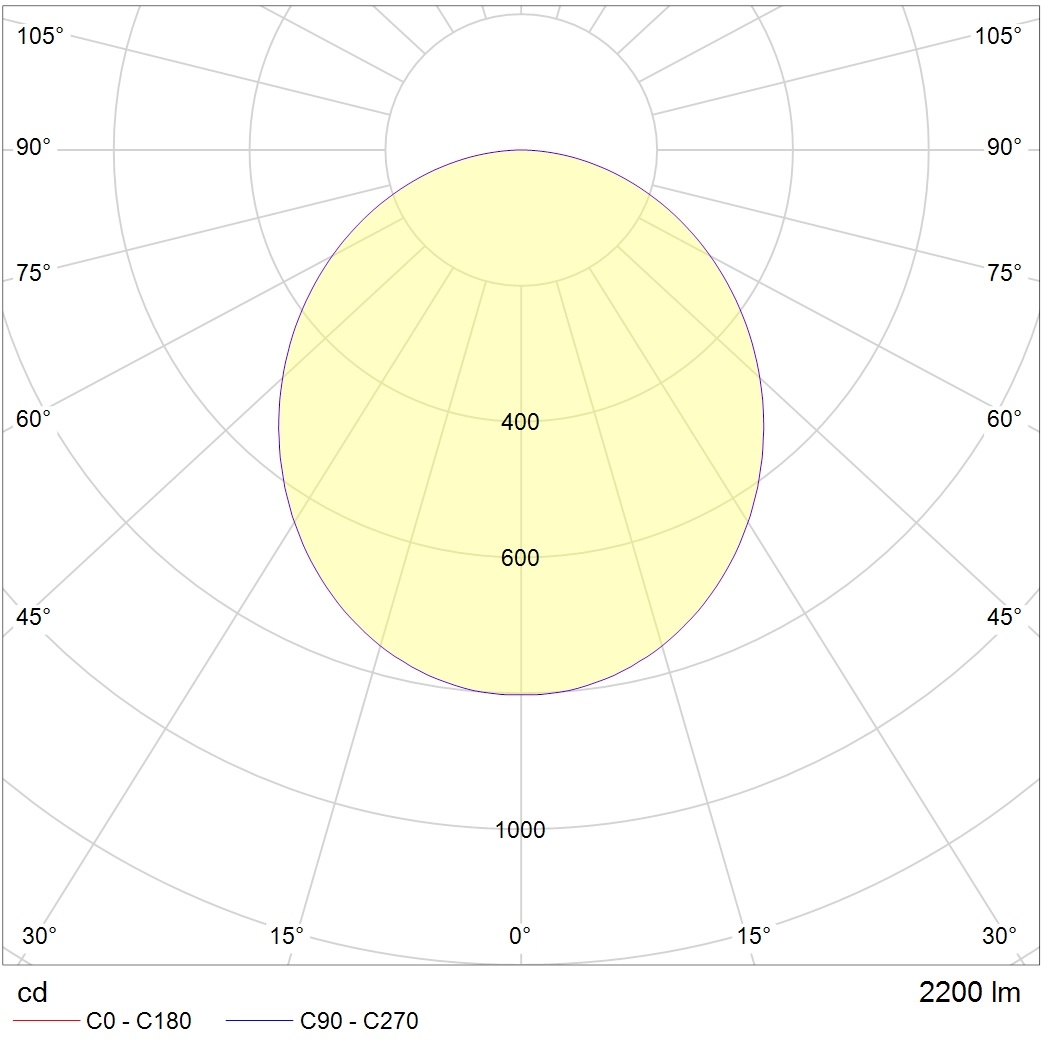

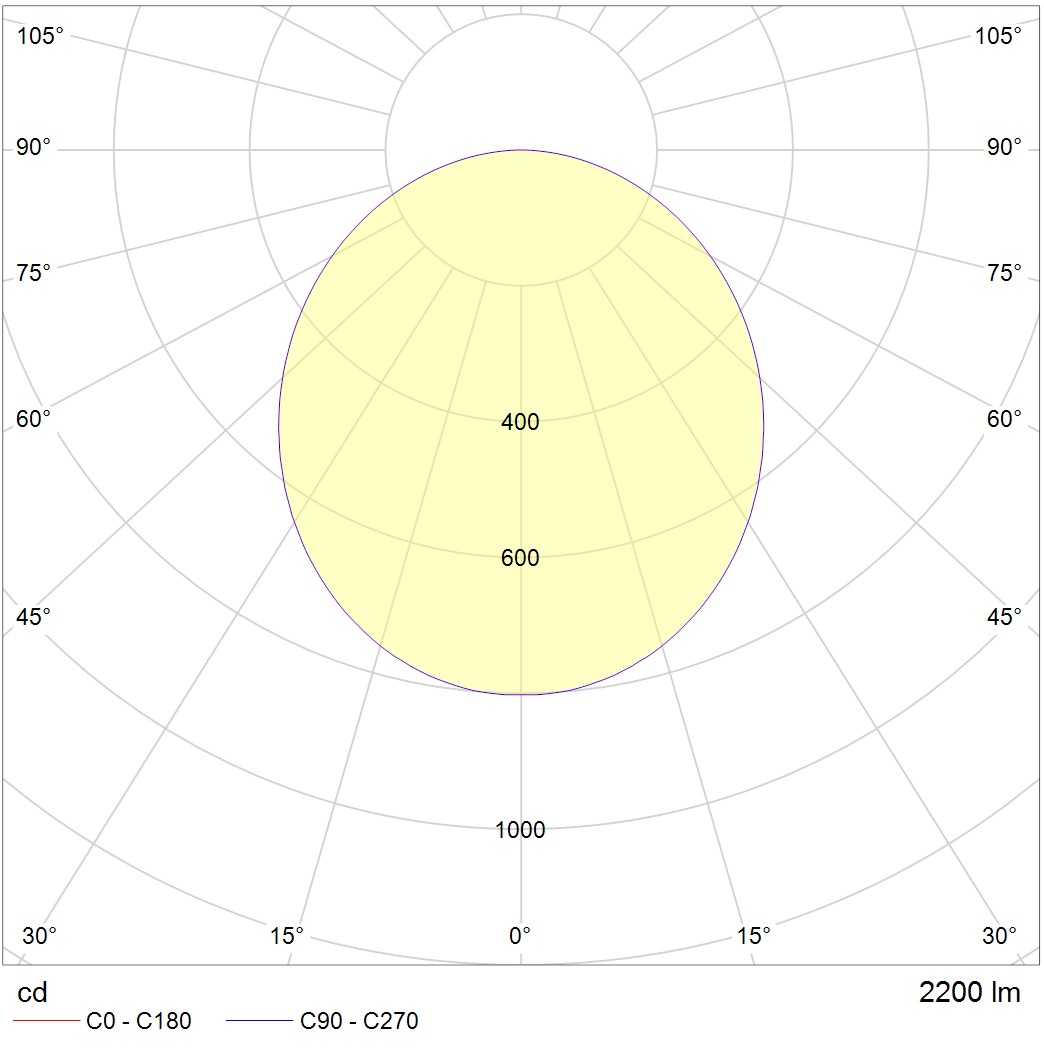

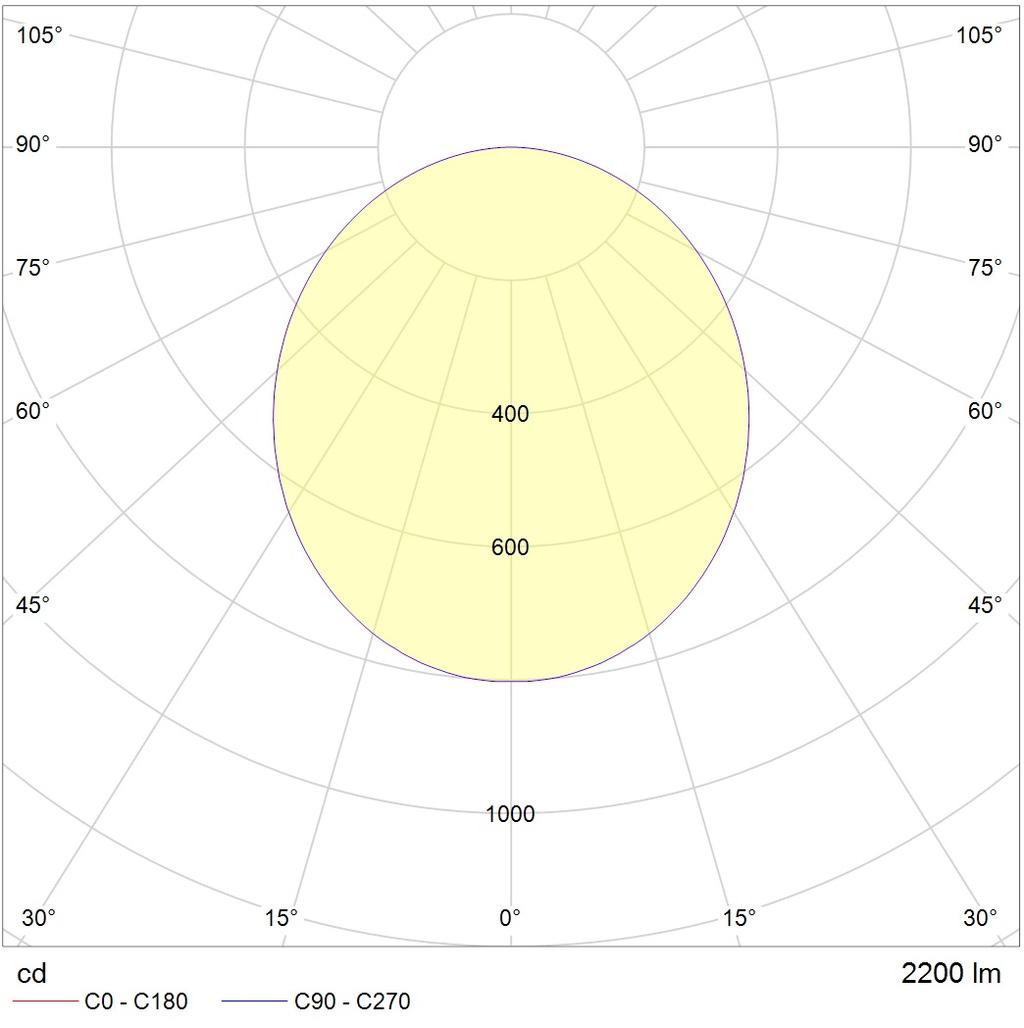

photometric files
ies3.1 kB
jpg117.1 kB
ldt3 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016583.2 kB
Fire Safety Certificate1.7 mB
