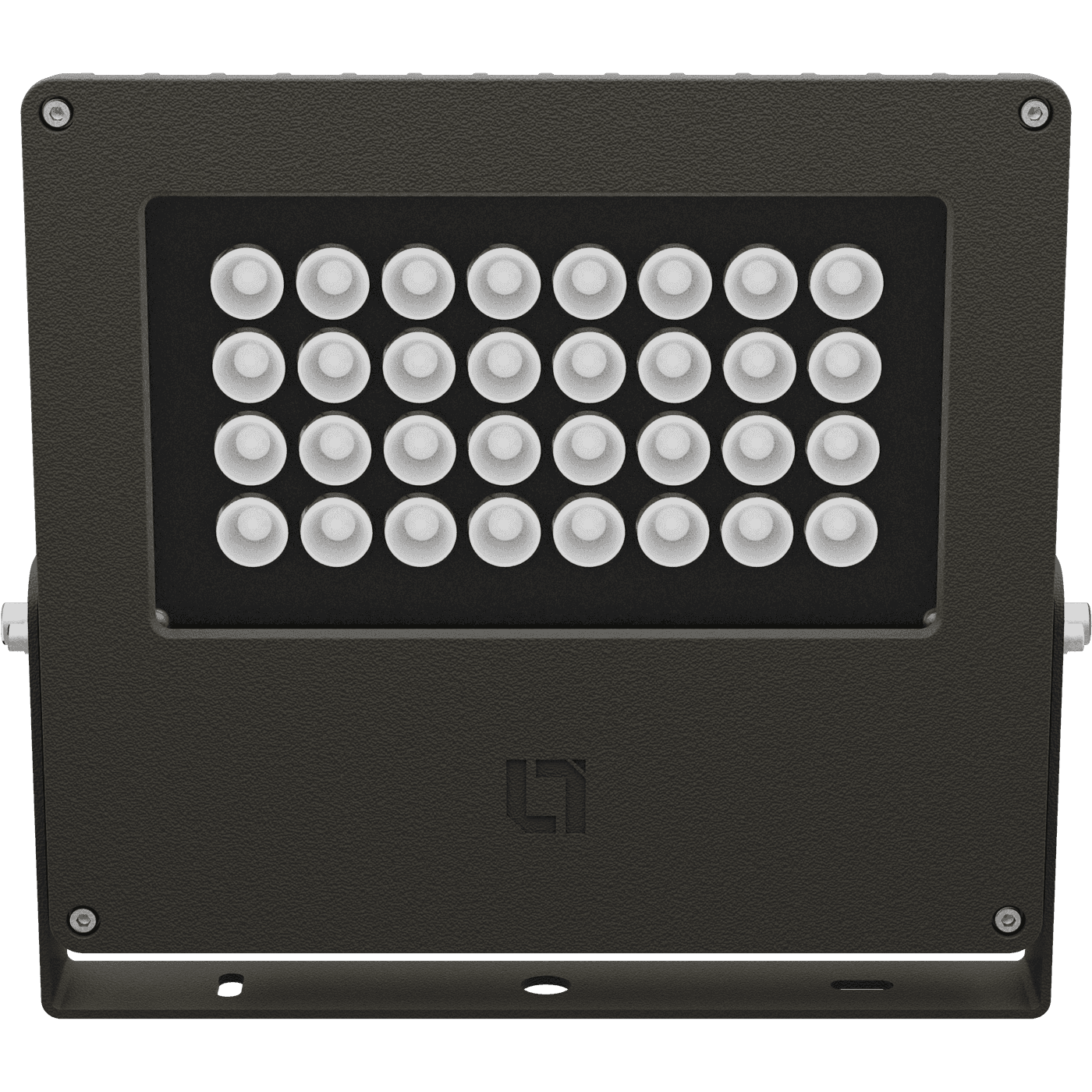

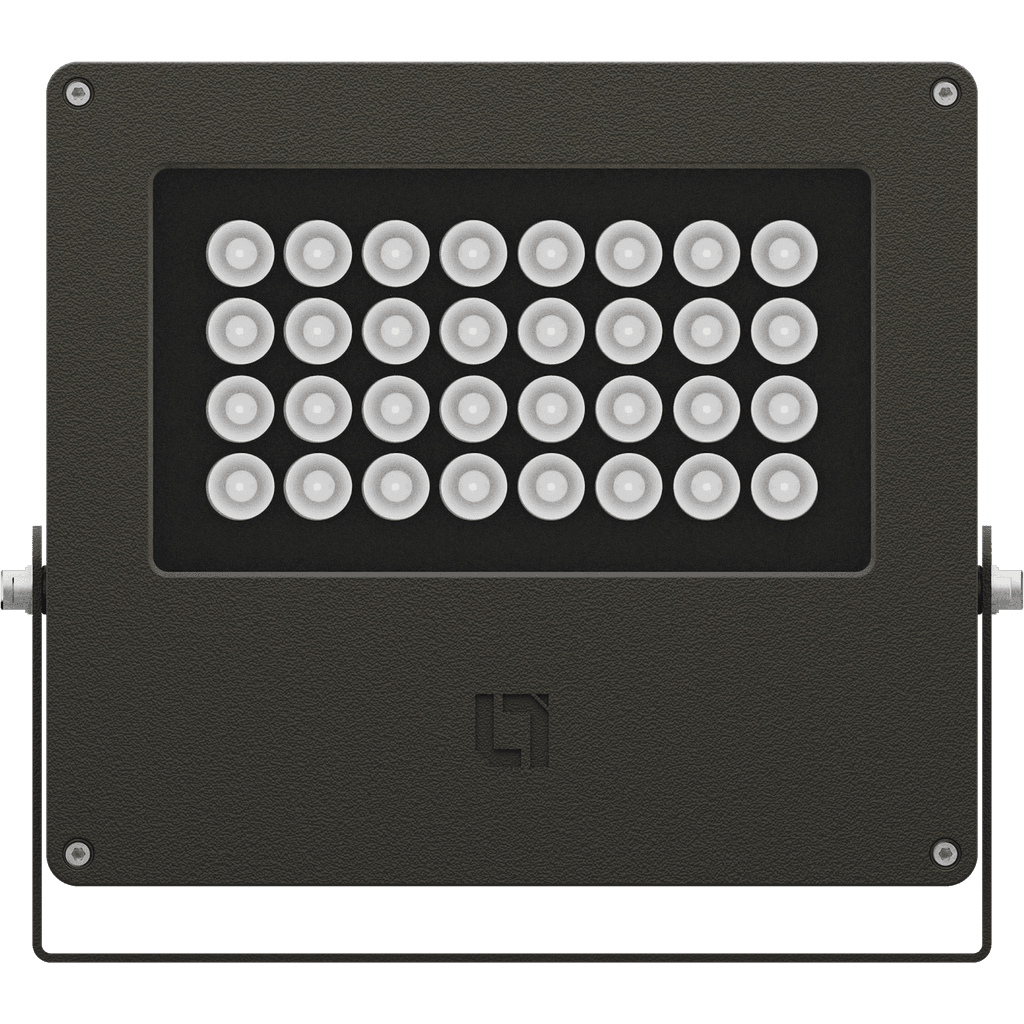

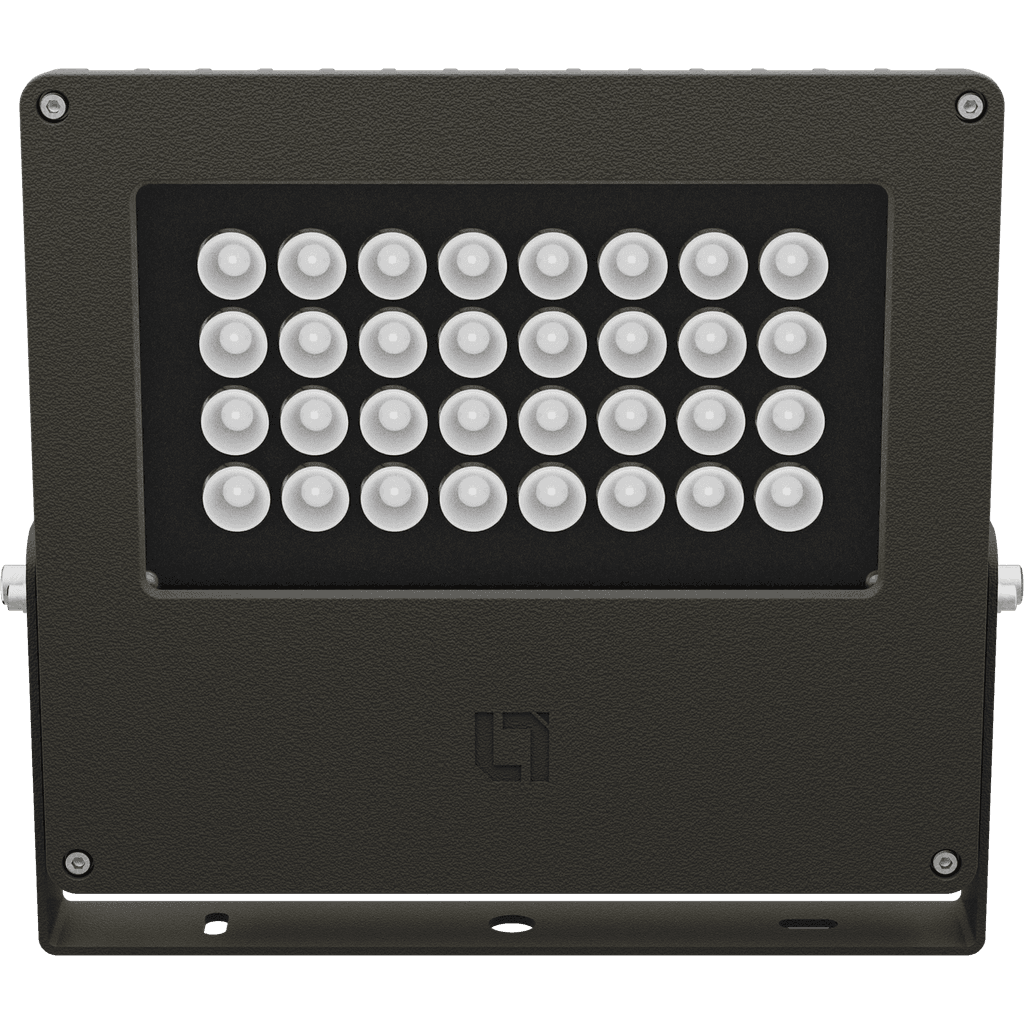

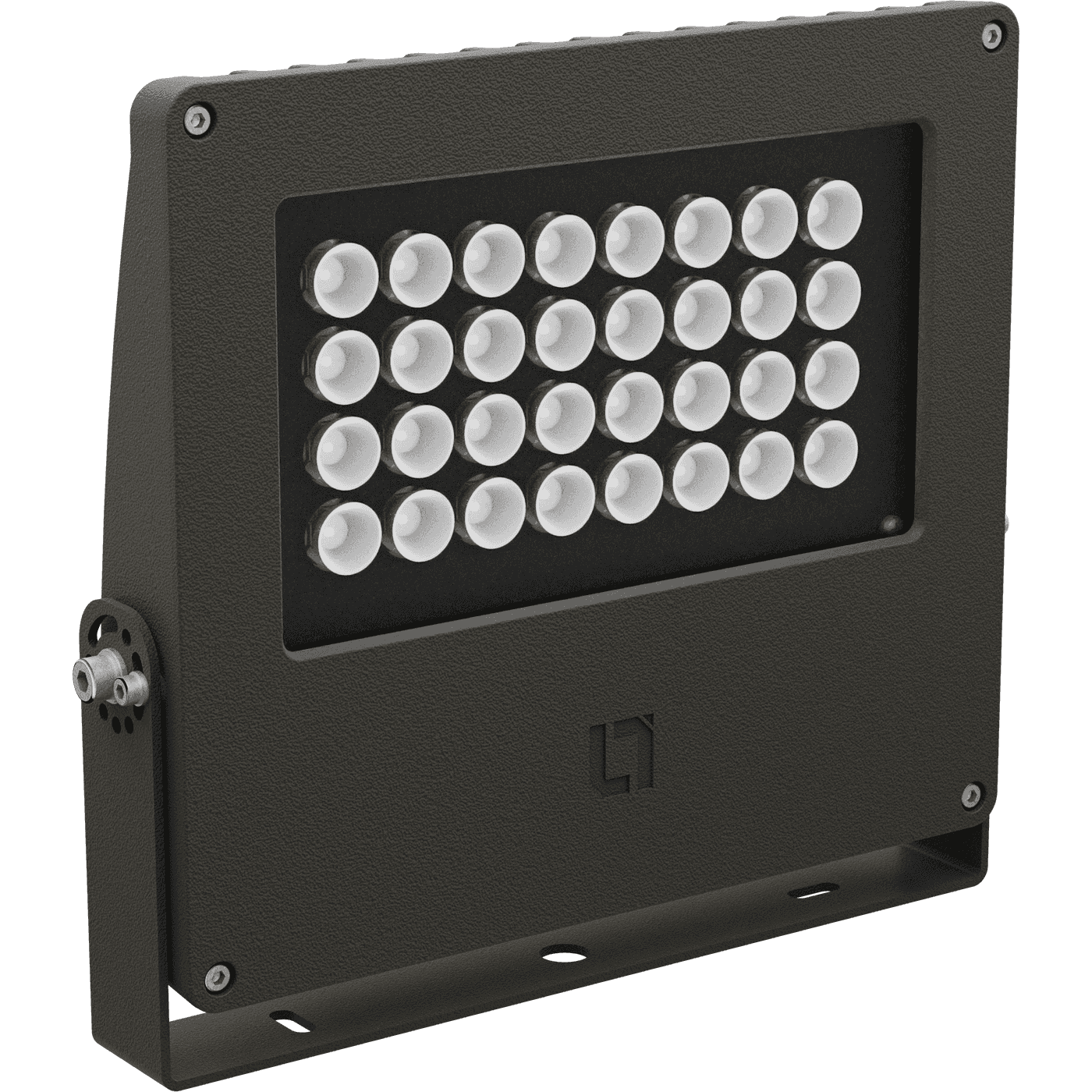

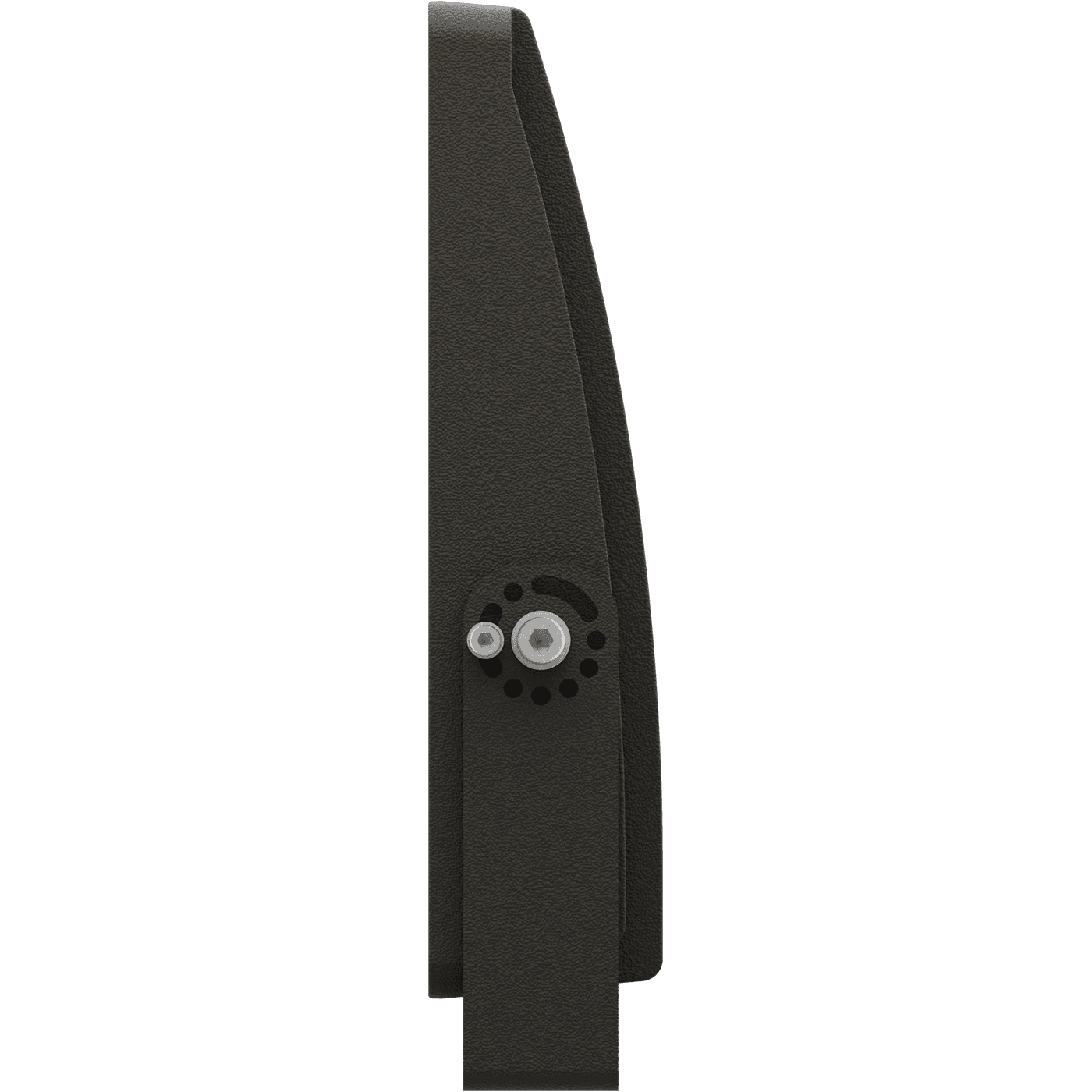

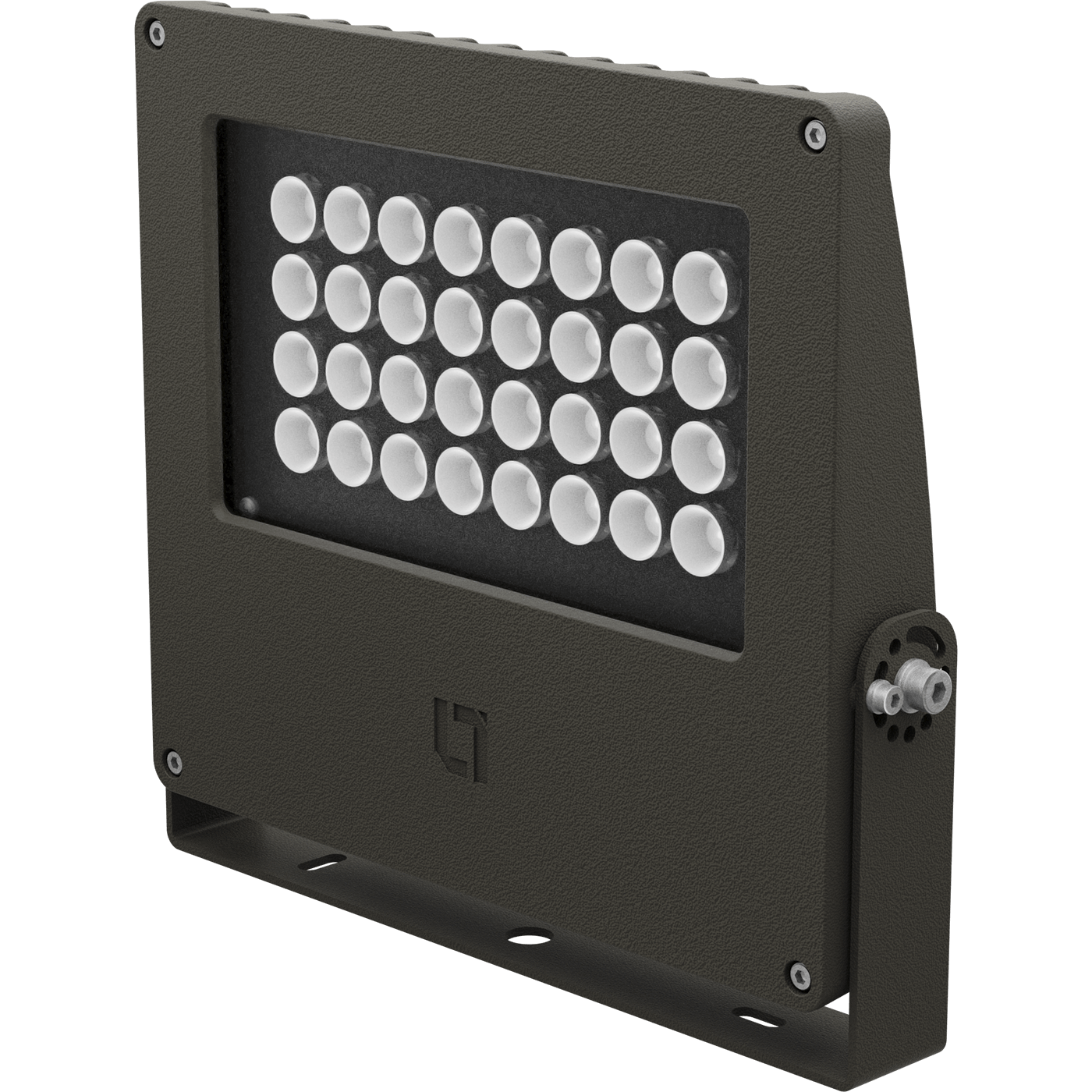

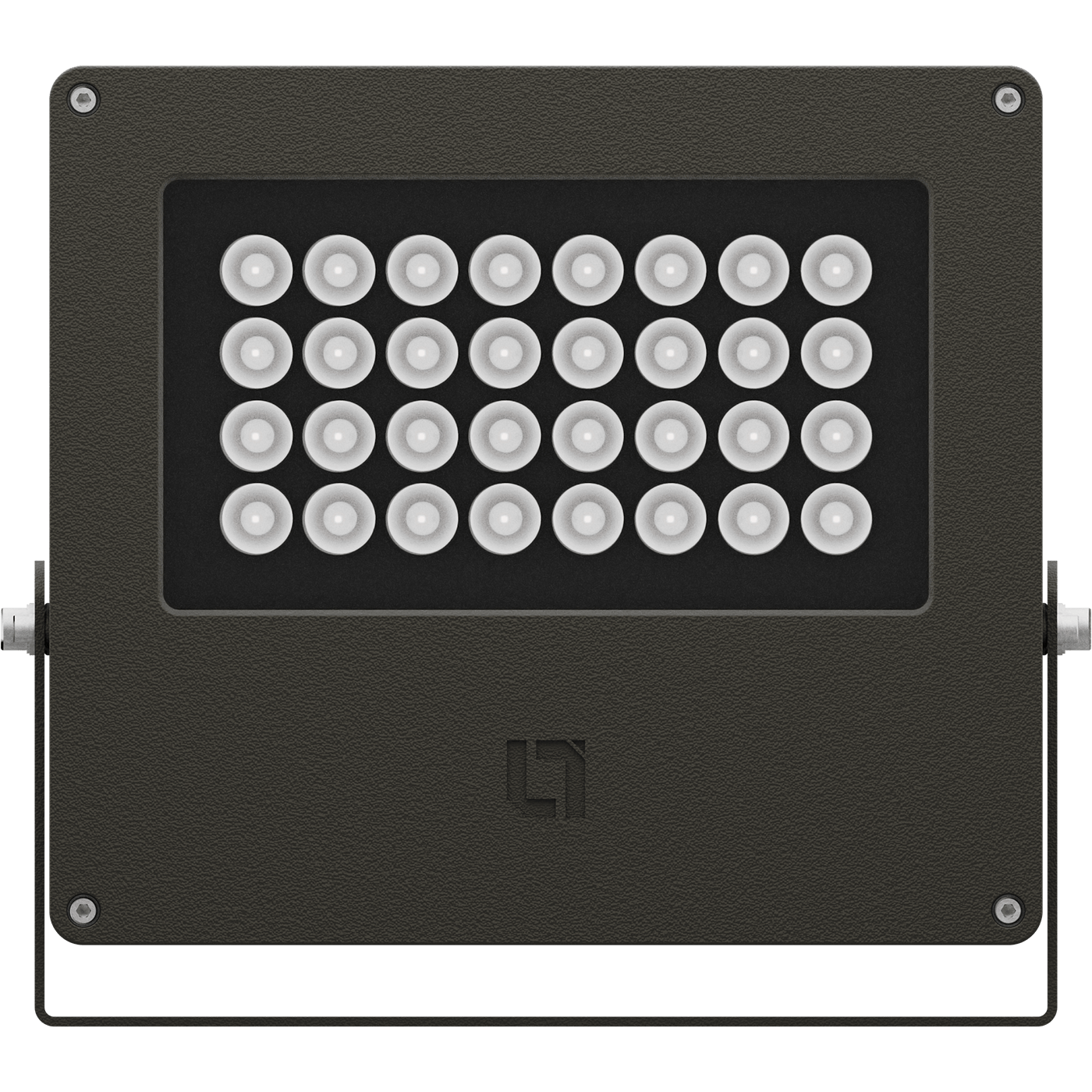

VIZOR LED 30W D30 840 RAL7022
VIZOR LED 30W D30 840 RAL7022
28 Wluminaire power
2400 lmlight flow
86 lm/Wenergy efficiency
code1717000120
beam angleD30
color temperature4000
weight4.4 kg
options
свернуть все
constructionalelectricalcommonilluminating
ingress protection (IP)
IP66housing color
Серыйlength, mm
335 mmwidth, mm
295 mmheight, mm
64 mmweight
4.4 kgfire safety class
П-ІІІclimatic performance
УХЛ1*maximum cross-section of the connected cable, sq. mm
2.5material
Алюминийshock resistance (IK)
IK07/2 Джinstallation length, mm
200 mmlamp socket
LEDnumber of lamps
1ballast
Драйверconstructional
ingress protection (IP)
IP66
housing color
Серый
length, mm
335 mm
width, mm
295 mm
height, mm
64 mm
weight
4.4 kg
fire safety class
П-ІІІ
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
material
Алюминий
shock resistance (IK)
IK07/2 Дж
installation length, mm
200 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
electrical
electric shock protection
I
starting current
50 A
starting current pulse time, µs
350 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
90-305 V
supply voltage, direct current
142-431 V
luminaire power
28 W
power factor
> 0,95
supply voltage
230 V
common
code
1717000120
ETIM class
Прожектор / Светильник направленного света
warranty
36 month
temperature range
от -40 до +40 C
energy efficiency class
A
service life, hour
50 000 h
illuminating
color rendition index (CRI)
>80
light flow
2400 lm
energy efficiency
86 lm/W
flickering factor
<5%

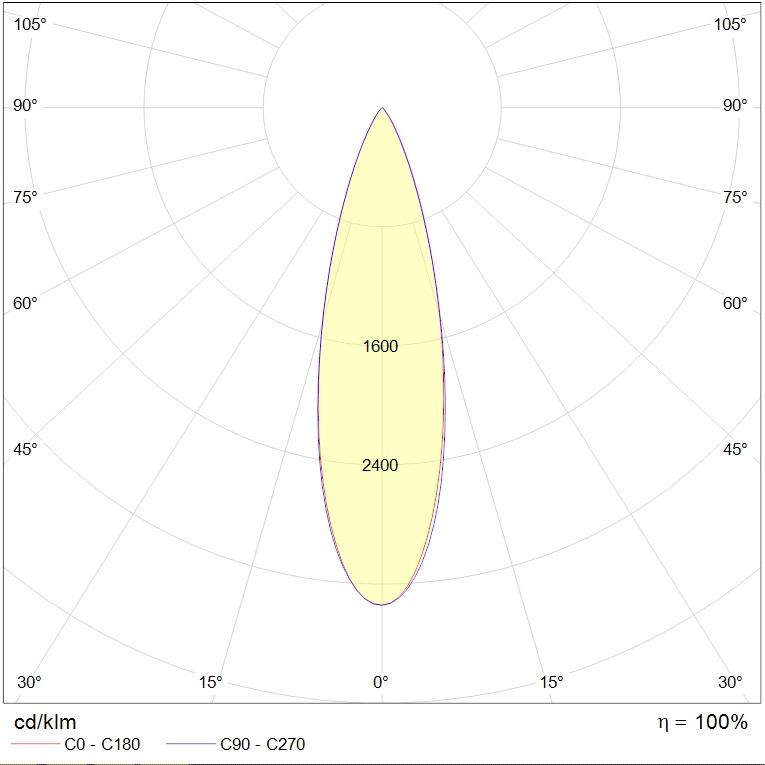

beam angle
D30
color temperature
4000
light source type
LED
emission color
Белый
model files
model files
photometric files
documents
сертификаты

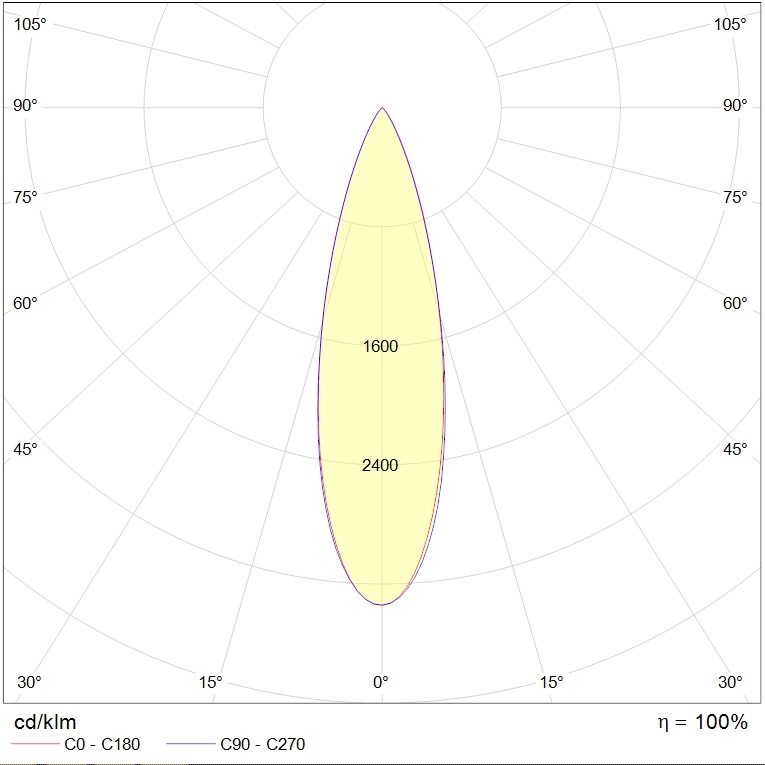

photometric files
ies263.2 kB
jpg74.6 kB
ldt136.4 kB
documents
passport3.4 mB
сертификаты
Russian origin278.3 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
