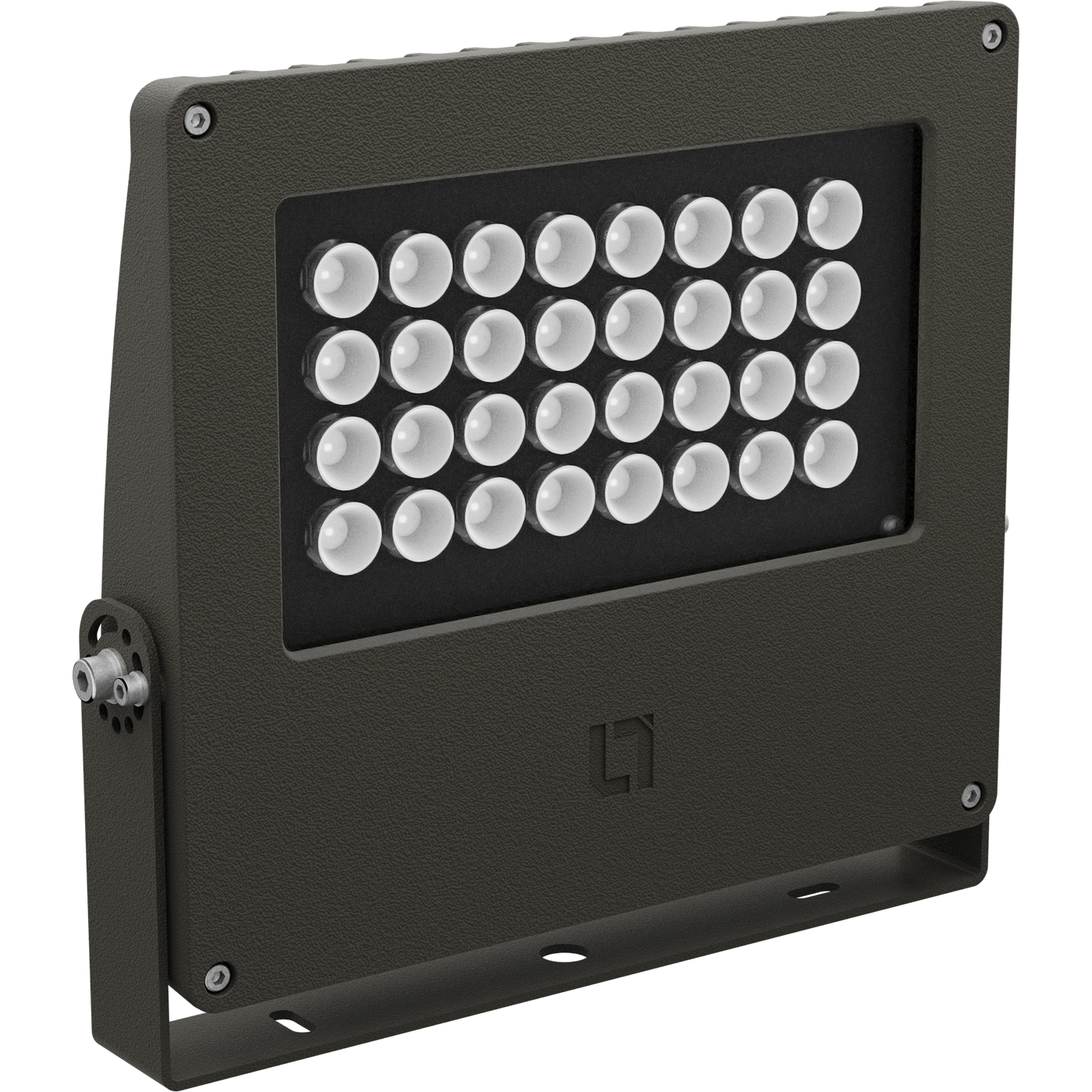

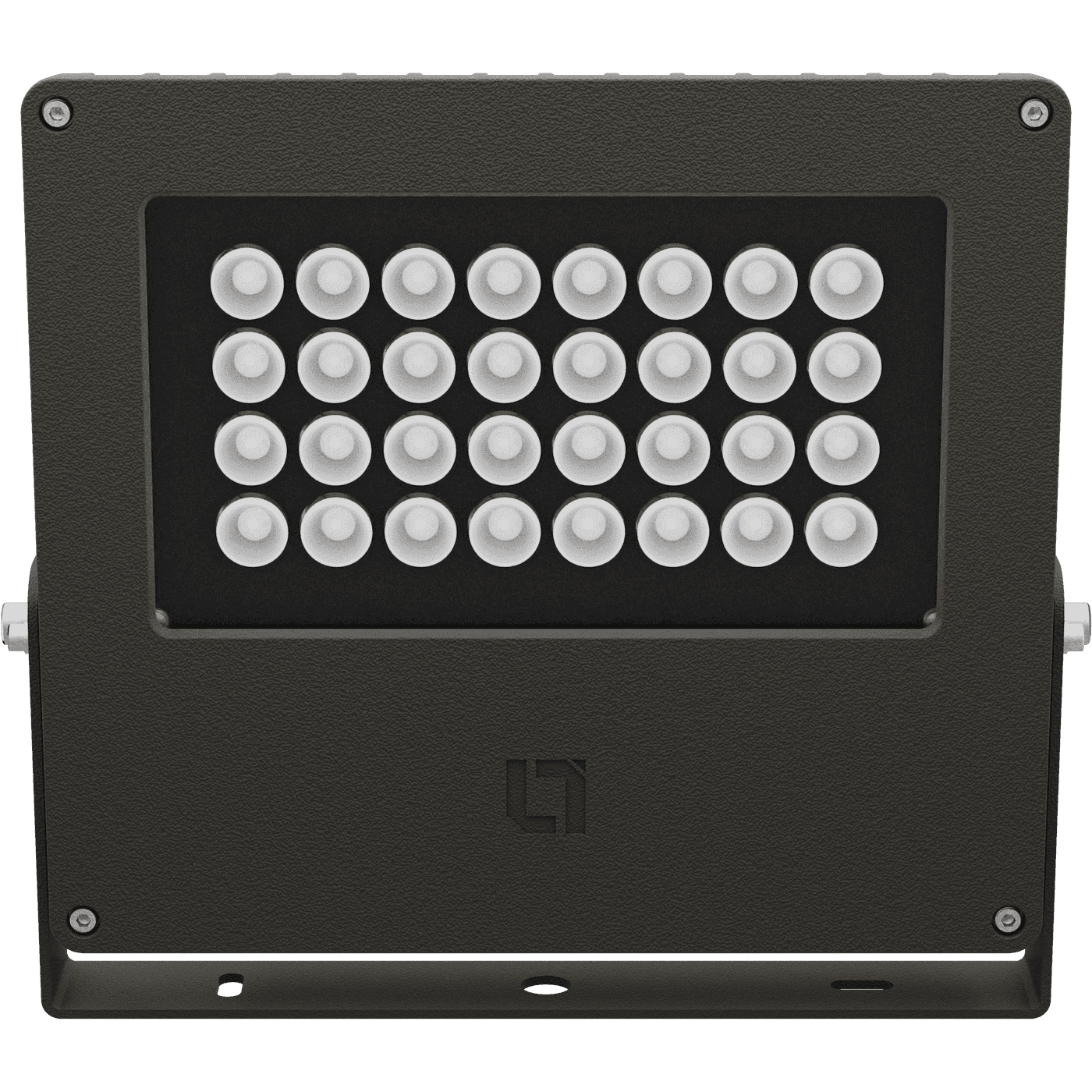

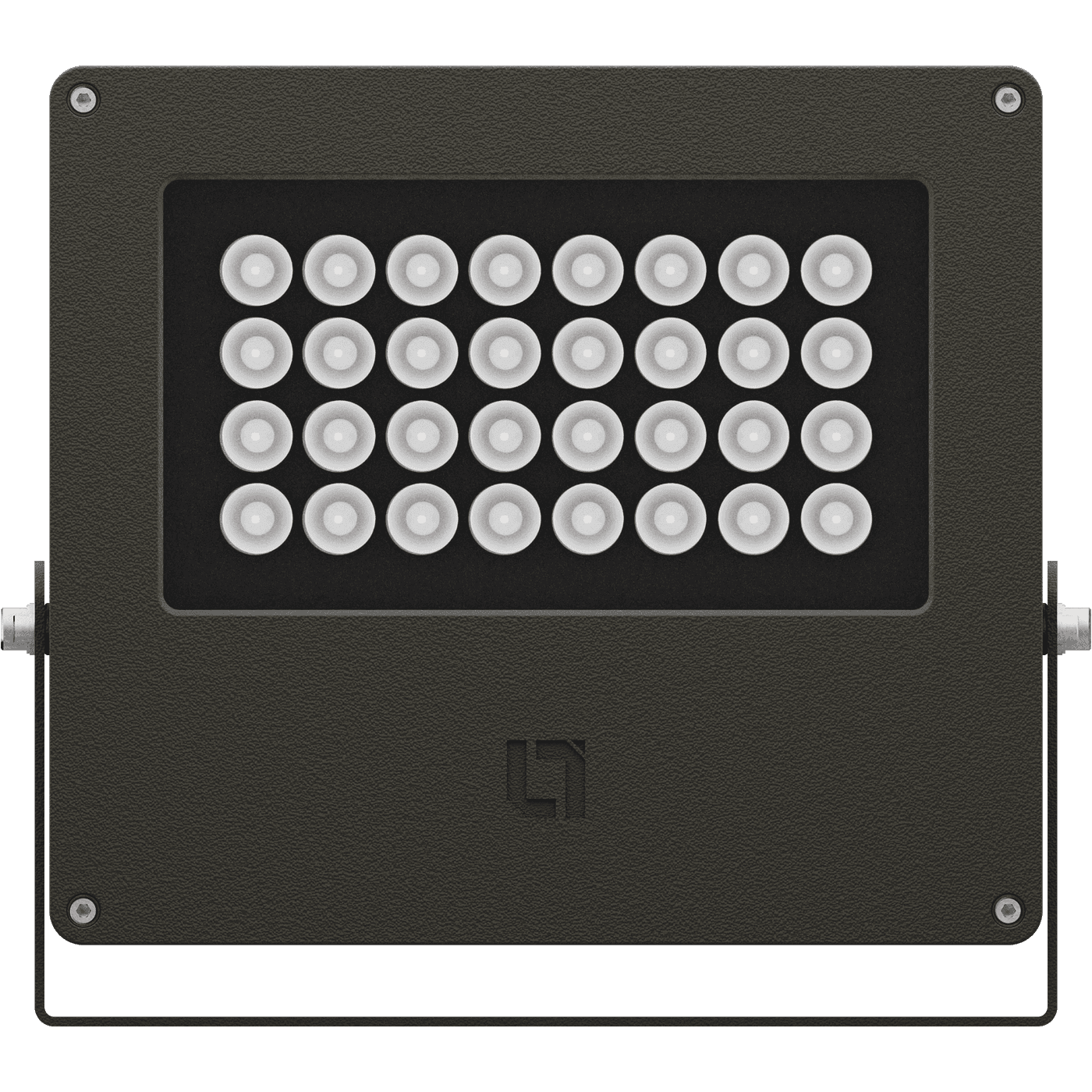

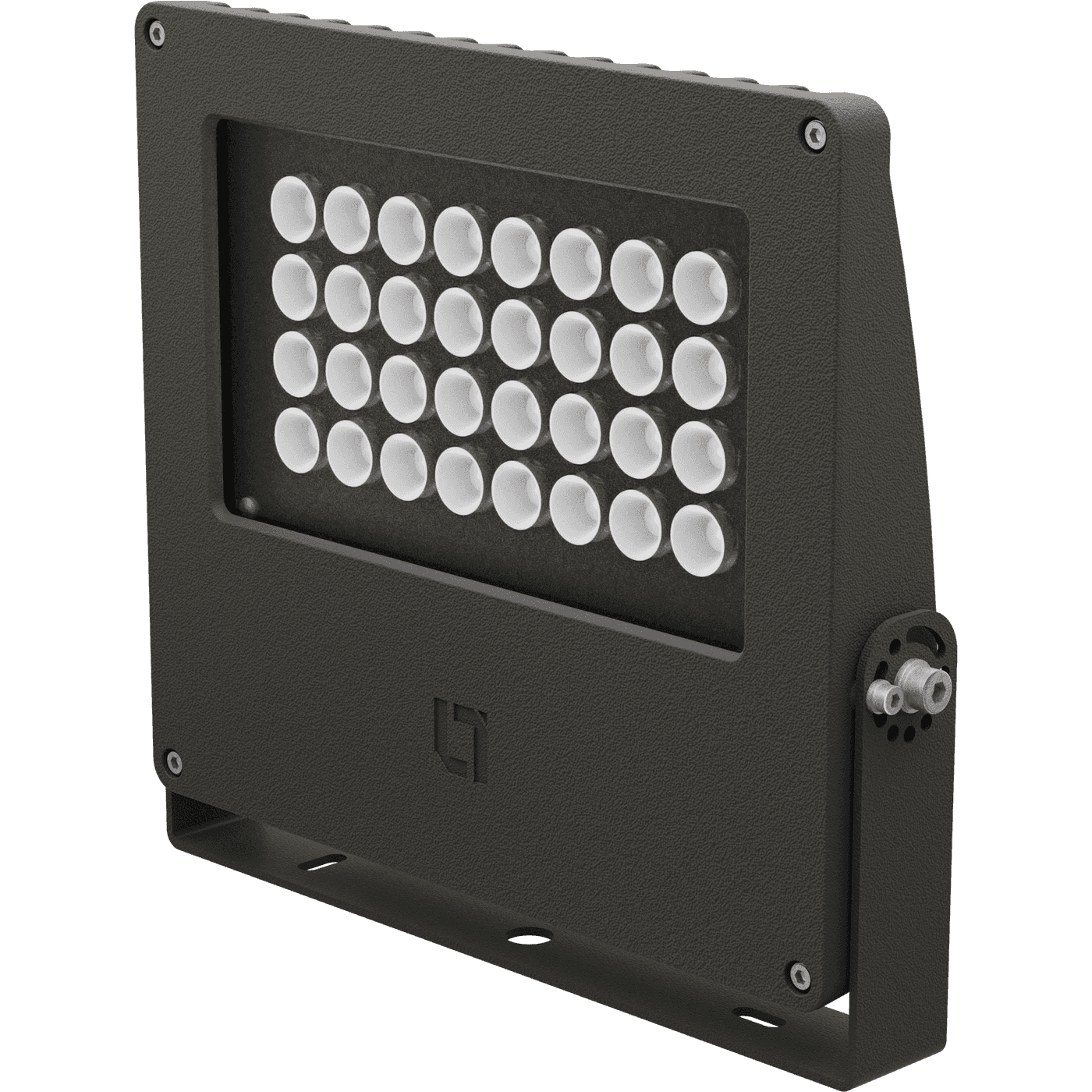

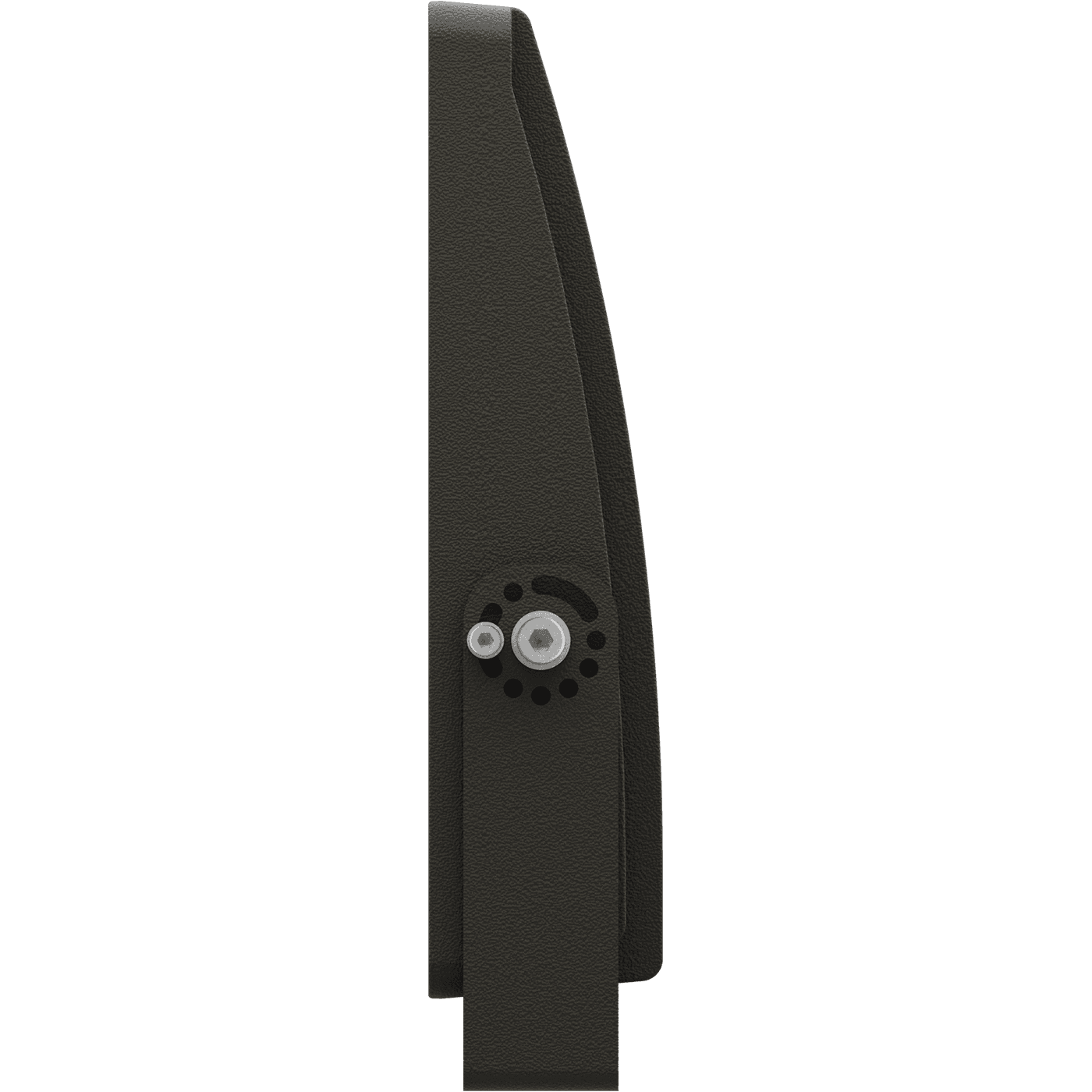

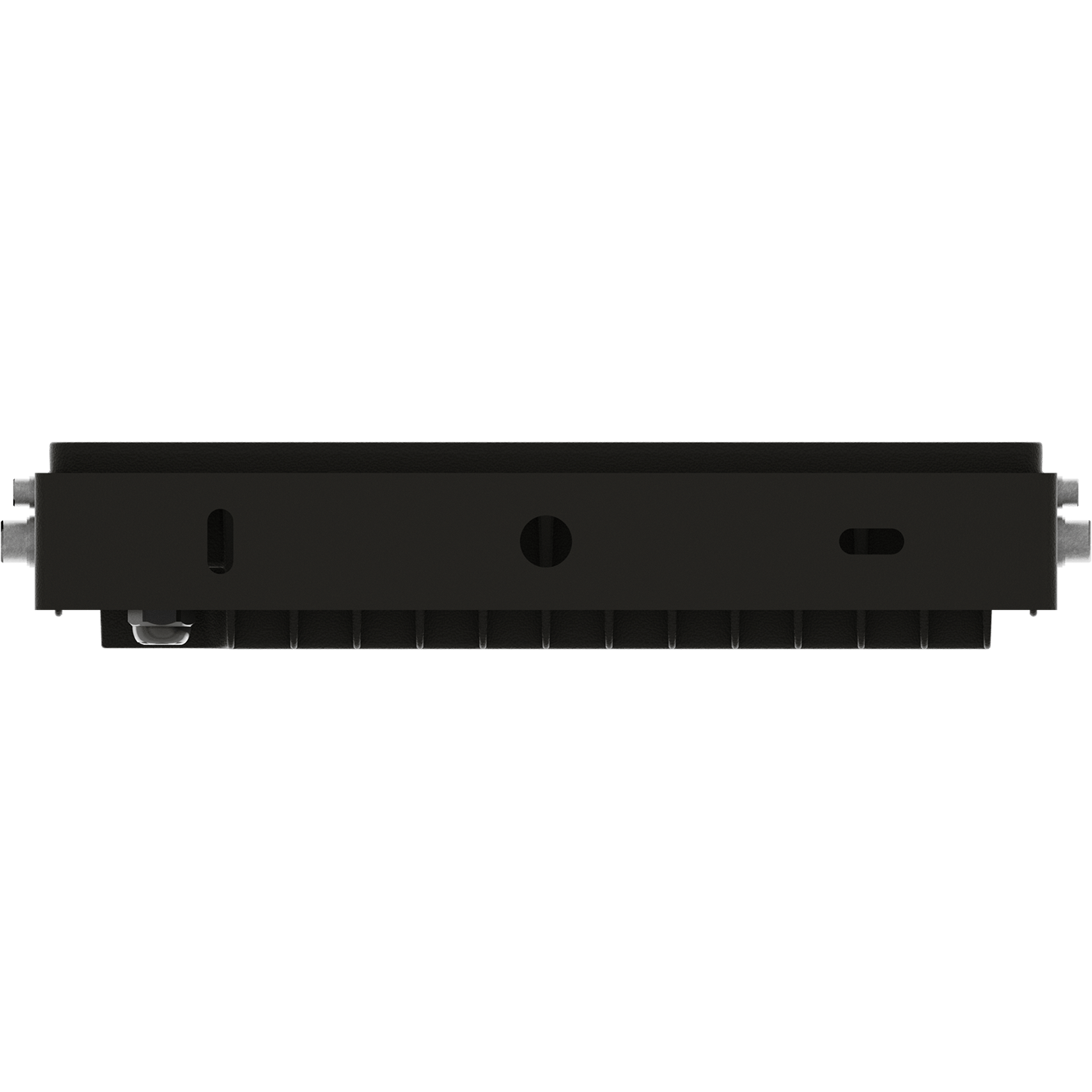

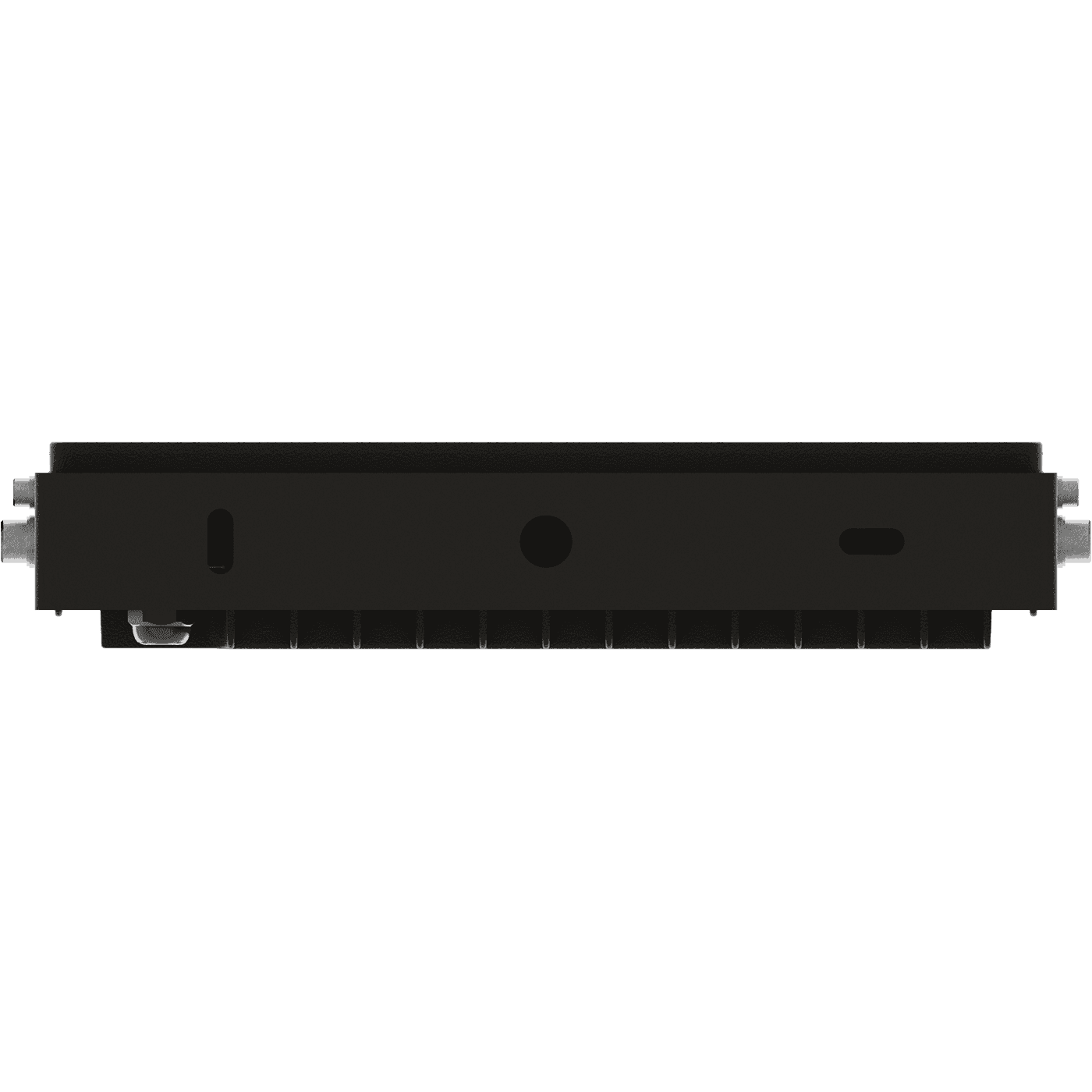

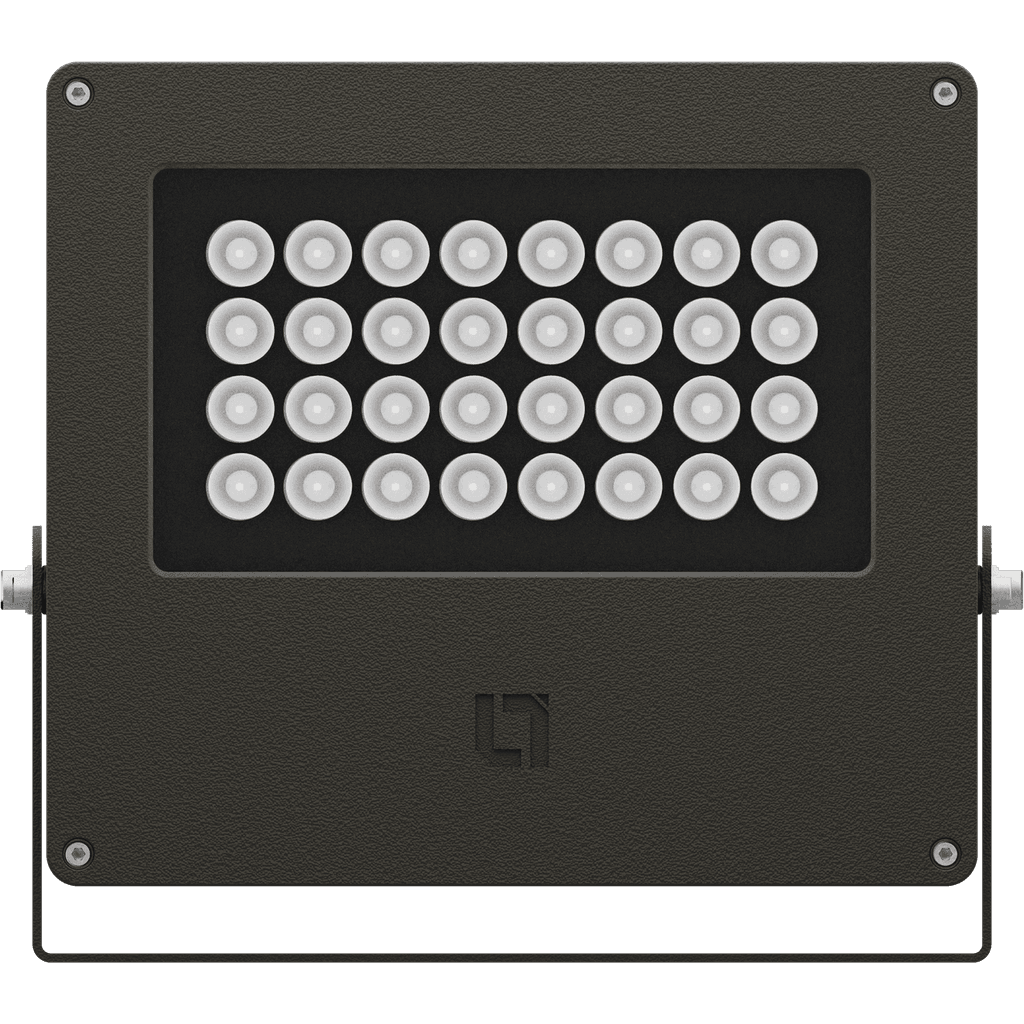

VIZOR LED 30W D15x40 RGB RAL7022 DMX RDM
VIZOR LED 30W D15x40 RGB RAL7022 DMX RDM
28 Wluminaire power
2400 lmlight flow
86 lm/Wenergy efficiency
code1717000430
beam angleD15x40
weight5.1 kg
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
86 lm/Wlight flow
2400 lmflickering factor
<5%beam angle
D15x40light source type
LEDemission color
RGBilluminating
energy efficiency
86 lm/W
light flow
2400 lm
flickering factor
<5%
beam angle
D15x40
light source type
LED
emission color
RGB
electrical
luminaire power
28 W
electric shock protection
I
starting current pulse time, µs
1.18 mks
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
129 A
maximum cross-section of the connected cable, sq. mm
1
supply voltage, direct current
190-250 V
supply voltage, alternating current
176-305 V
power factor
> 0,95
constructional
climatic performance
УХЛ1*
fire safety class
П-ІІІ
width, mm
295 mm
height, mm
85 mm
installation length, mm
200 mm
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
length, mm
335 mm
material
Алюминий
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
5.1 kg
LMS options
dimming
DMX RDM
common
code
1717000430
warranty
36 month
energy efficiency class
A
temperature range
от -40 до +40 C
service life, hour
50 000 h
ETIM class
Прожектор / Светильник направленного света
model files
model files

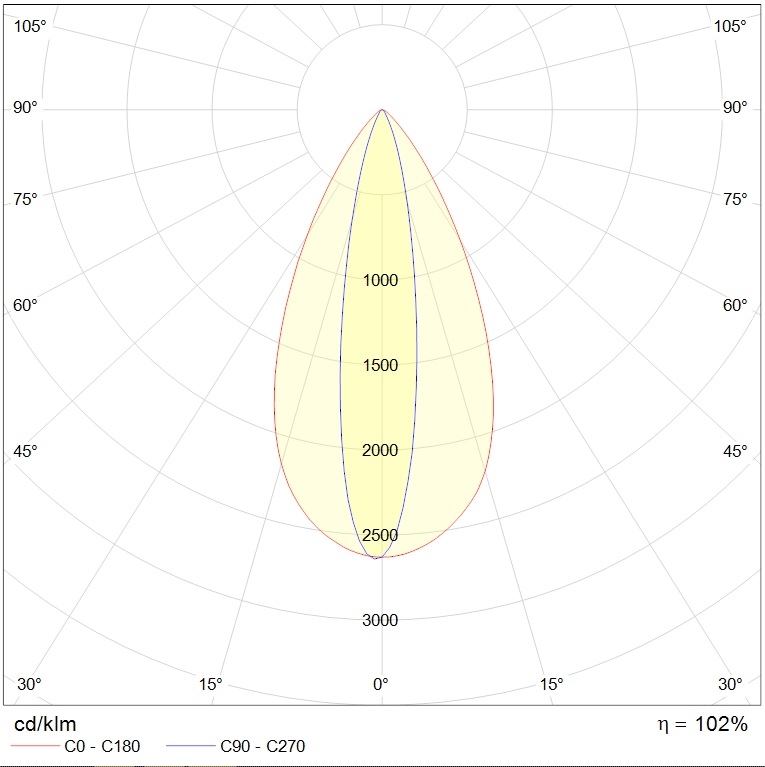

photometric files
documents
сертификаты
photometric files
ies66.9 kB
jpg87.5 kB
ldt59.5 kB
documents
passport3.4 mB
сертификаты
Russian origin278.3 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
