зарегистрирована в реестре российской промышленной продукции

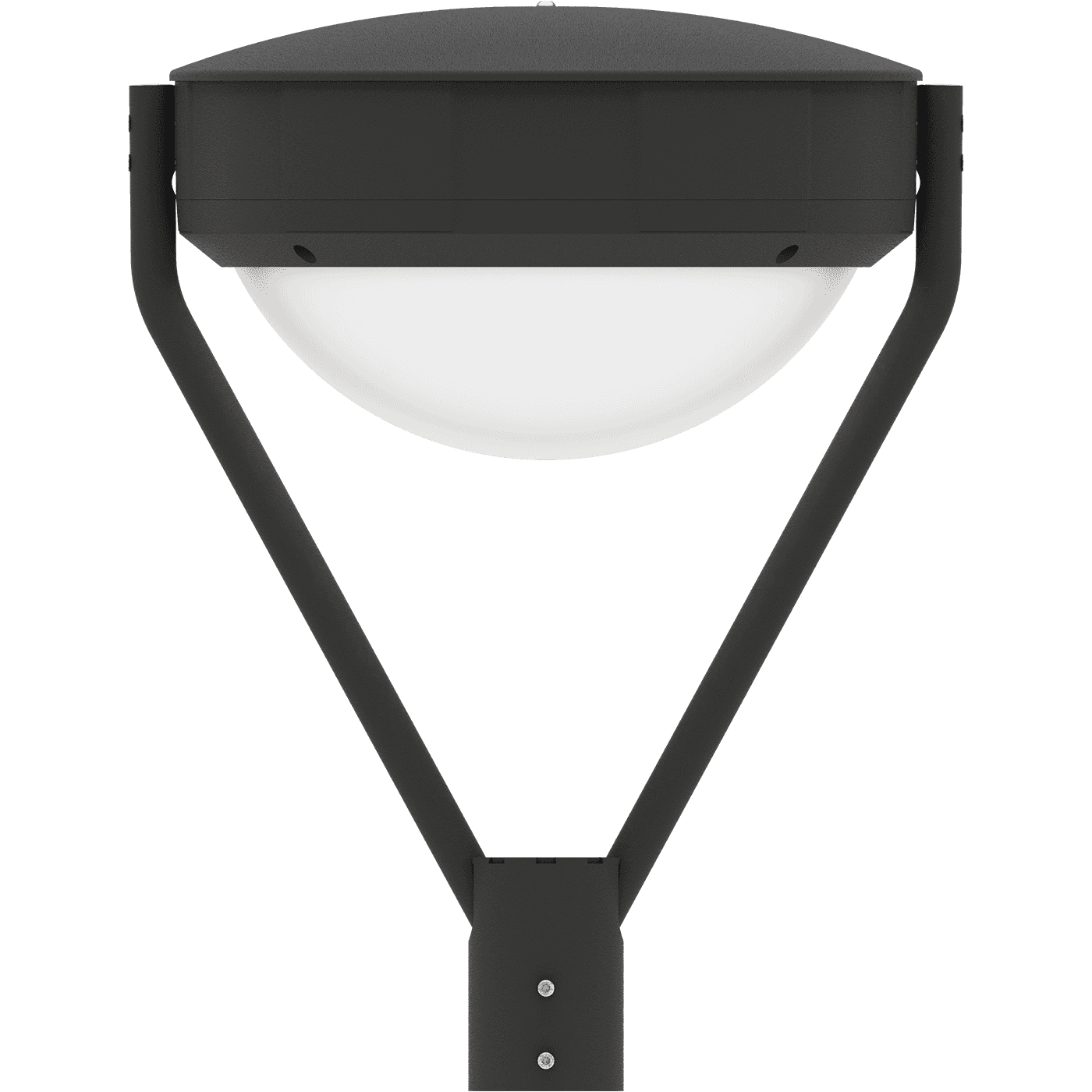

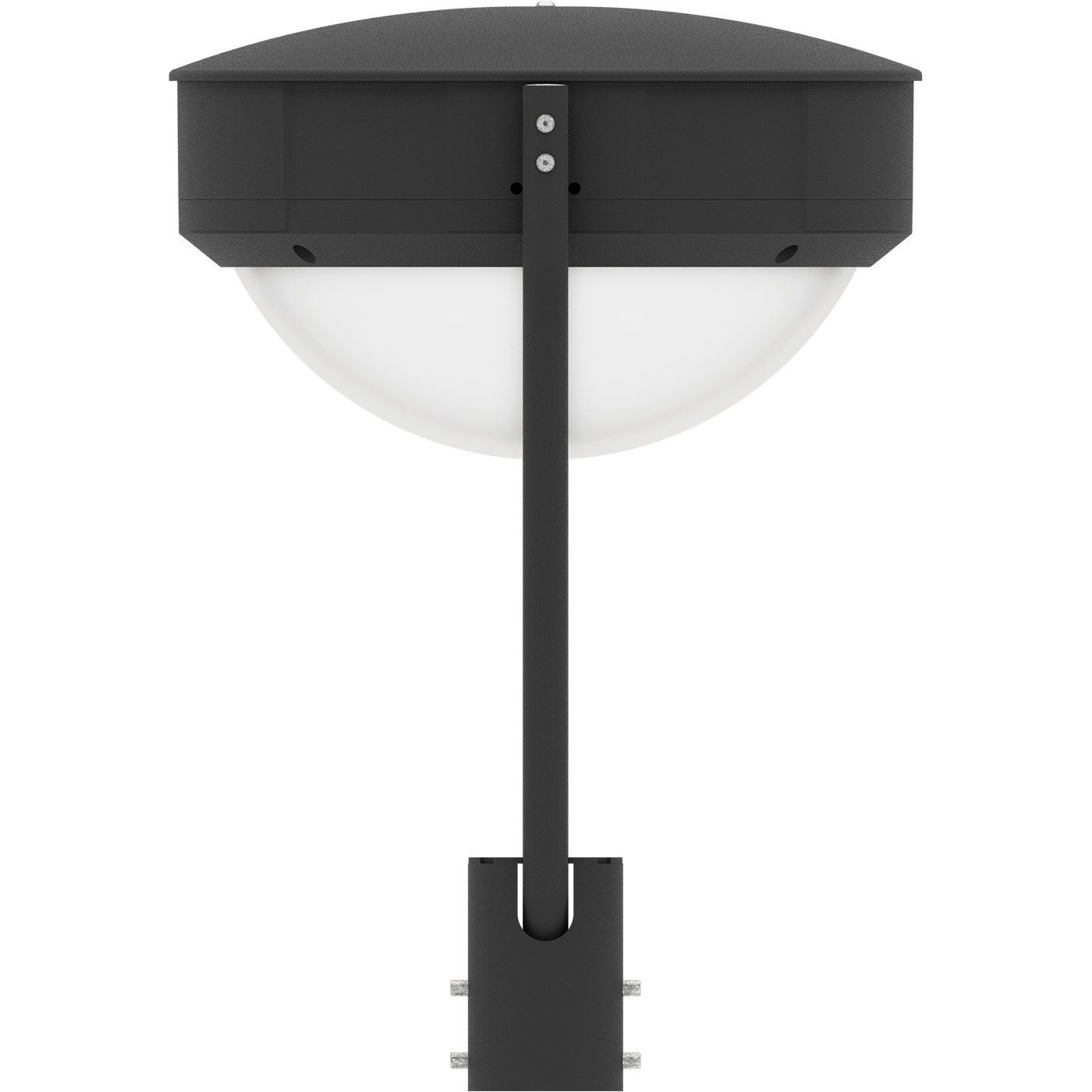

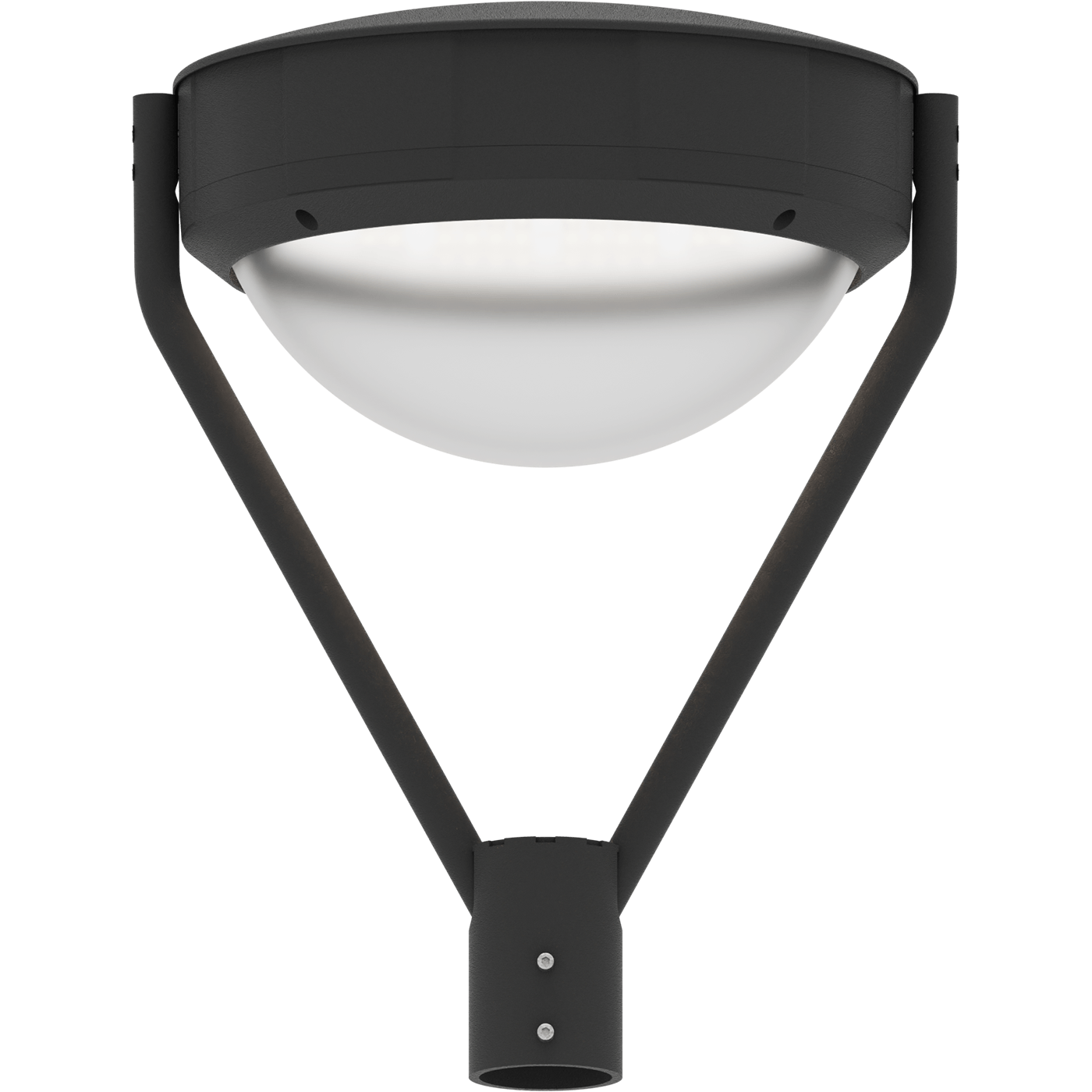

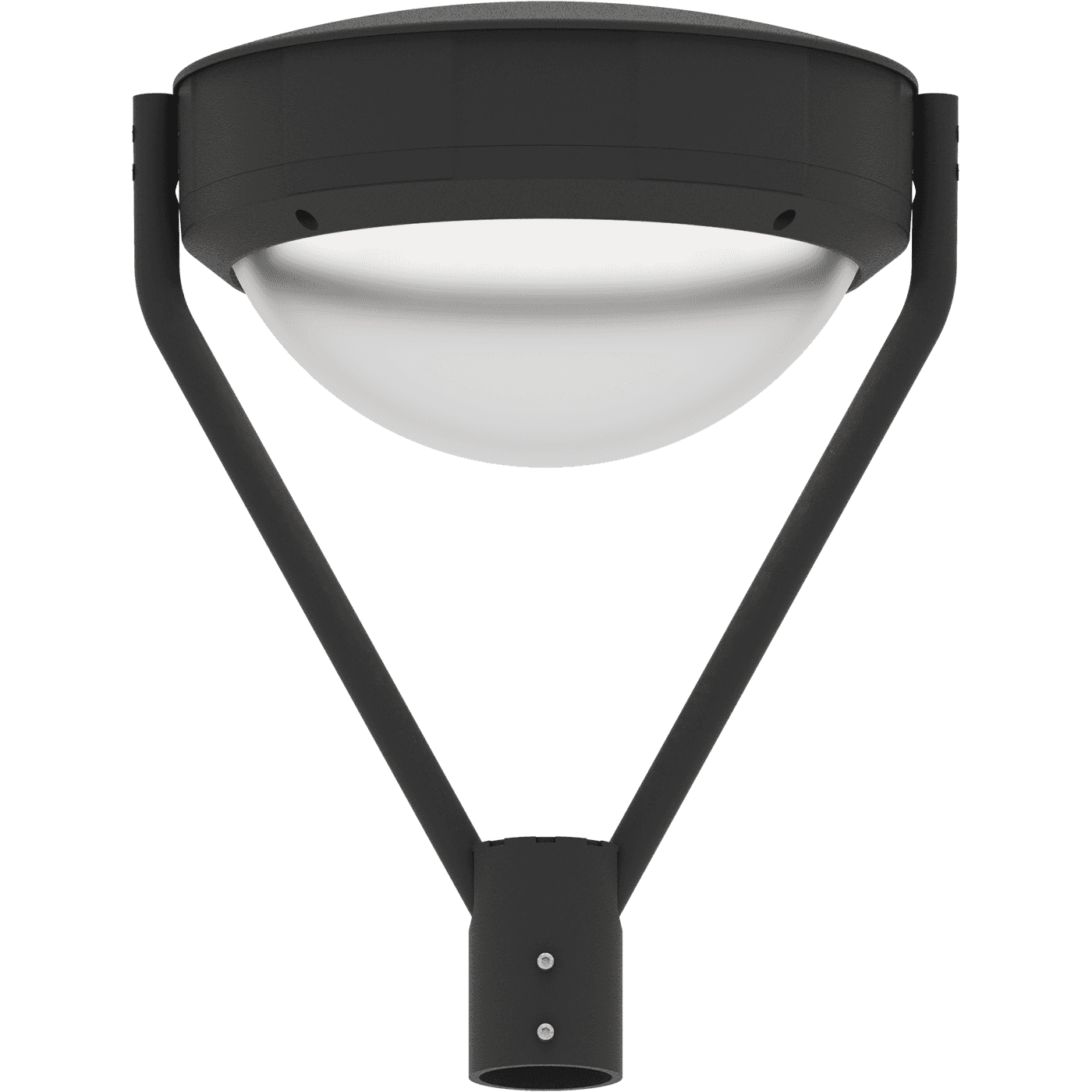

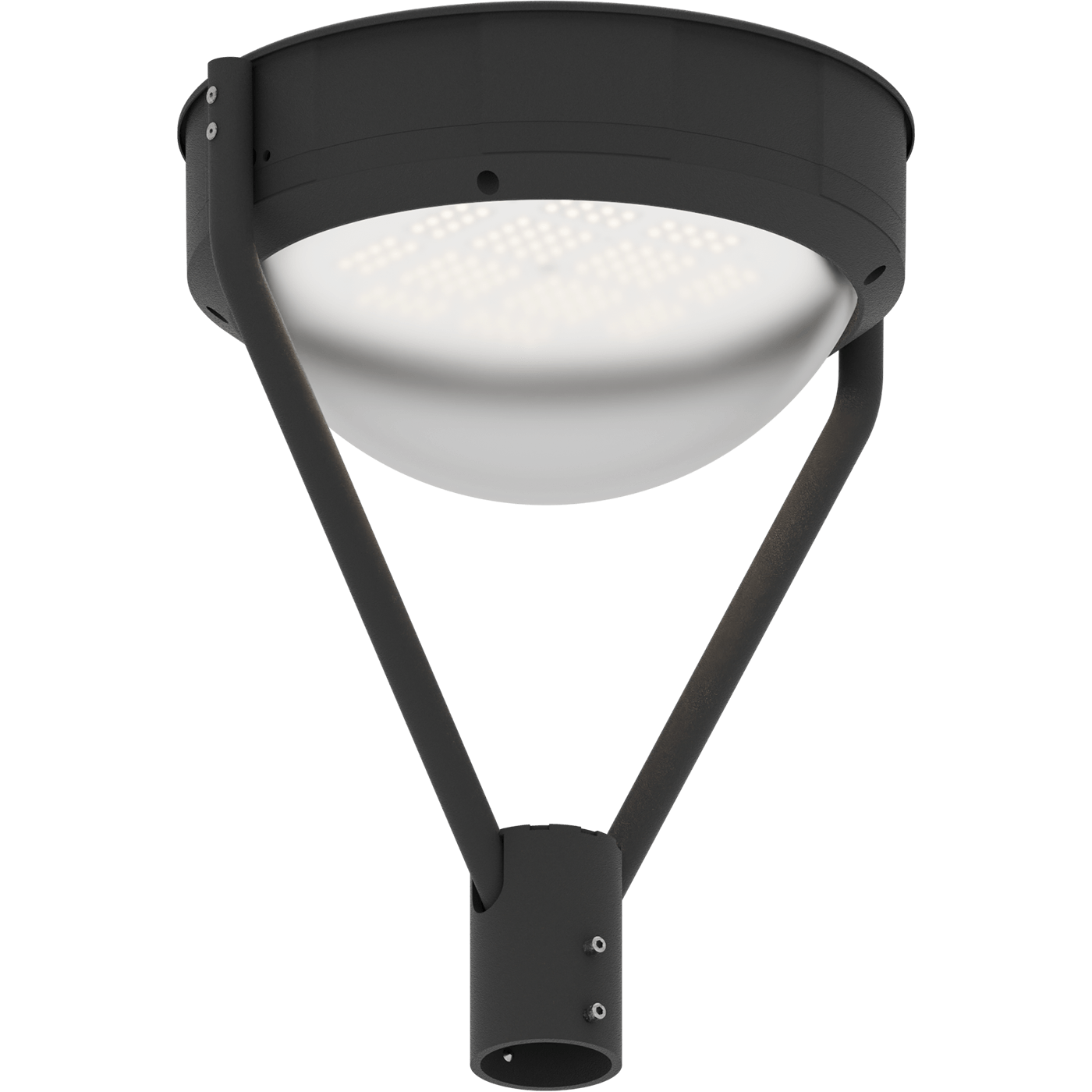

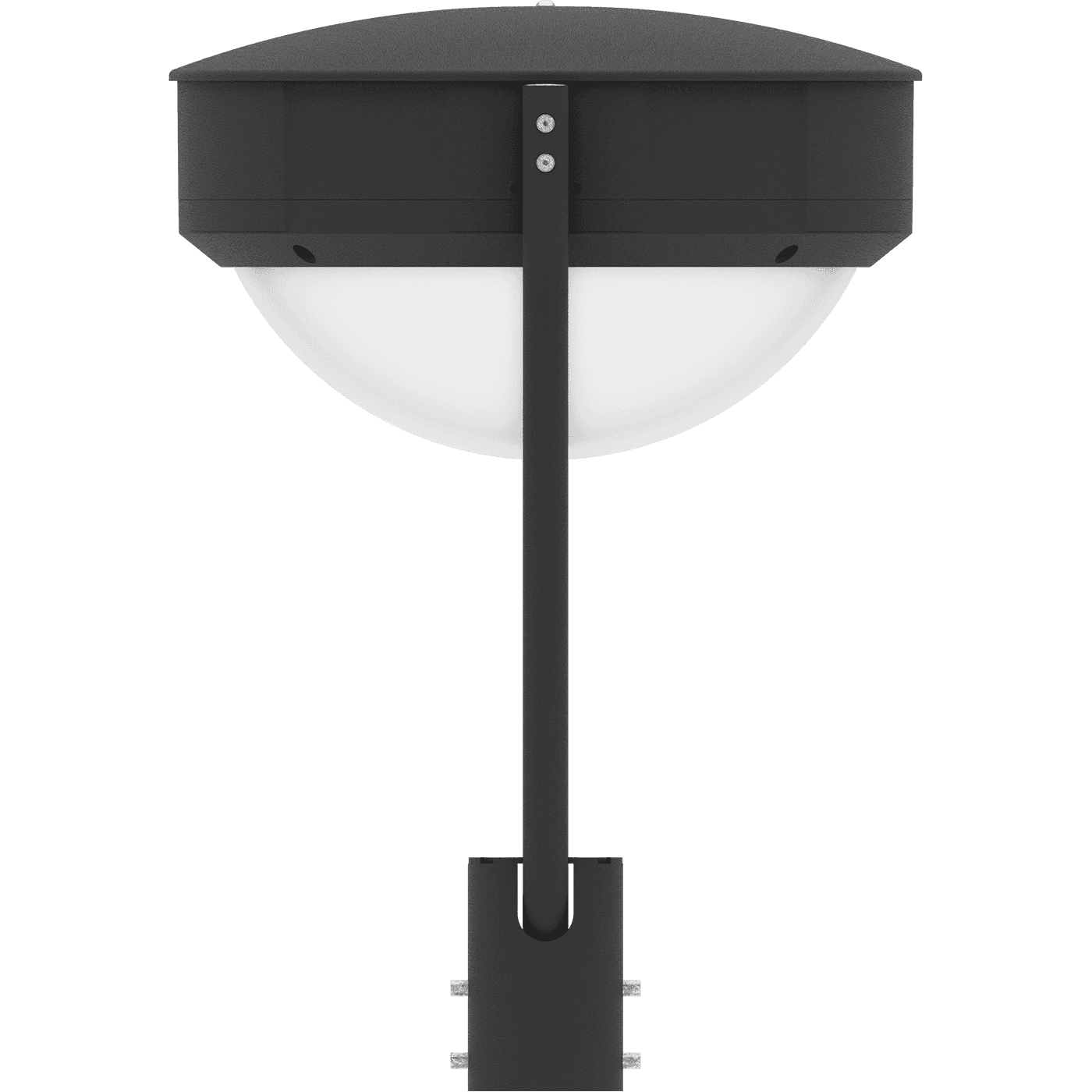

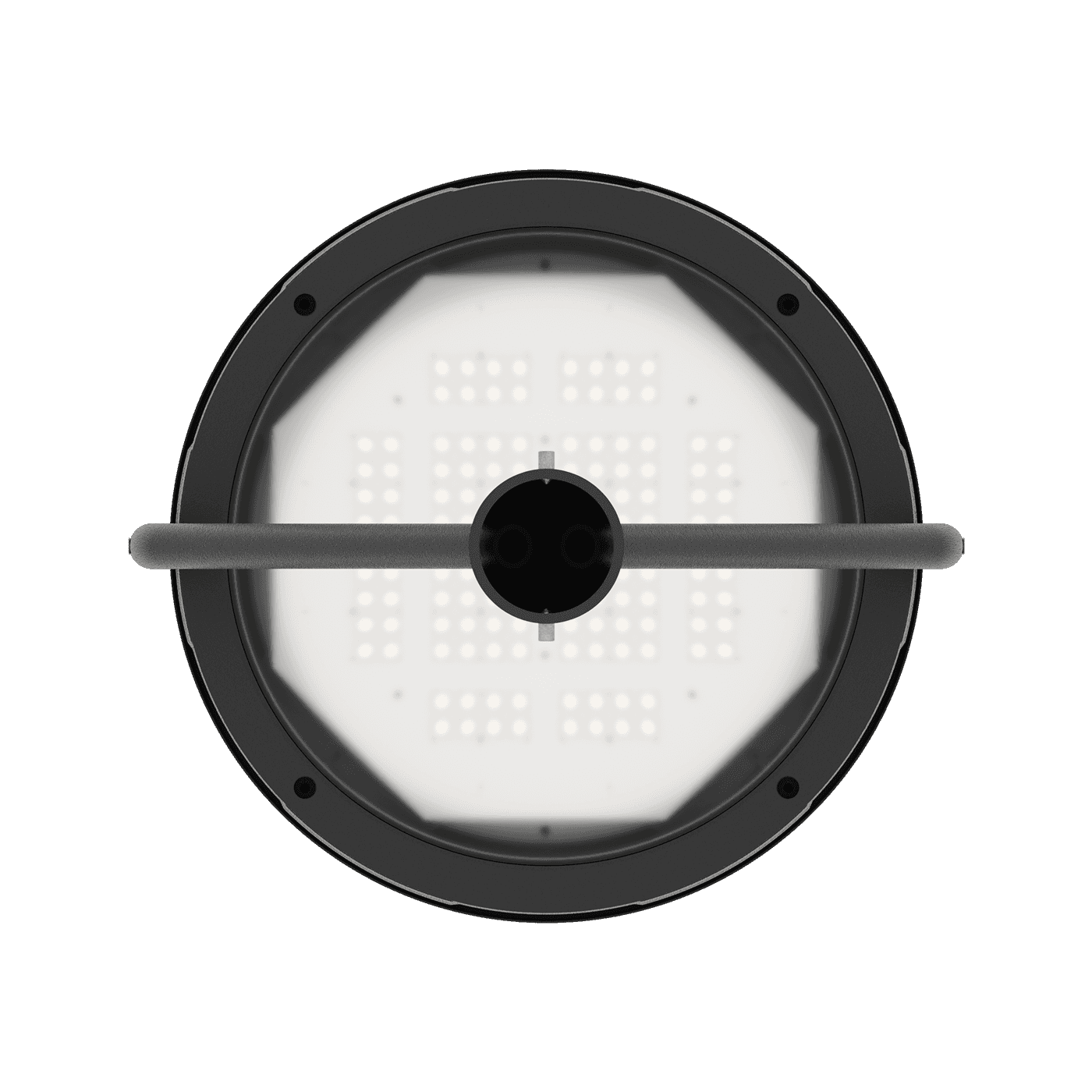

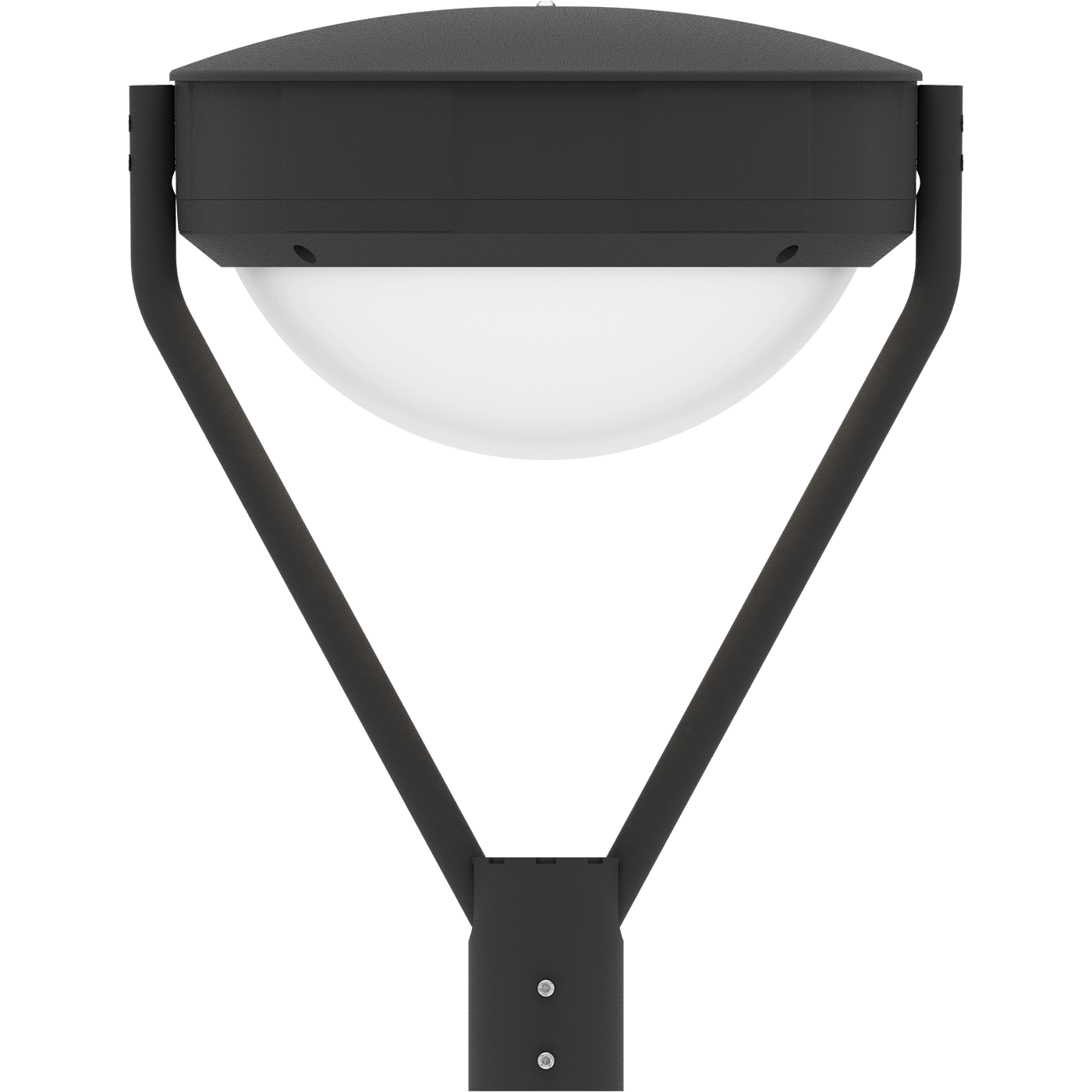

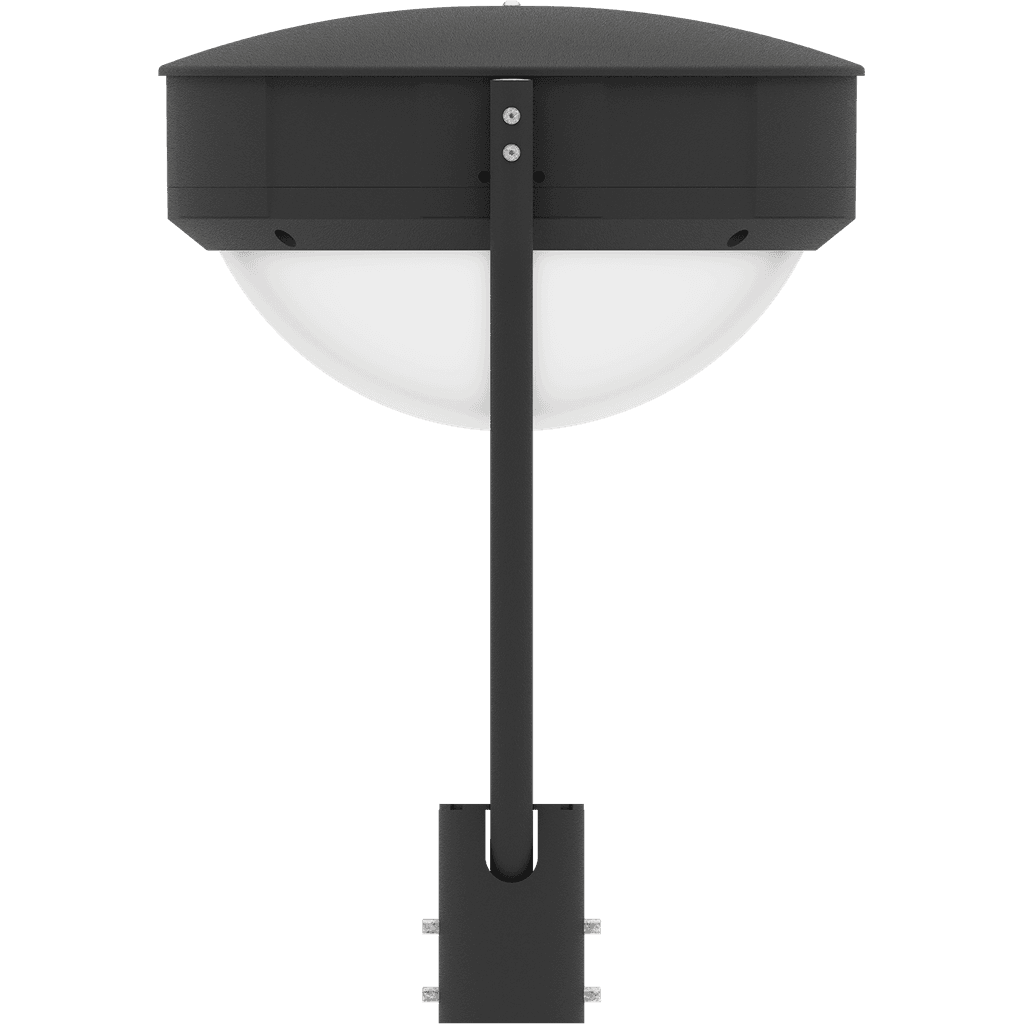

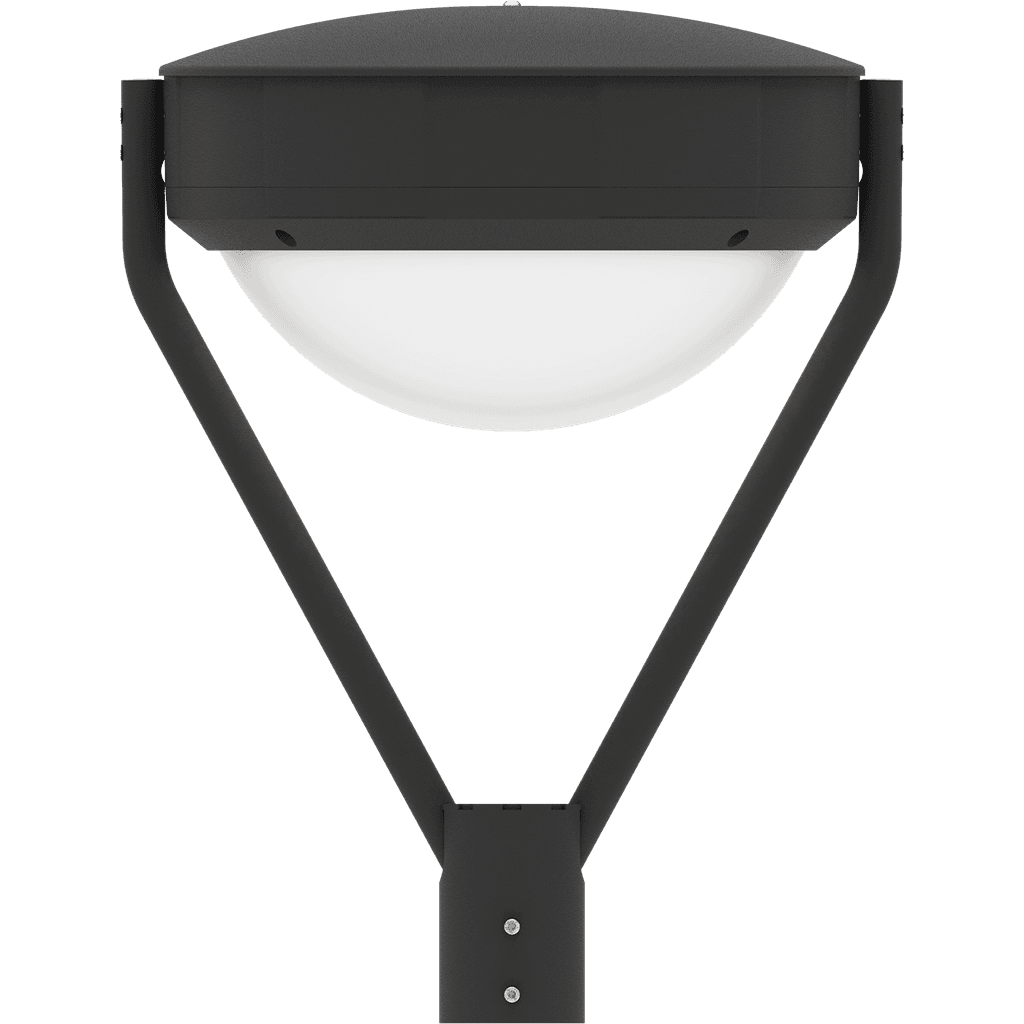

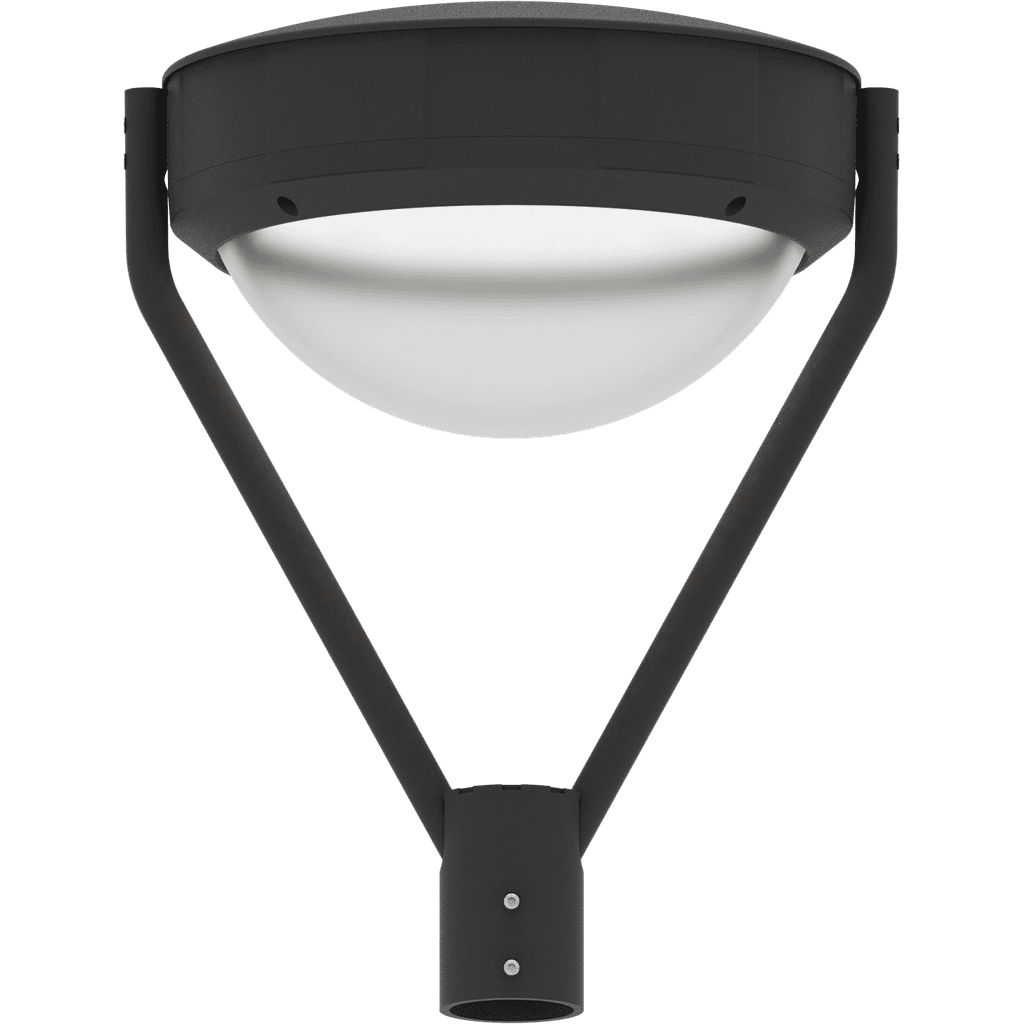

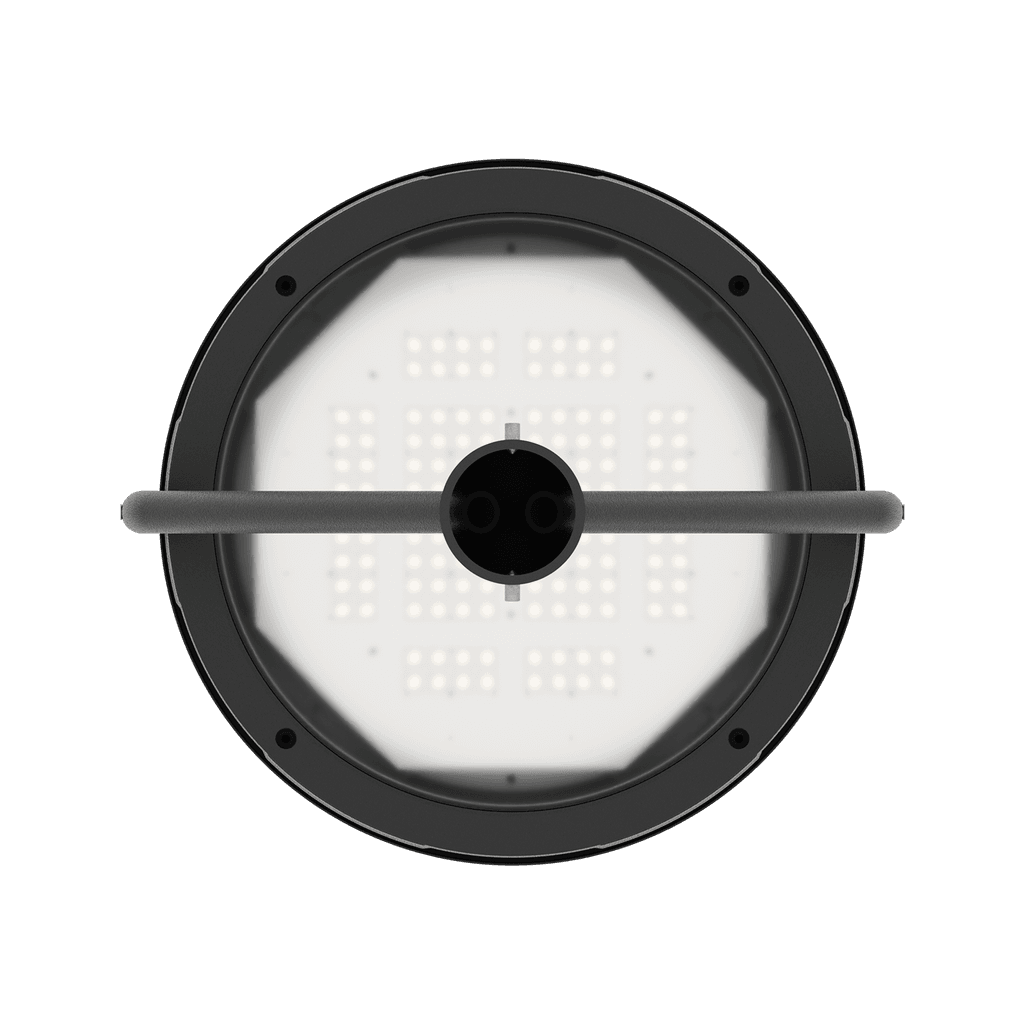

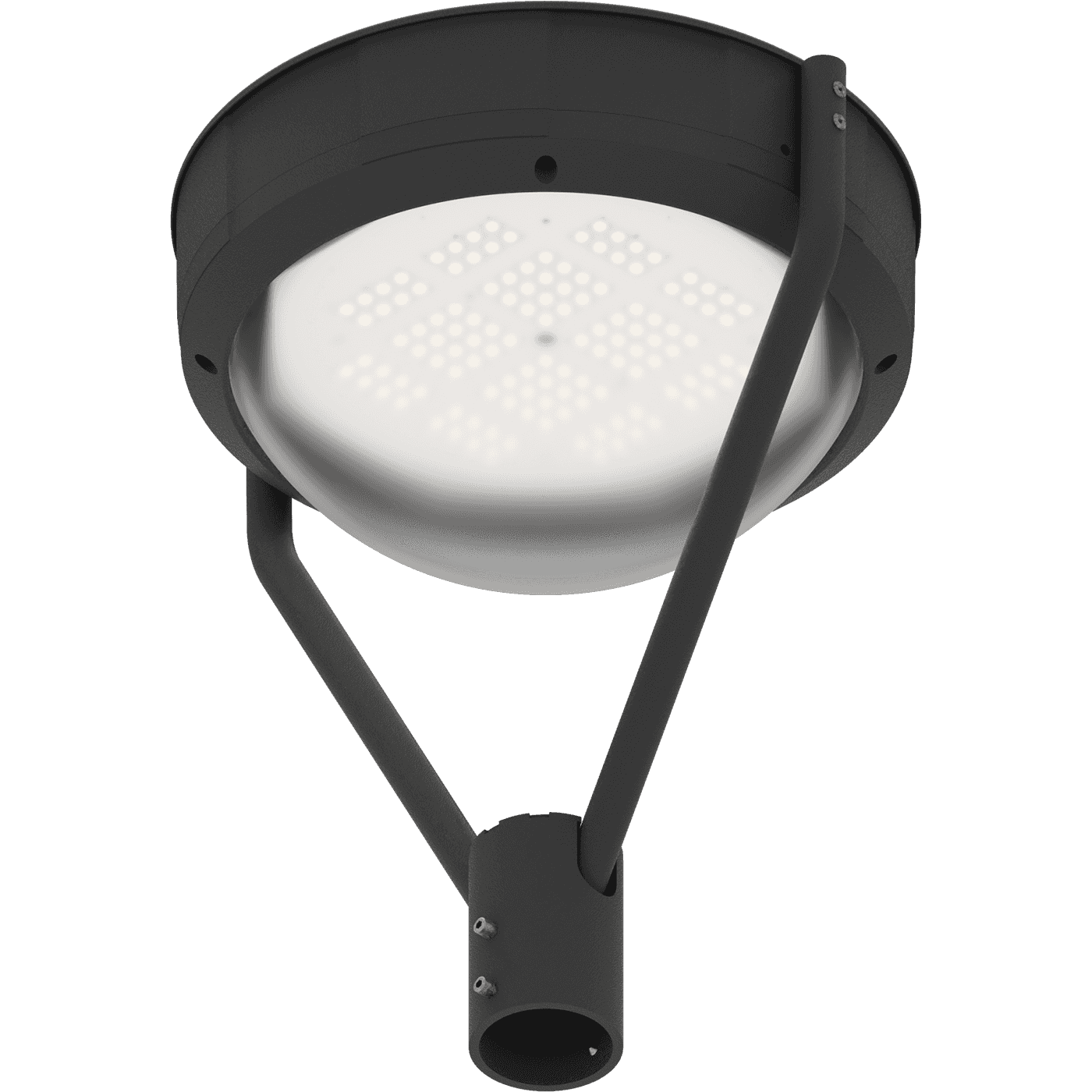

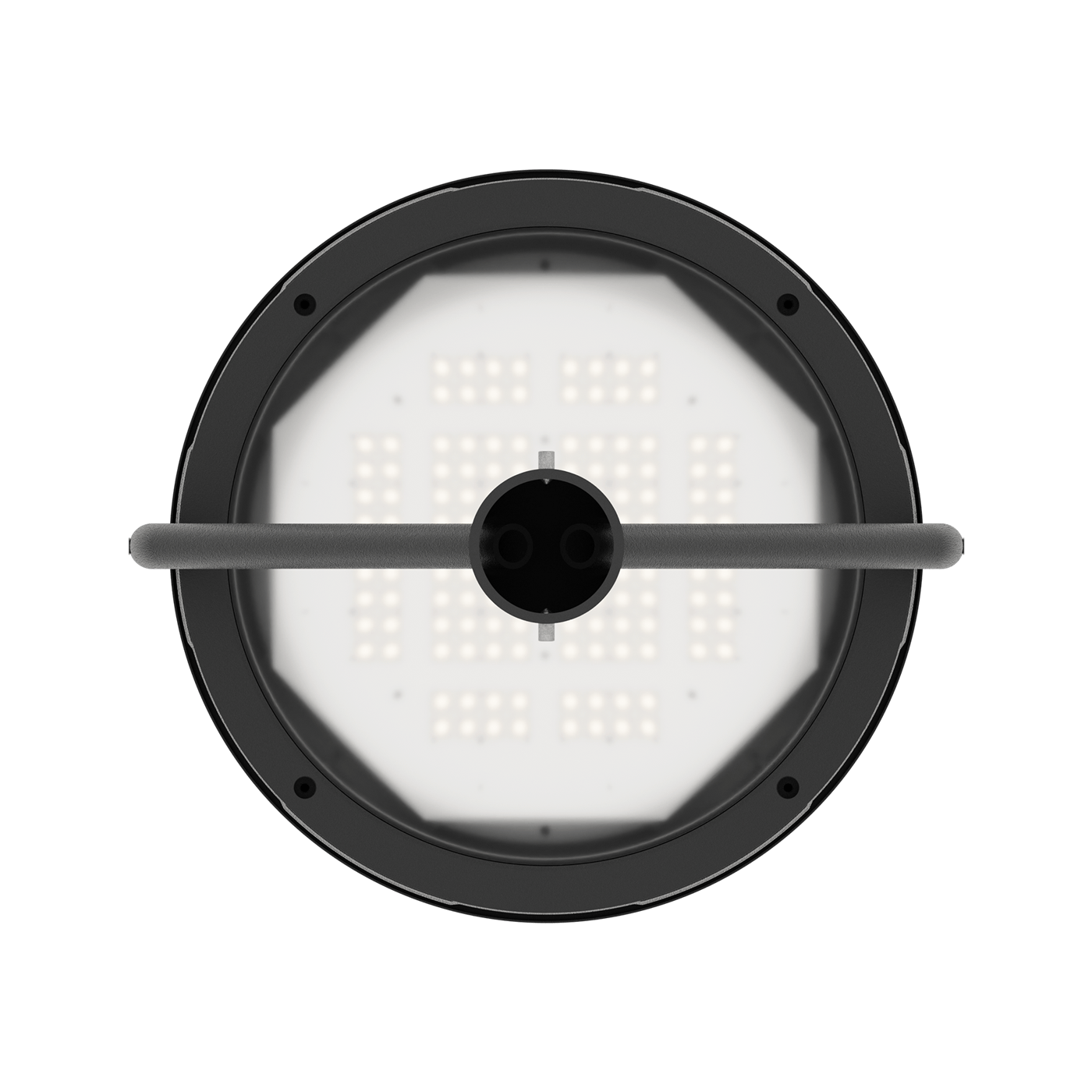

VALLEY UP LED 40W 830 BL
зарегистрирована в реестре российской промышленной продукции
VALLEY UP LED 40W 830 BL
39 Wluminaire power
5300 lmlight flow
136 lm/Wenergy efficiency
code
1855000040
number from the register of Russian industrial products
10743022
beam angle
D120
color temperature
3000 K
weight
6 kg
- main page
- catalog
- by product type
- outdoor lighting
- console
- VALLEY UP
- VALLEY UP LED 40W 830 BL
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
energy efficiency
136 lm/Wcolor rendition index (CRI)
>80light flow
5300 lmflickering factor
<1%beam angle
D120color temperature
3000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
136 lm/W
color rendition index (CRI)
>80
light flow
5300 lm
flickering factor
<1%
beam angle
D120
color temperature
3000 K
light source type
LED
emission color
Белый
electrical
luminaire power
39 W
electric shock protection
I
starting current pulse time
350 µs
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
50 A
maximum cross-section of the connected cable
1 mm2
supply voltage, direct current
142-431 V
supply voltage, alternating current
90-305 V
power factor
> 0,95

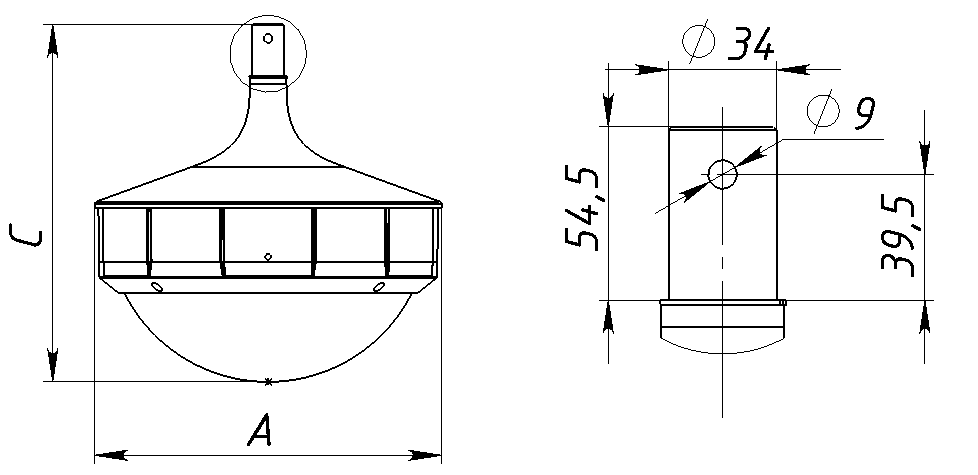

constructional
diameter
364 mm
height
375 mm
installation diameter
60 mm
housing color
Черный
lamp socket
LED
number of lamps
1
ballast
Драйвер
mounting type
material
Алюминий
climatic performance
УХЛ1*
ingress protection (IP)
IP65
shock resistance (IK)
IK08/5 Дж
weight
6 kg
emergency
emergency power supply
Нет
common
code
1855000040
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Светильник ландшафтный торшерного типа/ светильник-столбик/ световая тумба
package
Package contents
Светильник - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
Штифт - 1 шт.
Винт установочный М5 - 3 шт.
Винт установочный М8 - 4 шт.
Шплинт - 1 шт.
model files
model files
photometric files
documents
сертификаты

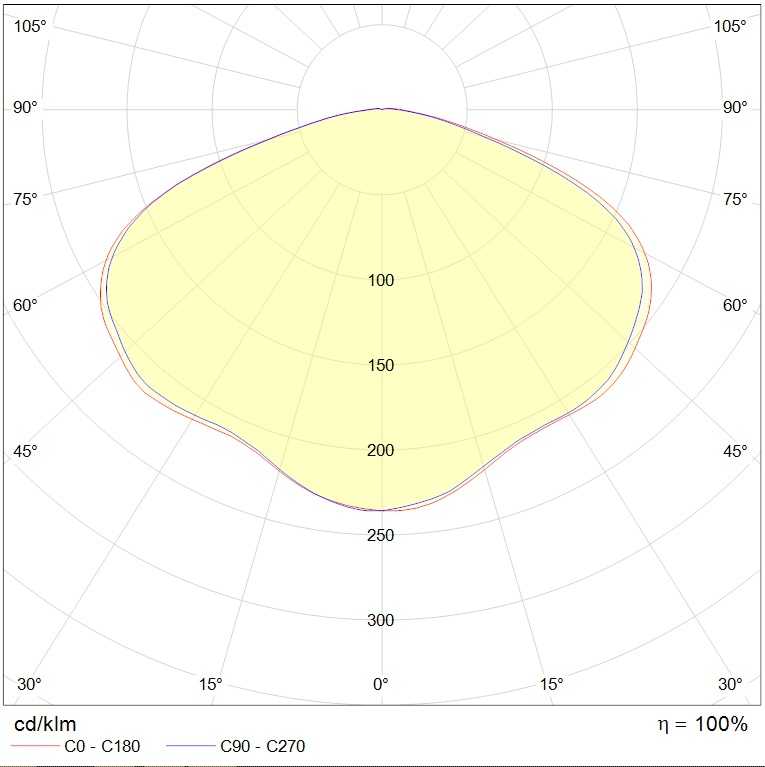

photometric files
ies107 kB
jpg88.6 kB
ldt73.9 kB
csv423 B
documents
passport1.2 mB
сертификаты
Russian origin330.2 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016287.5 kB
