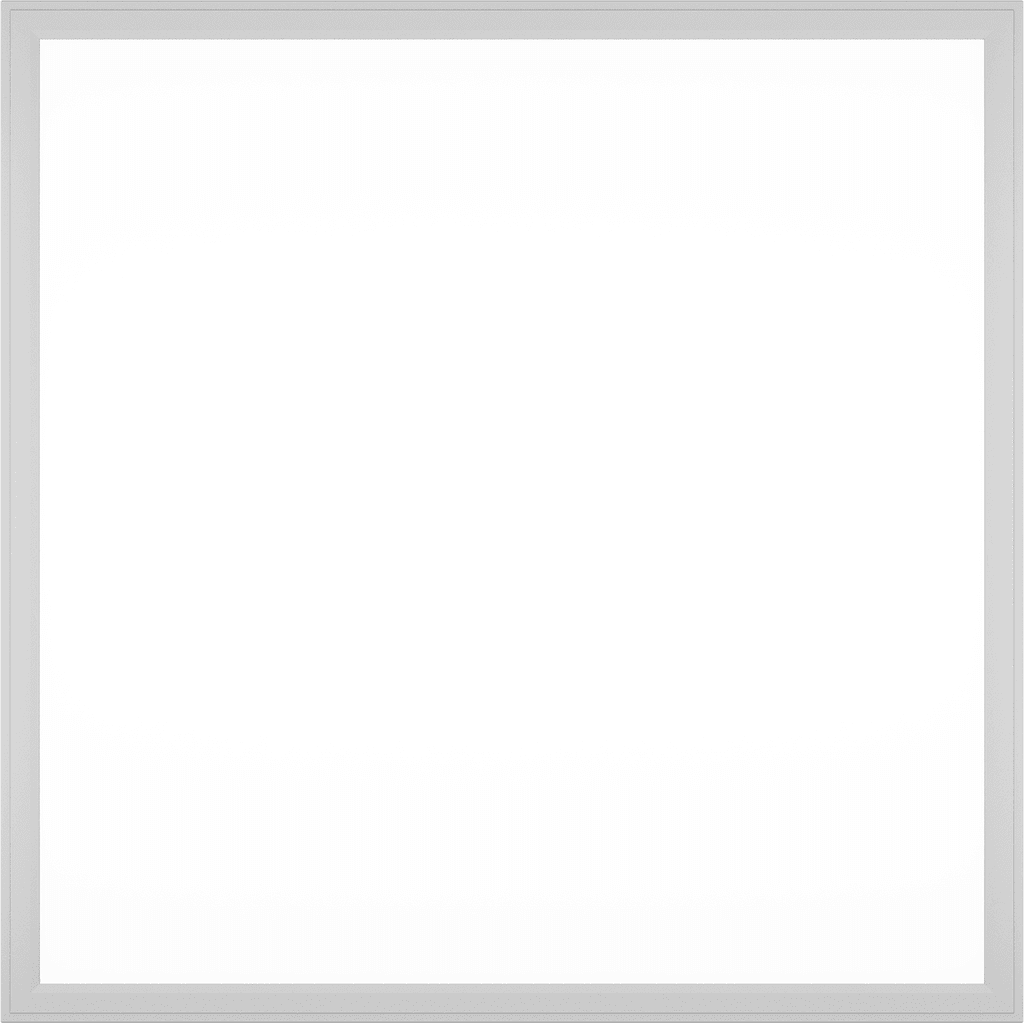

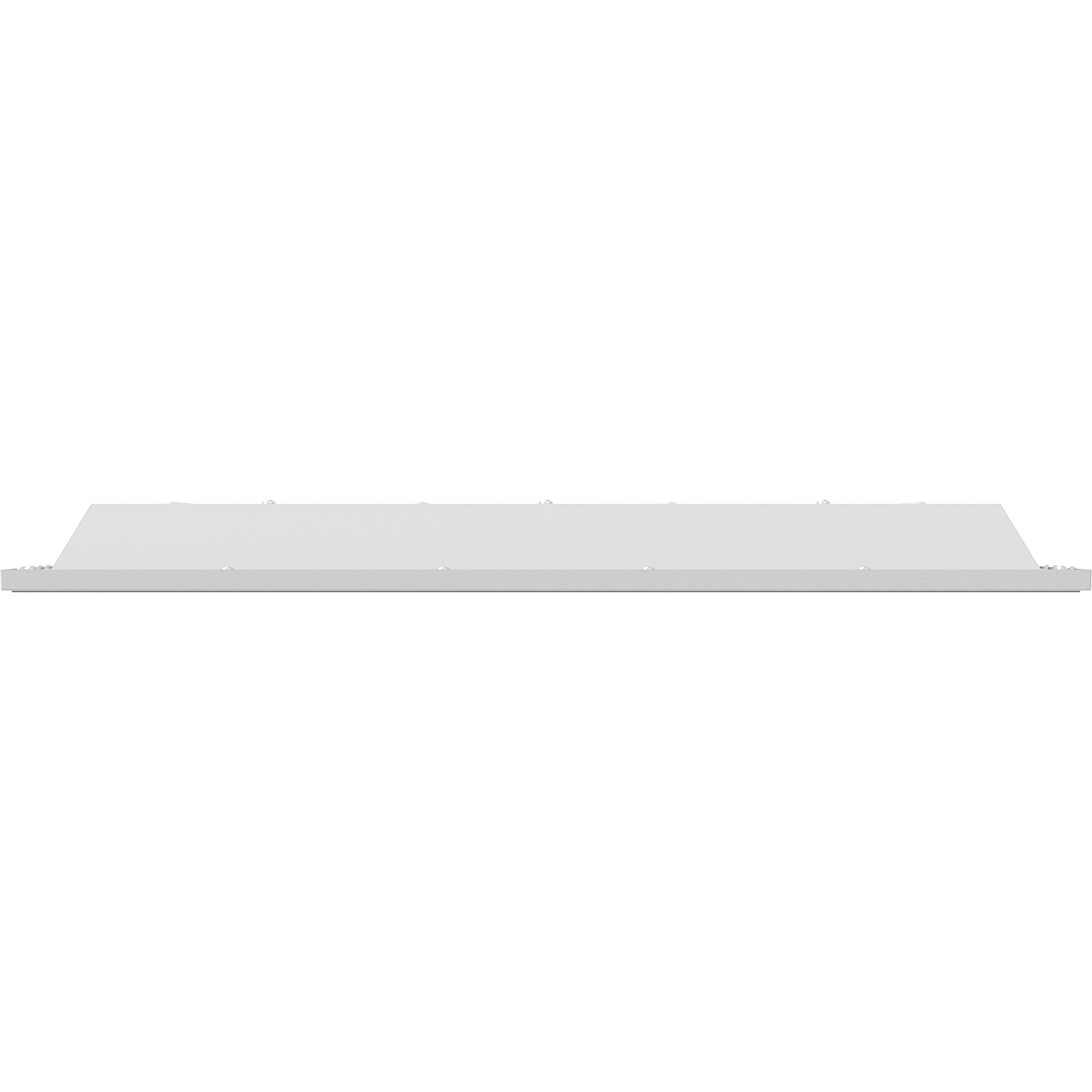

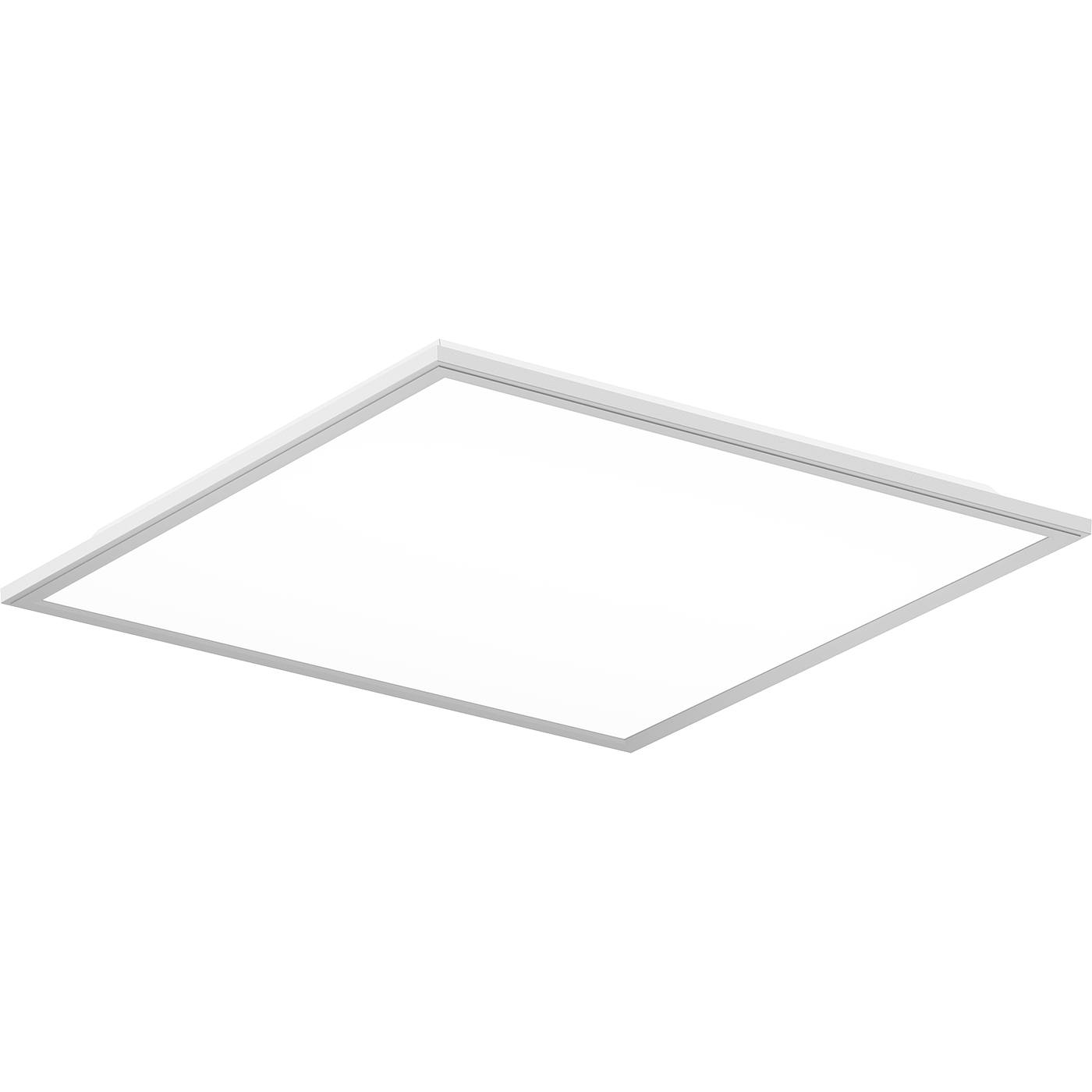

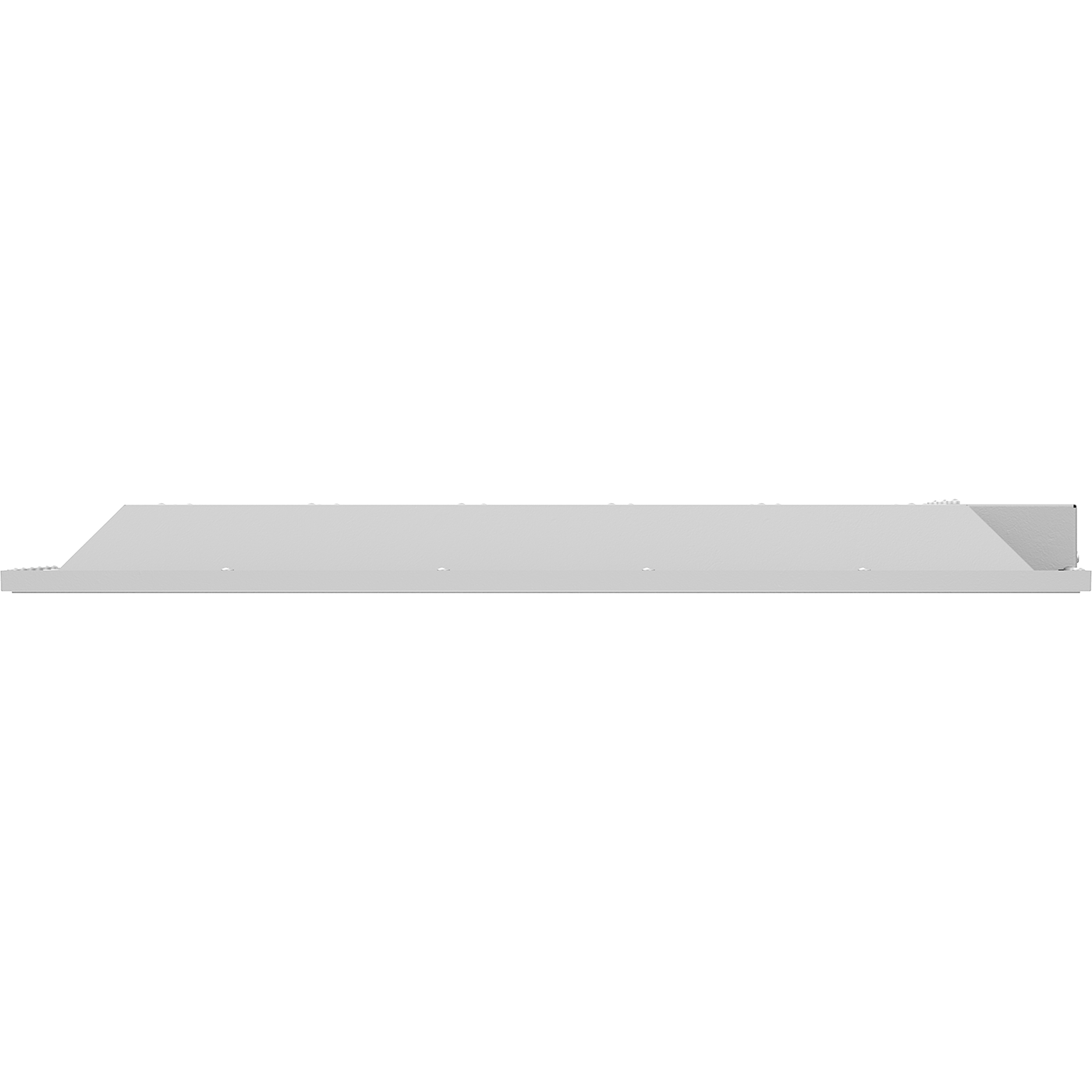

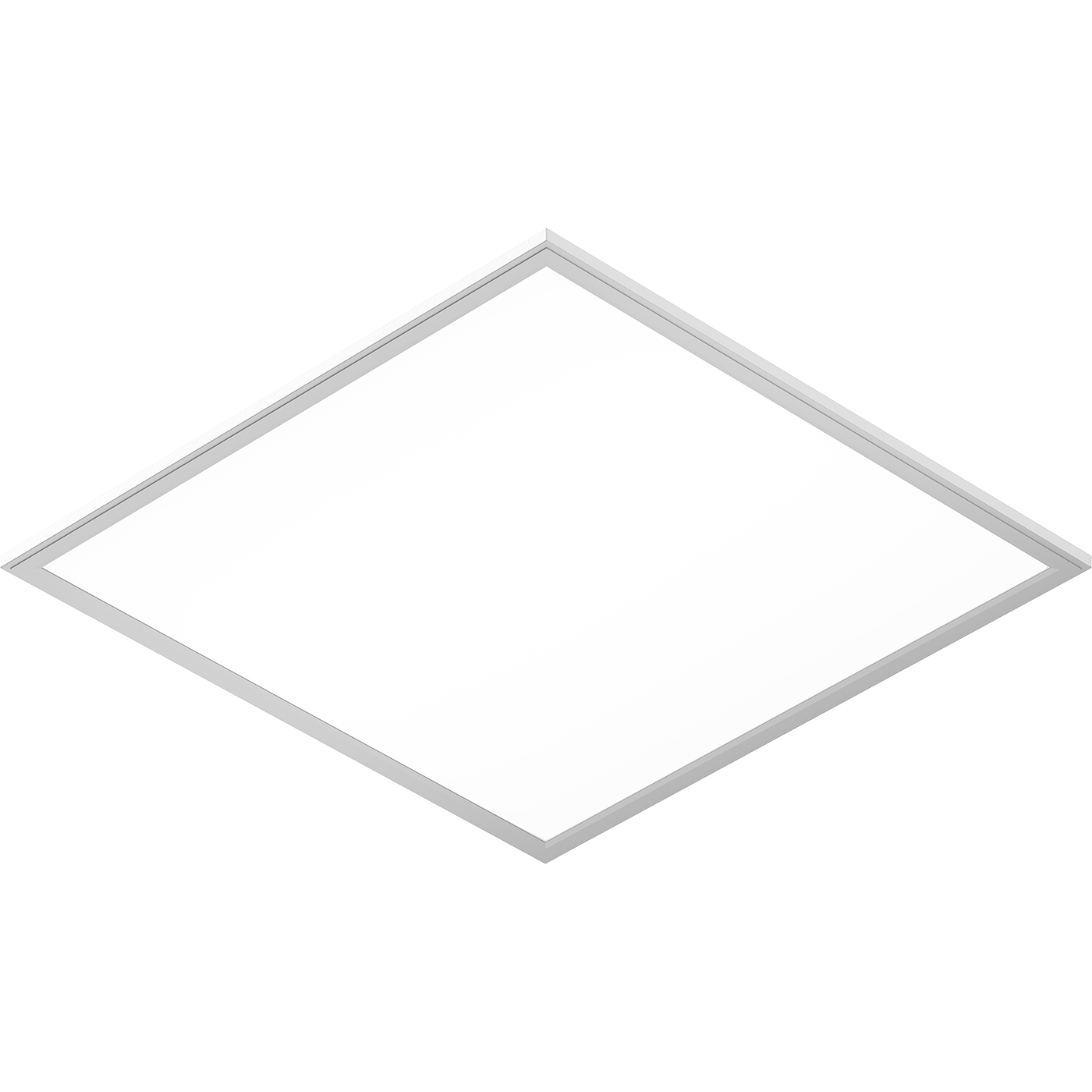

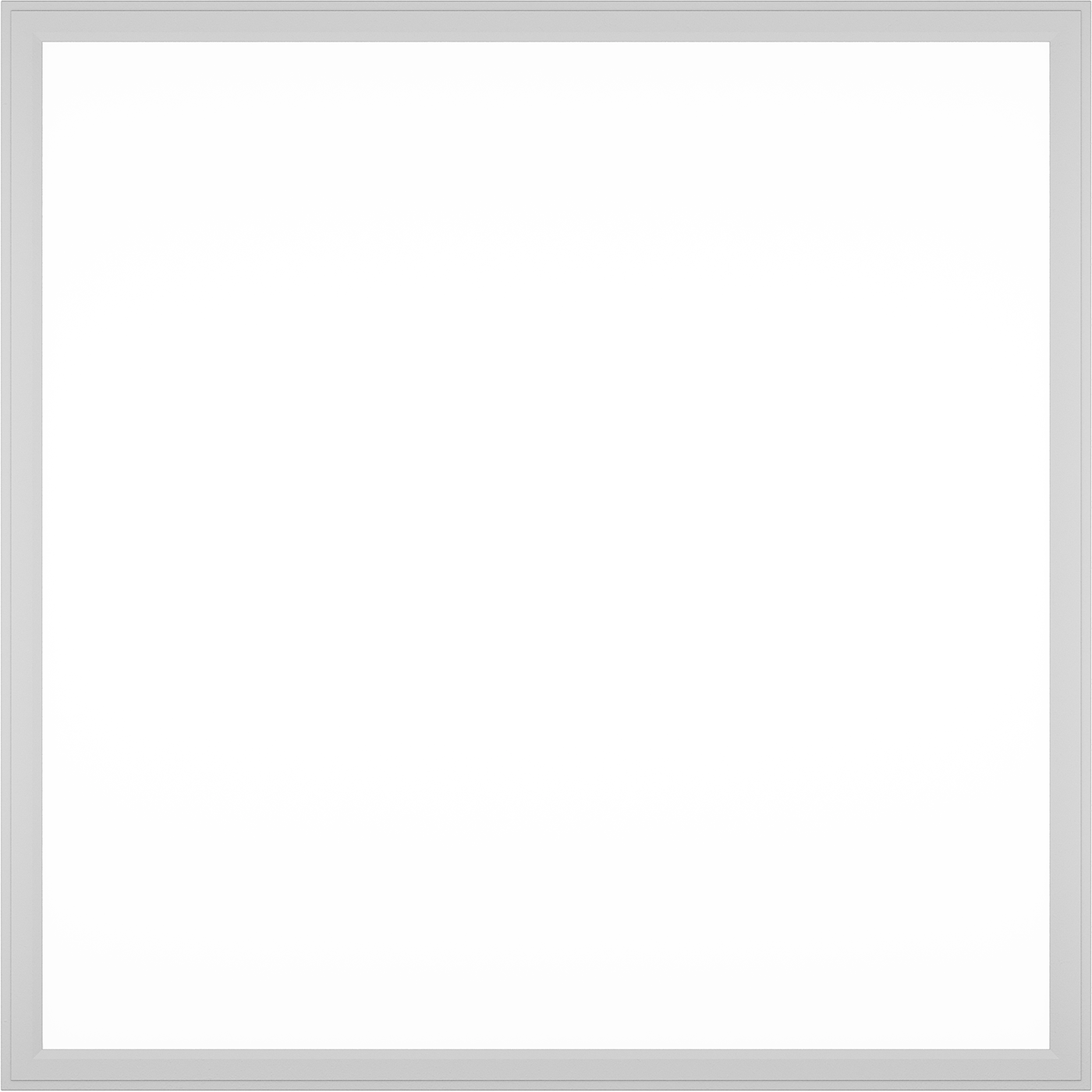

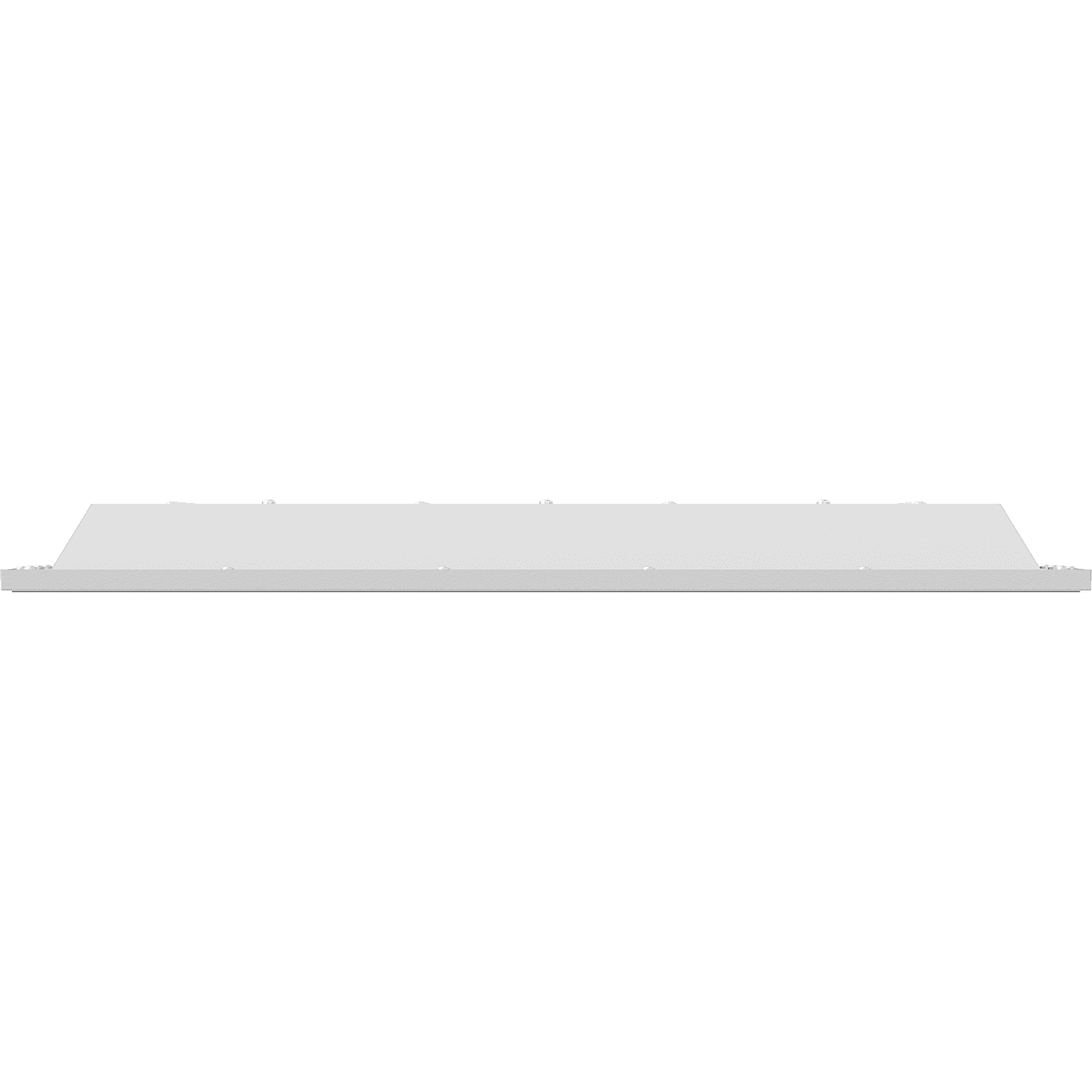

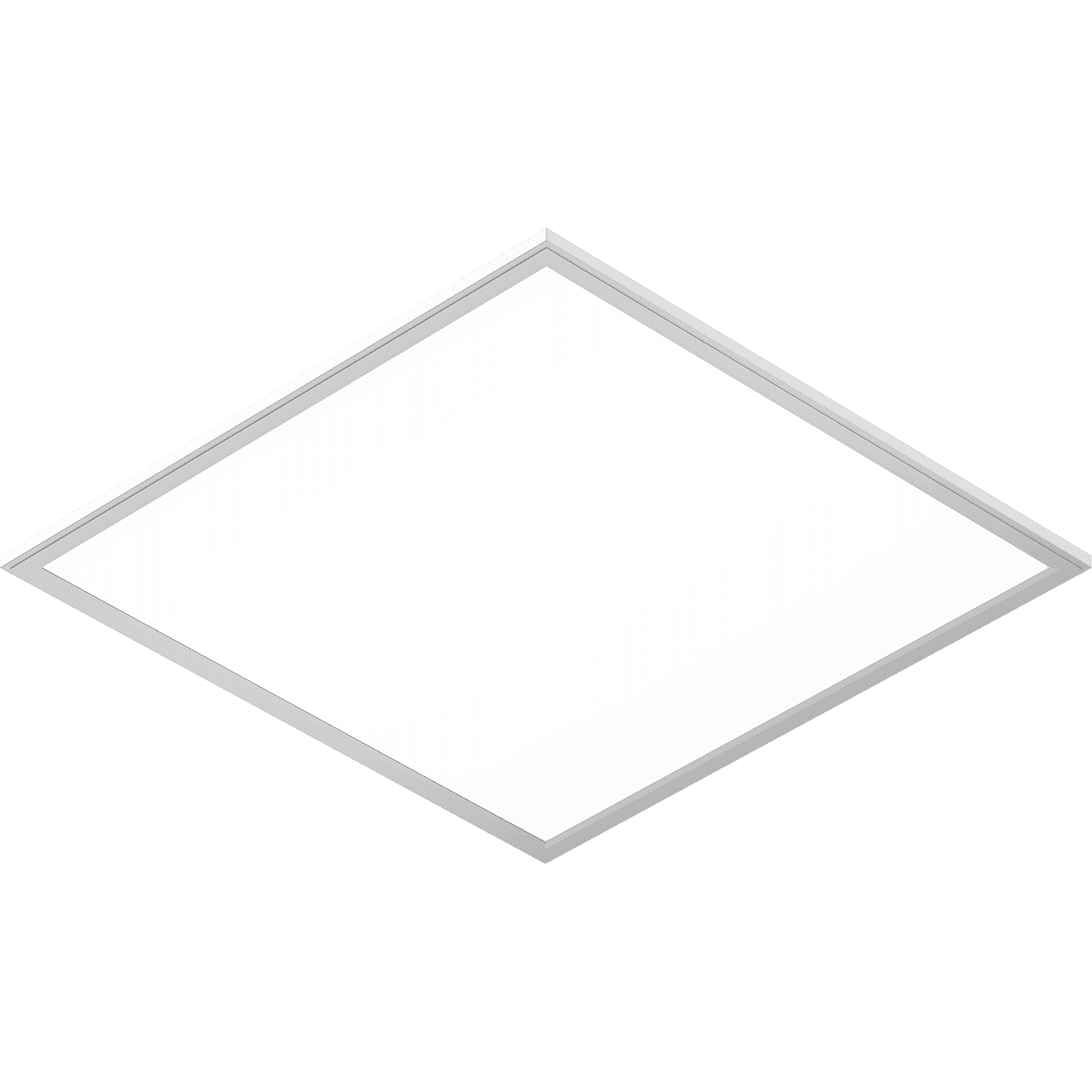

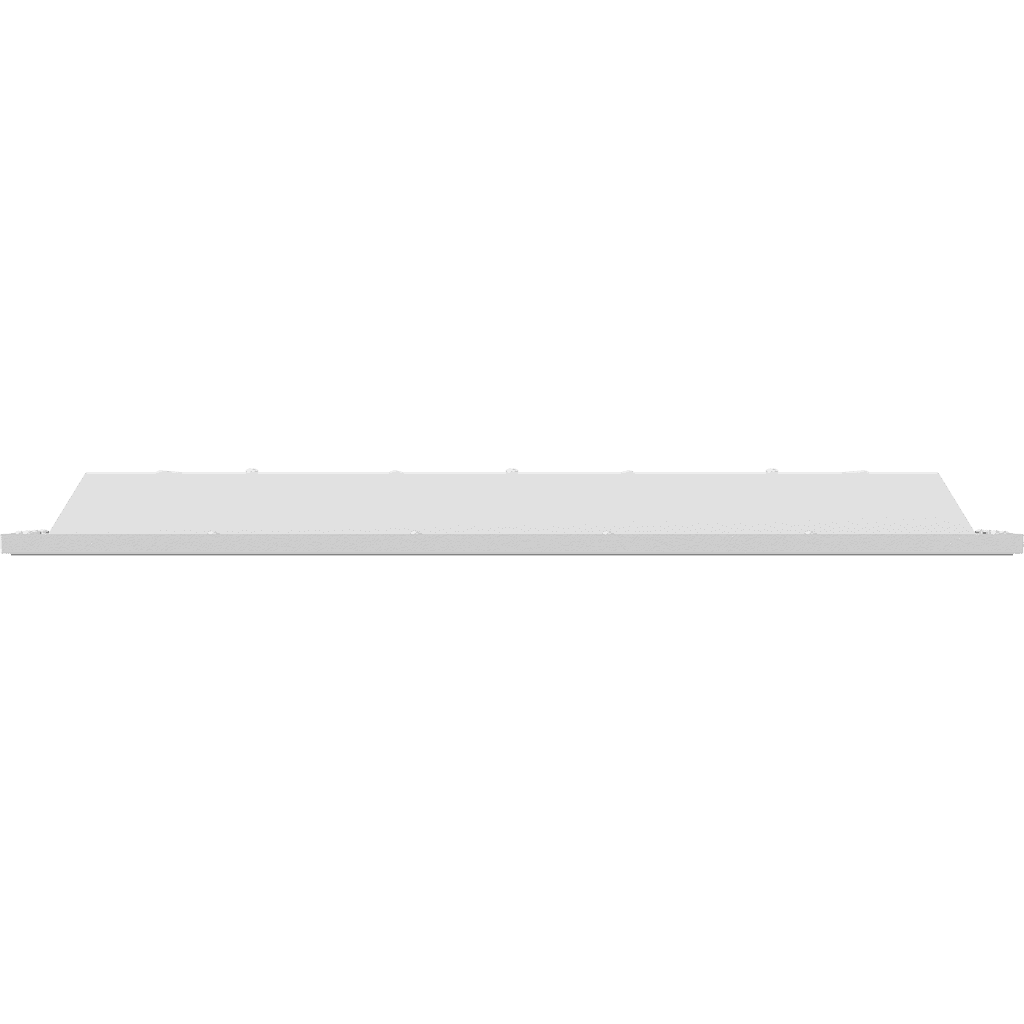

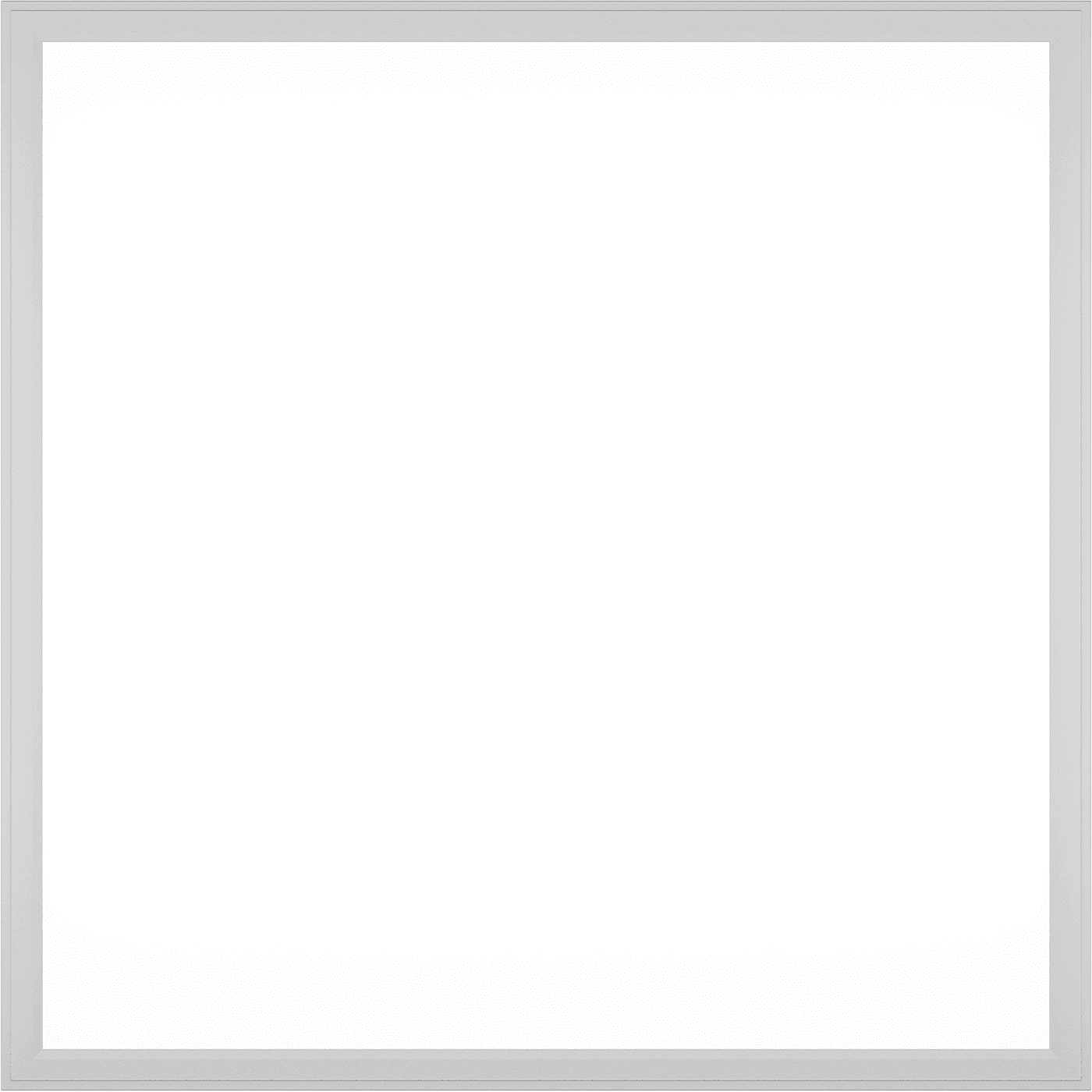

UNI/R STANDARD (595x595) 30W PRS 850 WH
UNI/R STANDARD (595x595) 30W PRS 850 WH
30 Wluminaire power
3500 lmlight flow
117 lm/Wenergy efficiency
code1884000180
color temperature5000
beam angleD120
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
starting current
32 Astarting current pulse time, µs
267 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
176-264 Vsupply voltage, direct current
176-264 Vluminaire power
30 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
starting current
32 A
starting current pulse time, µs
267 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
30 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Сталь
weight
2.8 kg
length, mm
595 mm
width, mm
595 mm
height, mm
49 mm
housing color
Белый
installation length, mm
575 mm
installation width, mm
575 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1884000180
illuminating
color rendition index (CRI)
>80
light flow
3500 lm
flickering factor
<5%
energy efficiency
117 lm/W
beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
model files
model files
photometric files
сертификаты

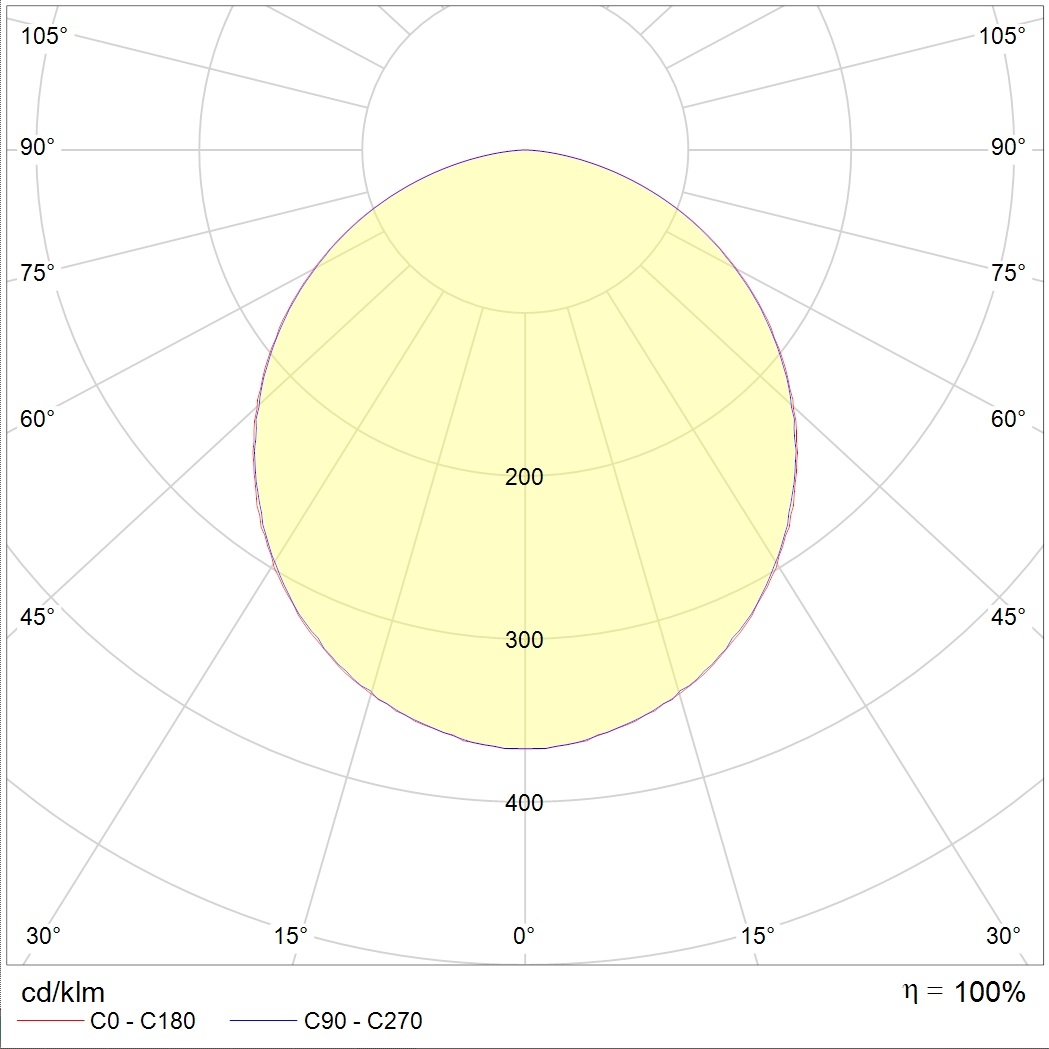

photometric files
