UNI/R STANDARD (595x295) 20W PRS 950 WH DALI
UNI/R STANDARD (595x295) 20W PRS 950 WH DALI
20 Wluminaire power
2200 lmlight flow
110 lm/Wenergy efficiency
code1884006990
color temperature5000 K
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
110 lm/Wcolor rendition index (CRI)
>90light flow
2200 lmflickering factor
<1%beam angle
D120color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
110 lm/W
color rendition index (CRI)
>90
light flow
2200 lm
flickering factor
<1%
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
267 µs
electric shock protection
I
luminaire power
20 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
32 A

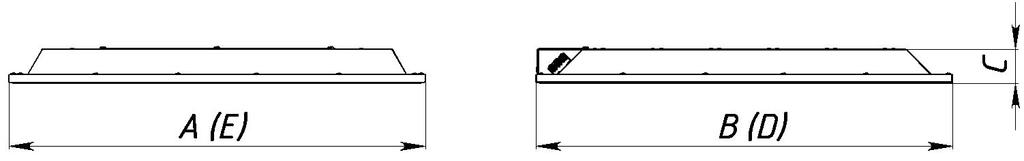

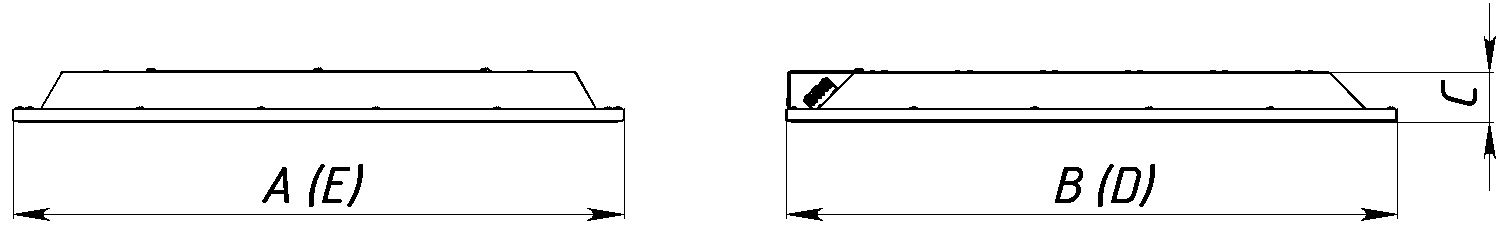

constructional
length
595 mm
width
295 mm
height
49 mm
installation length
575 mm
installation width
275 mm
weight
2.2 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Сталь
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
LMS options
dimming
DALI
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1884006990
model files
model files
photometric files
сертификаты
photometric files
ies134.1 kB
jpg121.1 kB
ldt83.4 kB
сертификаты
Russian origin279.1 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
