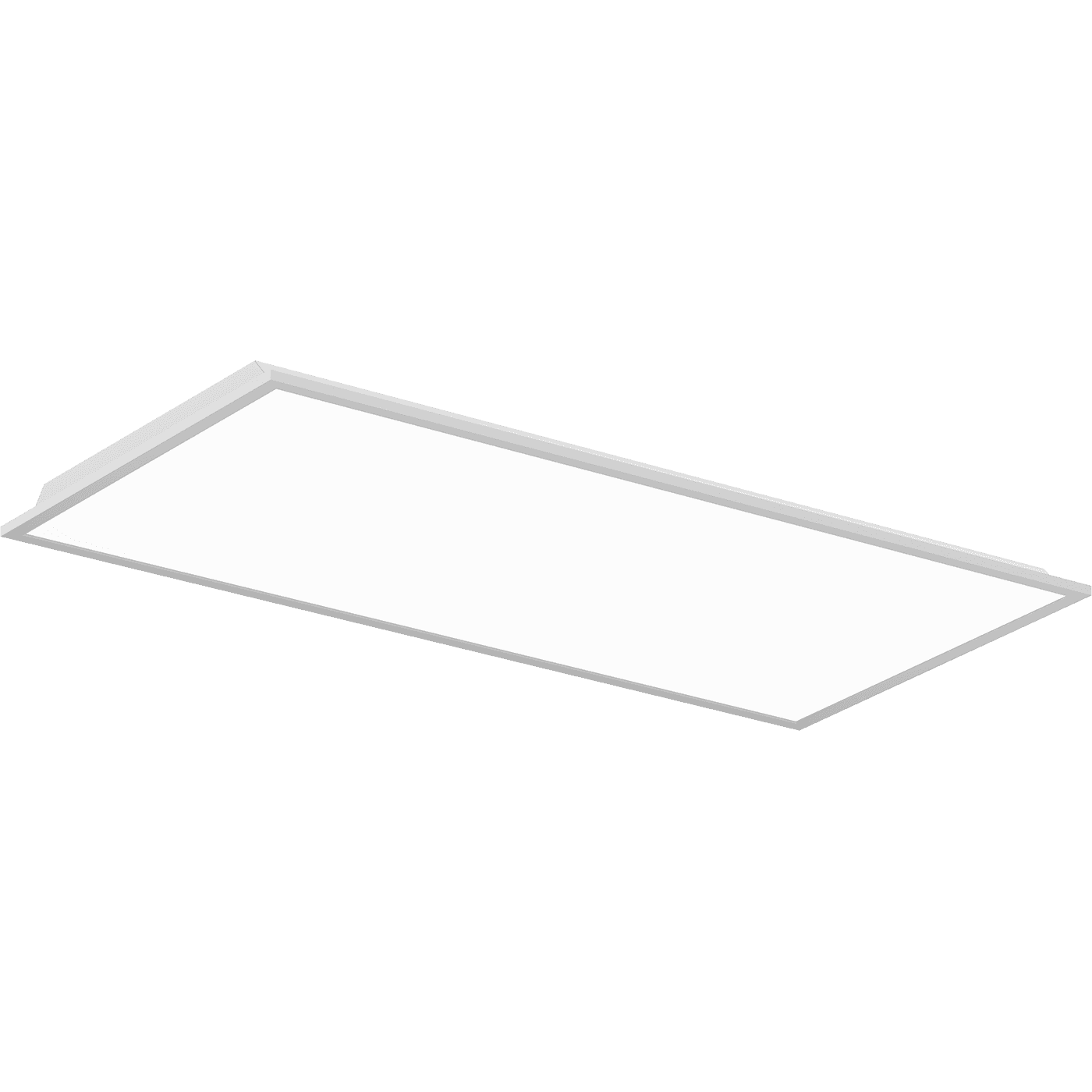

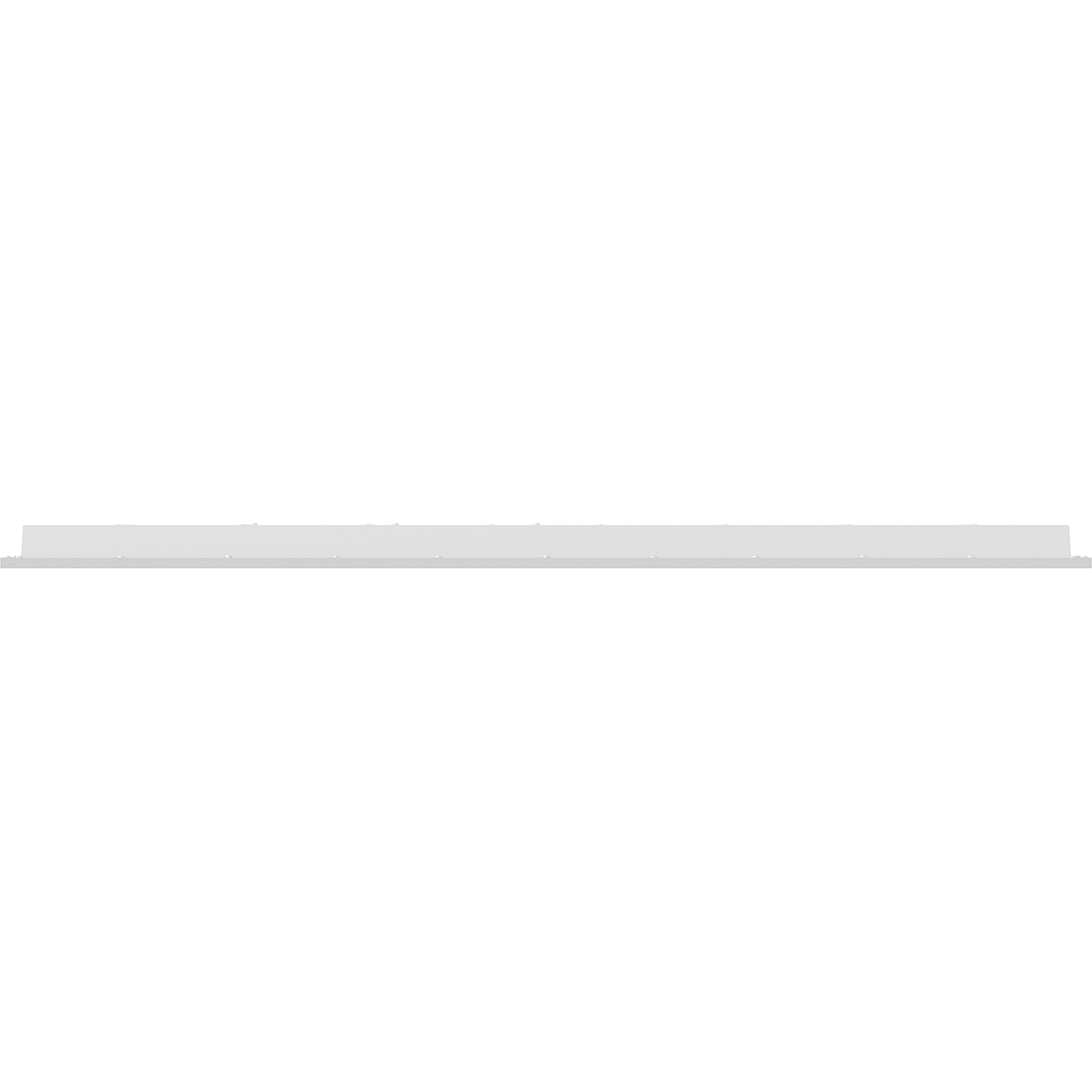

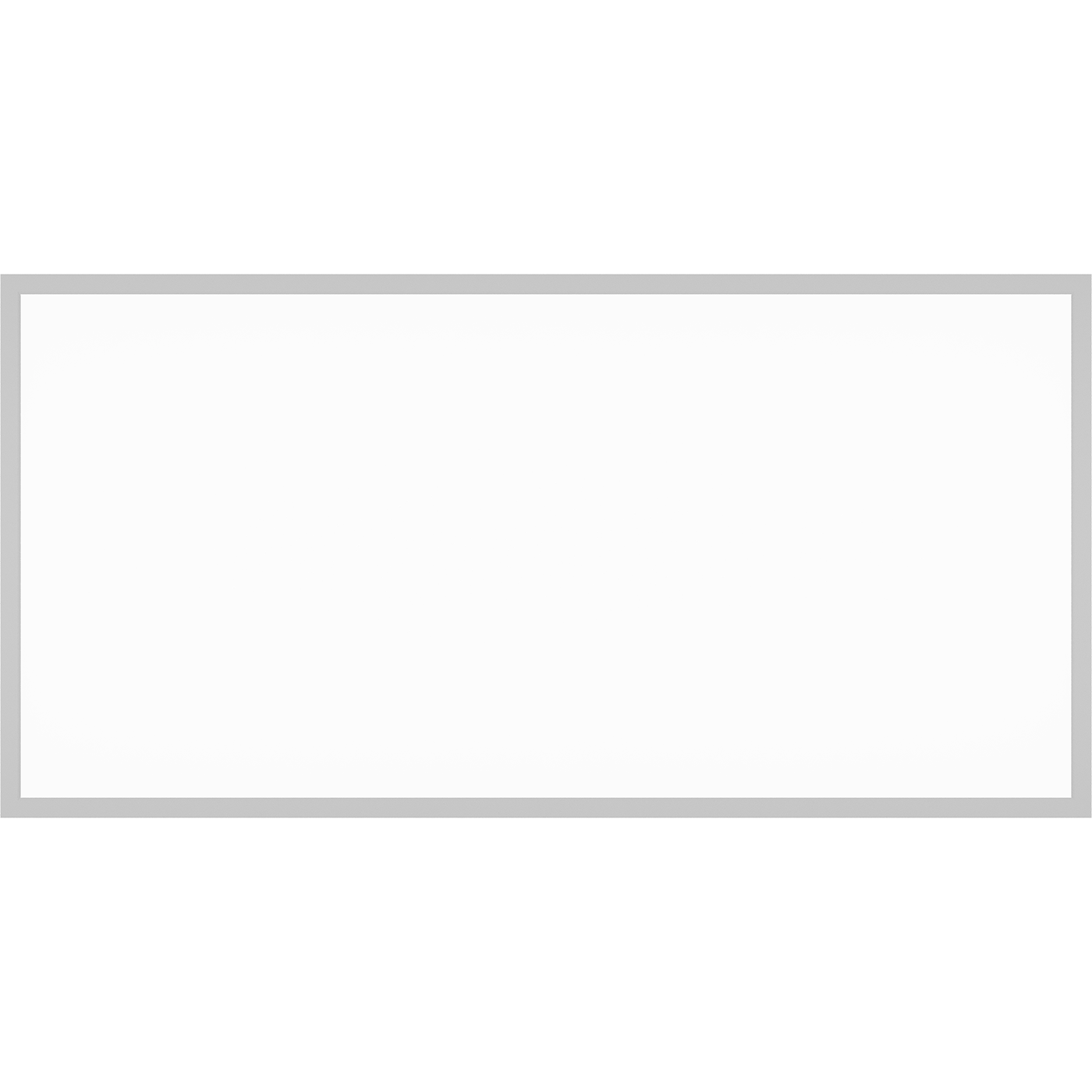

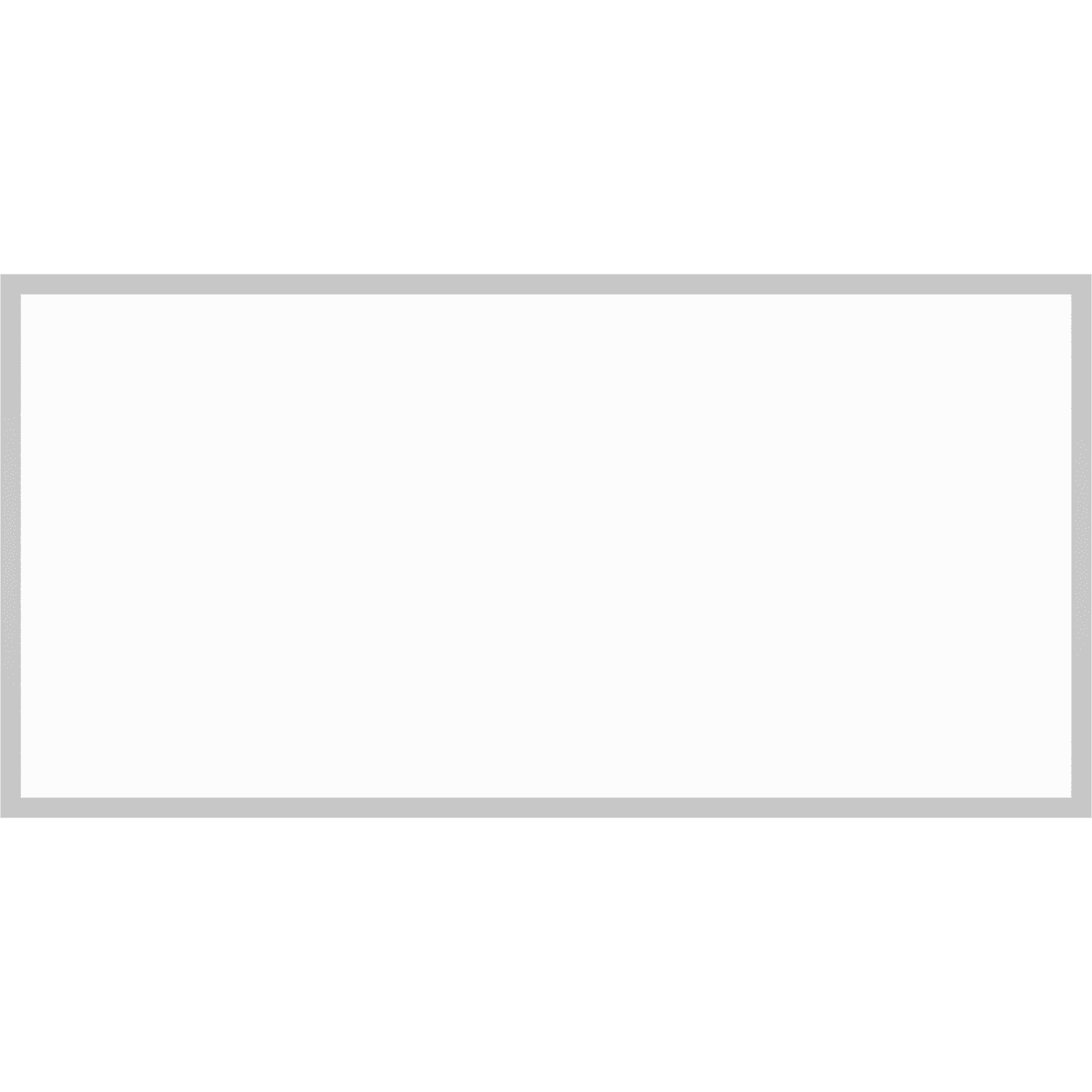

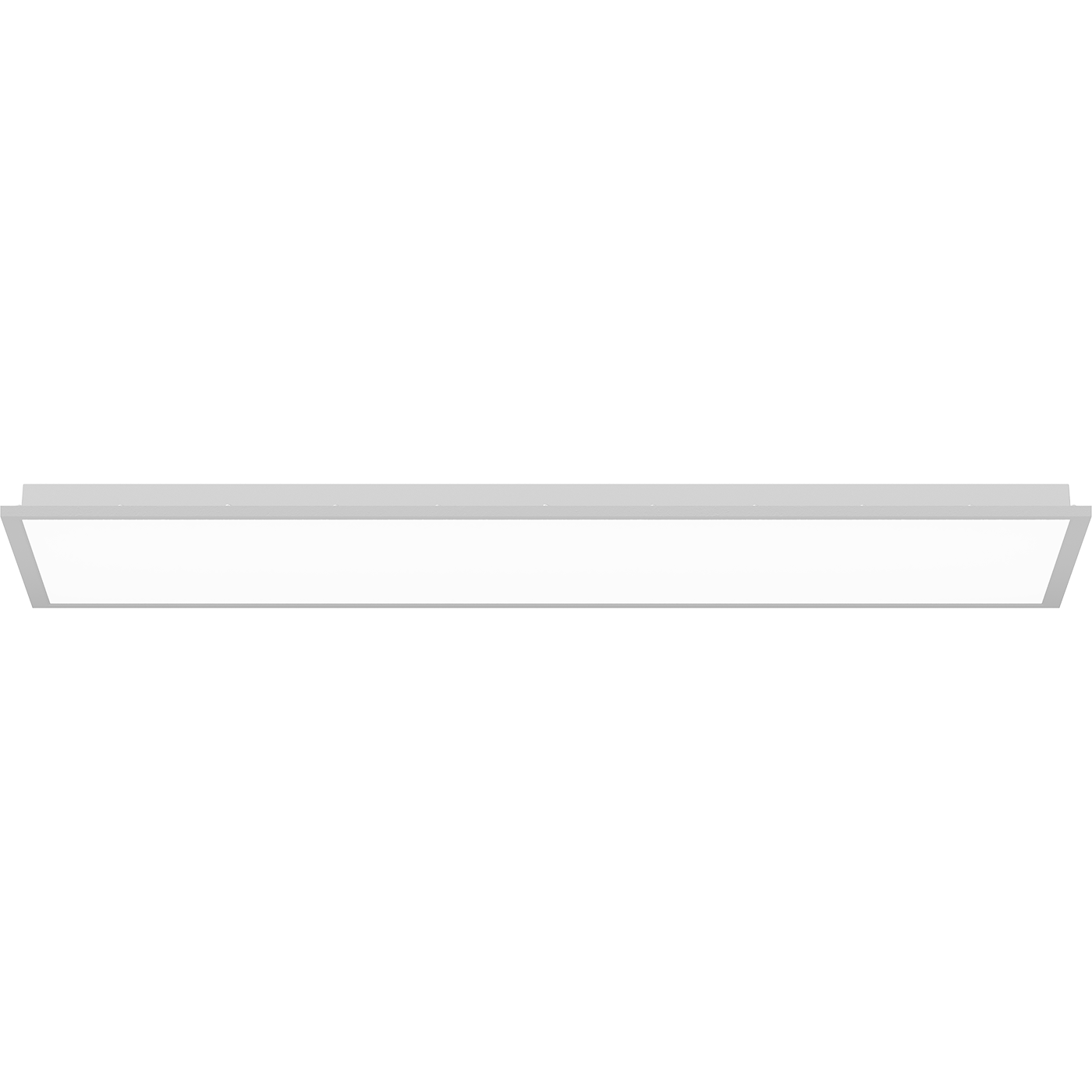

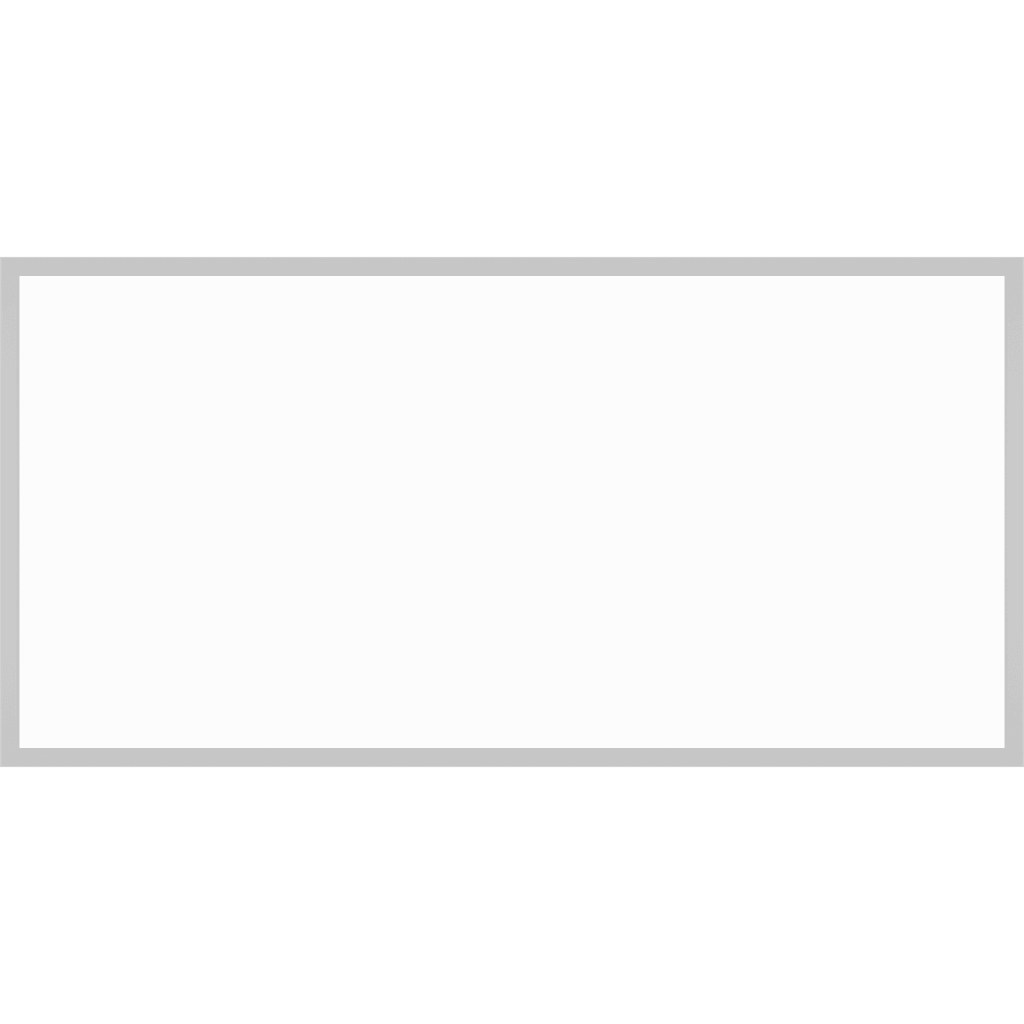

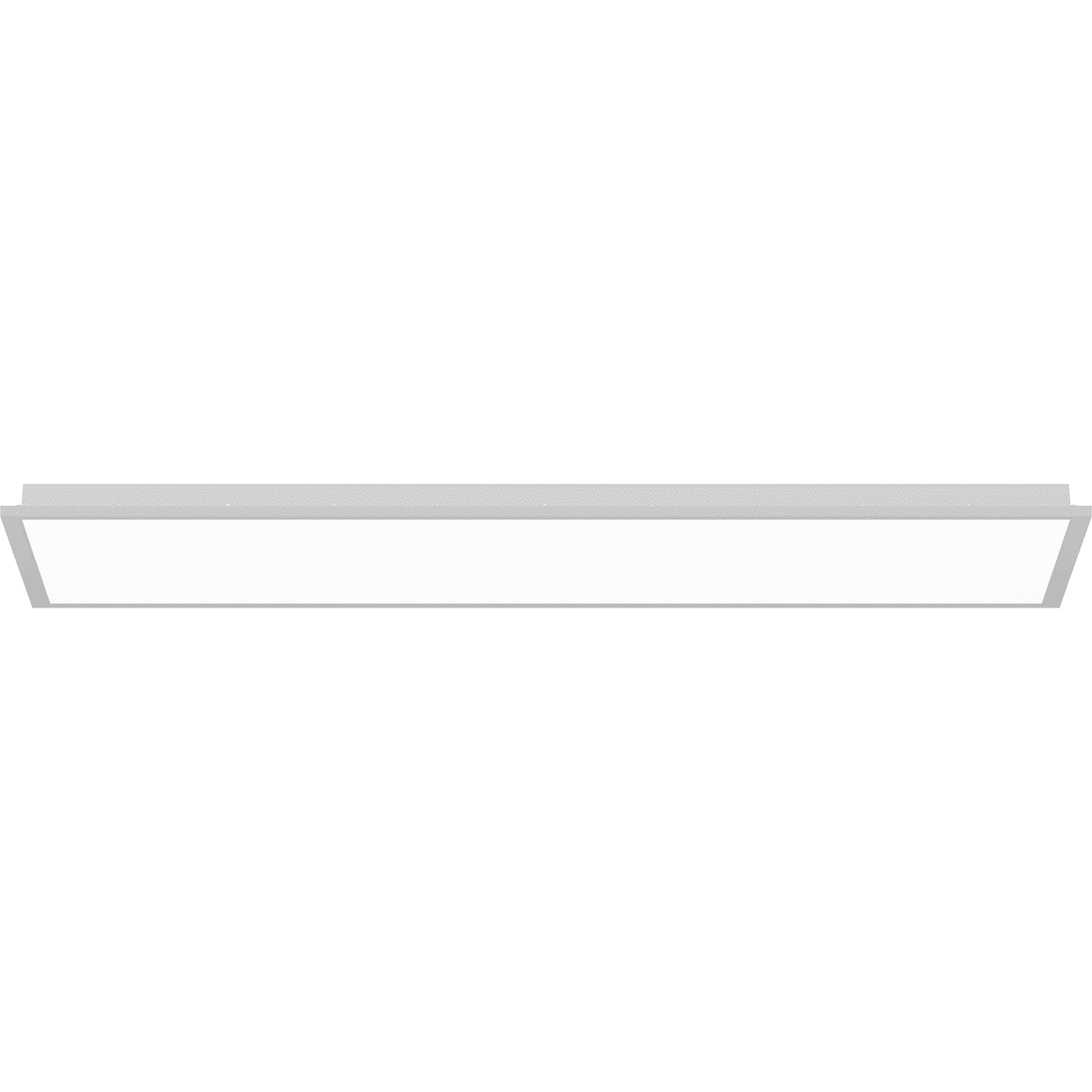

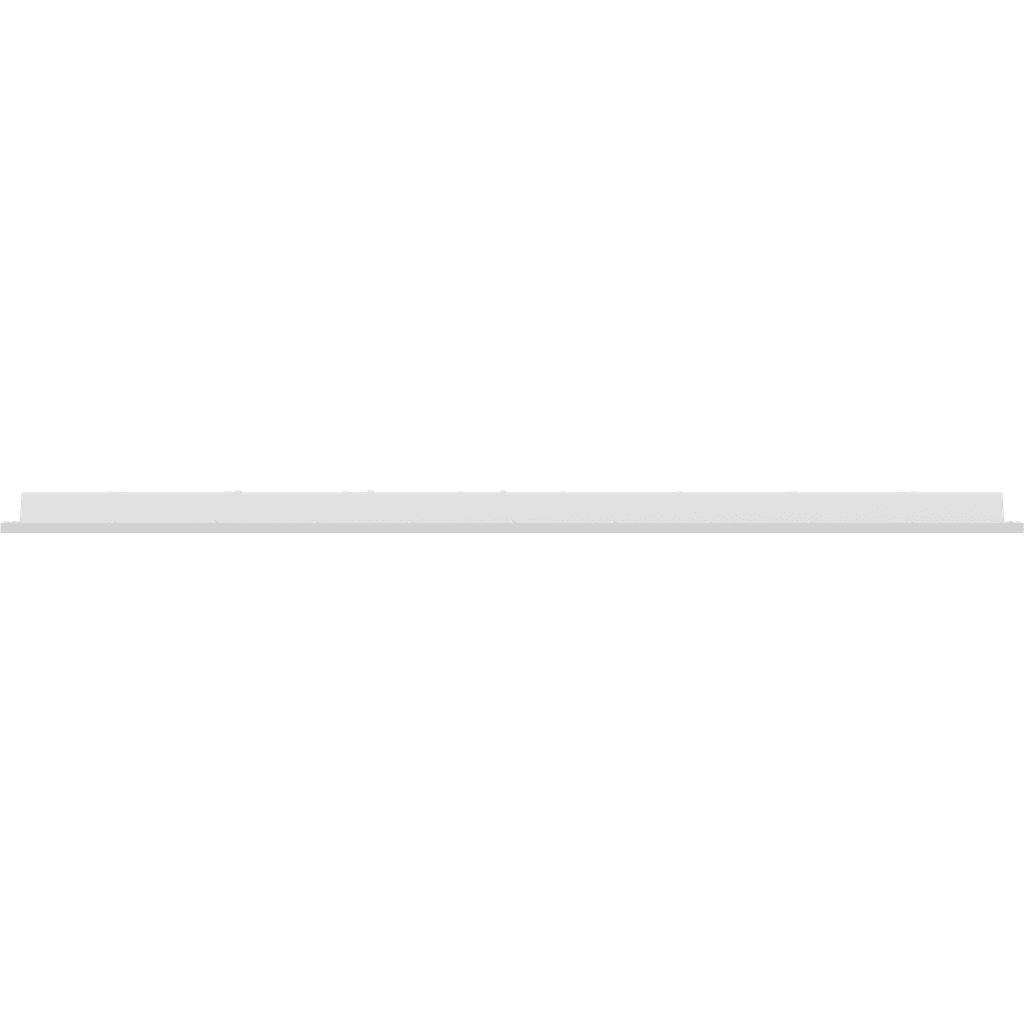

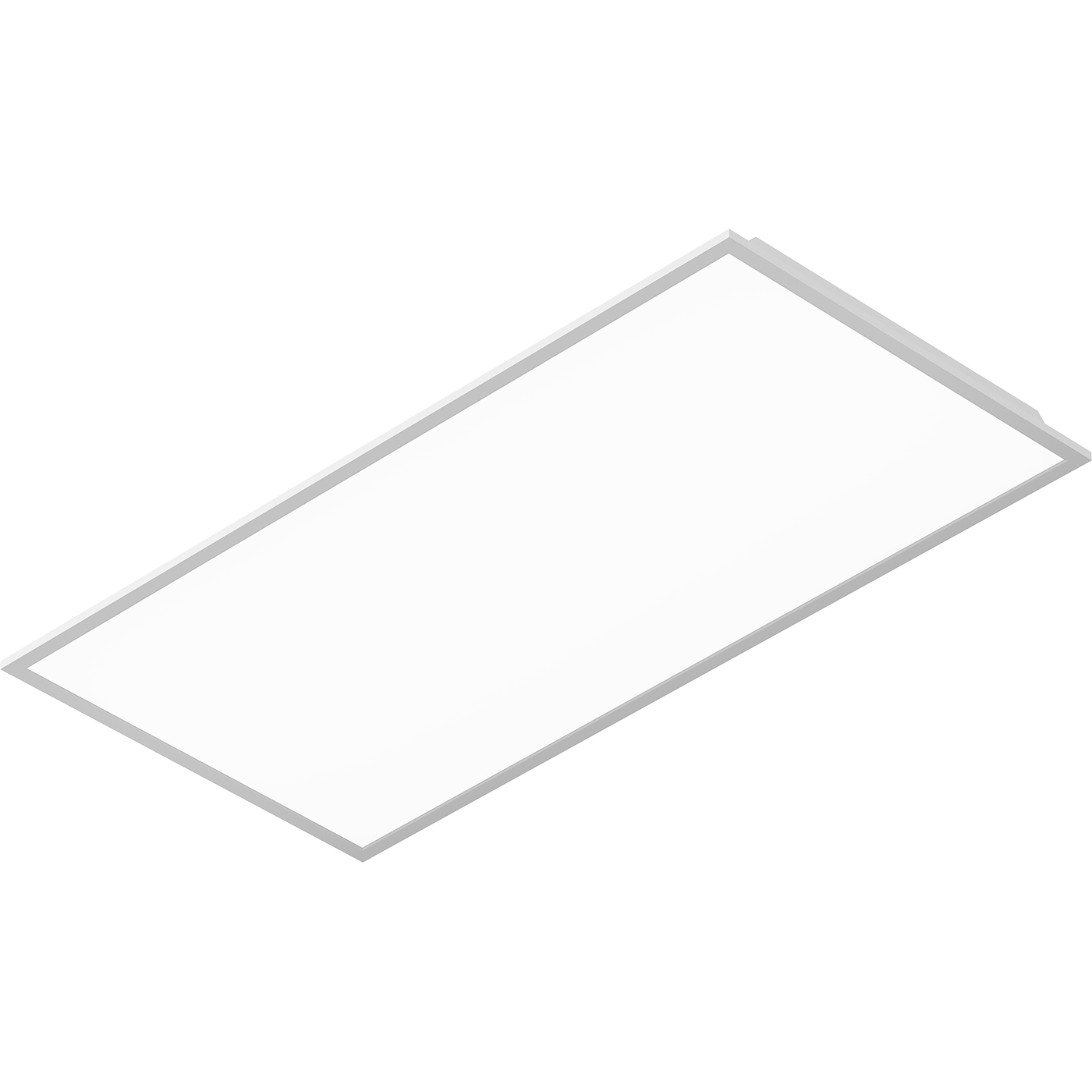

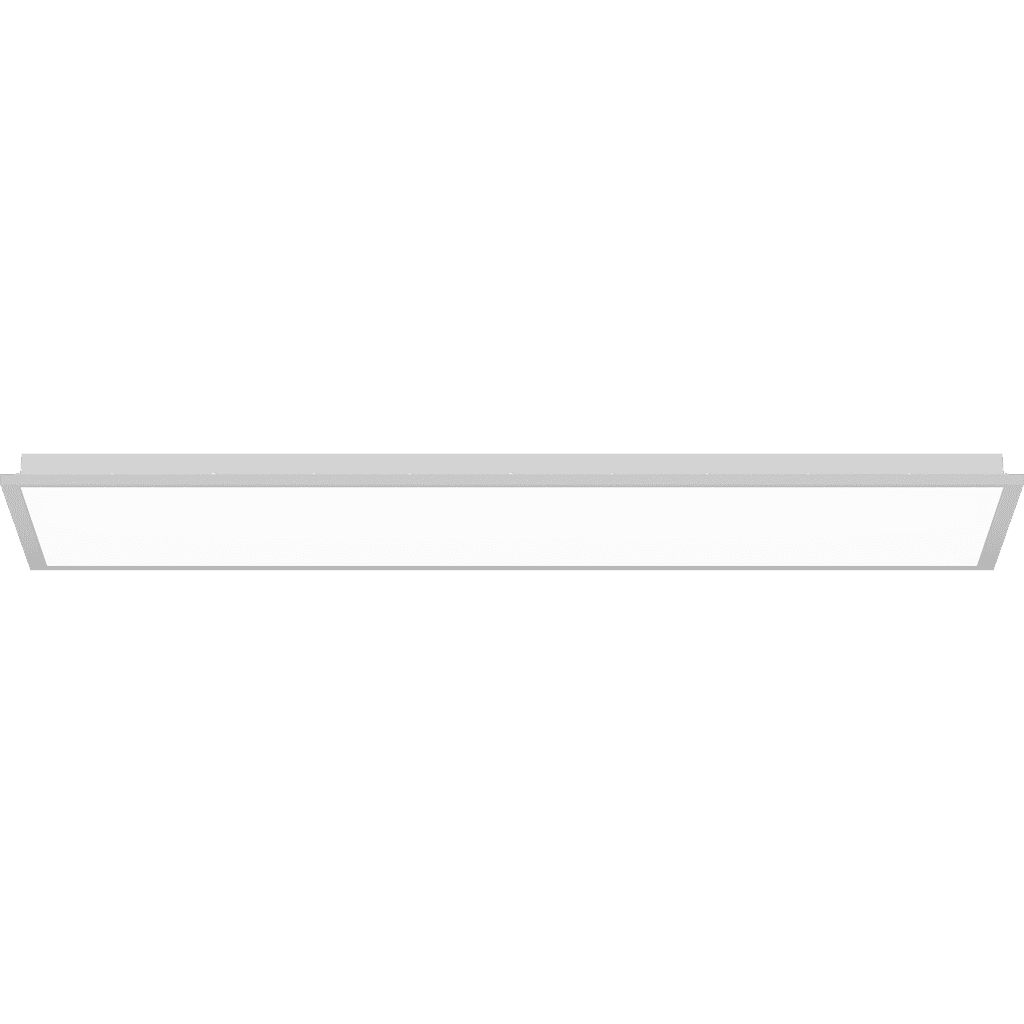

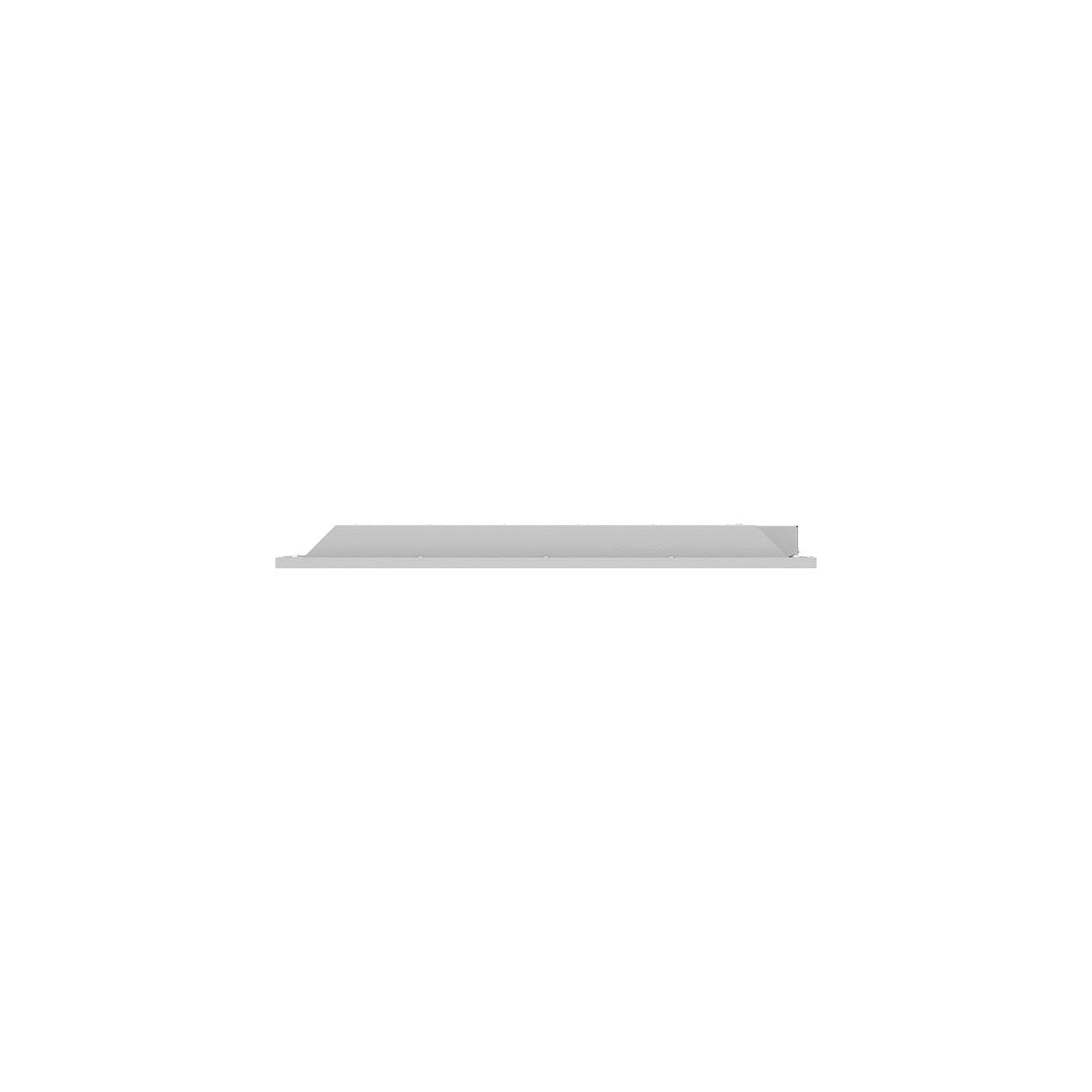

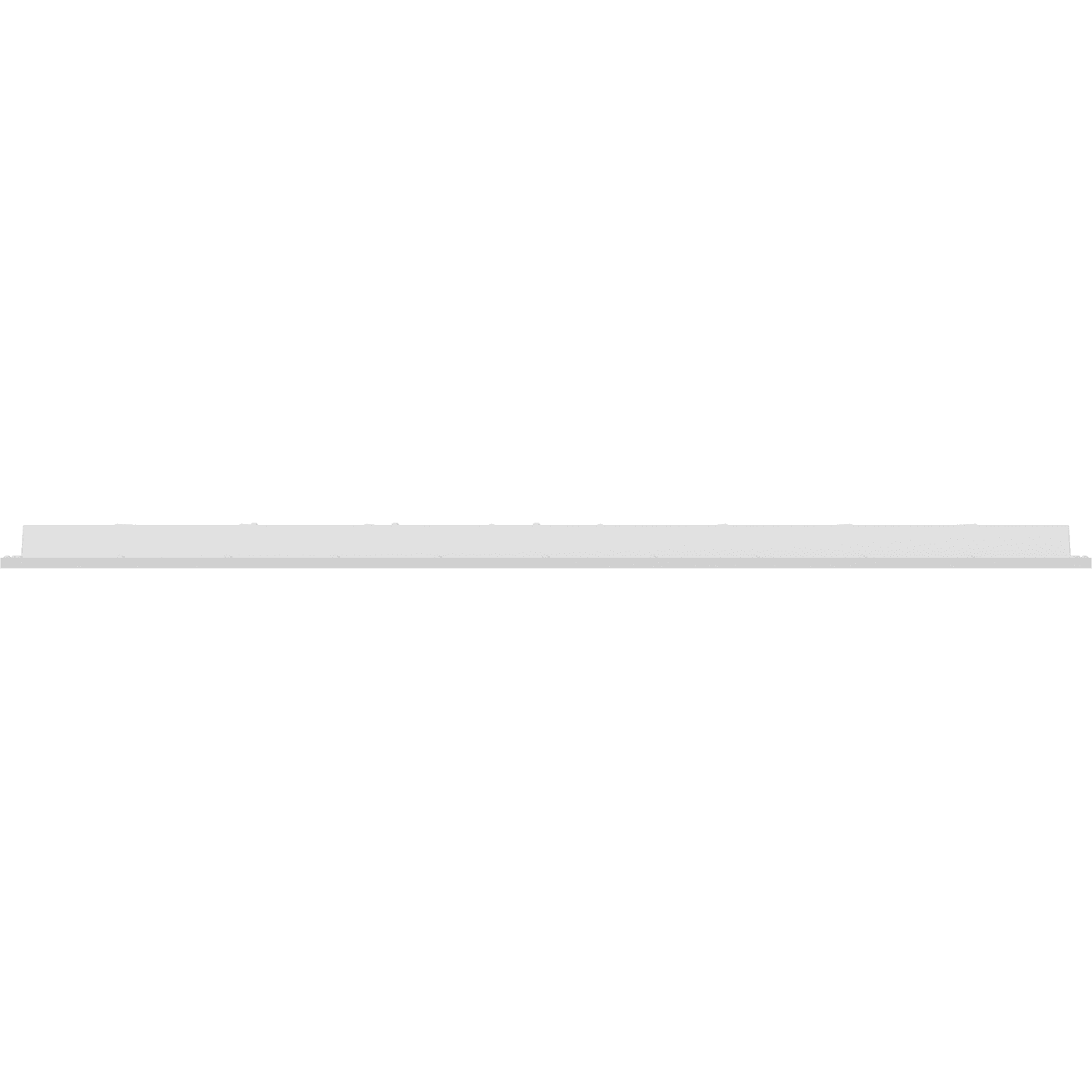

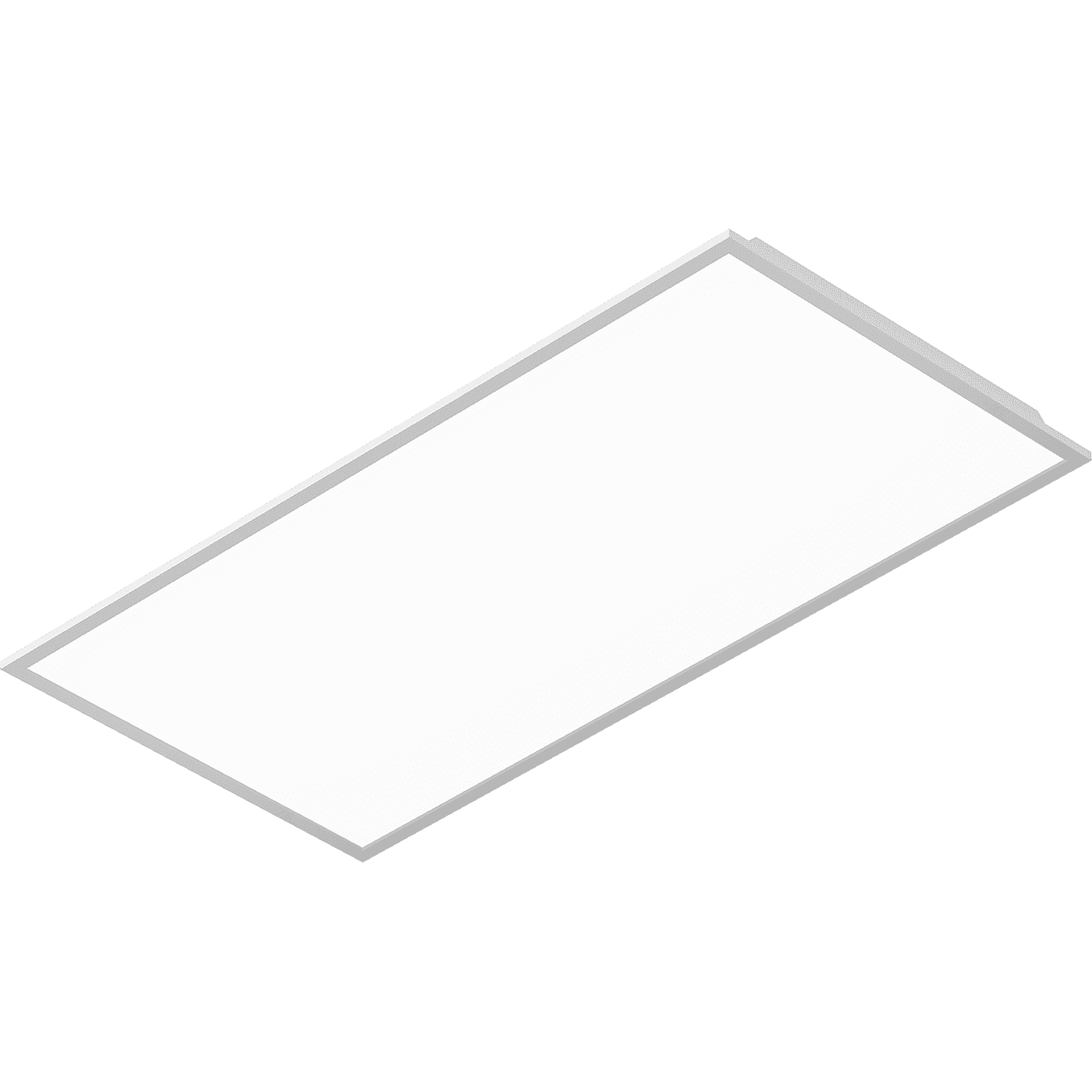

UNI/R STANDARD (1195x595) 50W OPL 830 WH DALI

UNI/R STANDARD (1195x595) 50W OPL 830 WH DALI
add to favorites
50 Wluminaire power
5000 lmlight flow
100 lm/Wenergy efficiency
code1884004960
color temperature3000
beam angleD120
number of lamps1
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. recessed ceiling
  6. UNI/R STANDARD
  7. UNI/R STANDARD (1195x595) 50W OPL 830 WH DALI
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
32 A
starting current pulse time, µs
267 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
50 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
electrical
starting current
32 A
starting current pulse time, µs
267 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
50 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP40
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Сталь
weight
5.4 kg
length, mm
1195 mm
width, mm
595 mm
height, mm
49 mm
housing color
Белый
installation length, mm
1196 mm
installation width, mm
596 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1884004960
illuminating
color rendition index (CRI)
>80
light flow
5000 lm
flickering factor
<5%
energy efficiency
100 lm/W
beam angle
D120
color temperature
3000
light source type
LED
emission color
Белый
LMS options
dimming
DALI
model files
model files

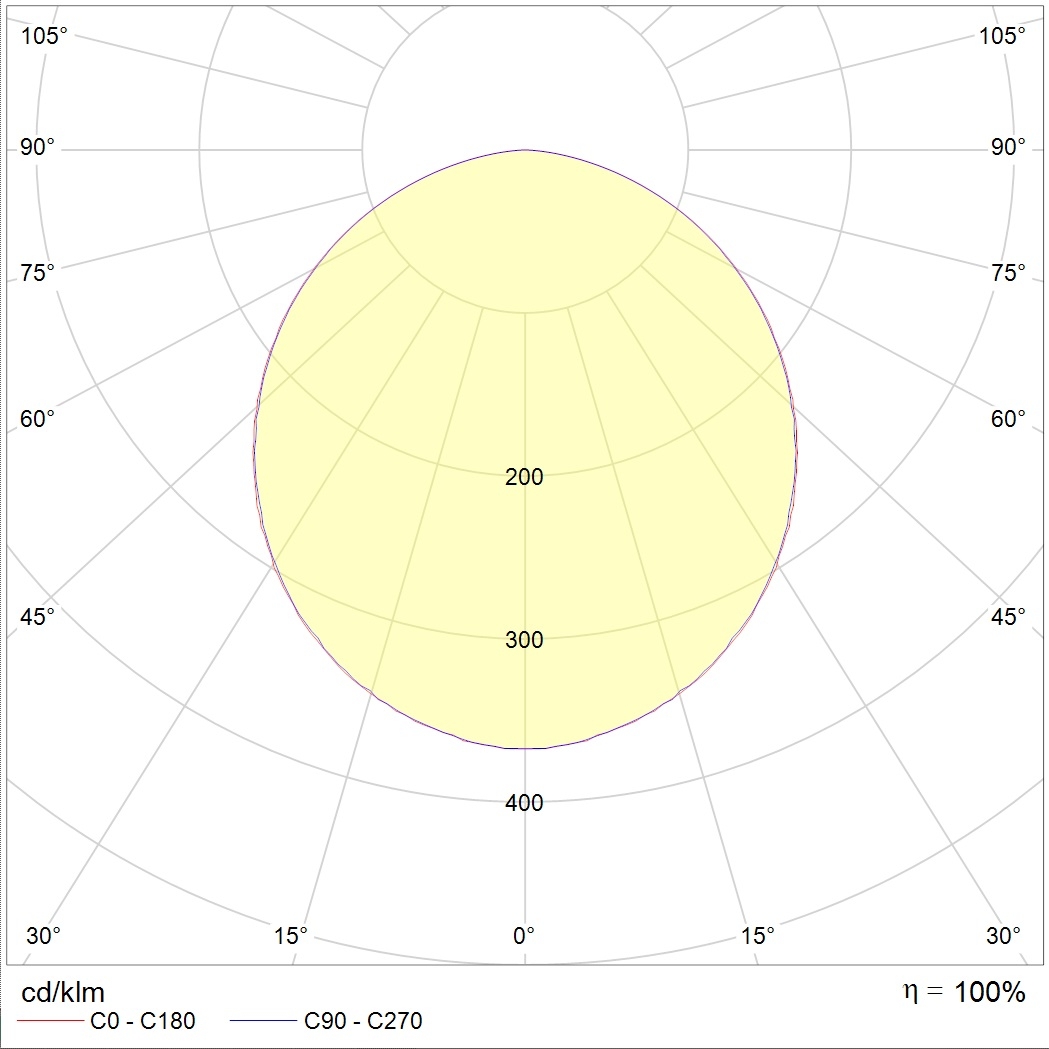

photometric files
