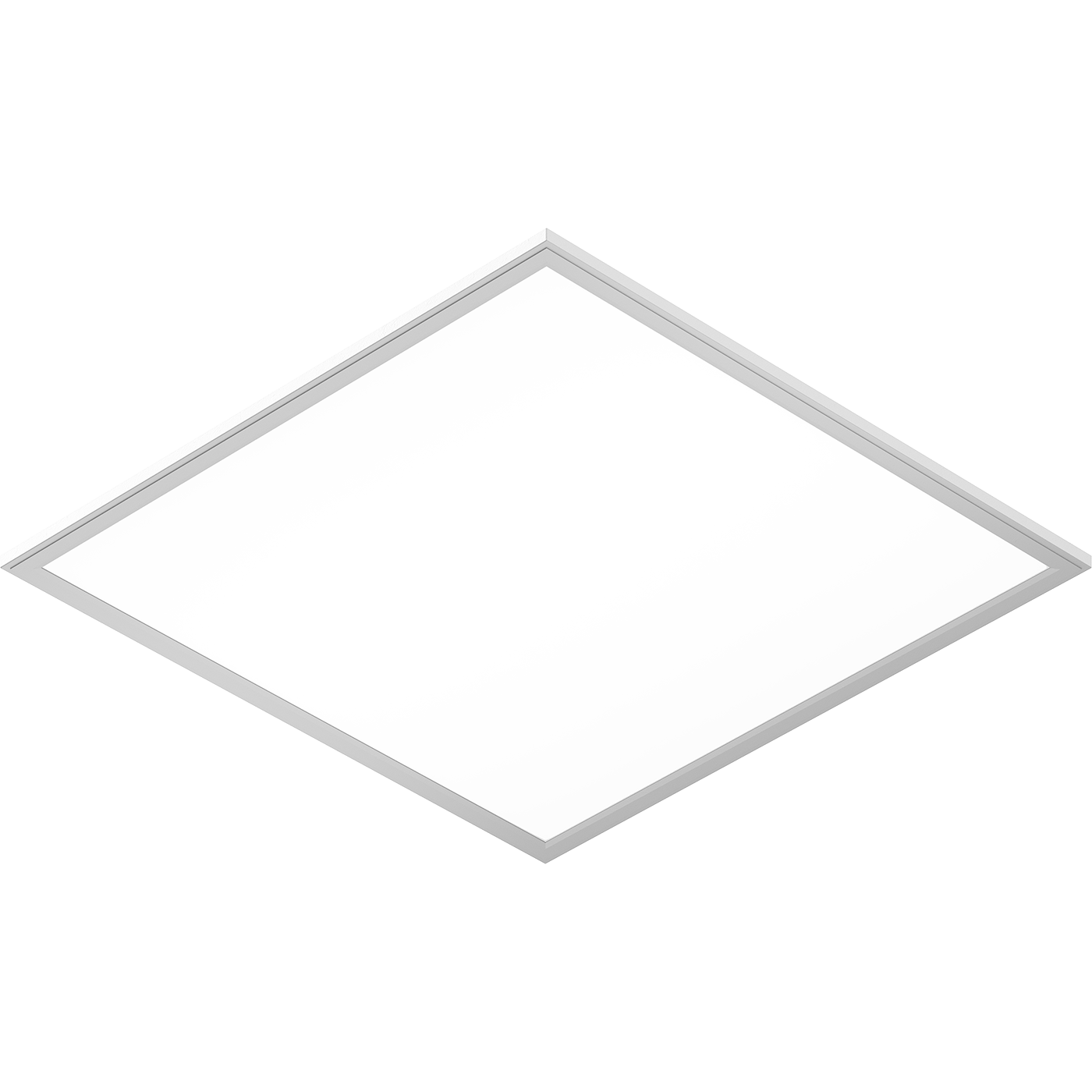

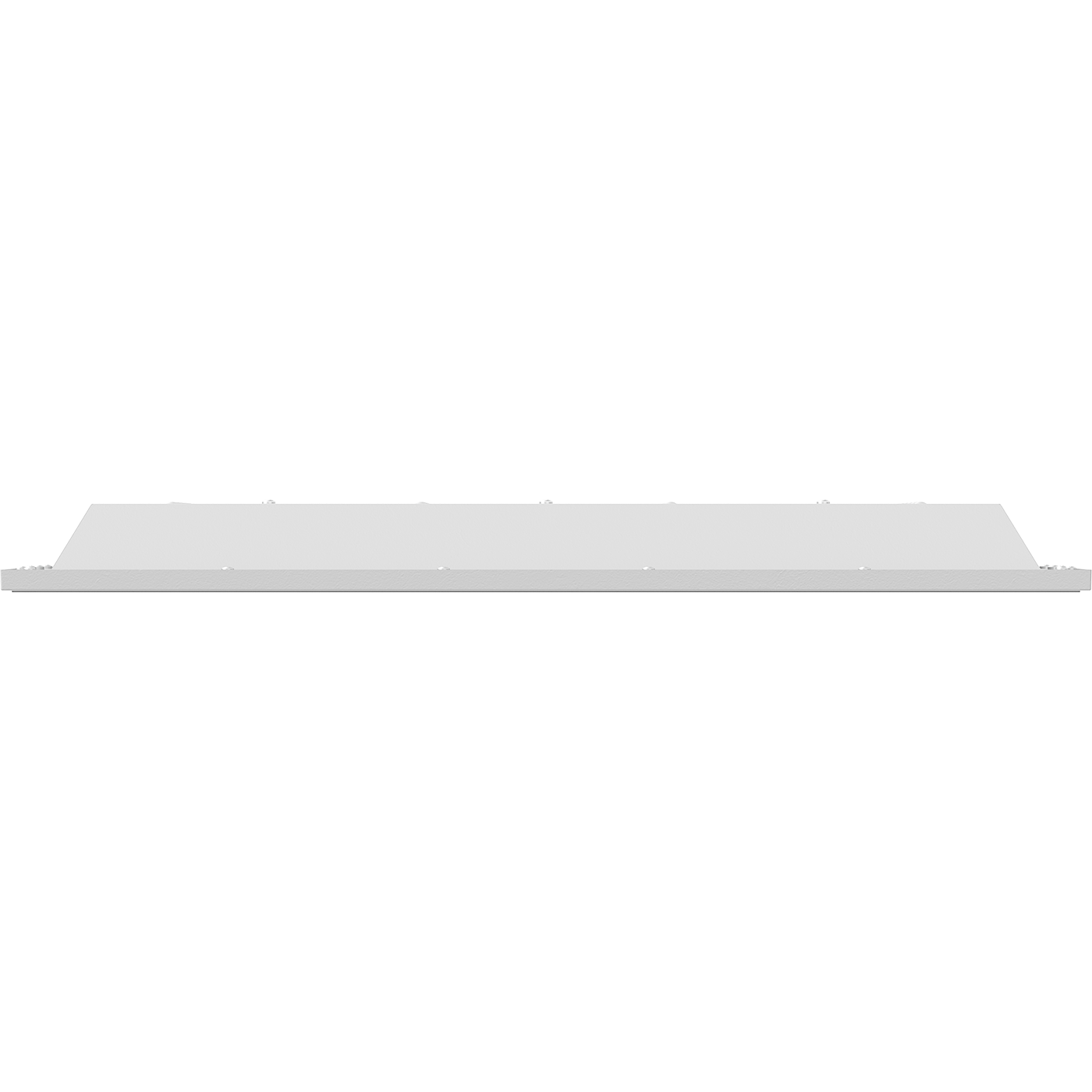

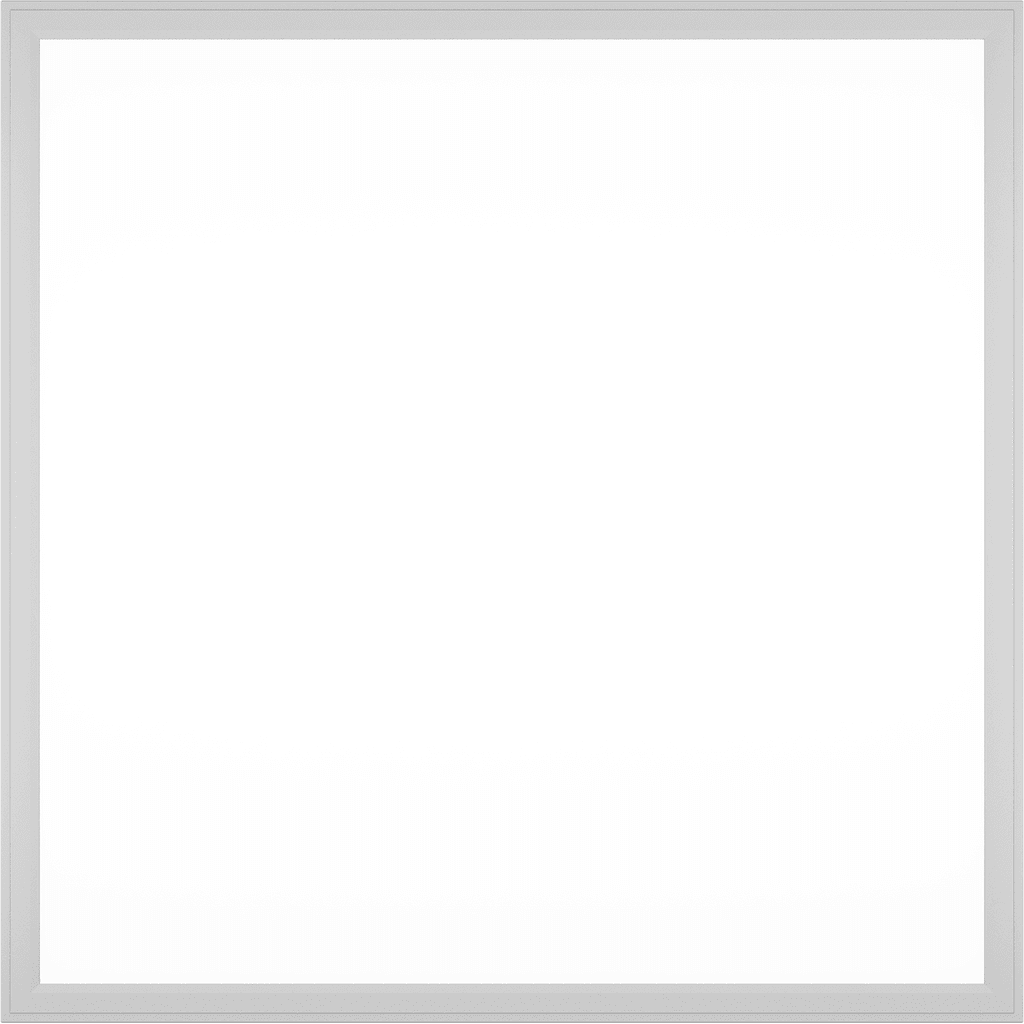

UNI/R OPTIMA (595x595) 20W OPL 930 WH EMT
UNI/R OPTIMA (595x595) 20W OPL 930 WH EMT
20 Wluminaire power
1900 lmlight flow
95 lm/Wenergy efficiency
code1884008770
color temperature3000 K
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
energy efficiency
95 lm/Wcolor rendition index (CRI)
>90light flow
1900 lmflickering factor
<1%beam angle
D120color temperature
3000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
95 lm/W
color rendition index (CRI)
>90
light flow
1900 lm
flickering factor
<1%
beam angle
D120
color temperature
3000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
electric shock protection
I
luminaire power
20 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
length
595 mm
width
595 mm
height
49 mm
installation length
575 mm
installation width
575 mm
weight
3.4 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Сталь
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
emergency
operating time in emergency mode
1 h
luminous flux in emergency mode
25% lm
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1884008770
model files
model files

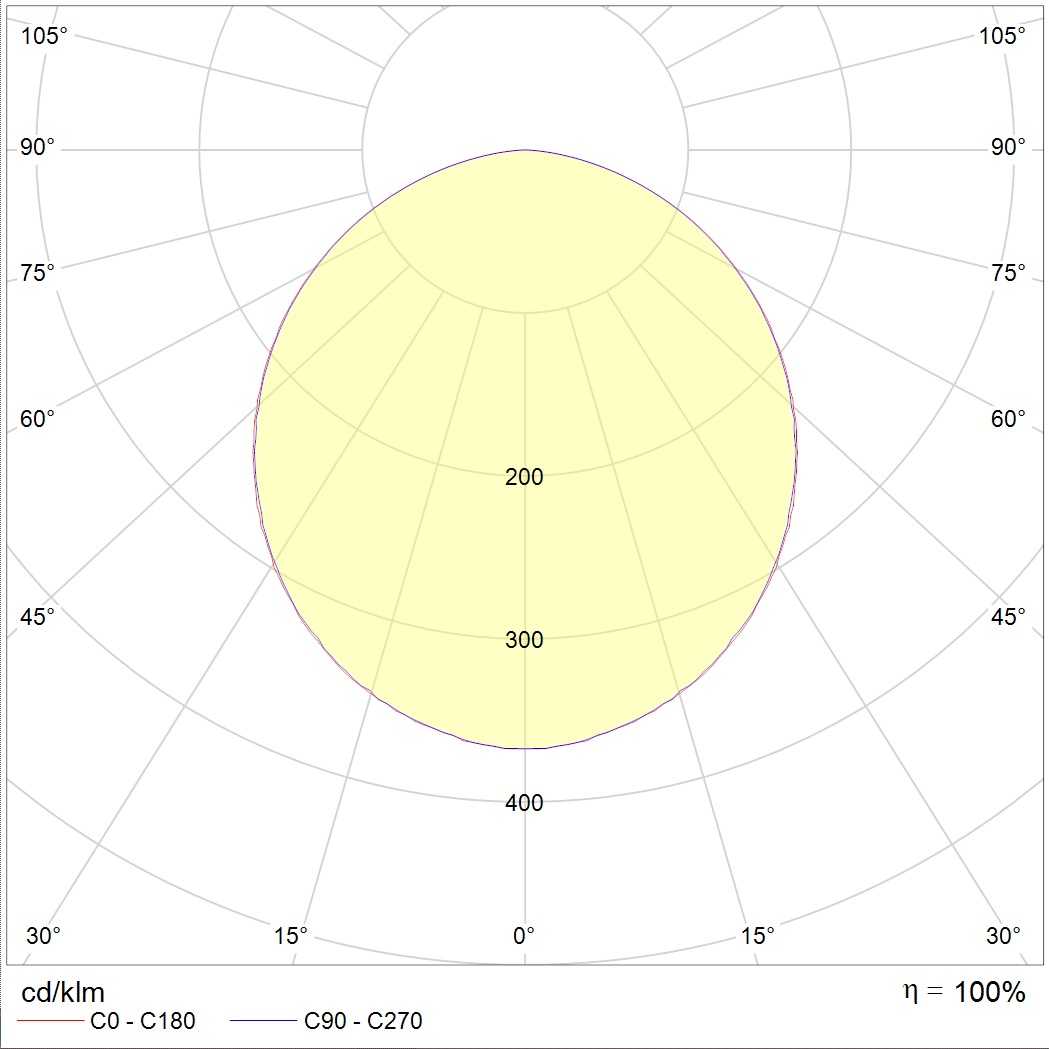

photometric files
documents
сертификаты
photometric files
ies134.1 kB
jpg121.1 kB
ldt83.4 kB
documents
passport1.2 mB
сертификаты
Russian origin279.1 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB

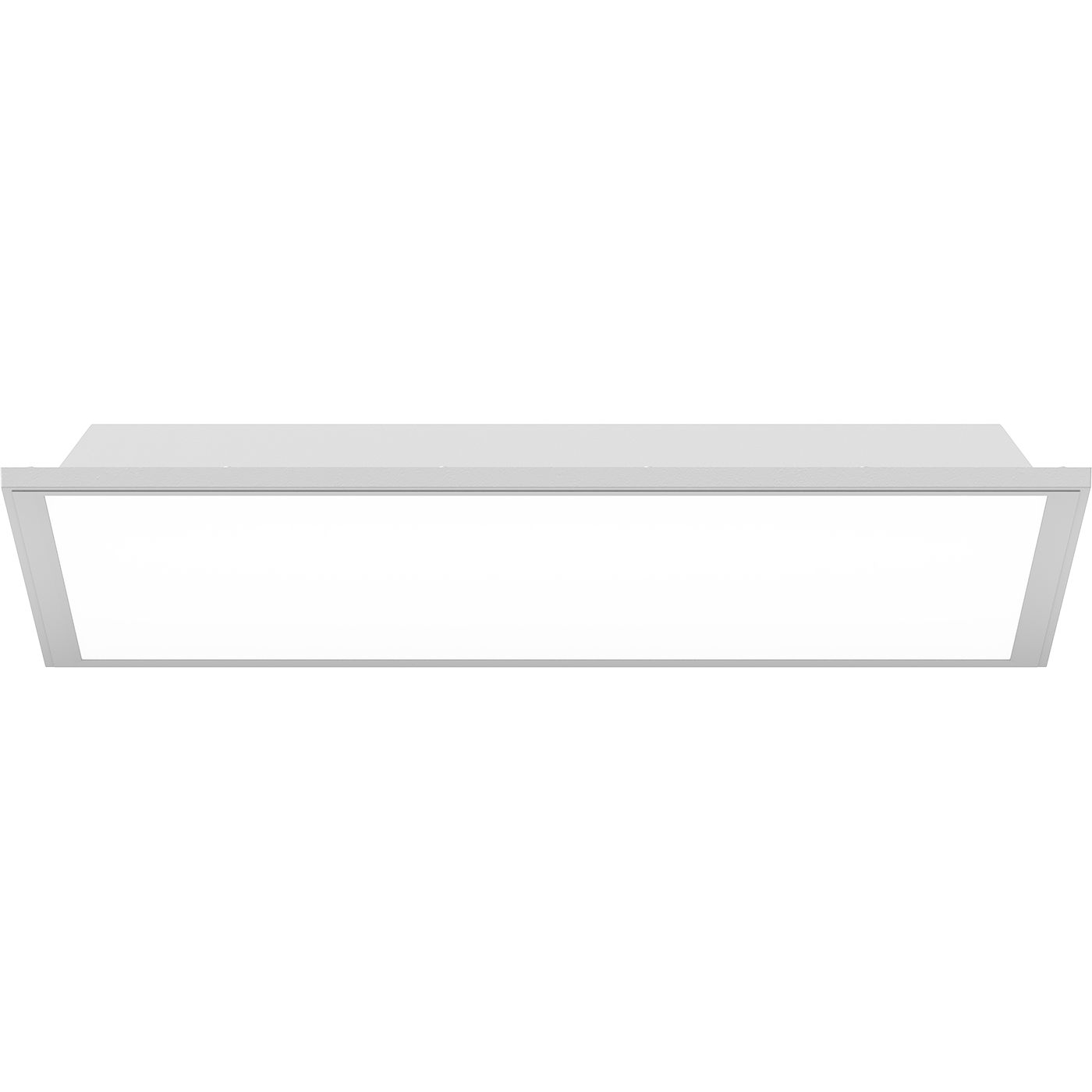

similar series
