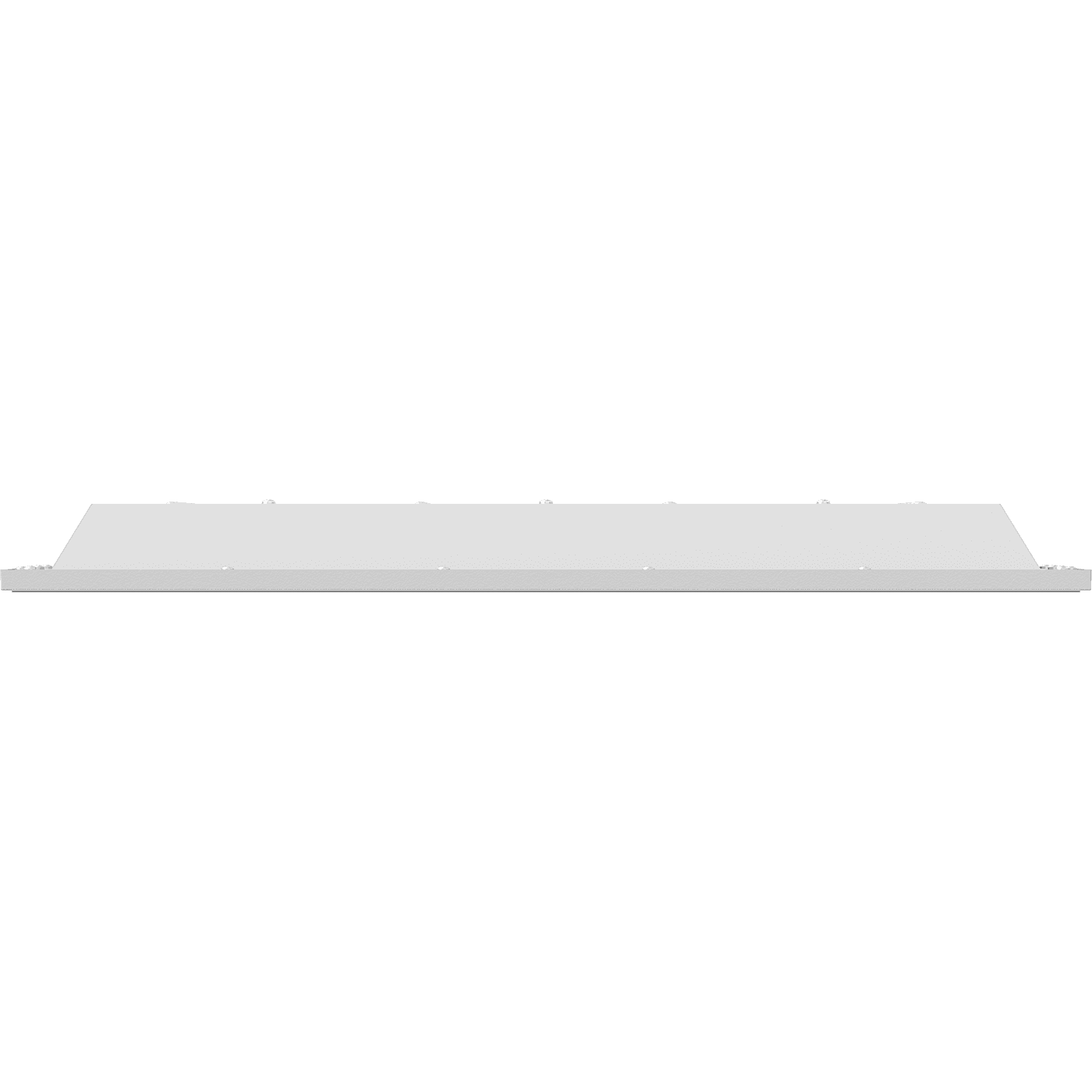

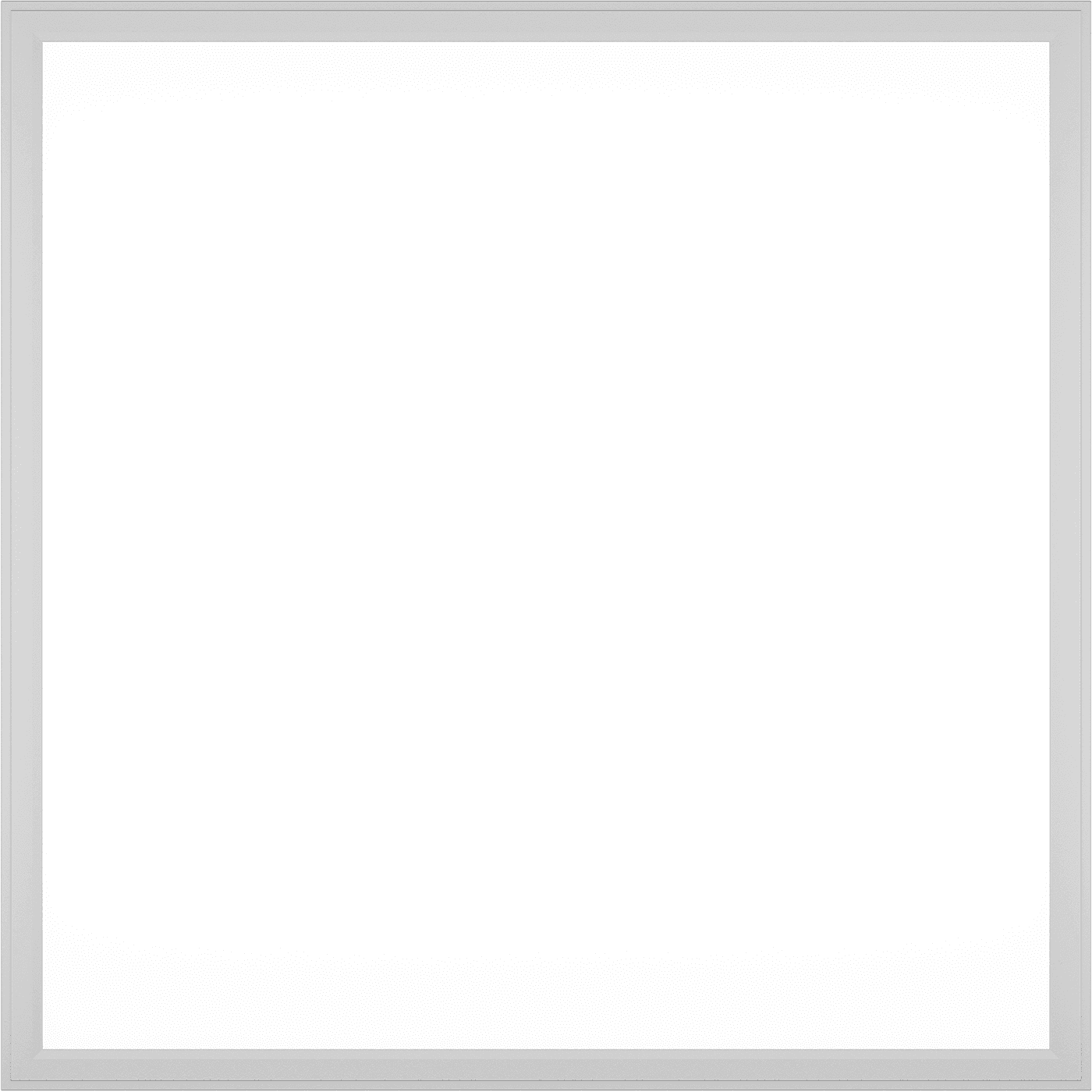

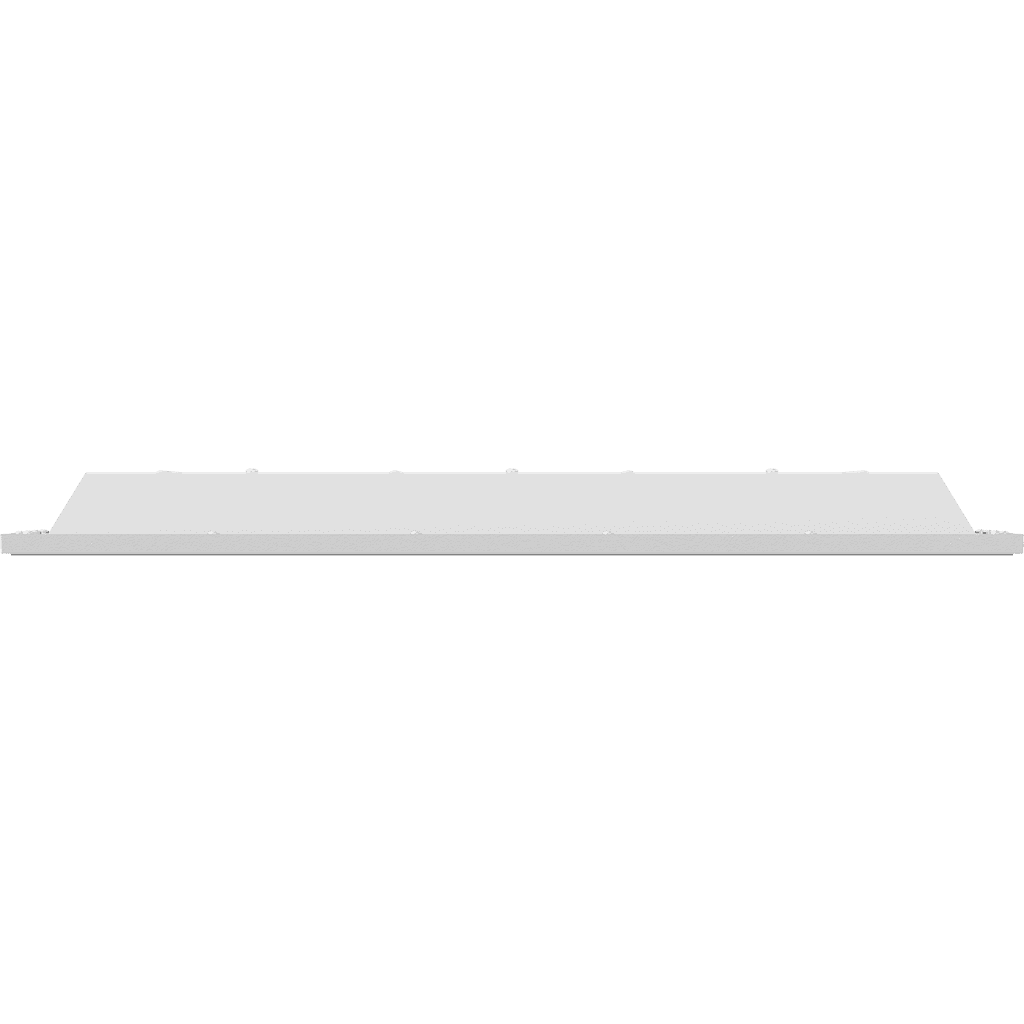

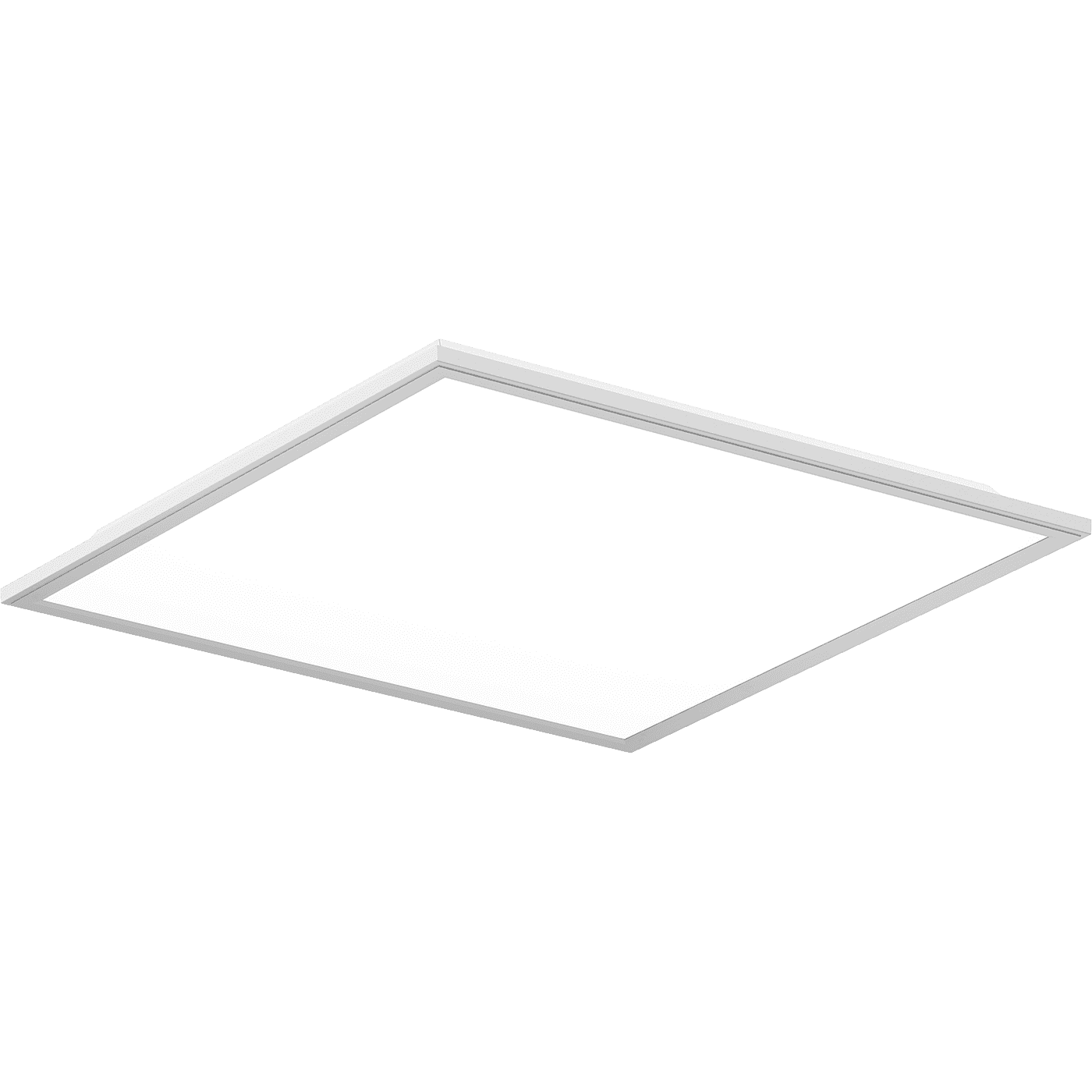

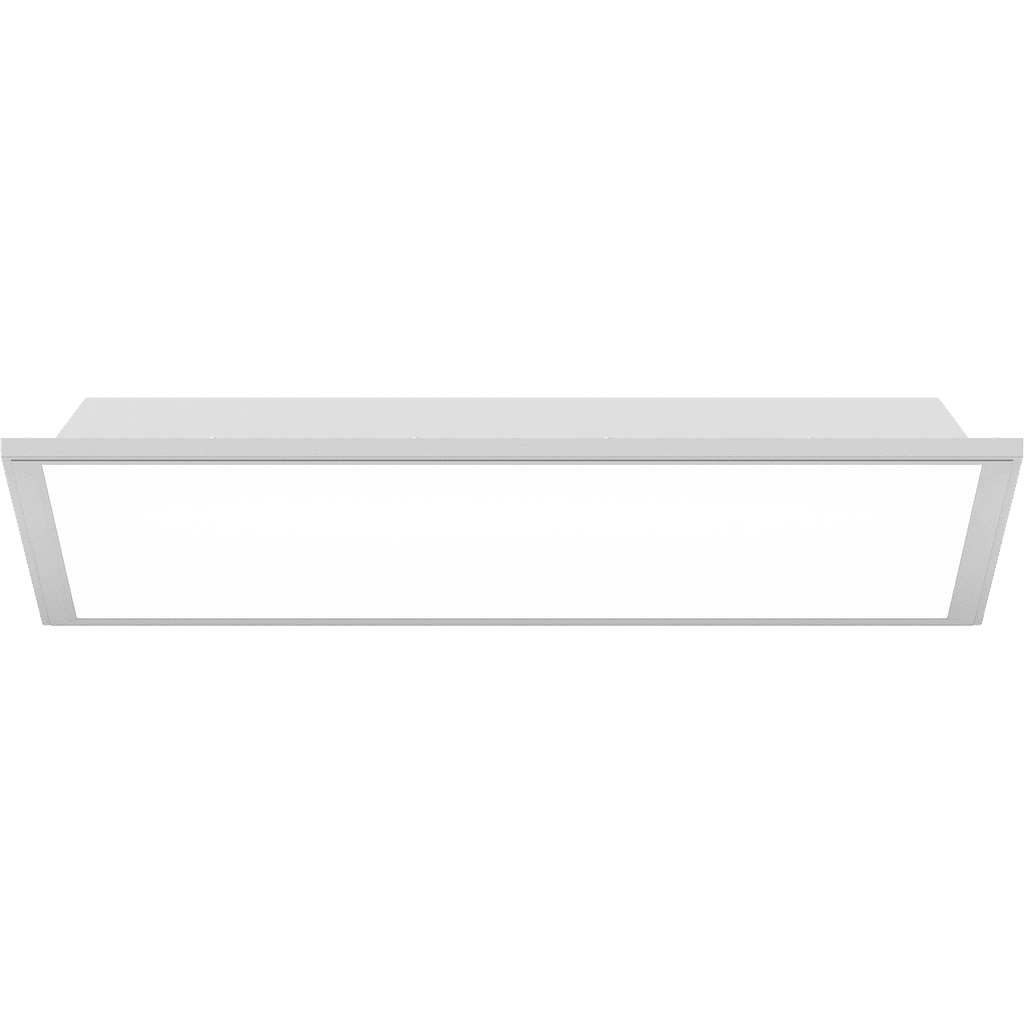

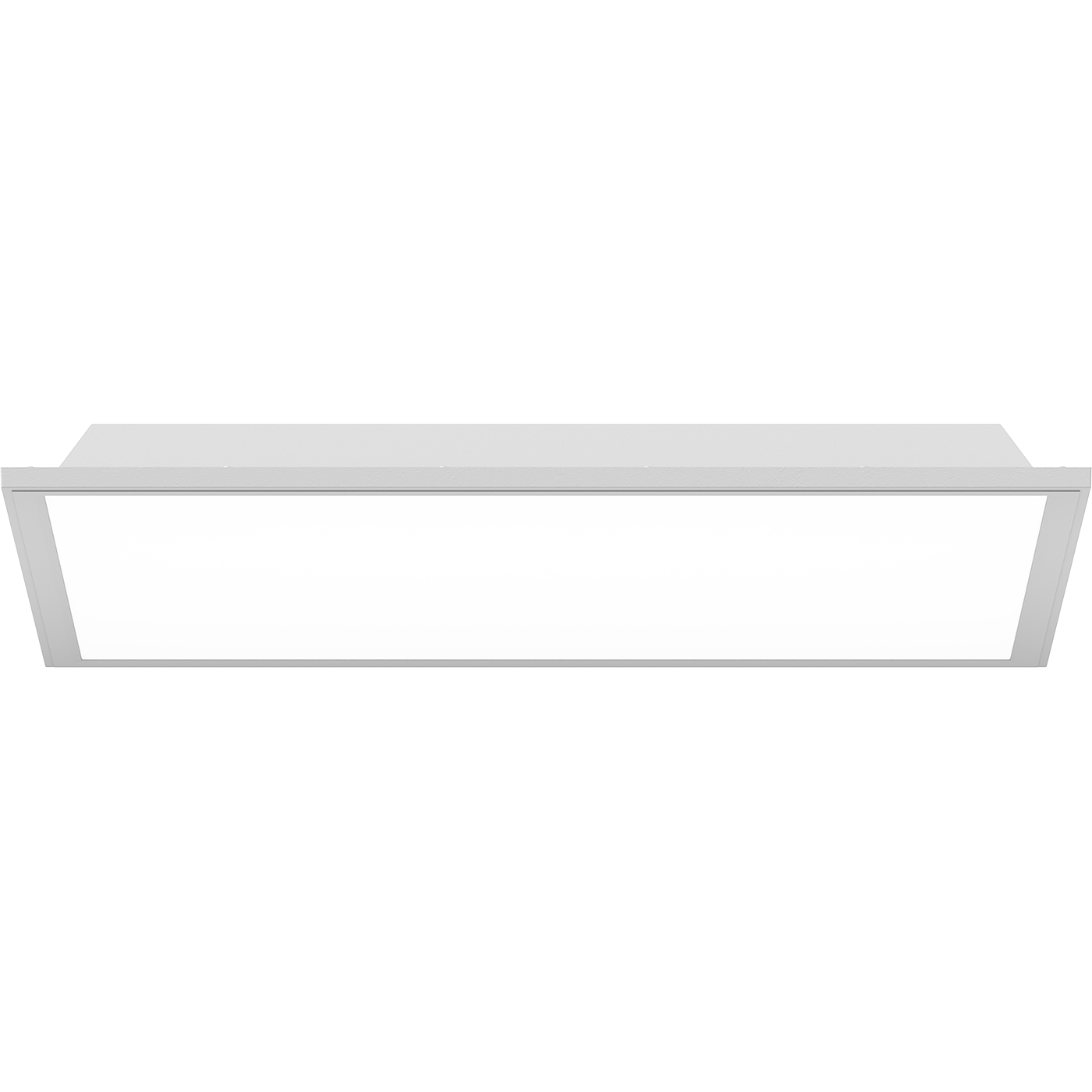

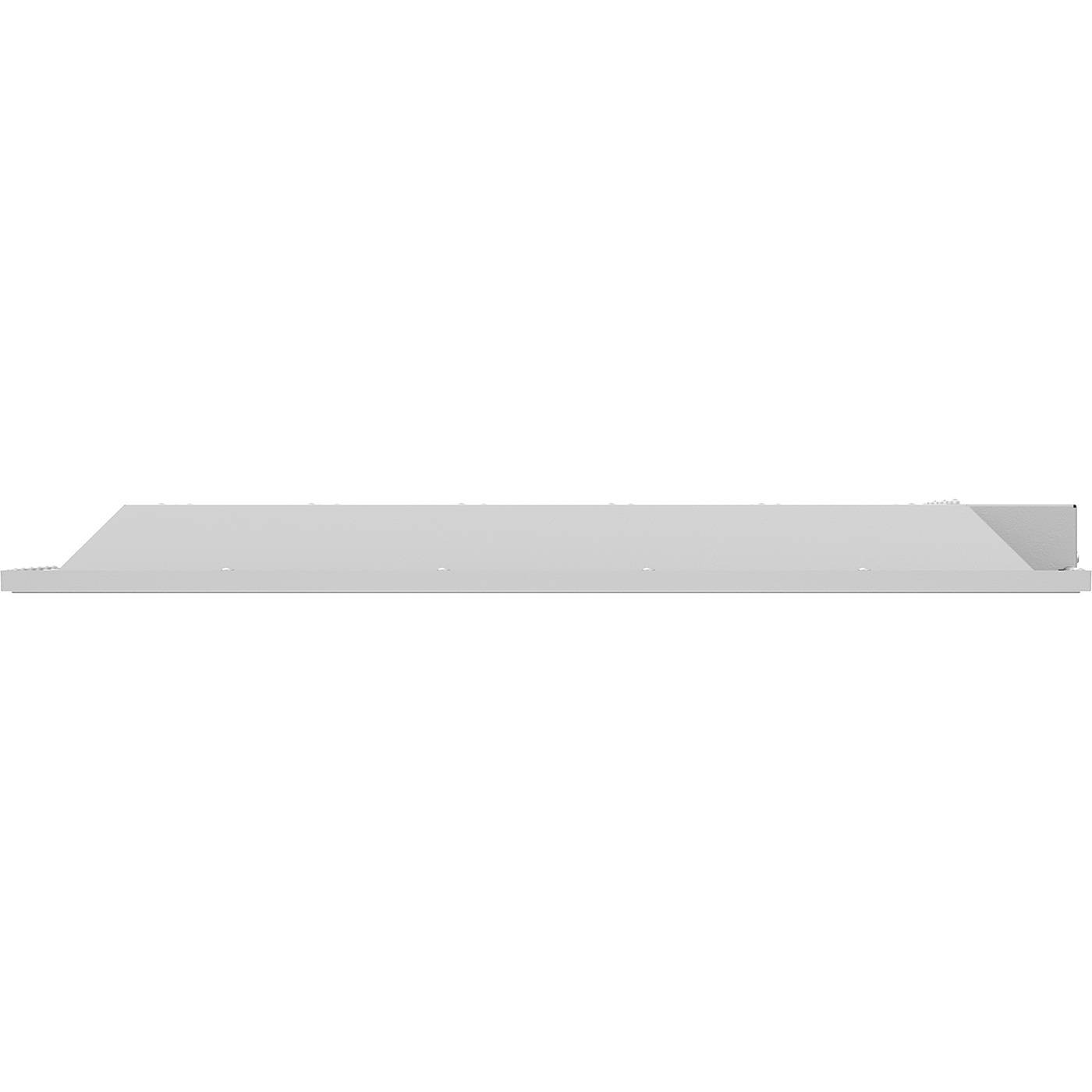

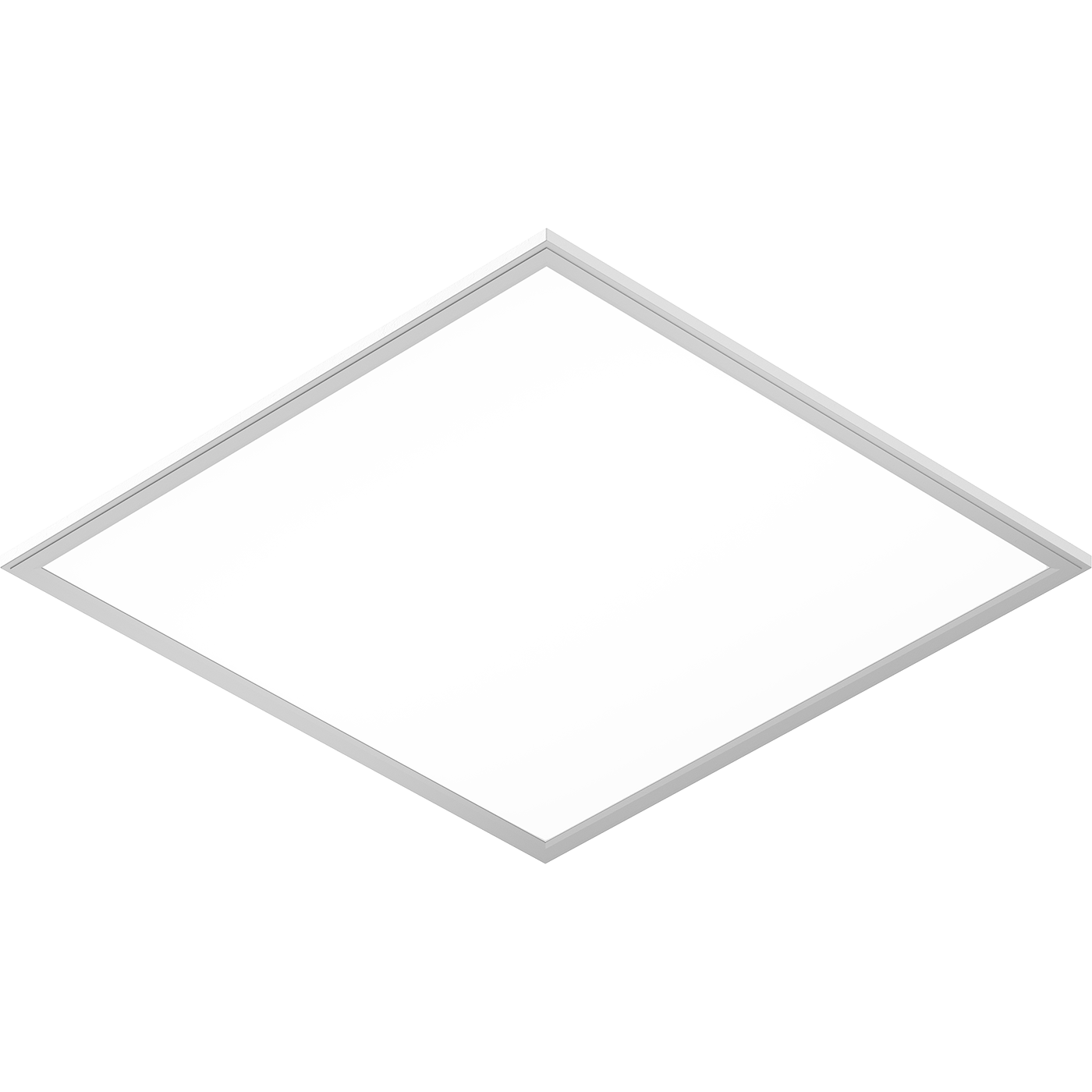

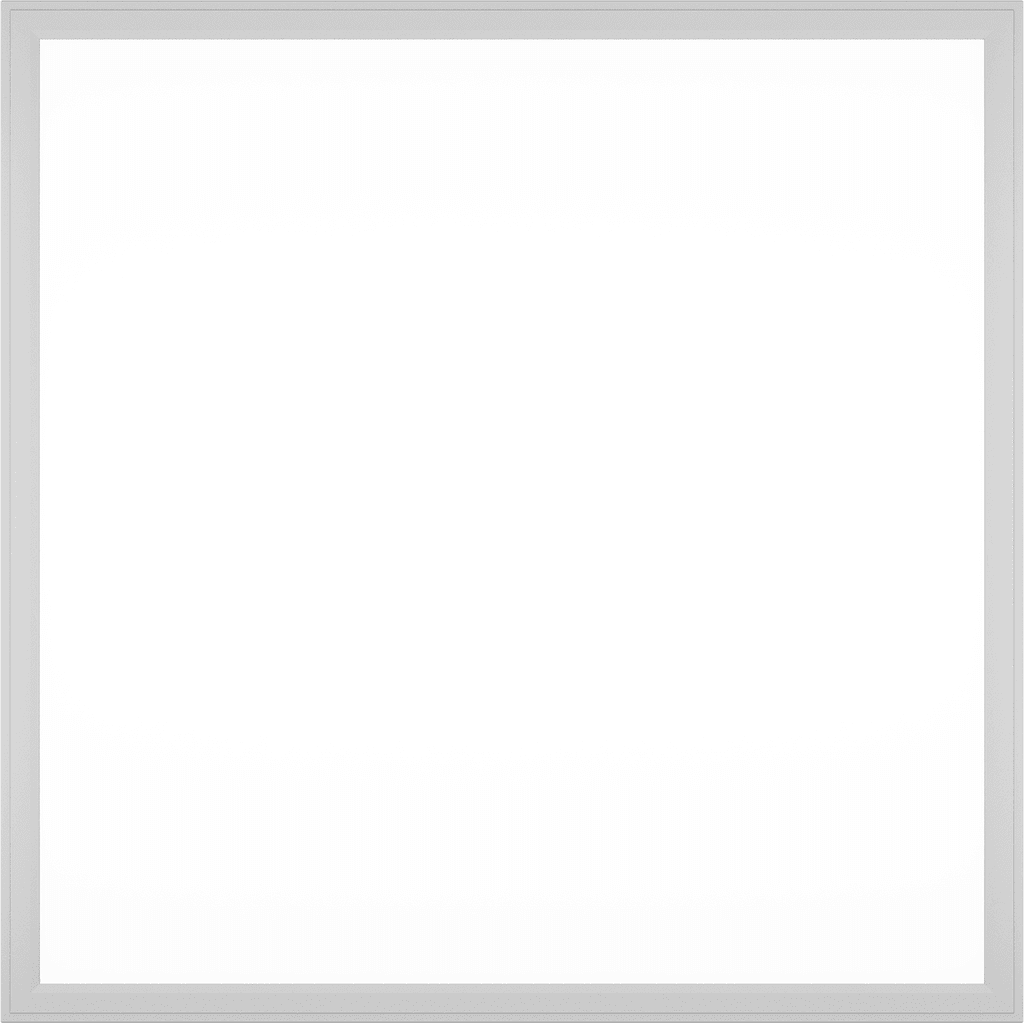

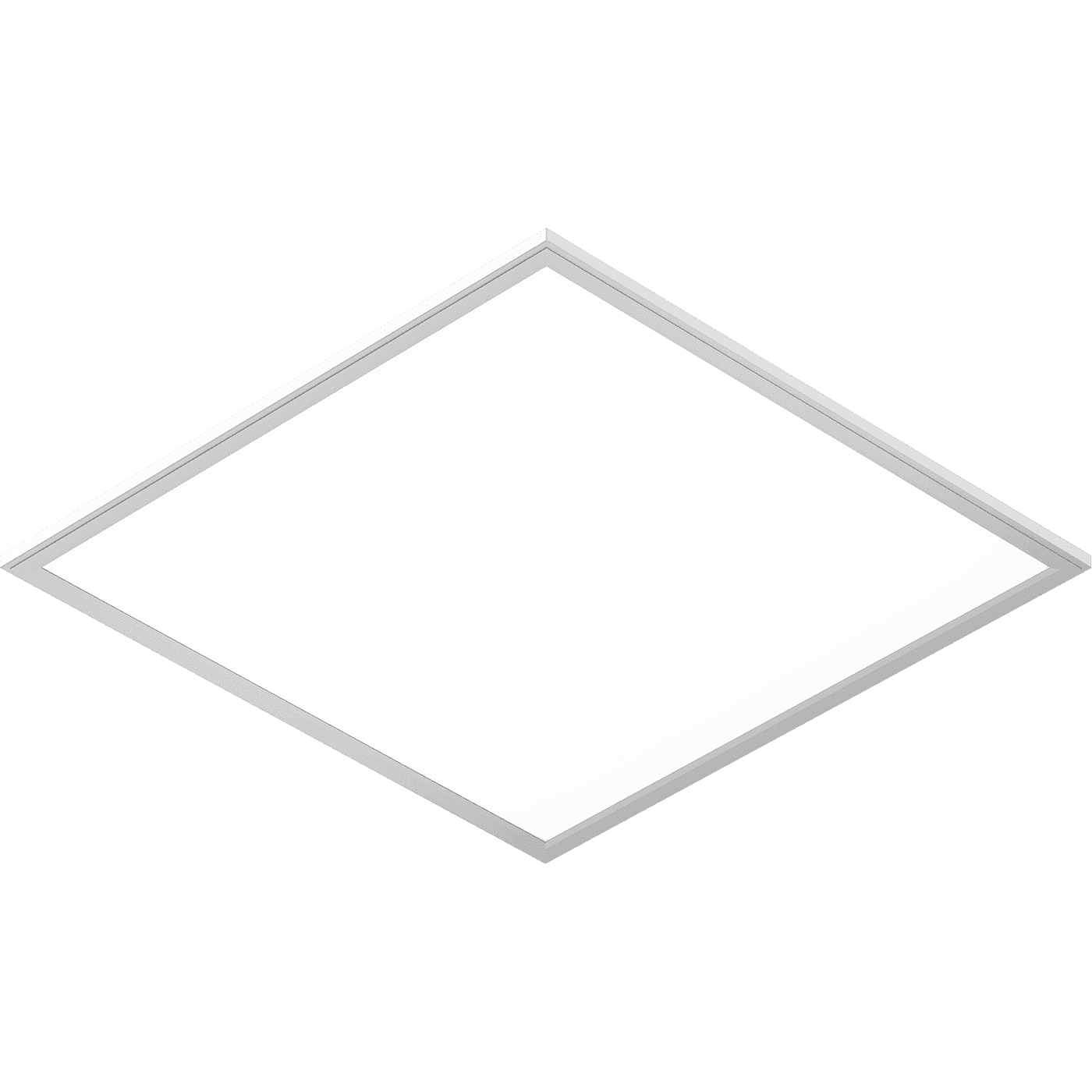

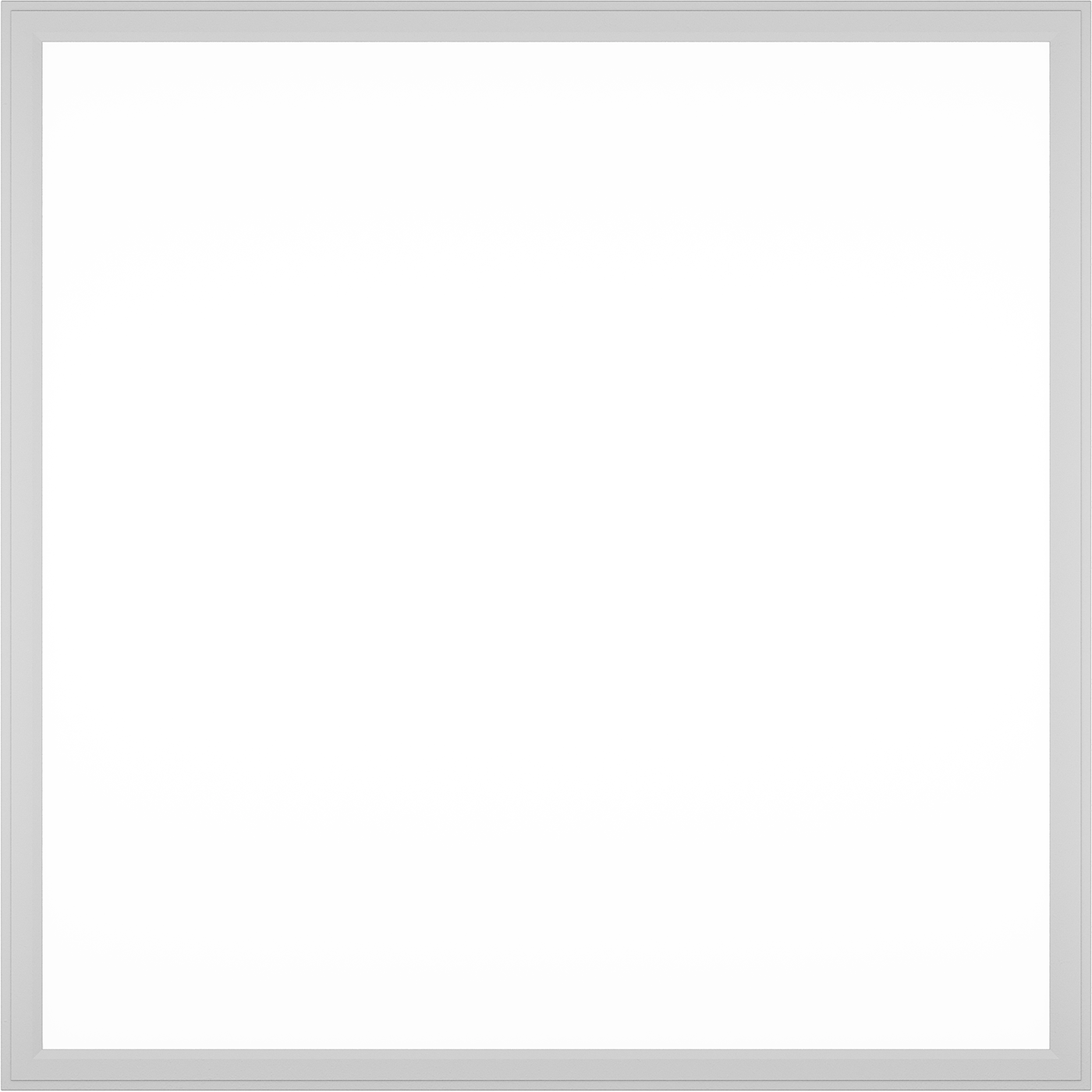

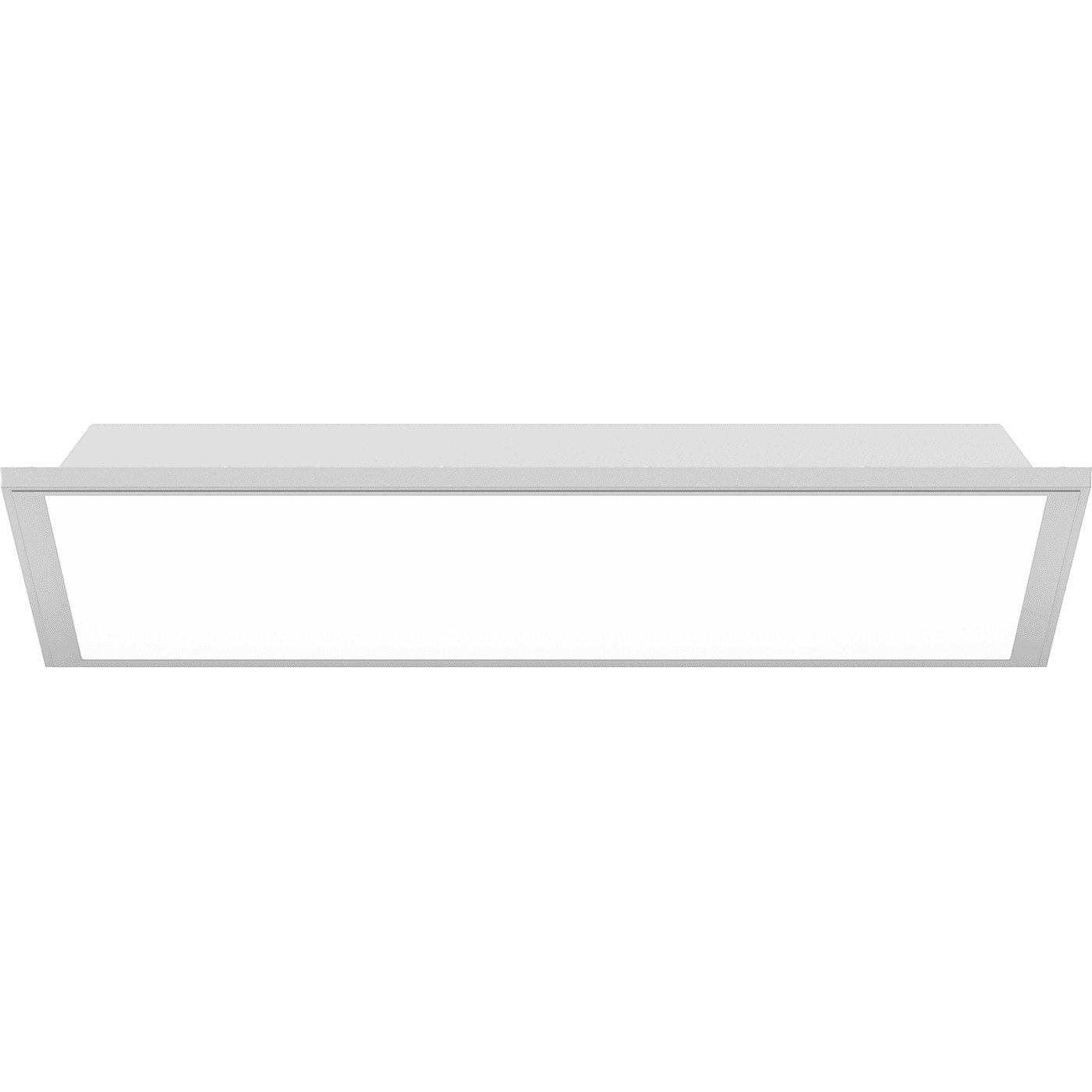

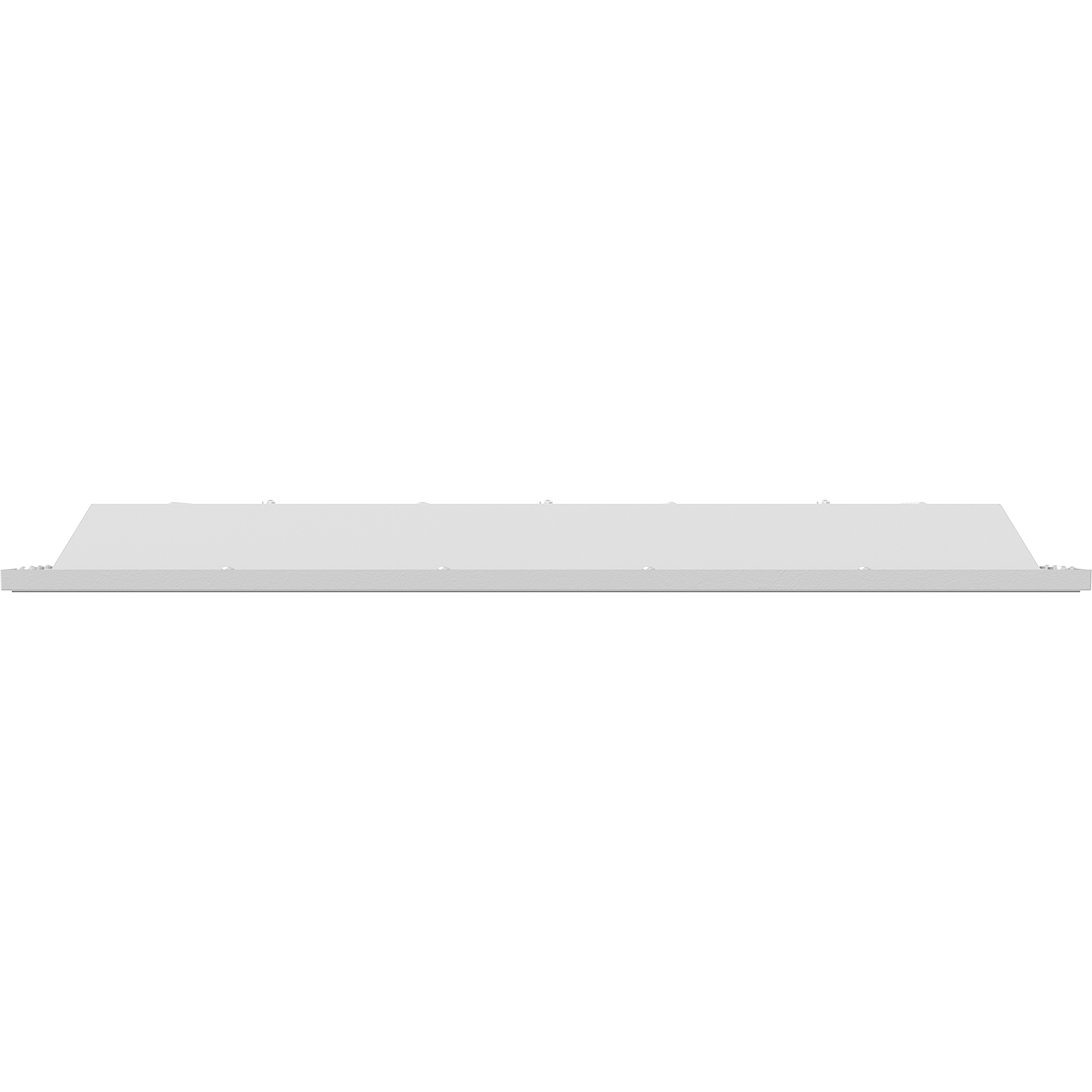

UNI/R EVO (595x595) 40W PRS 950 WH DALI

UNI/R EVO (595x595) 40W PRS 950 WH DALI
add to favorites
40 Wluminaire power
5200 lmlight flow
130 lm/Wenergy efficiency
code1884015560
color temperature5000
beam angleD120
number of lamps1
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. recessed ceiling
  6. UNI/R EVO
  7. UNI/R EVO (595x595) 40W PRS 950 WH DALI
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
40 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
electrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
40 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Сталь
weight
2.8 kg
length, mm
595 mm
width, mm
595 mm
height, mm
49 mm
housing color
Белый
installation length, mm
575 mm
installation width, mm
575 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1884015560
illuminating
color rendition index (CRI)
>90
light flow
5200 lm
flickering factor
<5%
energy efficiency
130 lm/W
beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
LMS options
dimming
DALI
model files
model files

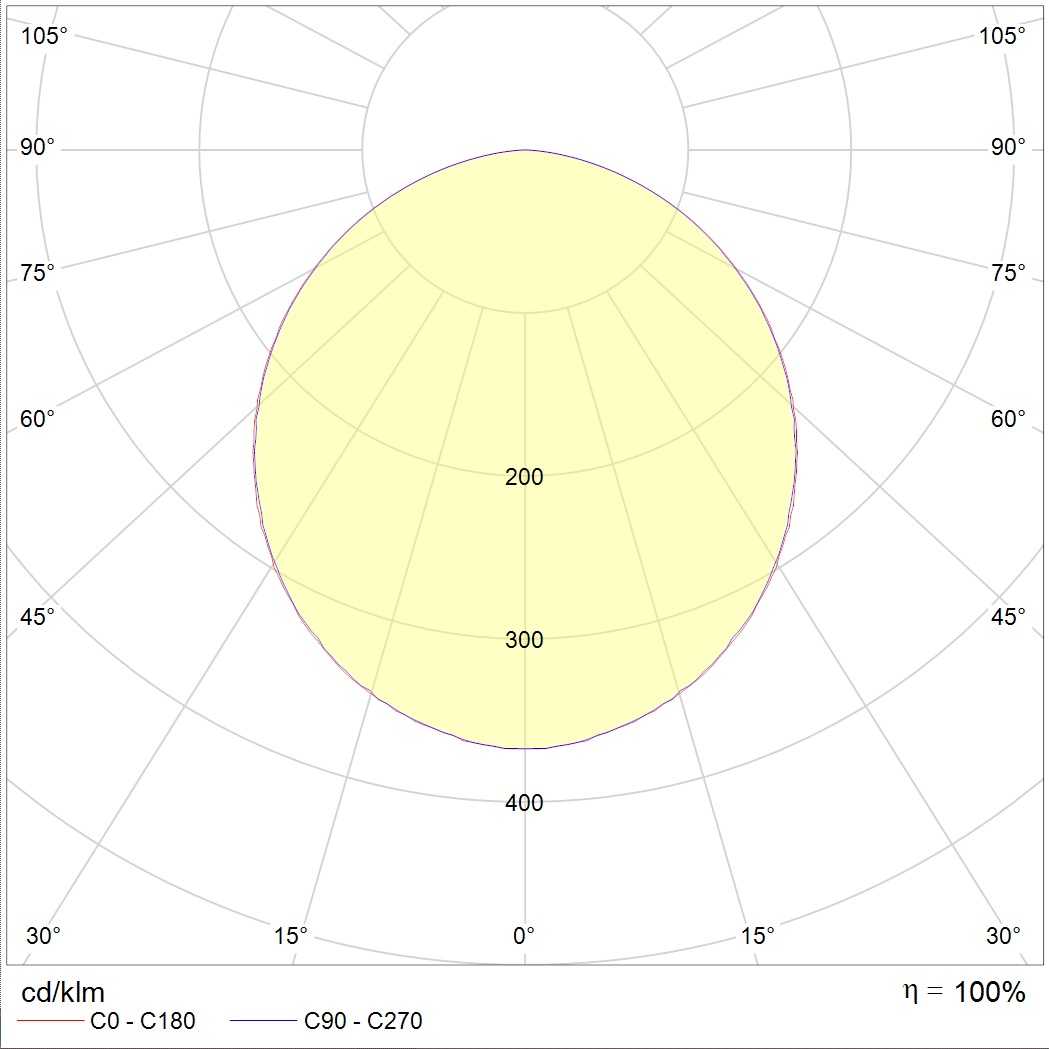

photometric files
ies134.1 kB
jpg121.1 kB
ldt83.4 kB
сертификаты
Russian origin279.1 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
photometric files
ies134.1 kB
jpg121.1 kB
ldt83.4 kB
сертификаты
Russian origin279.1 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
