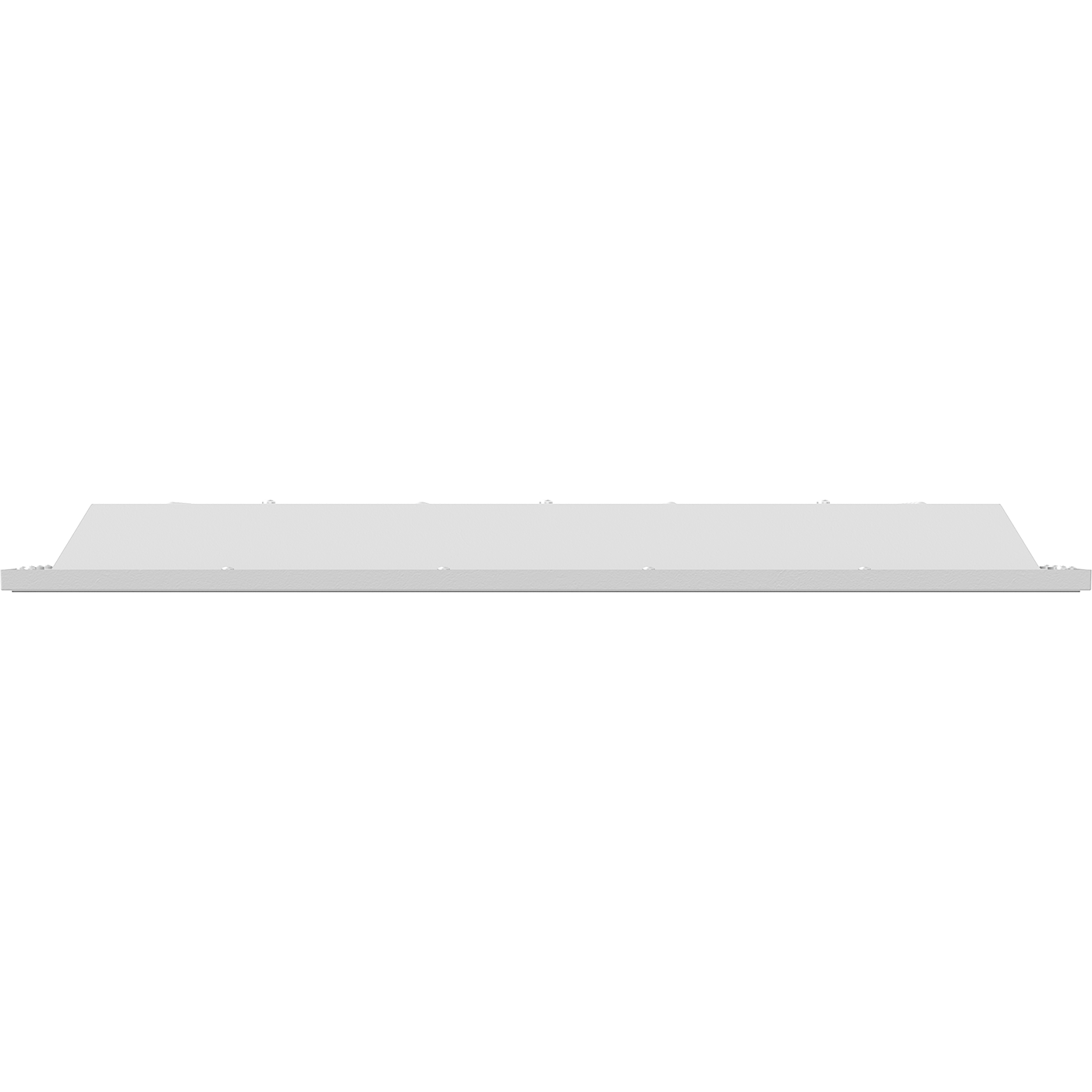

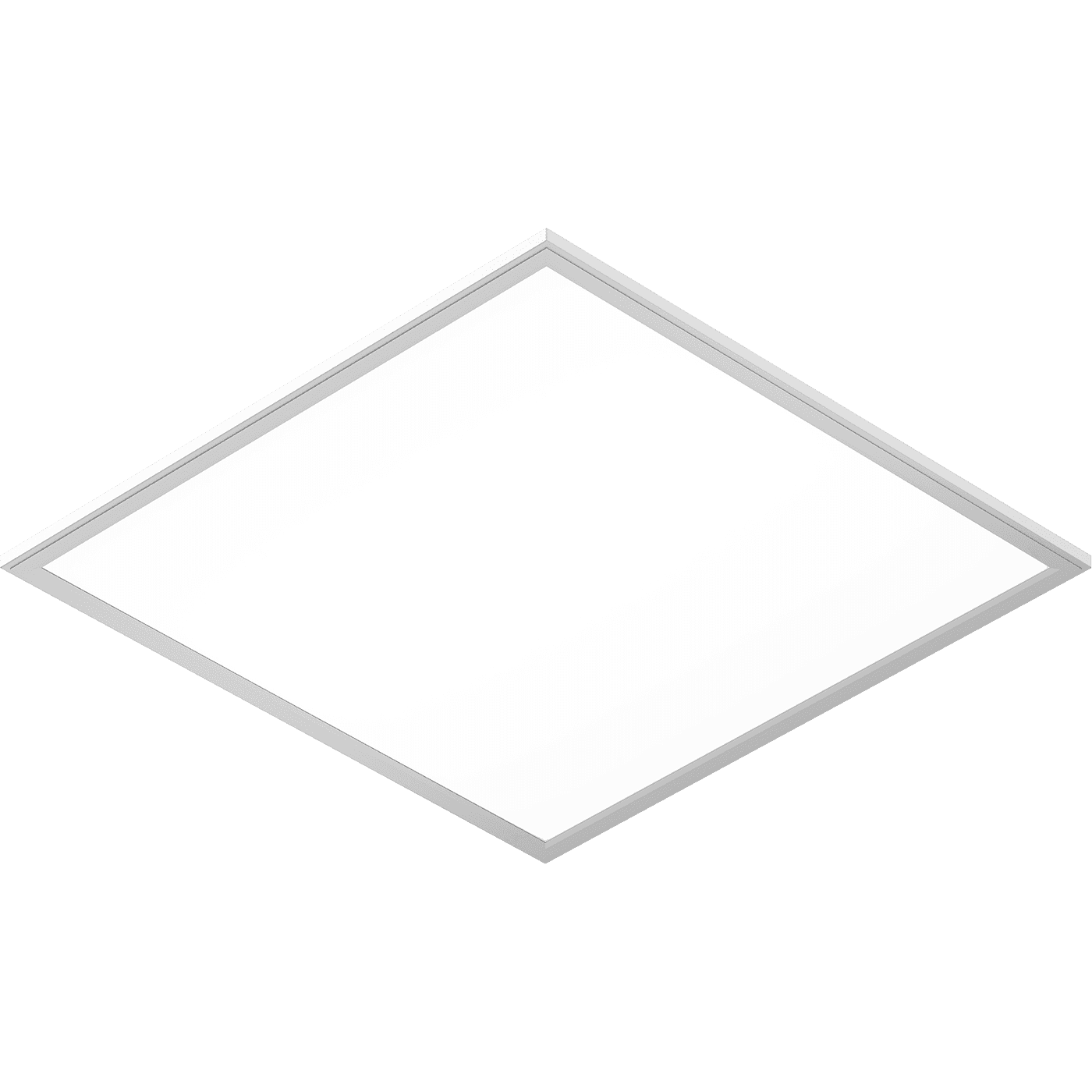

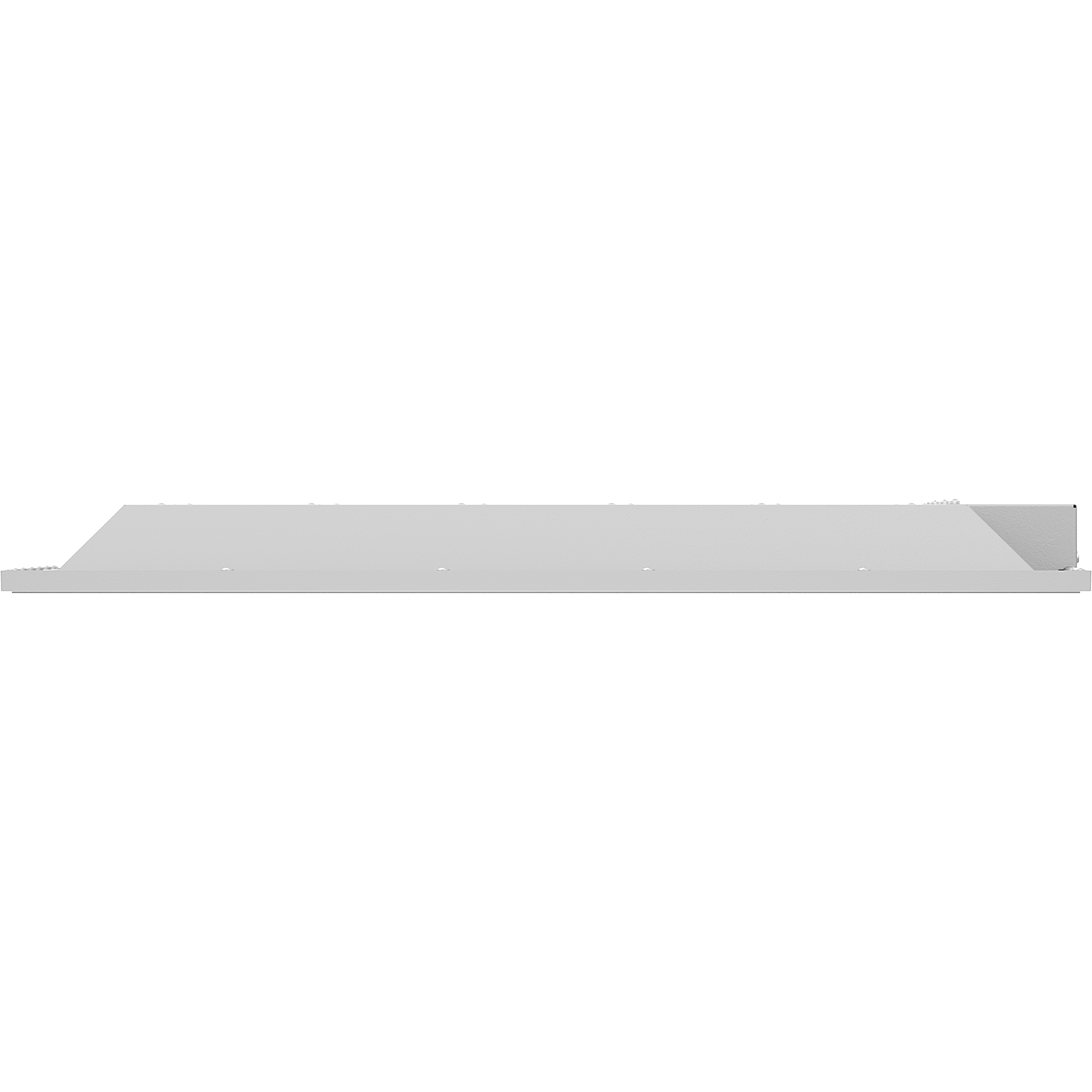

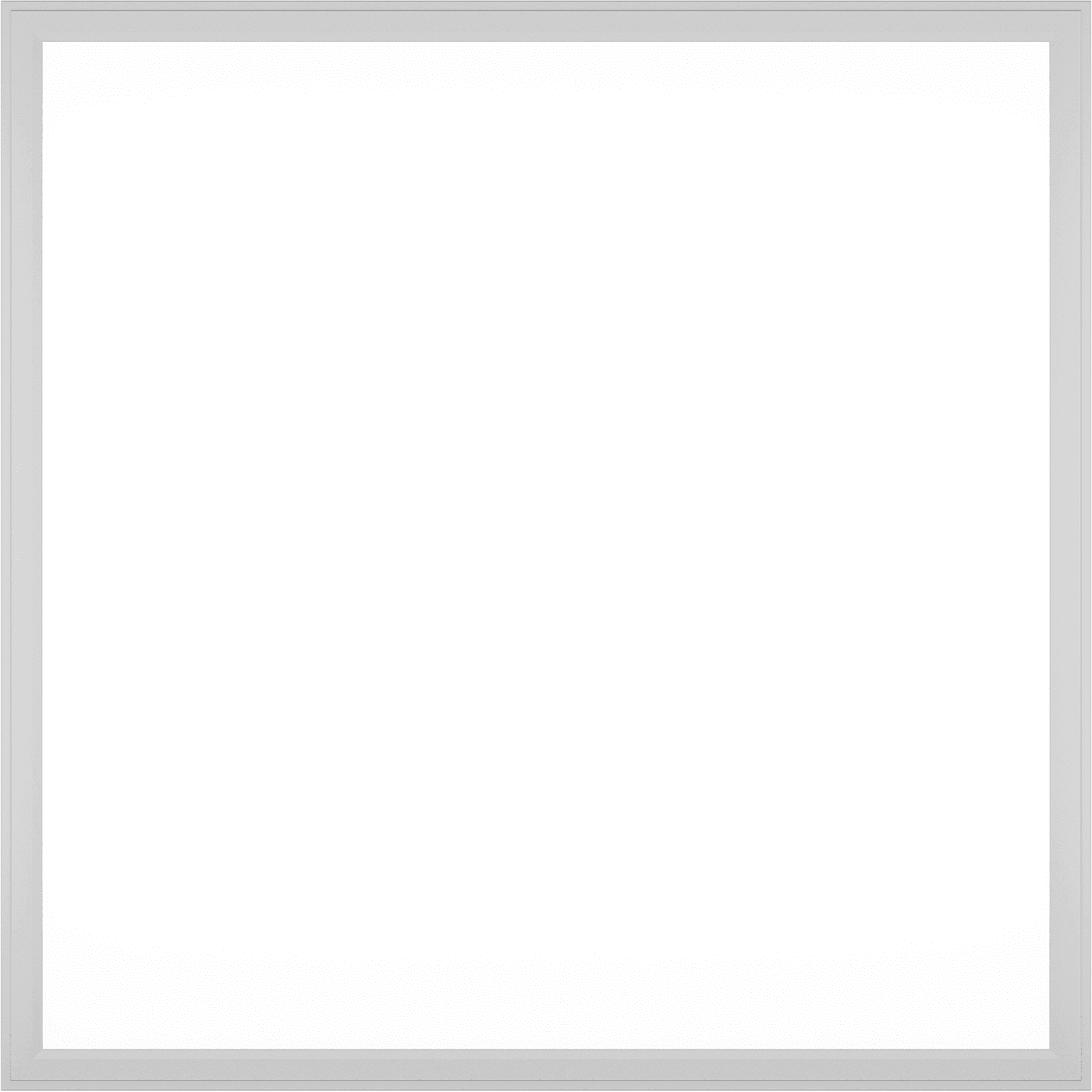

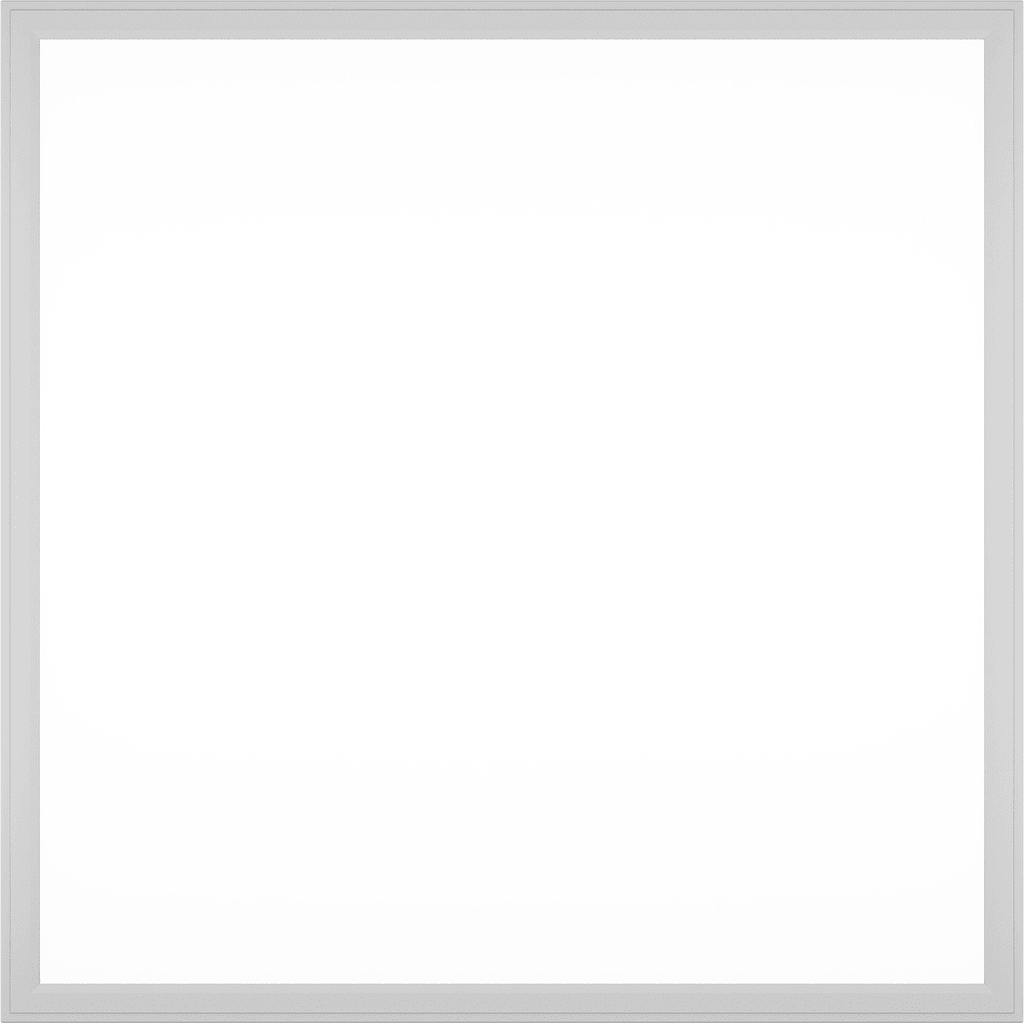

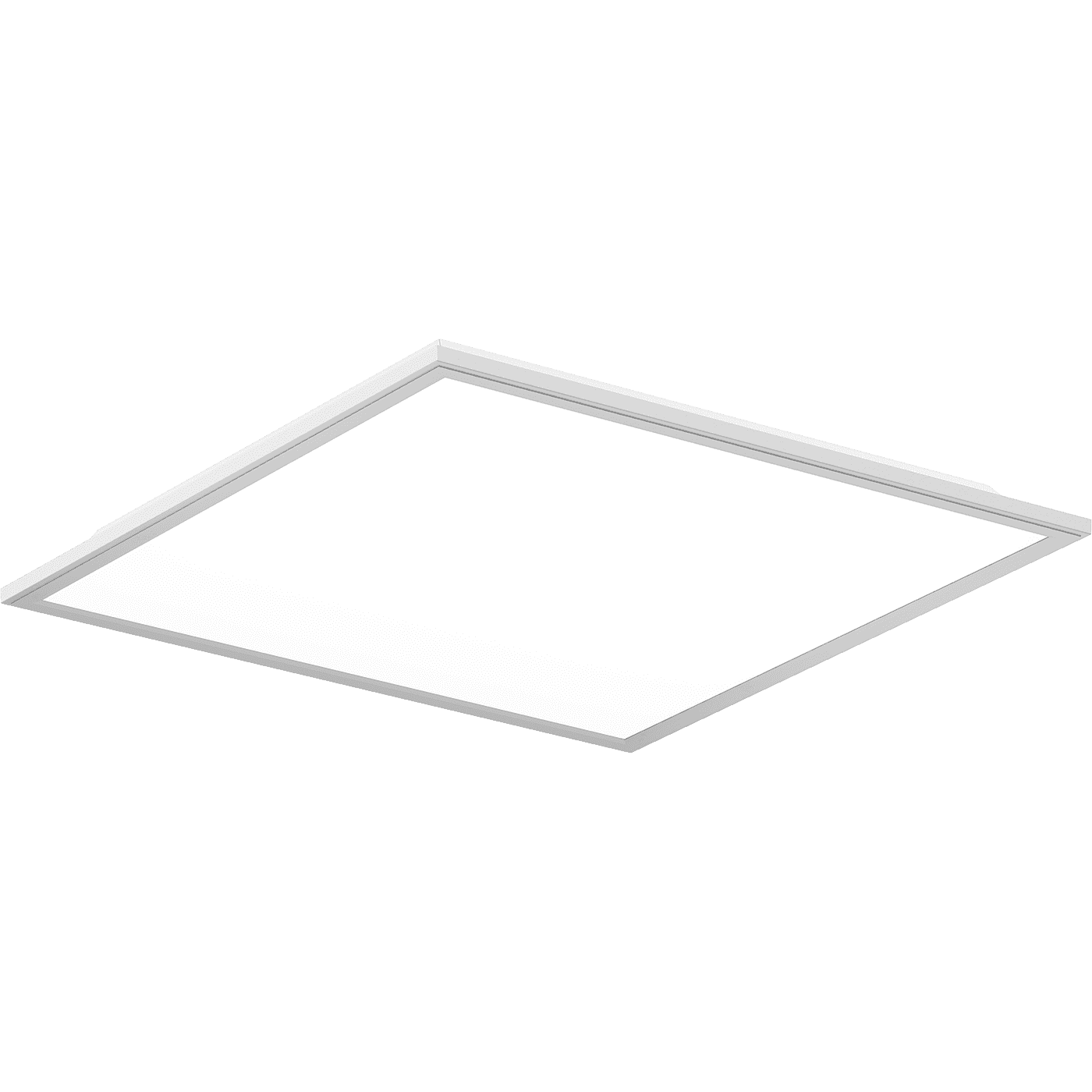

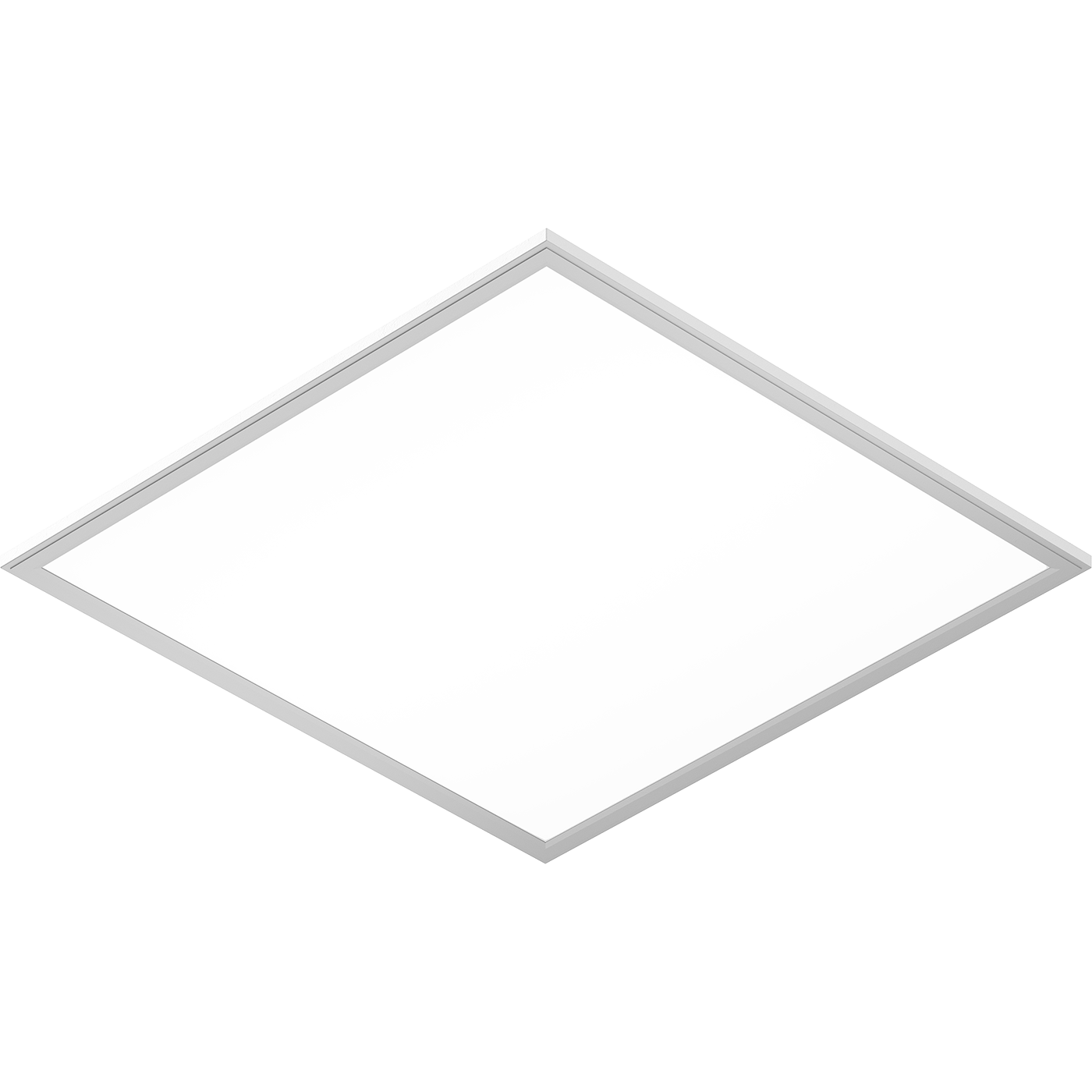

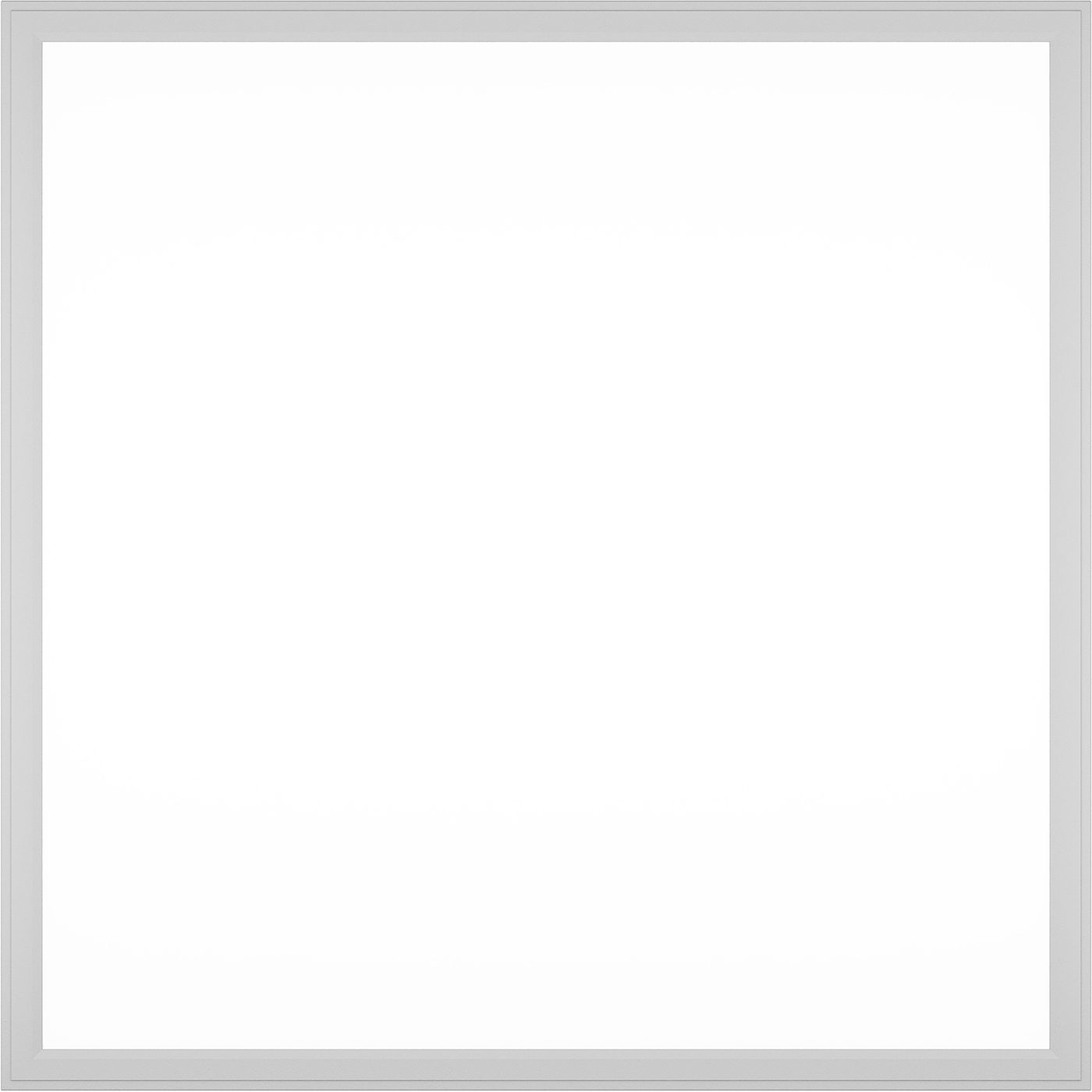

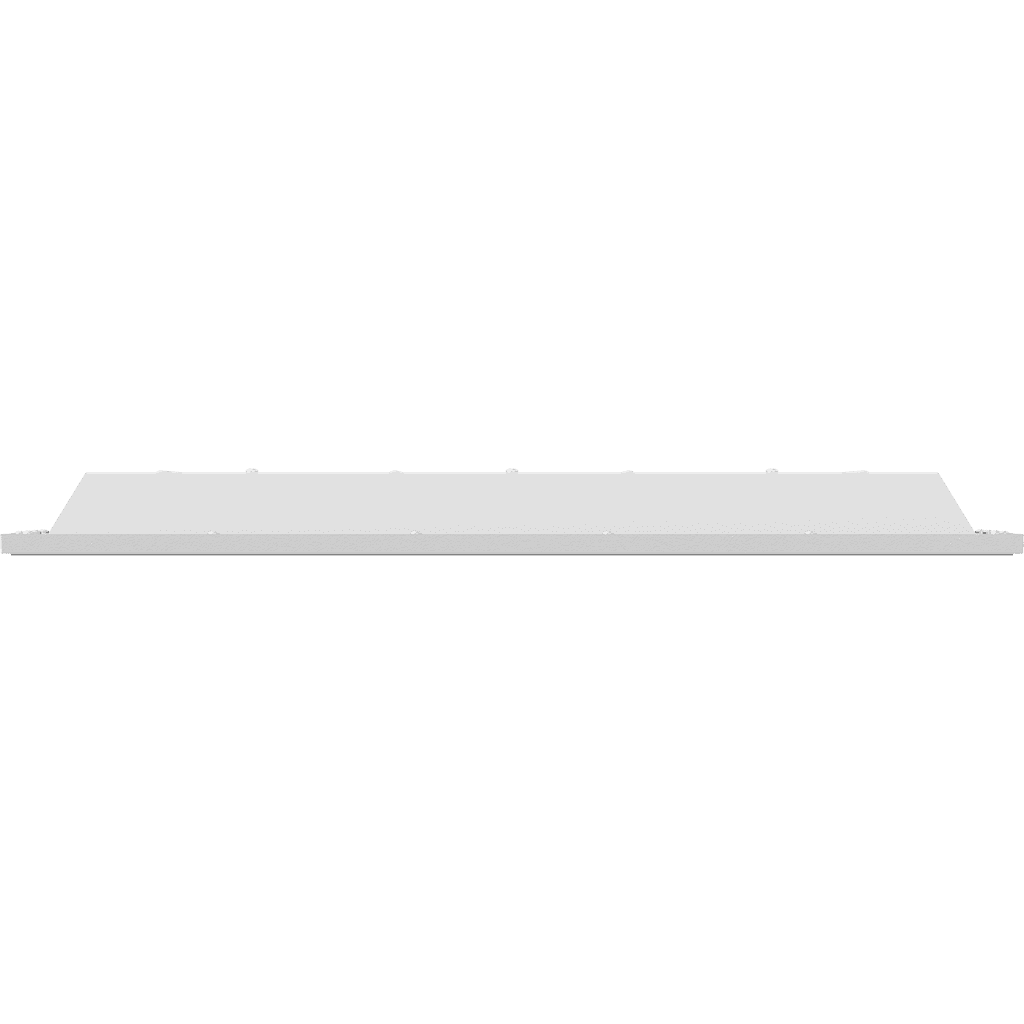

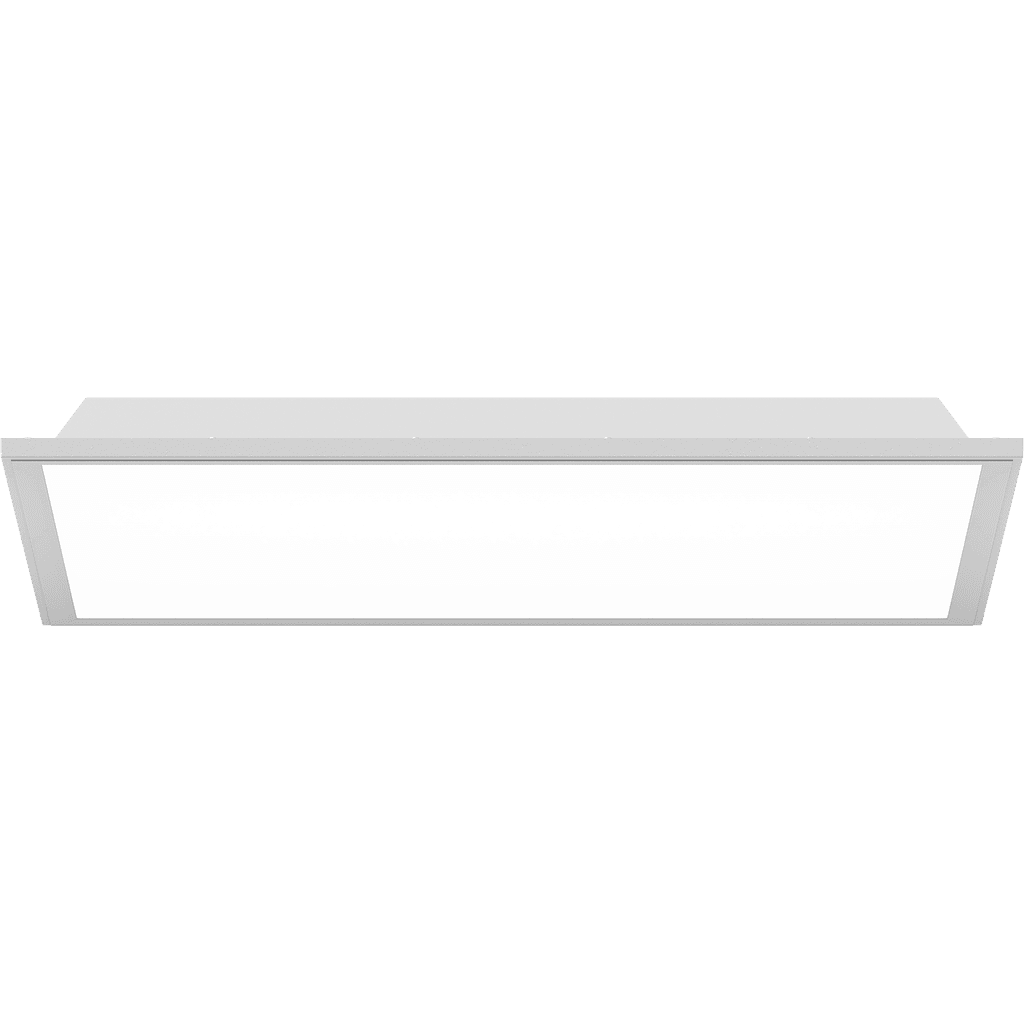

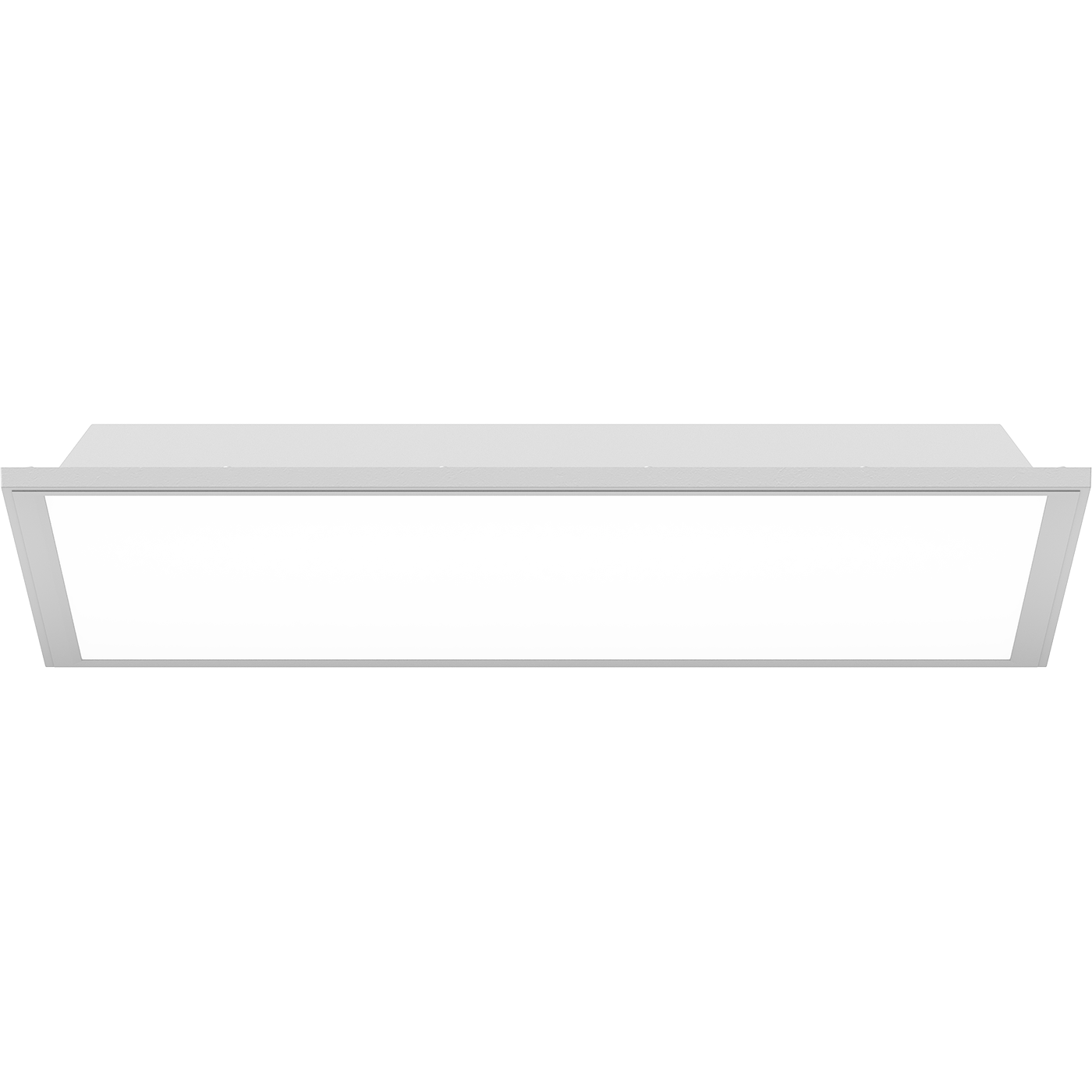

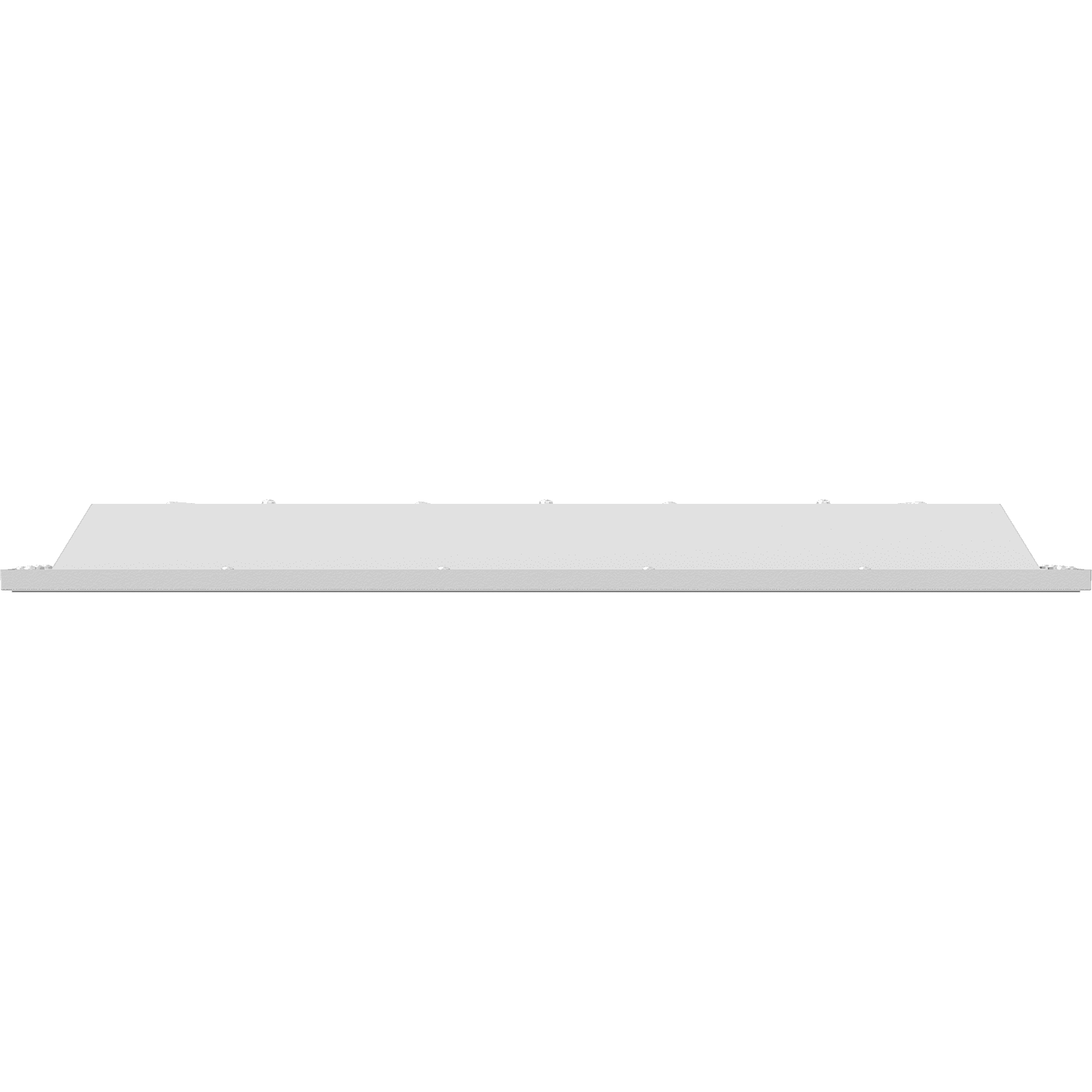

UNI/R EVO (595x595) 30W PRS 850 WH EMT

UNI/R EVO (595x595) 30W PRS 850 WH EMT
add to favorites
30 Wluminaire power
4100 lmlight flow
137 lm/Wenergy efficiency
code1884015930
color temperature5000
beam angleD120
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. recessed ceiling
  6. UNI/R EVO
  7. UNI/R EVO (595x595) 30W PRS 850 WH EMT
options
свернуть все
electricalconstructionalcommonilluminatingemergency
electric shock protection
I
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
30 W
power factor
> 0,95
supply voltage
230 V
electrical
electric shock protection
I
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
30 W
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP40
material
Сталь
housing color
Белый
length, mm
595 mm
width, mm
595 mm
height, mm
49 mm
weight
3.4 kg
fire safety class
П-ІІІ
climatic performance
УХЛ4*
installation length, mm
575 mm
installation width, mm
575 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
code
1884015930
energy efficiency class
A++
illuminating
color rendition index (CRI)
>80
light flow
4100 lm
flickering factor
<5%
beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
energy efficiency
137 lm/W
emergency
operating time in emergency mode, hours
1 h
model files
model files

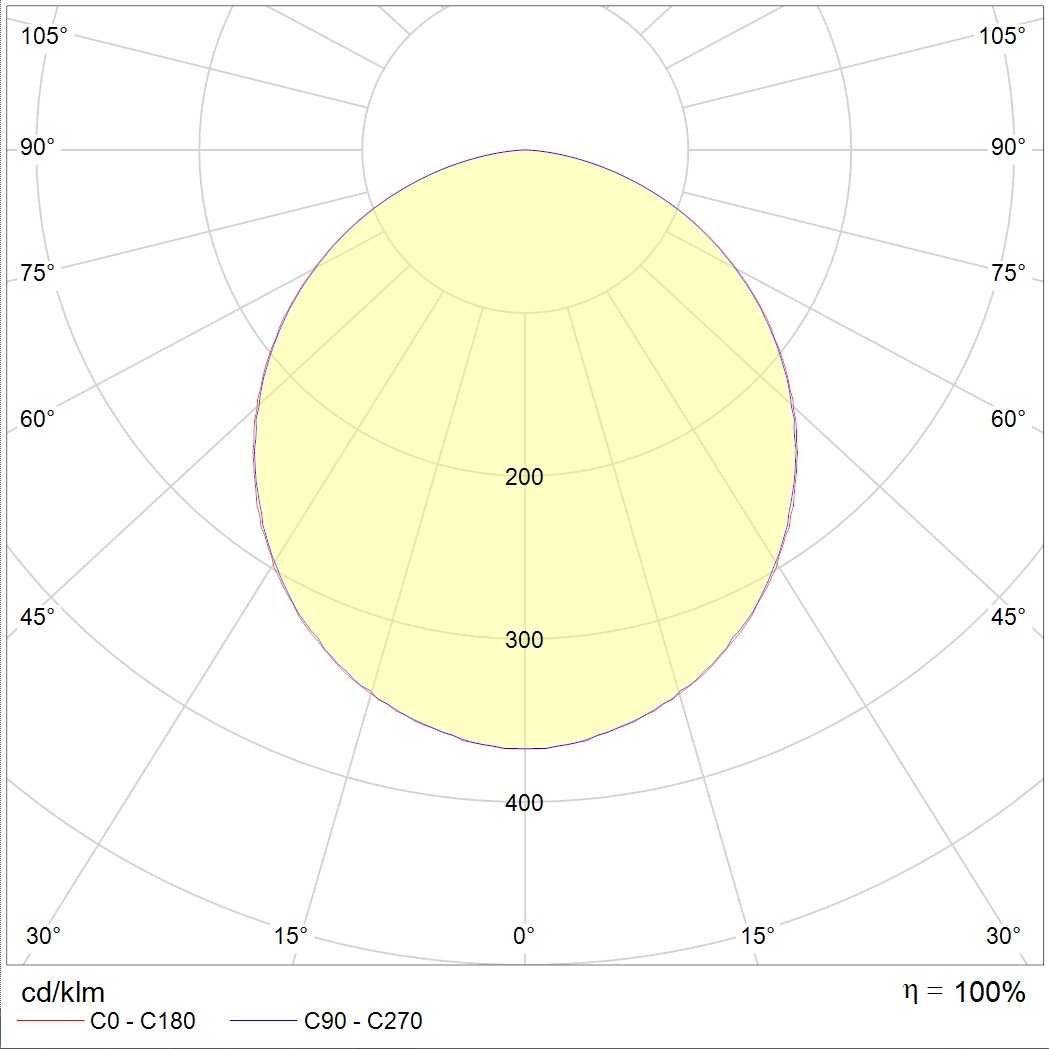

photometric files
