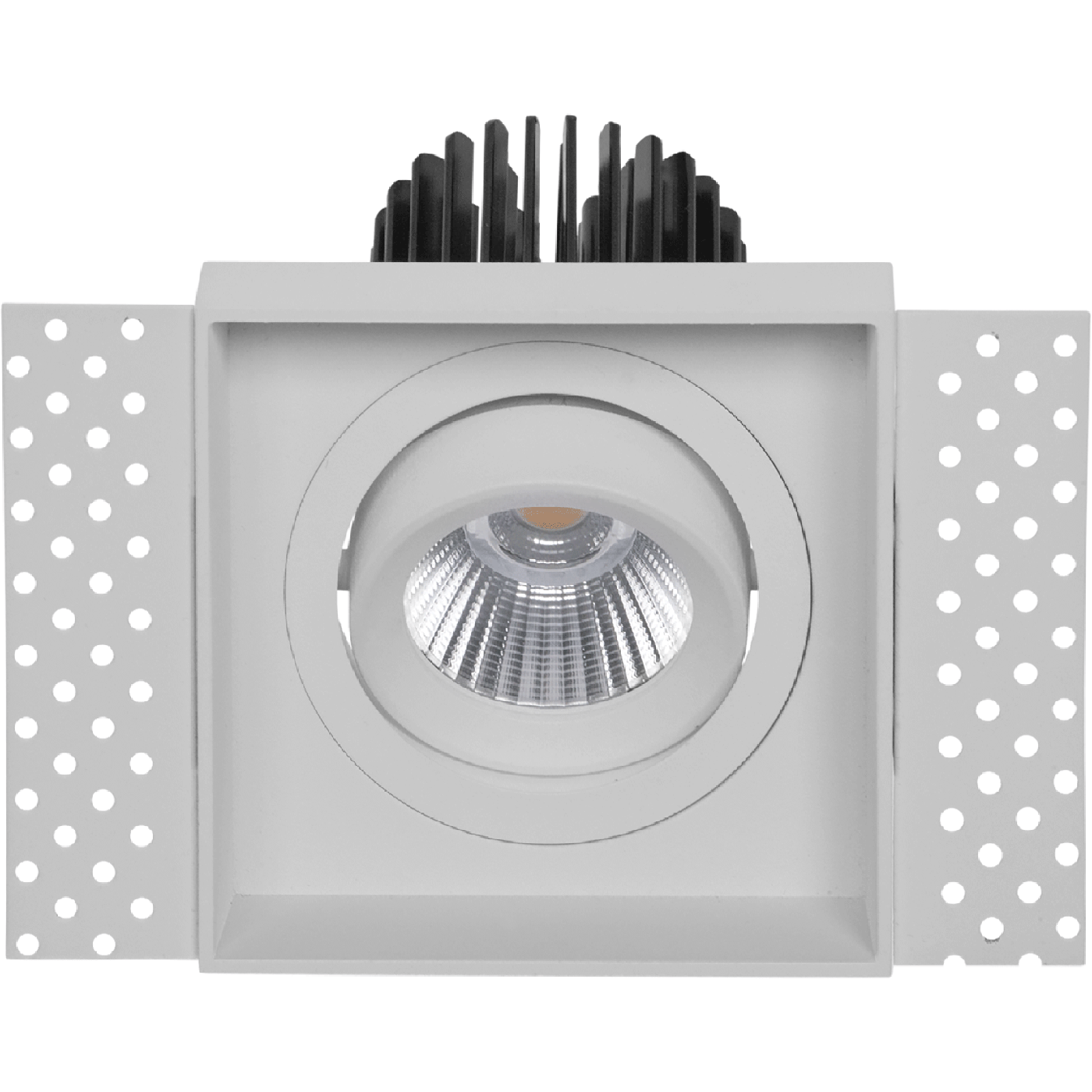

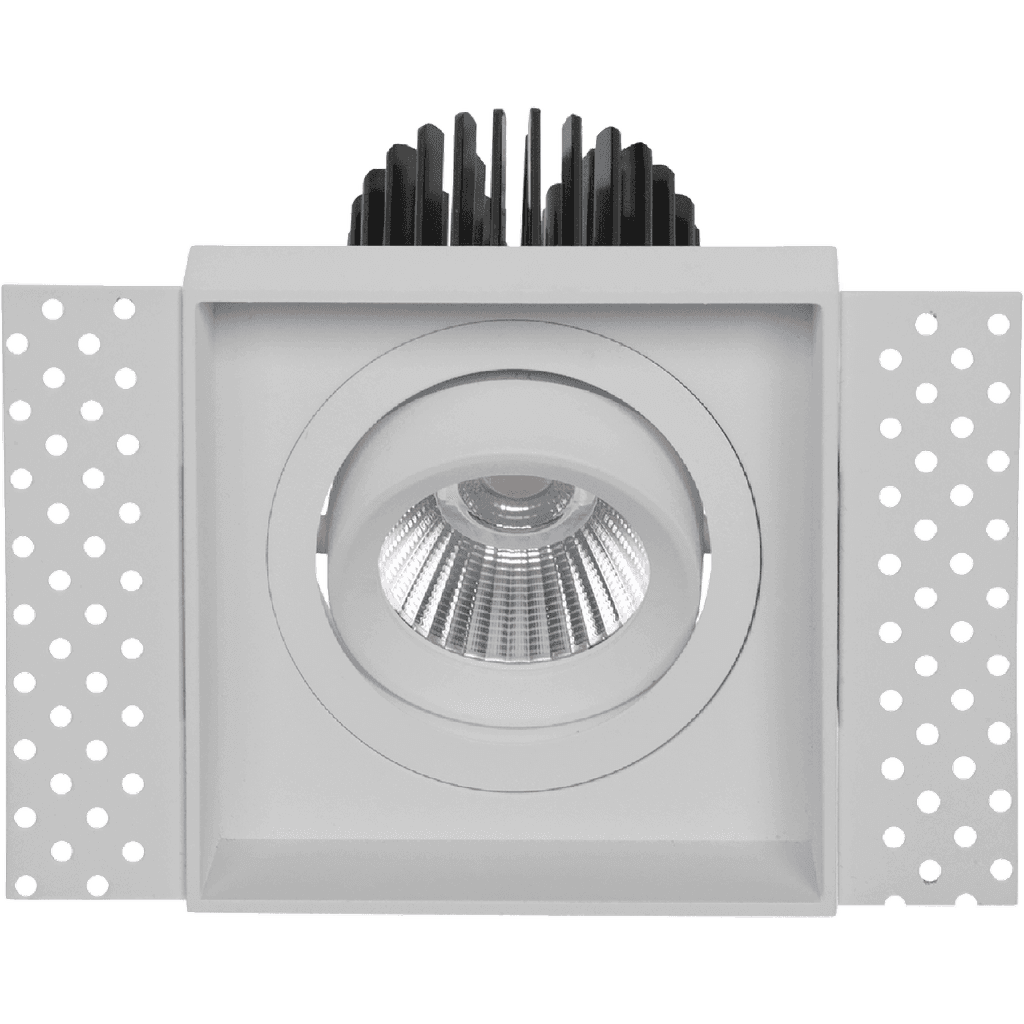

UMO 07 WH D45 3000K (with driver)
.jpg&w=1920&q=100)
.jpg&w=1024&q=75)
UMO 07 WH D45 3000K (with driver)
9 Wluminaire power
700 lmlight flow
78 lm/Wenergy efficiency
code1252000010
color temperature3000 K
beam angleD45
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
78 lm/Wcolor rendition index (CRI)
>80light flow
700 lmflickering factor
<5%beam angle
D45color temperature
3000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
78 lm/W
color rendition index (CRI)
>80
light flow
700 lm
flickering factor
<5%
beam angle
D45
color temperature
3000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
2.28 µs
electric shock protection
II
luminaire power
9 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
starting current
43 A
constructional
length
146 mm
width
146 mm
height
87 mm
installation length
94 mm
installation width
94 mm
weight
0.45 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A
ETIM class
Прожектор / Светильник направленного света
code
1252000010
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax8.4 mB

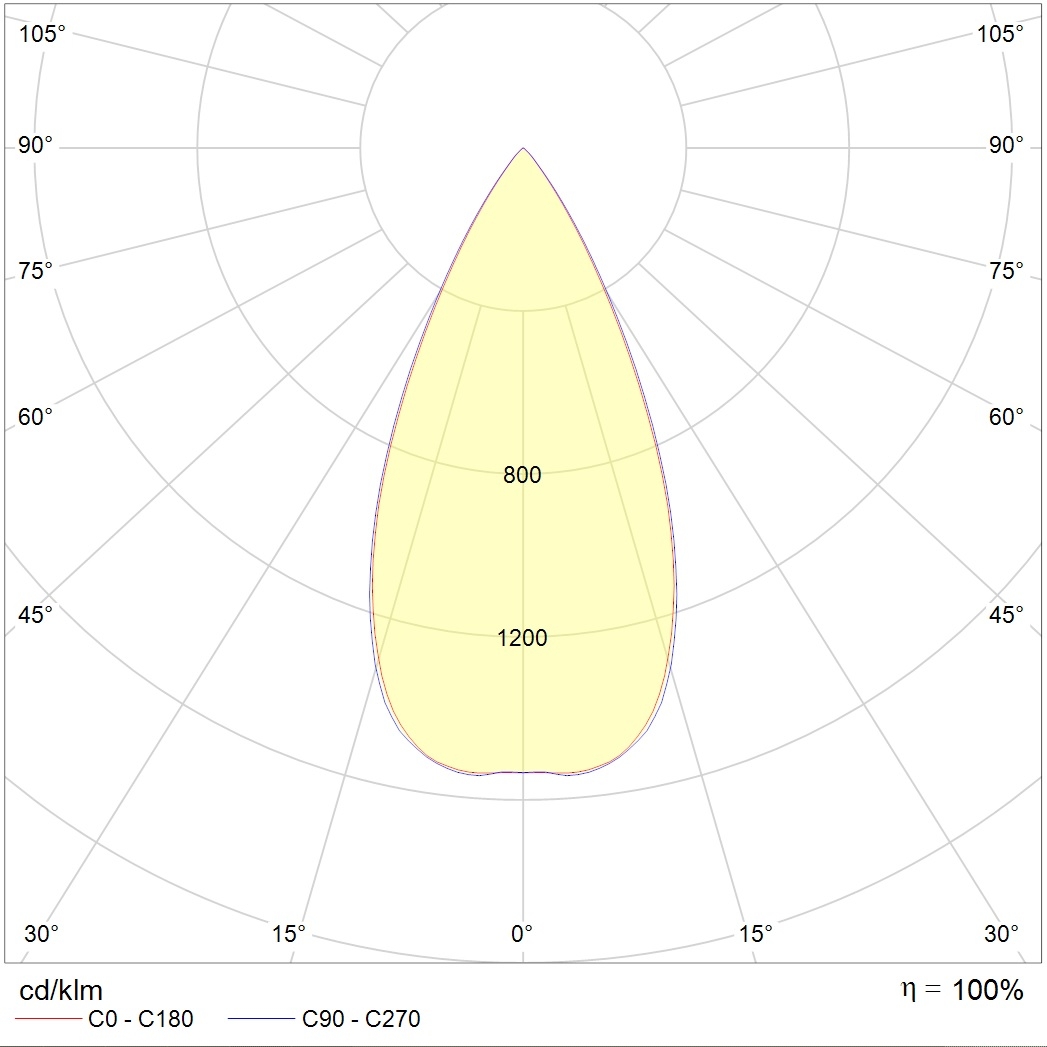

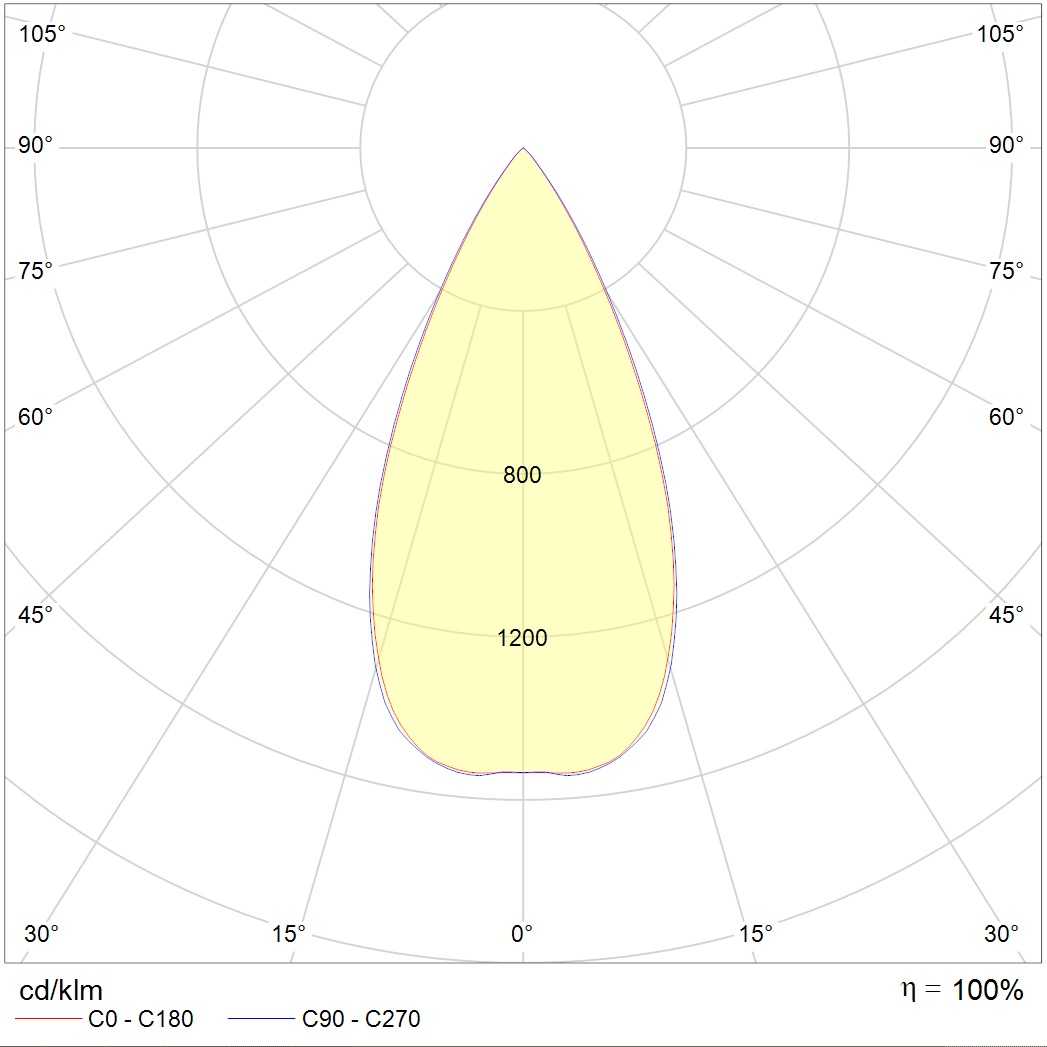

photometric files
ies68.6 kB
jpg115.6 kB
ldt42.7 kB
documents
passport2.1 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016583.2 kB
Fire Safety Certificate1.7 mB
accessories
LINE PRISM SPOTLIGHT 06-18W0.05kgarticle: 2701002170
SQ PRISM SPOTLIGHT 06-18W0.005kgarticle: 2701002140
HONEYCOMB Spotlight 07-18W0.05kgarticle: 2701002060
