UGR DL PREMIUM 20W OPL 930 WH DALI

UGR DL PREMIUM 20W OPL 930 WH DALI
19 Wluminaire power
1700 lmlight flow
89 lm/Wenergy efficiency
code1849000290
color temperature3000 K
beam angleD120
old nameUGR DL PREMIUM 20W 930 WH DALI
performance factor100
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
89 lm/W
color rendition index (CRI)
>90
light flow
1700 lm
flickering factor
<5%
beam angle
D120
color temperature
3000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
89 lm/W
color rendition index (CRI)
>90
light flow
1700 lm
flickering factor
<5%
beam angle
D120
color temperature
3000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
50 µs
electric shock protection
II
luminaire power
19 W
supply voltage
230 V
power factor
> 0,85
maximum cross-section of the connected cable
1.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
5 A
constructional
diameter
154 mm
height
92 mm
installation diameter
145 mm
weight
0.7 kg
ingress protection (IP)
IP54/IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
LMS options
dimming
DALI
common
warranty
60 month
temperature range
от +5 до +35 C
service life
30 000 h
energy efficiency class
A+
ETIM class
Прожектор / Светильник направленного света
code
1849000290
model files
model files

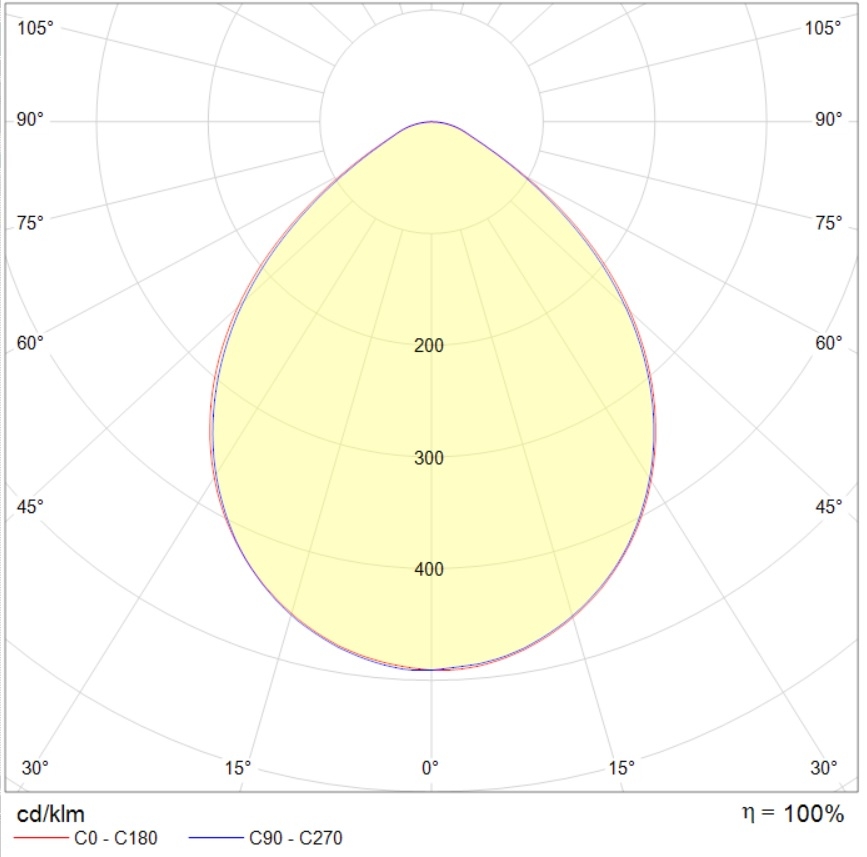

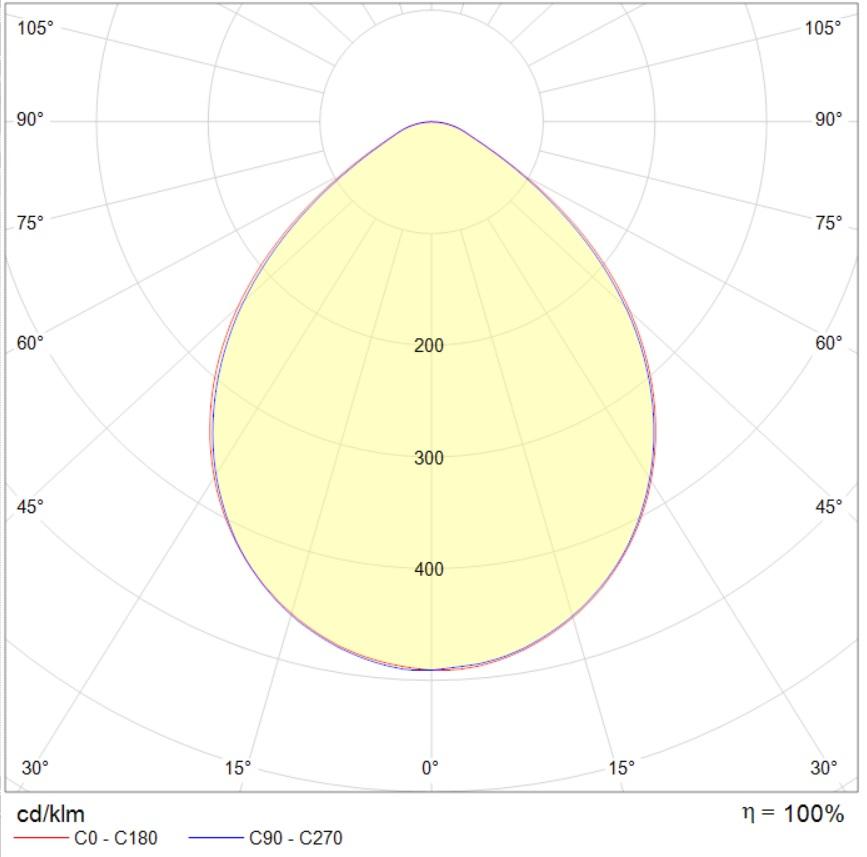

photometric files
ies107 kB
jpg81.1 kB
ldt66.5 kB
documents
passport1.2 mB
сертификаты
Russian origin281.2 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
photometric files
ies107 kB
jpg81.1 kB
ldt66.5 kB
documents
passport1.2 mB
сертификаты
Russian origin281.2 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
