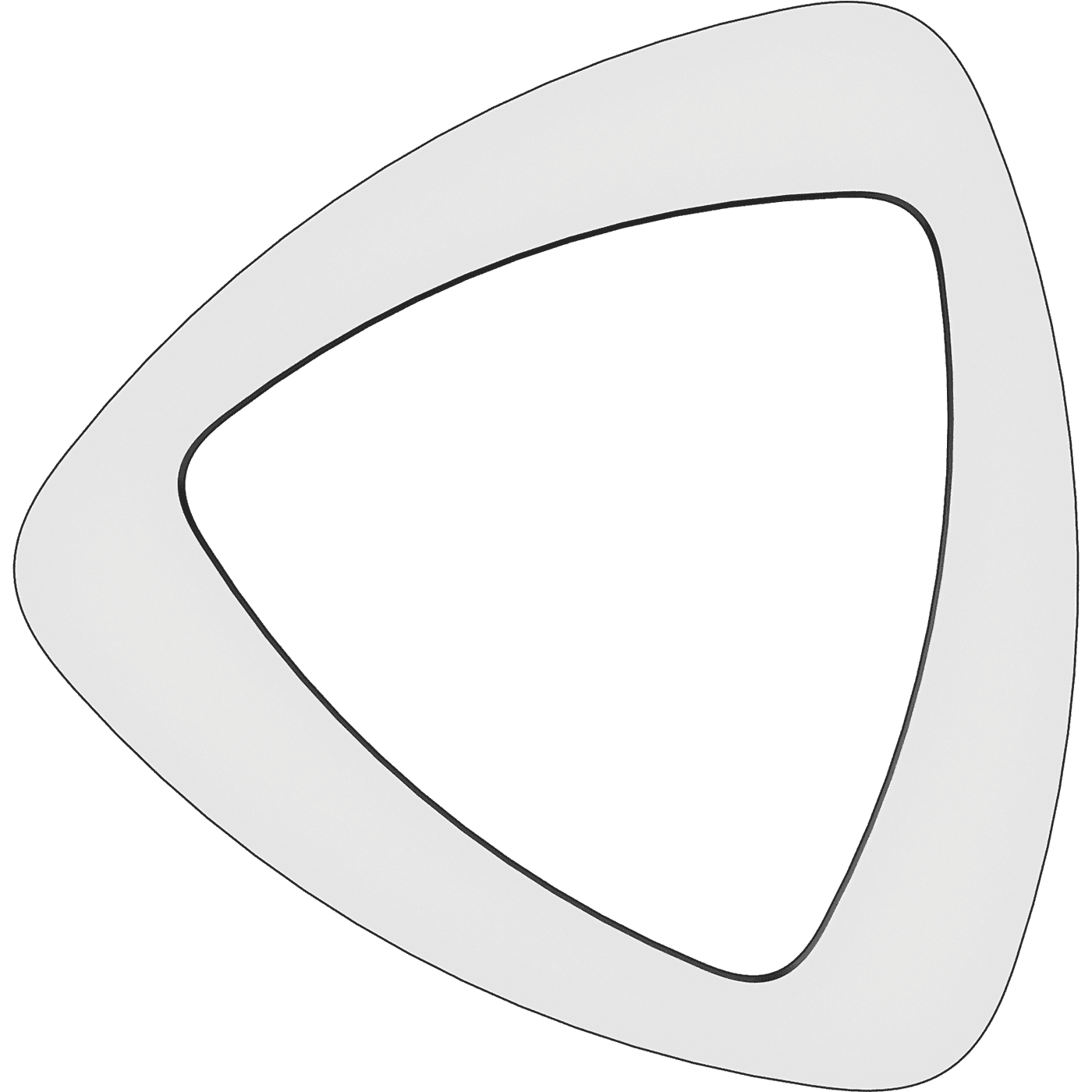

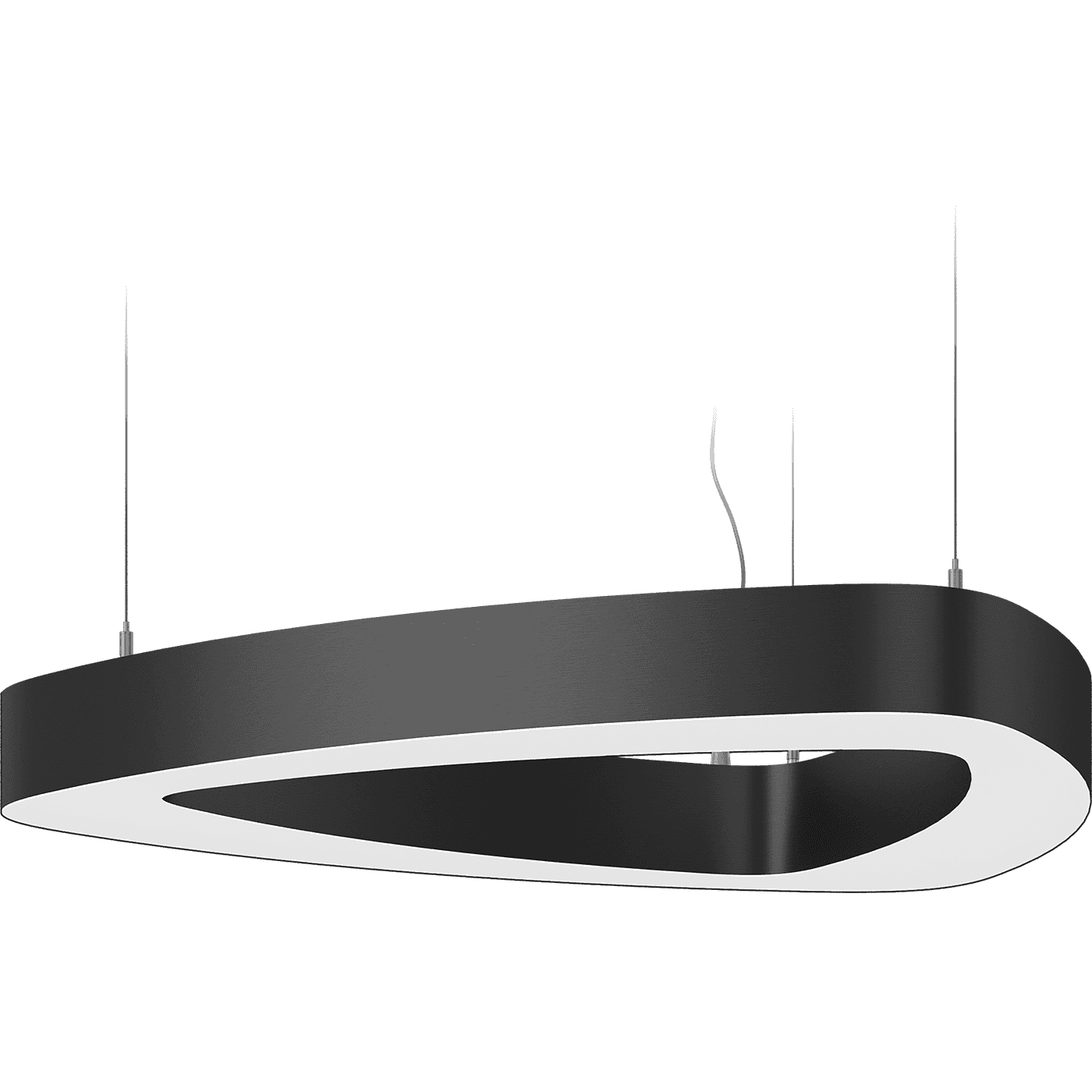

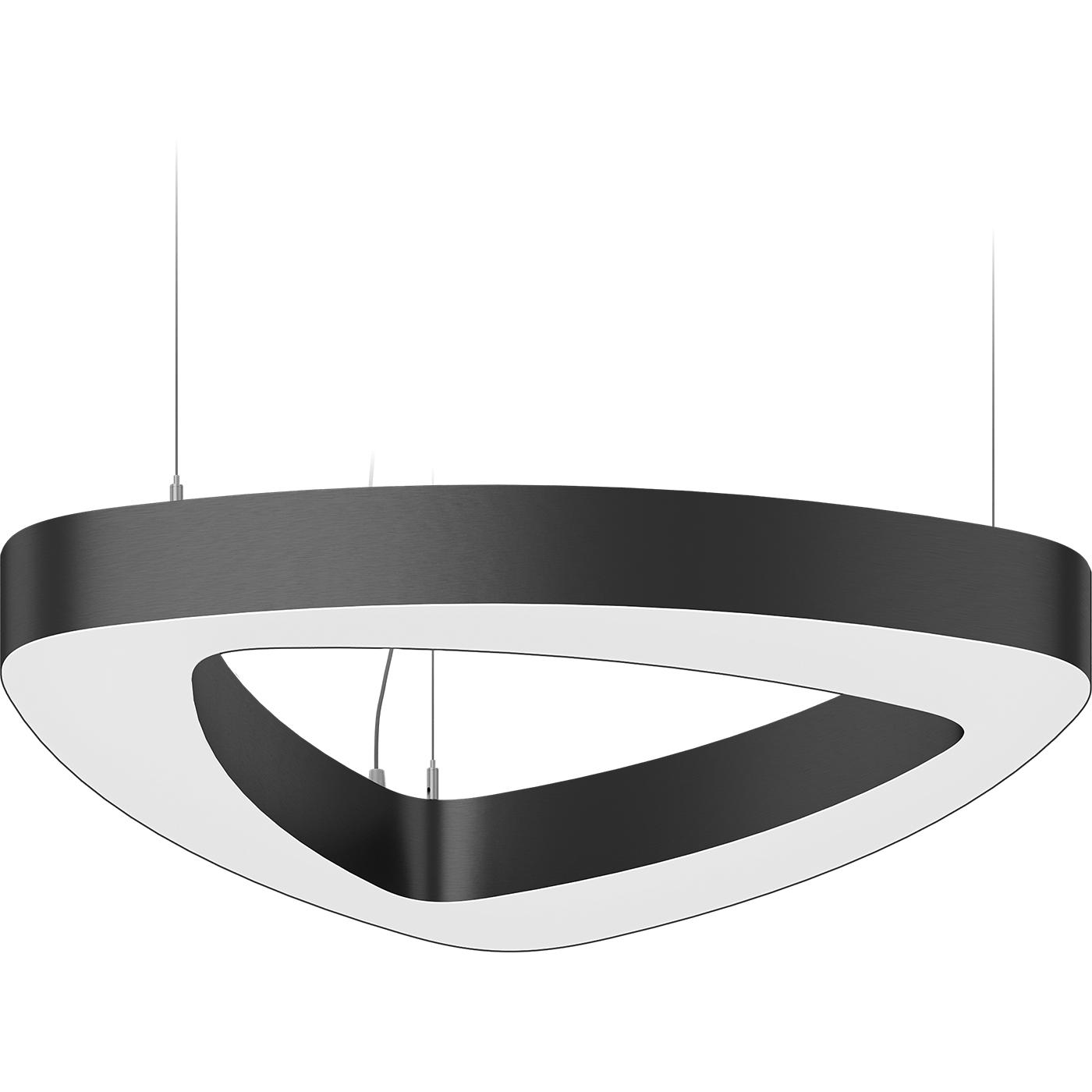

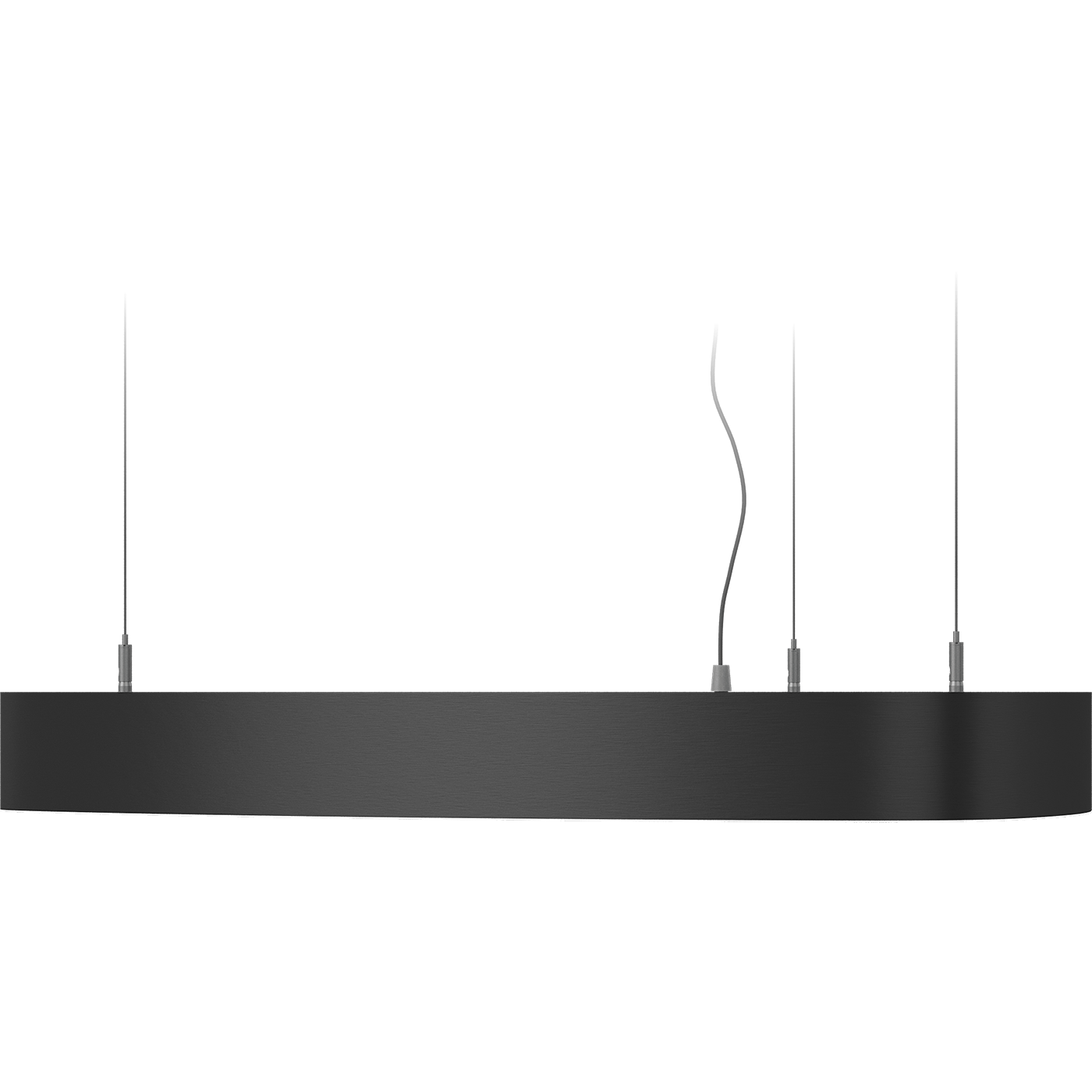

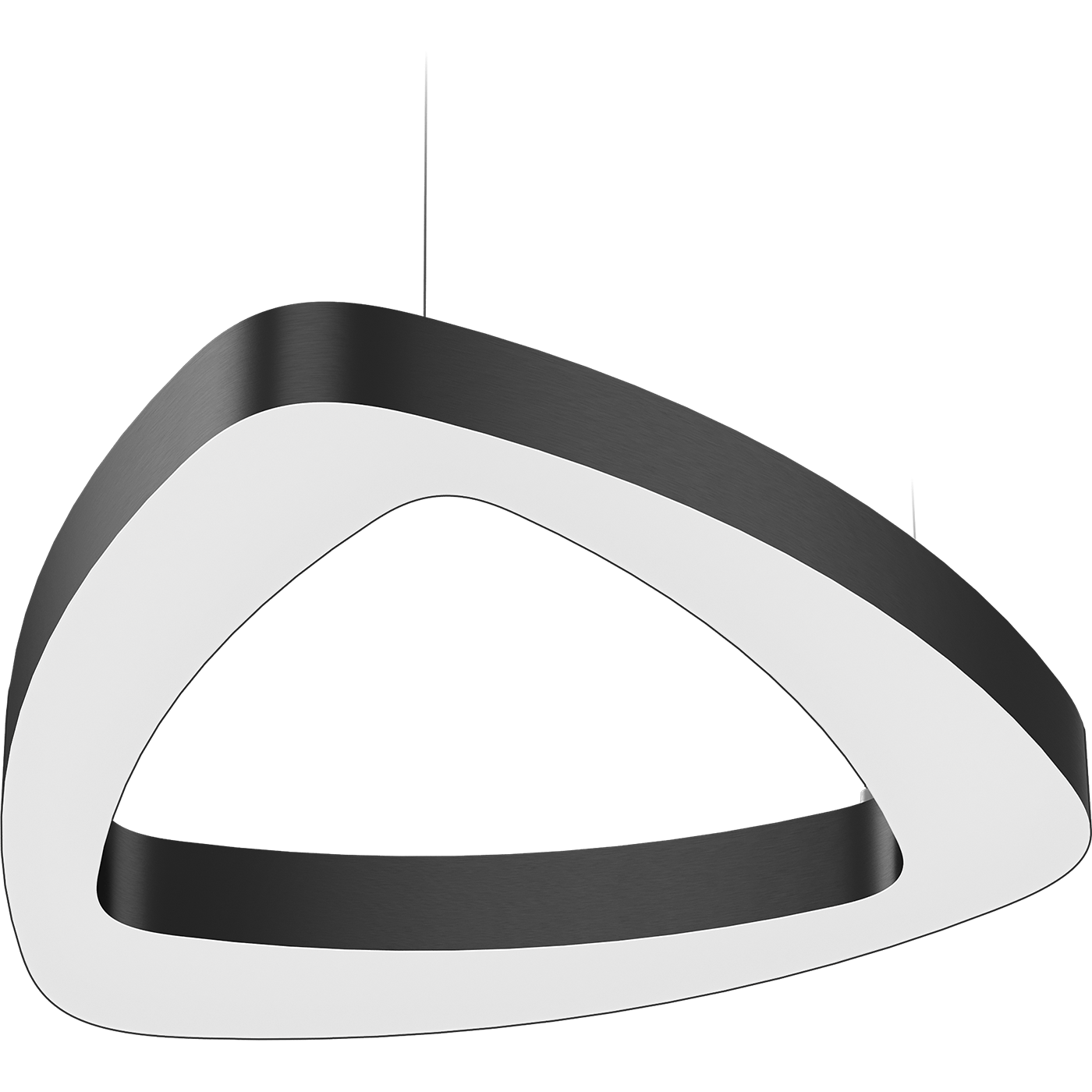

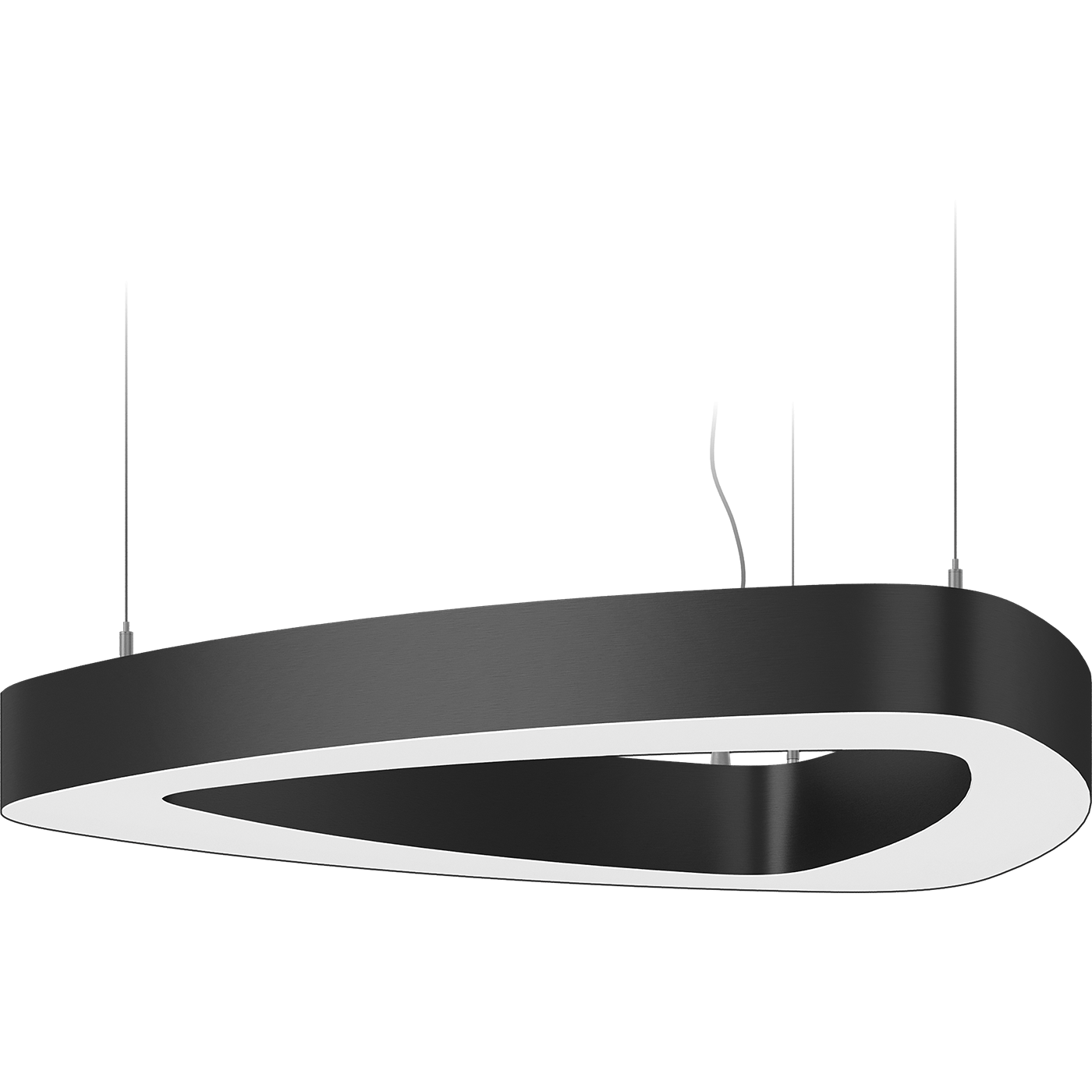

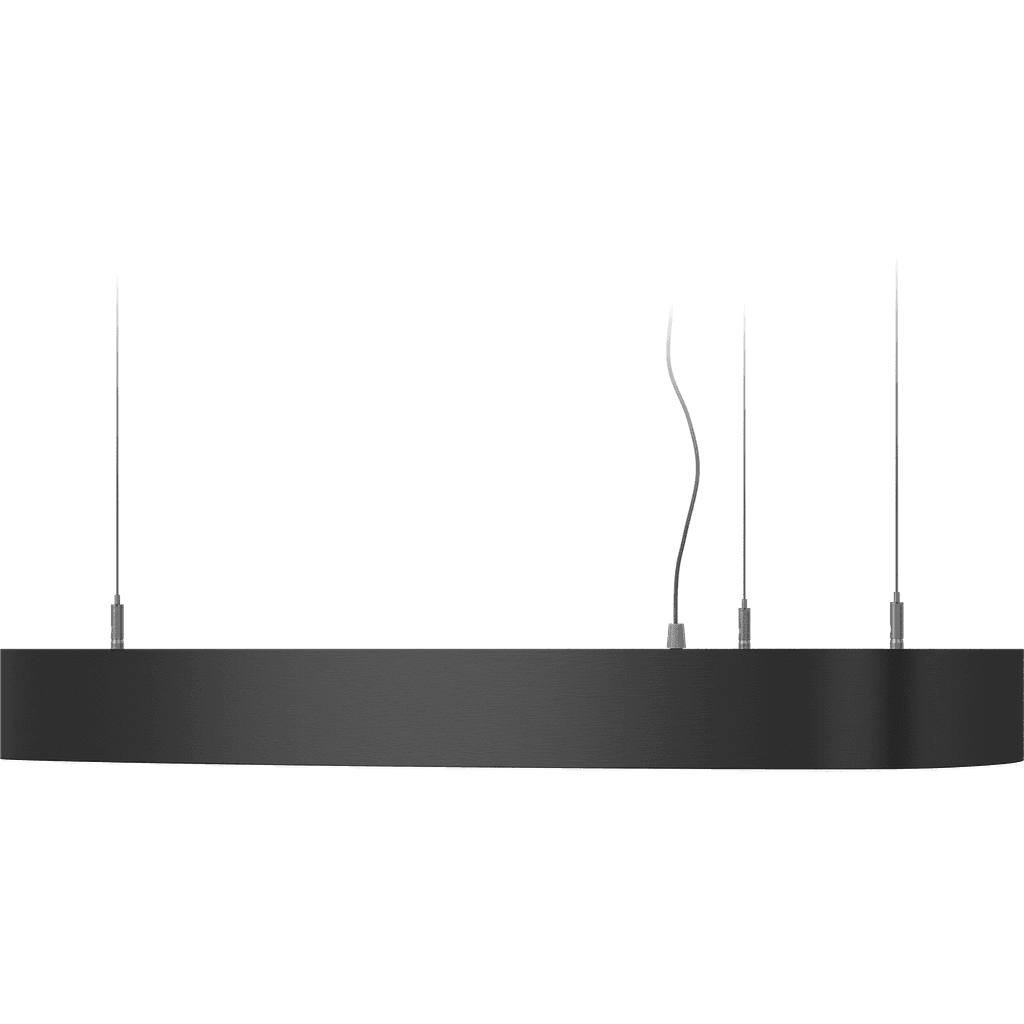

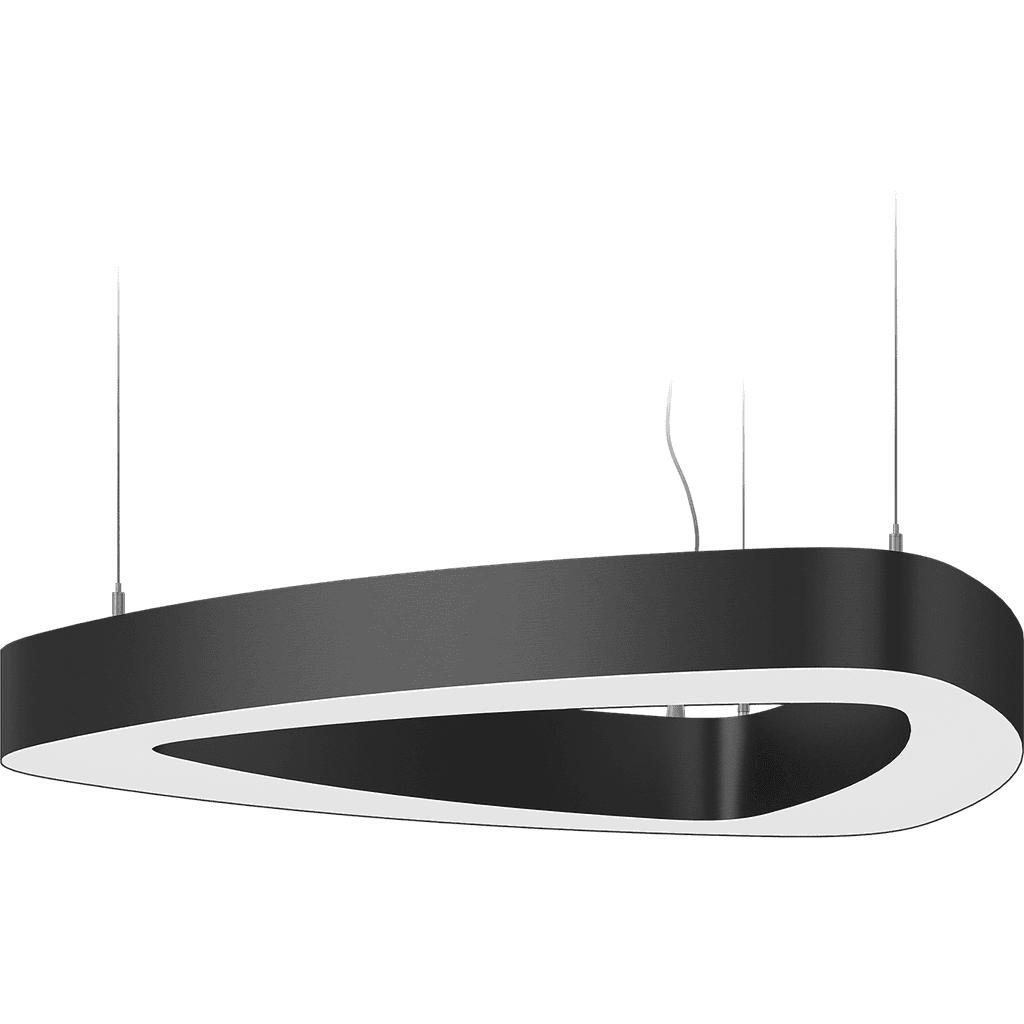

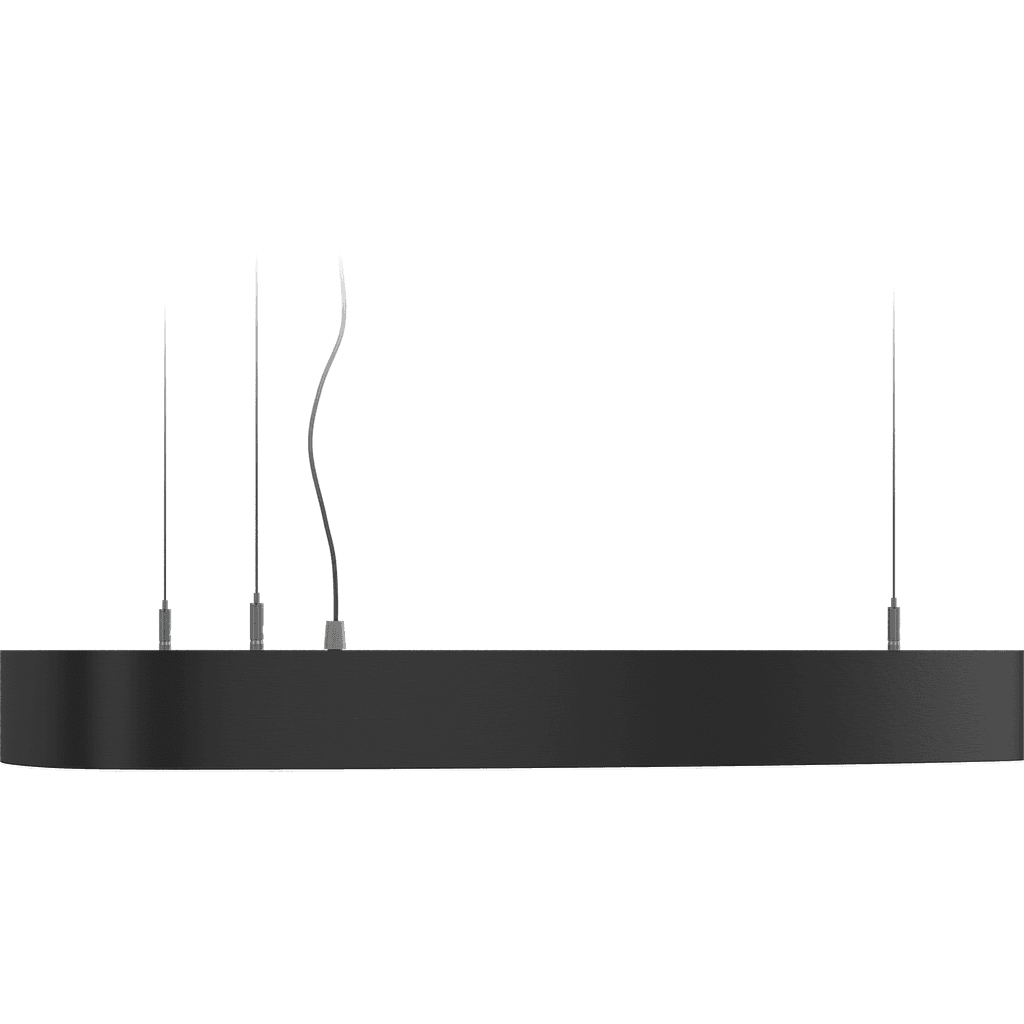

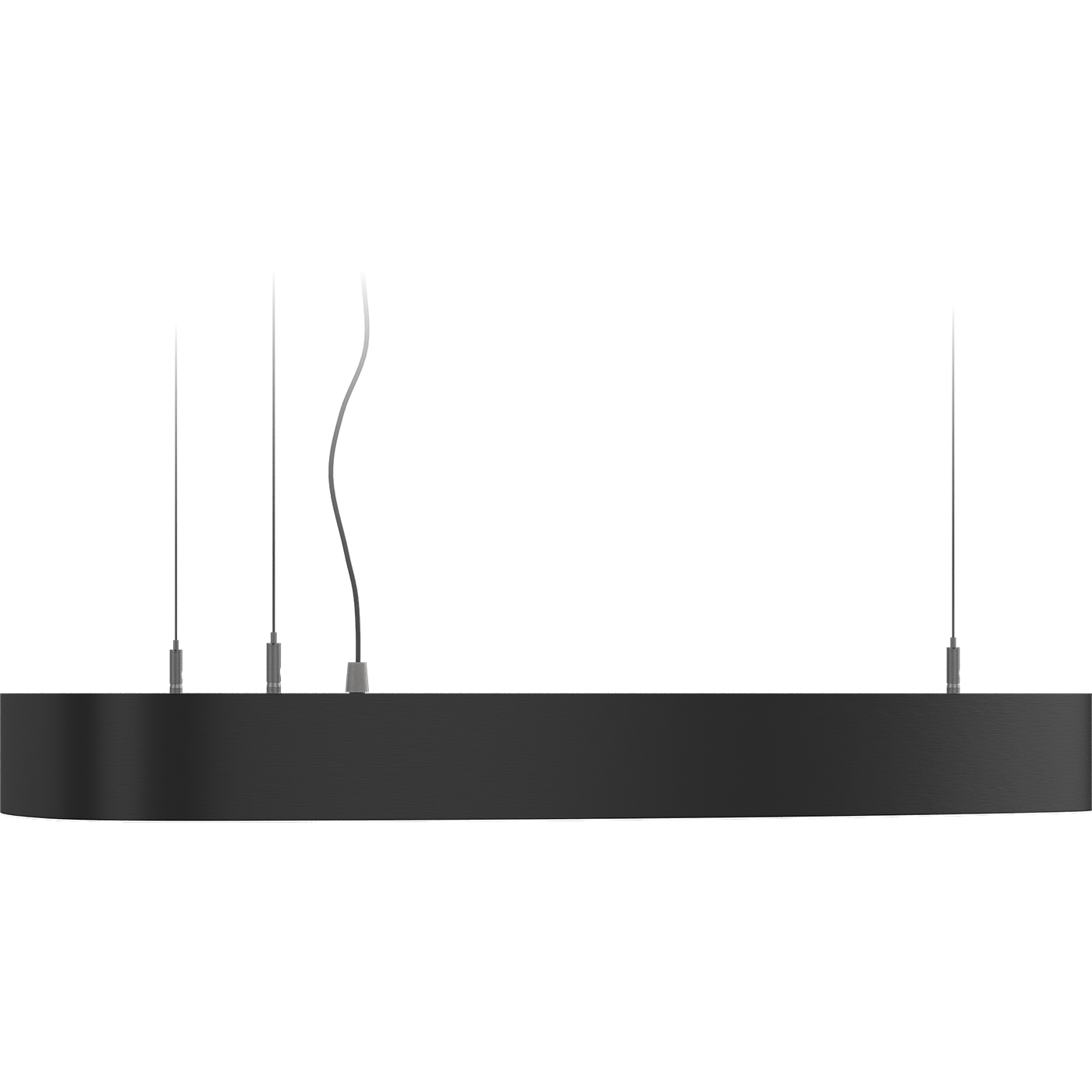

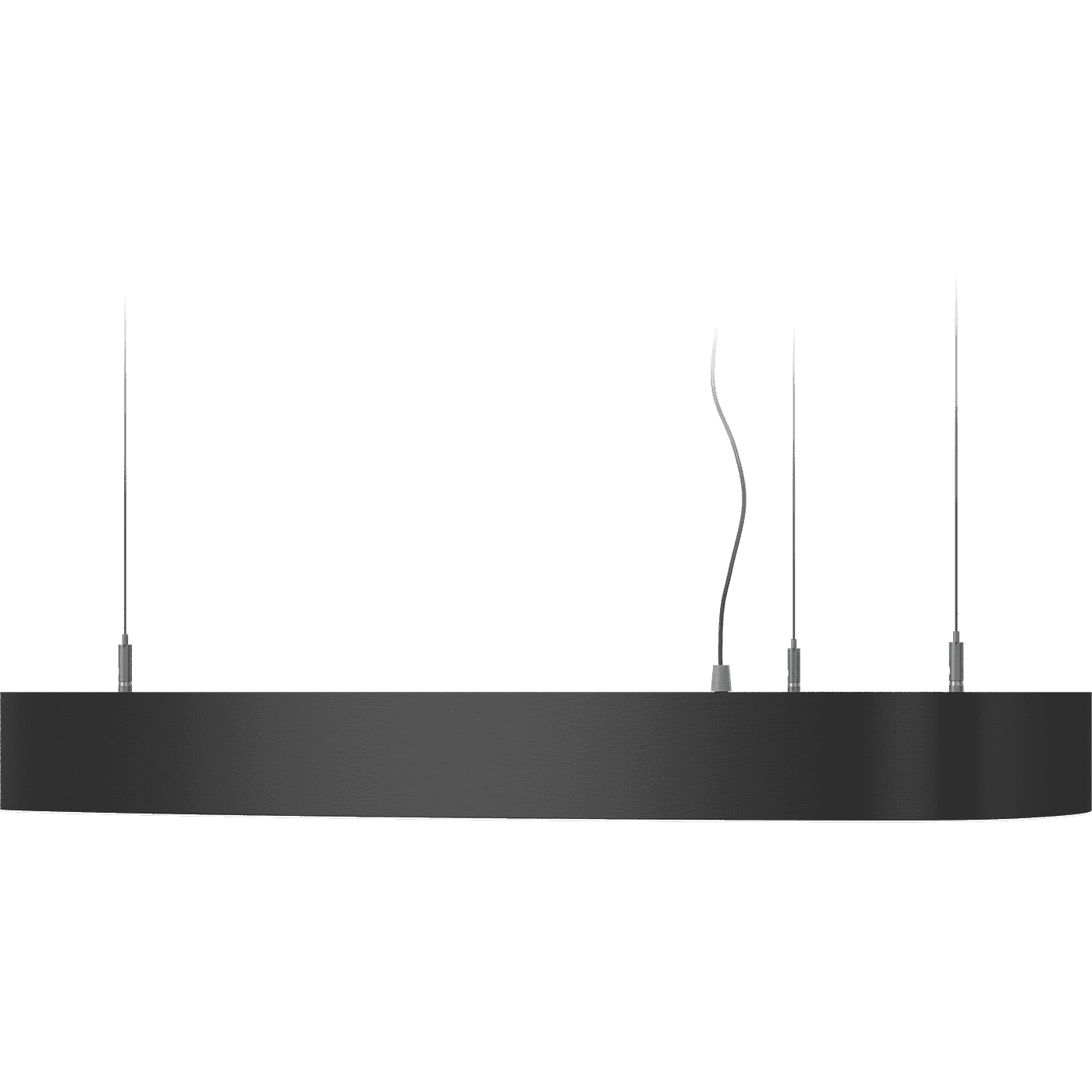

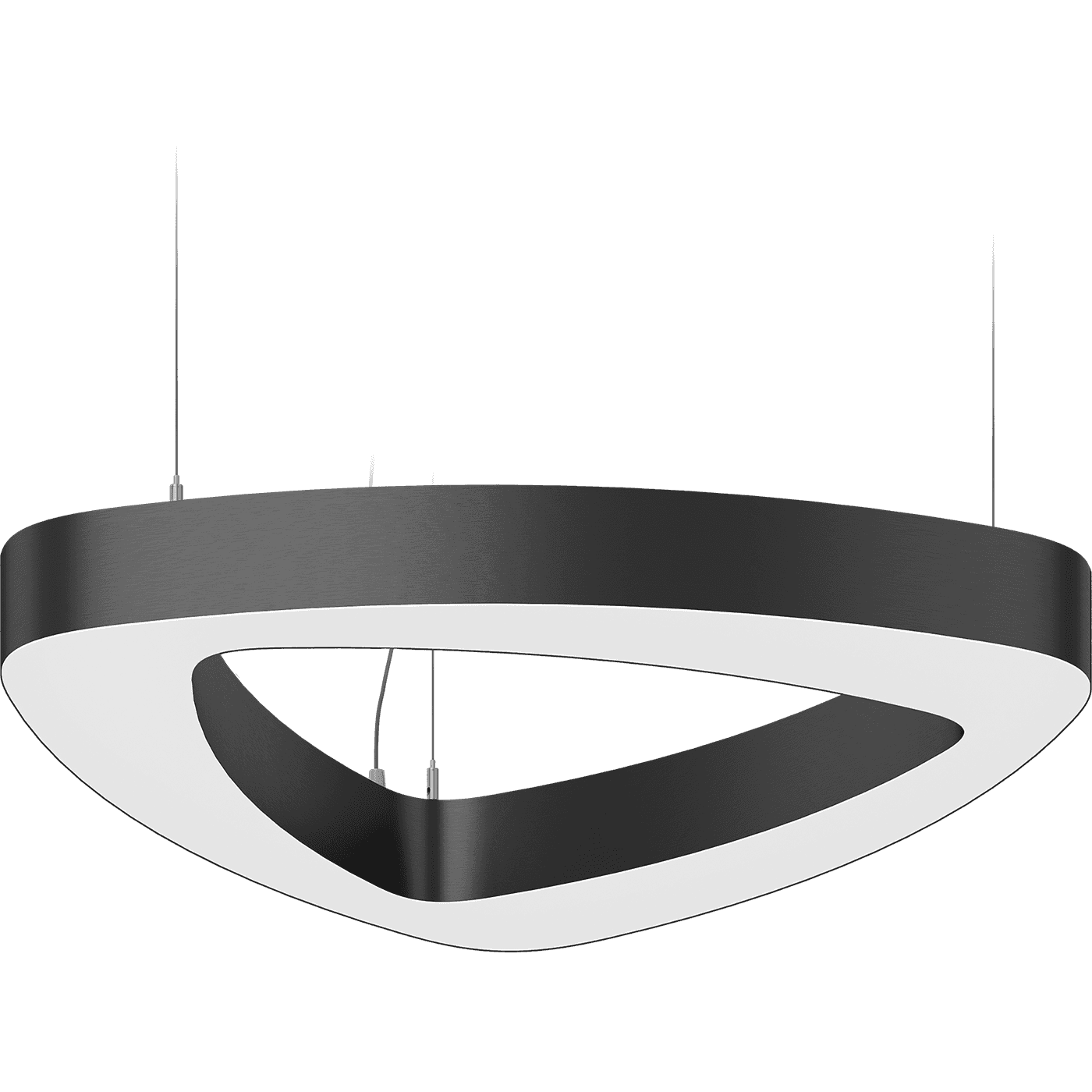

TRIO AS FLD/P (850х60) 840 WH
_840_wh.jpg&w=1920&q=50)
_840_wh.jpg&w=1024&q=50)
TRIO AS FLD/P (850х60) 840 WH
36 Wluminaire power
3500 lmlight flow
97 lm/Wenergy efficiency
code1829000020
color temperature4000
beam angleD120
old nameTRIO.AS/P FLD (850х60) 840 WH
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
97 lm/Wcolor rendition index (CRI)
>80light flow
3500 lmflickering factor
<5%beam angle
D120color temperature
4000light source type
LEDemission color
Белыйilluminating
energy efficiency
97 lm/W
color rendition index (CRI)
>80
light flow
3500 lm
flickering factor
<5%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
electrical
starting current pulse time, µs
400 mks
electric shock protection
I
luminaire power
36 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
40 A
constructional
diameter, mm
850 mm
height, mm
60 mm
installation length, mm
509 mm
installation width, mm
589 mm
weight
4 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
energy efficiency class
A+
ETIM class
Светильник подвесной
code
1829000020
model files
model files

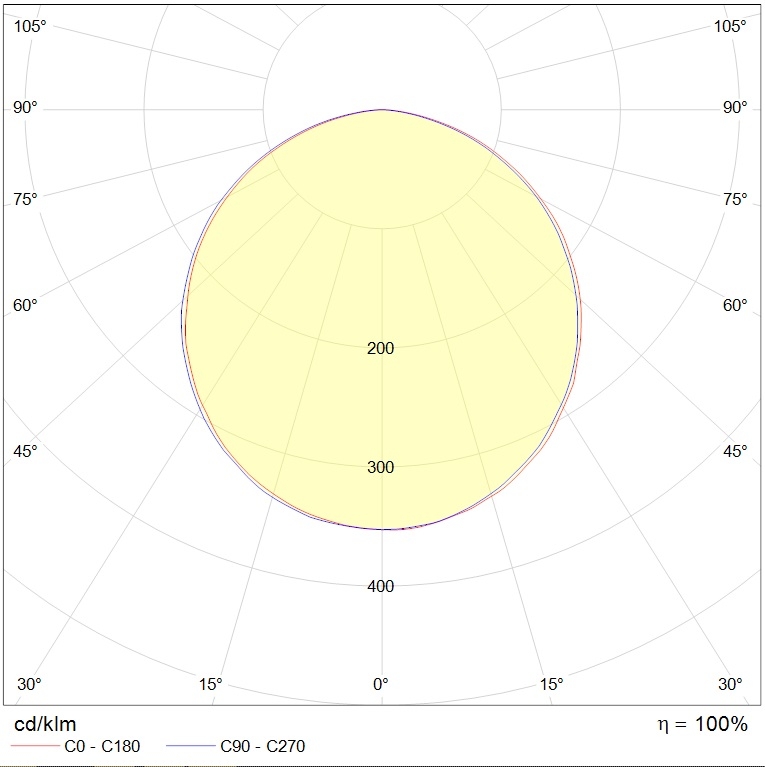

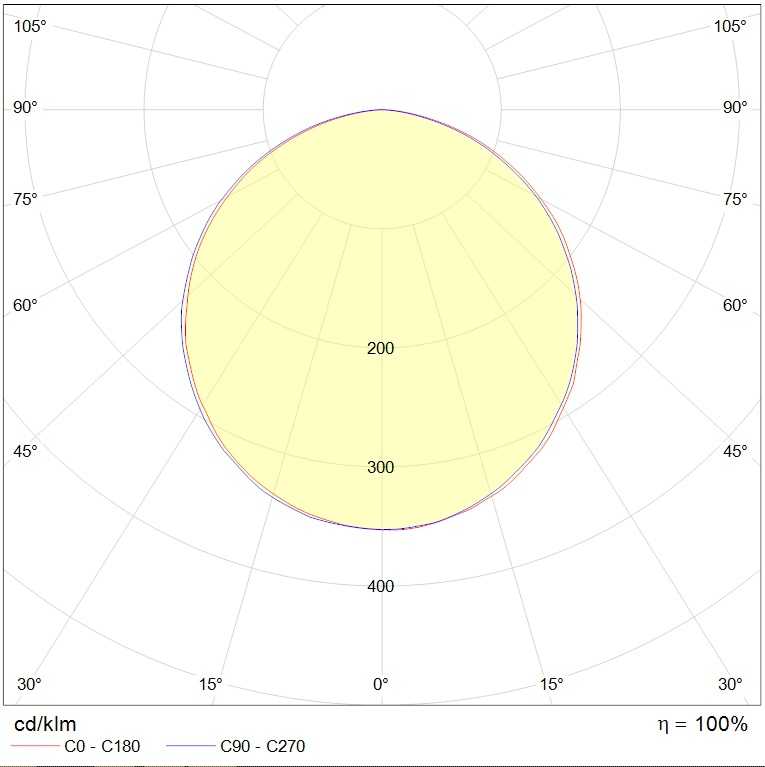

photometric files
сертификаты
photometric files
ies107 kB
jpg78.7 kB
ldt72.2 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011492.3 kB
Declaration of Conformity EAEU TR 037/2016494.3 kB
Fire Safety Certificate2.5 mB
