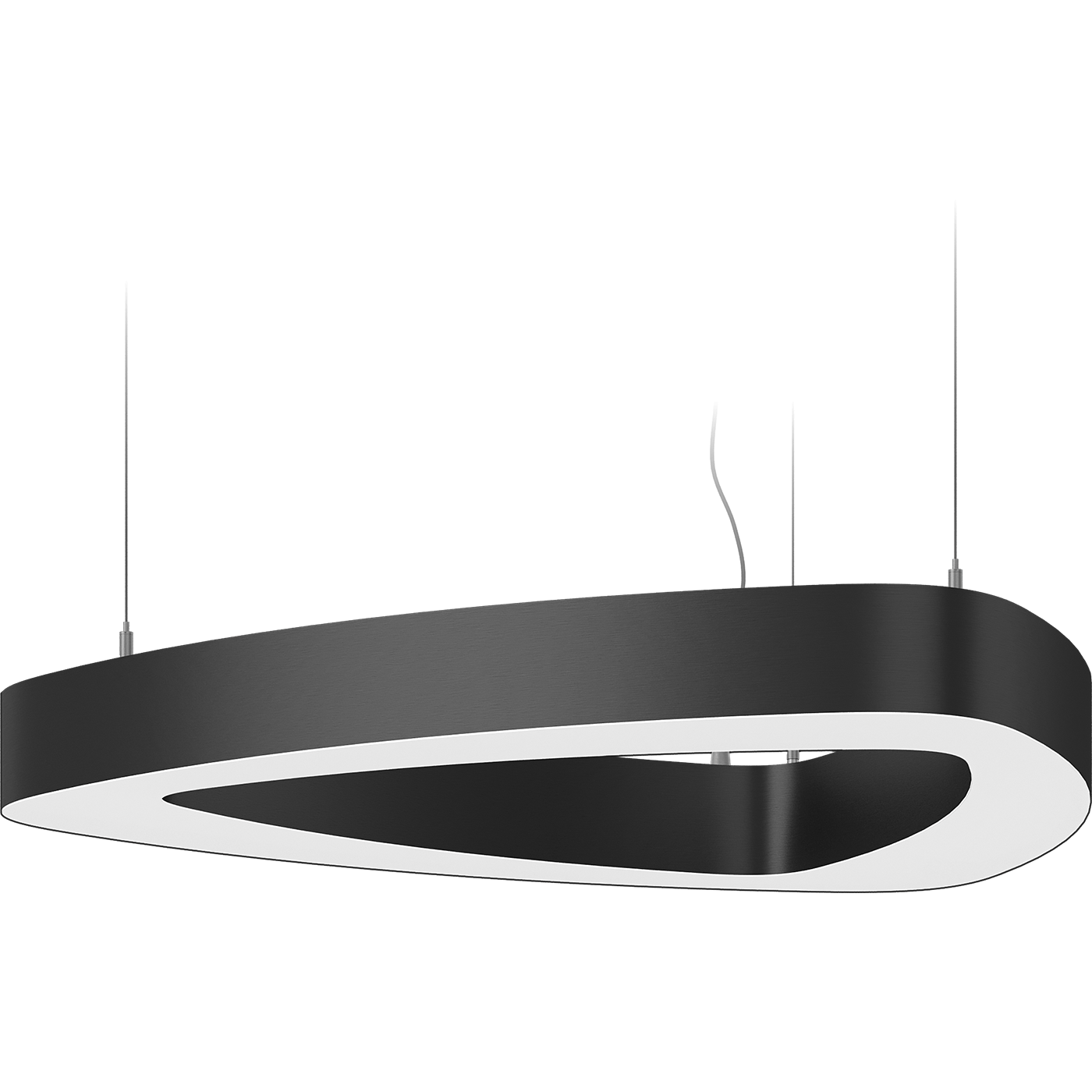

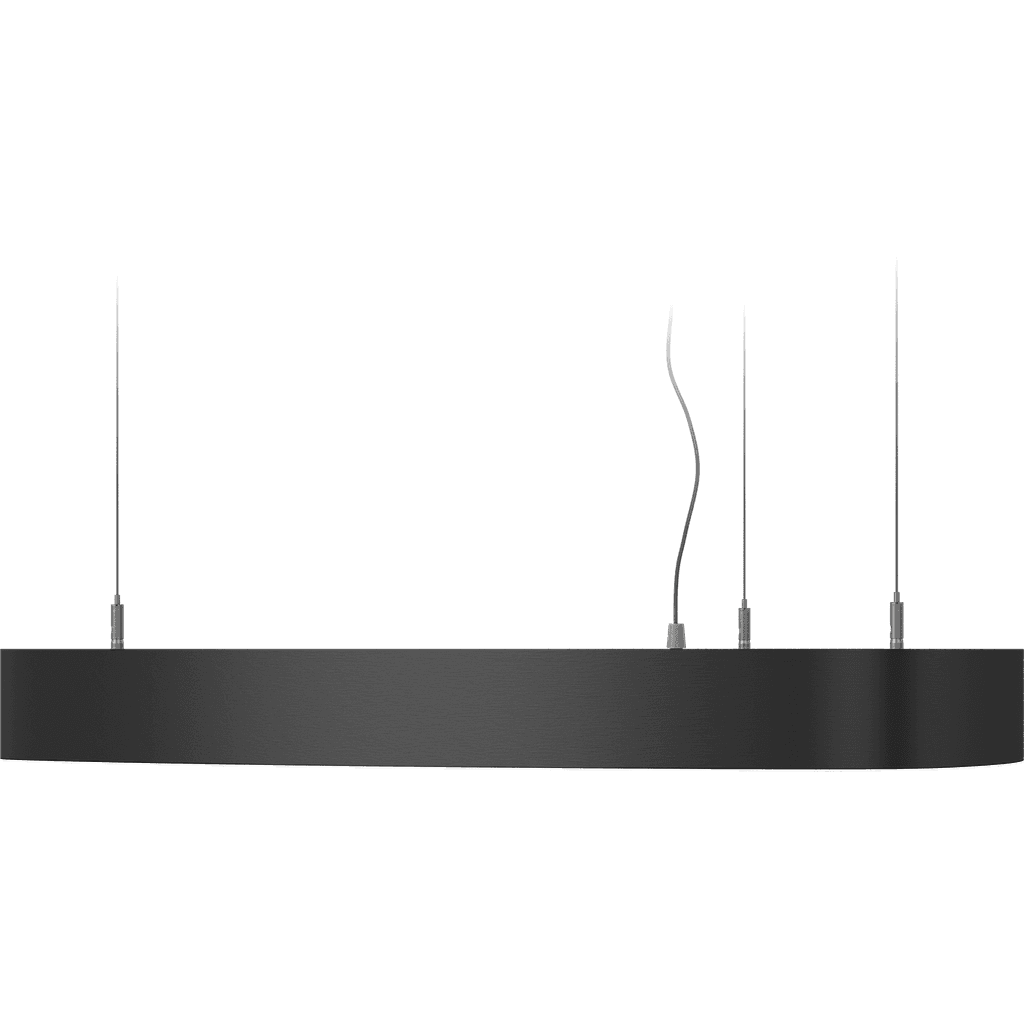

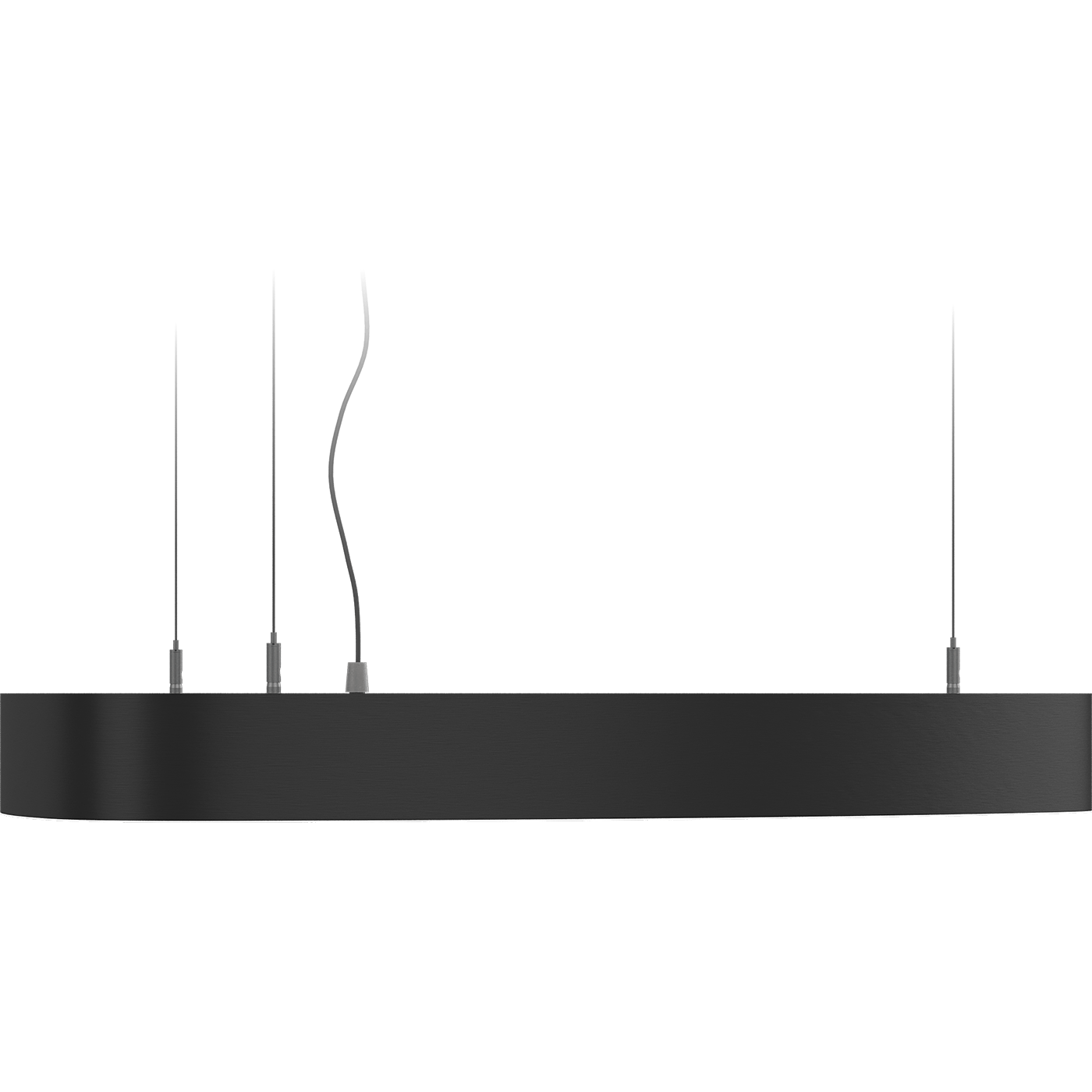

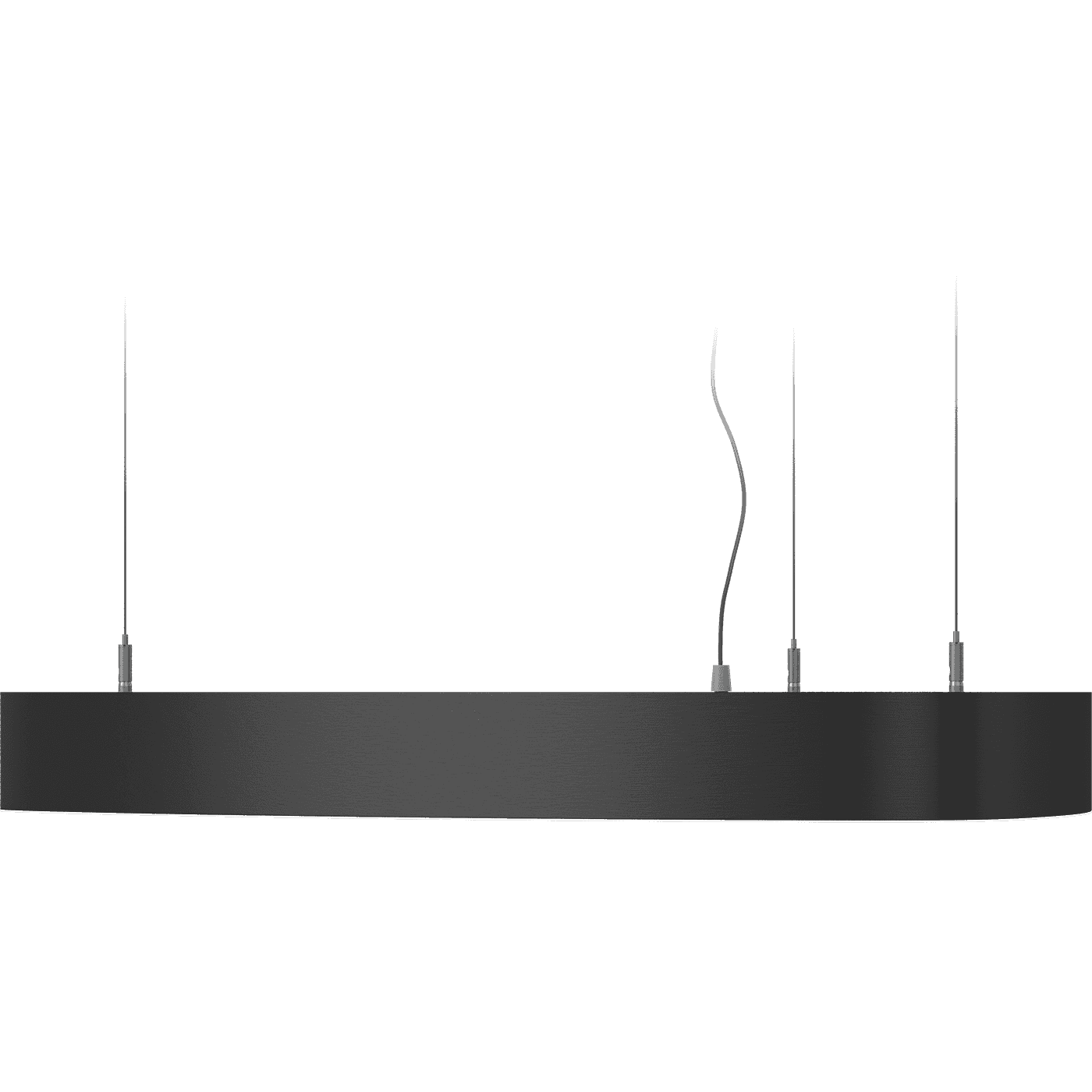

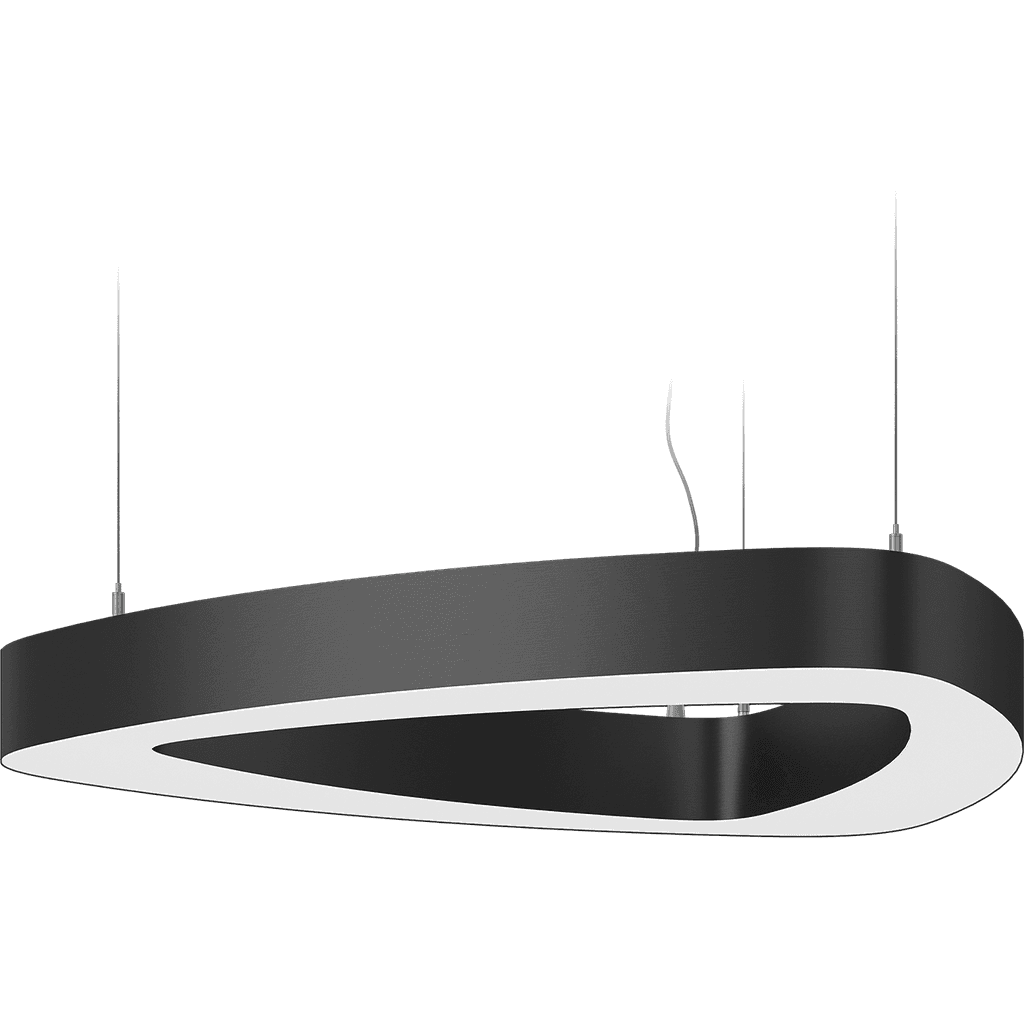

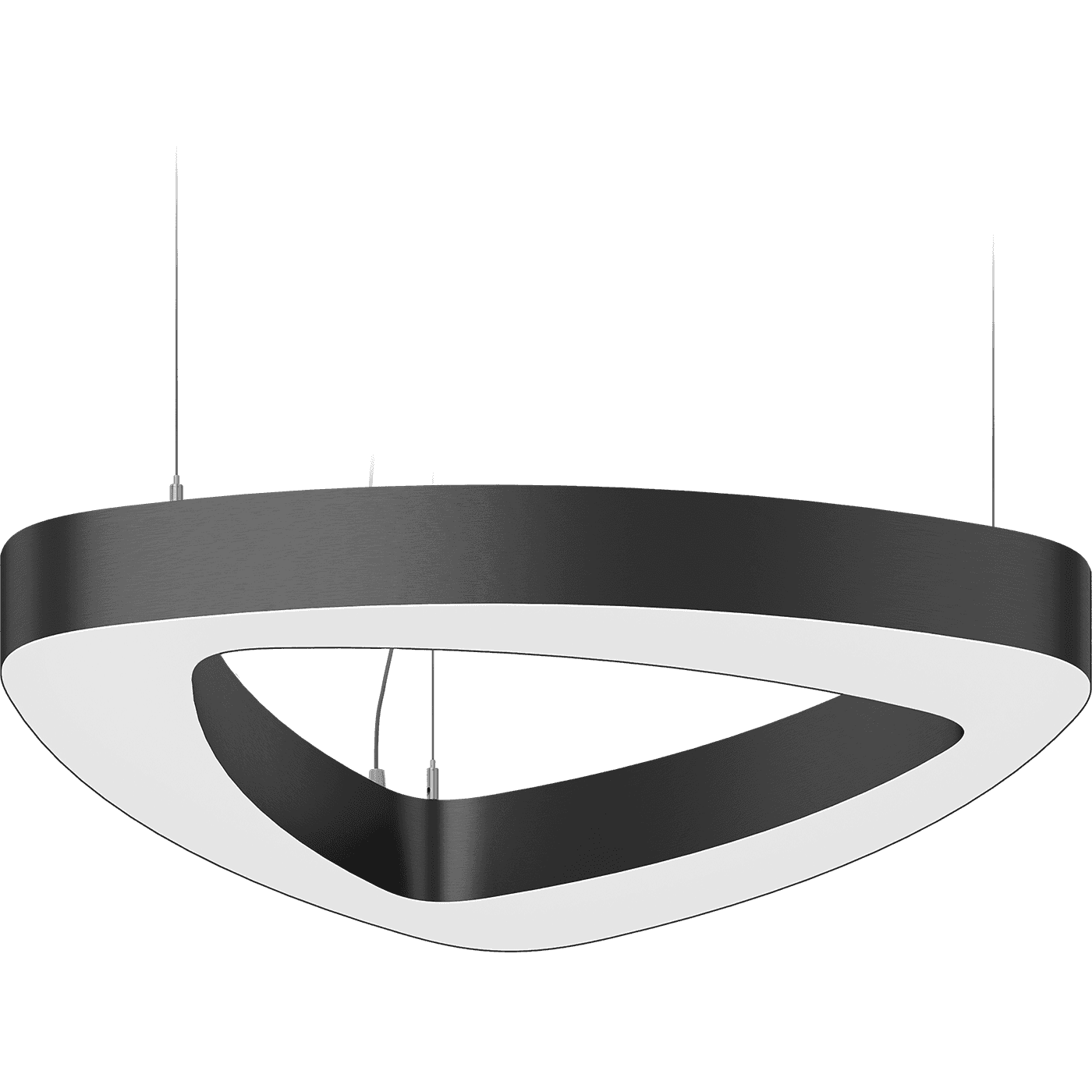

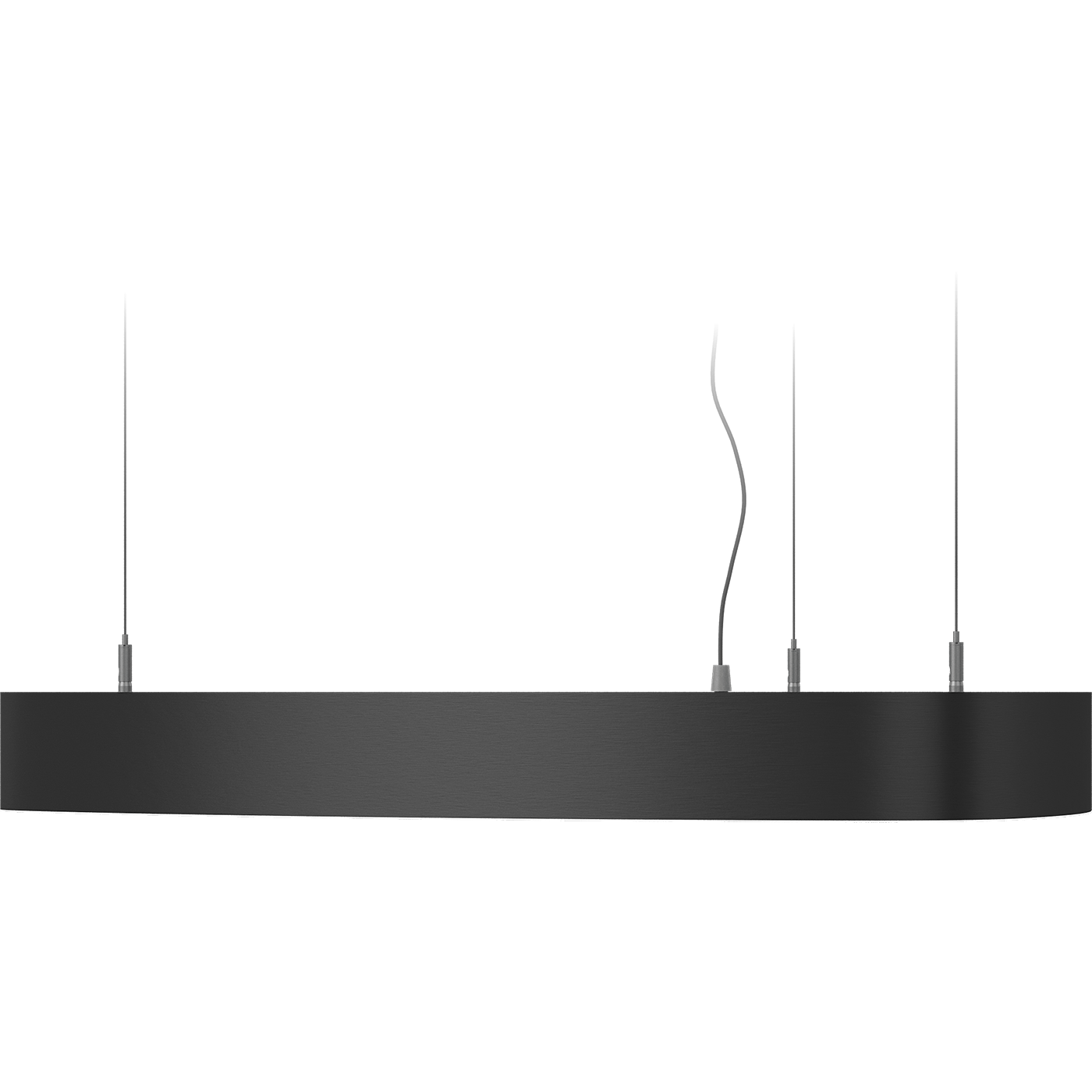

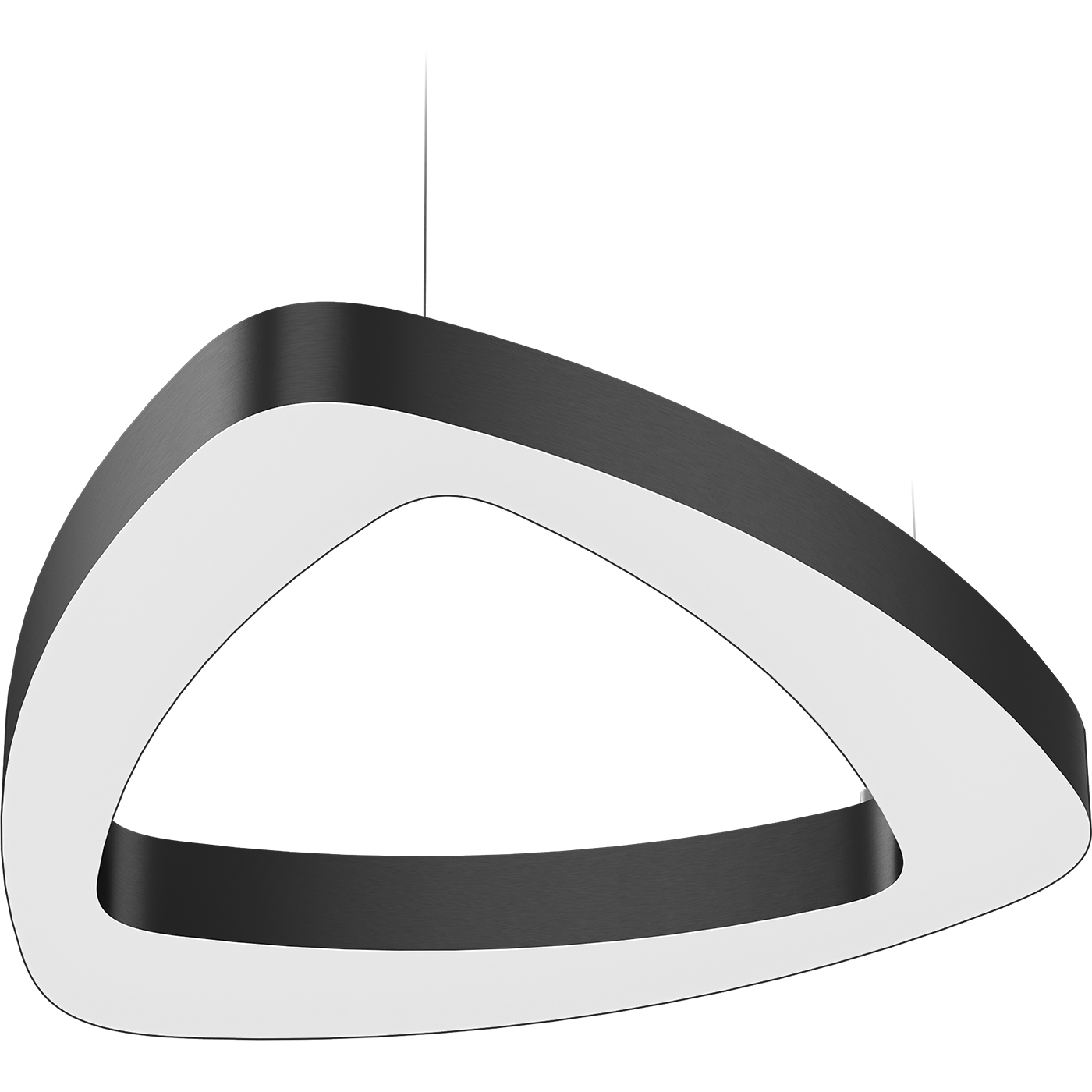

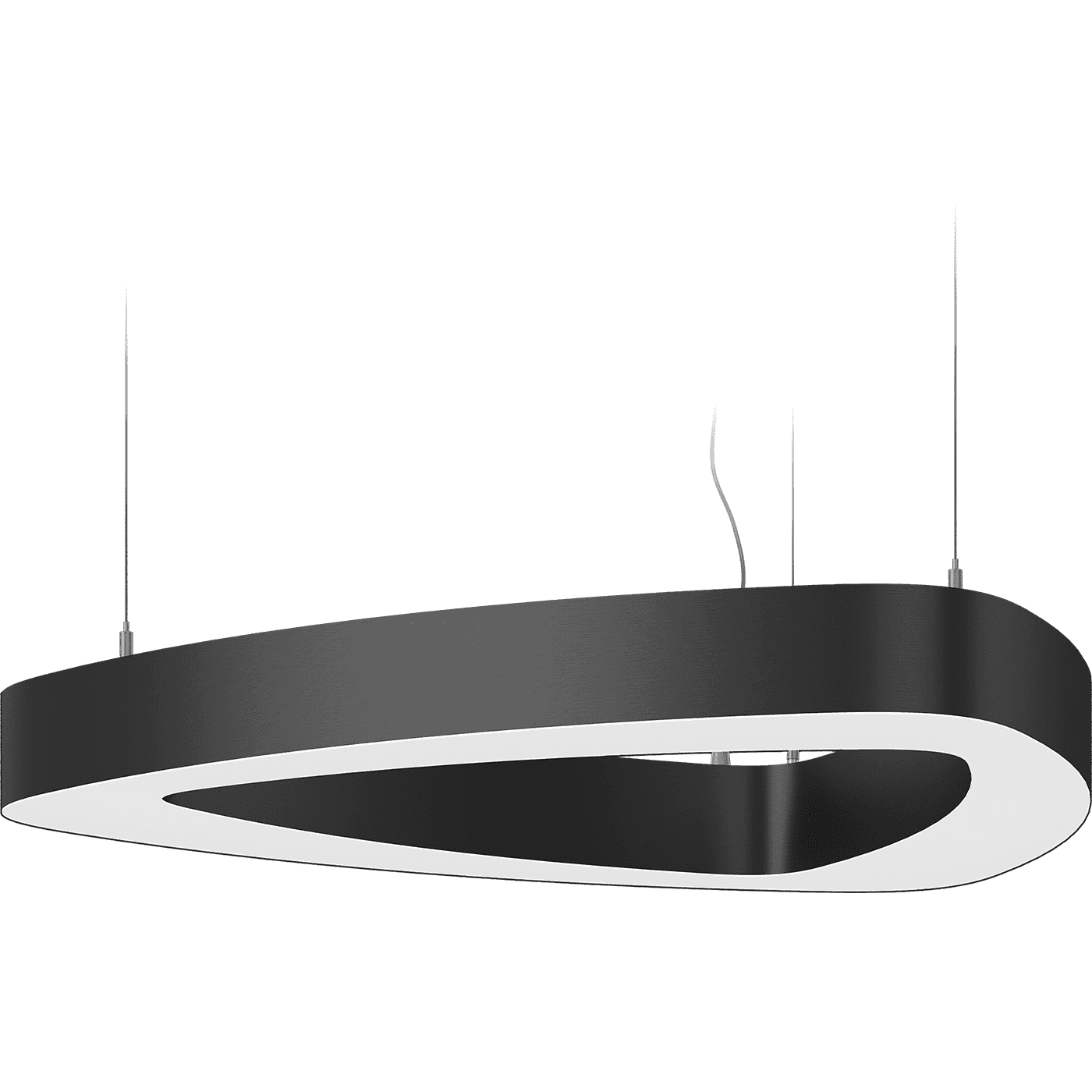

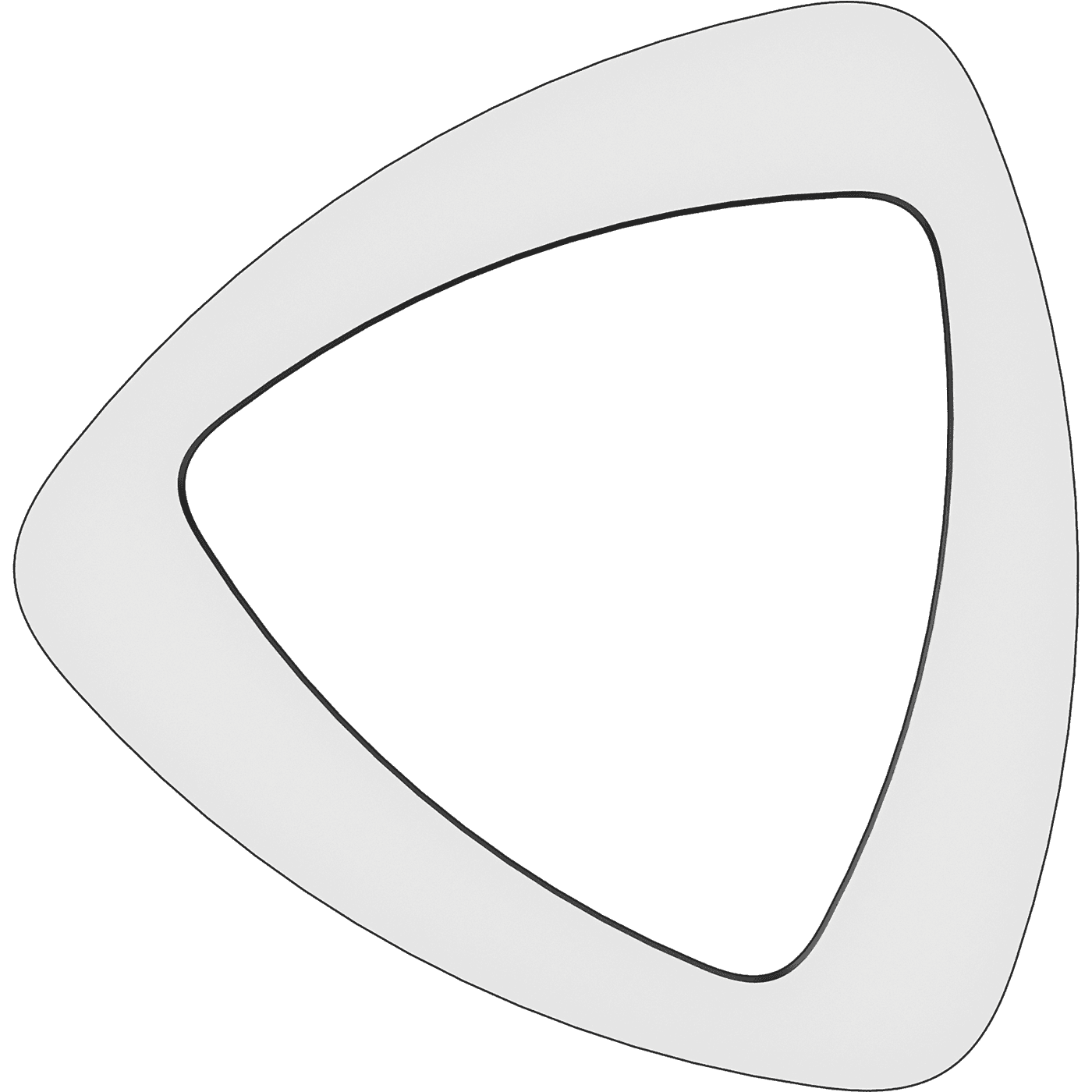

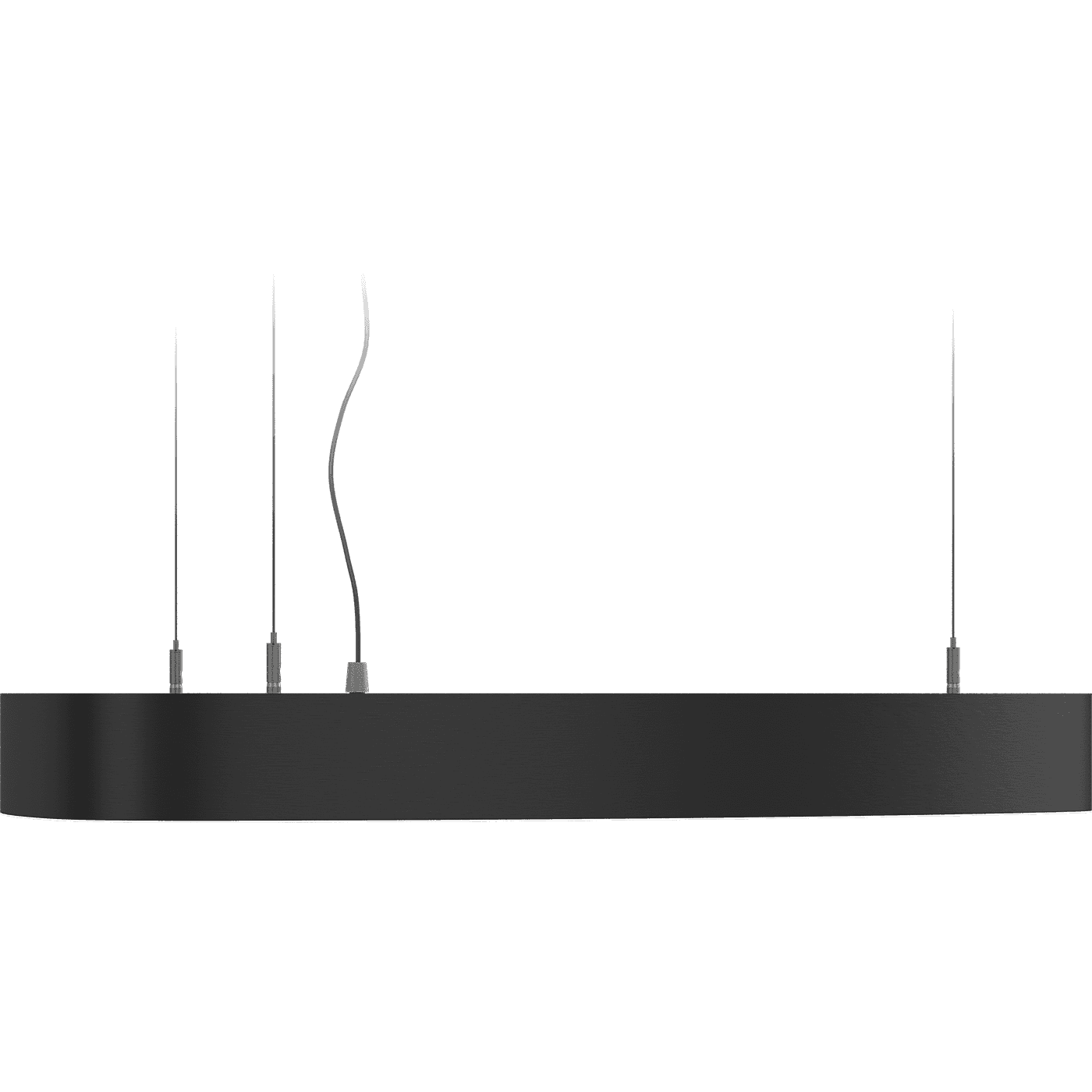

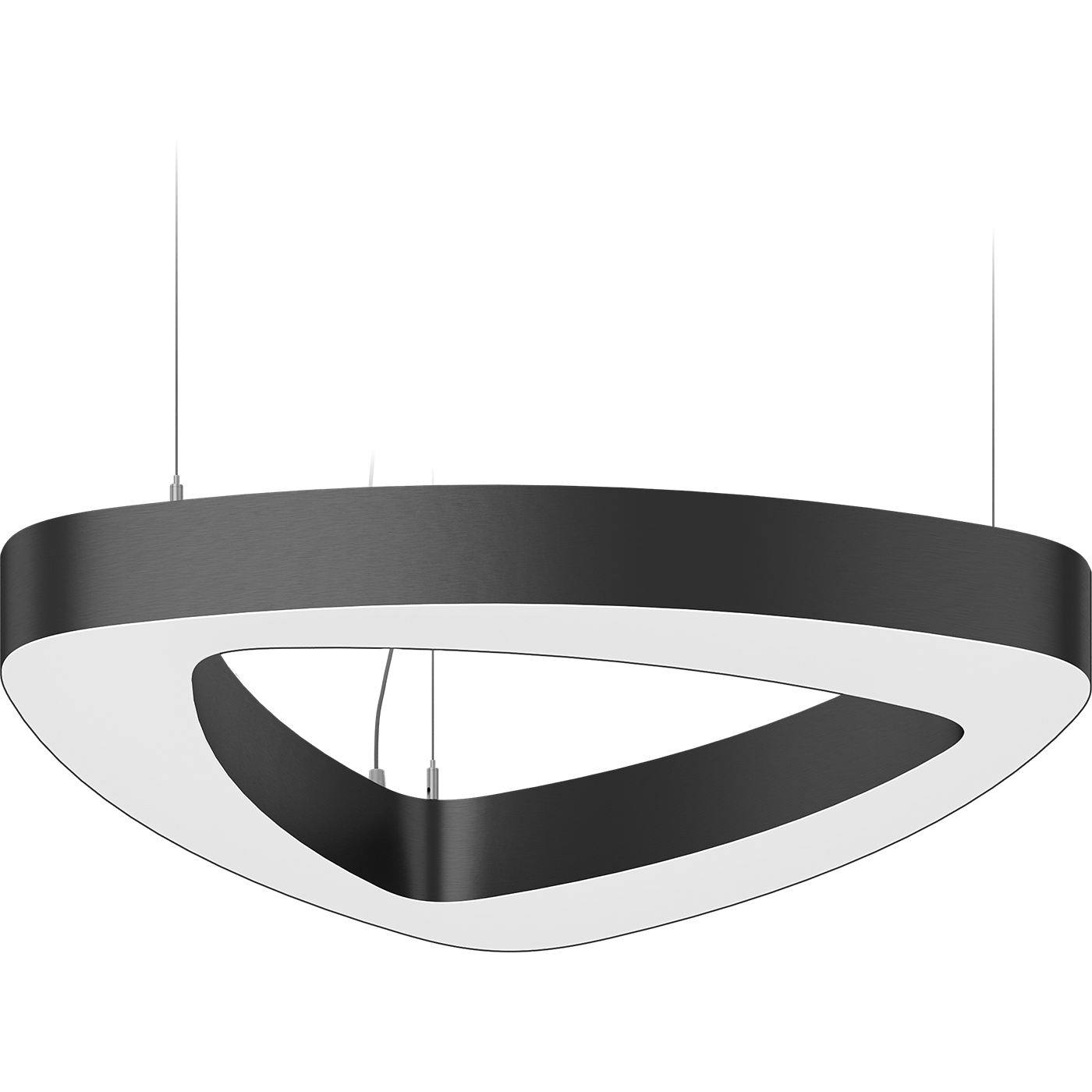

TRIO AS FLD/P (850х60) 840 BL
_840_bl.jpg&w=1920&q=50)
_840_bl.jpg&w=1024&q=50)
TRIO AS FLD/P (850х60) 840 BL
36 Wluminaire power
3500 lmlight flow
97 lm/Wenergy efficiency
code1829000010
color temperature4000
beam angleD120
old nameTRIO.AS/P FLD (850х60) 840 BL
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
electric shock protection
Istarting current
40 Astarting current pulse time, µs
400 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
198-264 Vsupply voltage, direct current
198-280 Vluminaire power
36 Wpower factor
> 0,95supply voltage
230 Velectrical
electric shock protection
I
starting current
40 A
starting current pulse time, µs
400 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
198-264 V
supply voltage, direct current
198-280 V
luminaire power
36 W
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP40
material
Алюминий
housing color
Черный
diameter, mm
850 mm
height, mm
60 mm
weight
4 kg
climatic performance
УХЛ4*
installation length, mm
509 mm
installation width, mm
589 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Светильник подвесной
warranty
36 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
code
1829000010
energy efficiency class
A+
illuminating
color rendition index (CRI)
>80
light flow
3500 lm
flickering factor
<5%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
energy efficiency
97 lm/W
model files
model files

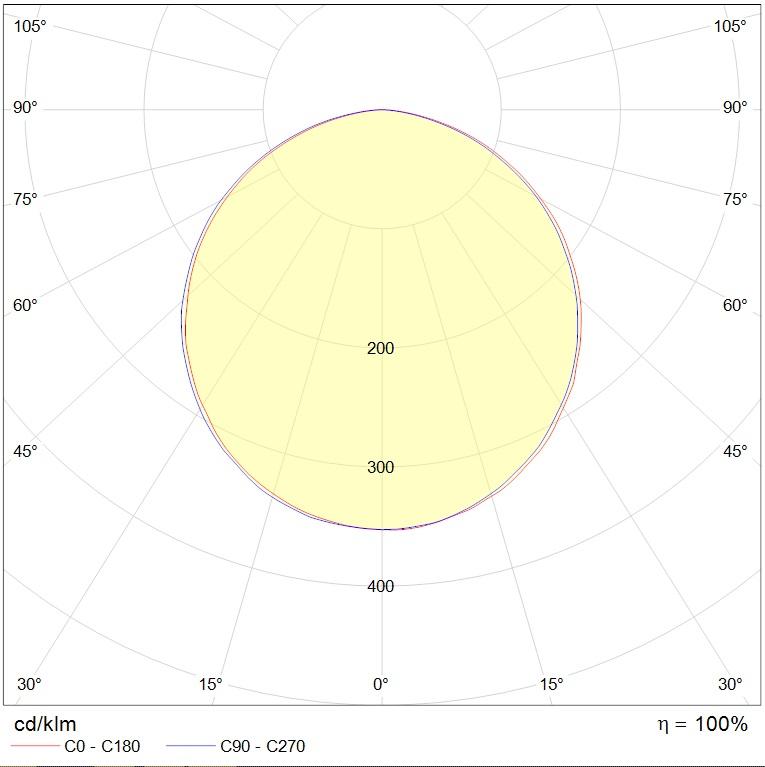

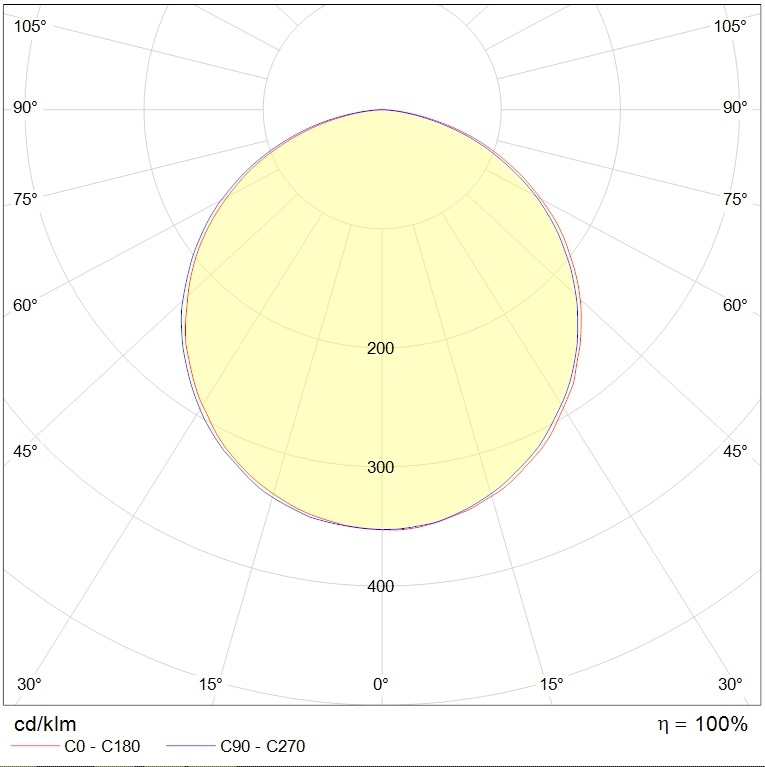

photometric files
сертификаты
photometric files
ies107 kB
jpg78.7 kB
ldt72.2 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011492.3 kB
Declaration of Conformity EAEU TR 037/2016494.3 kB
Fire Safety Certificate2.5 mB
