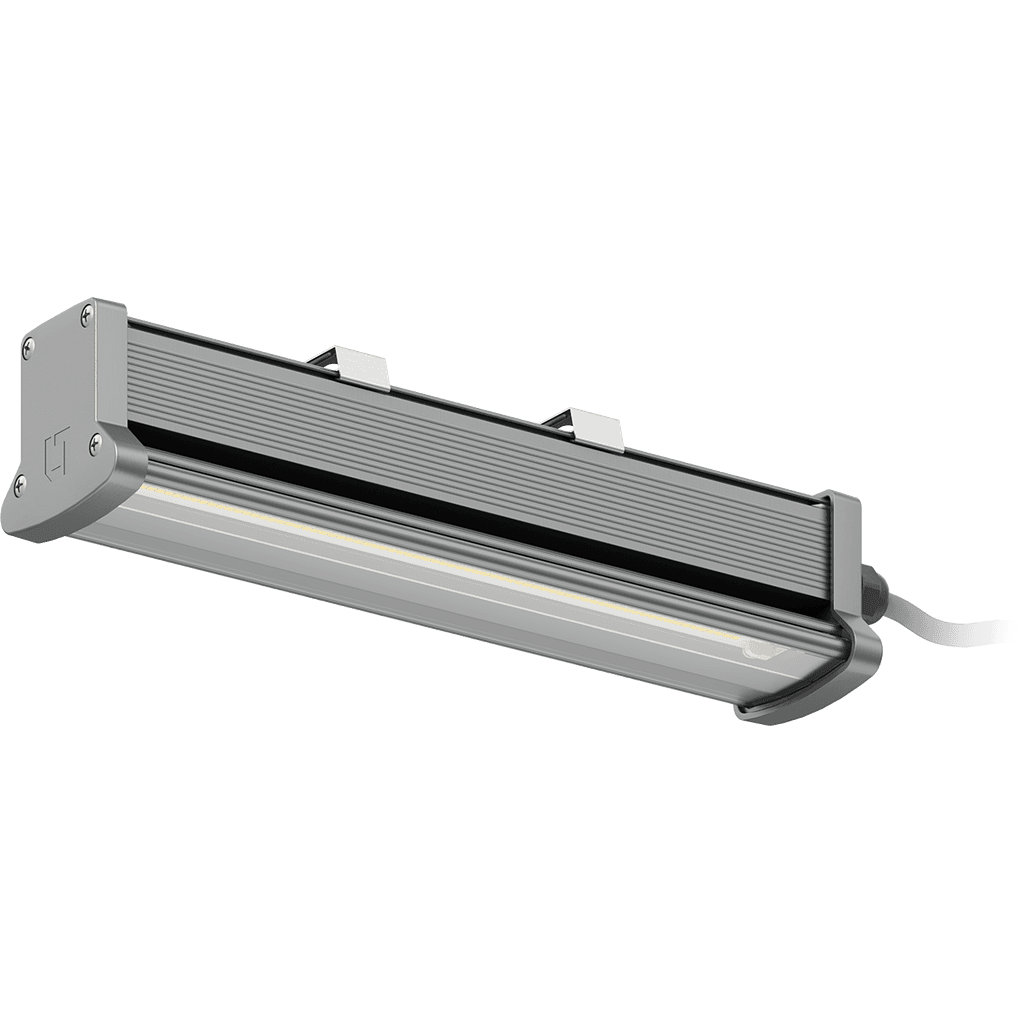

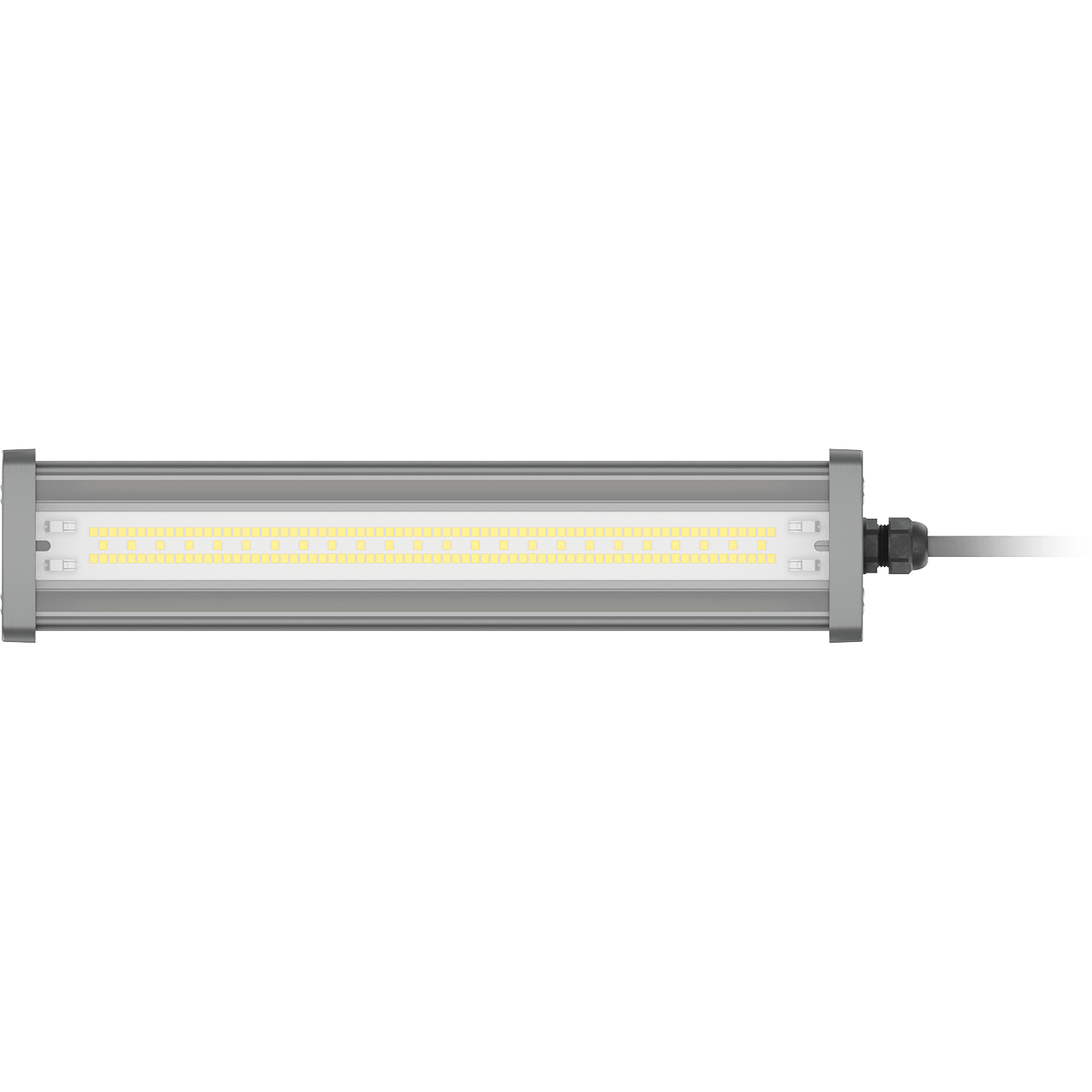

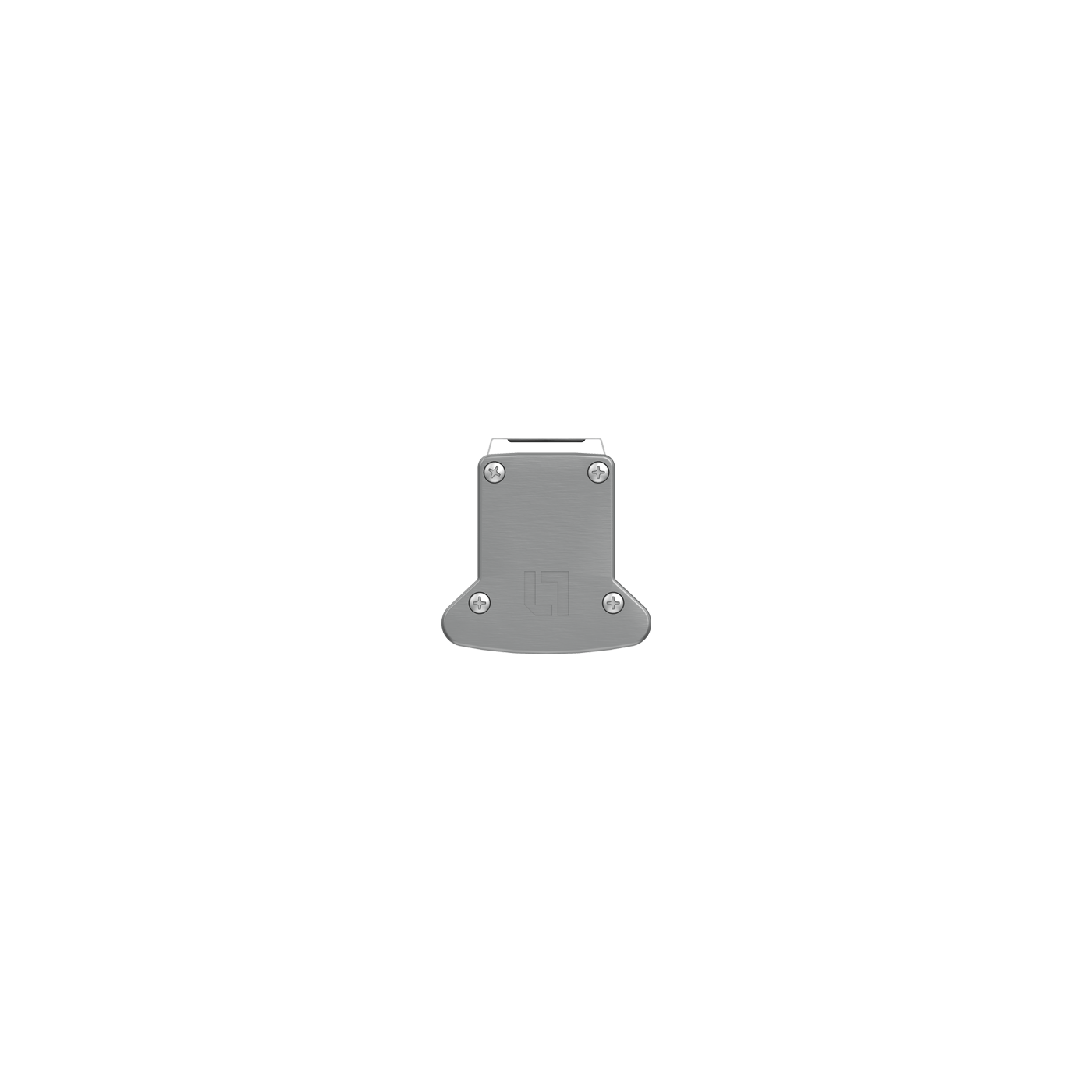

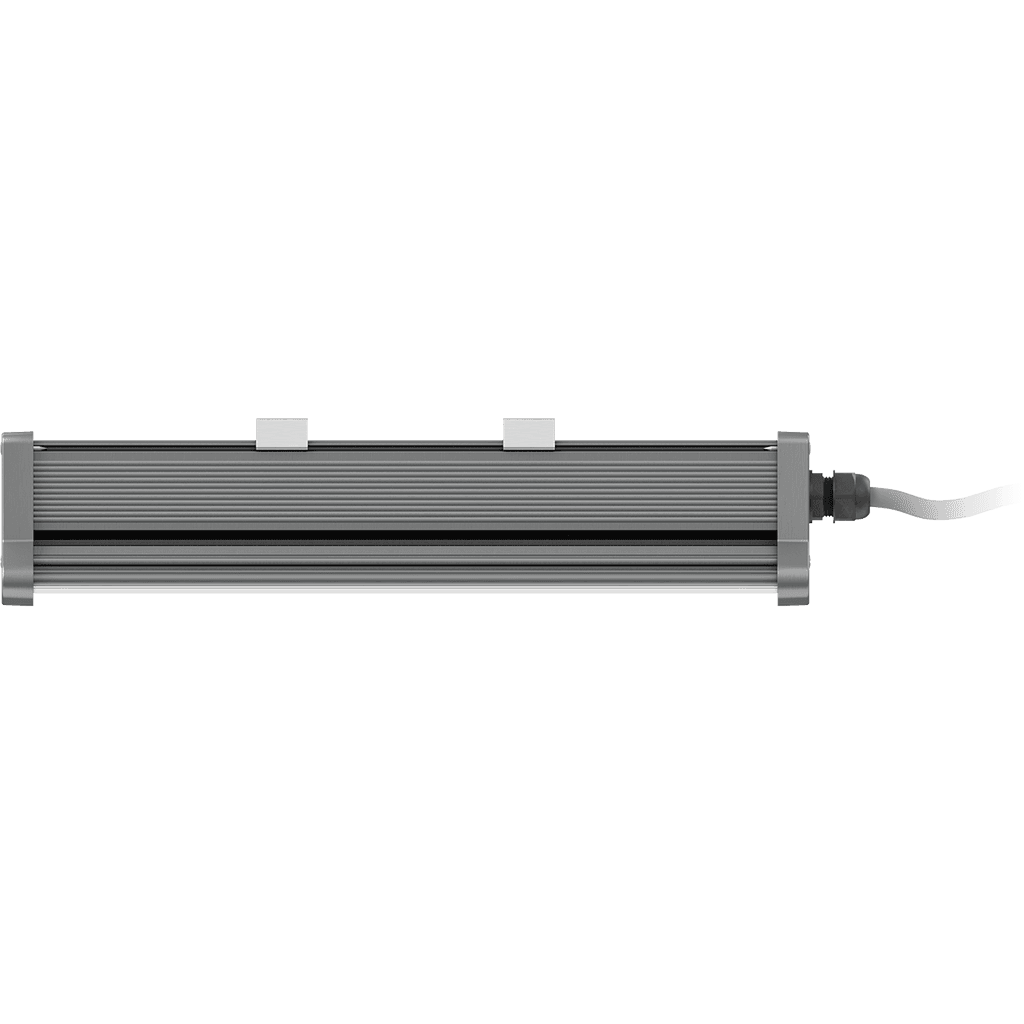

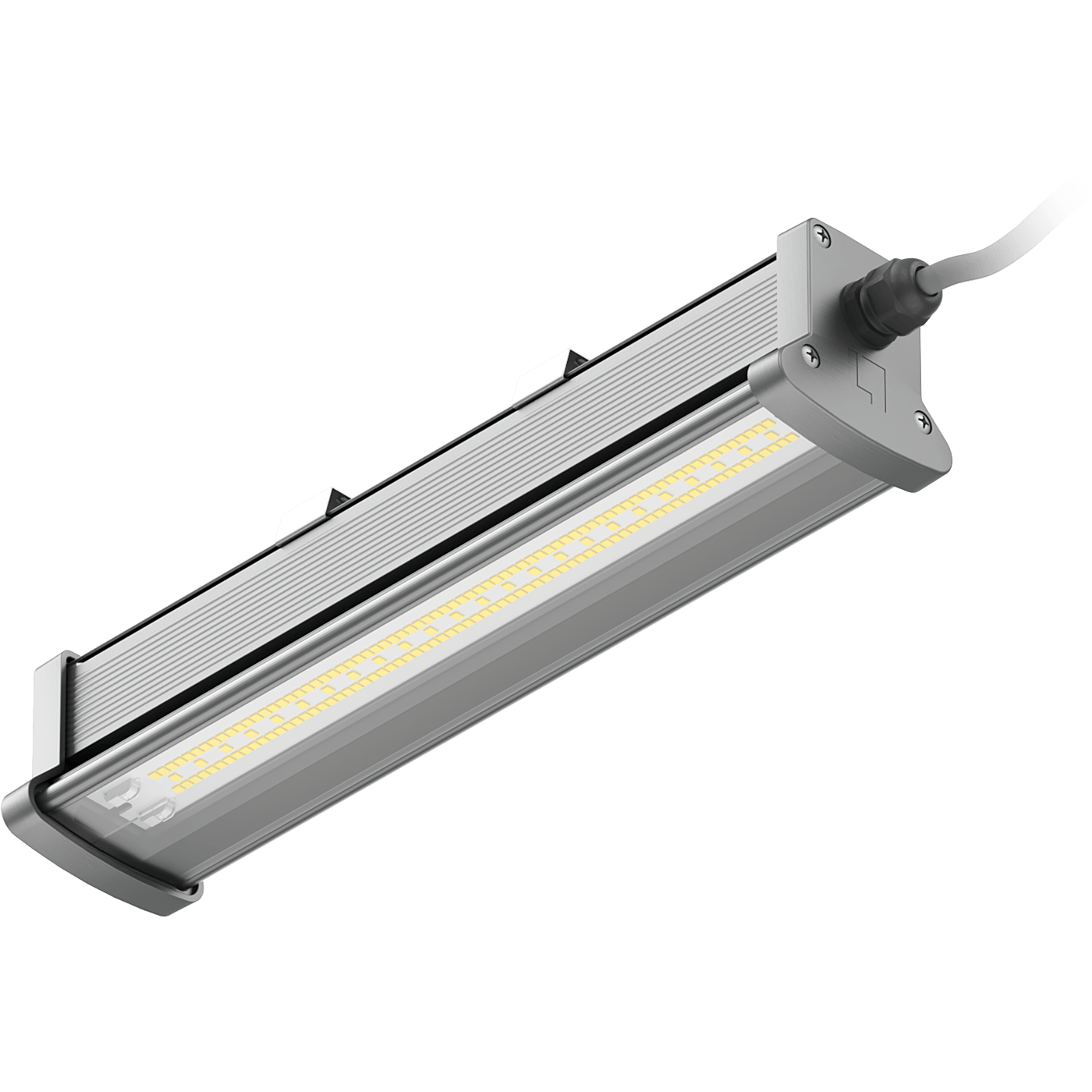

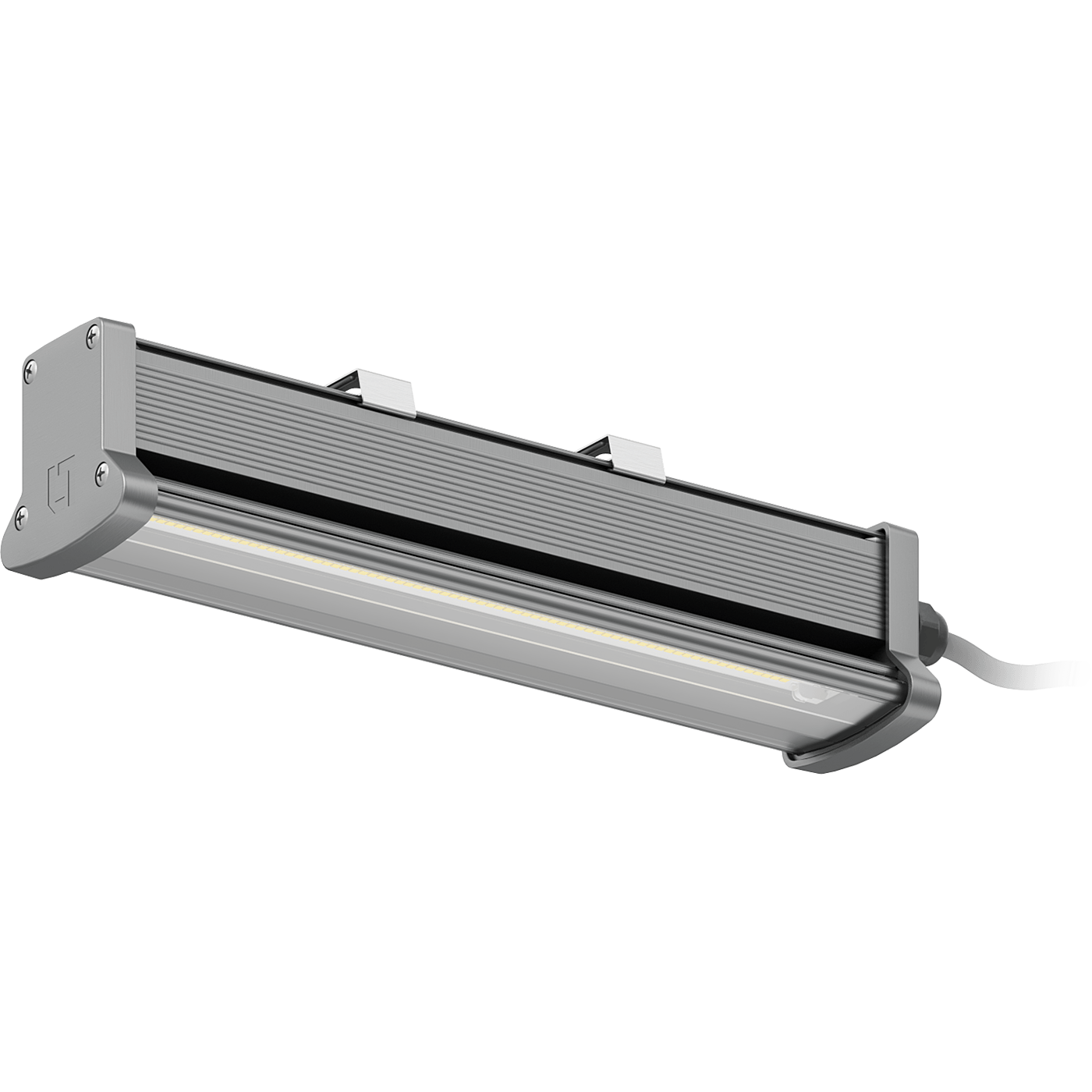

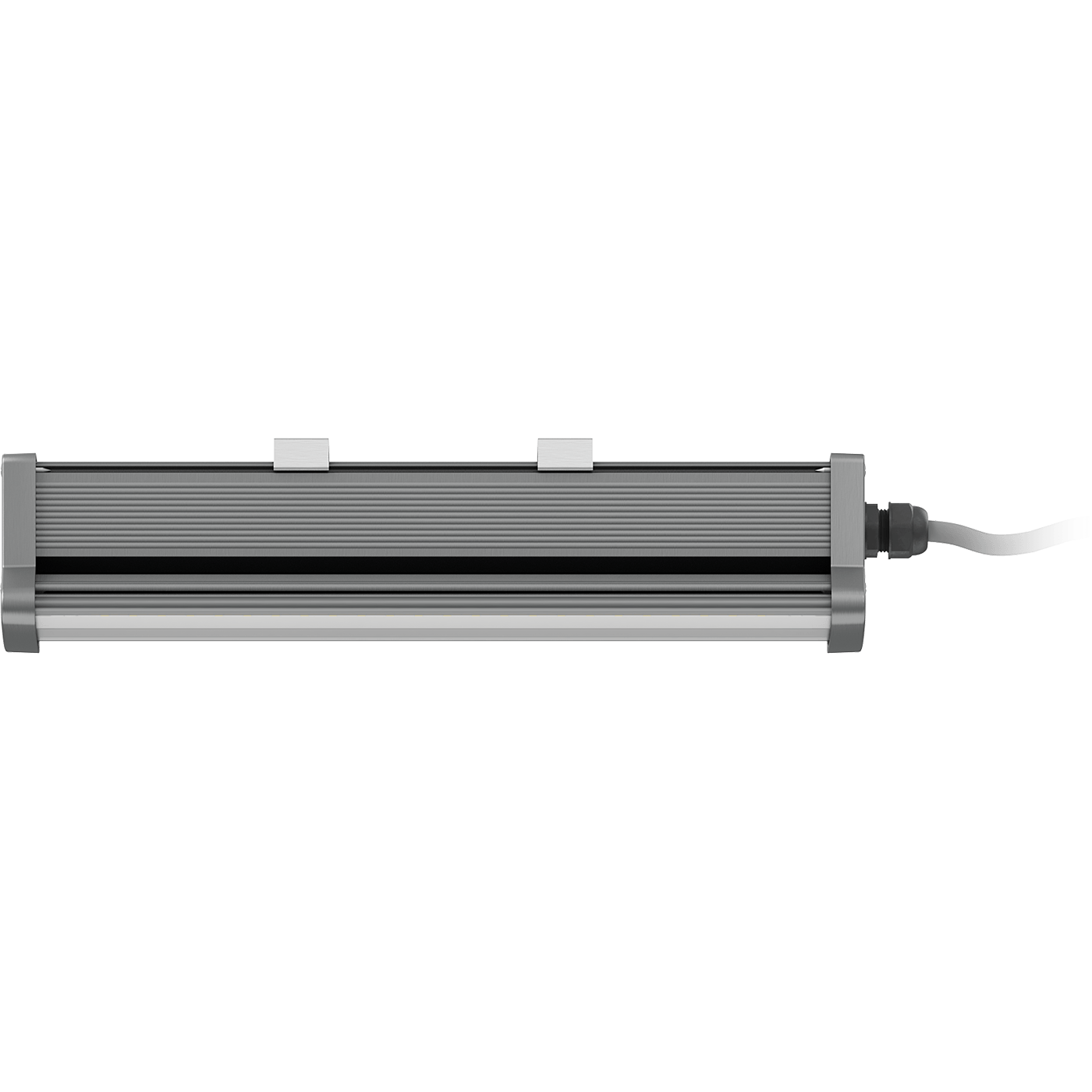

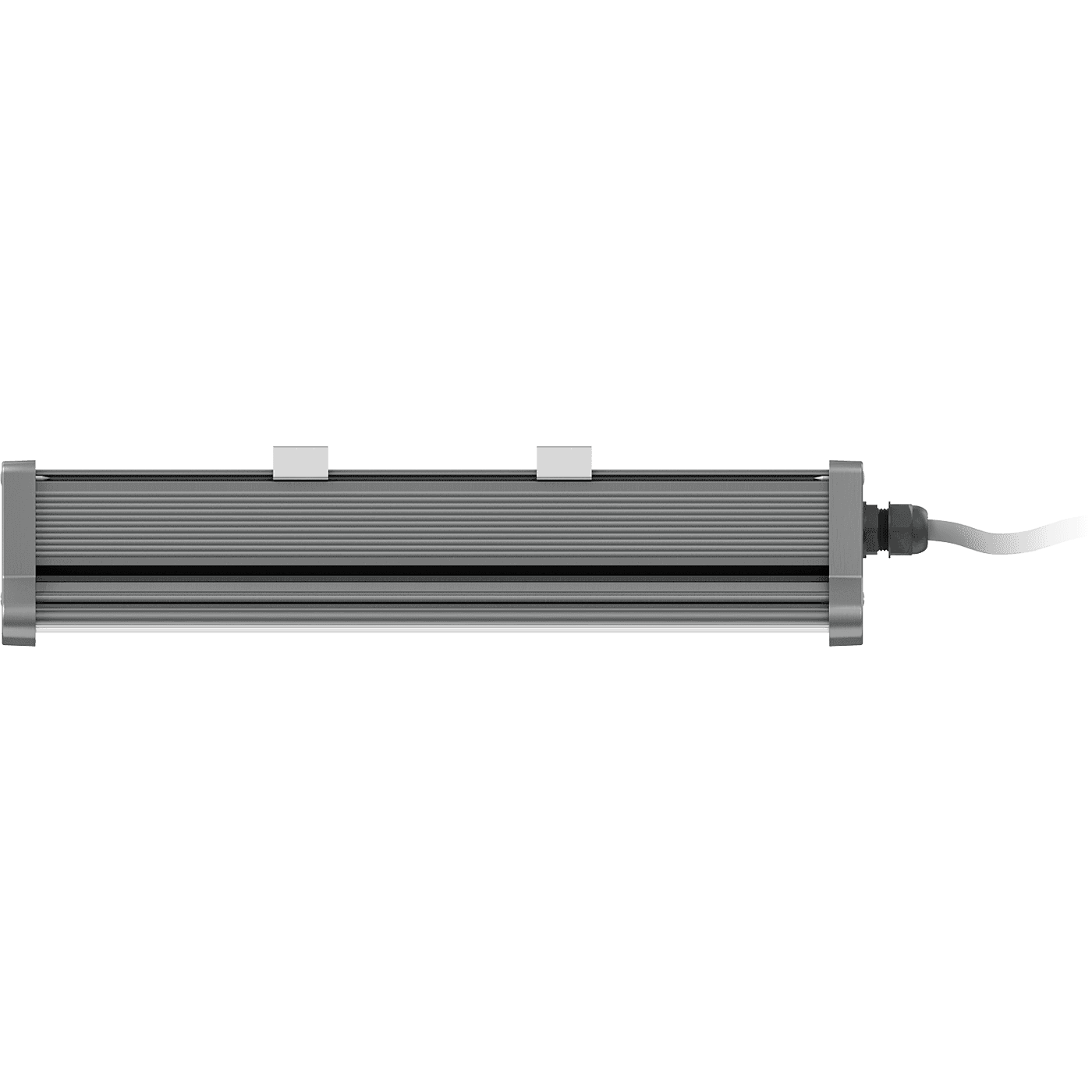

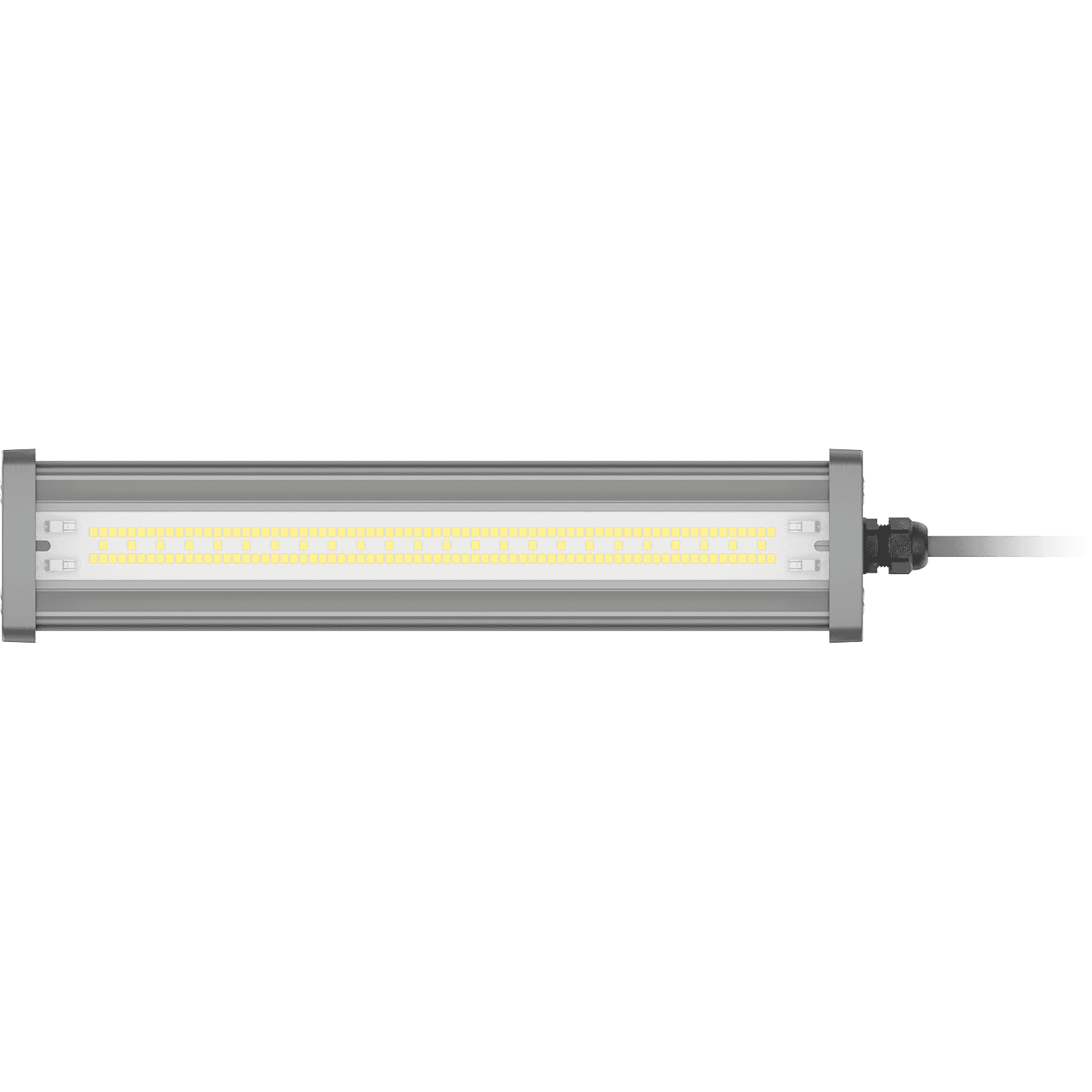

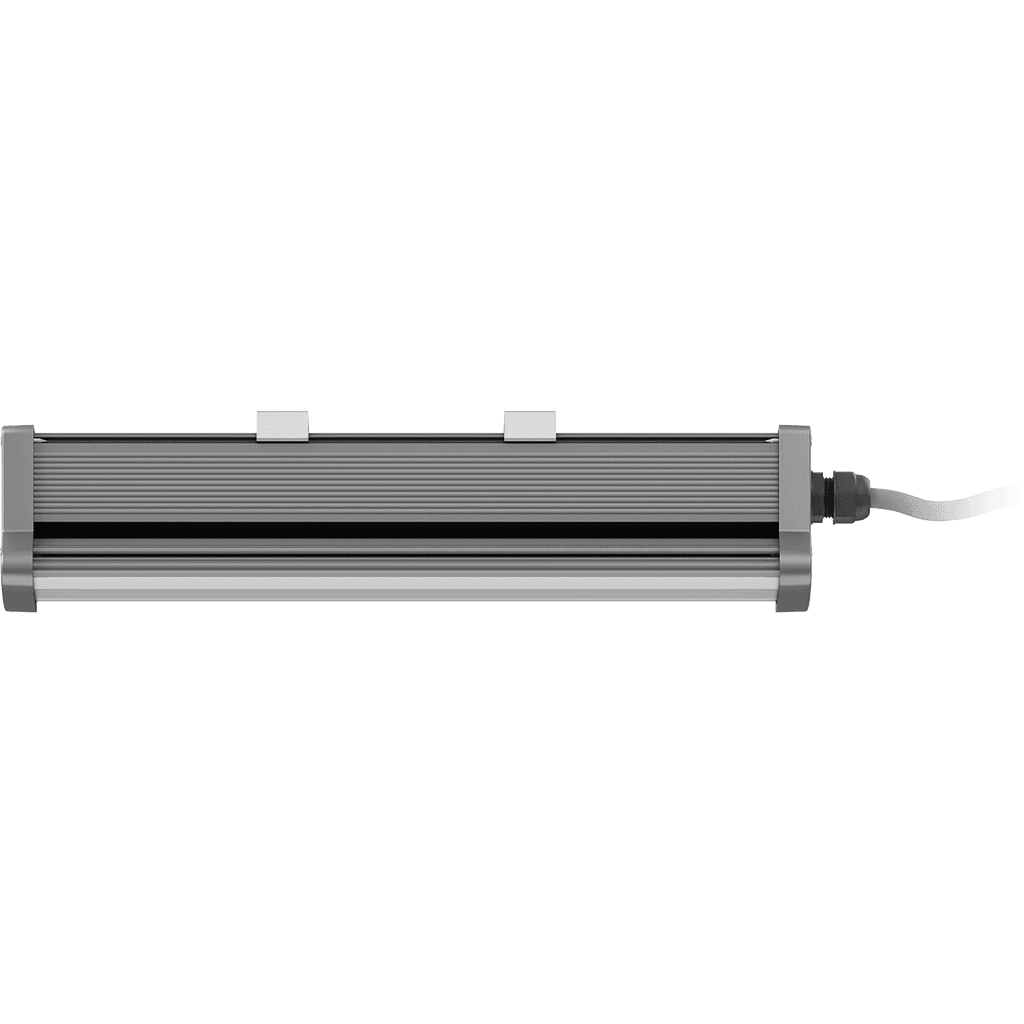

TRAY/S (350) 12W PRS 750 GY
TRAY/S (350) 12W PRS 750 GY
14 Wluminaire power
2100 lmlight flow
150 lm/Wenergy efficiency
code1946000010
color temperature5000 K
beam angleD120
weight0.8 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>70light flow
2100 lmflickering factor
<1%energy efficiency
150 lm/Wbeam angle
D120color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>70
light flow
2100 lm
flickering factor
<1%
energy efficiency
150 lm/W
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
14 W
electric shock protection
I
maximum cross-section of the connected cable
1.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
supply voltage
230 V
starting current pulse time
150 µs
constructional
shock resistance (IK)
IK07/2 Дж
climatic performance
УХЛ1*
material
Алюминий
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP65
weight
0.8 kg
length
390 mm
width
70 mm
height
75 mm
installation length
280 mm
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A++
service life
50 000 h
temperature range
от -40 до +50 C
code
1946000010
model files
model files

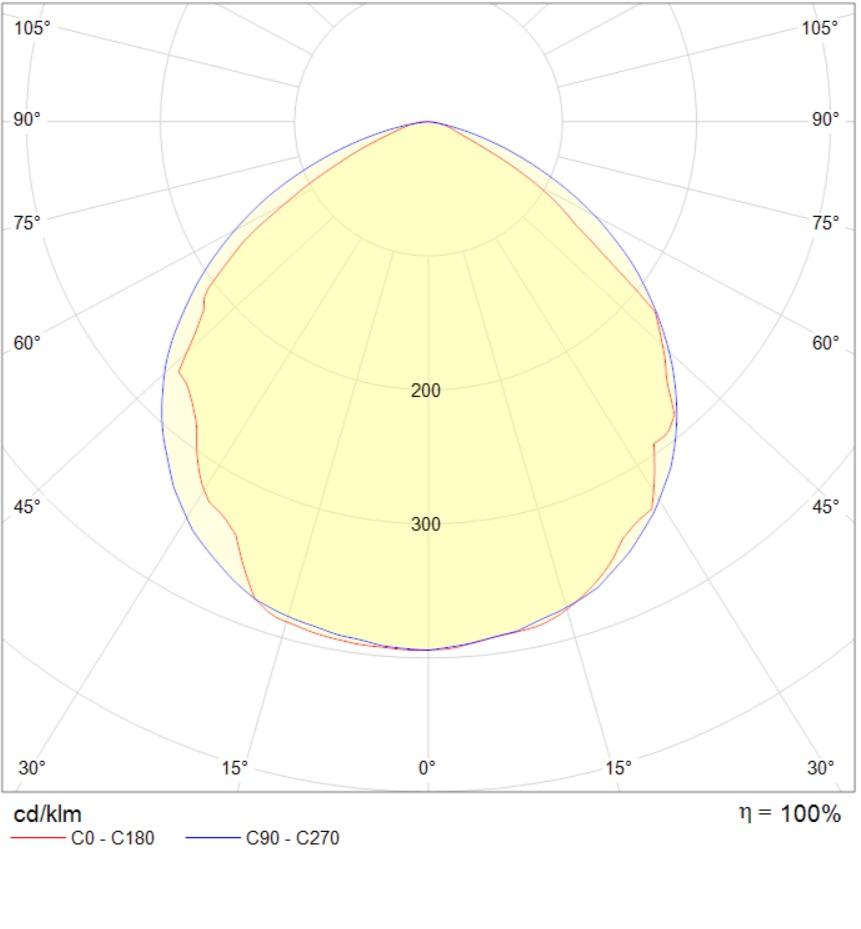

photometric files
documents
сертификаты
photometric files
ies107.1 kB
jpg81.7 kB
ldt71.8 kB
documents
passport925.1 kB
сертификаты
Russian origin239.9 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
accessories
3-pole I-shape connector for Industrial luminaires0.03kgarticle: 2909004330
