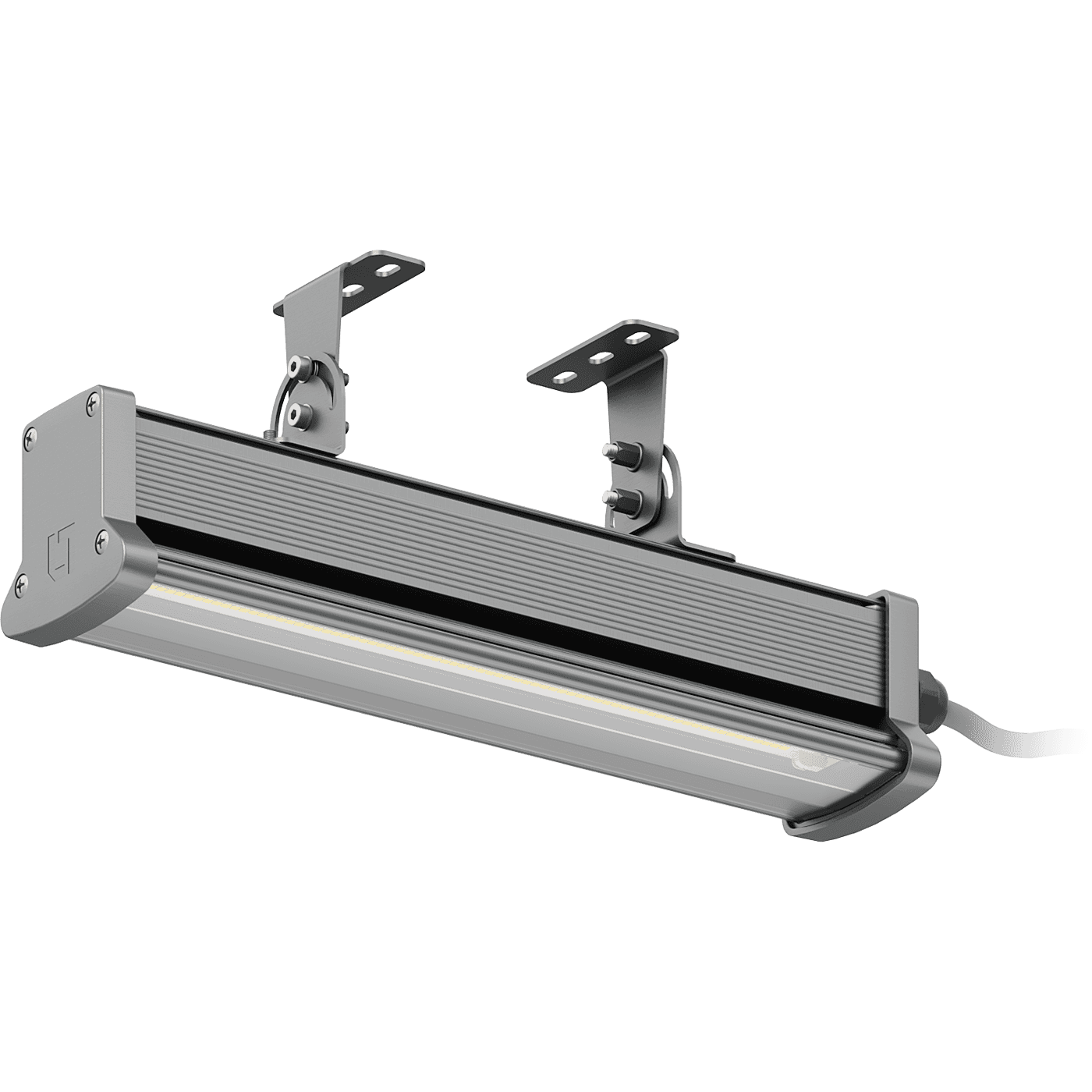

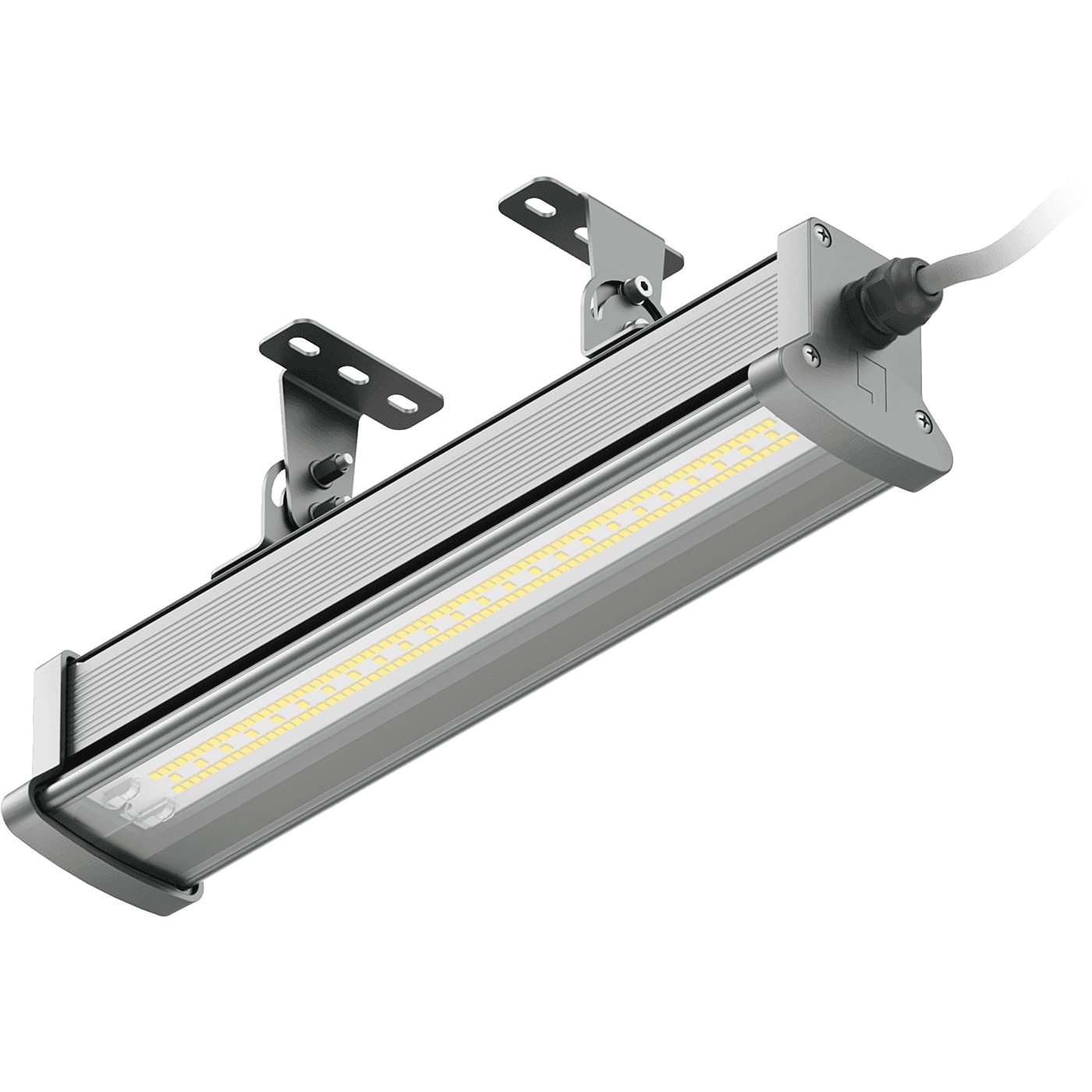

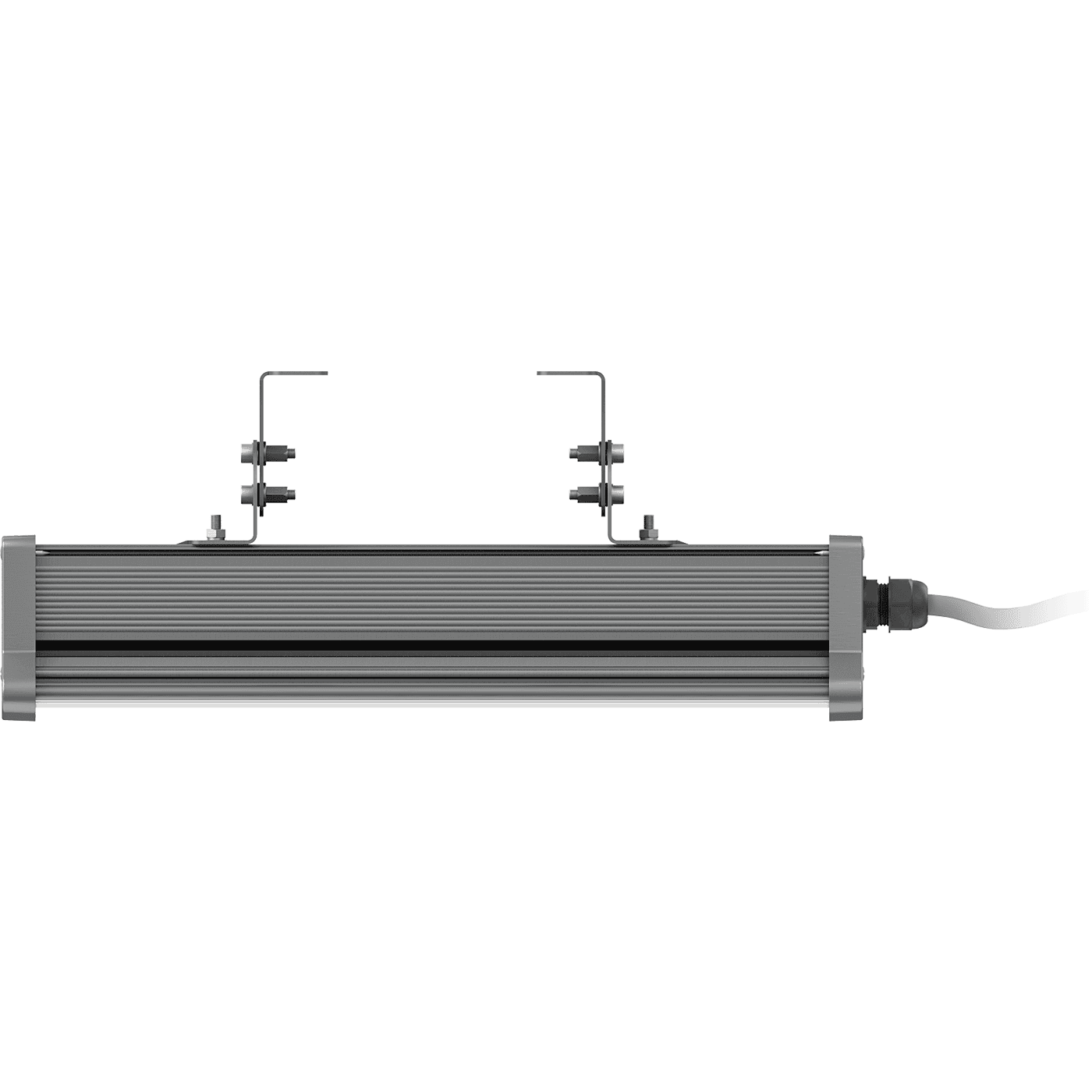

TRAY/RB (350) 12W OPL 740 GY
TRAY/RB (350) 12W OPL 740 GY
12 Wluminaire power
1450 lmlight flow
121 lm/Wenergy efficiency
code1946000260
color temperature4000
beam angleD120
weight1 kg
options
свернуть все
electricalilluminatingconstructionalcommon
supply voltage, alternating current
198-264 Velectric shock protection
Istarting current
43 Astarting current pulse time, µs
2.28 mksluminaire power
12 Wrated supply voltage, alternating current
230 Vmaximum cross-section of the connected cable, sq. mm
1.5power factor
> 0,95supply voltage
230 Velectrical
supply voltage, alternating current
198-264 V
electric shock protection
I
starting current
43 A
starting current pulse time, µs
2.28 mks
luminaire power
12 W
rated supply voltage, alternating current
230 V
maximum cross-section of the connected cable, sq. mm
1.5
power factor
> 0,95
supply voltage
230 V
illuminating
color rendition index (CRI)
>70
light flow
1450 lm
flickering factor
<1%
energy efficiency
121 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
constructional
ingress protection (IP)
IP65
material
Алюминий
housing color
Серый

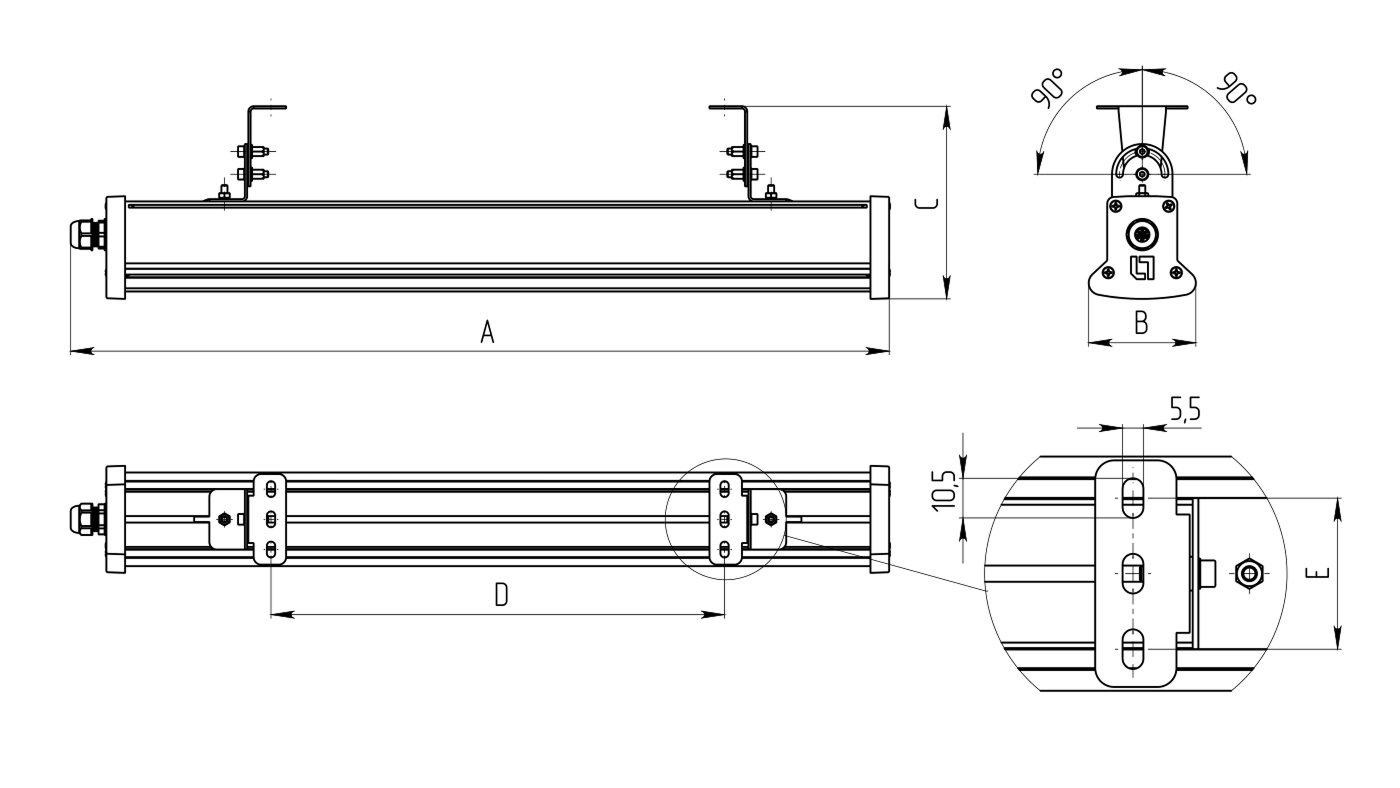

length, mm
370 mm
width, mm
70 mm
height, mm
75 mm
weight
1 kg
climatic performance
УХЛ1*
shock resistance (IK)
IK07/2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
200 mm
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от -40 до +50 C
energy efficiency class
A+
service life, hour
50 000 h
code
1946000260
model files
model files

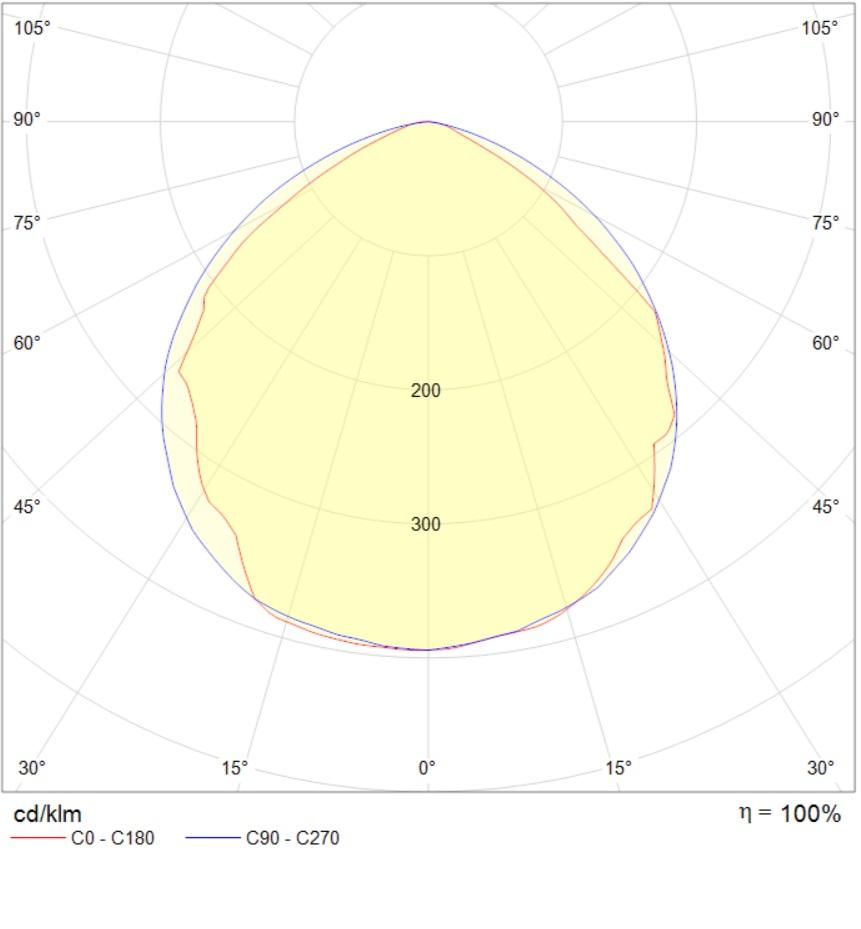

photometric files
сертификаты
photometric files
ies107 kB
jpg81.7 kB
ldt71.8 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
accessories
3-pole I-shape connector for Industrial luminaires0.03kgarticle: 2909004330
