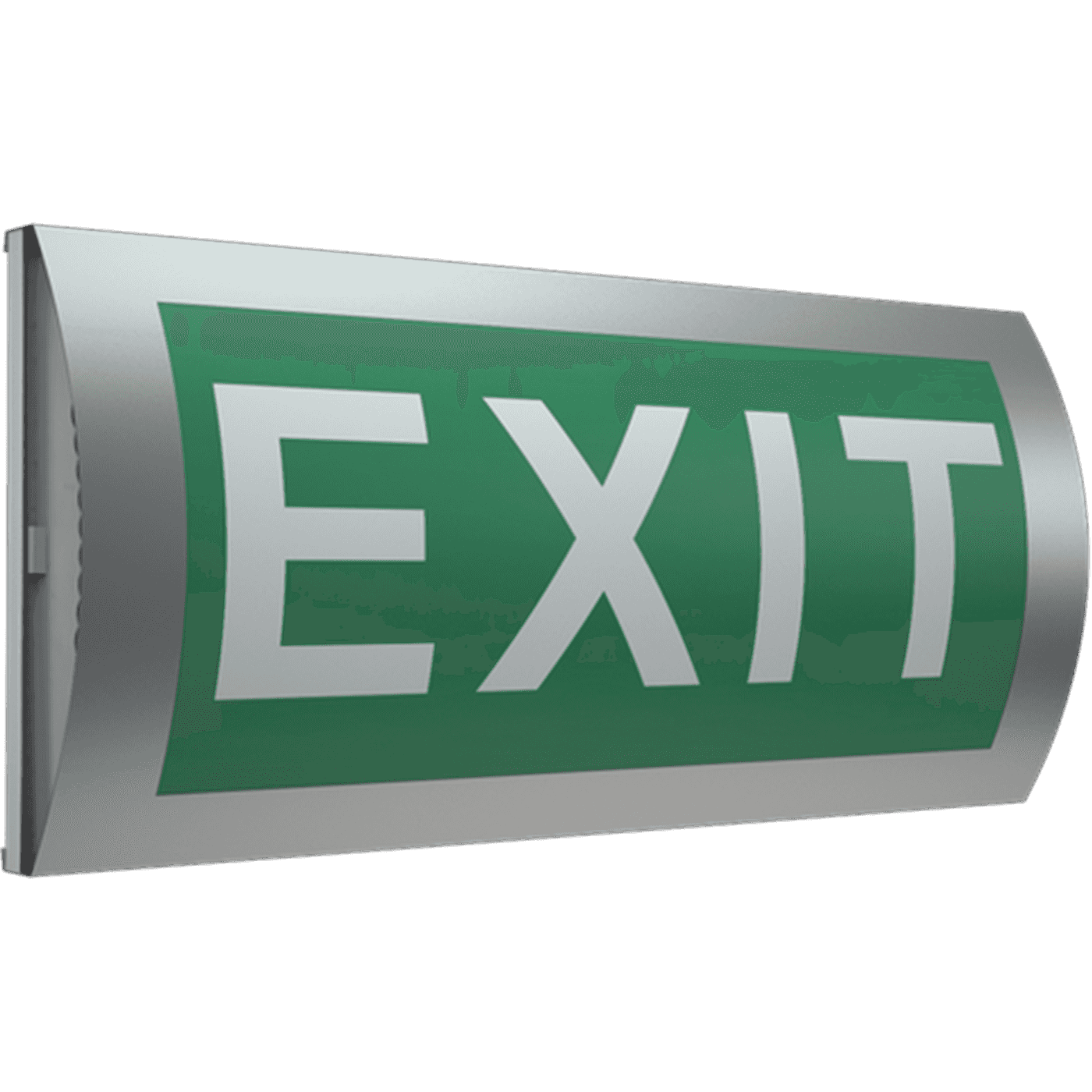

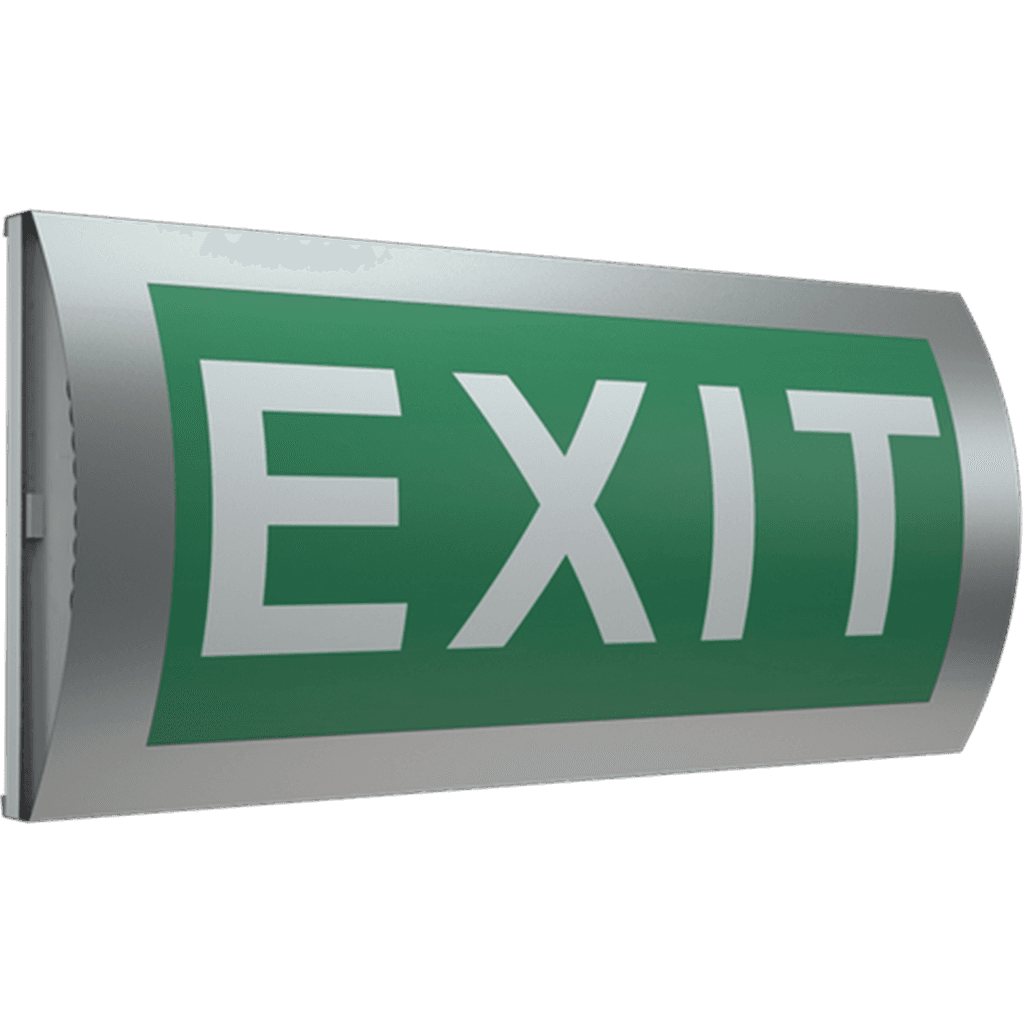

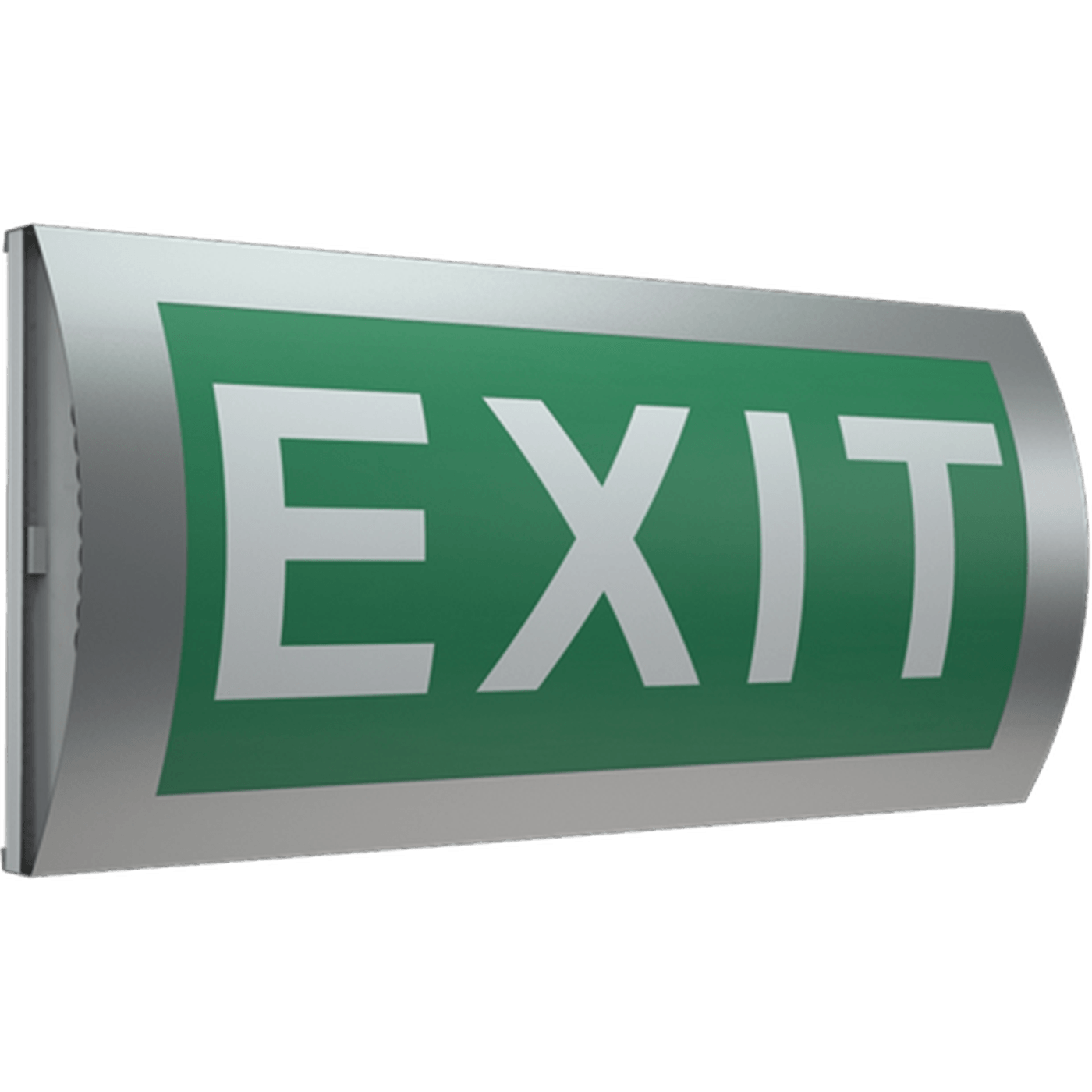

TOTEM 253 IP42
TOTEM 253 IP42
5 Wluminaire power
200 lmlight flow
40 lm/Wenergy efficiency
code1499000650
color temperature6000 K
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
emission color
Белыйlight source type
LEDlight flow
200 lmenergy efficiency
40 lm/Wcolor temperature
6000 Killuminating
emission color
Белый
light source type
LED
light flow
200 lm
energy efficiency
40 lm/W
color temperature
6000 K
electrical
luminaire power
5 W
electric shock protection
II
maximum cross-section of the connected cable
2.5 mm2
supply voltage
230 V
constructional
ingress protection (IP)
IP42
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
length
342 mm
width
158 mm
height
74 mm
material
Пластик
housing color
Белый
weight
1.1 kg
emergency
operating time in emergency mode
3 h
luminous flux in emergency mode
226 lm
type of operation / type of operation of the emergency luminaire
постоянного действия
battery / battery Ni-Cd
RB 6,0 V 1,5 A*h Ni-Cd
common
code
1499000650
ETIM class
Светильник аварийный
energy efficiency class
B
service life
50 000 h
temperature range
от 0 до +40 C
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax228 kB

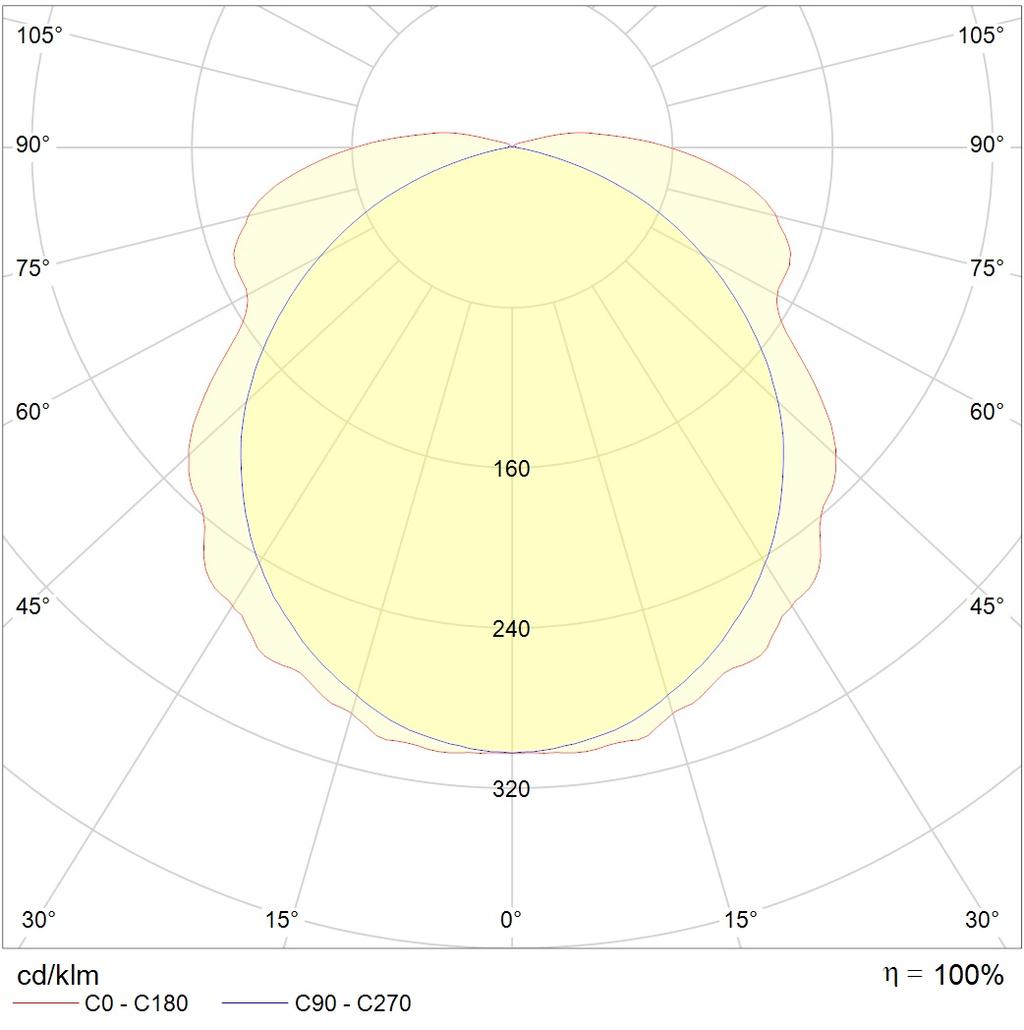

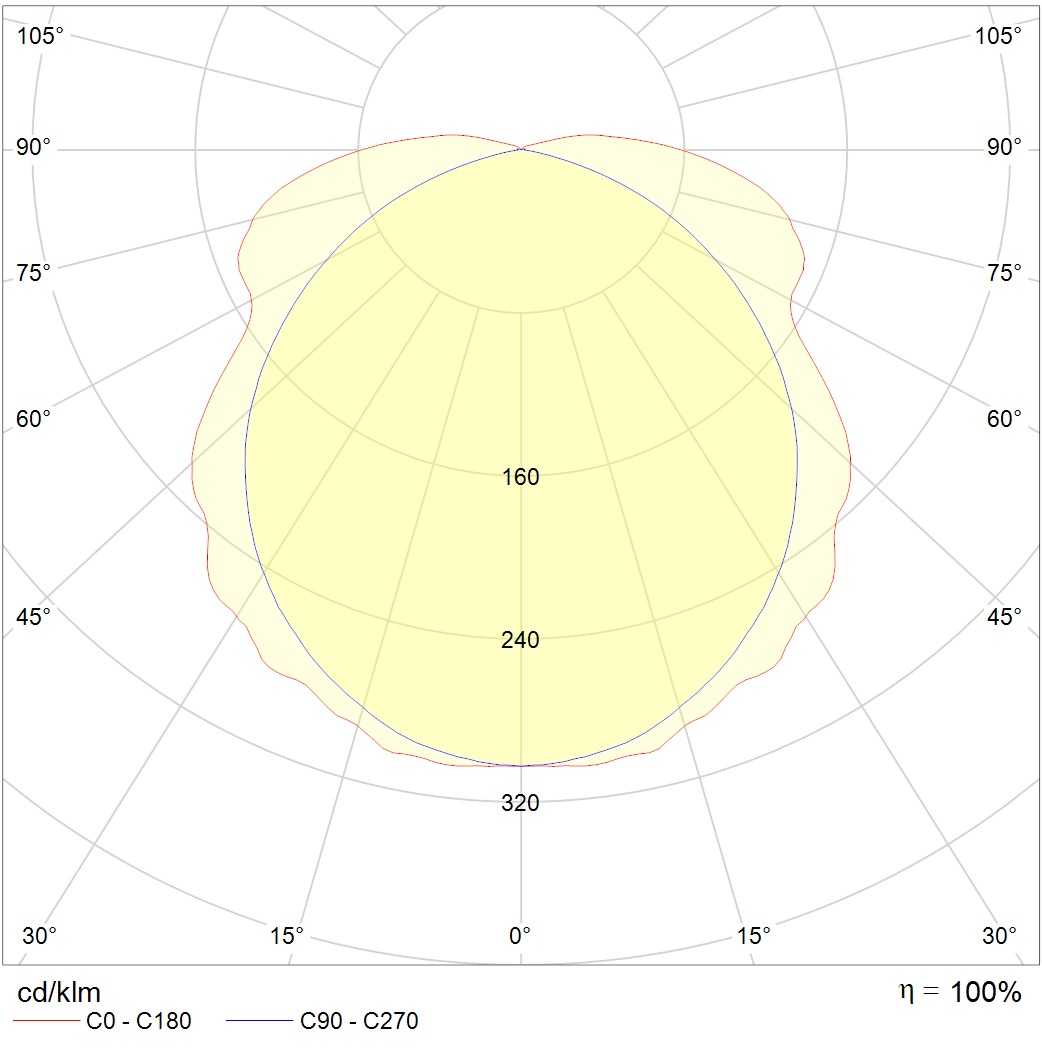

photometric files
ies134.1 kB
jpg126.4 kB
ldt110.9 kB
documents
passport2.5 mB
сертификаты
Certificate of Russian maritime register of shipping1.2 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.1 mB
Declaration of Conformity EAEU TR 037/2016298.3 kB
Fire Safety Certificate2.5 mB
