TOTEM 250 IP42
TOTEM 250 IP42
3 Wluminaire power
140 lmlight flow
41 lm/Wenergy efficiency
code1499000630
color temperature5000
options
свернуть все
electricalconstructionalcommonilluminatingemergency
rated supply voltage, alternating current
230 Vsupply voltage, alternating current
230-240 Vluminaire power
3 Welectric shock protection
IImaximum cross-section of the connected cable, sq. mm
2.5supply voltage
230 Velectrical
rated supply voltage, alternating current
230 V
supply voltage, alternating current
230-240 V
luminaire power
3 W
electric shock protection
II
maximum cross-section of the connected cable, sq. mm
2.5
supply voltage
230 V
constructional
weight
1.1 kg
ingress protection (IP)
IP42
climatic performance
УХЛ4*
material
Пластик

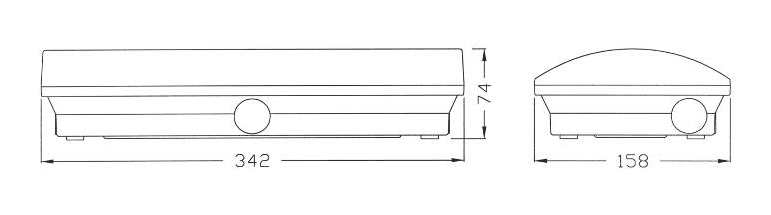

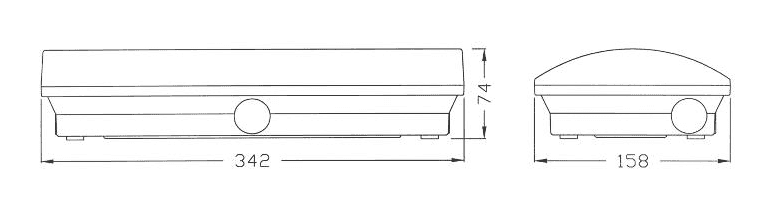

length, mm
342 mm
width, mm
158 mm
height, mm
74 mm
housing color
Белый
shock resistance (IK)
IK02/0,2 Дж
common
ETIM class
Светильник аварийный
warranty
36 month
temperature range
от 0 до +40 C
energy efficiency class
A
service life, hour
50 000 h
code
1499000630
illuminating
light flow
140 lm
energy efficiency
41 lm/W
color temperature
5000
light source type
LED
emission color
Белый
emergency
operating time in emergency mode, hours
1 h
luminous flux in emergency mode
142 lm
type of operation / type of operation of the emergency luminaire
постоянного действия
model files
model files
CAD/BIM files

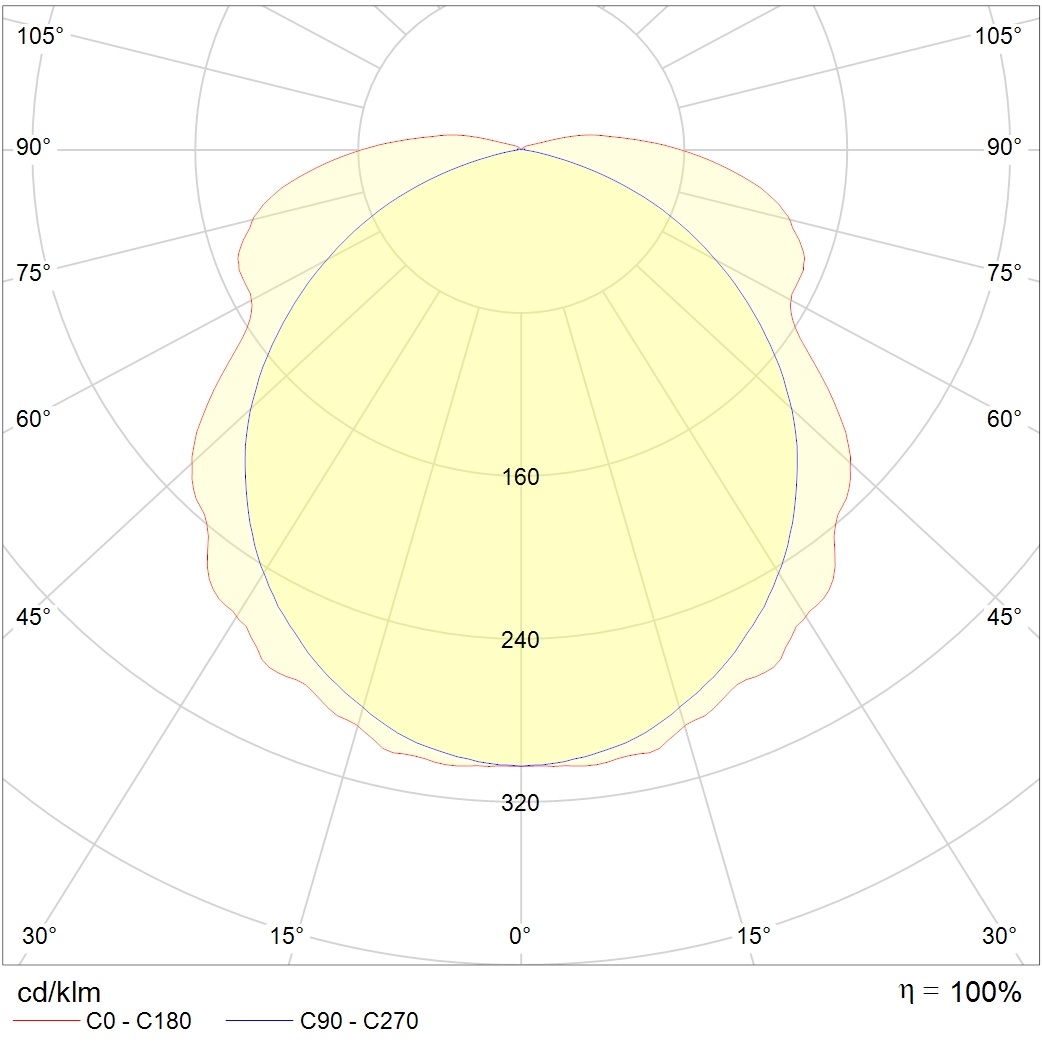

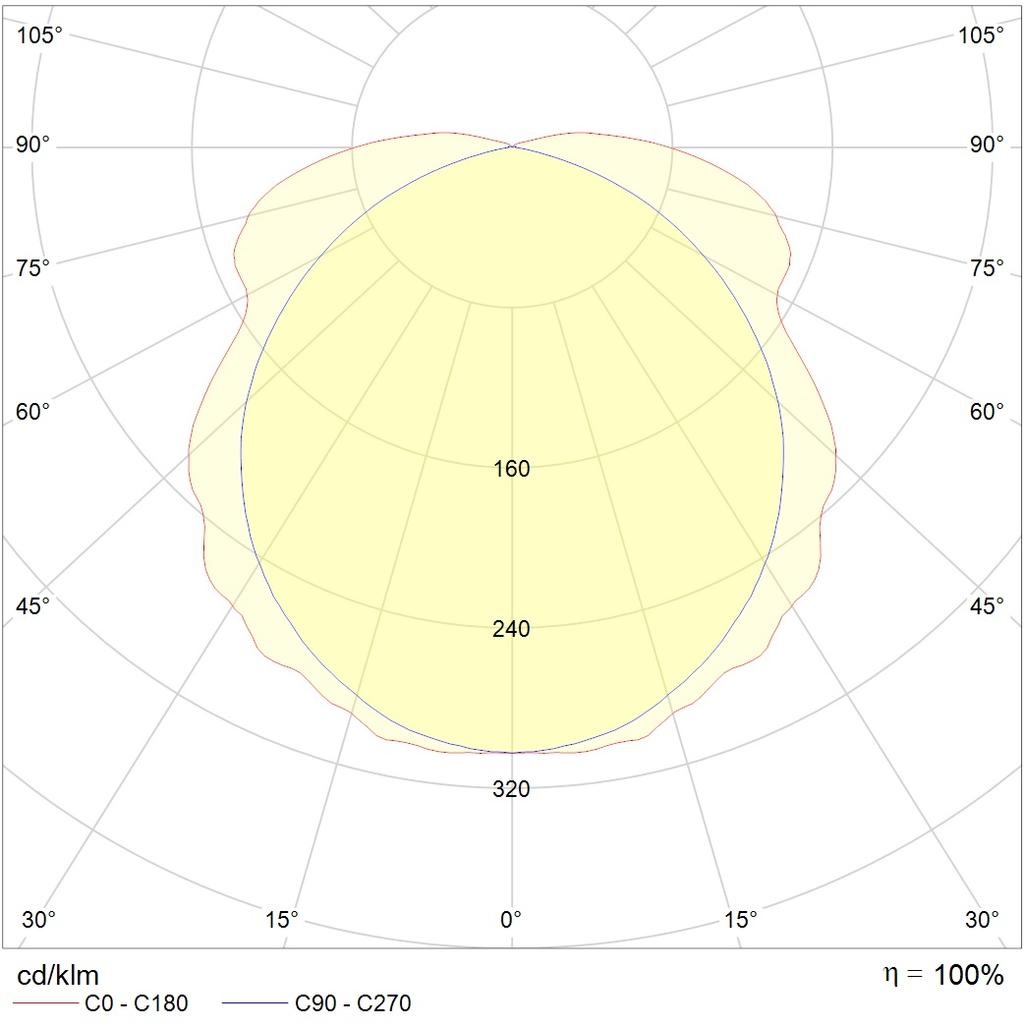

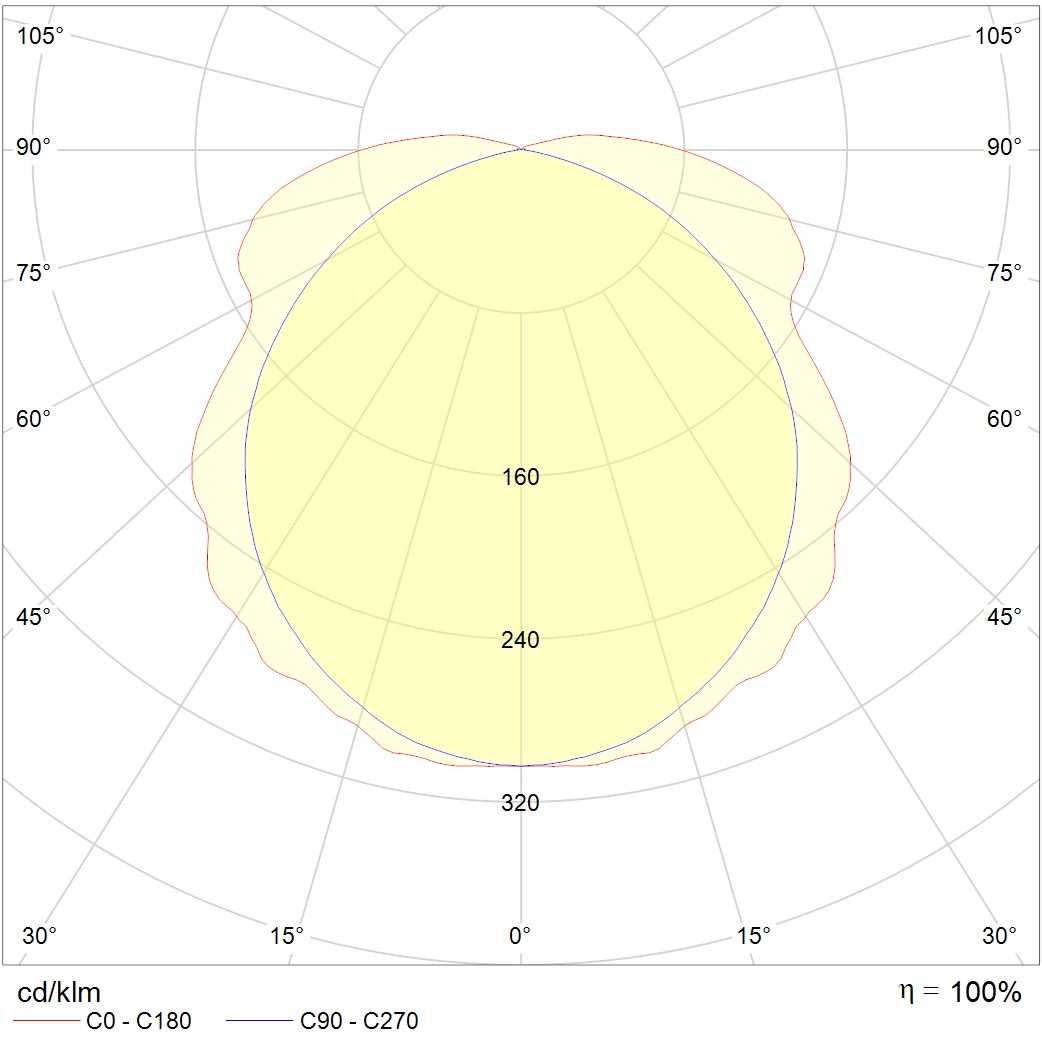

photometric files
documents
сертификаты
CAD/BIM files
CAD model 3DS12.3 kB
model 3dMax228 kB
photometric files
ies134.1 kB
jpg126.4 kB
ldt110.9 kB
documents
passport2.5 mB
сертификаты
Certificate of Russian maritime register of shipping1.2 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.1 mB
Declaration of Conformity EAEU TR 037/2016154.7 kB
Fire Safety Certificate2.5 mB
