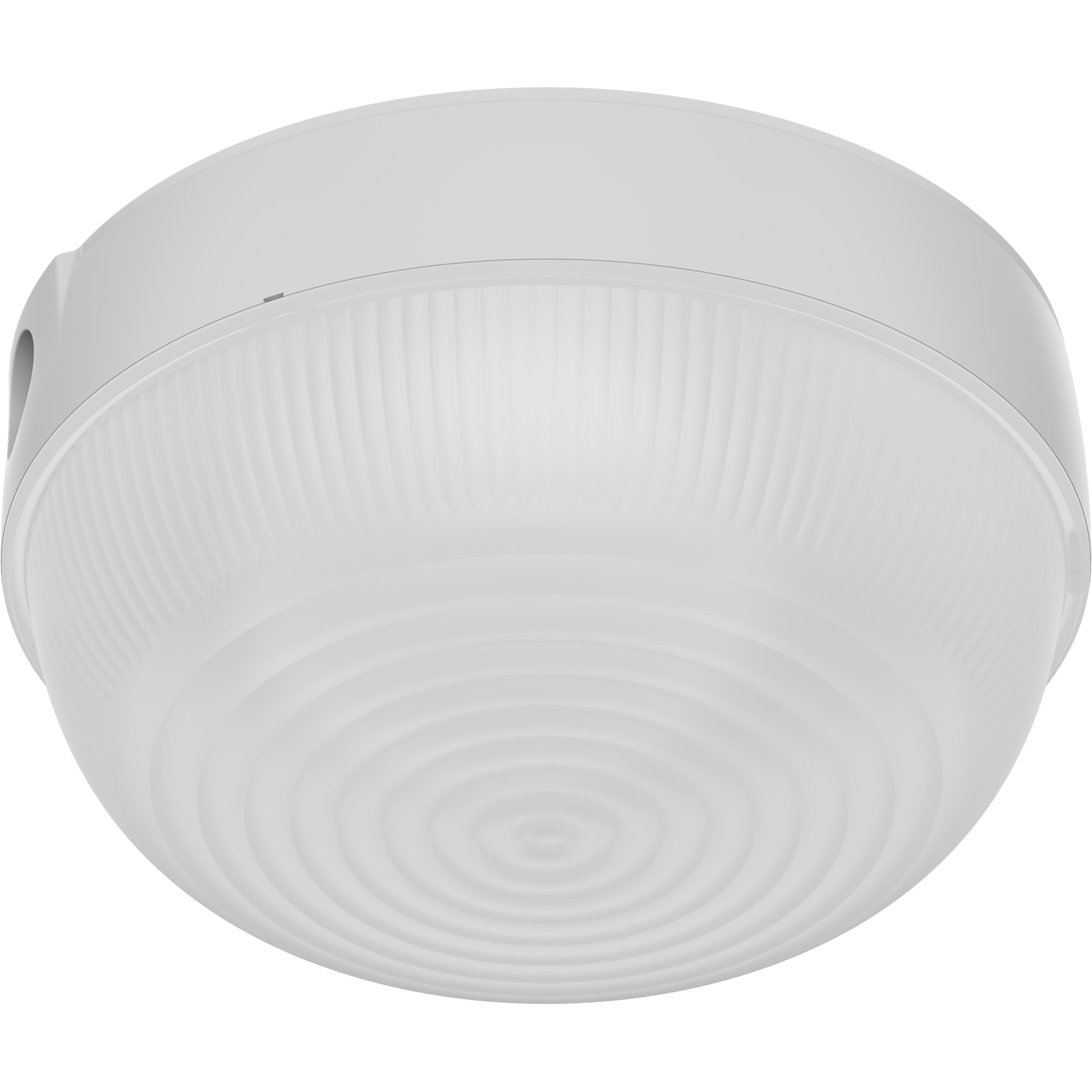

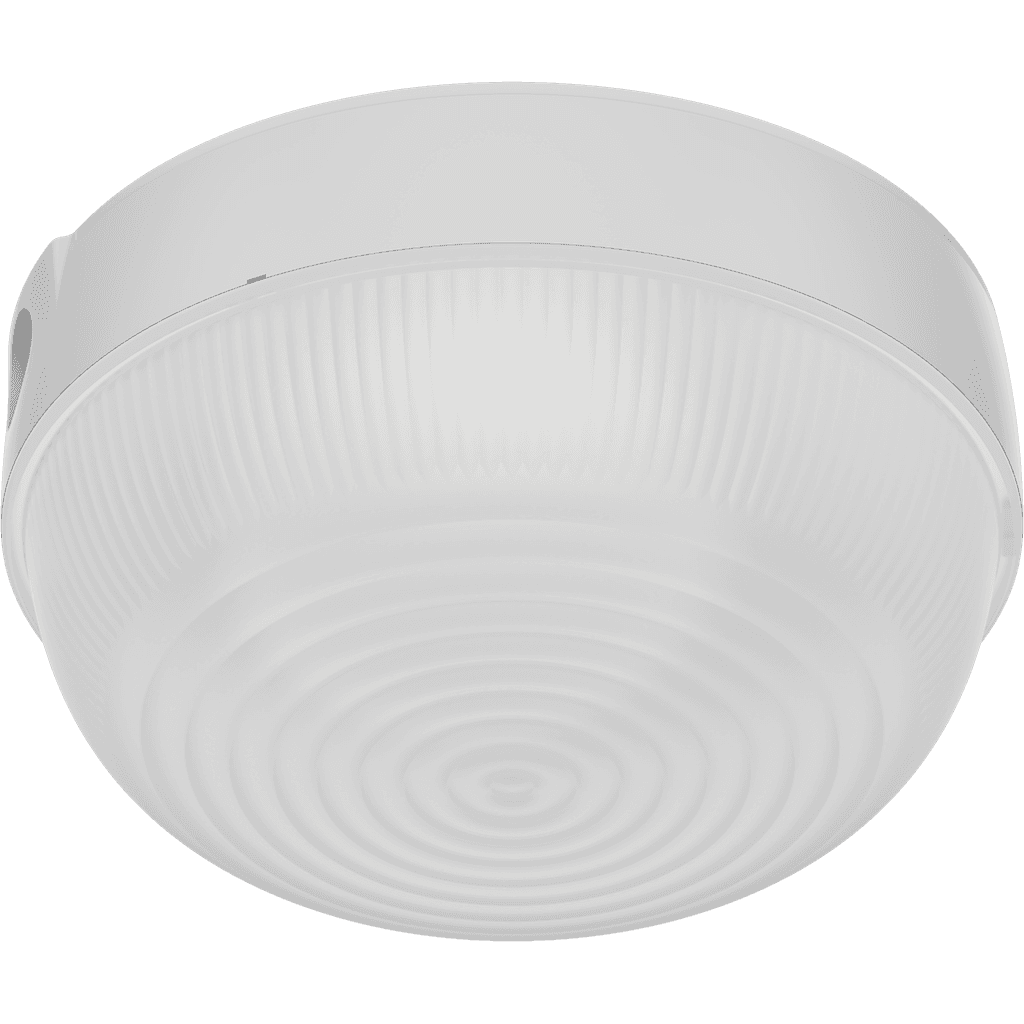

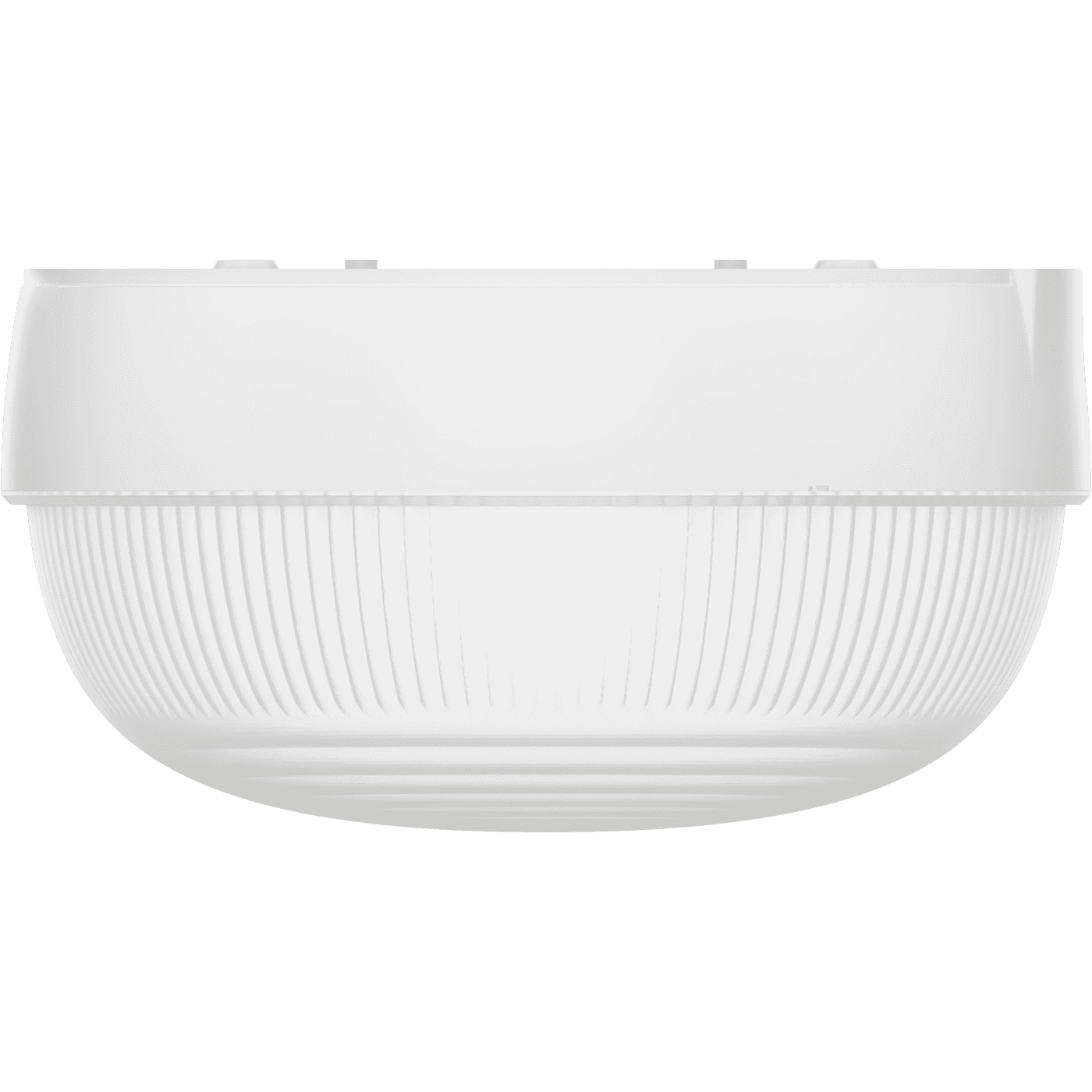

TN LED 100 4000K
TN LED 100 4000K
10 Wluminaire power
800 lmlight flow
80 lm/Wenergy efficiency
code
1180000010
color temperature
4000 K
beam angle
D120
performance factor
100
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
energy efficiency
80 lm/Wcolor rendition index (CRI)
>80light flow
800 lmflickering factor
<1%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
80 lm/W
color rendition index (CRI)
>80
light flow
800 lm
flickering factor
<1%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
130 µs
power factor
> 0,90
luminaire power
10 W
electric shock protection
II
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
15 A
constructional
diameter
236 mm
height
124 mm
installation length
130 mm
installation width
130 mm
weight
0.57 kg
ingress protection (IP)
IP44
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ2*
material
Поликарбонат
housing color
Серебристый
mounting type
lamp socket
LED
number of lamps
1
ballast
Драйвер
Type roof
emergency
emergency power supply
Нет
common
temperature range
от -20 до +40 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
warranty
36 month
energy efficiency class
A
code
1180000010
package
Package contents
Светильник - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
model files
model files
CAD/BIM files

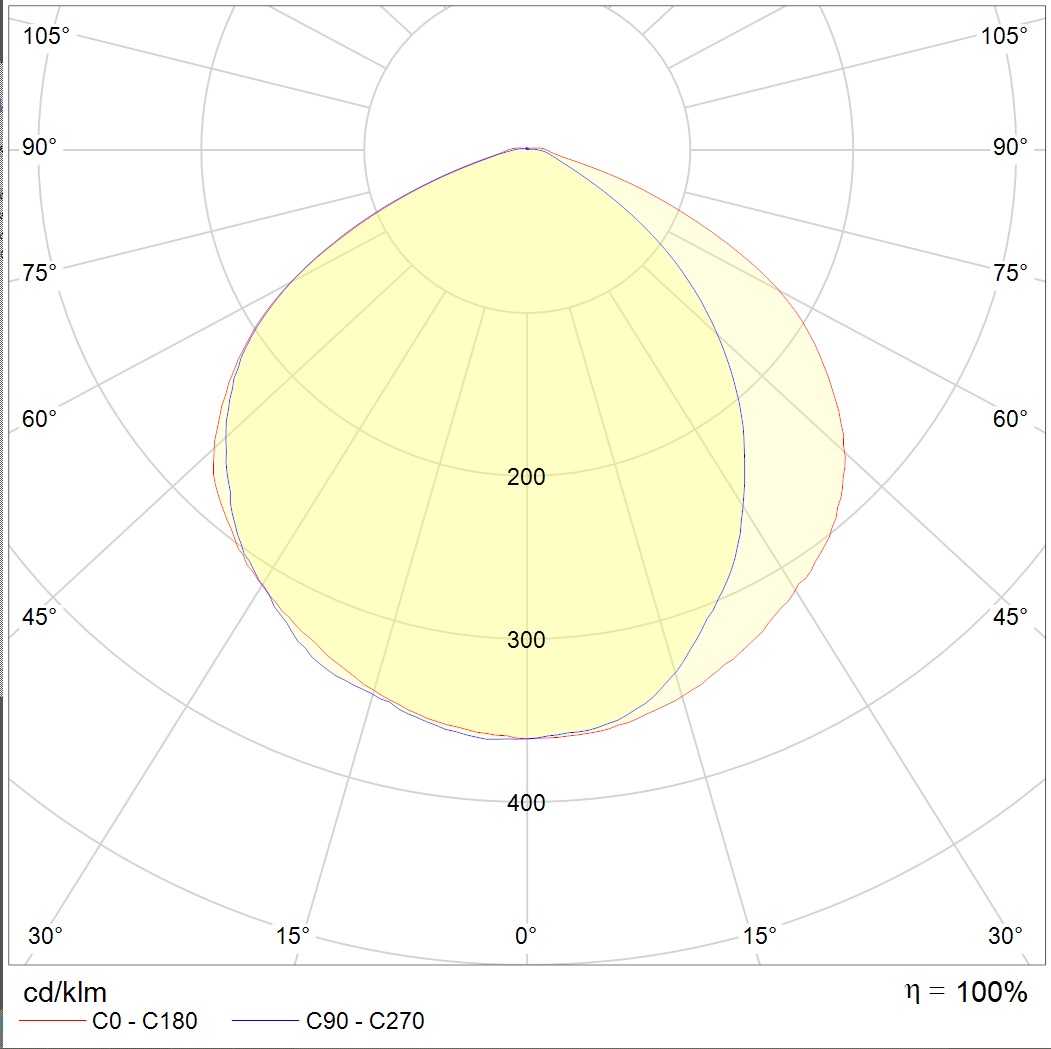

photometric files
documents
сертификаты
CAD/BIM files
model 3dMax776 kB
photometric files
ies263.2 kB
jpg129.1 kB
ldt221.7 kB
csv424 B
documents
passport974.1 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
