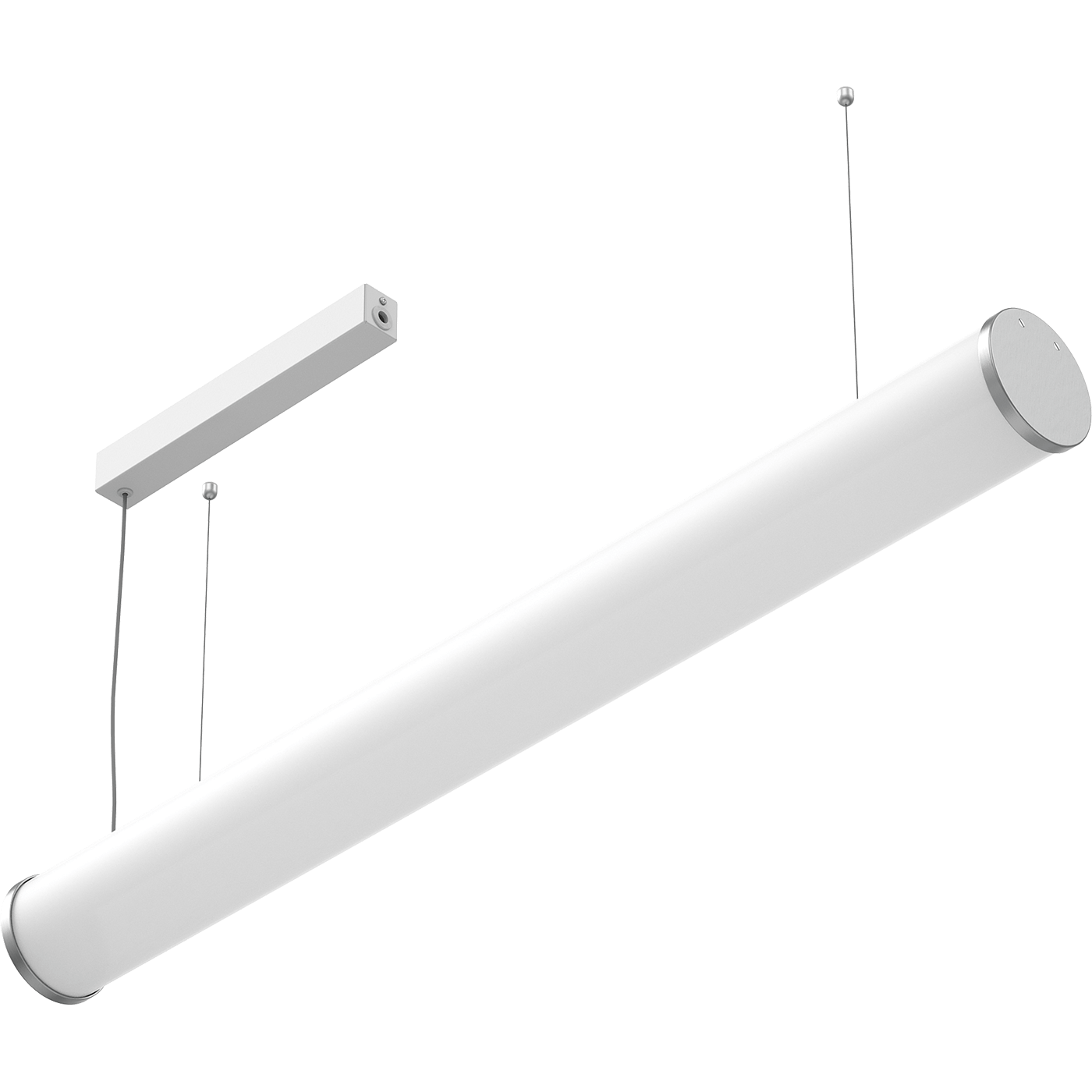

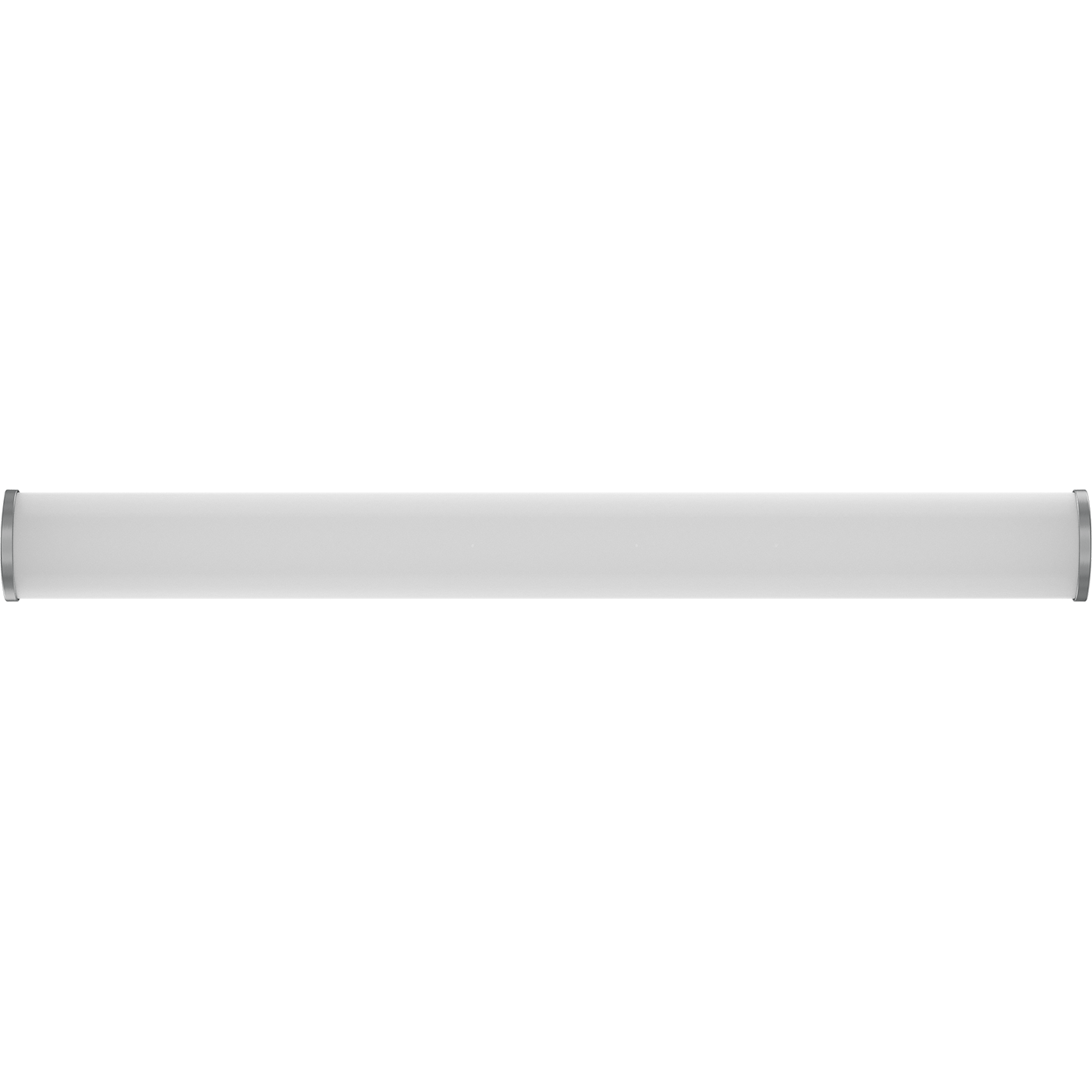

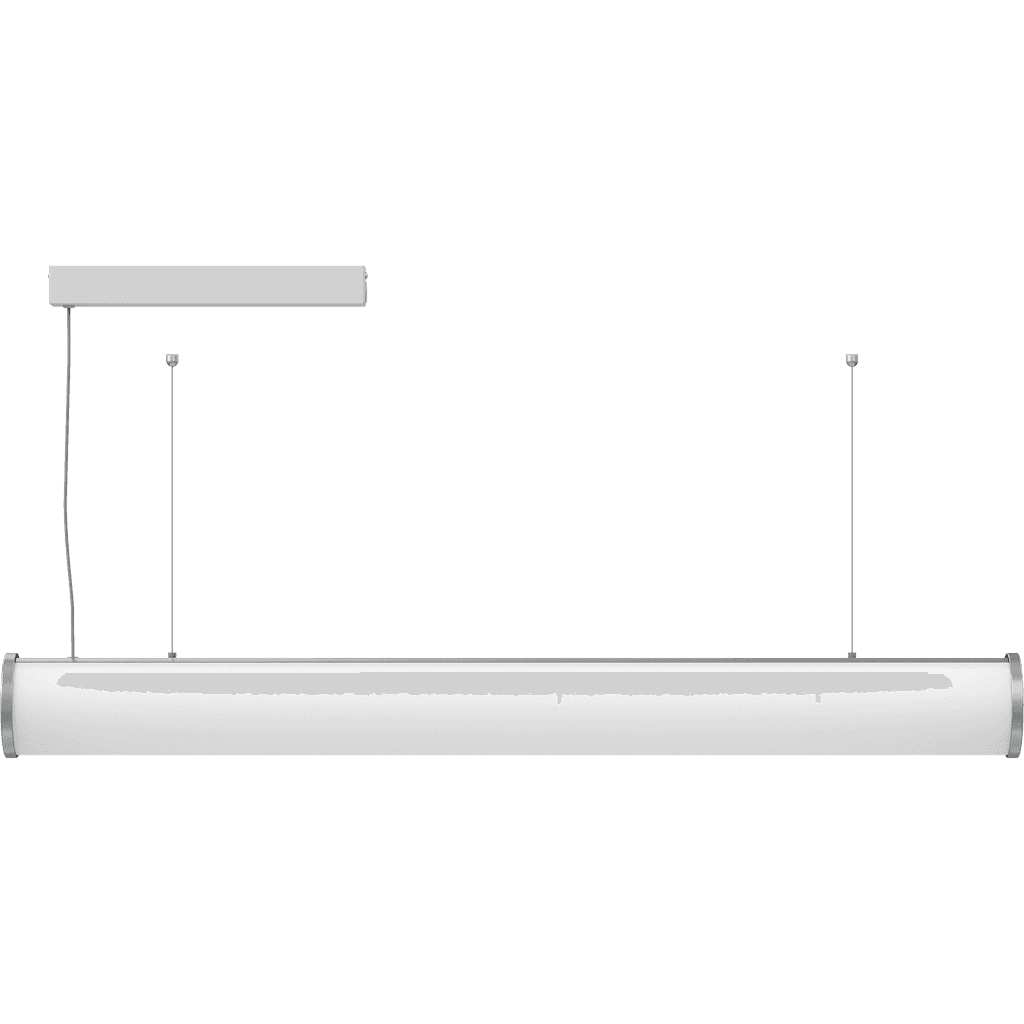

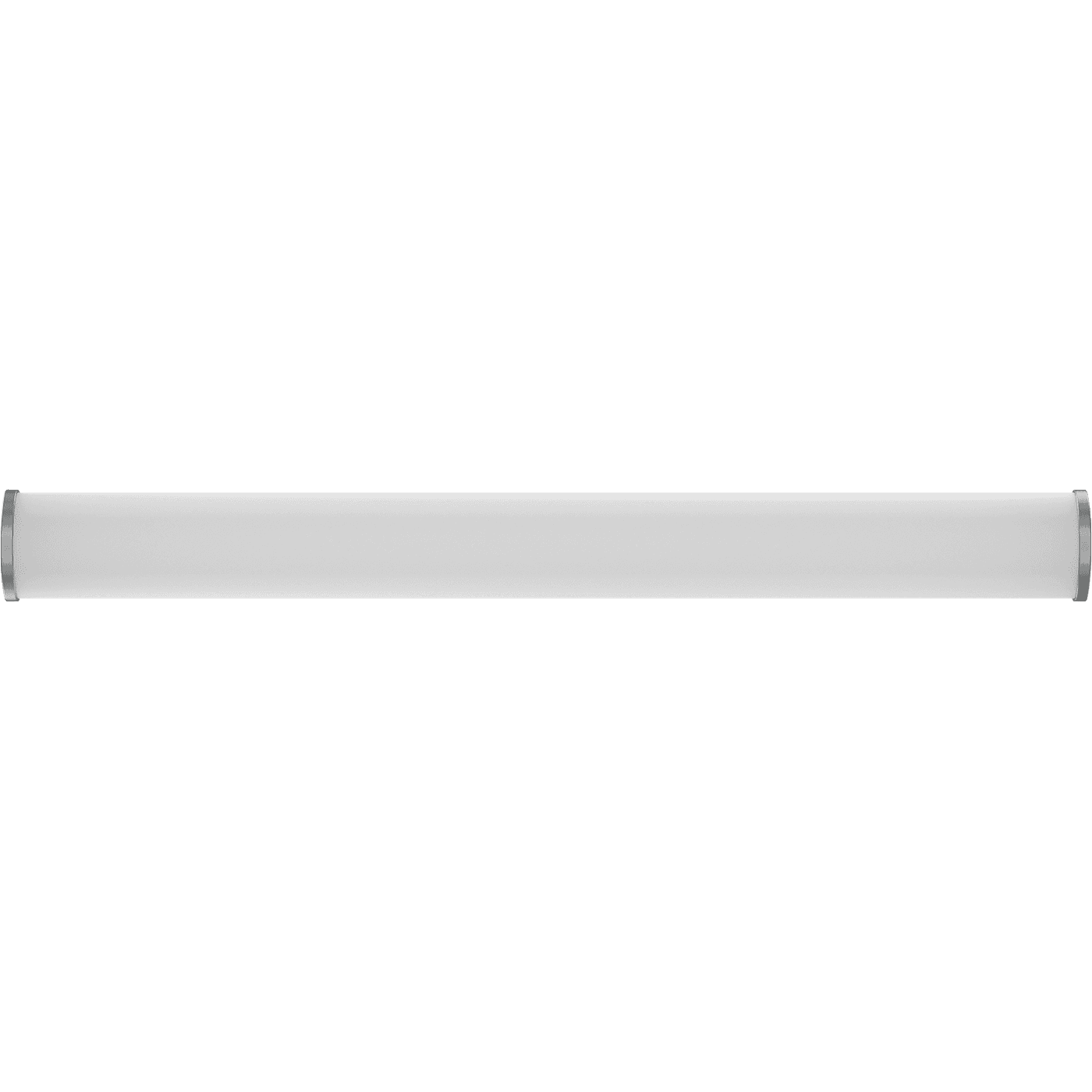

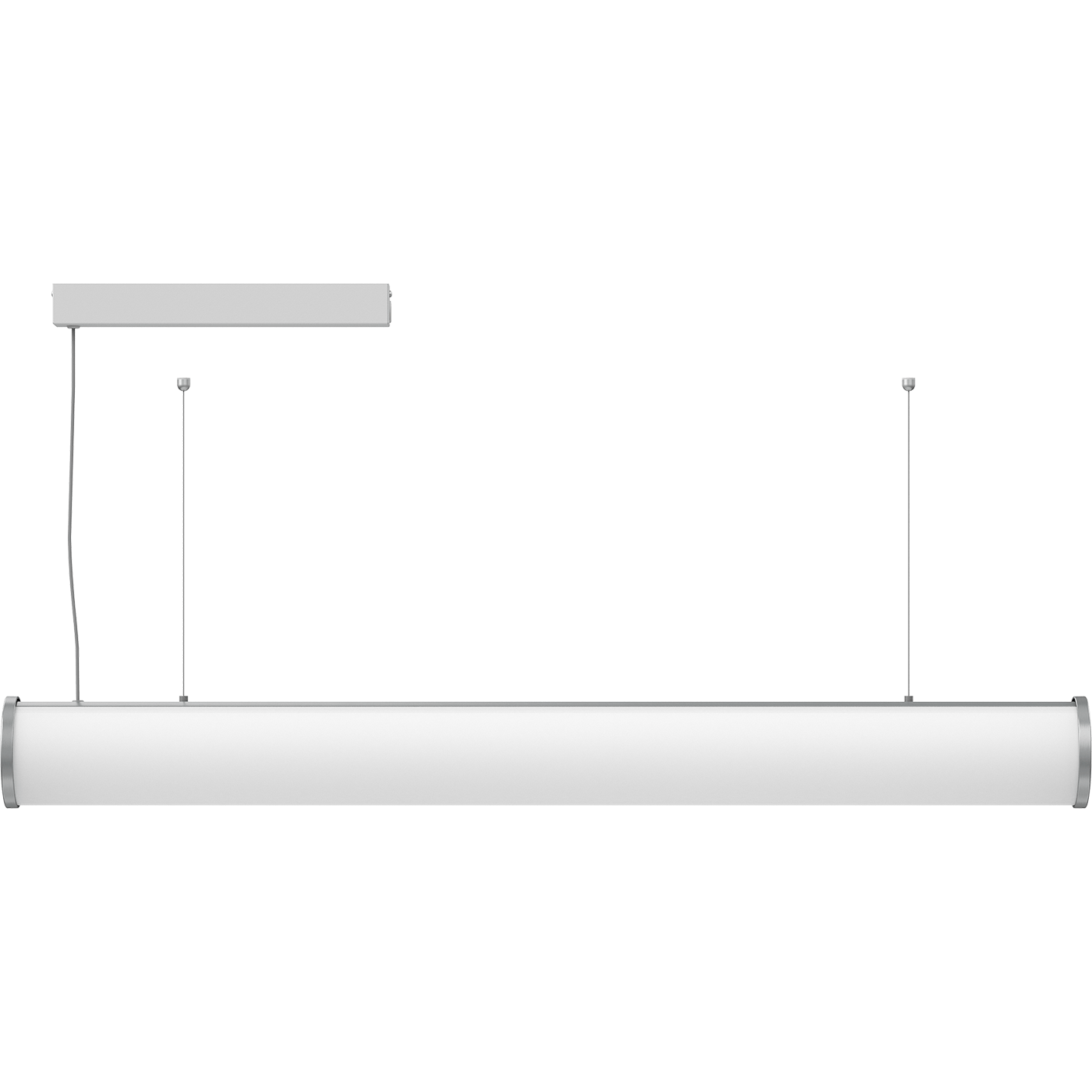

T120 LED 2250 4000K DALI (76W)

T120 LED 2250 4000K DALI (76W)
add to favorites
76 Wluminaire power
10200 lmlight flow
134 lm/Wenergy efficiency
code1572000180
color temperature4000
beam angleD120
number of lamps1
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. linear systems
  6. Т120
  7. T120 LED 2250 4000K DALI (76W)
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
30 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
198-264 V
supply voltage, direct current
198-264 V
luminaire power
76 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
electrical
starting current
30 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
198-264 V
supply voltage, direct current
198-264 V
luminaire power
76 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Металл, пластик
weight
3.7 kg
length, mm
2240 mm
width, mm
127 mm
height, mm
140 mm
housing color
Белый
installation length, mm
2150 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
common
ETIM class
Светильник подвесной
warranty
60 month
temperature range
от +5 до +35 C
energy efficiency class
A+
code
1572000180
illuminating
color rendition index (CRI)
>80
light flow
10200 lm
flickering factor
<5%
energy efficiency
134 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
LMS options
dimming
DALI
model files
model files
CAD/BIM files
CAD model 3DS86.3 kB
model 3dMax1000 kB

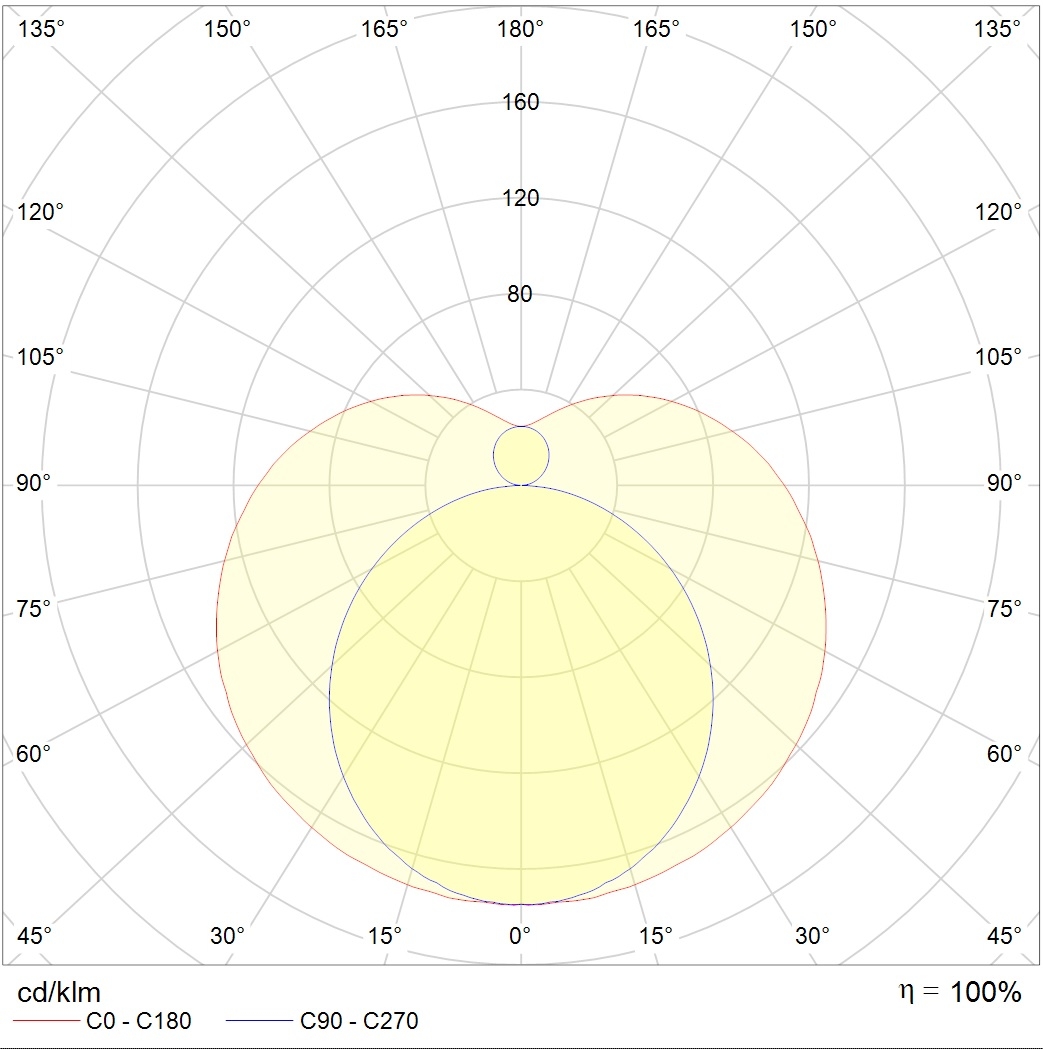

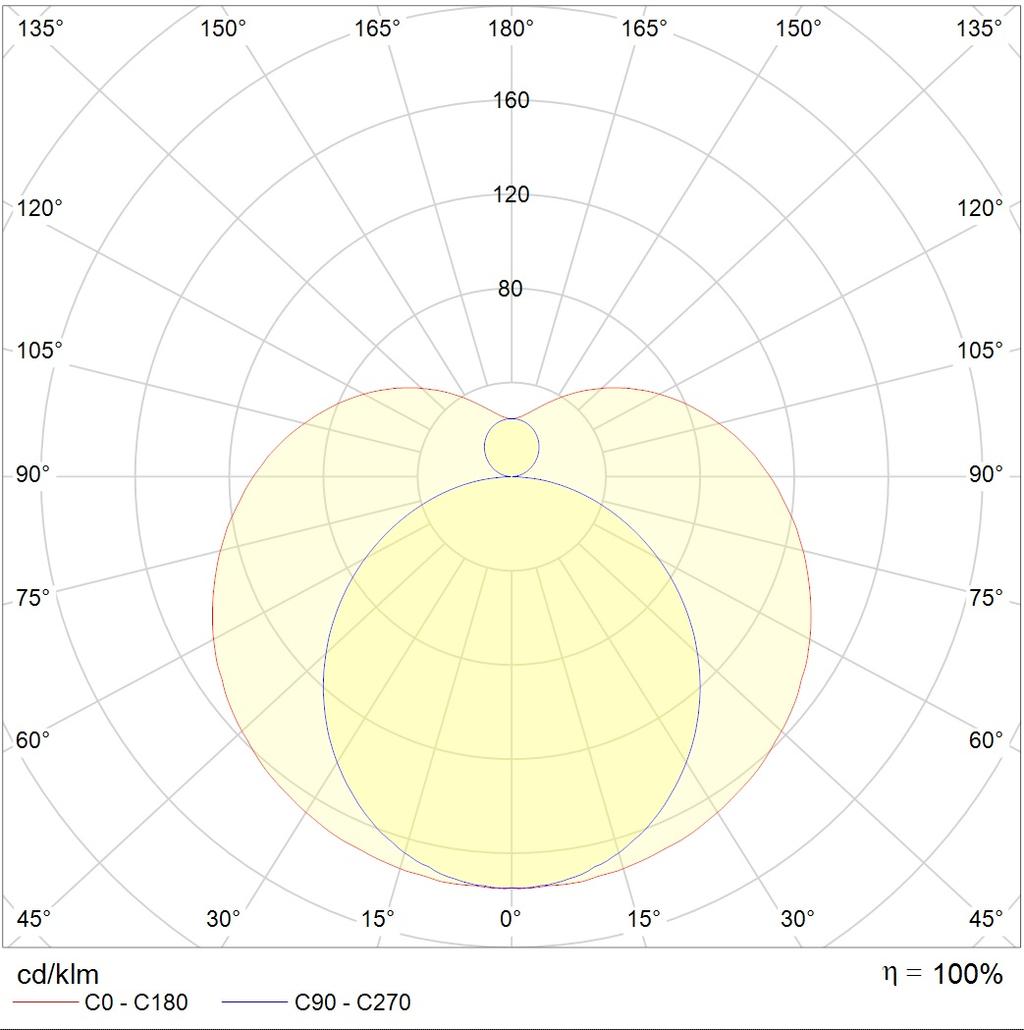

photometric files
ies134.1 kB
jpg157.3 kB
ldt121.3 kB
documents
passport983.2 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016535.9 kB
Fire Safety Certificate2.5 mB
CAD/BIM files
CAD model 3DS86.3 kB
model 3dMax1000 kB
photometric files
ies134.1 kB
jpg157.3 kB
ldt121.3 kB
documents
passport983.2 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016535.9 kB
Fire Safety Certificate2.5 mB
accessories
T120 kit for connection profiles0.048kgarticle: 1572000020
