STELO LED 7 4000K
STELO LED 7 4000K
7 Wluminaire power
800 lmlight flow
114 lm/Wenergy efficiency
code1565000060
color temperature4000 K
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
114 lm/Wcolor rendition index (CRI)
>80light flow
800 lmflickering factor
<3%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
114 lm/W
color rendition index (CRI)
>80
light flow
800 lm
flickering factor
<3%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
2.28 µs
electric shock protection
II
luminaire power
7 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
1.5 mm2
rated supply voltage, alternating current
230 V
starting current
43 A

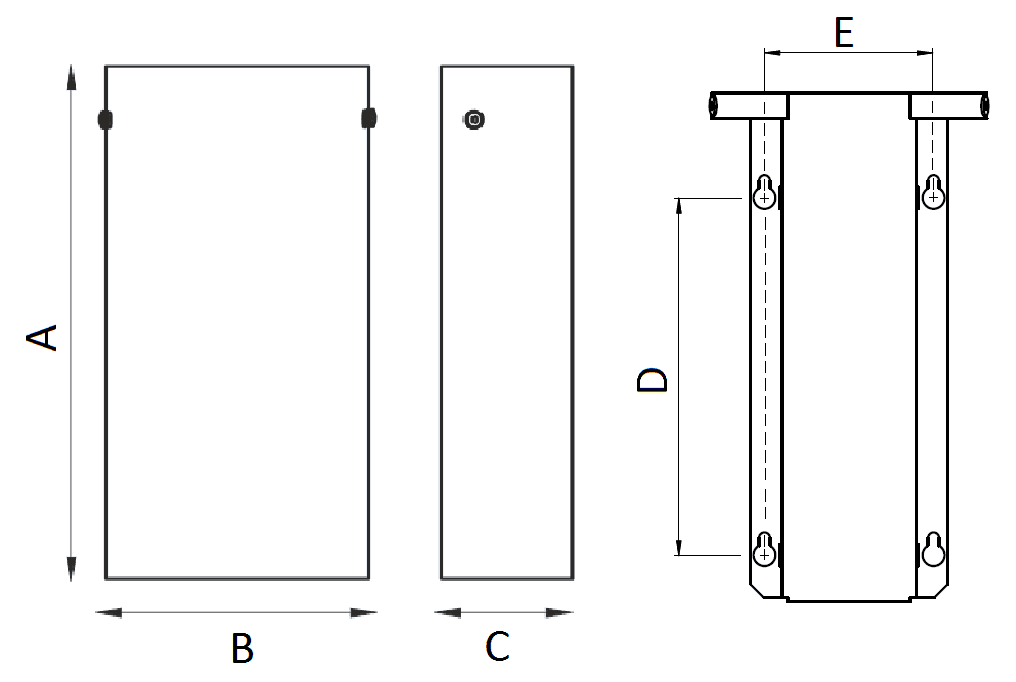

constructional
length
300 mm
width
150 mm
height
75 mm
installation length
165 mm
installation width
78 mm
weight
0.6 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Металл, стекло
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life
24 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1565000060
model files
model files

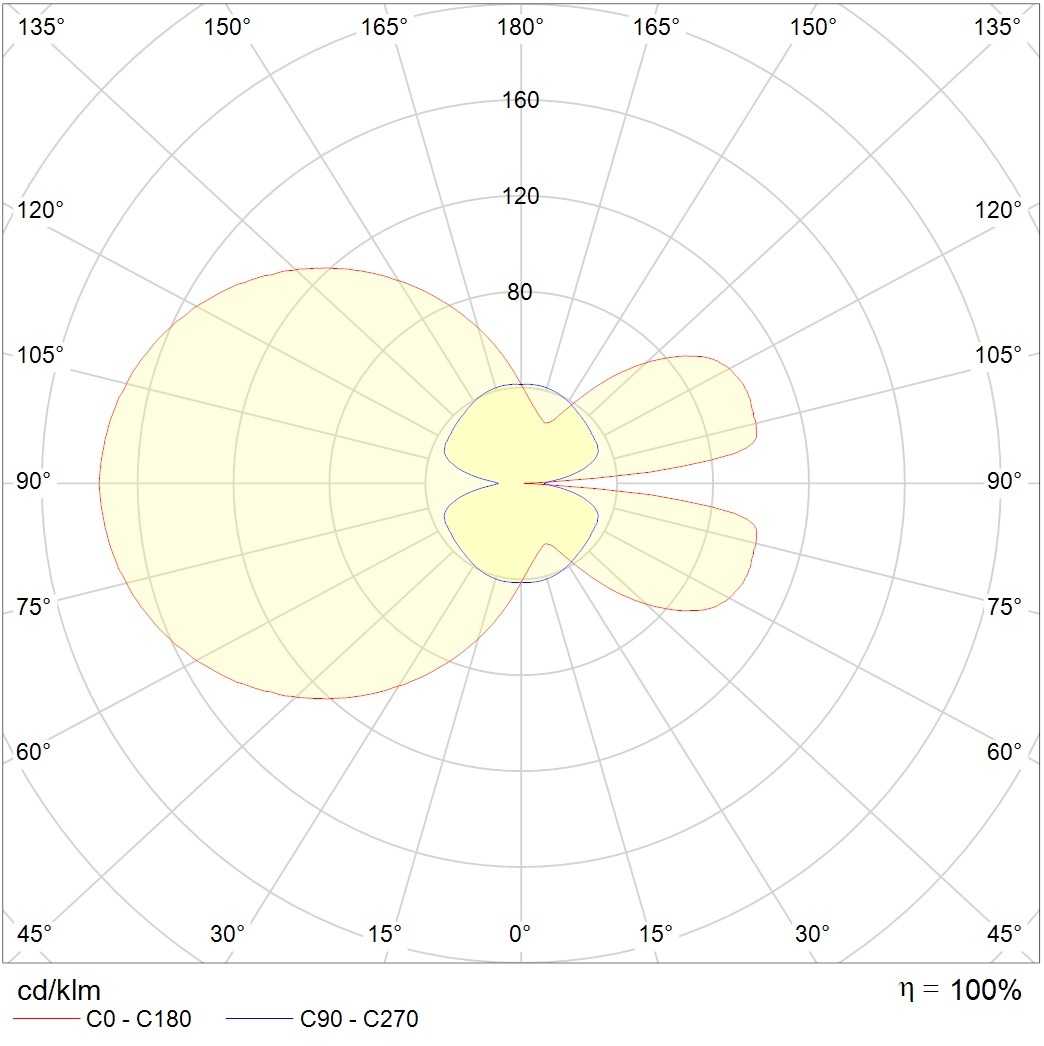

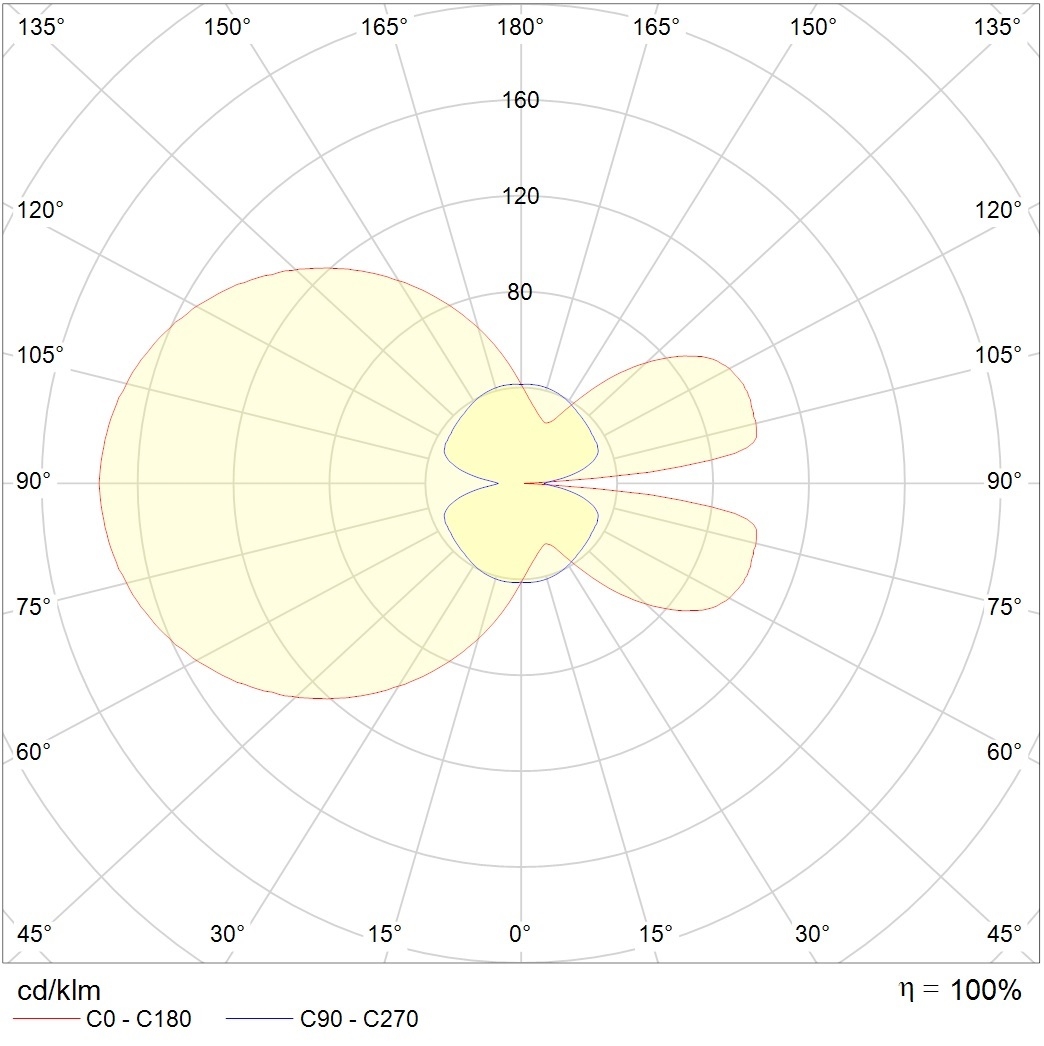

photometric files
documents
сертификаты
photometric files
ies263.2 kB
jpg150.7 kB
ldt233 kB
documents
passport1.1 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016535.9 kB
Fire Safety Certificate2.5 mB
