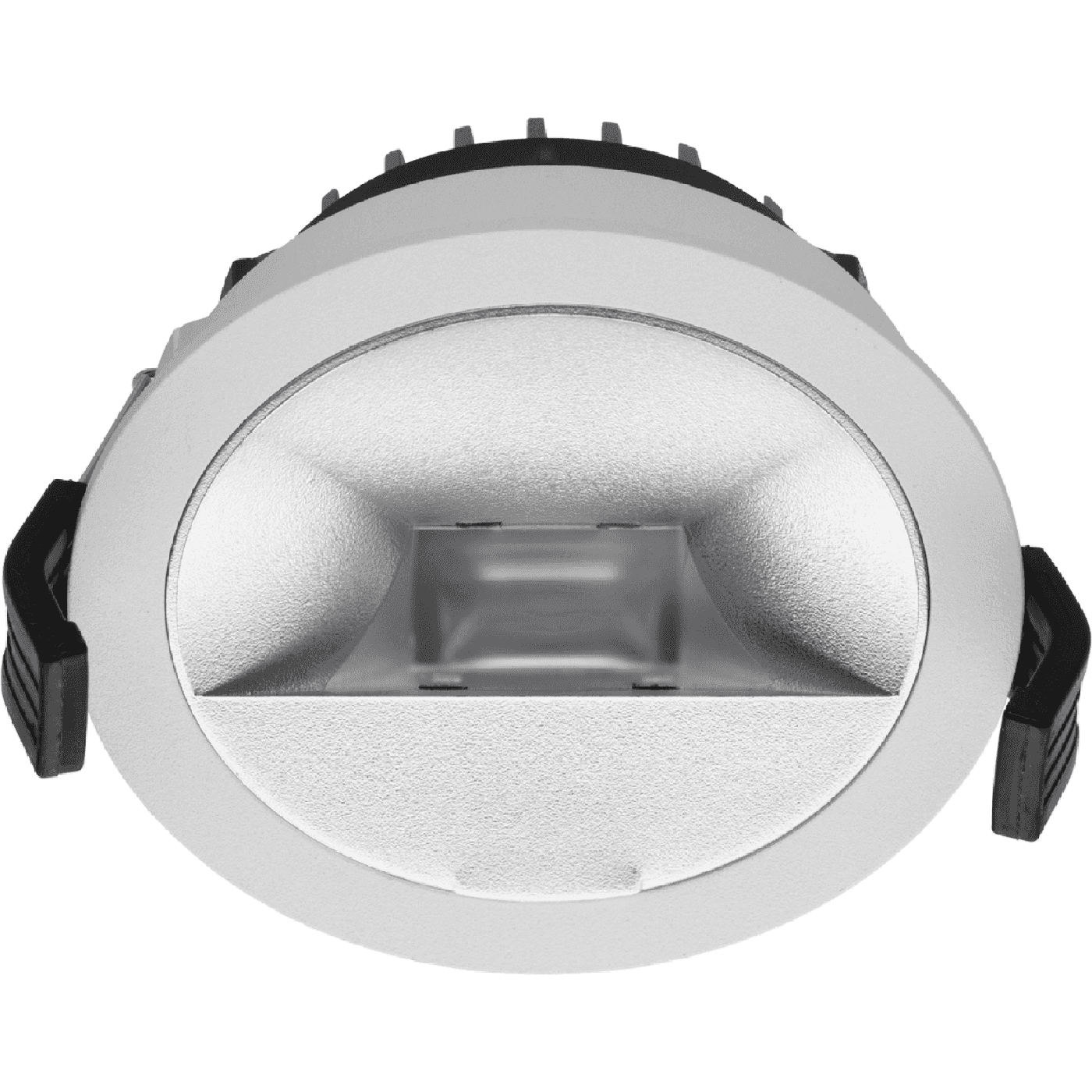

SPLAY 09 WH DWW 4000K (with driver)

SPLAY 09 WH DWW 4000K (with driver)
10 Wluminaire power
600 lmlight flow
60 lm/Wenergy efficiency
code1239000040
color temperature4000 K
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
60 lm/W
color rendition index (CRI)
>80
light flow
600 lm
flickering factor
<10%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
60 lm/W
color rendition index (CRI)
>80
light flow
600 lm
flickering factor
<10%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
160 µs
electric shock protection
II
luminaire power
10 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
18 A
constructional
diameter
115 mm
height
52 mm
installation diameter
105 mm
weight
0.56 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A
ETIM class
Прожектор / Светильник направленного света
code
1239000040
model files
model files
CAD/BIM files
model 3dMax1.5 mB

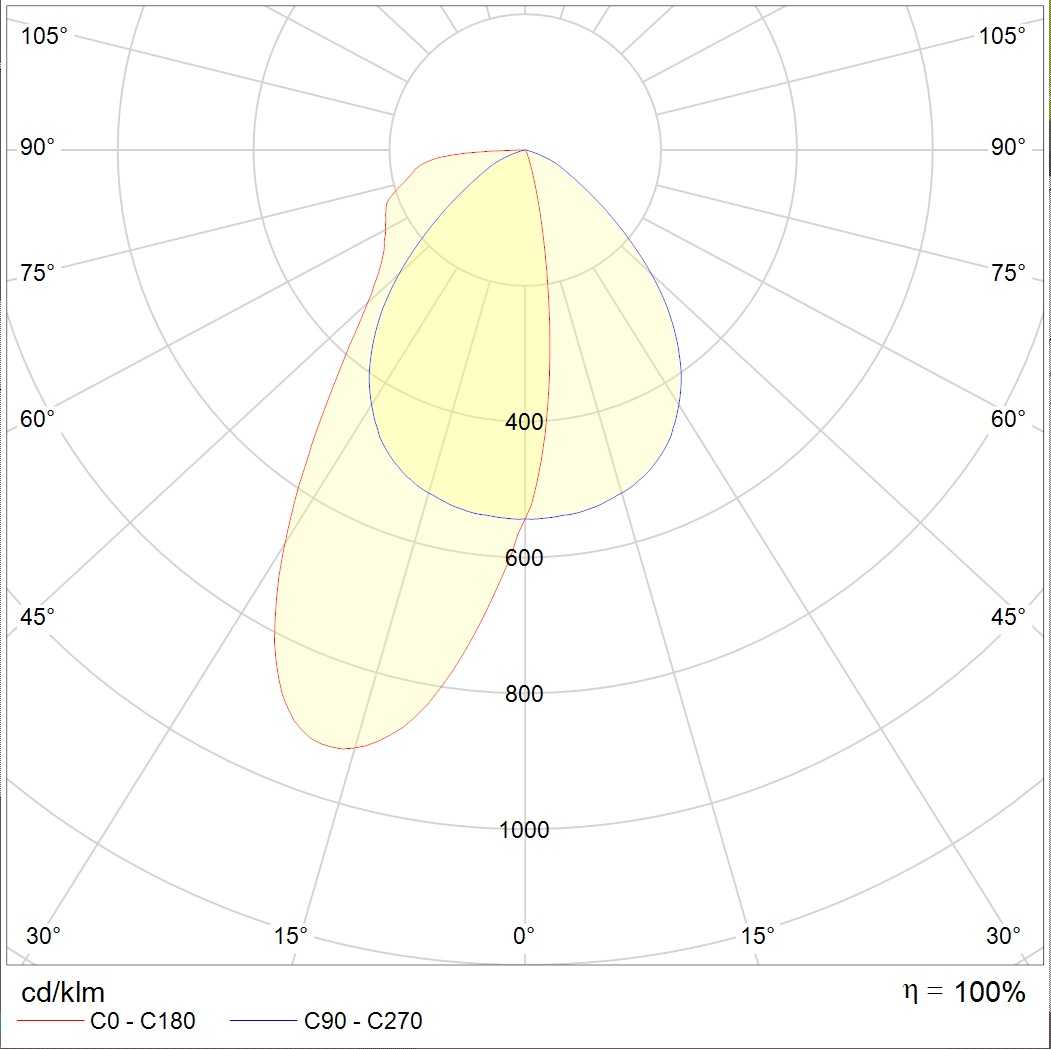

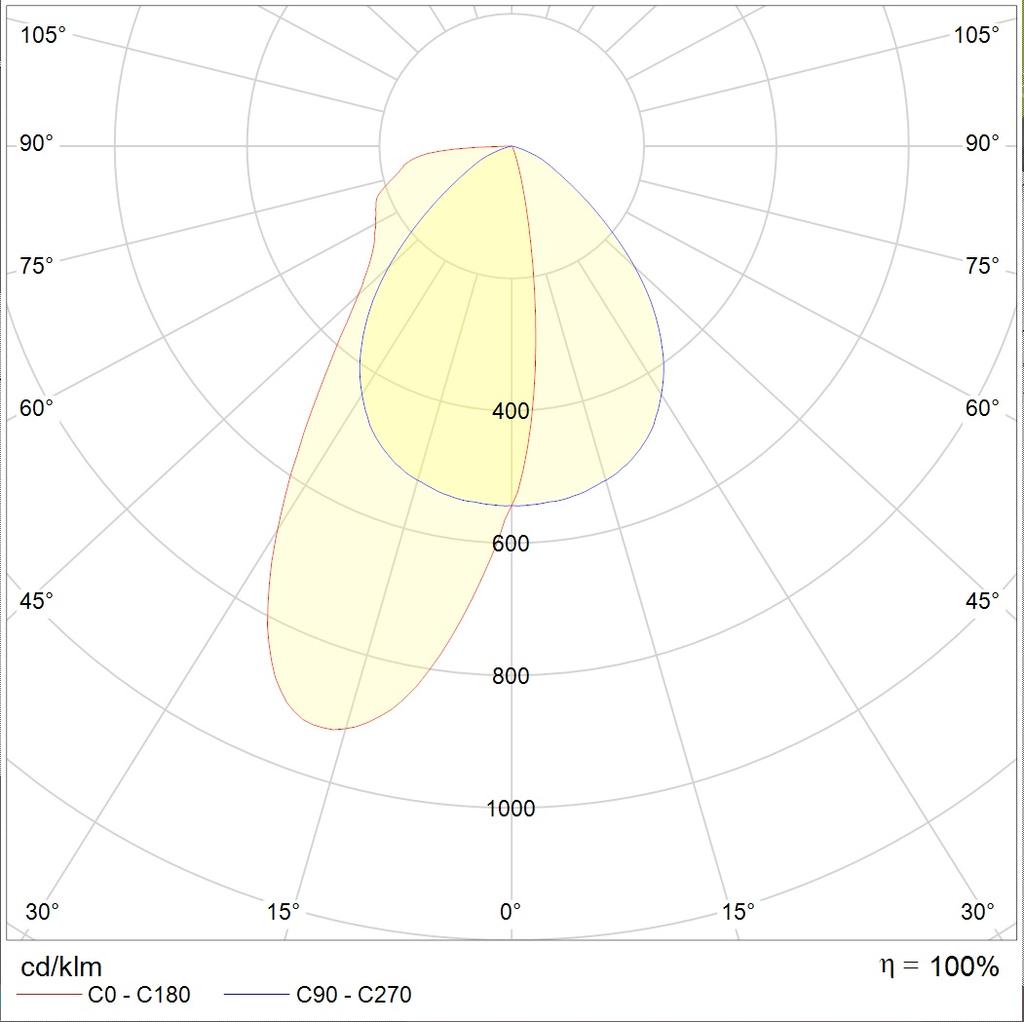

photometric files
ies134.1 kB
jpg134.4 kB
ldt83.4 kB
documents
passport1.2 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016583.2 kB
Fire Safety Certificate1.7 mB
CAD/BIM files
model 3dMax1.5 mB
photometric files
ies134.1 kB
jpg134.4 kB
ldt83.4 kB
documents
passport1.2 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016583.2 kB
Fire Safety Certificate1.7 mB
