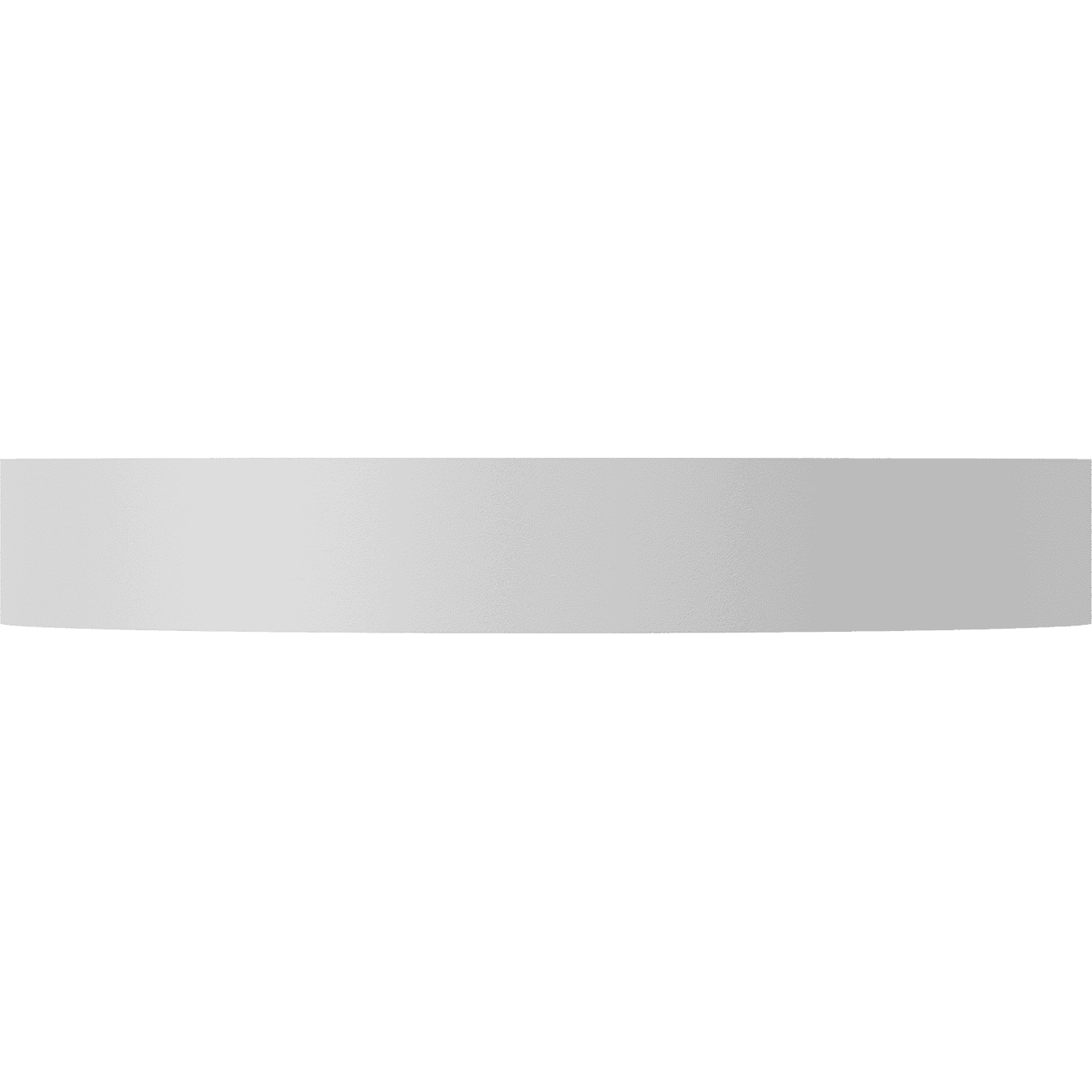

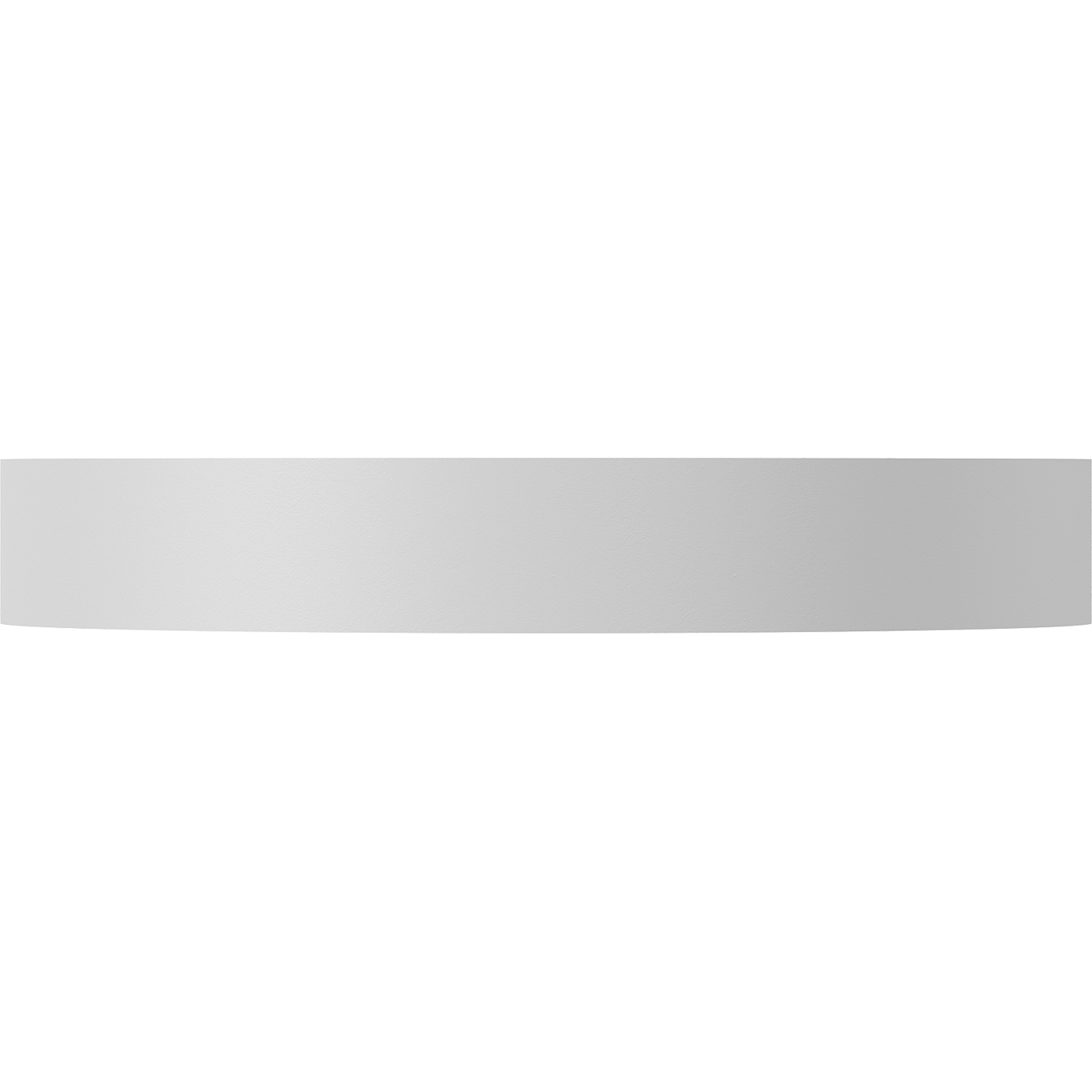

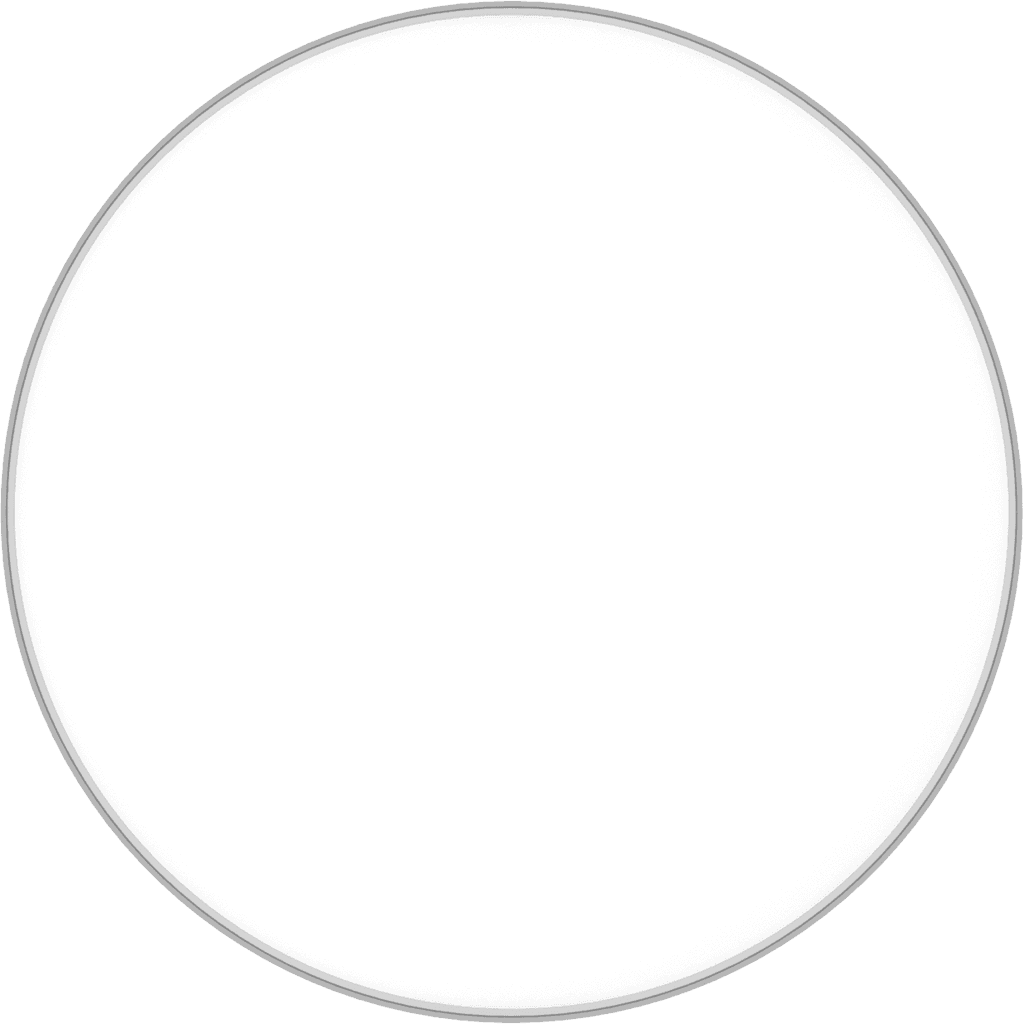

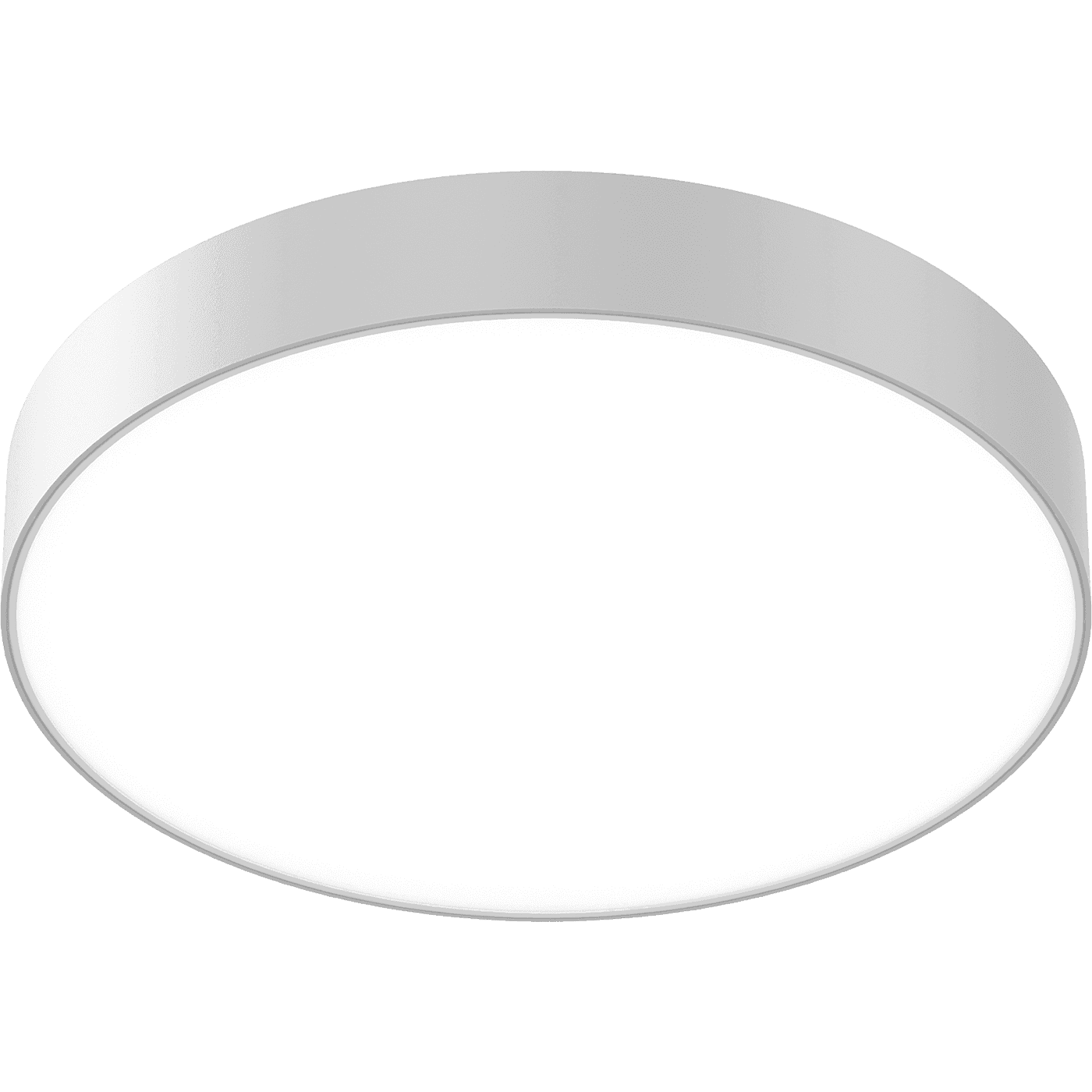

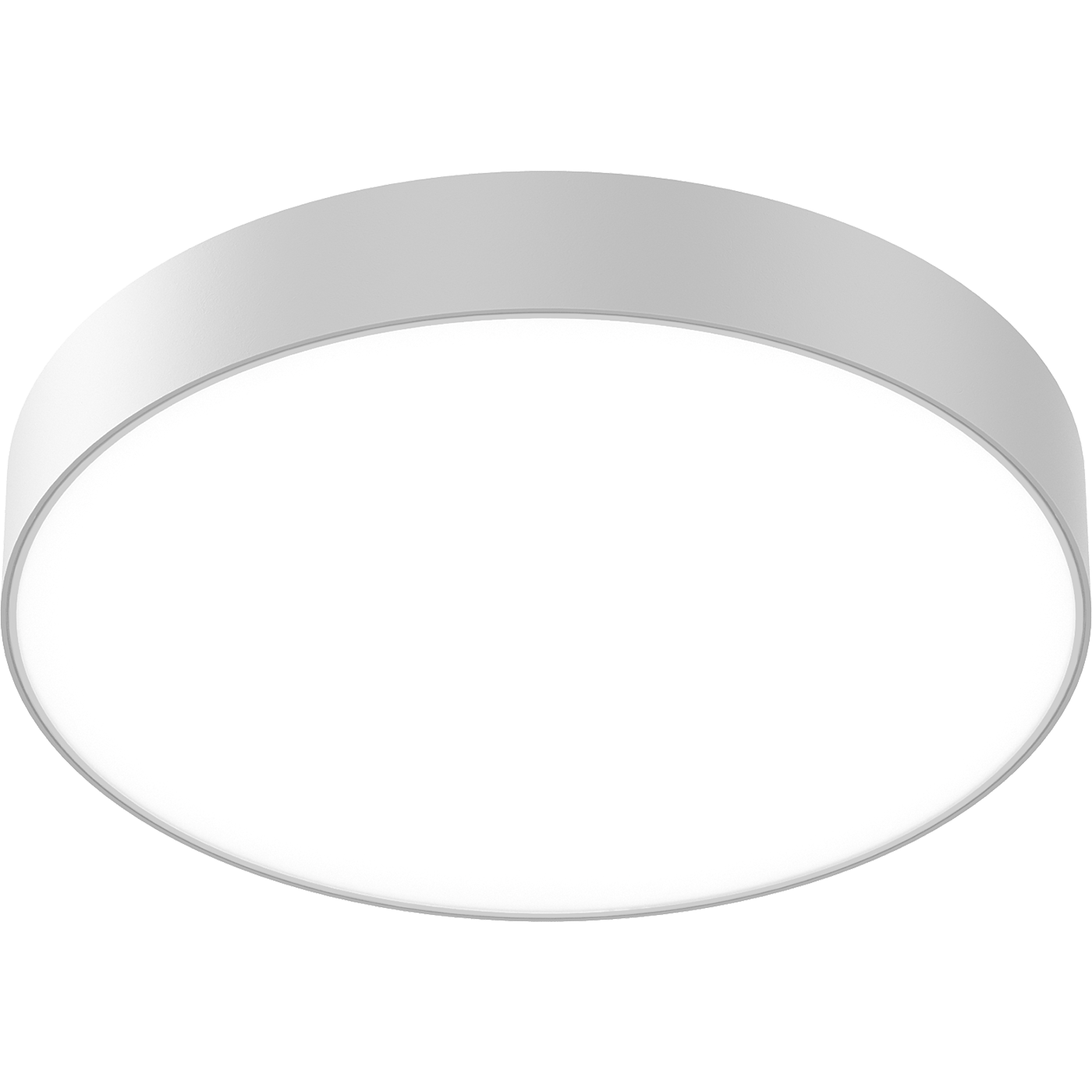

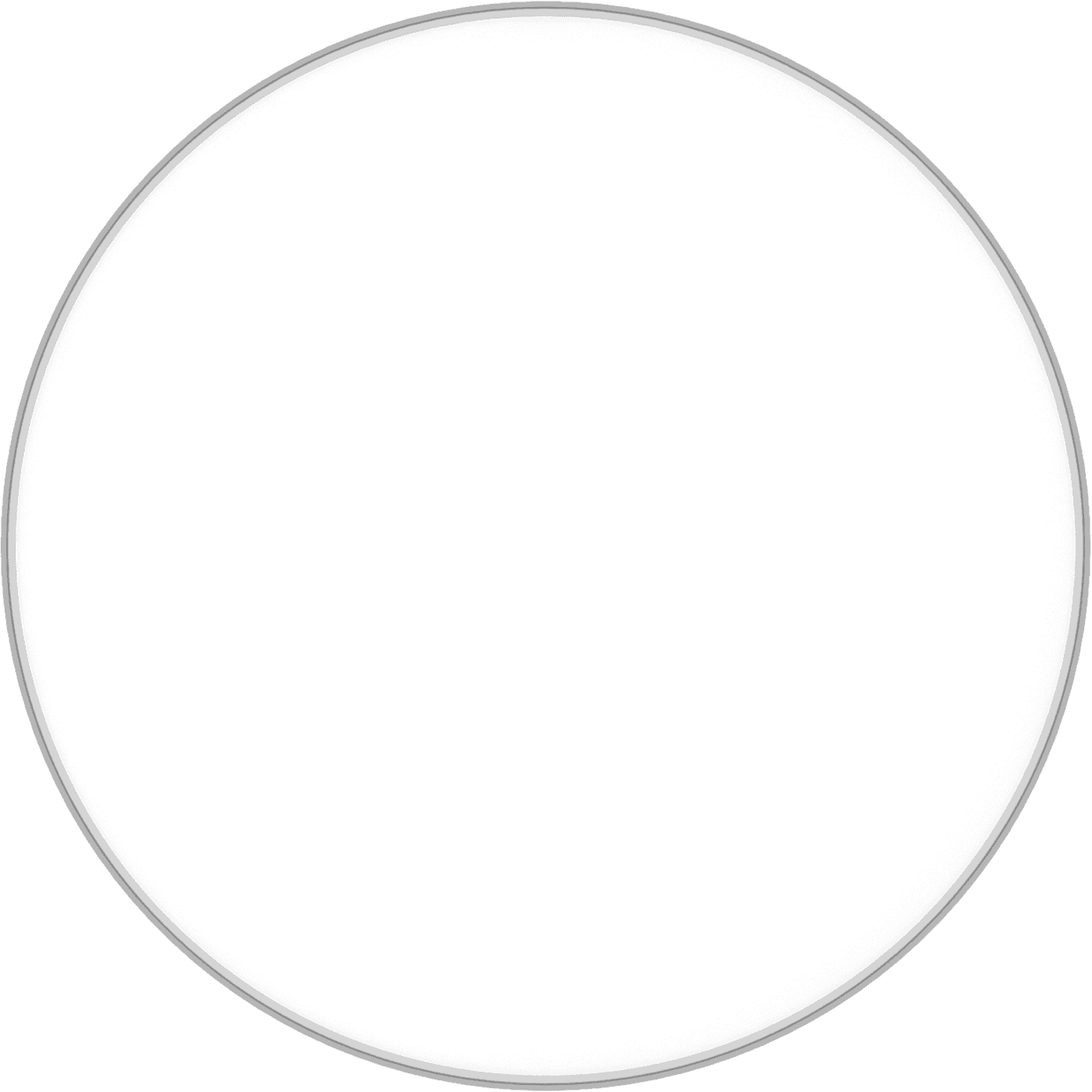

SOL STANDARD/S (900) 830 WH
SOL STANDARD/S (900) 830 WH
86 Wluminaire power
9600 lmlight flow
112 lm/Wenergy efficiency
code1470003130
color temperature3000 K
beam angleD120
old nameSOL STANDARD/S (900) 940 WH
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>80energy efficiency
112 lm/Wlight flow
9600 lmflickering factor
<5%beam angle
D120color temperature
3000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
energy efficiency
112 lm/W
light flow
9600 lm
flickering factor
<5%
beam angle
D120
color temperature
3000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
electric shock protection
I
luminaire power
86 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage
230 V
starting current
25 A
rated supply voltage, alternating current
230 V

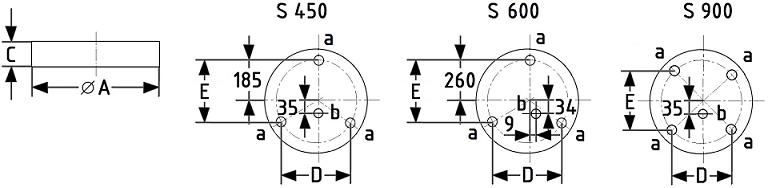

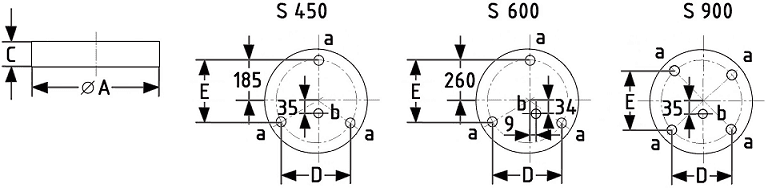

constructional
diameter
900 mm
height
90 mm
installation length
580 mm
installation width
580 mm
weight
18.5 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-I,II,ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
energy efficiency class
A+
service life
50 000 h
temperature range
от +5 до +35 C
code
1470003130
model files
model files

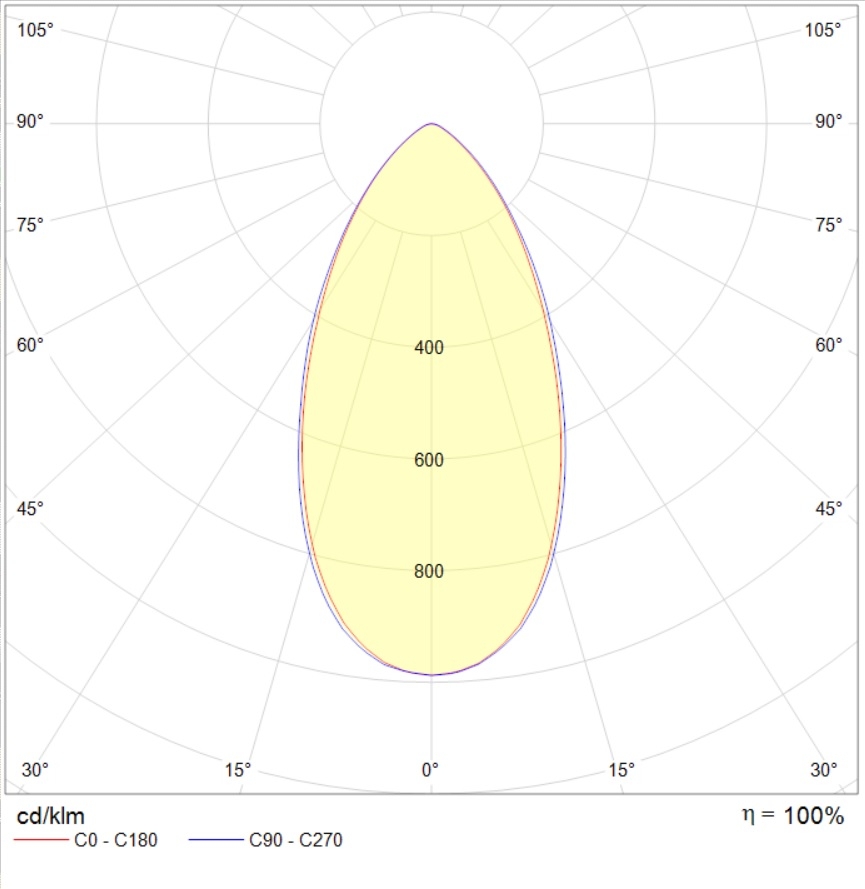

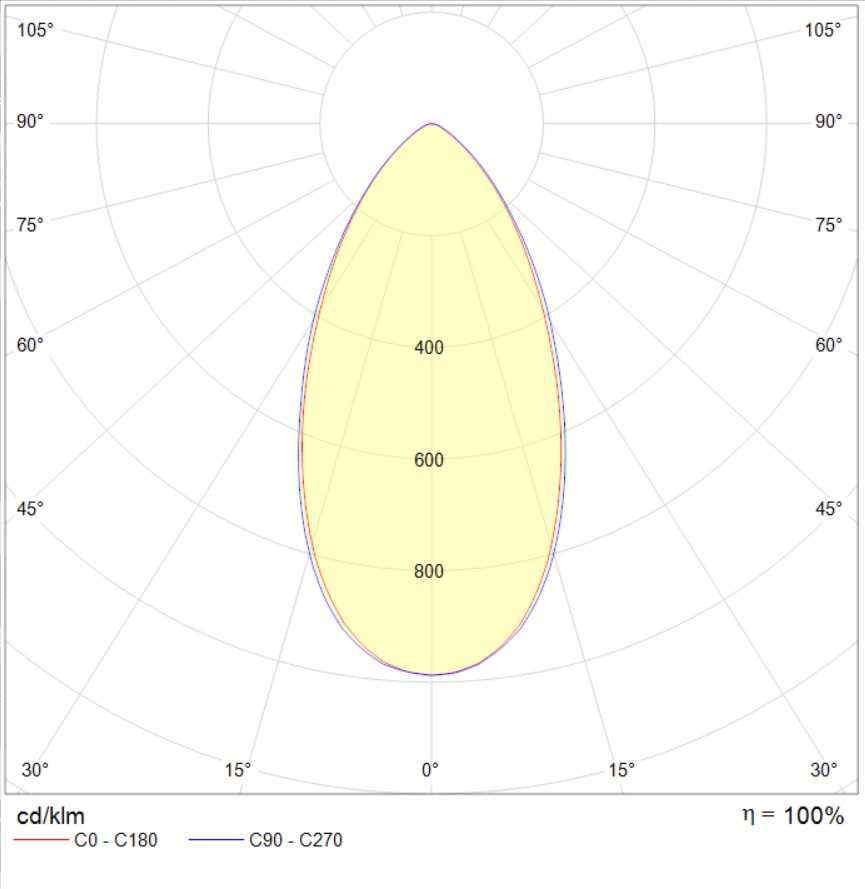

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg80 kB
ldt70.9 kB
documents
passport2 mB
сертификаты
Russian origin279 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
