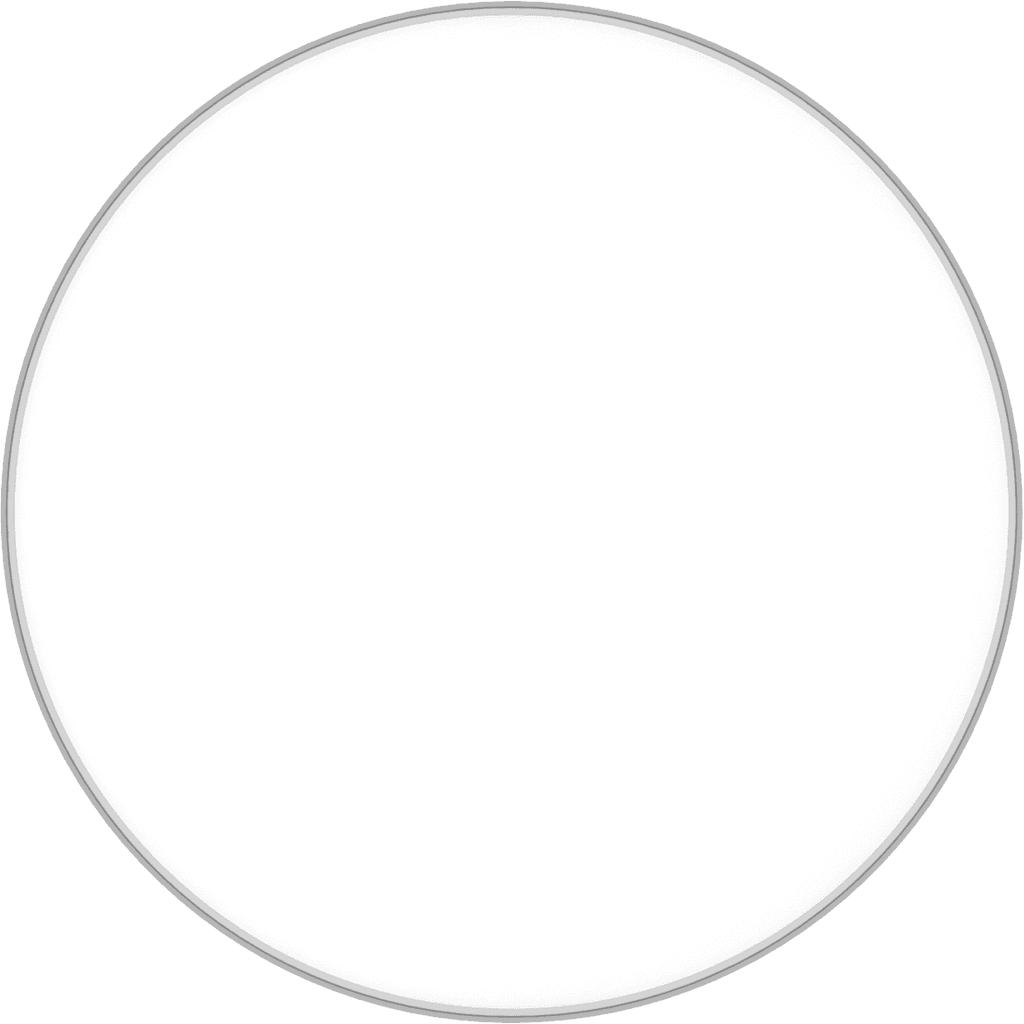

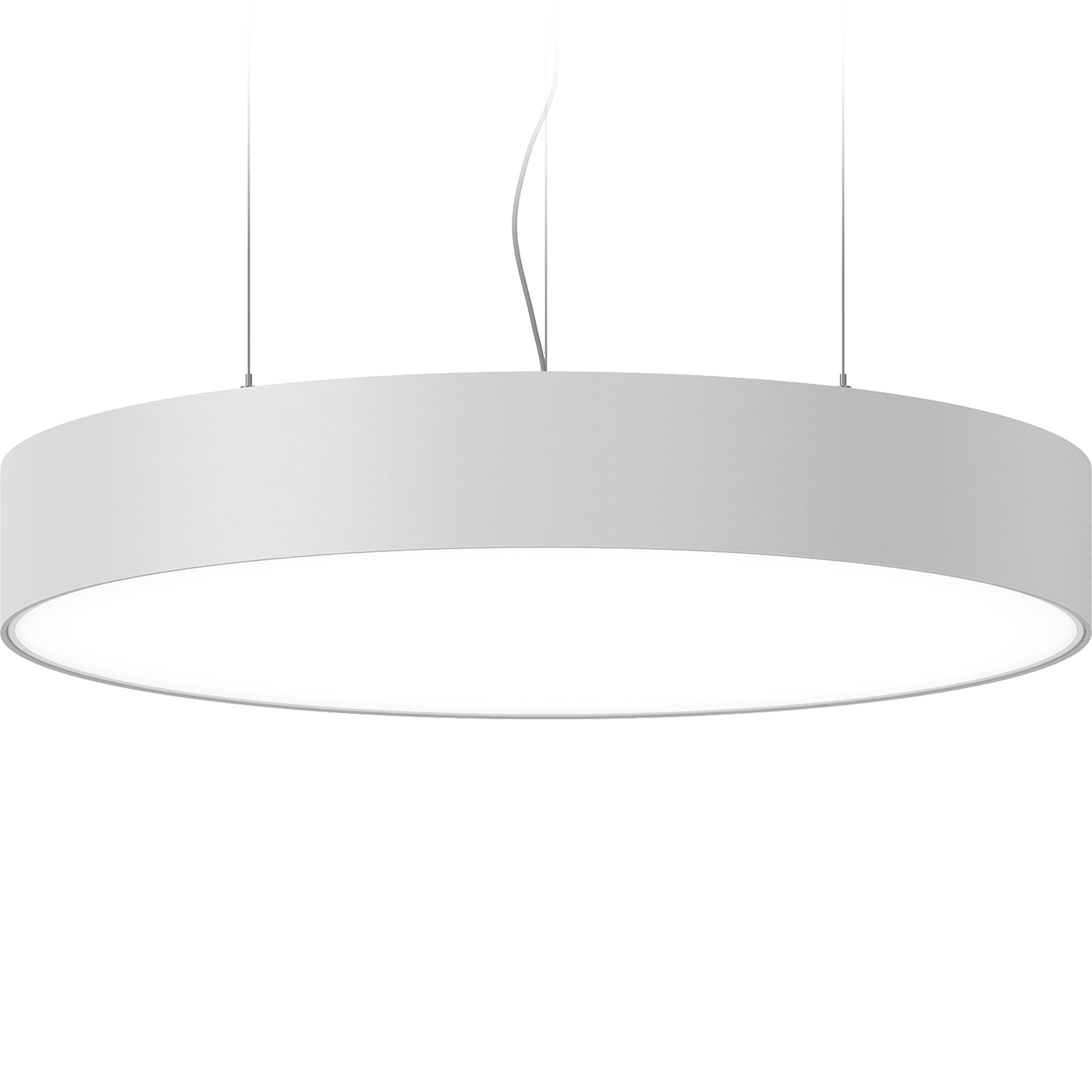

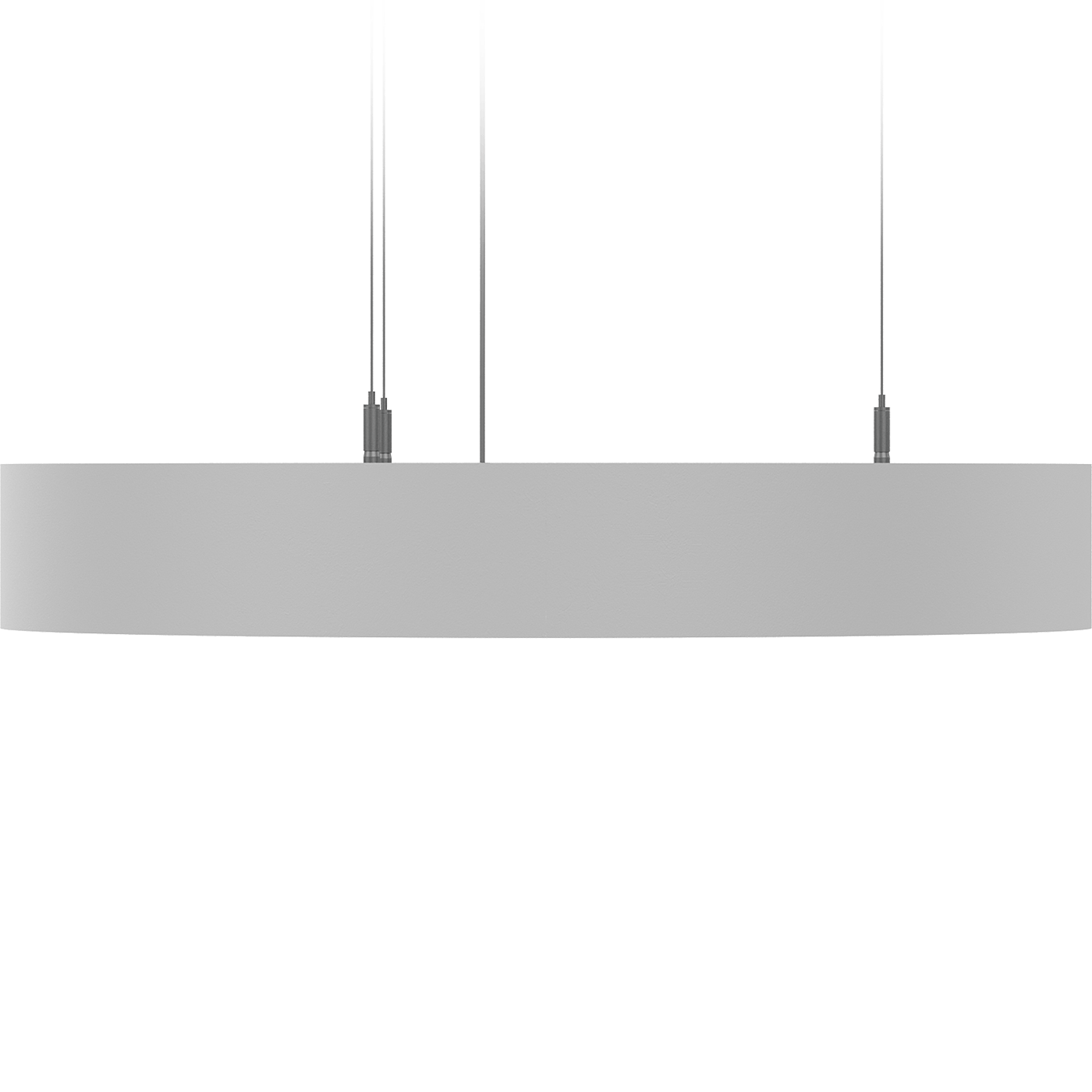

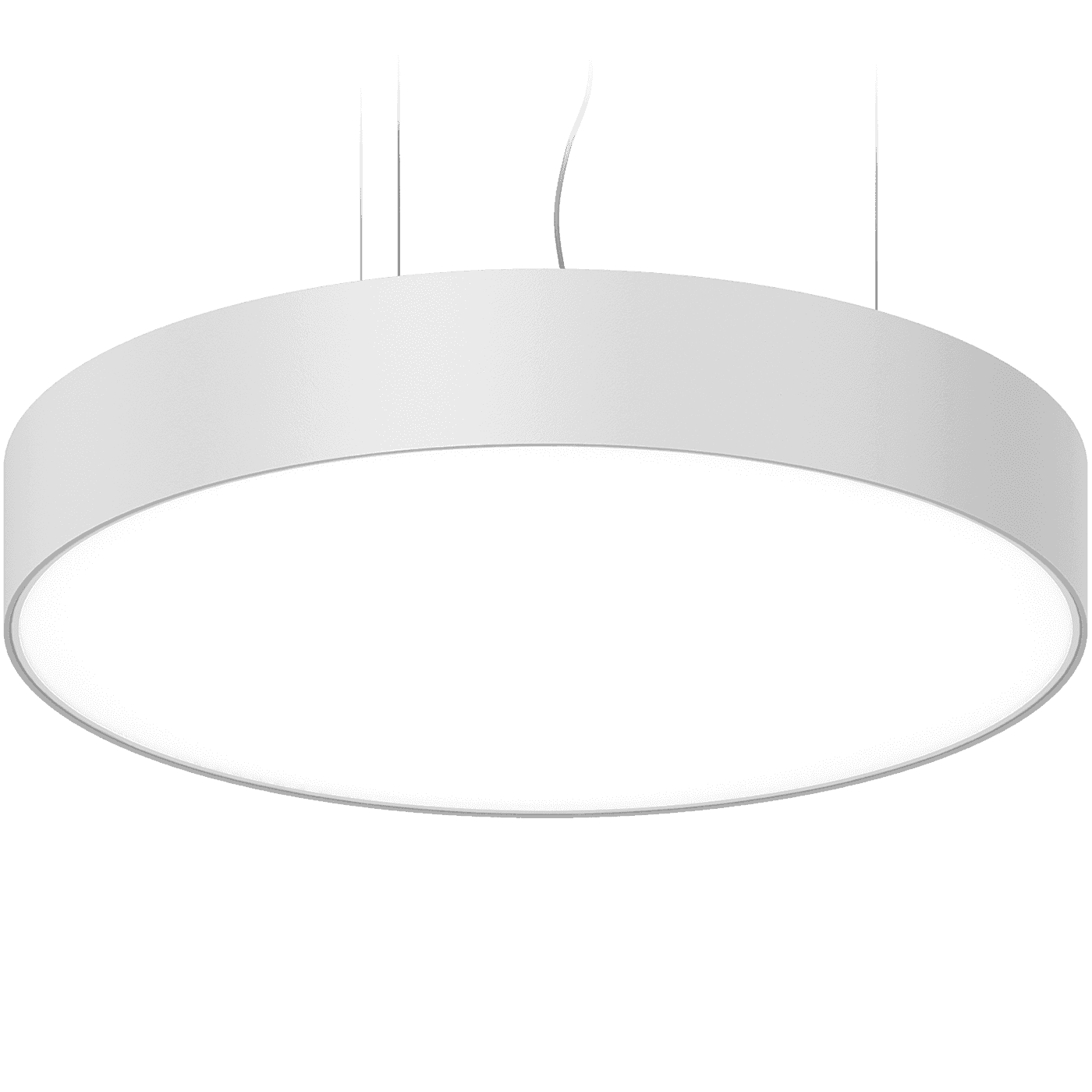

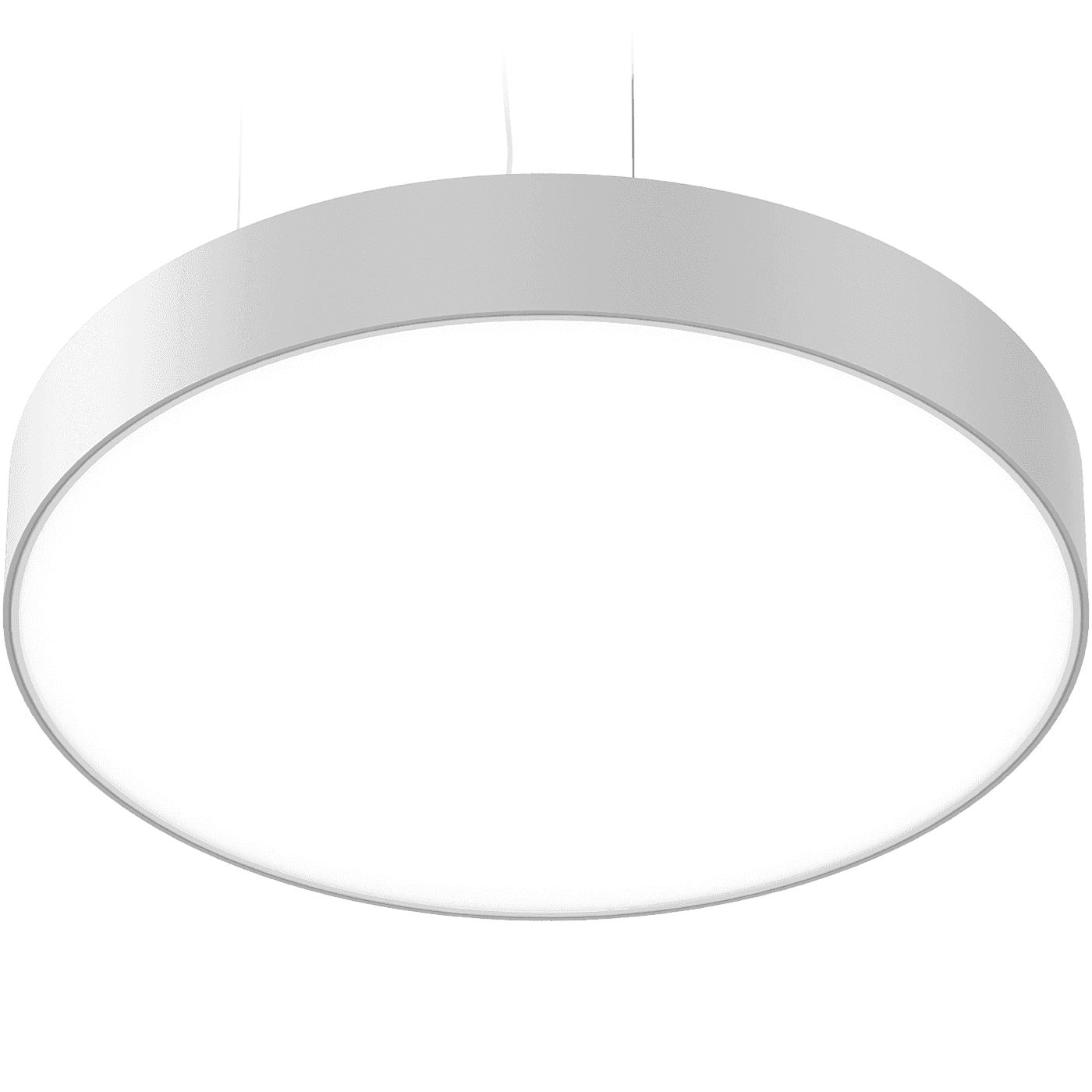

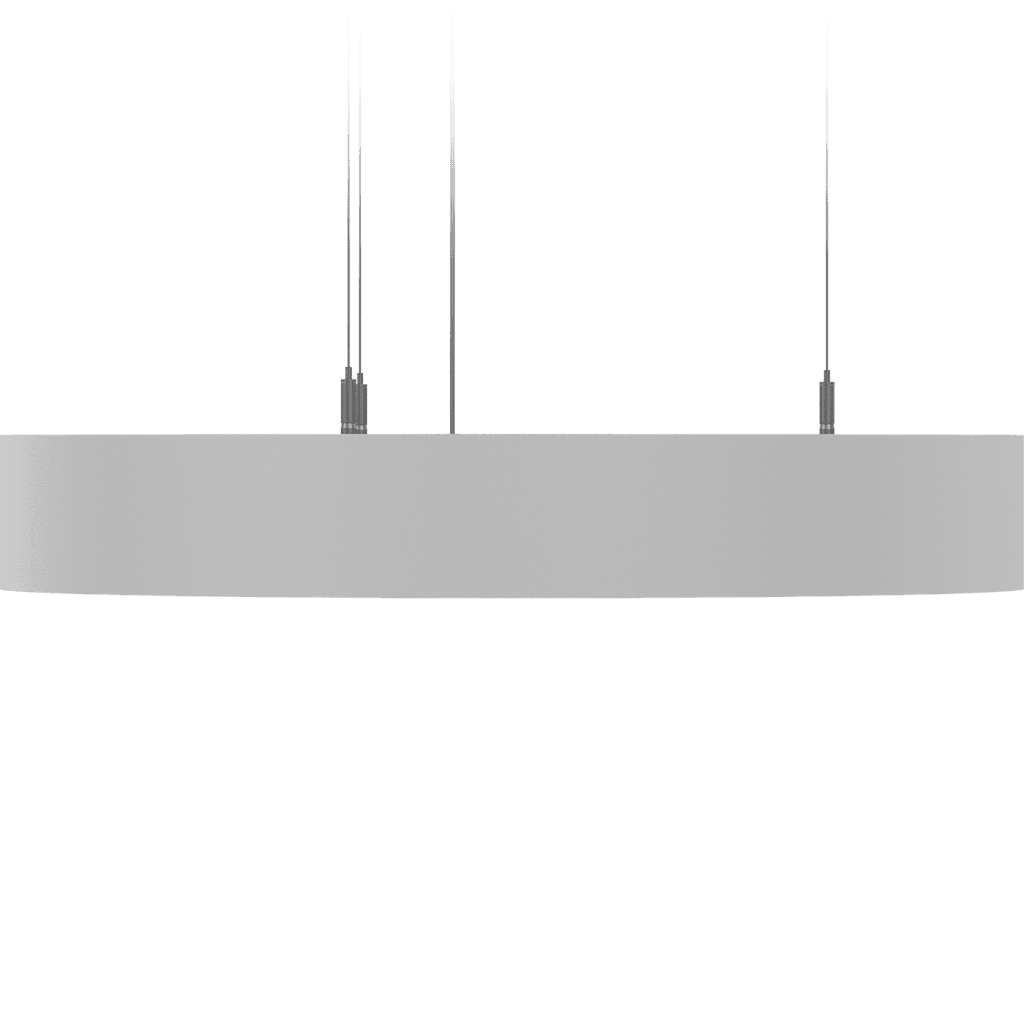

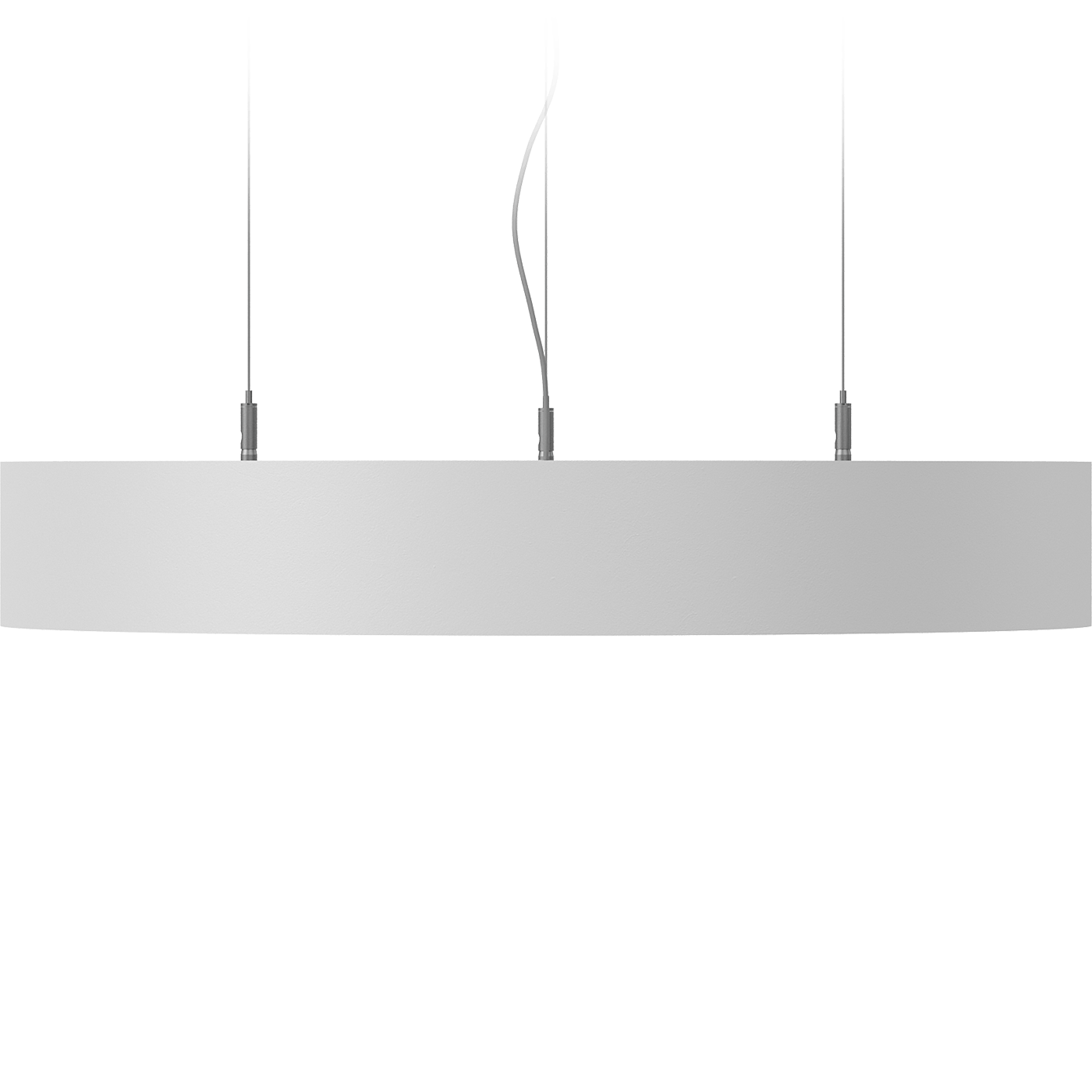

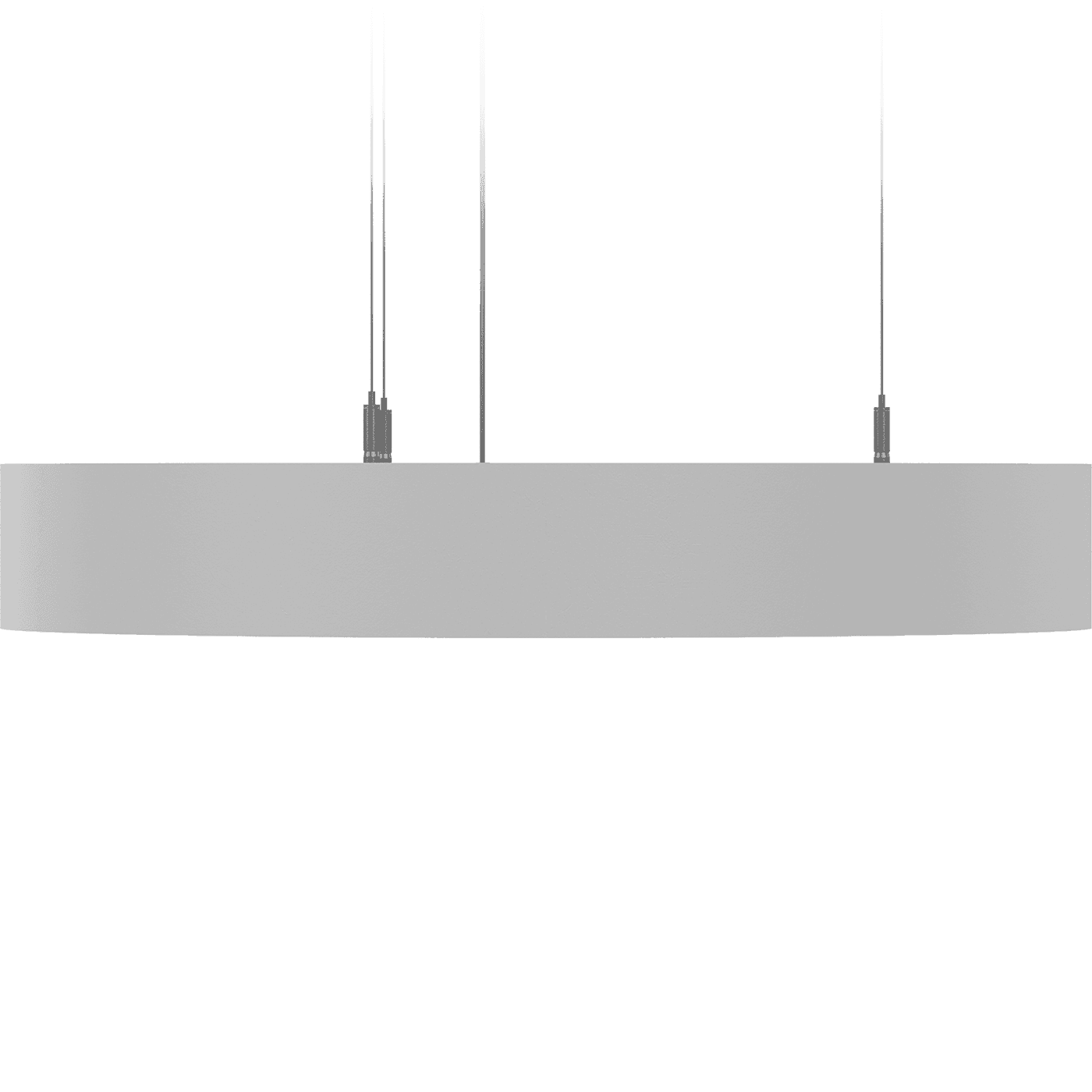

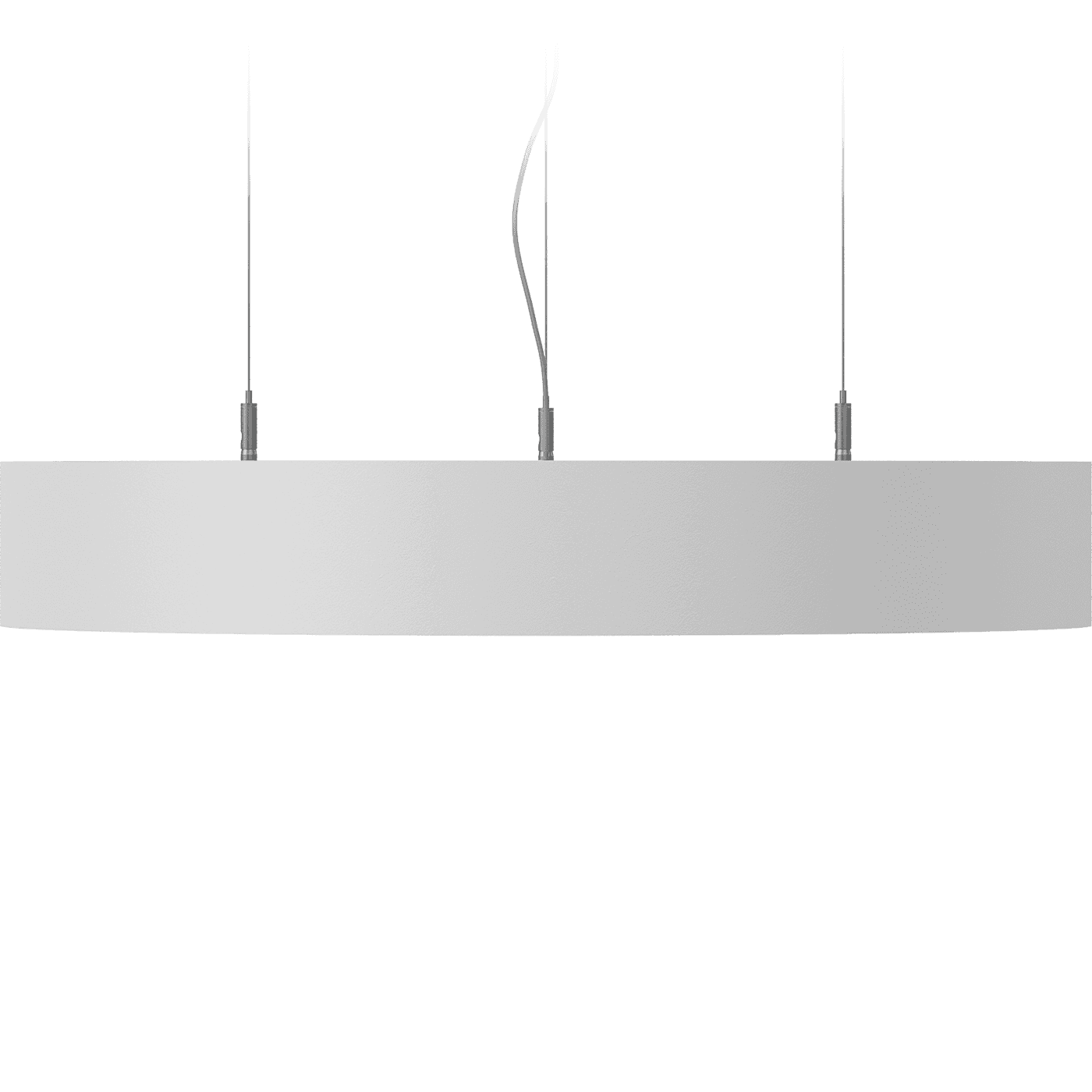

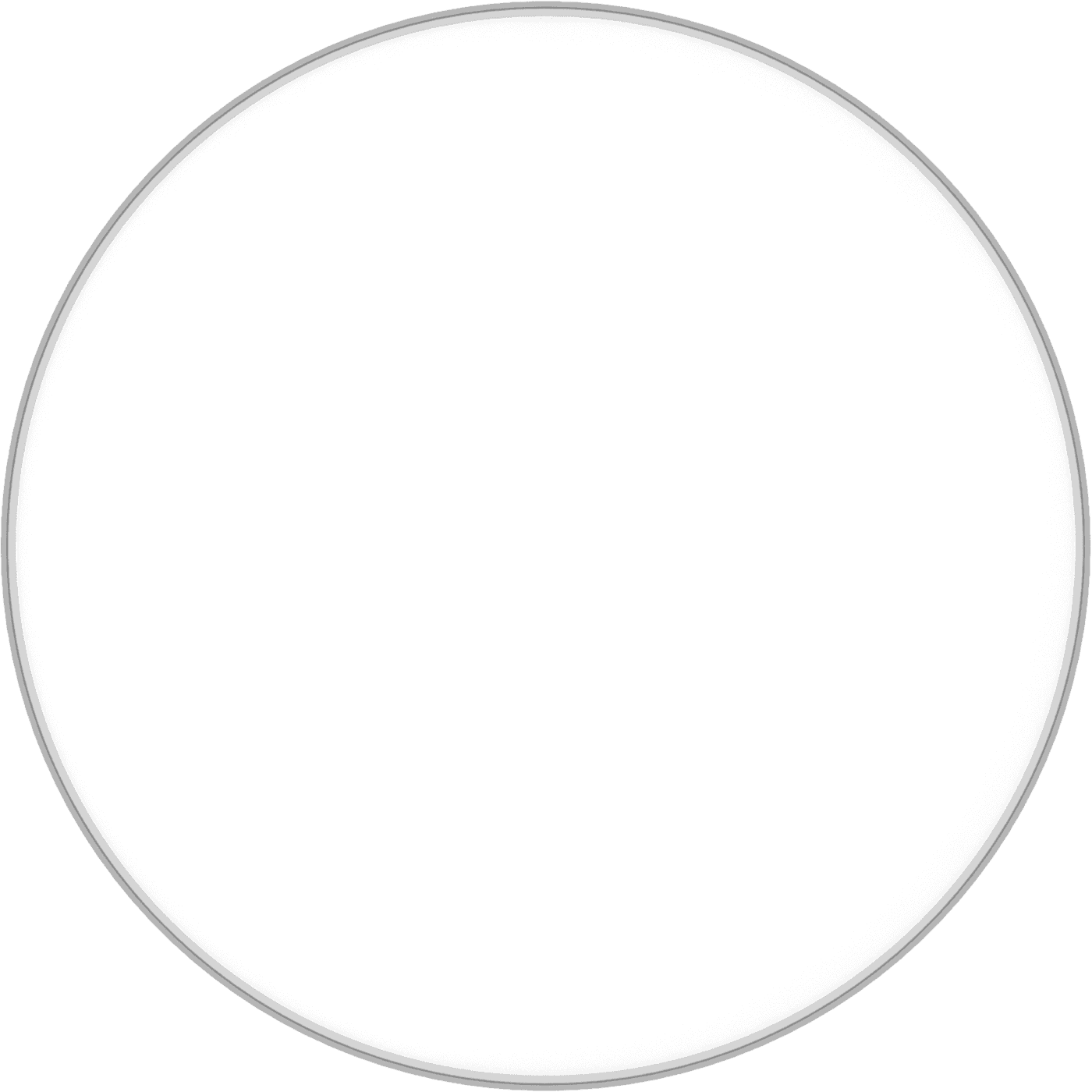

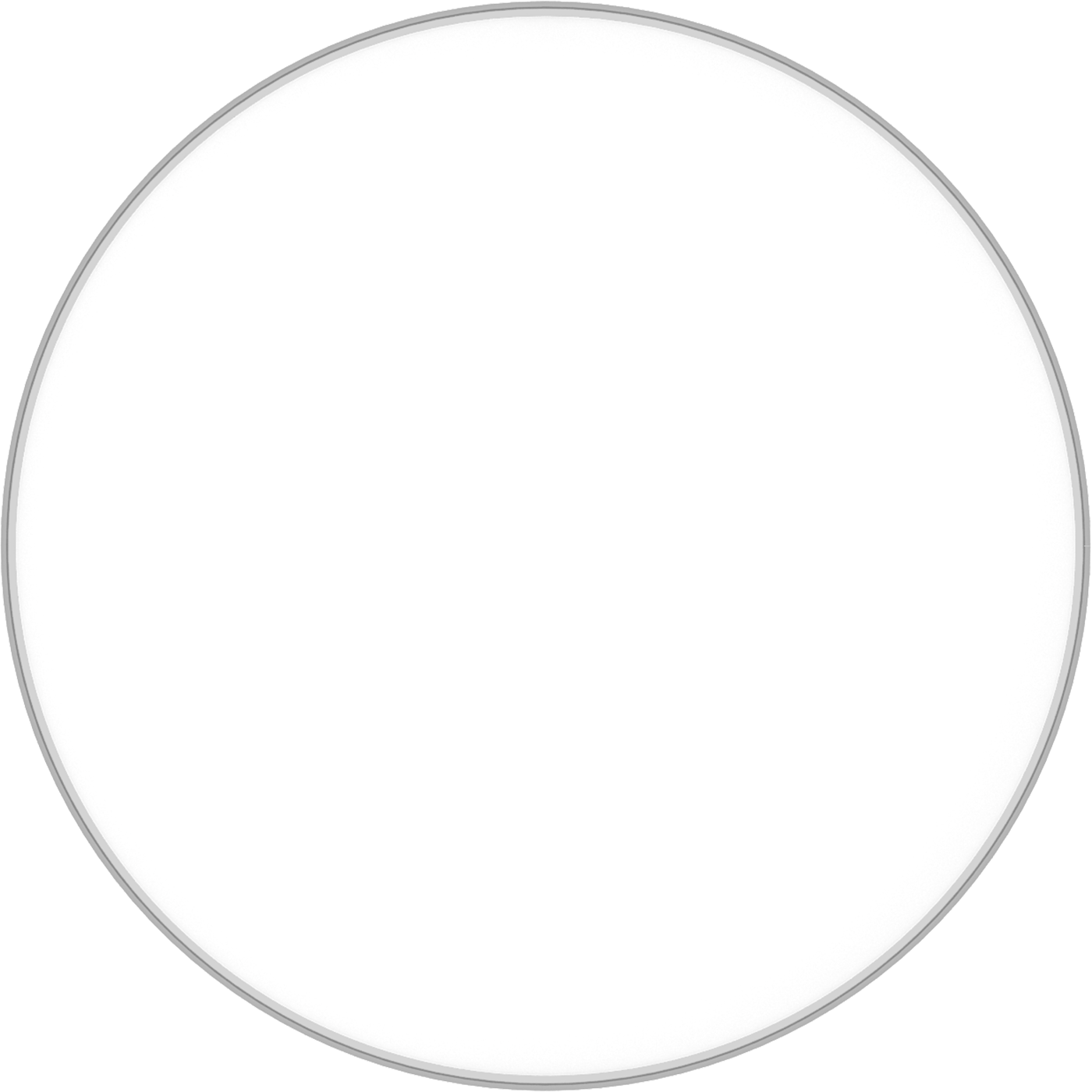

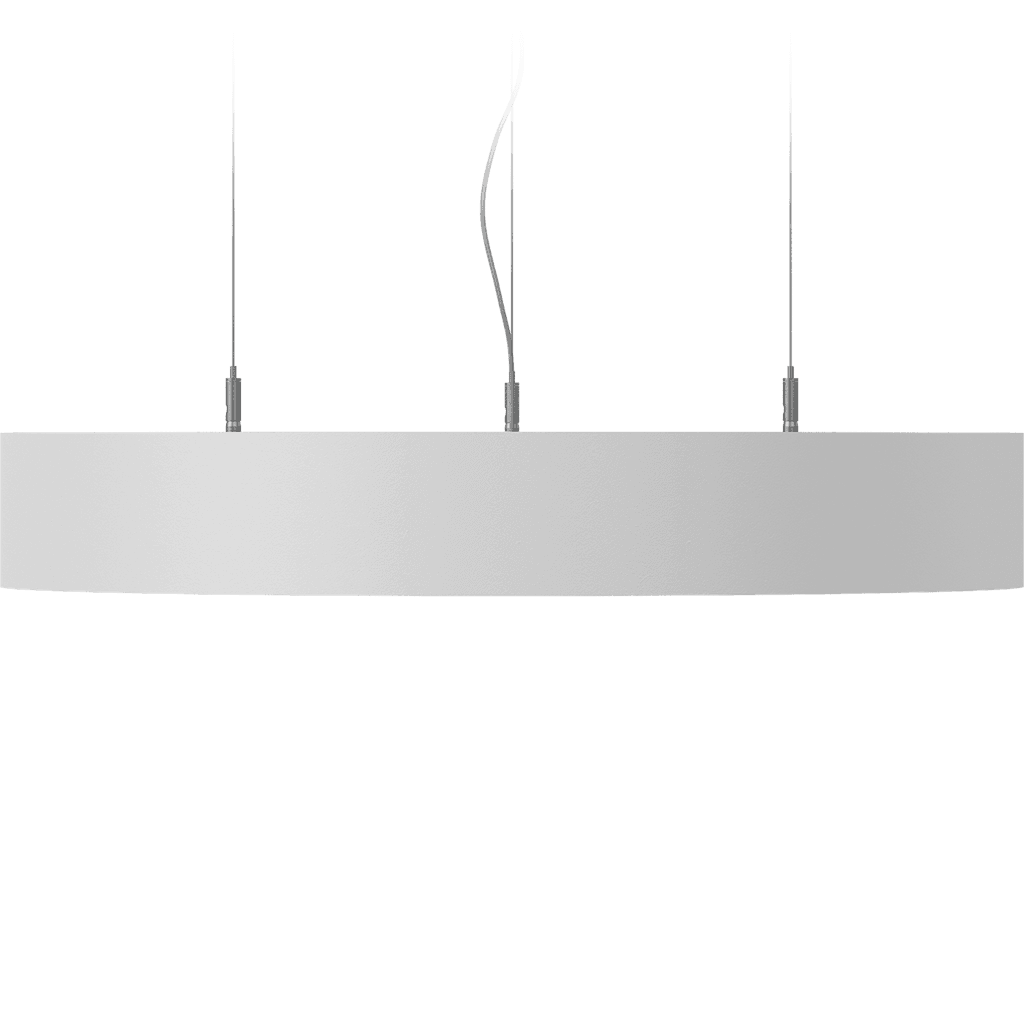

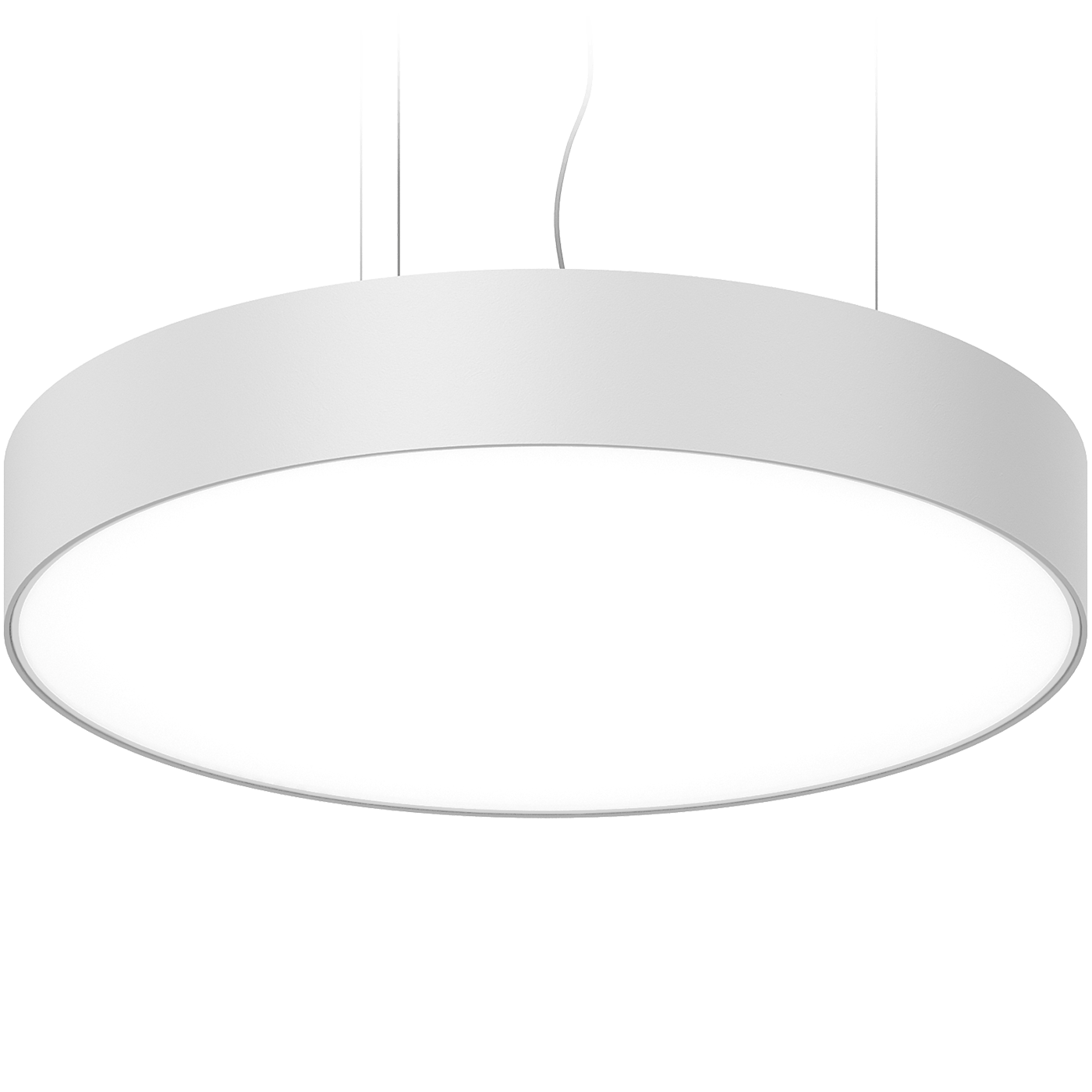

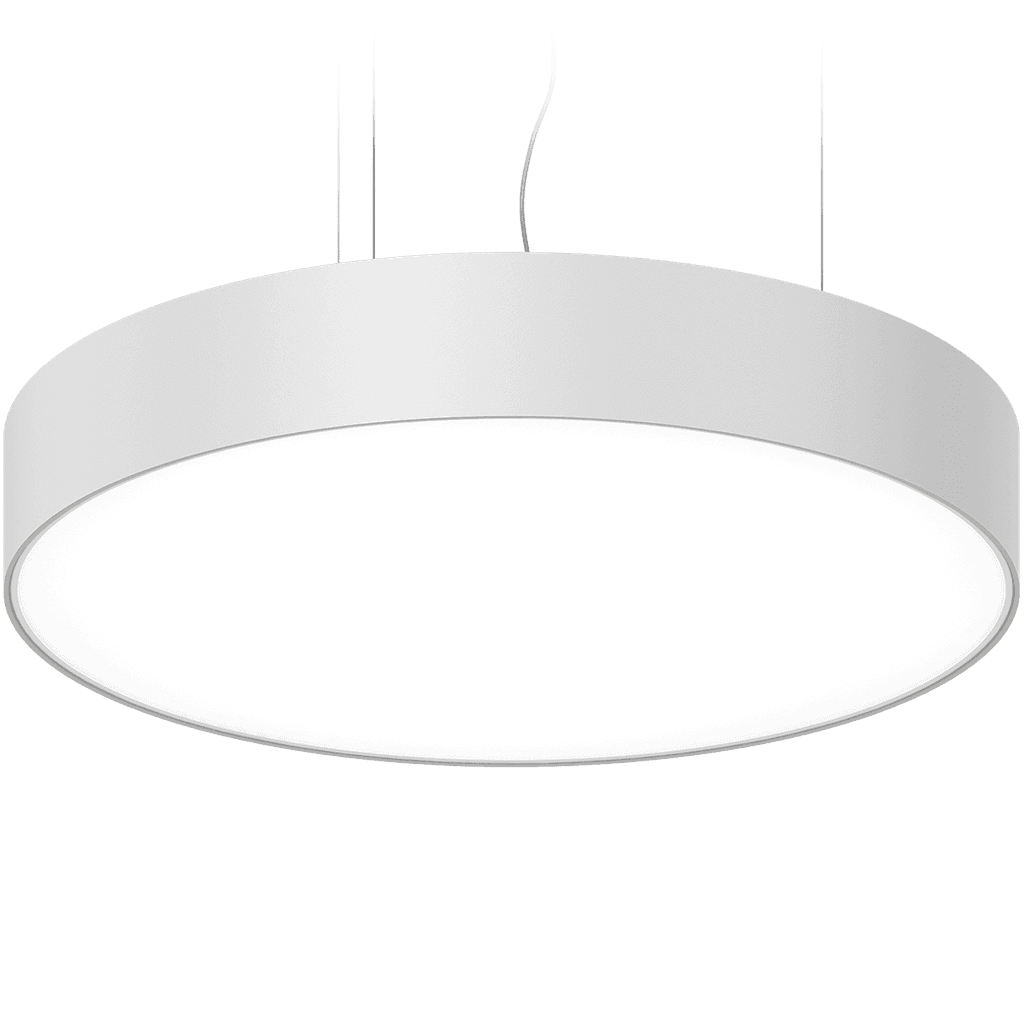

SOL STANDARD/P (450) 840 WH
SOL STANDARD/P (450) 840 WH
22 Wluminaire power
2100 lmlight flow
95 lm/Wenergy efficiency
code1470002310
color temperature4000
beam angleD120
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
starting current
25 Astarting current pulse time, µs
250 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
176-264 Vsupply voltage, direct current
176-264 Vluminaire power
22 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
22 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
fire safety class
П-I,II,ІІІ
material
Алюминий
weight
4.8 kg
diameter, mm
450 mm
height, mm
90 mm
housing color
Белый
installation length, mm
320 mm
installation width, mm
278 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Светильник подвесной
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1470002310
illuminating
color rendition index (CRI)
>80
light flow
2100 lm
flickering factor
<5%
energy efficiency
95 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
model files
model files
photometric files
documents
сертификаты

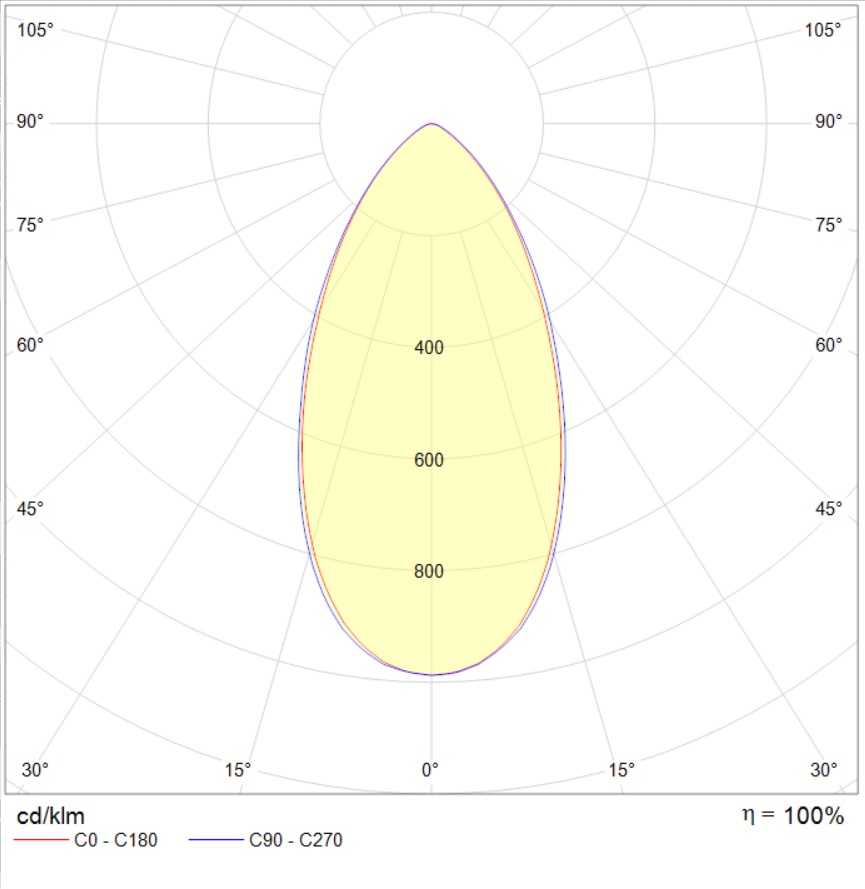

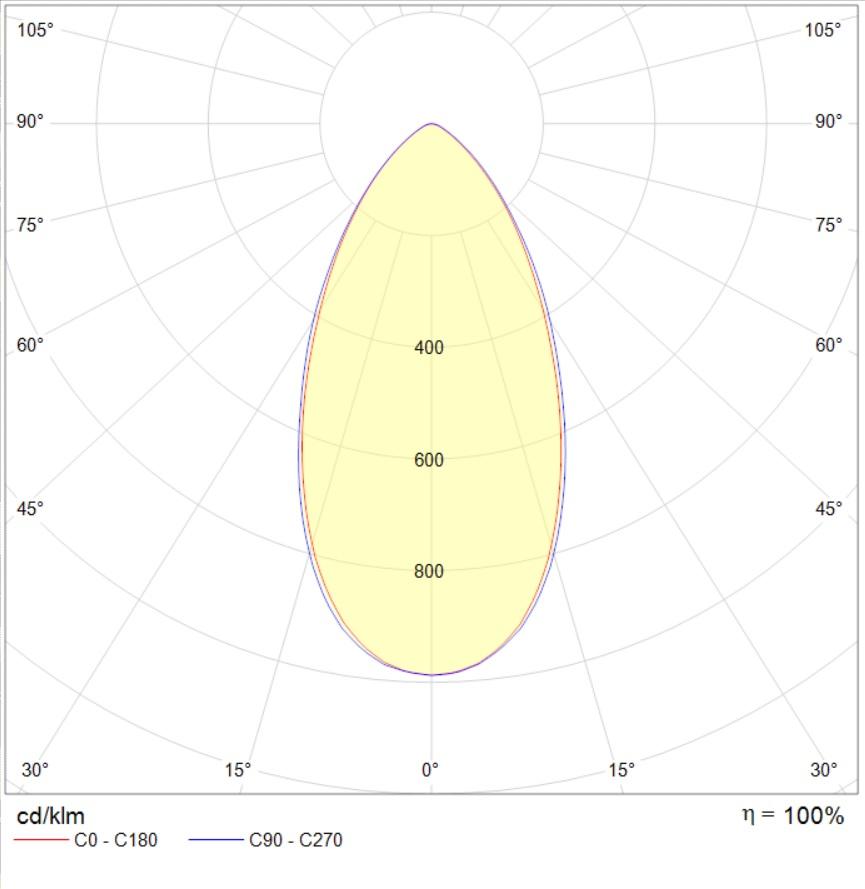

photometric files
ies107 kB
jpg80 kB
ldt70.9 kB
documents
passport1.1 mB
сертификаты
Russian origin279 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016535.9 kB
Fire Safety Certificate2.5 mB
