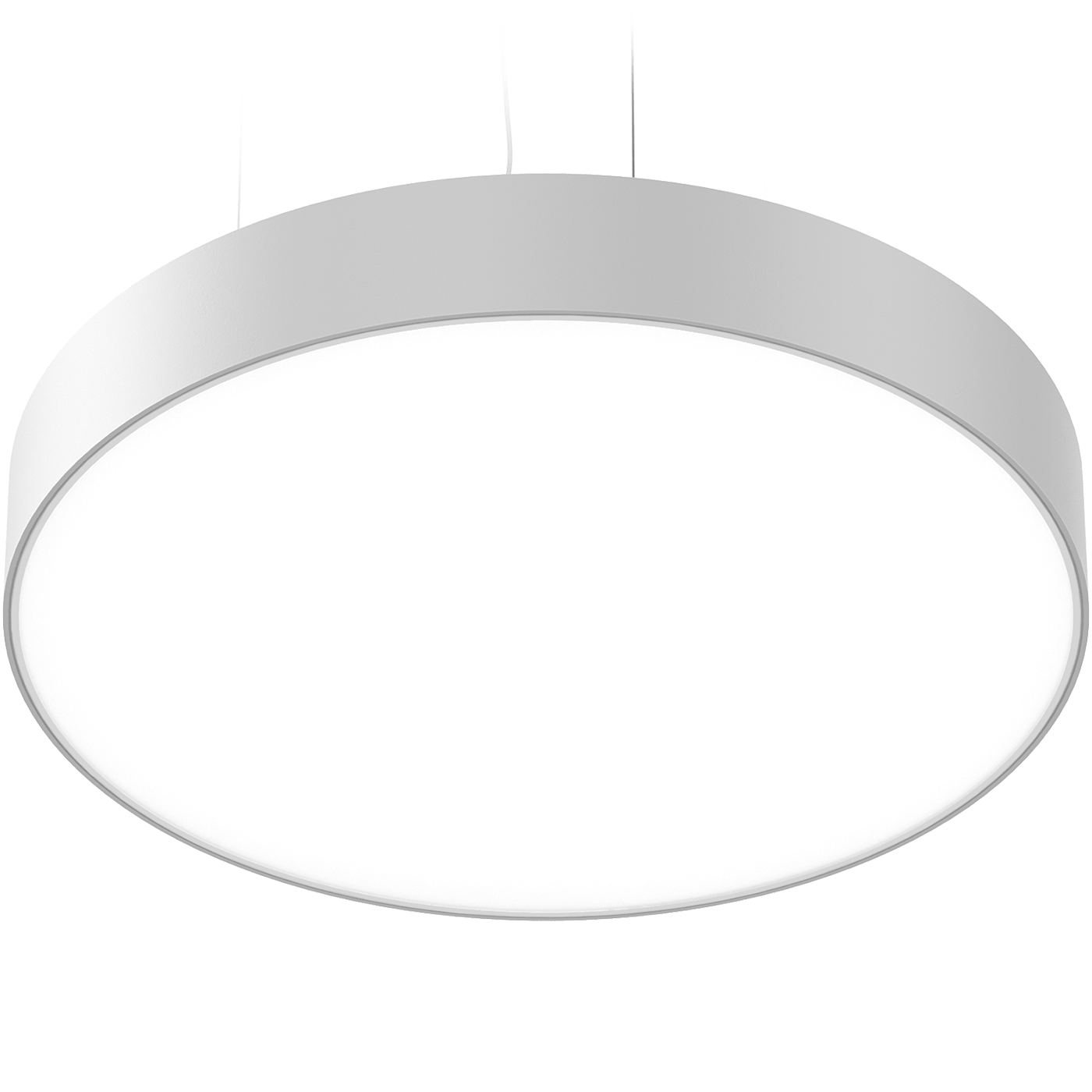

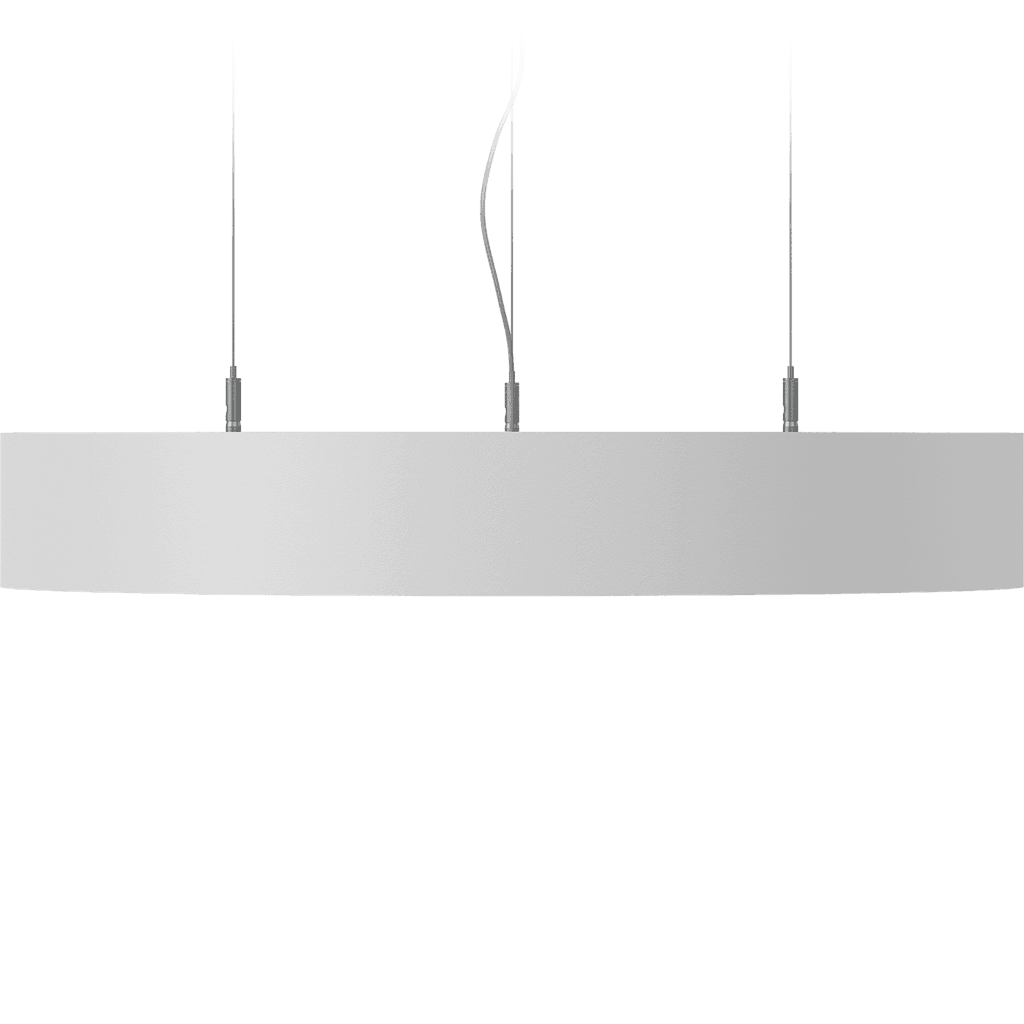

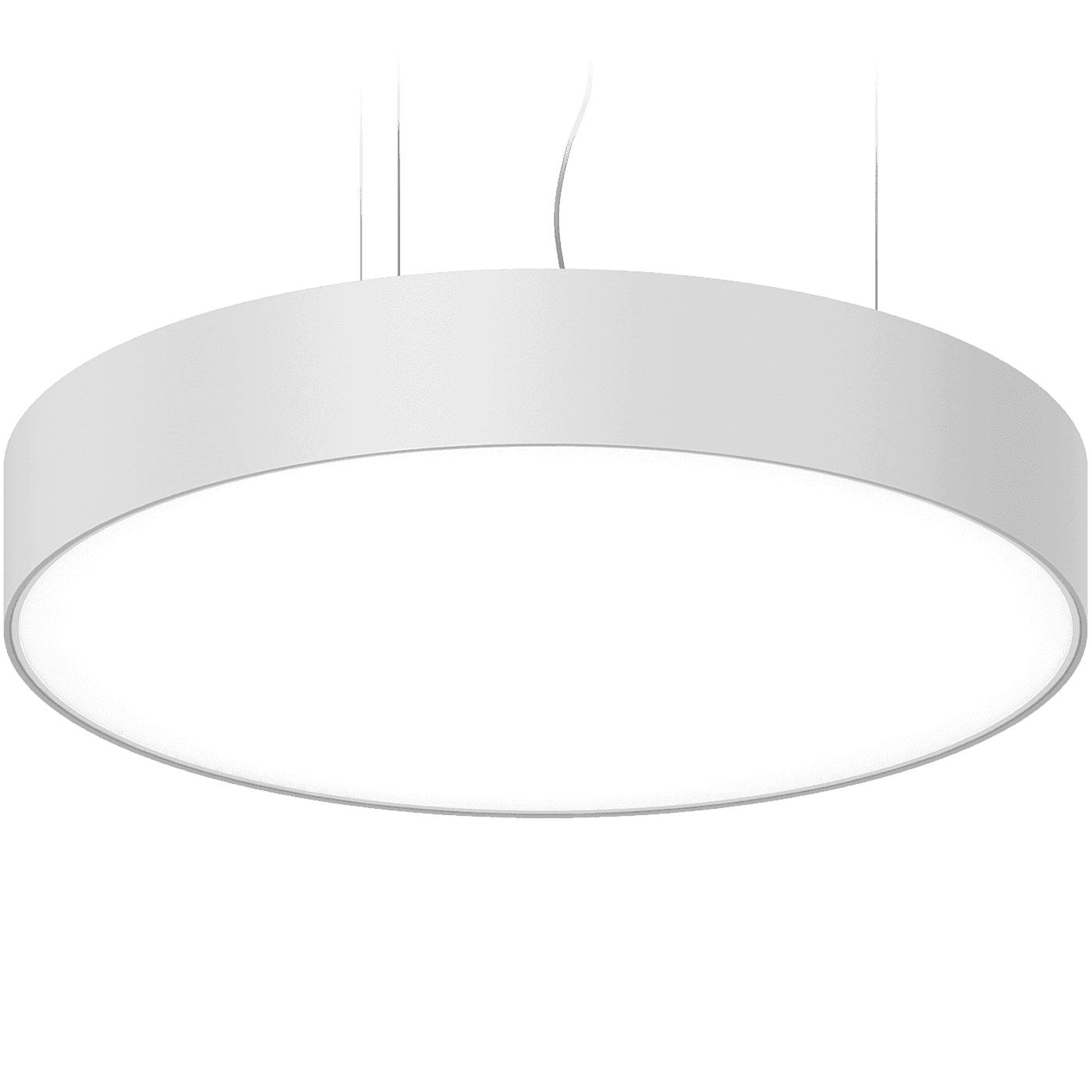

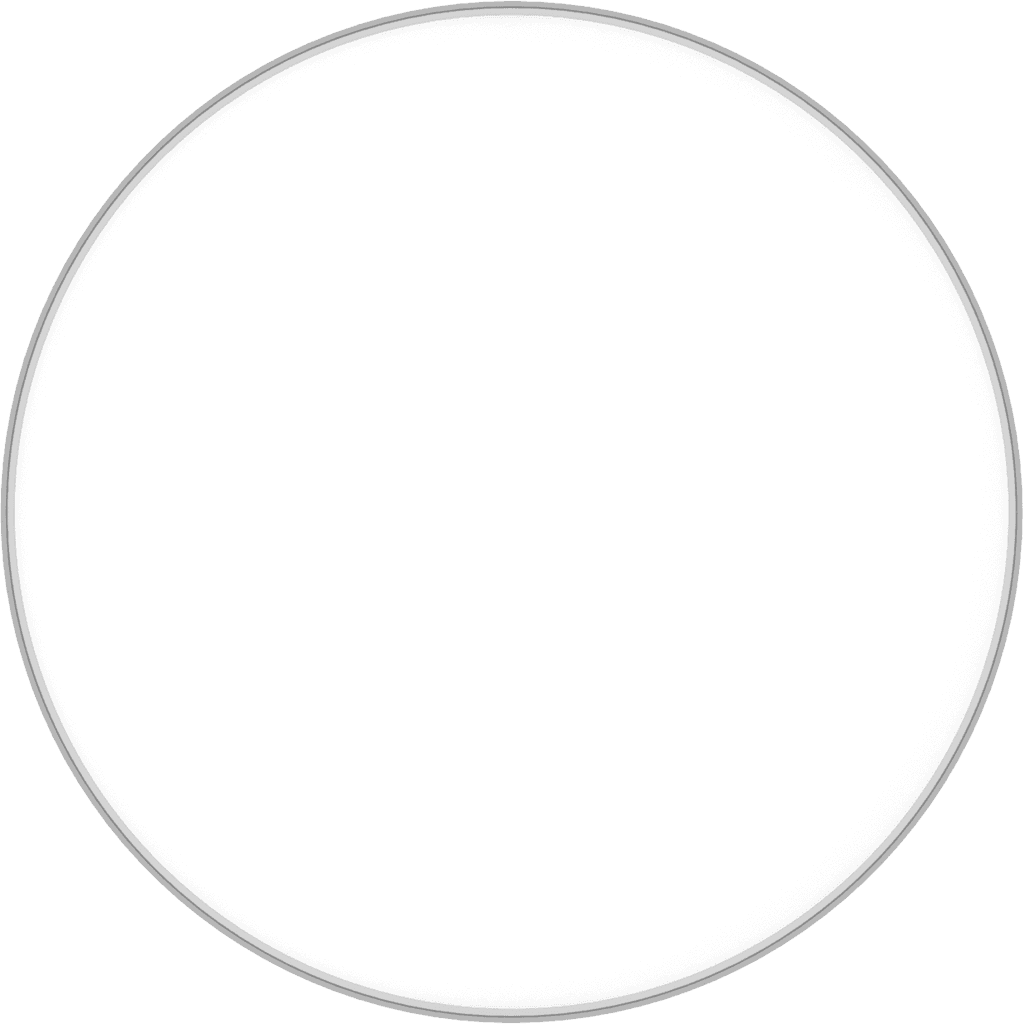

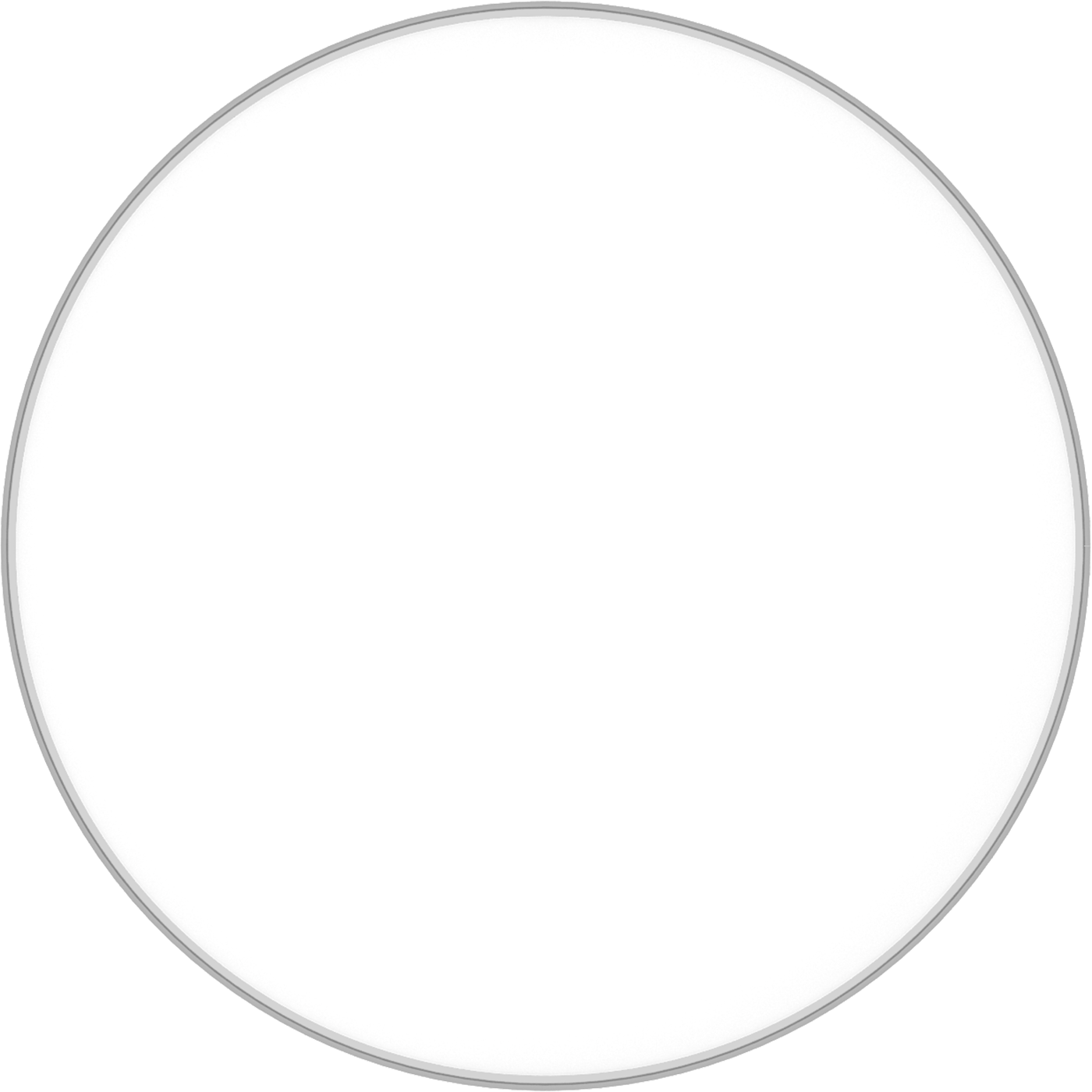

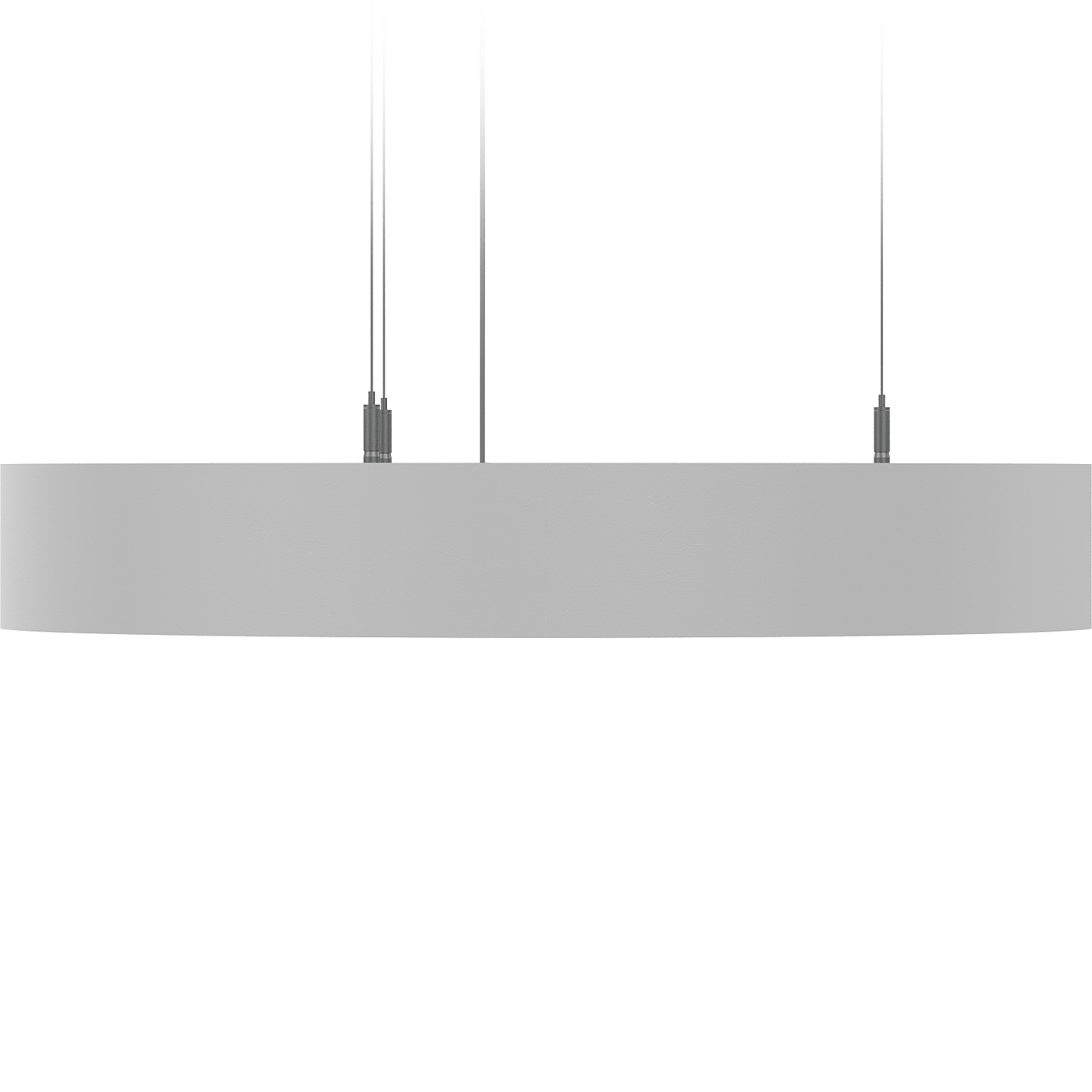

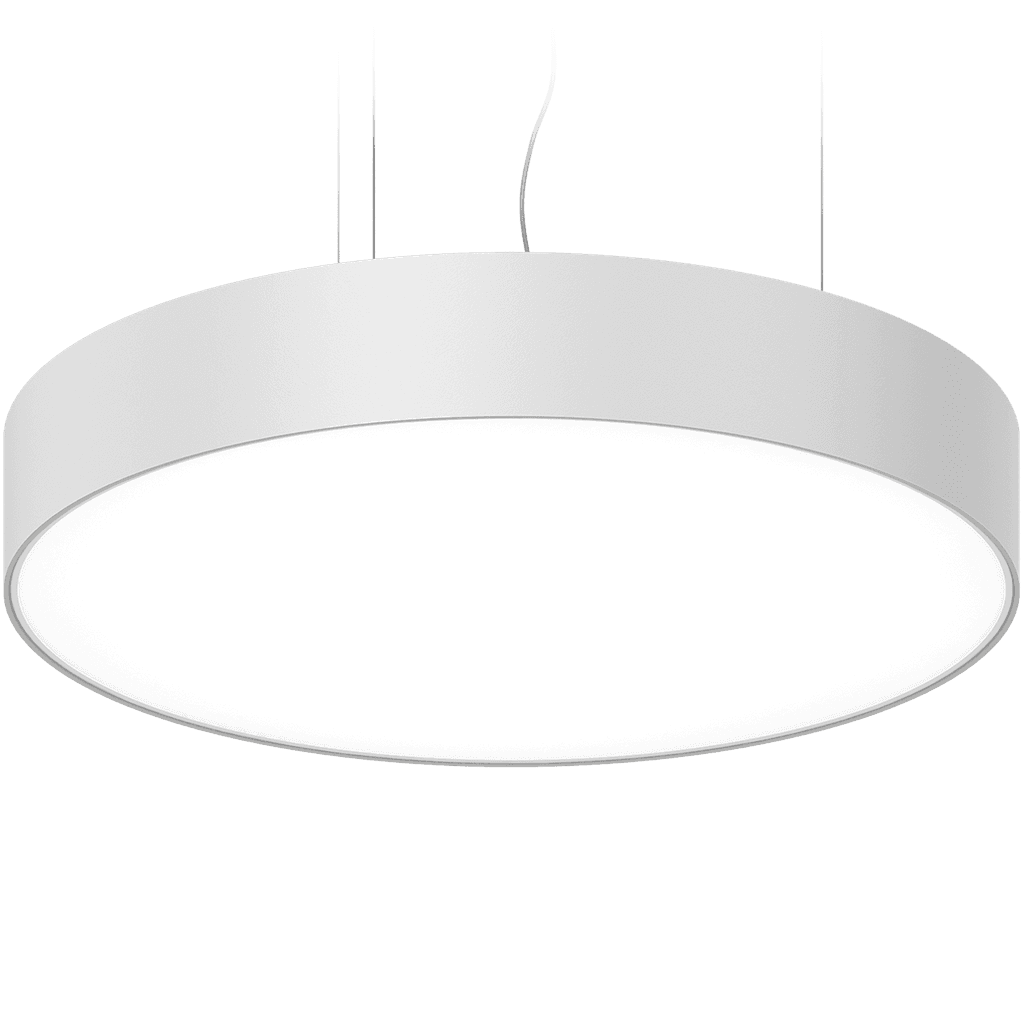

SOL SCHOOL/P (900) 940 WH
_940_wh.jpg&w=1920&q=100)
_940_wh.jpg&w=1024&q=75)

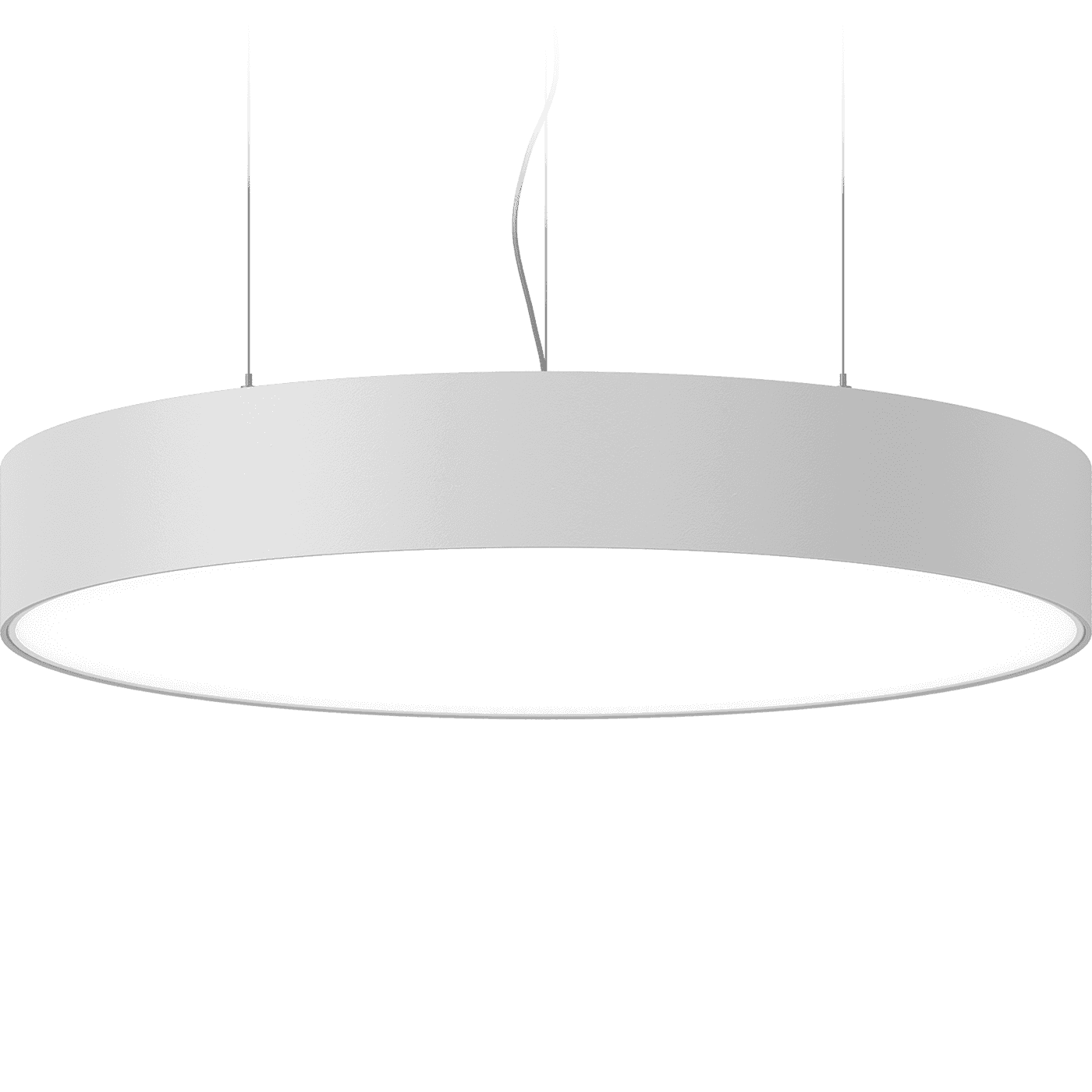

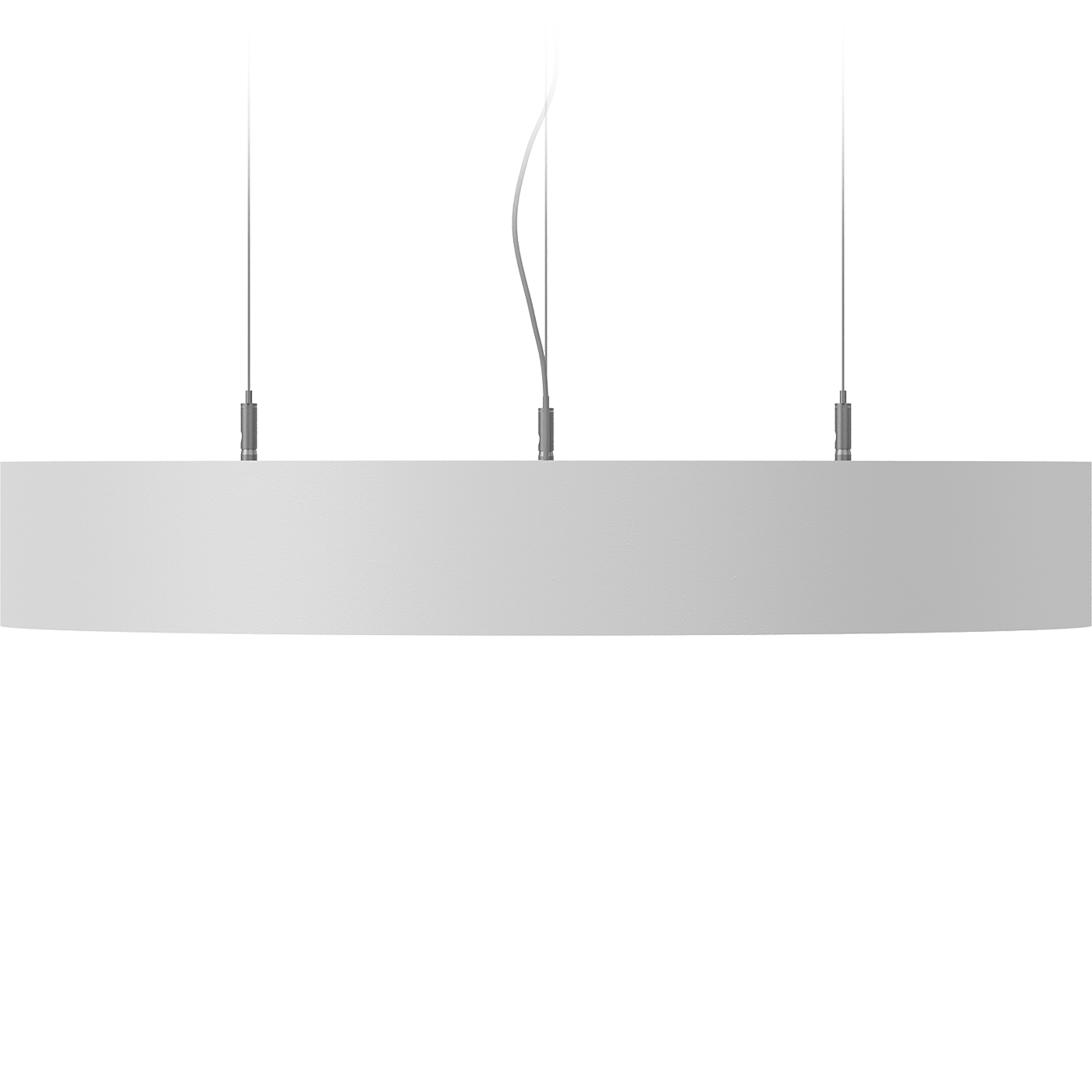

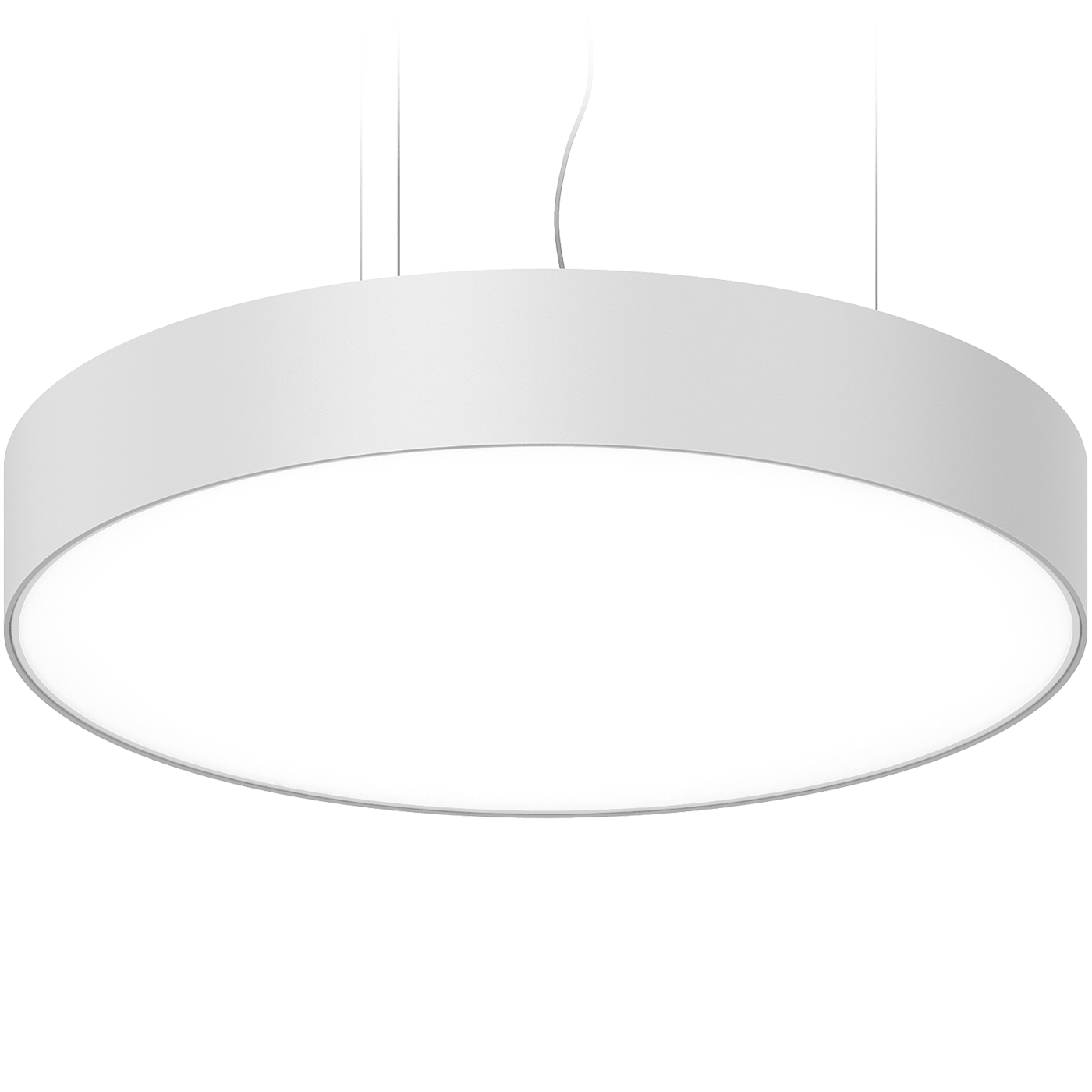

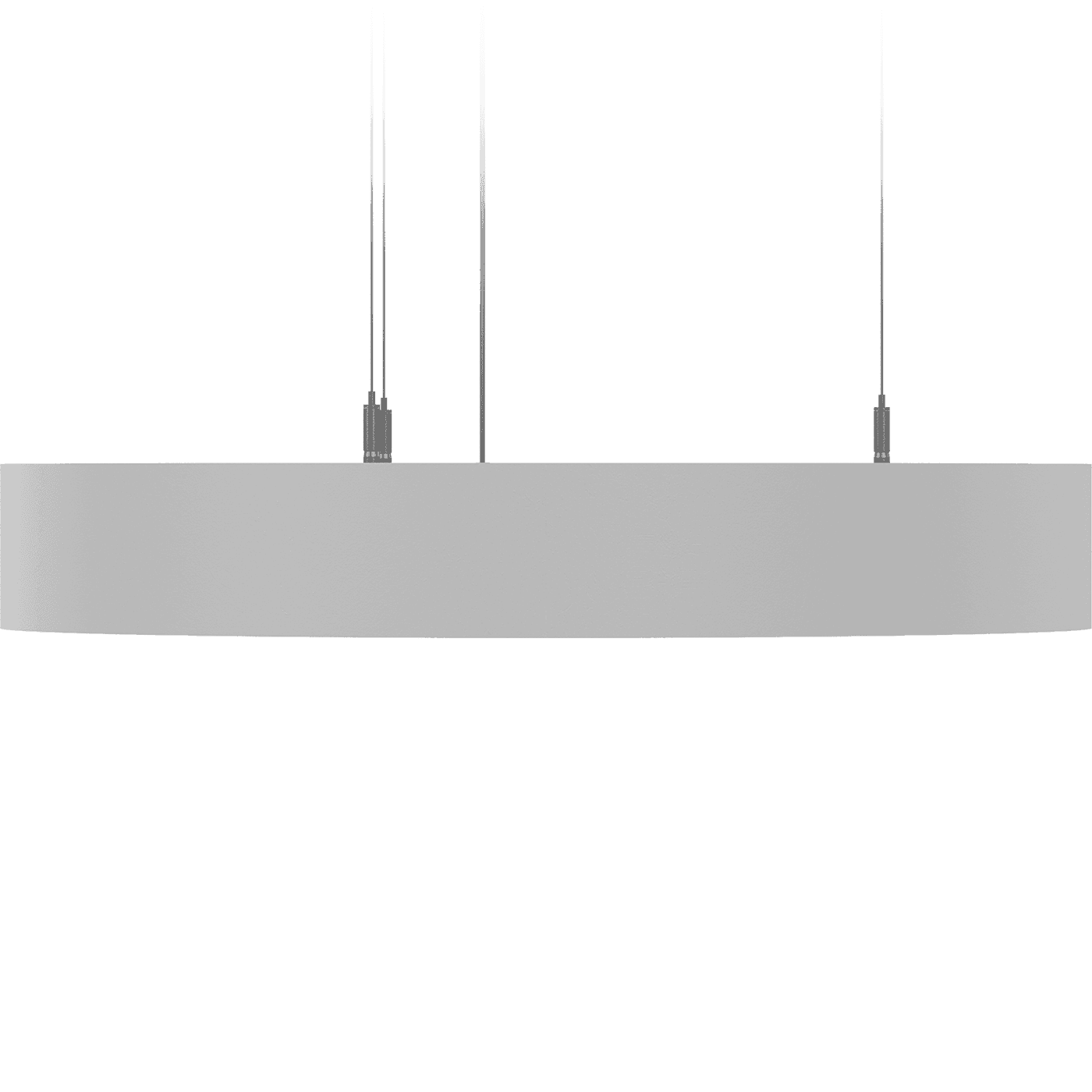

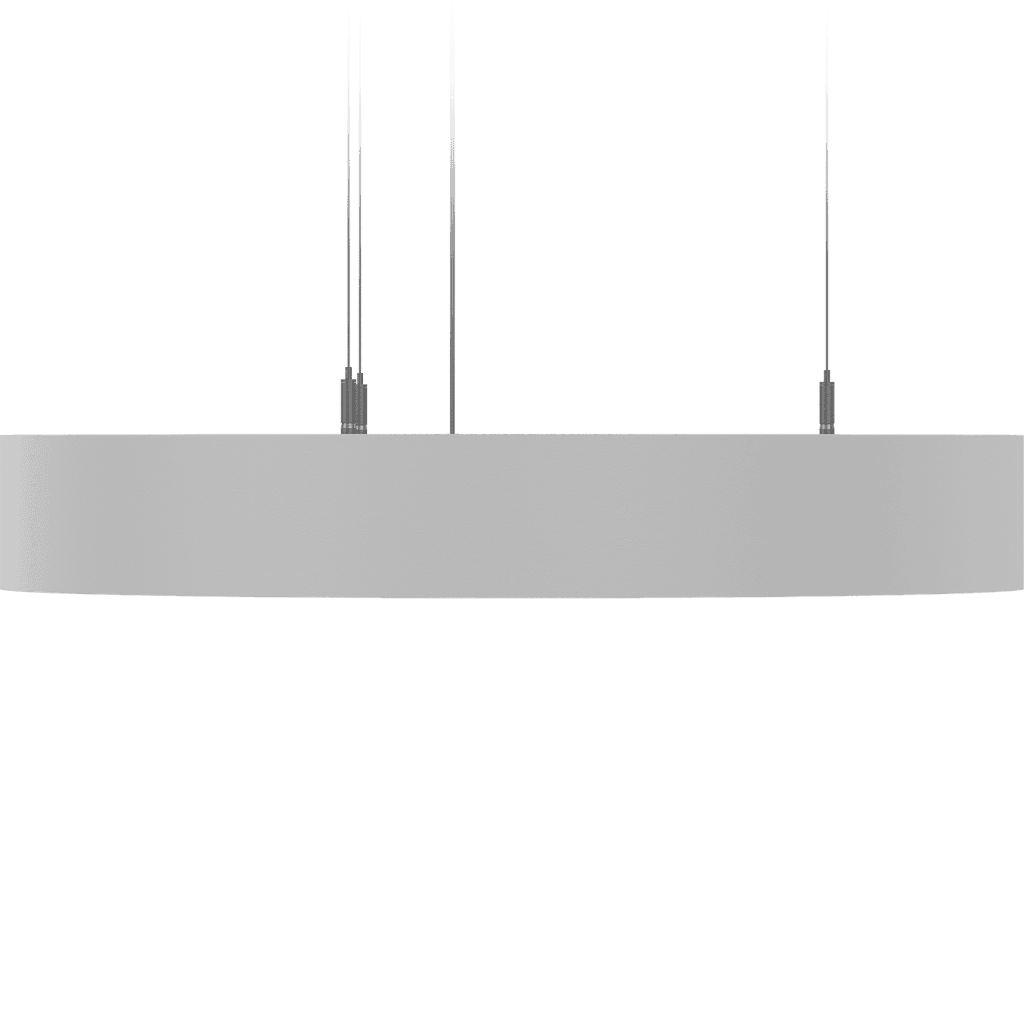

SOL SCHOOL/P (900) 940 WH
110 Wluminaire power
10000 lmlight flow
91 lm/Wenergy efficiency
code1470002540
color temperature4000 K

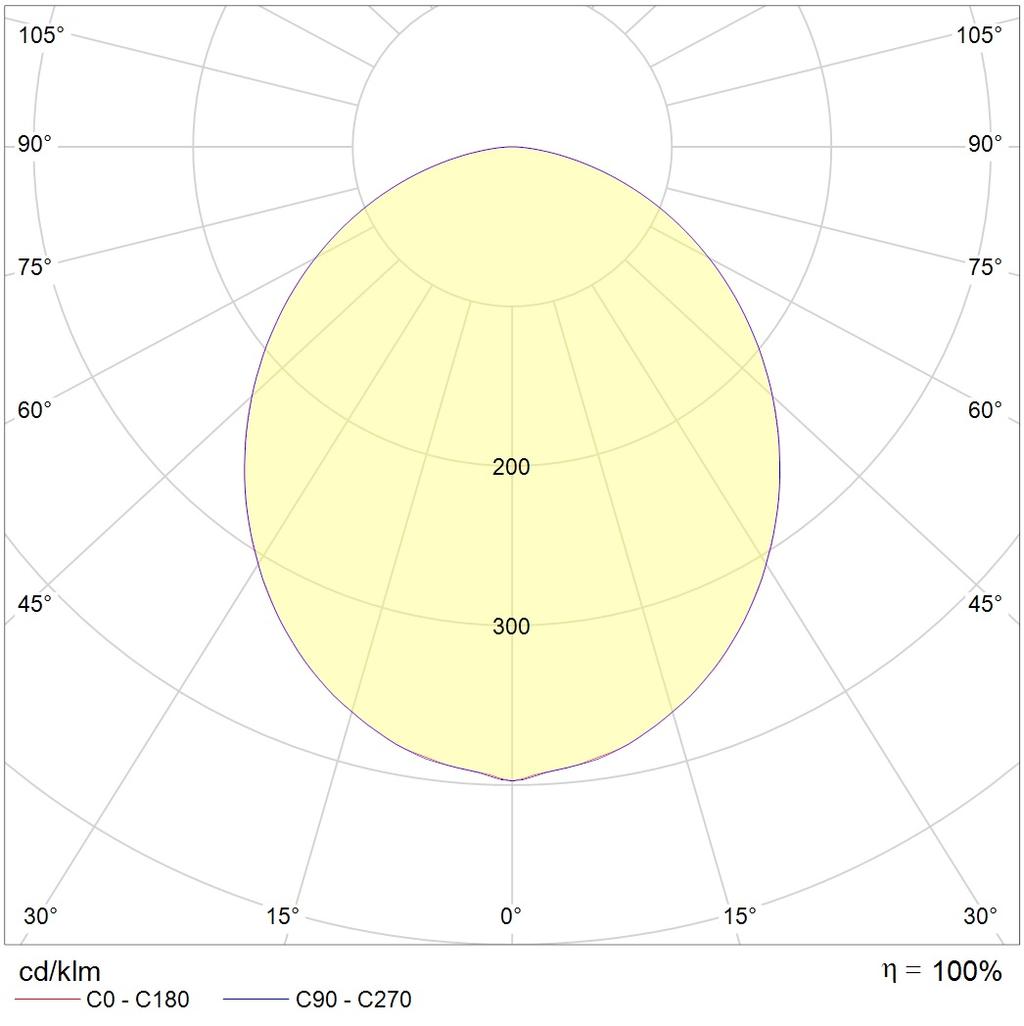

beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
91 lm/Wcolor rendition index (CRI)
>90light flow
10000 lmflickering factor
<5%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
91 lm/W
color rendition index (CRI)
>90
light flow
10000 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
267 µs
electric shock protection
I
luminaire power
110 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
32 A
constructional
diameter
900 mm
height
90 mm
installation length
580 mm
installation width
580 mm
weight
18.5 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-I,II,ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
60 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Светильник подвесной
code
1470002540
model files
model files

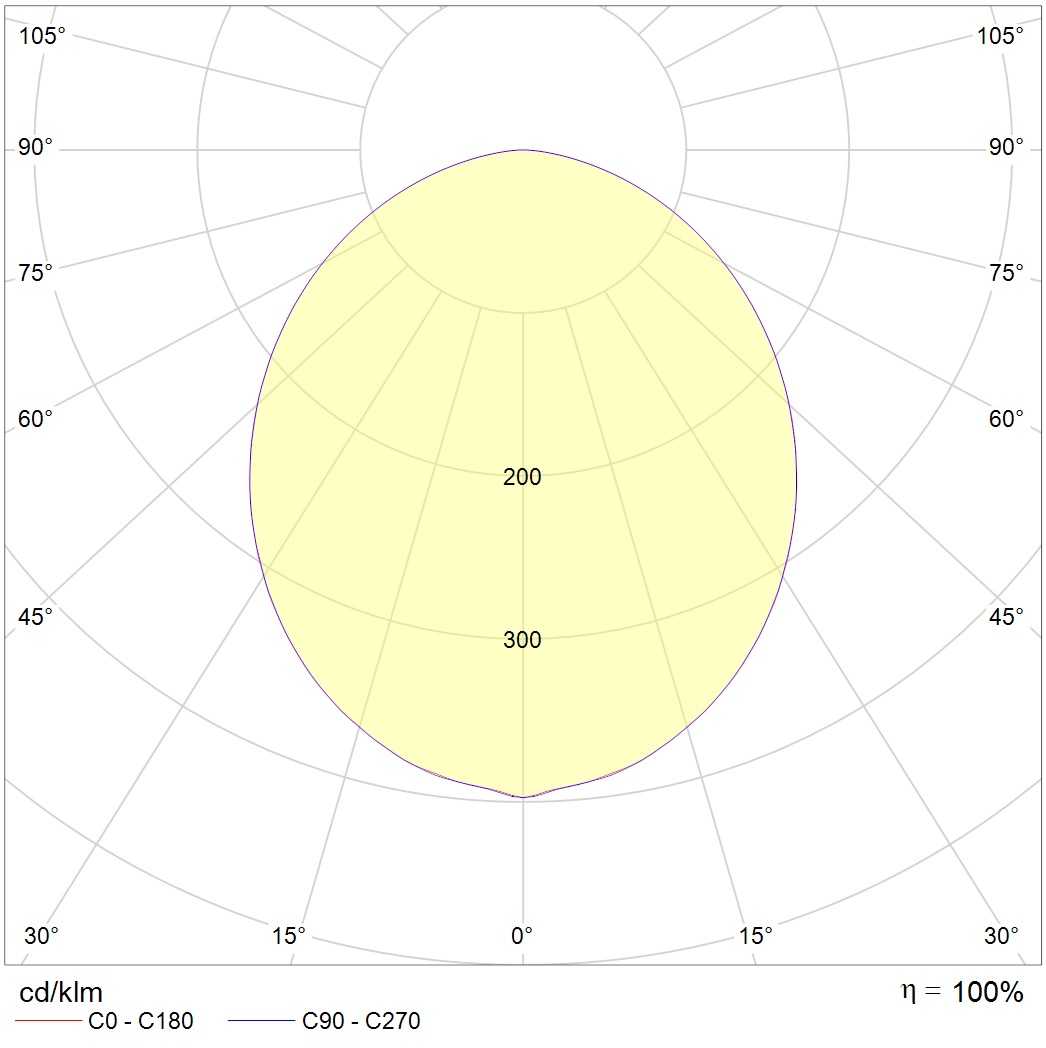

photometric files
documents
сертификаты
photometric files
ies68.6 kB
jpg112.2 kB
ldt43.3 kB
documents
passport1.1 mB
сертификаты
Russian origin279 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
