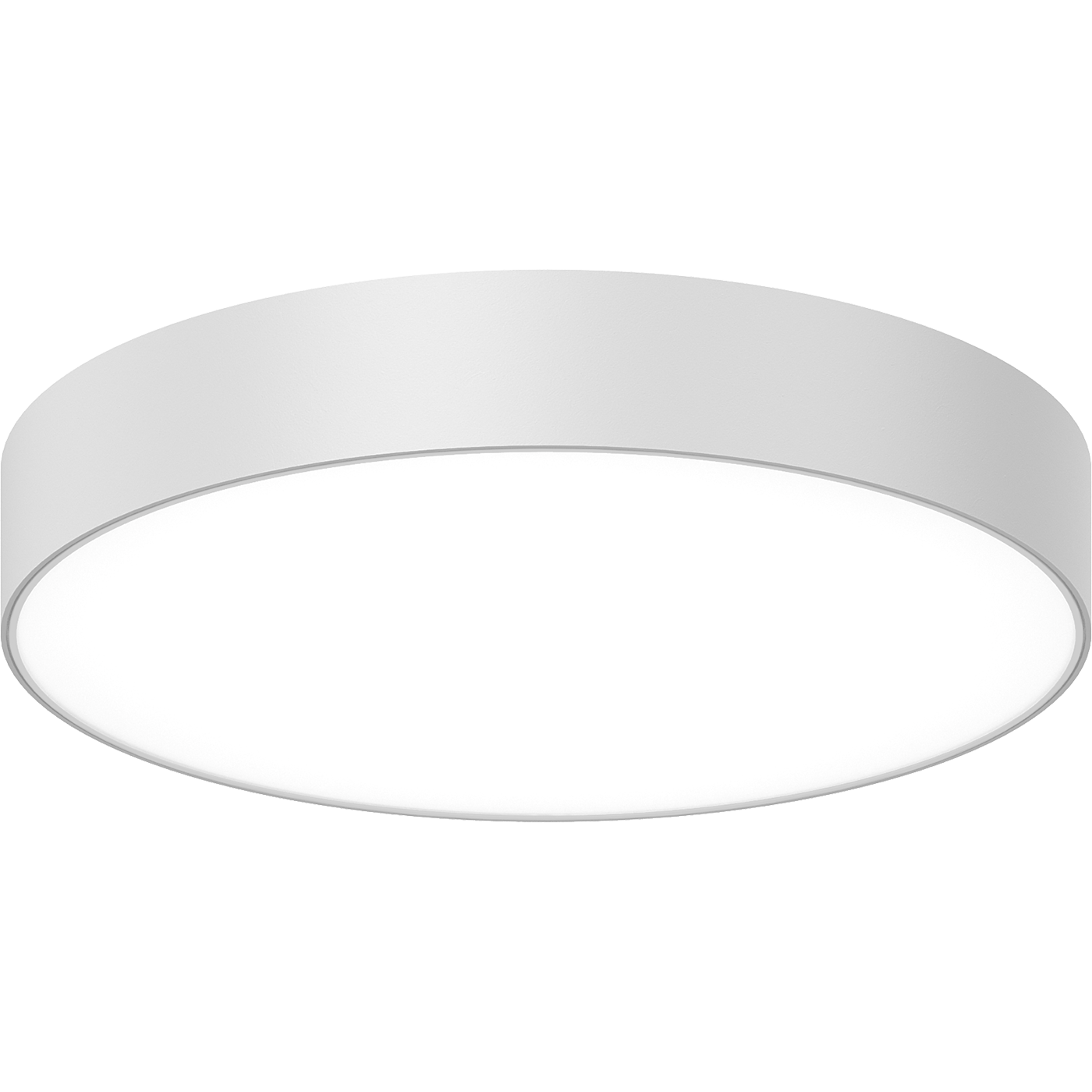

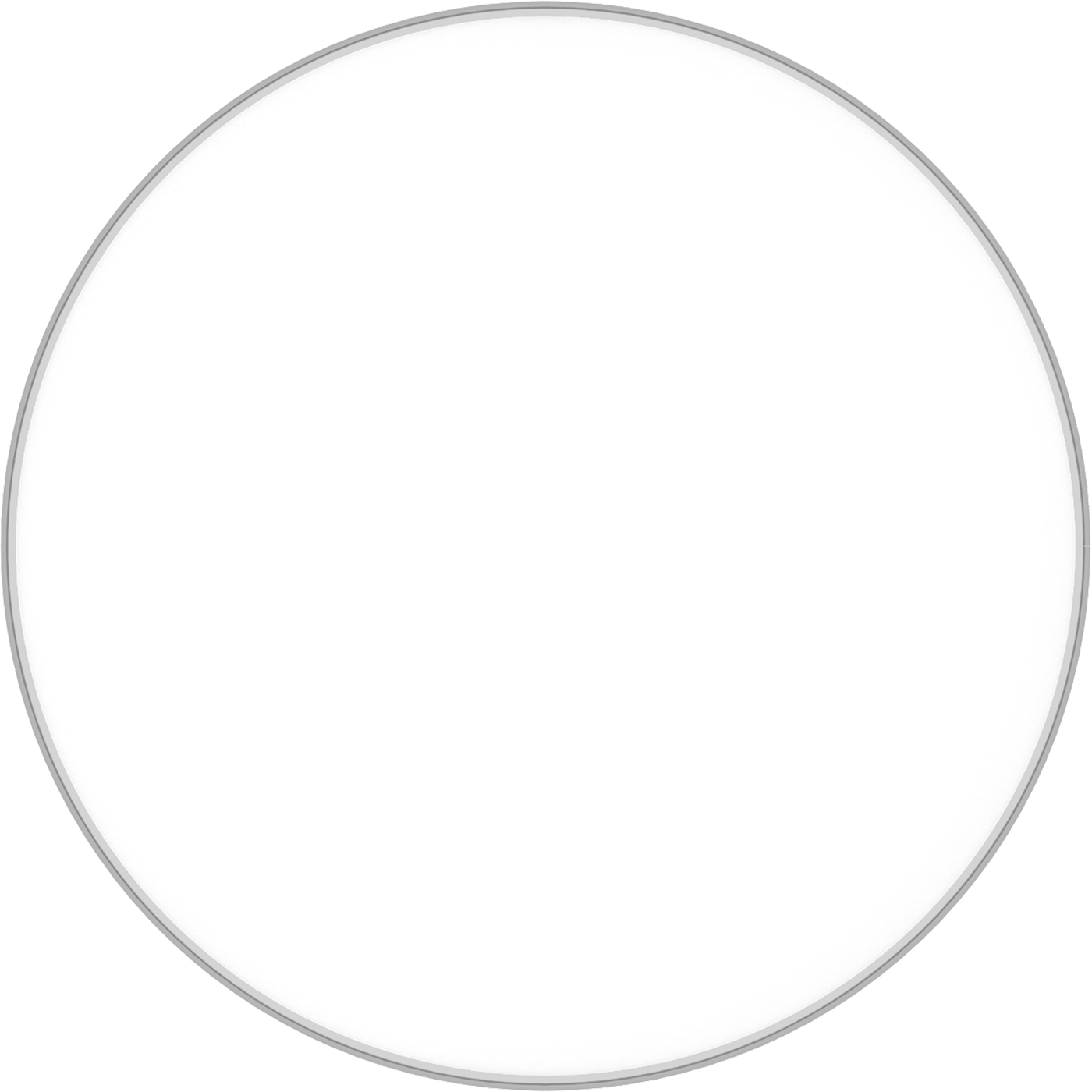

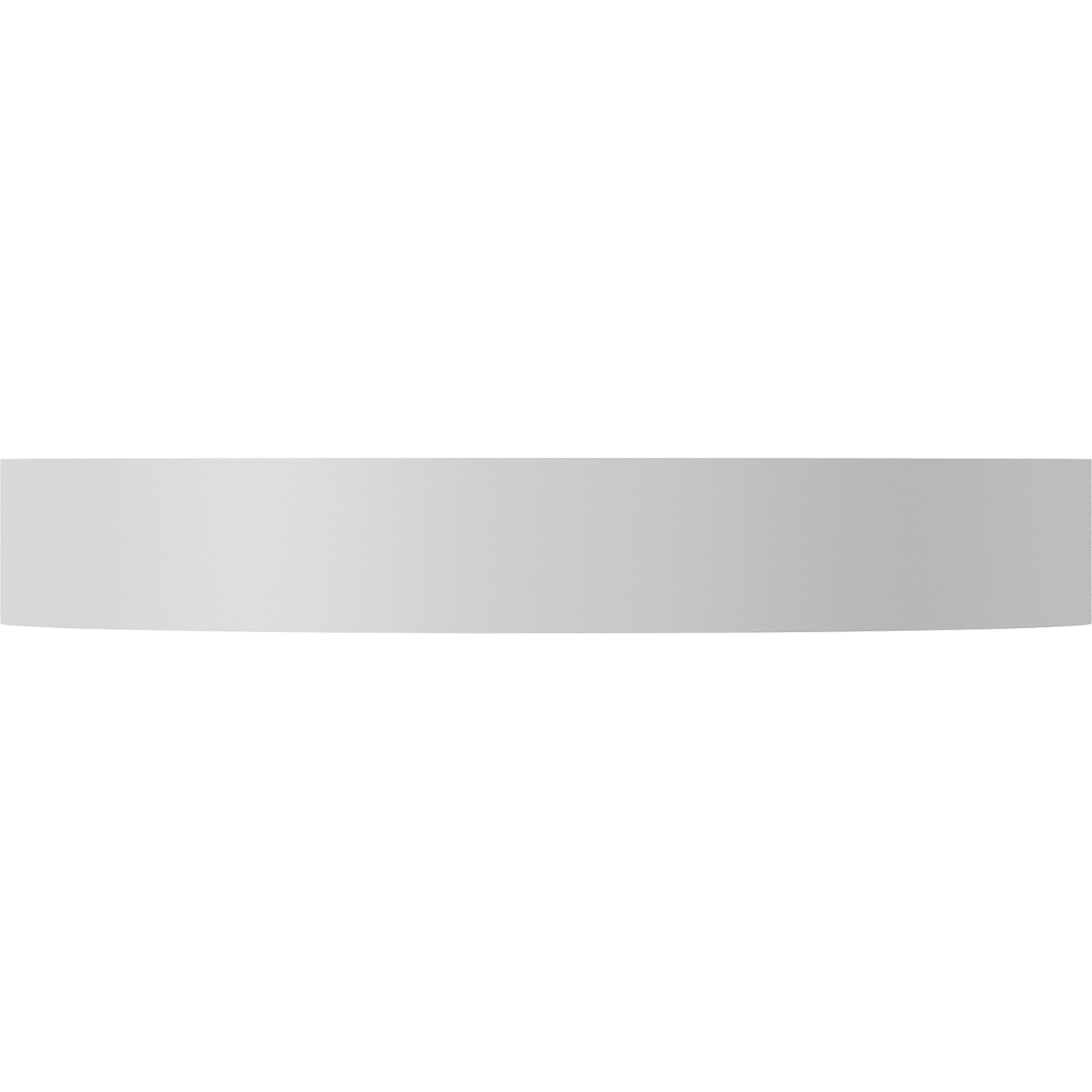

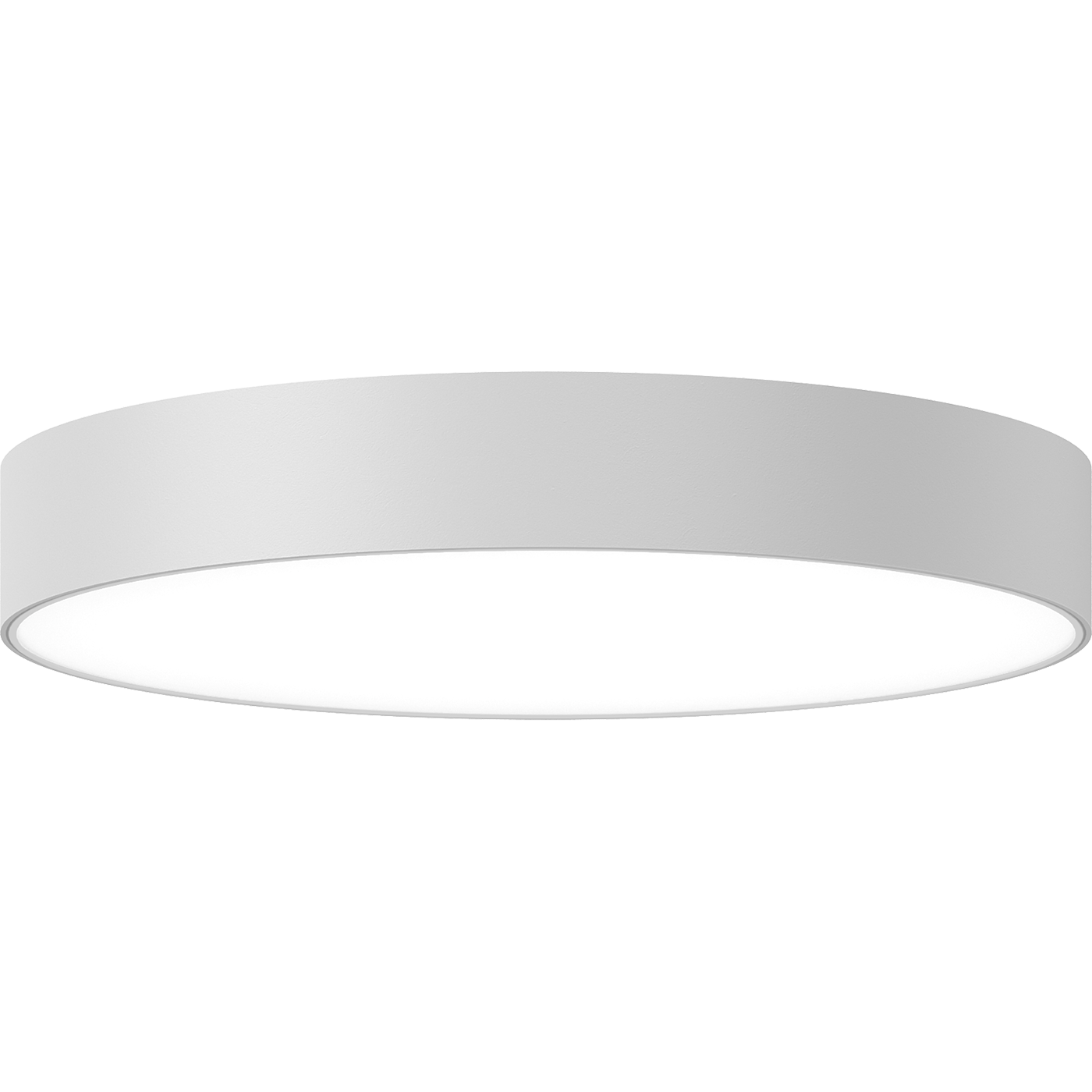

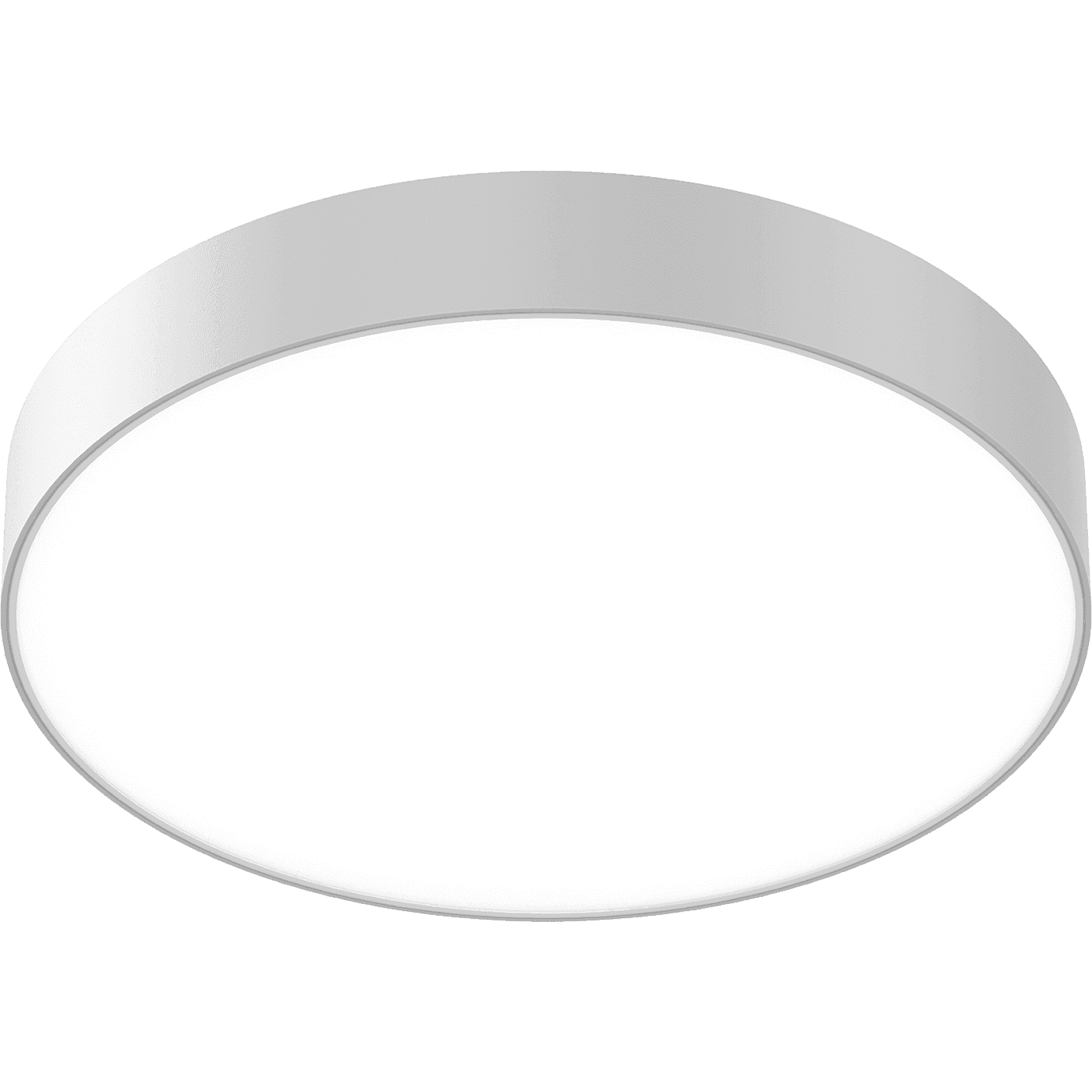

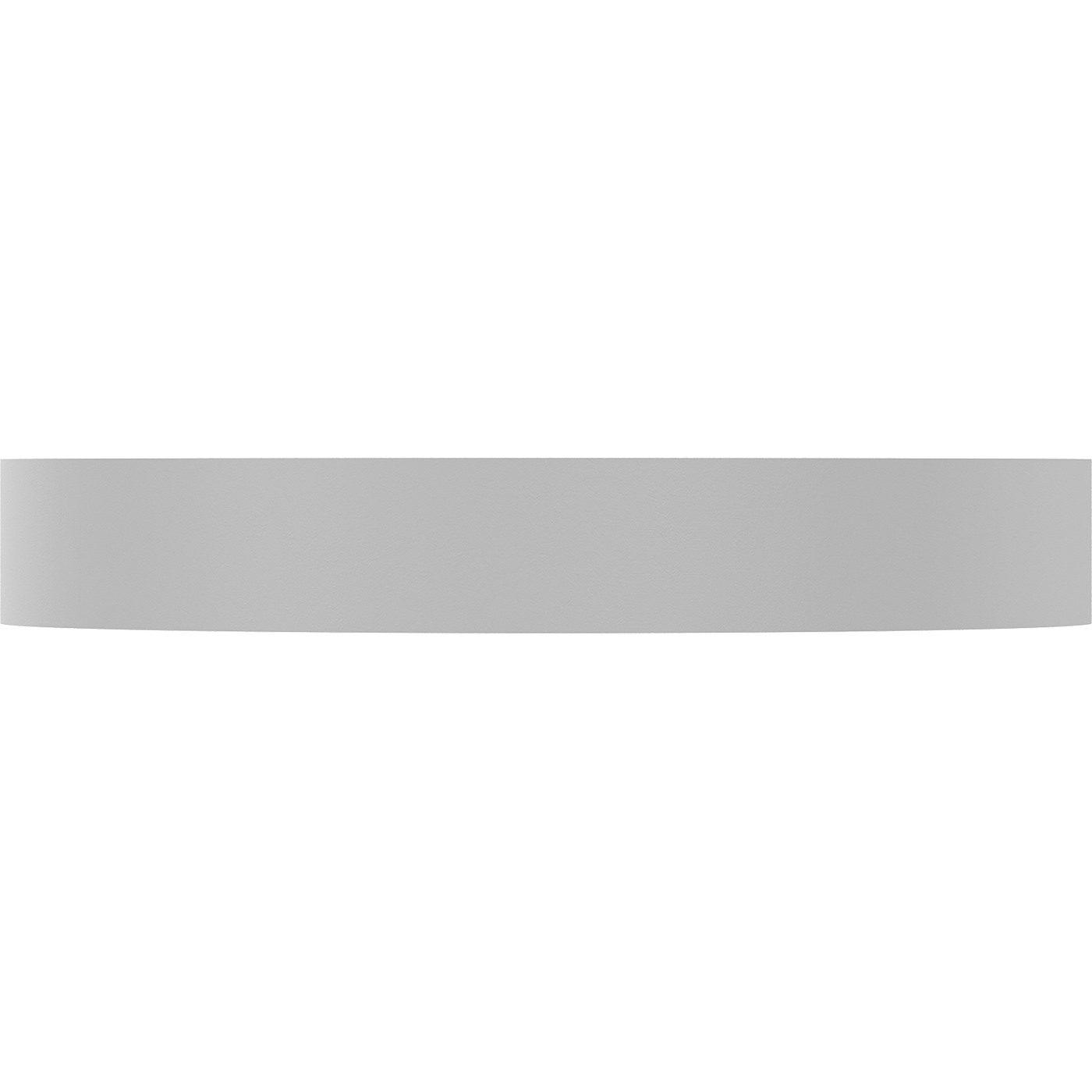

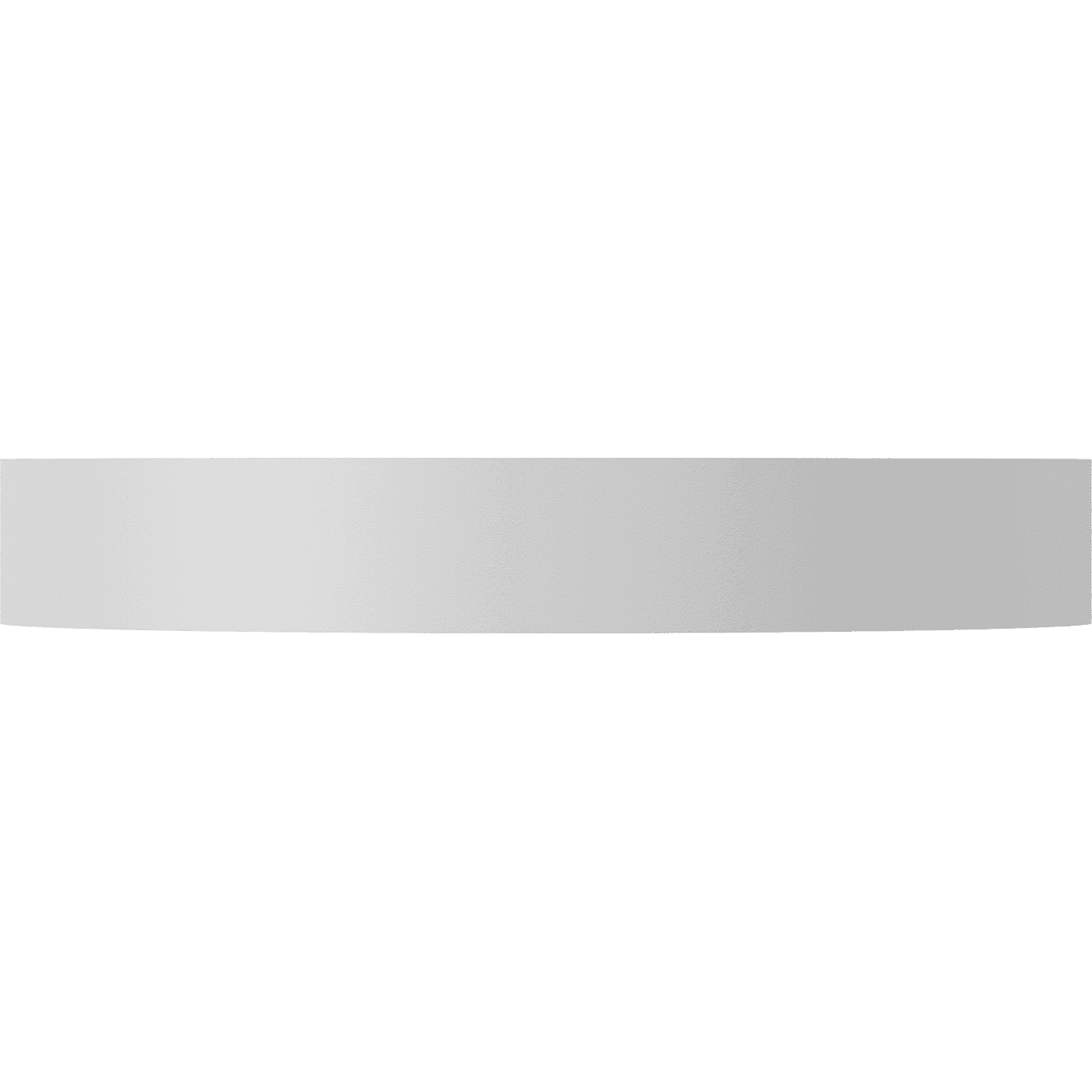

SOL S LED 450 WH 4000K (low lumen)
.jpg&w=1920&q=100)
.jpg&w=1024&q=75)

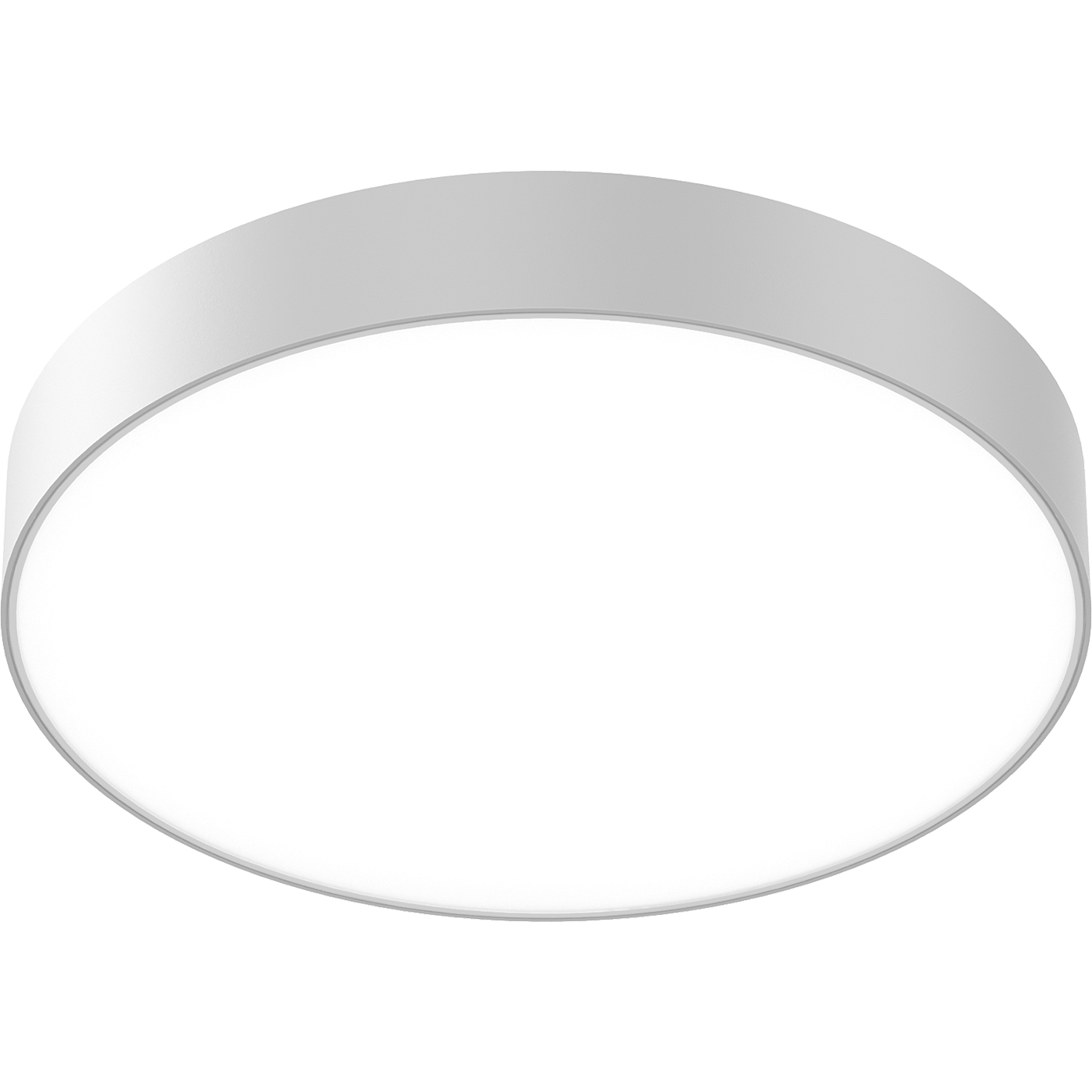

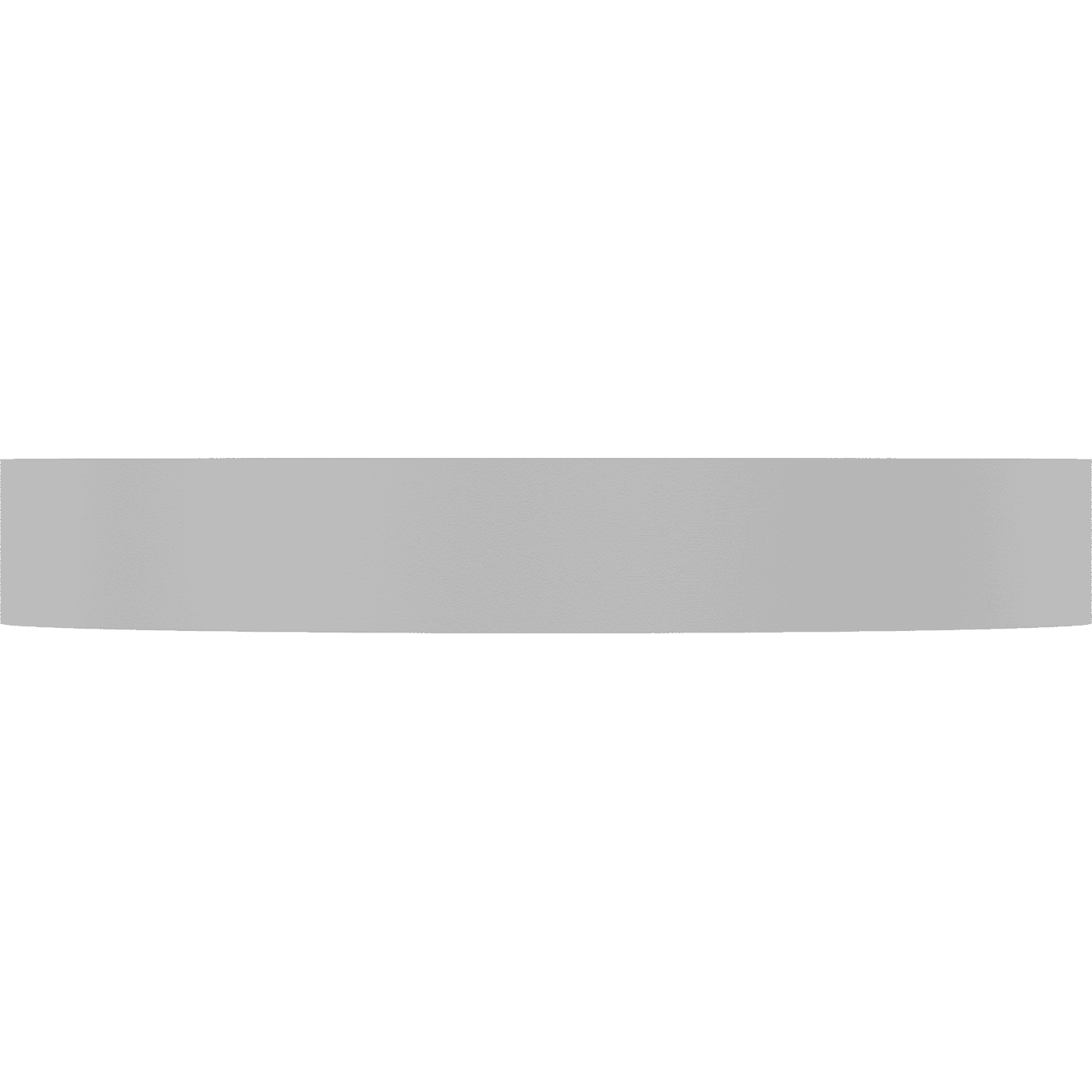

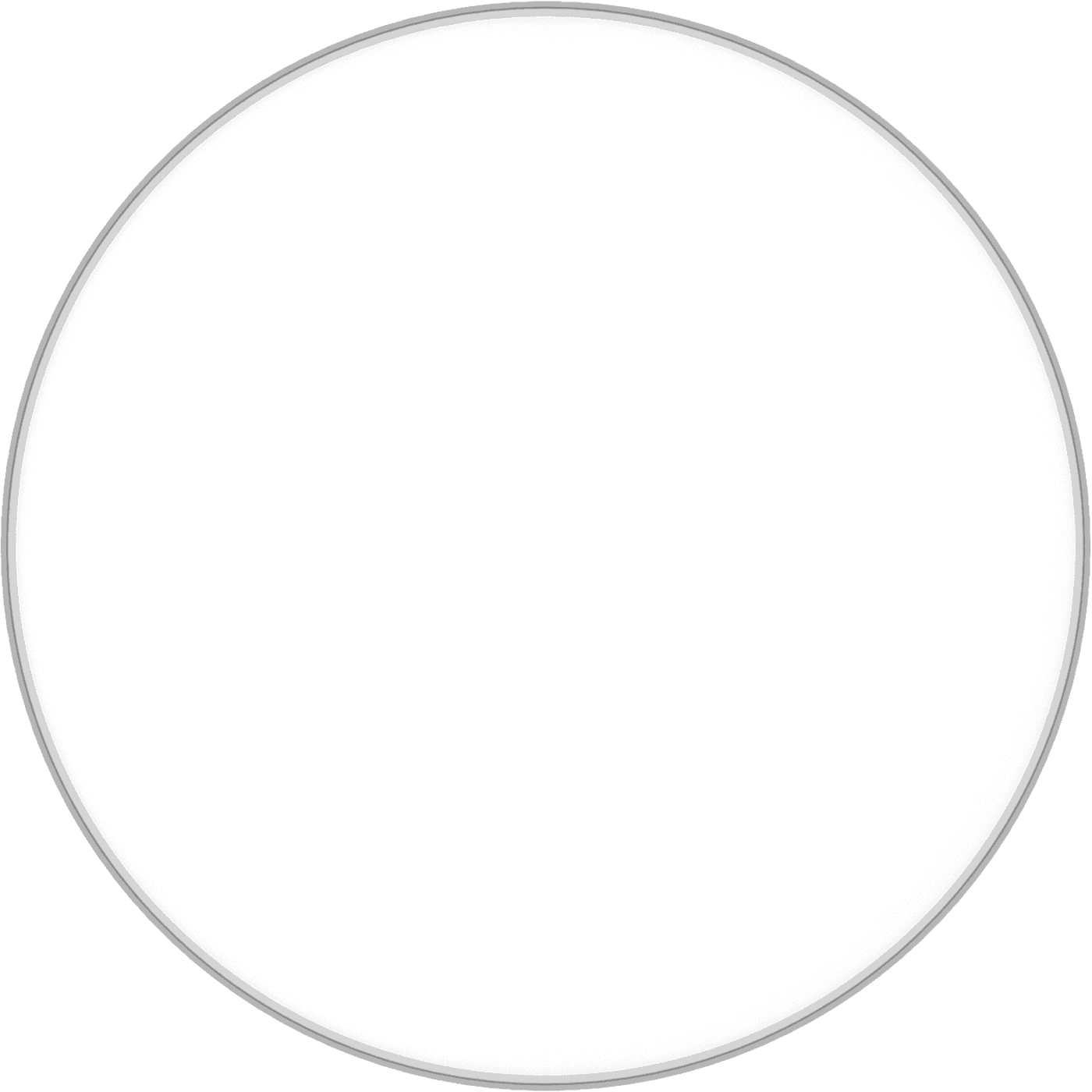

SOL S LED 450 WH 4000K (low lumen)
20 Wluminaire power
2300 lmlight flow
115 lm/Wenergy efficiency
code1470000340
color temperature4000 K
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
115 lm/Wcolor rendition index (CRI)
>80light flow
2300 lmflickering factor
<5%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
115 lm/W
color rendition index (CRI)
>80
light flow
2300 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
352 µs
electric shock protection
I
luminaire power
20 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
23 A
constructional
diameter
450 mm
height
90 mm
installation length
320 mm
installation width
278 mm
weight
4.8 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-I,II,ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
60 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1470000340
model files
model files
CAD/BIM files

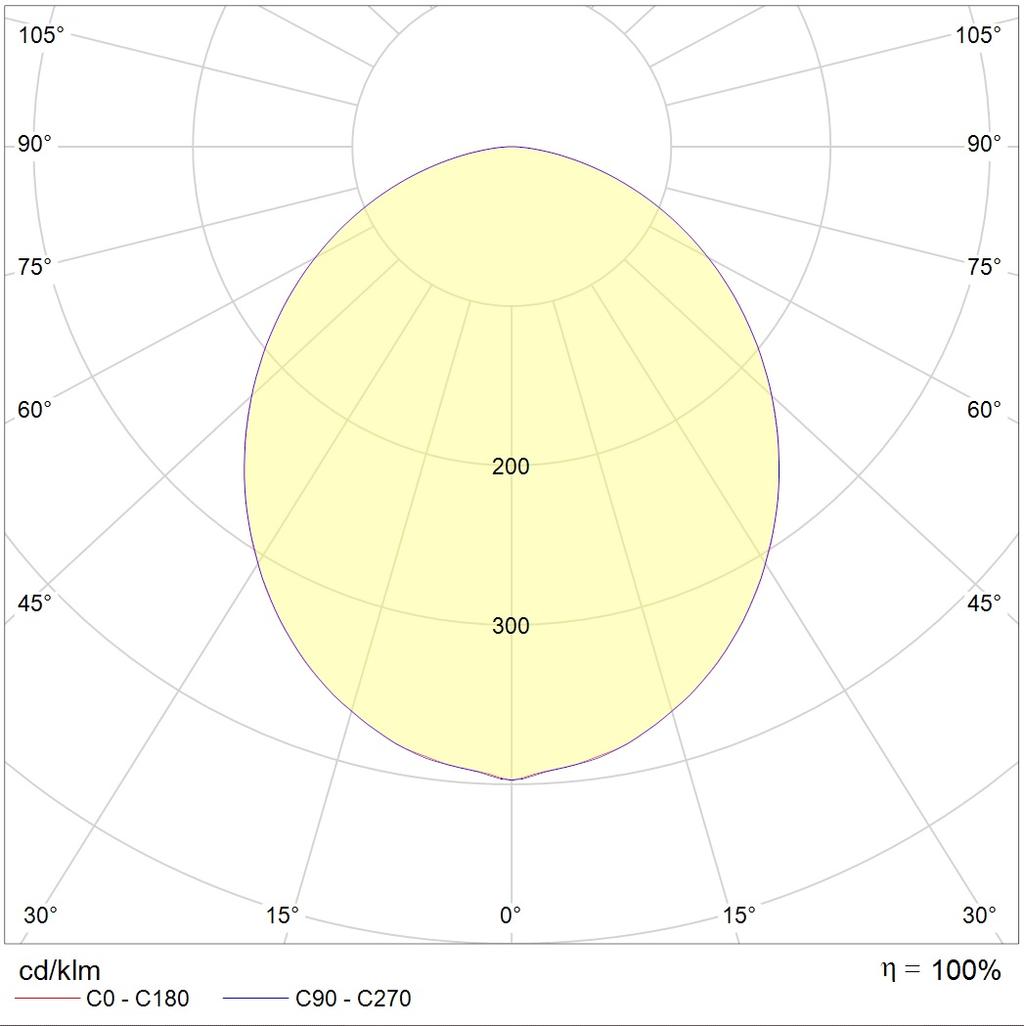

photometric files
documents
сертификаты
CAD/BIM files
model 3dMax776 kB
photometric files
ies68.7 kB
jpg113.8 kB
ldt43.3 kB
documents
passport2.1 mB
сертификаты
Russian origin279 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016535.9 kB
Fire Safety Certificate2.5 mB
