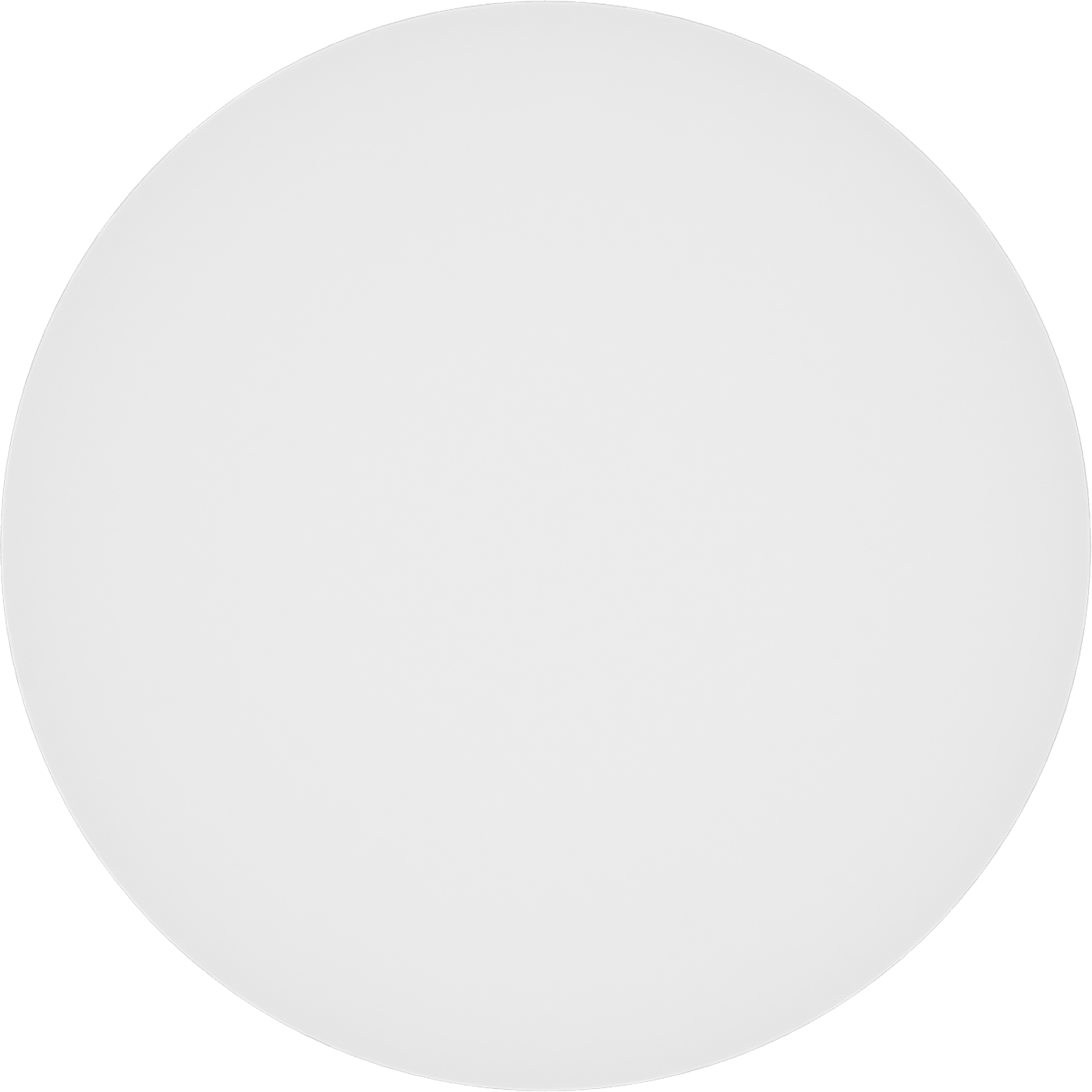

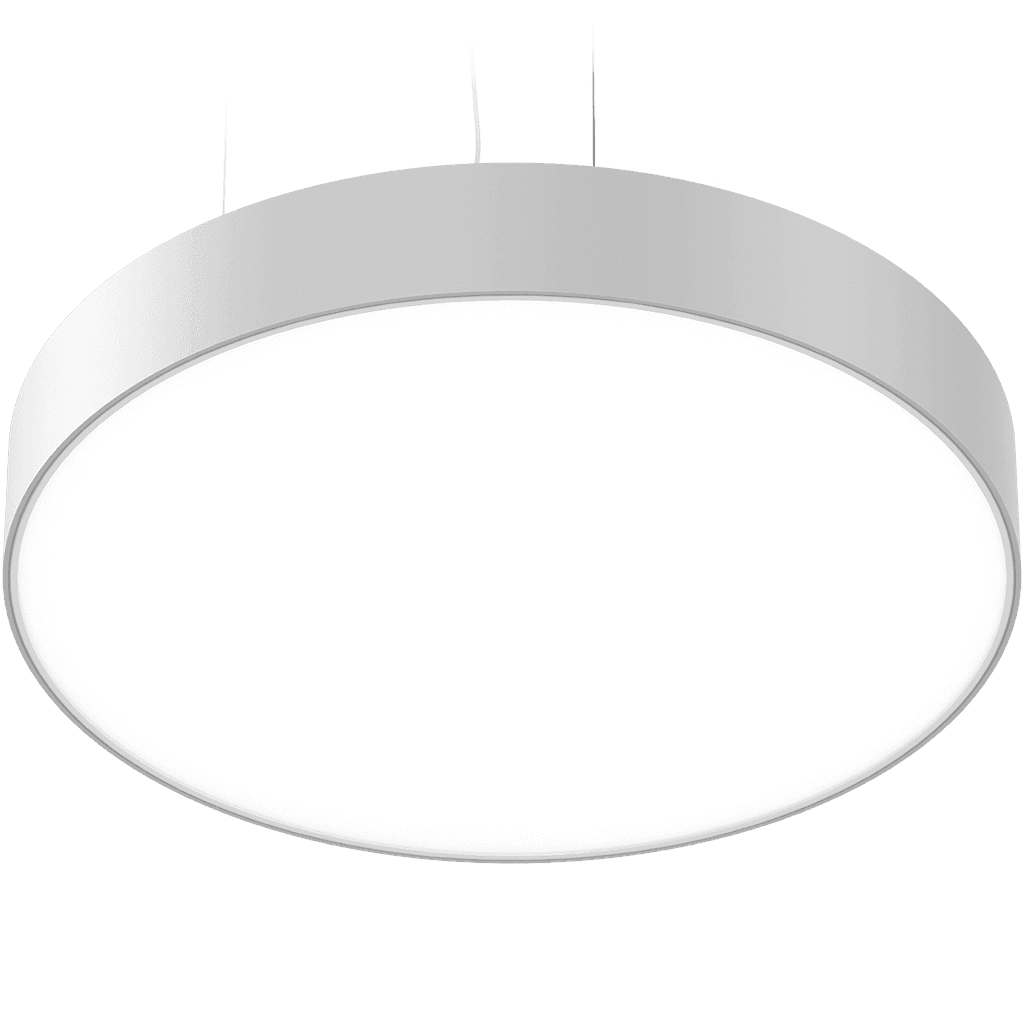

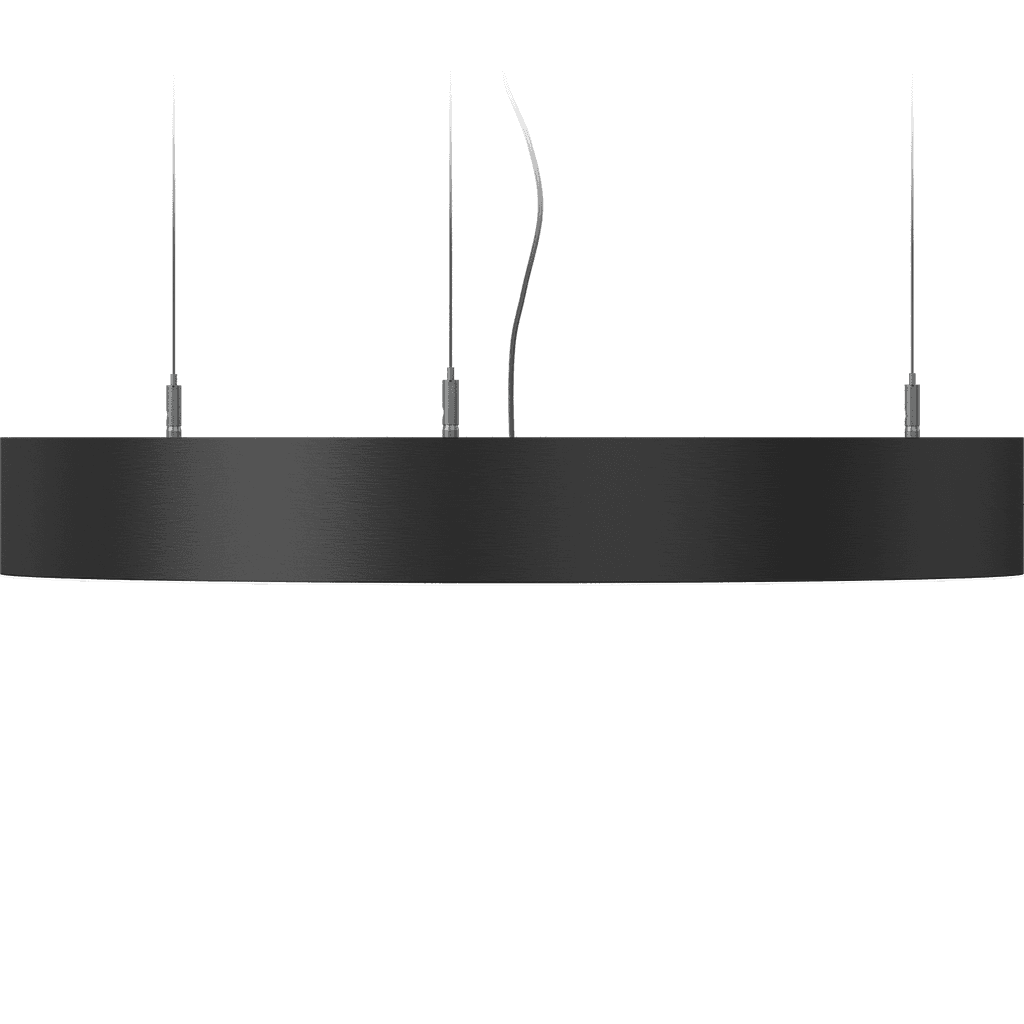

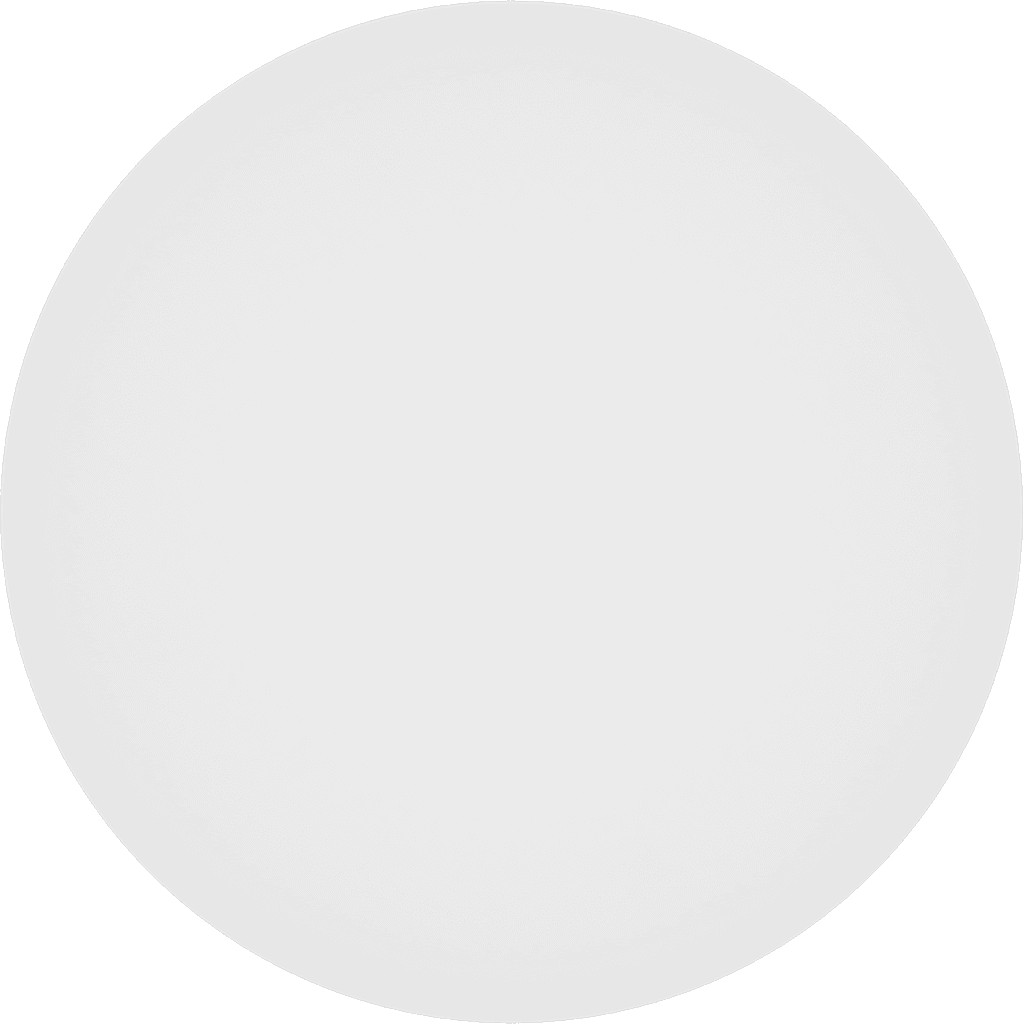

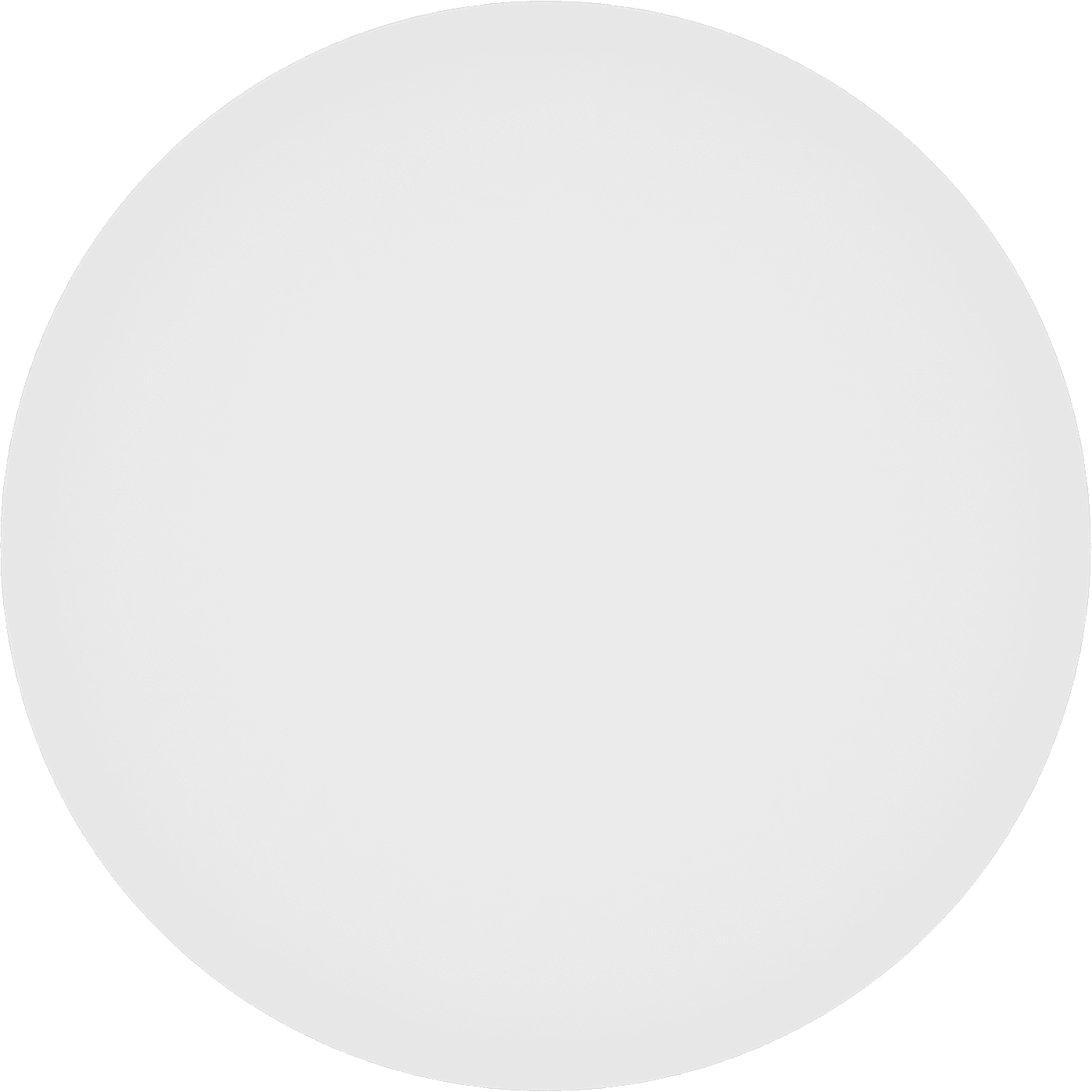

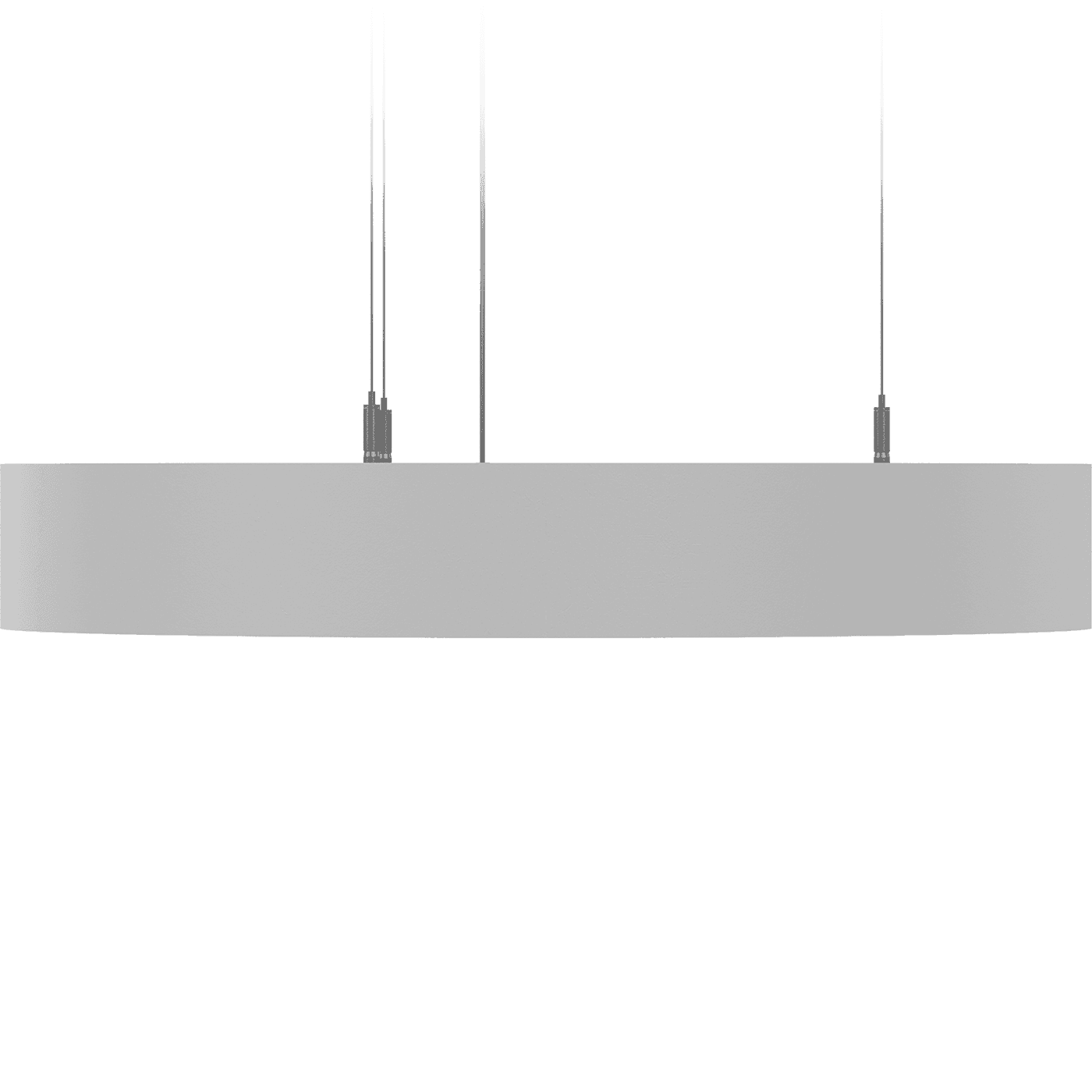

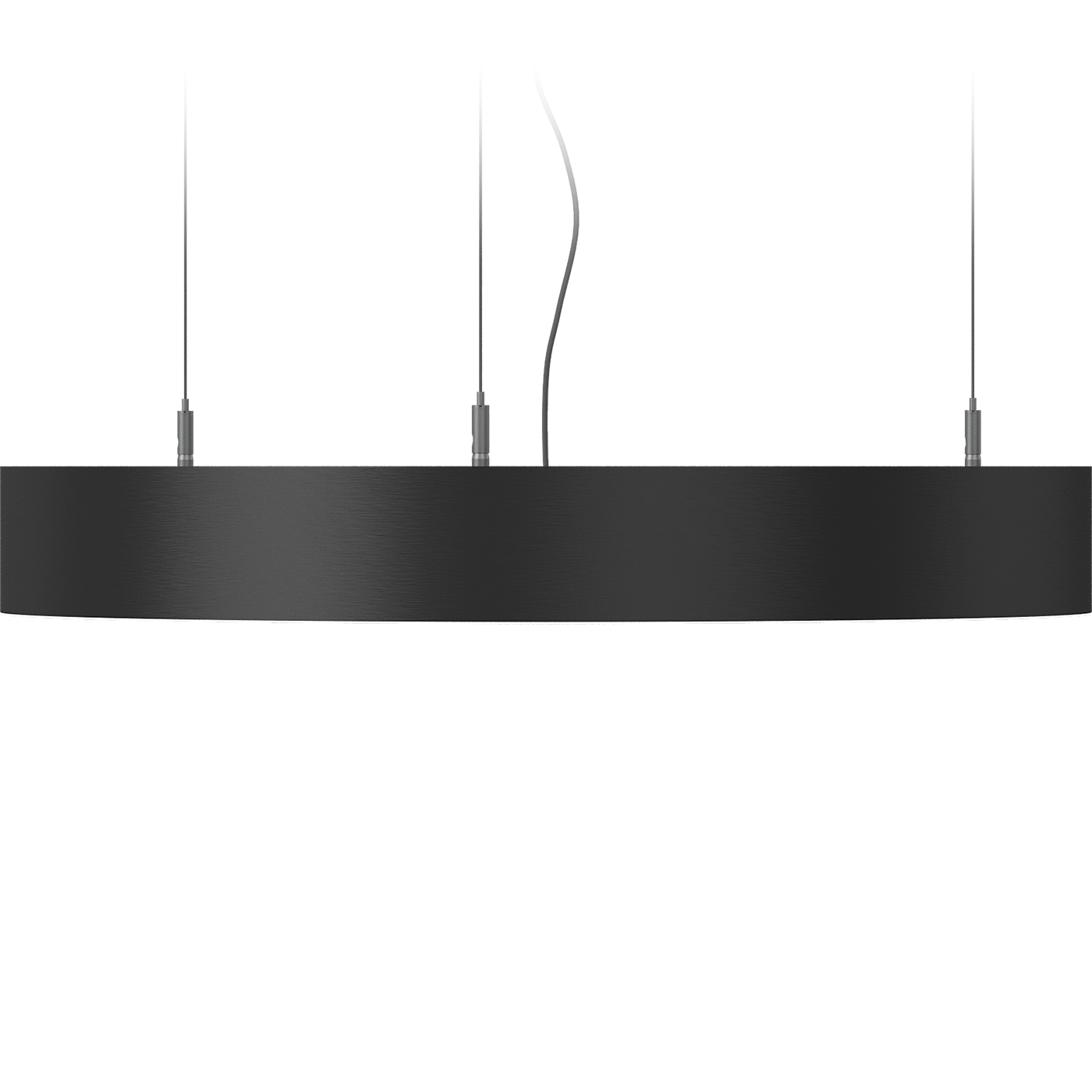

SOL P LED 900 WH 4000K (low lumen)
.jpg&w=1920&q=100)
.jpg&w=1024&q=75)
SOL P LED 900 WH 4000K (low lumen)
68 Wluminaire power
9000 lmlight flow
132 lm/Wenergy efficiency
code1470000240
color temperature4000 K
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
energy efficiency
132 lm/Wcolor rendition index (CRI)
>80light flow
9000 lmflickering factor
<5%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
132 lm/W
color rendition index (CRI)
>80
light flow
9000 lm
flickering factor
<5%

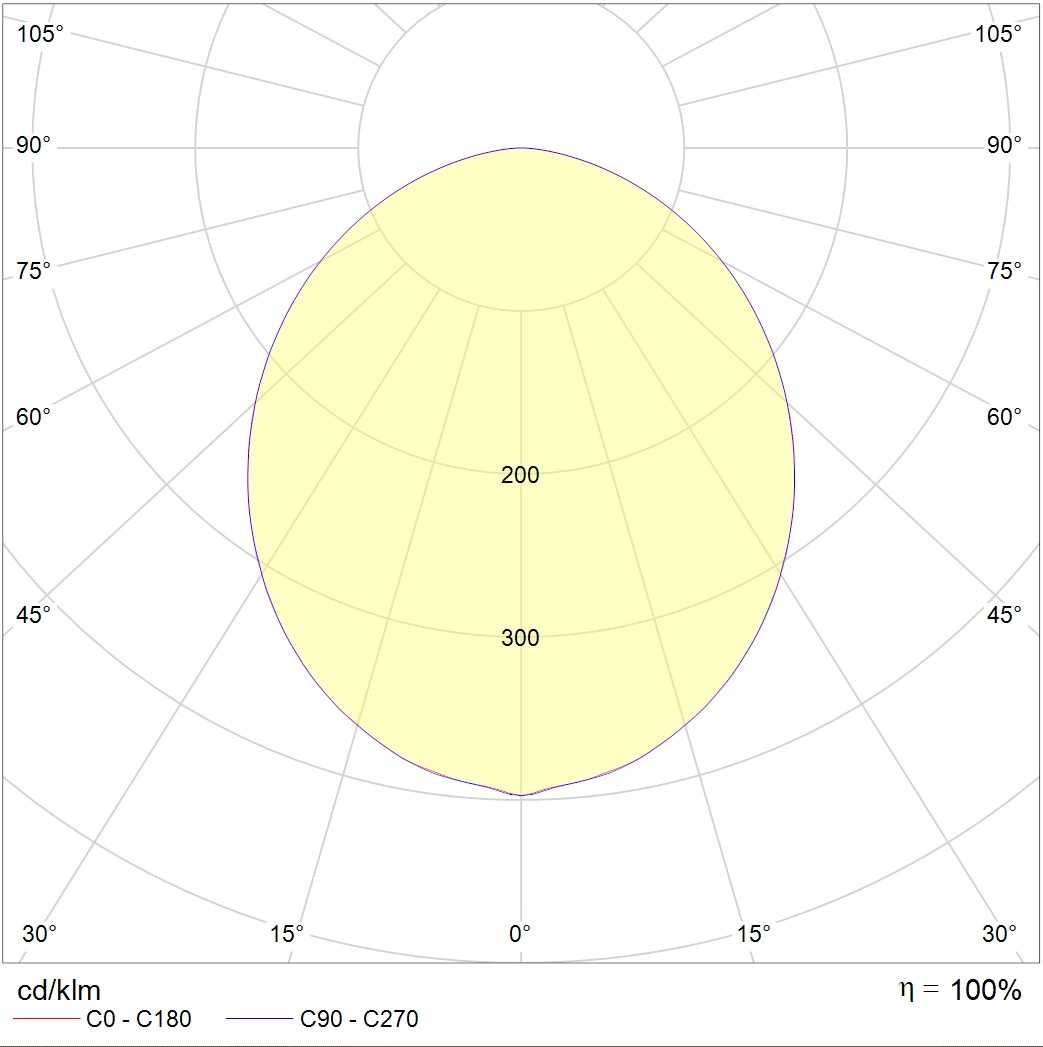

beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
400 µs
electric shock protection
I
luminaire power
68 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
40 A
constructional
diameter
900 mm
height
90 mm
installation length
580 mm
installation width
580 mm
weight
18.5 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-I,II,ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
emergency
battery / battery Ni-Cd
Нет аккумулятора
common
warranty
60 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Светильник подвесной
code
1470000240
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax952 kB

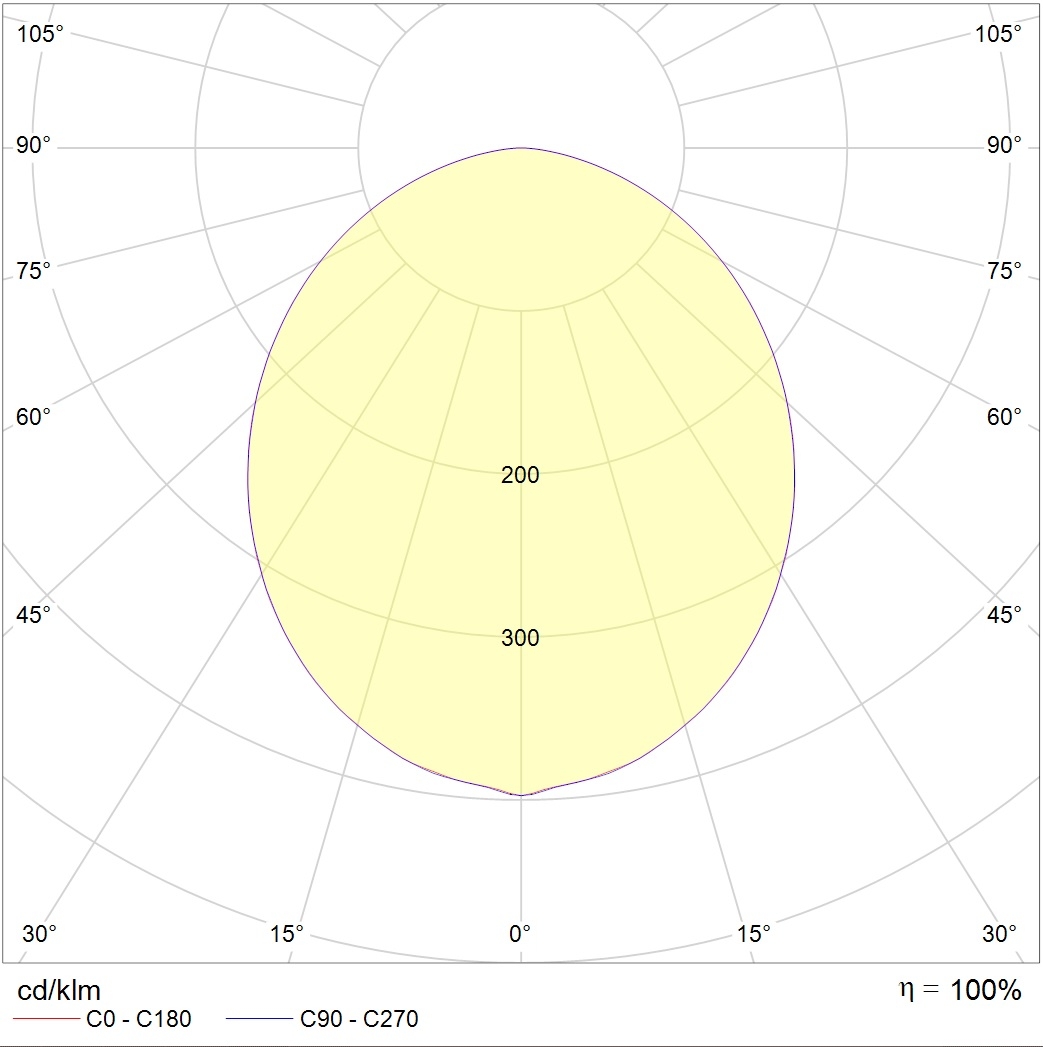

photometric files
ies68.6 kB
jpg116.9 kB
ldt43.3 kB
documents
passport1.2 mB
сертификаты
Russian origin279 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016535.9 kB
Fire Safety Certificate2.5 mB
