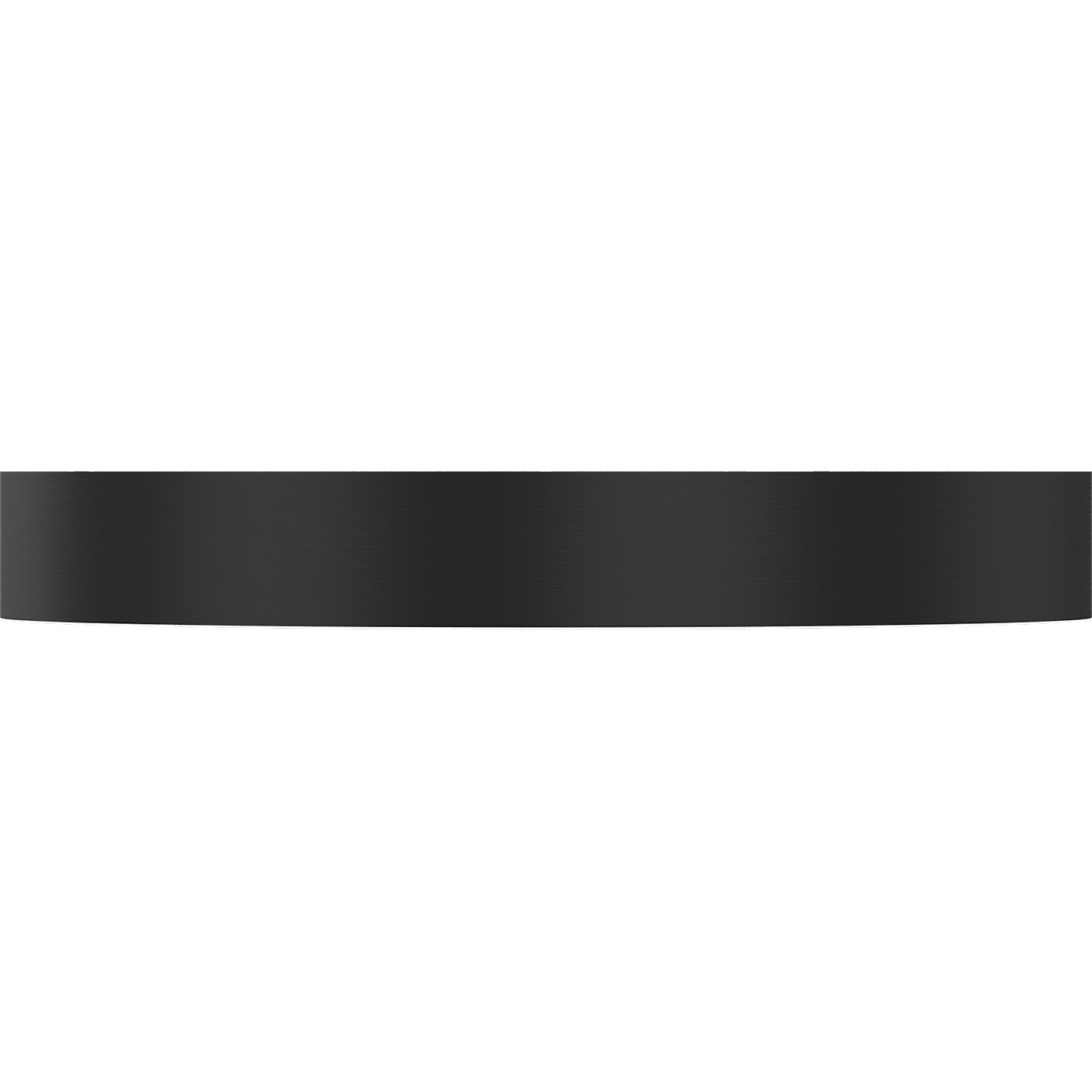

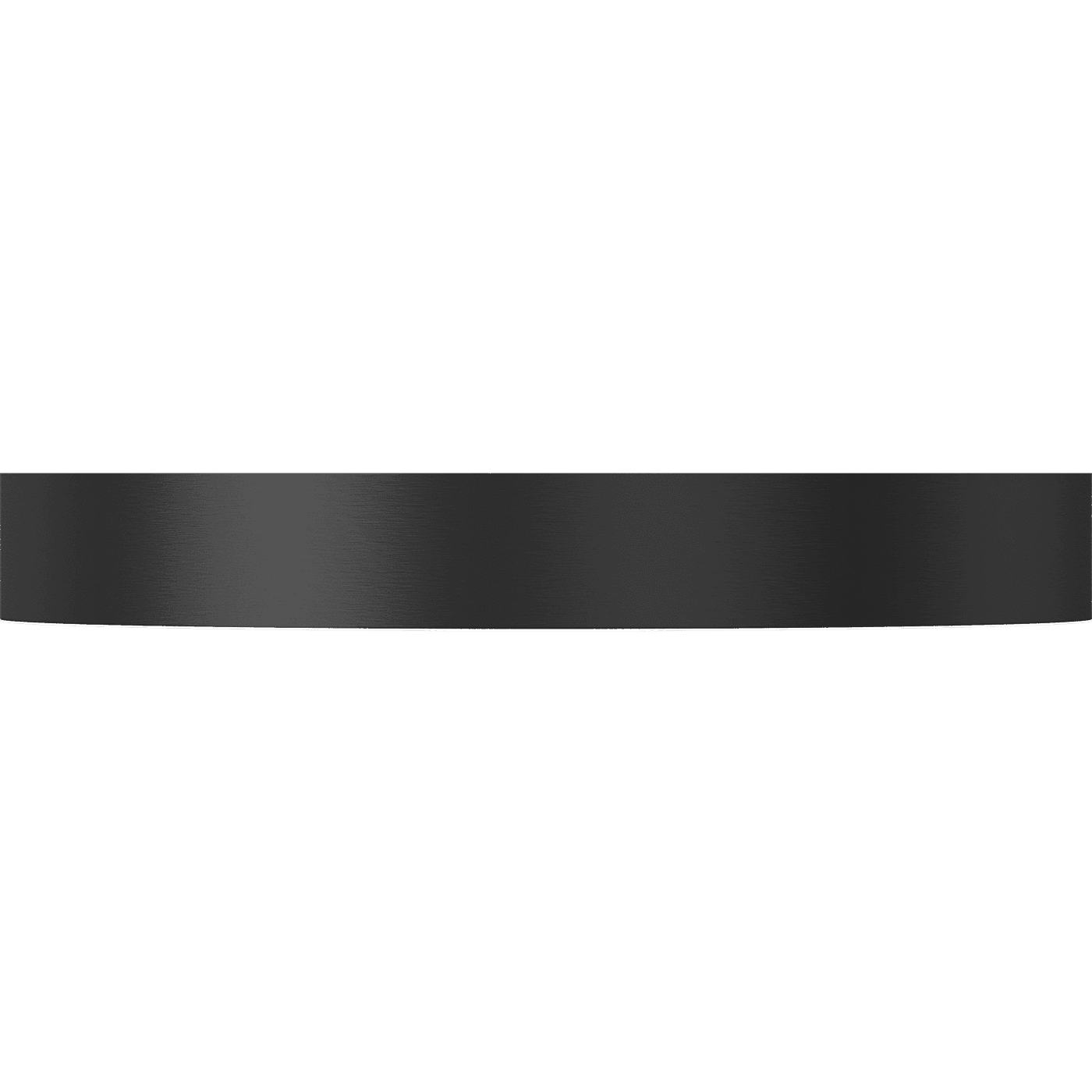

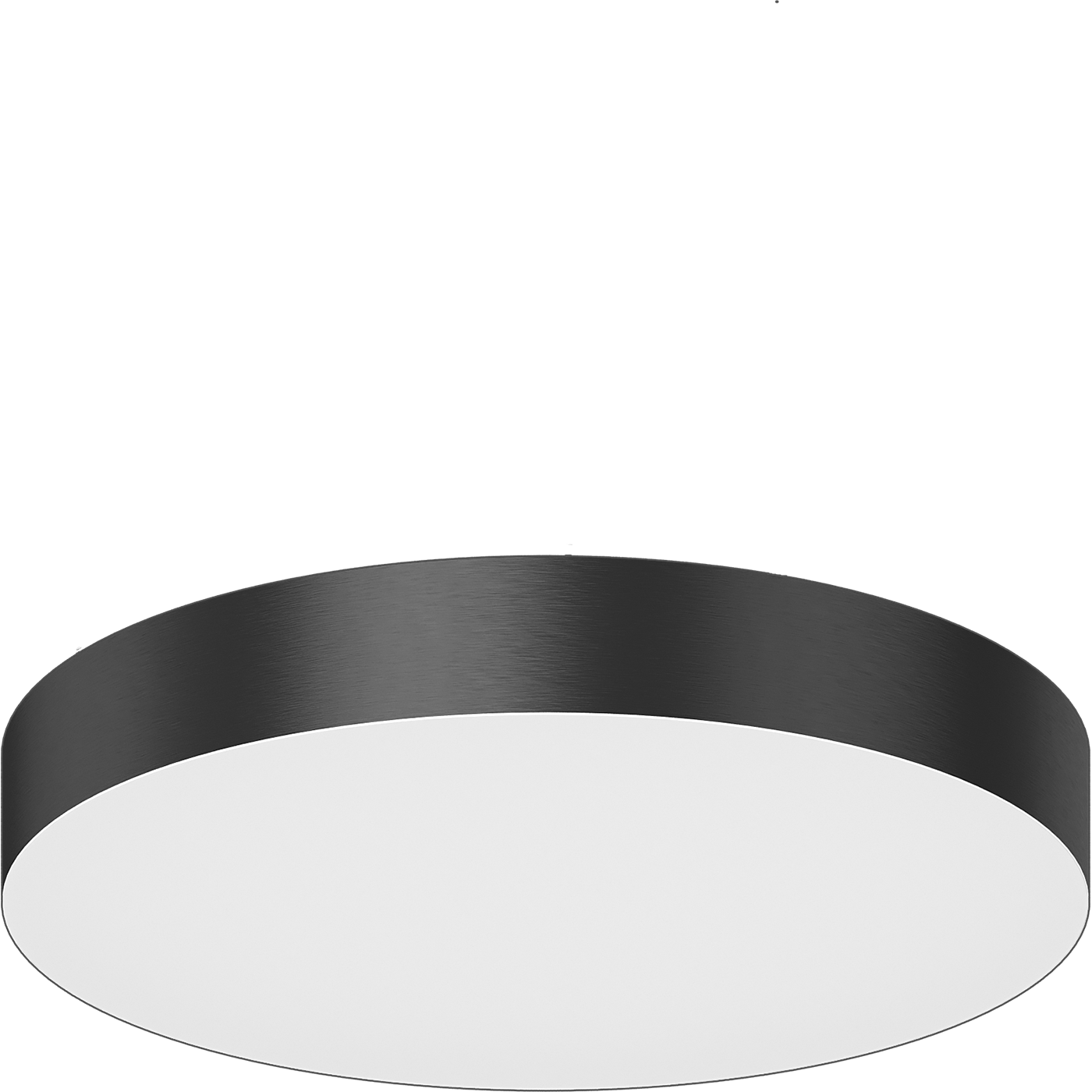

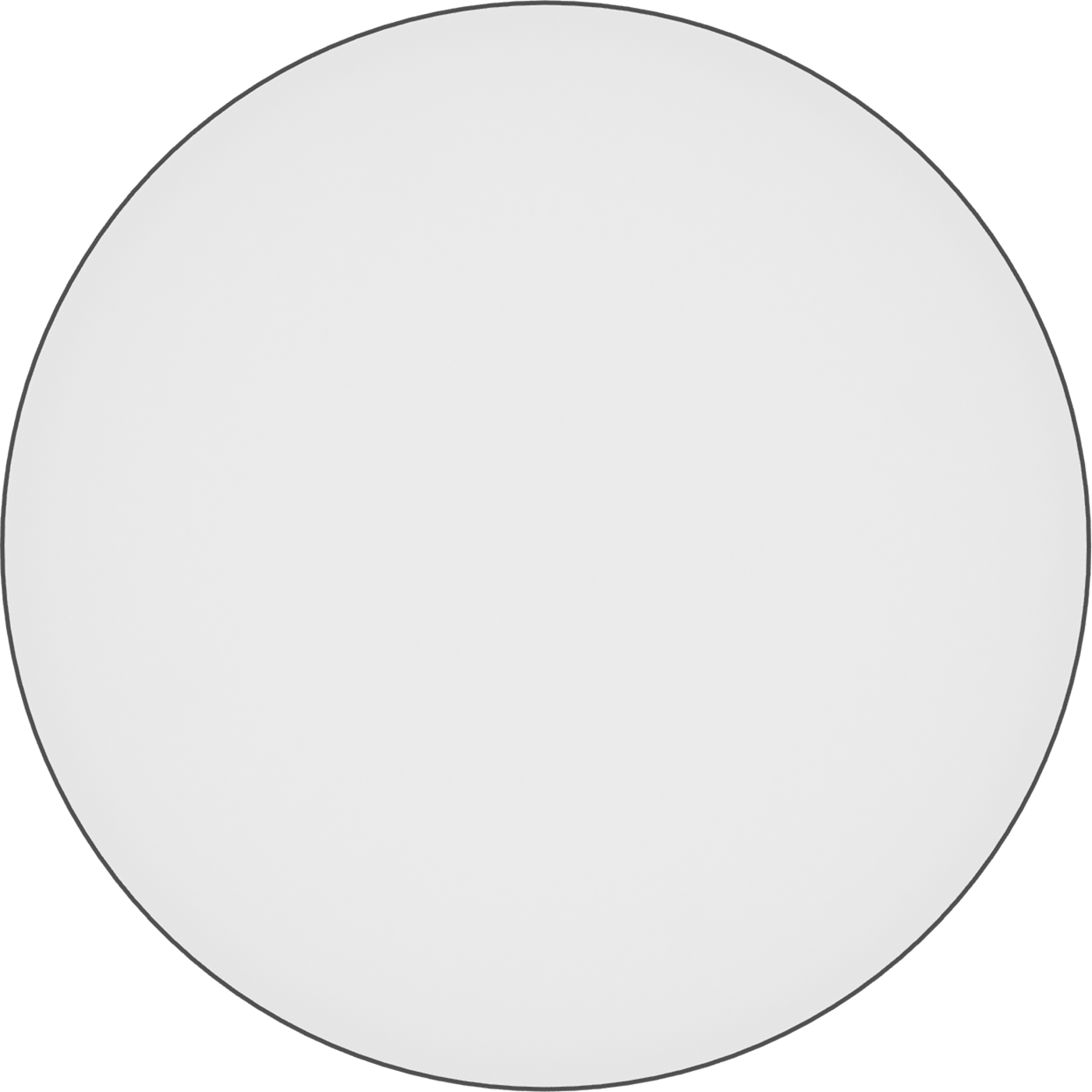

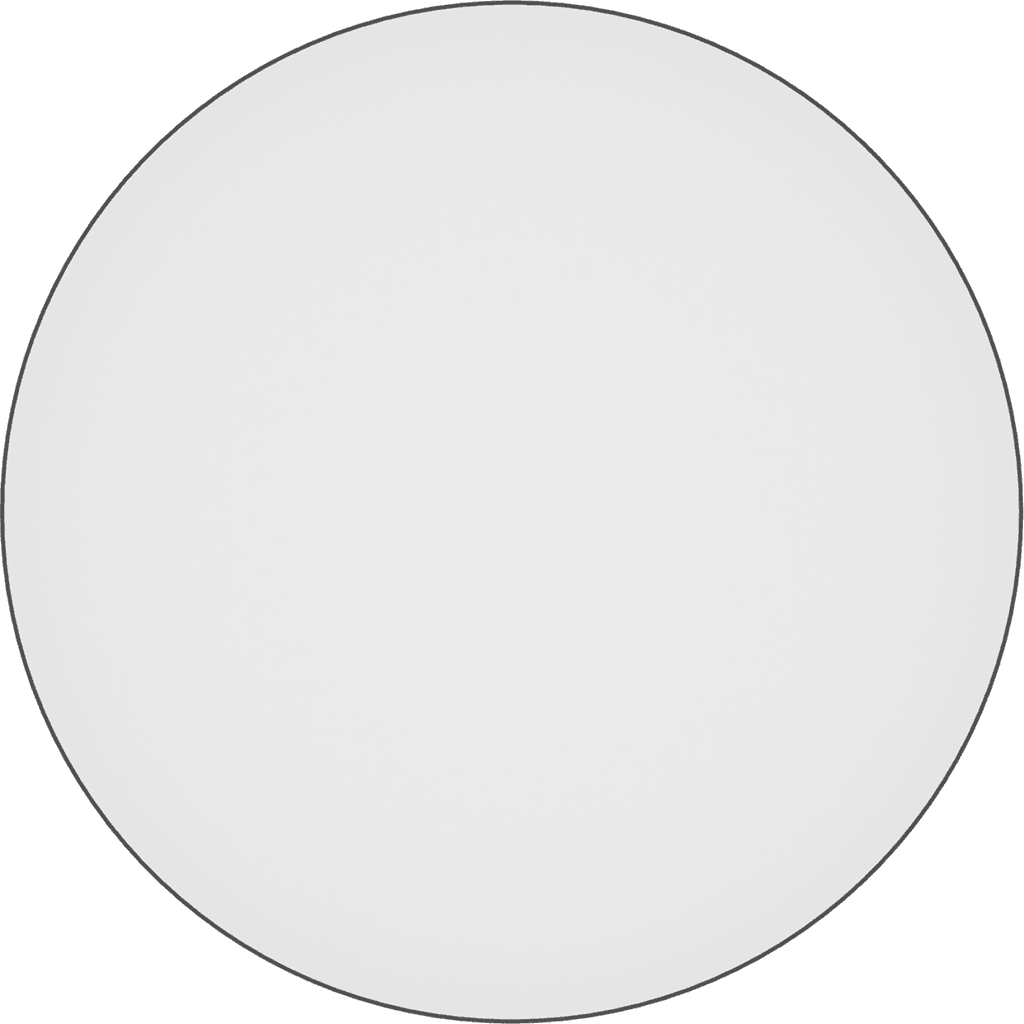

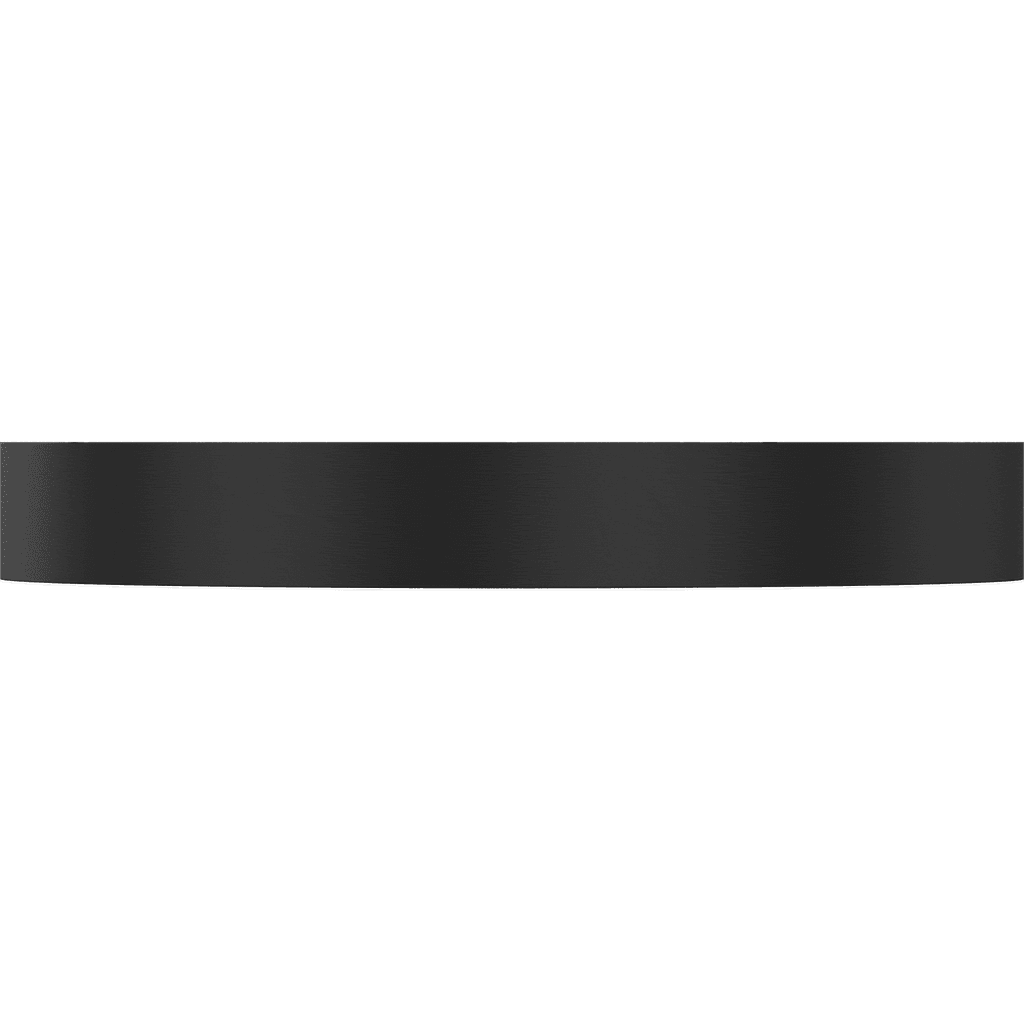

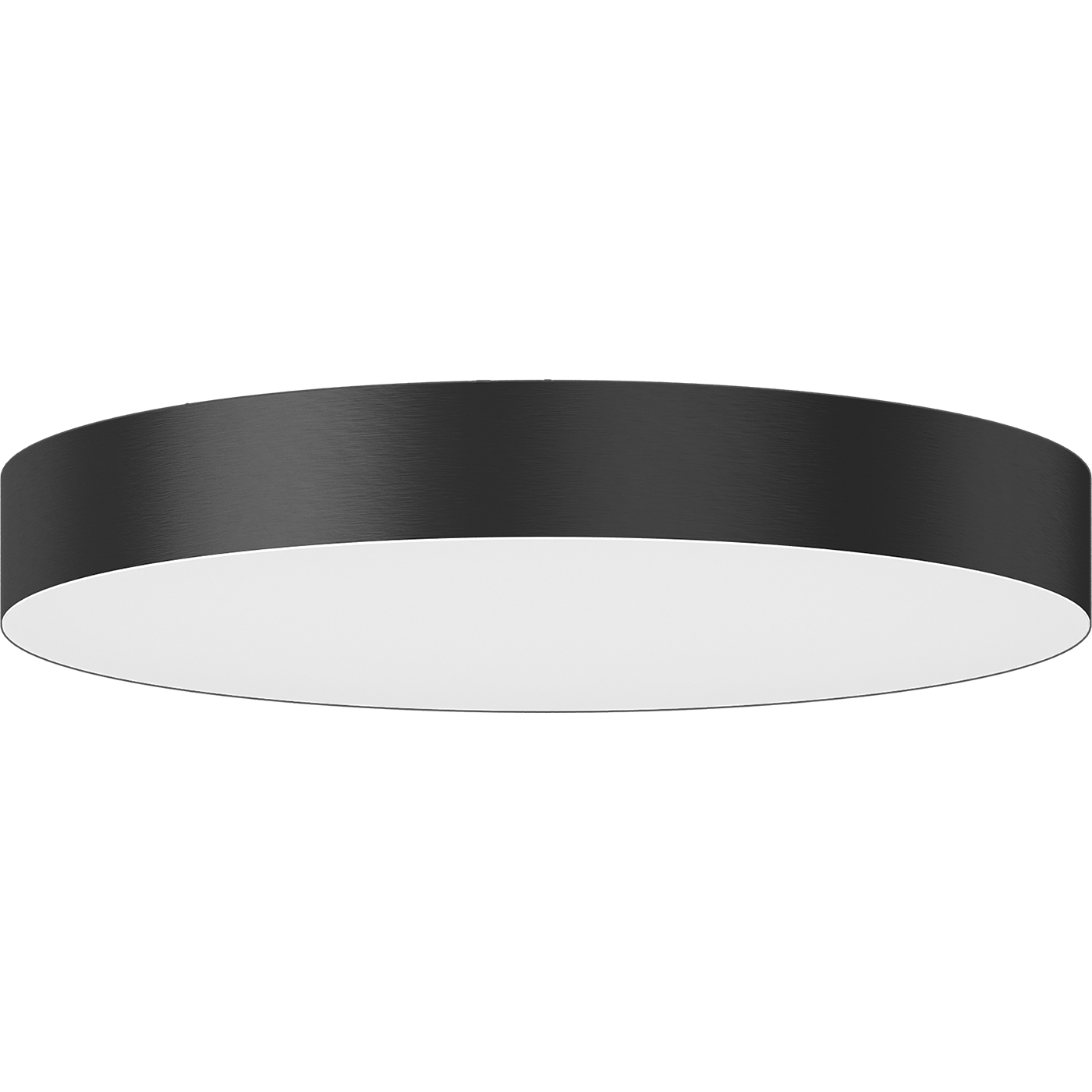

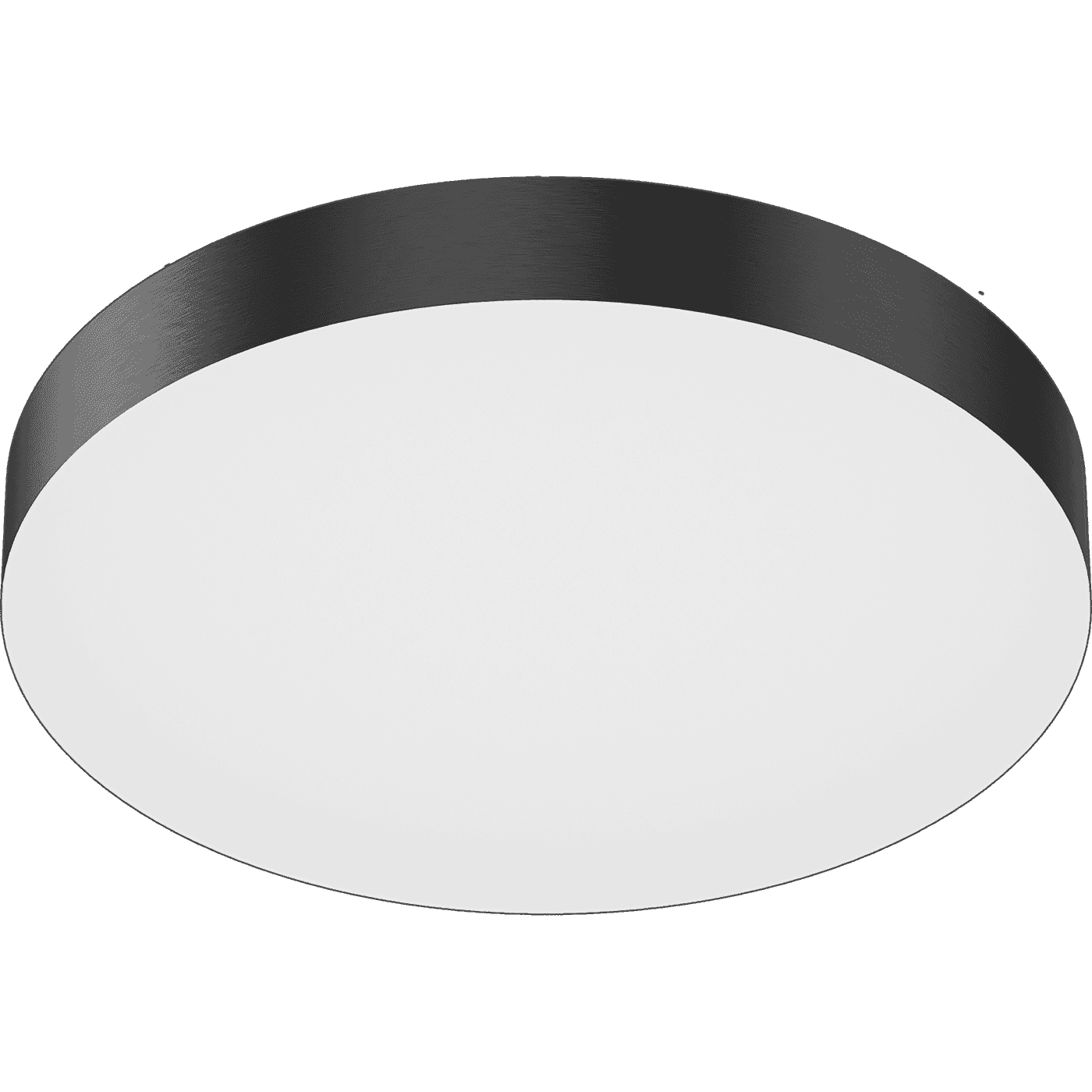

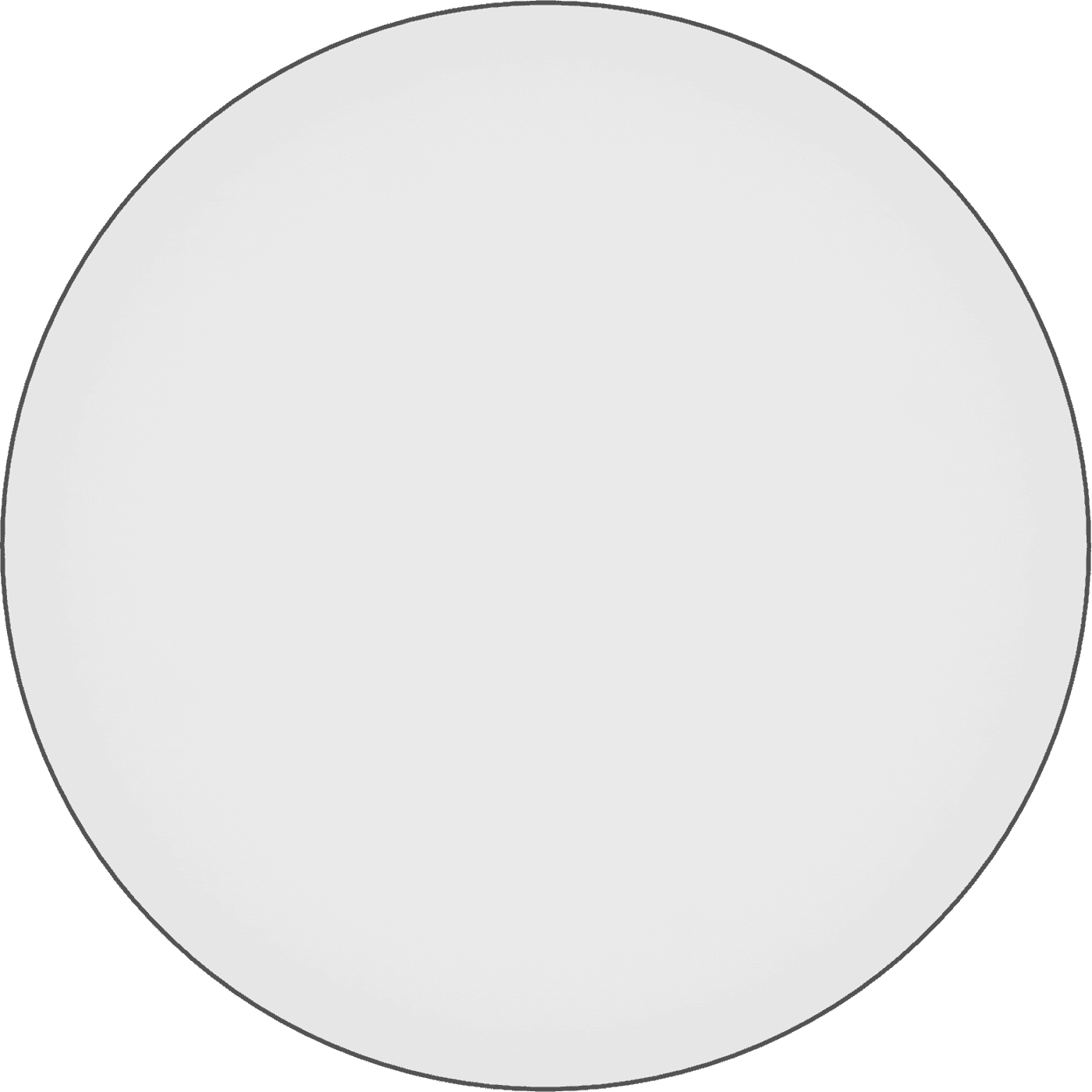

SOL FLD/S (600x80) 930 WH (low lumen)
SOL FLD/S (600x80) 930 WH (low lumen)
38 Wluminaire power
3200 lmlight flow
84 lm/Wenergy efficiency
code
1815001230
color temperature
3000 K
beam angle
D120
performance factor
100
- main page
- catalog
- by product type
- interior lighting
- ceiling
- without IP protection
- SOL FLD/S
- SOL FLD/S (600x80) 930 WH (low lumen)
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
energy efficiency
84 lm/Wcolor rendition index (CRI)
>90light flow
3200 lmflickering factor
<1%beam angle
D120color temperature
3000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
84 lm/W
color rendition index (CRI)
>90
light flow
3200 lm
flickering factor
<1%
beam angle
D120
color temperature
3000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
400 µs
power factor
> 0,95
luminaire power
38 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
40 A
constructional
diameter
600 mm
height
80 mm
installation width
360 mm
weight
5 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-I,II,ІІІ
material
Алюминий
housing color
Белый
mounting type
lamp socket
LED
number of lamps
1
ballast
Драйвер
Type roof
emergency
emergency power supply
Нет
common
temperature range
от +5 до +35 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
warranty
36 month
energy efficiency class
A
code
1815001230
package
Package contents
Светильник - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
model files
model files

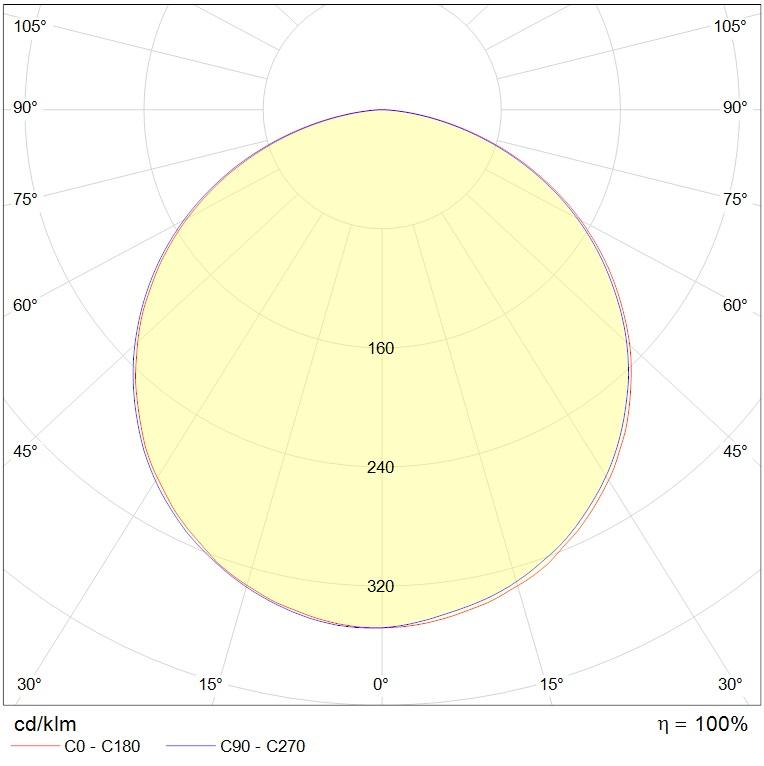

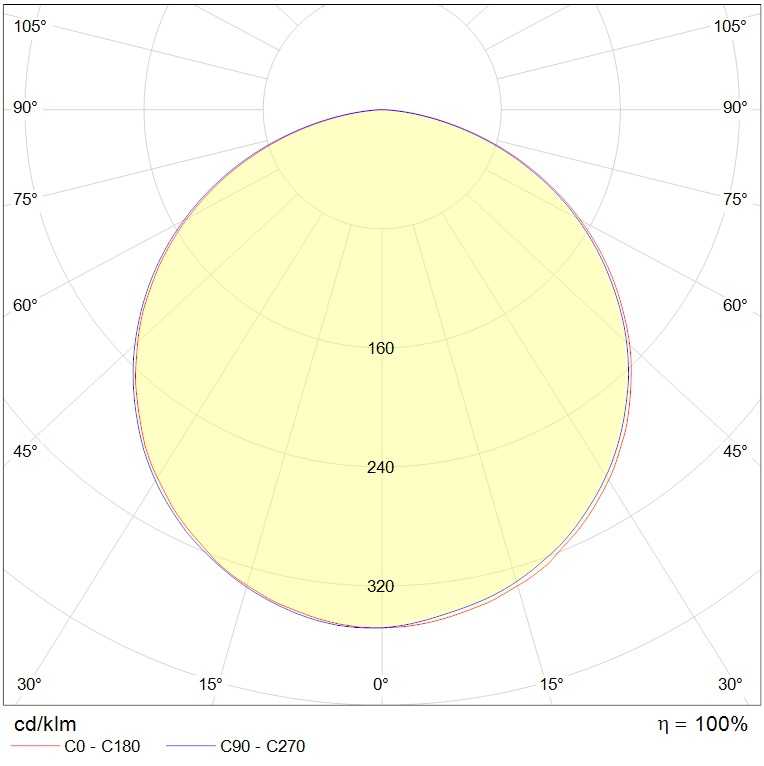

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg76.7 kB
ldt66.9 kB
csv439 B
documents
passport1.5 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016506.3 kB
