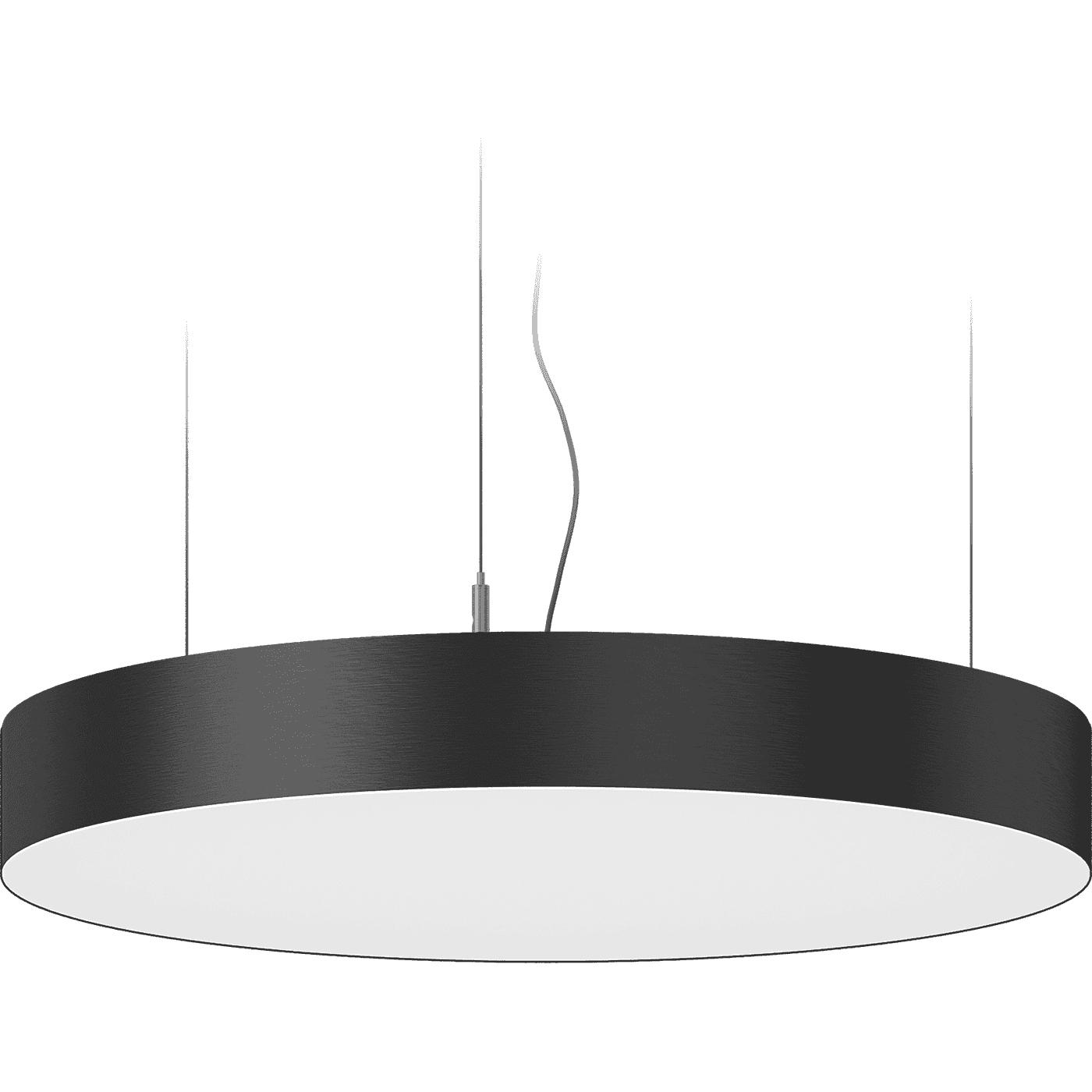

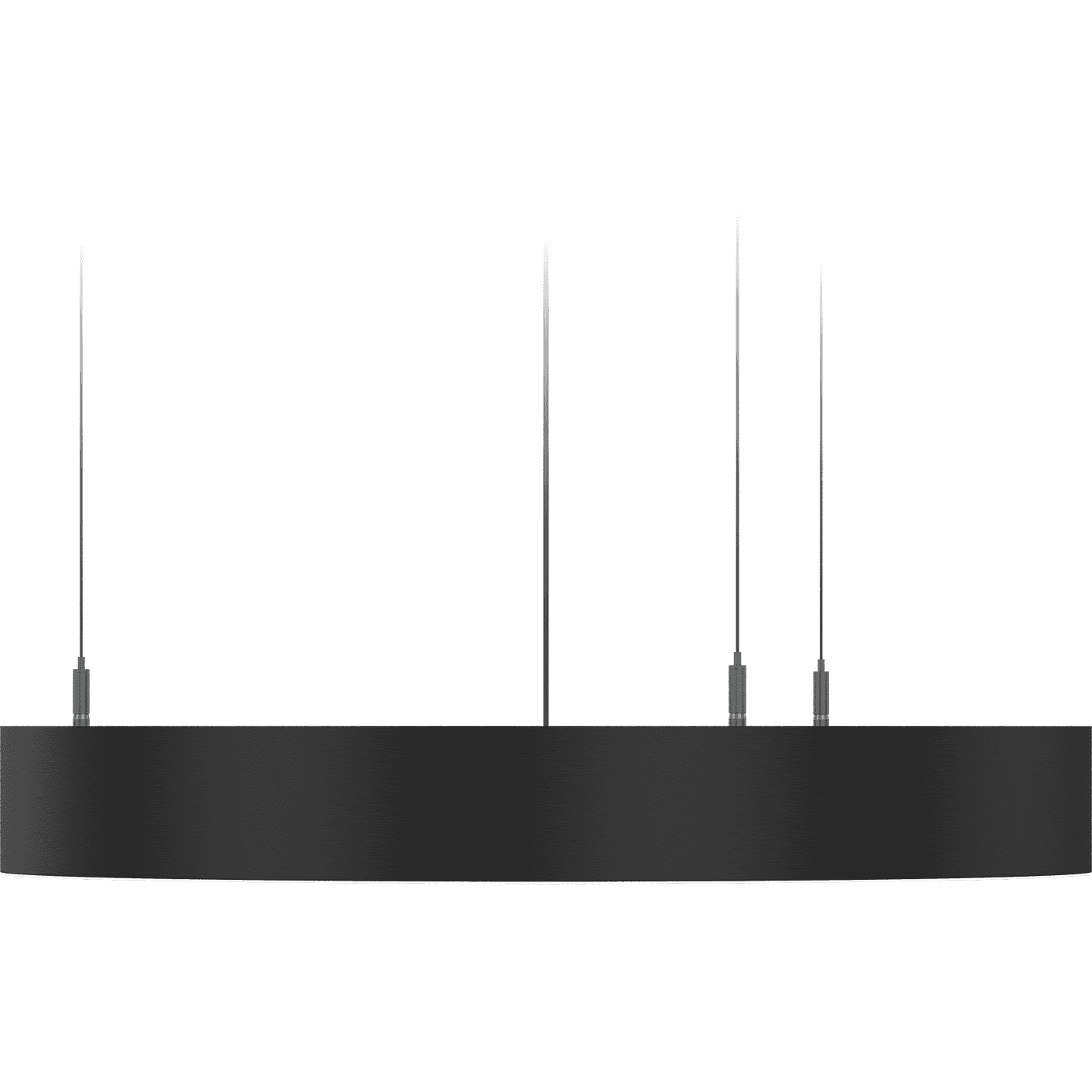

SOL FLD/P (450x80) 830 WH
SOL FLD/P (450x80) 830 WH
34 Wluminaire power
3800 lmlight flow
112 lm/Wenergy efficiency
code1815000250
color temperature3000
beam angleD120
old nameSOL/P FLD (450) 840 GR
performance factor100
options
свернуть все
electricalcommonilluminatingconstructional
electric shock protection
Istarting current
40 Astarting current pulse time, µs
400 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
198-264 Vsupply voltage, direct current
198-280 Vluminaire power
34 Wpower factor
> 0,95supply voltage
230 Velectrical
electric shock protection
I
starting current
40 A
starting current pulse time, µs
400 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
198-264 V
supply voltage, direct current
198-280 V
luminaire power
34 W
power factor
> 0,95
supply voltage
230 V
common
ETIM class
Светильник подвесной
warranty
36 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
code
1815000250
energy efficiency class
A+
illuminating
color rendition index (CRI)
>80
light flow
3800 lm
flickering factor
<5%
beam angle
D120
color temperature
3000
light source type
LED
emission color
Белый
energy efficiency
112 lm/W
constructional
ingress protection (IP)
IP20
material
Алюминий
housing color
Белый

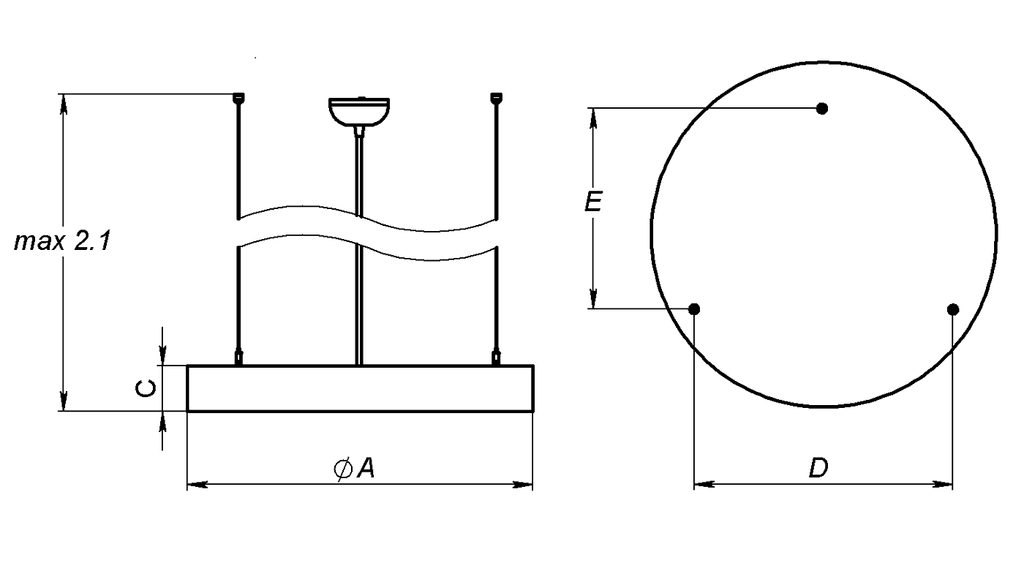

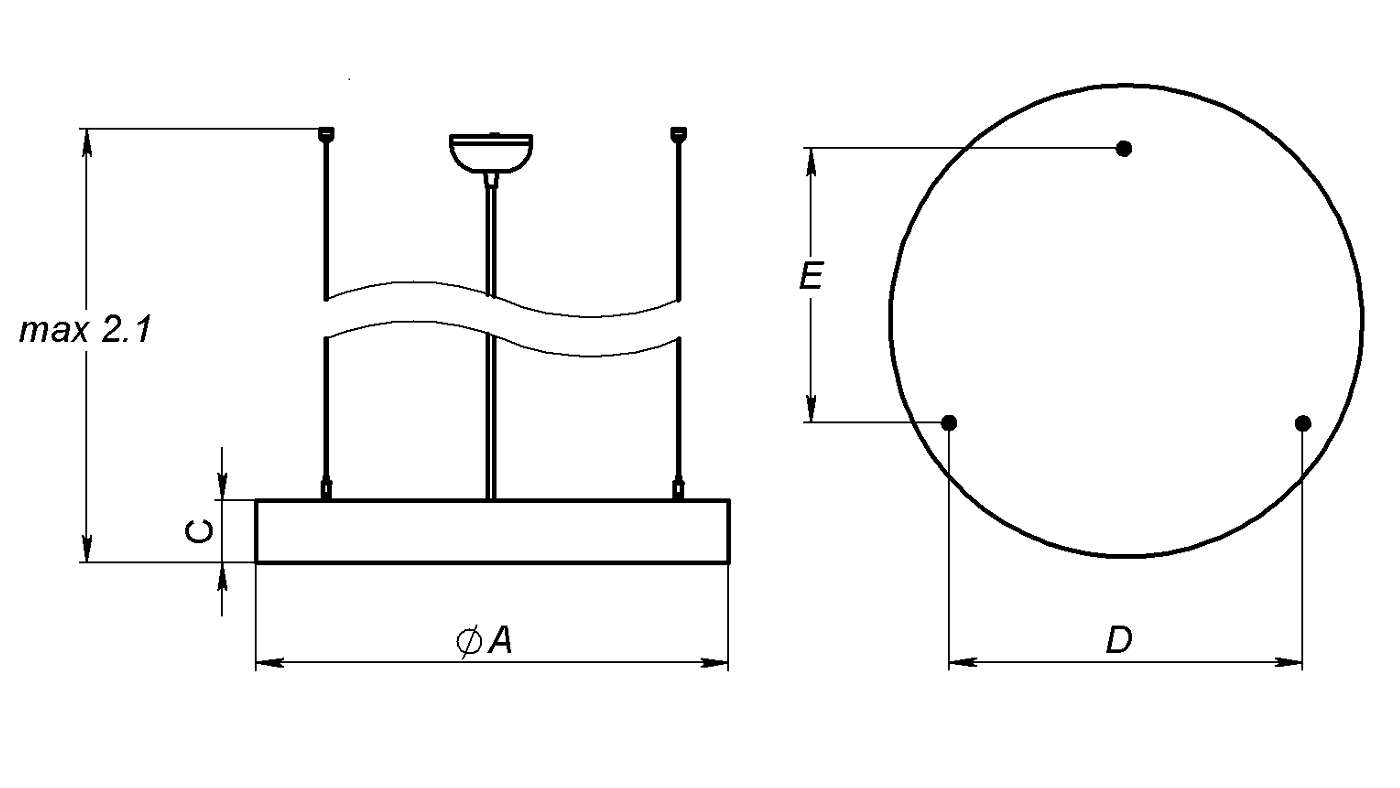

diameter, mm
450 mm
height, mm
80 mm
weight
2.8 kg
fire safety class
П-I,II,ІІІ
climatic performance
УХЛ4*
installation length, mm
270 mm
installation width, mm
320 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
model files
model files

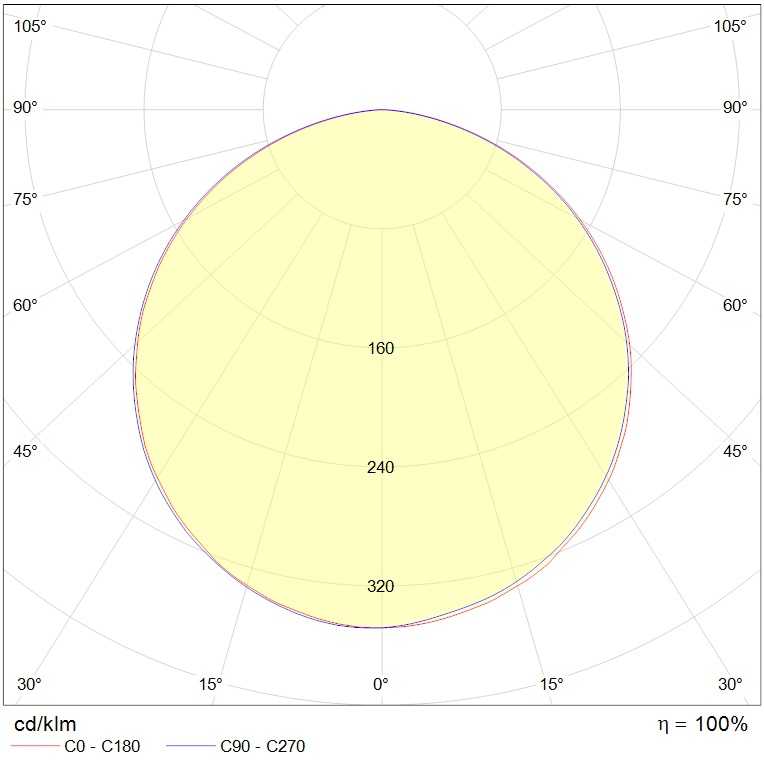

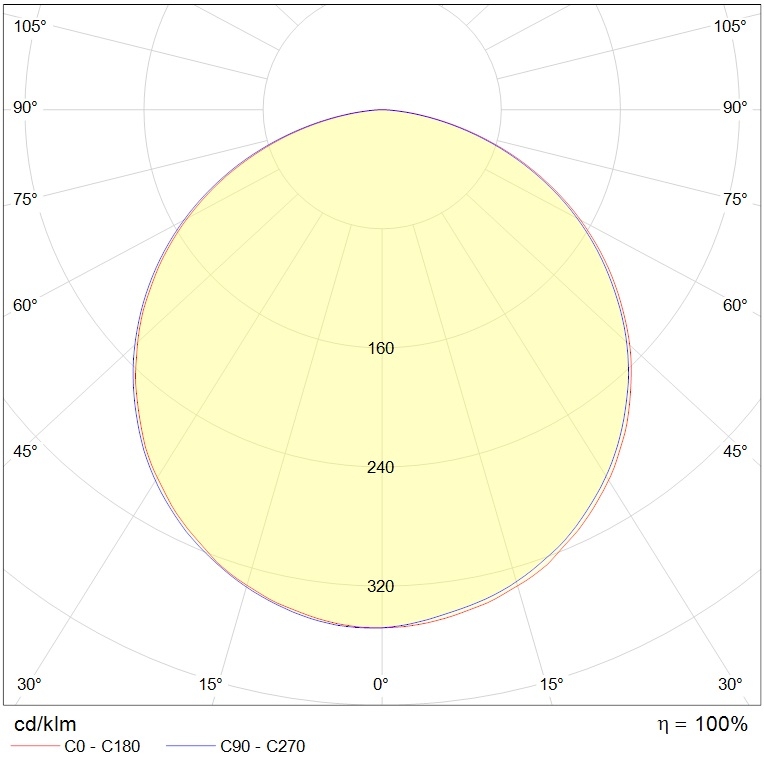

photometric files
