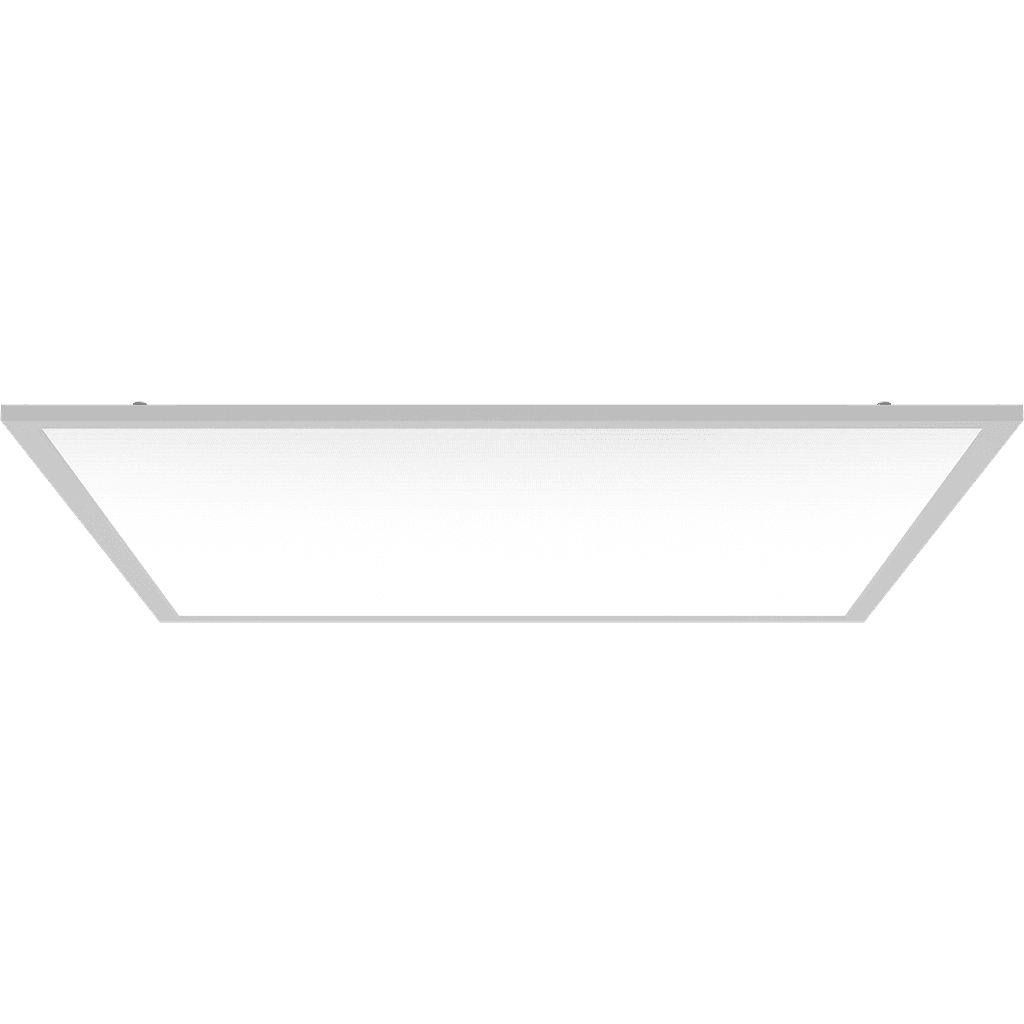

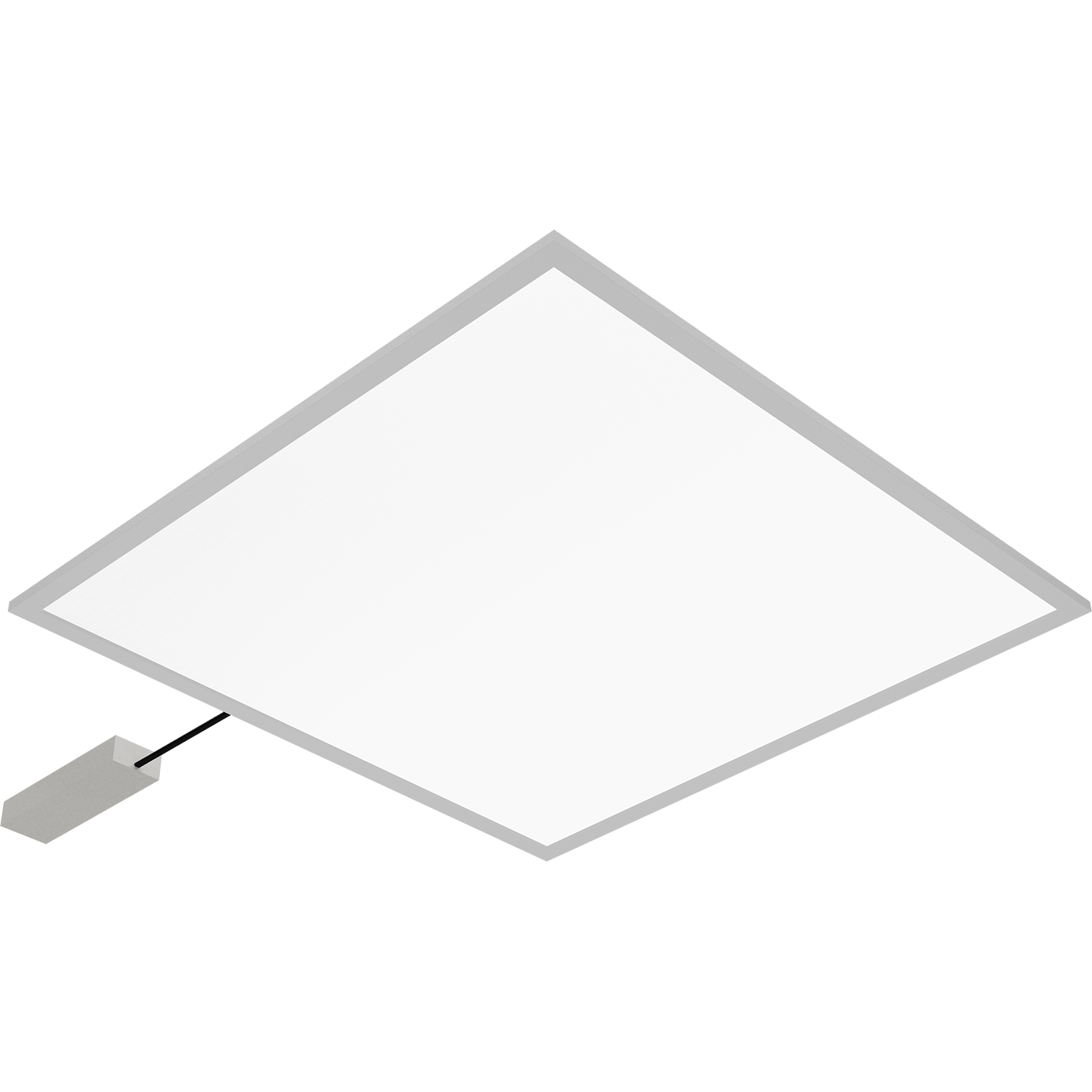

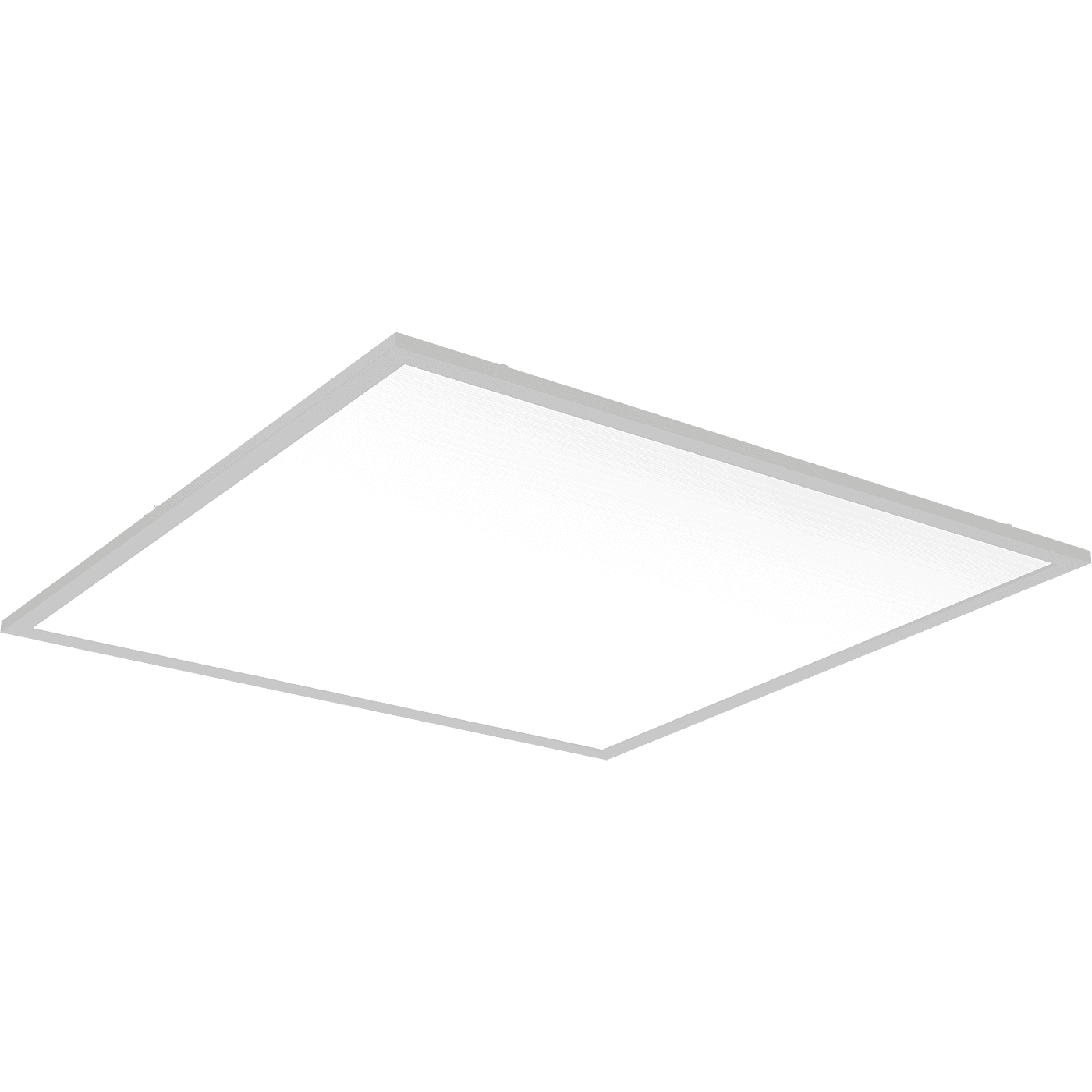

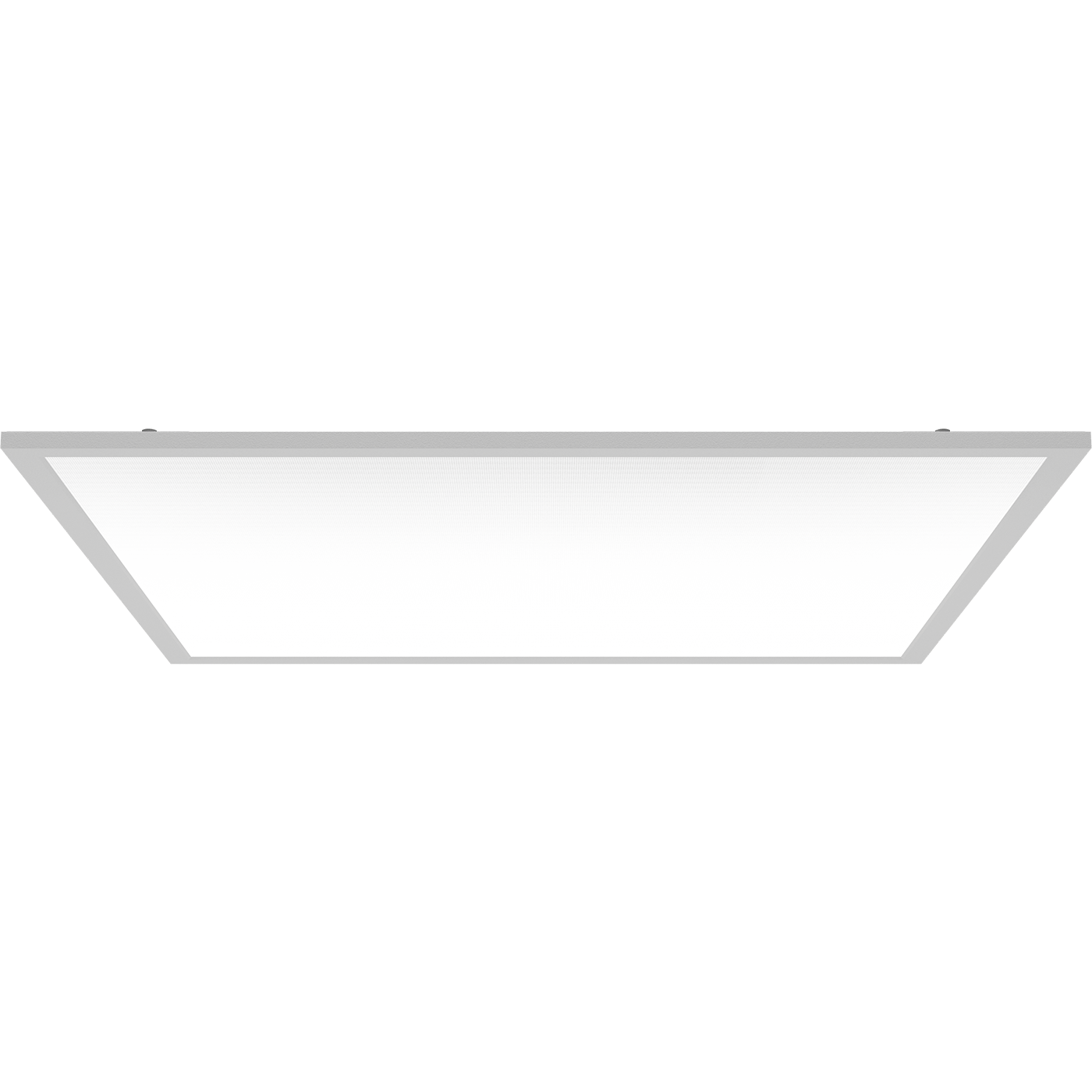

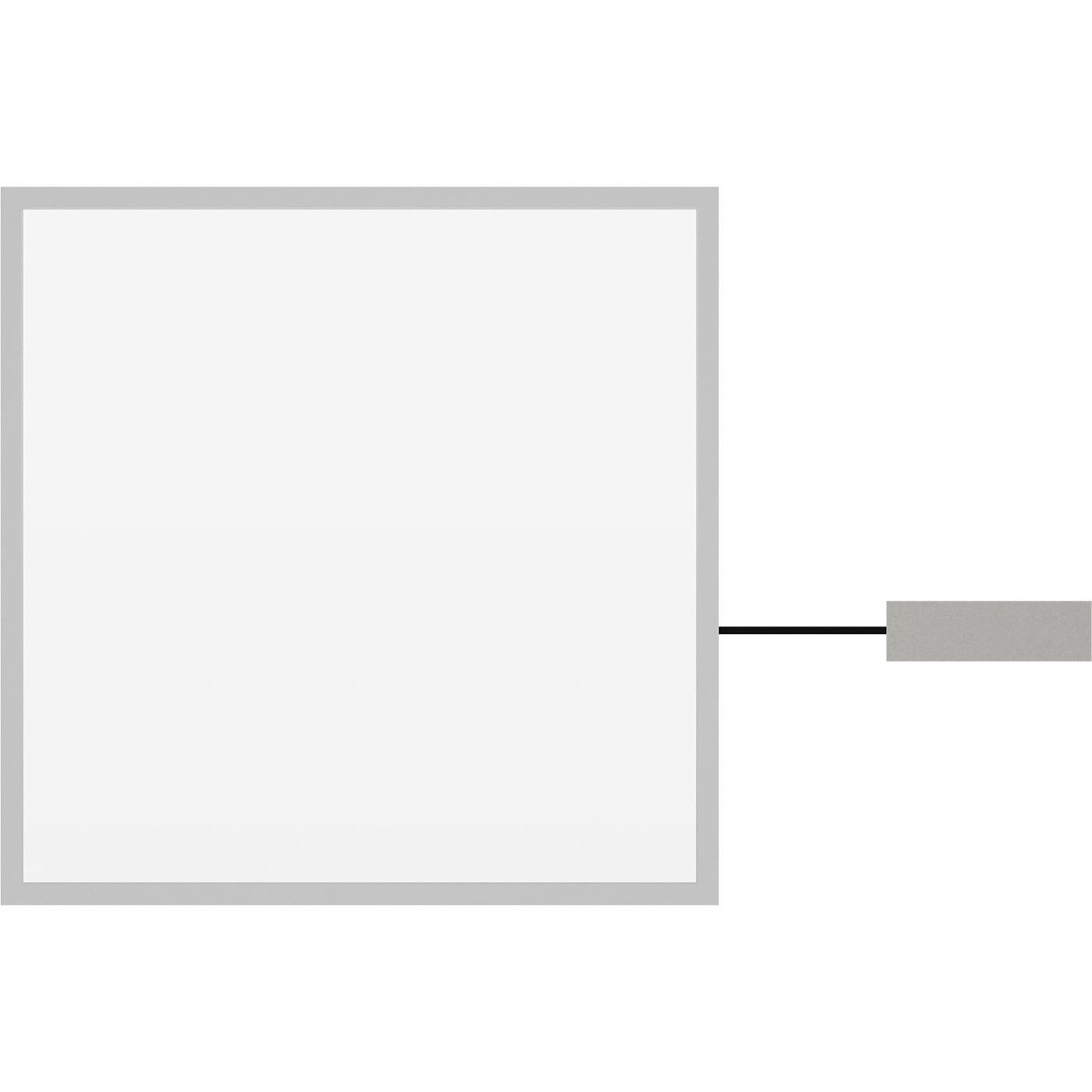

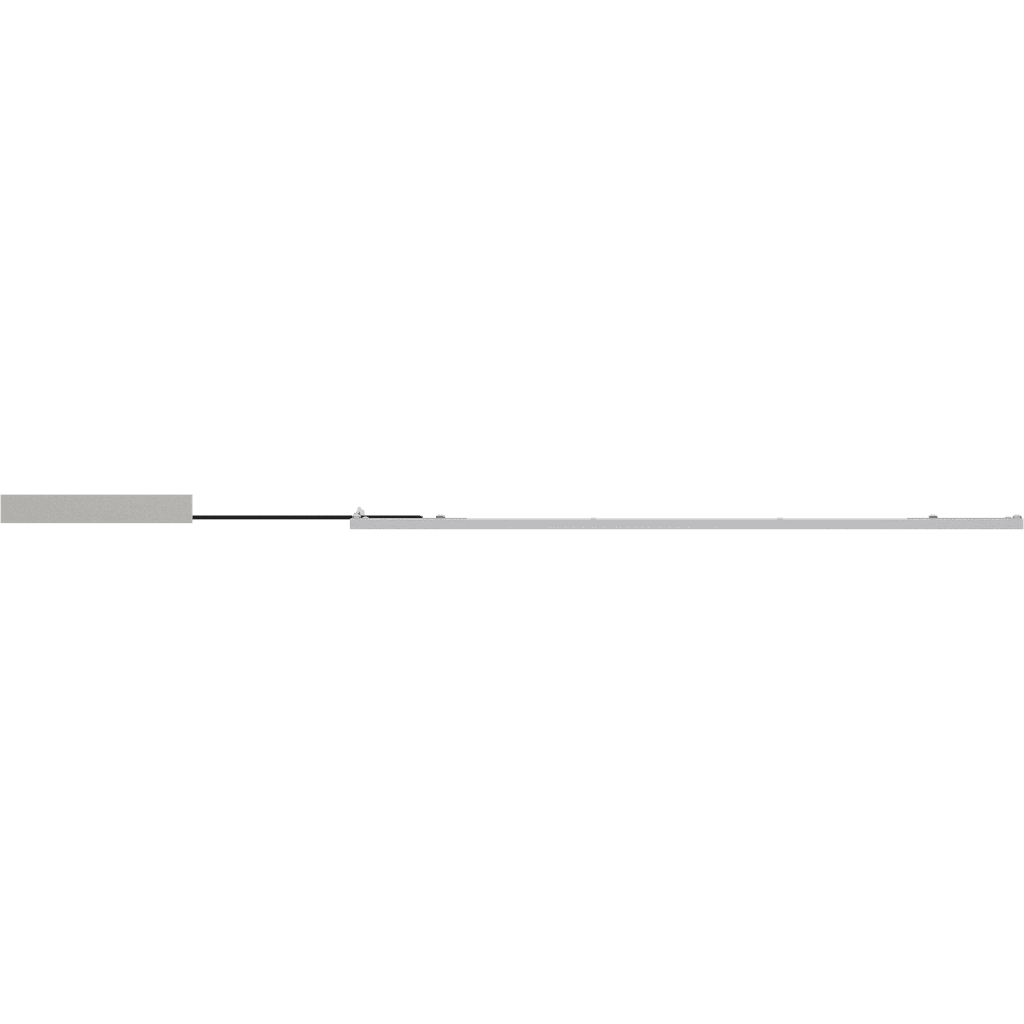

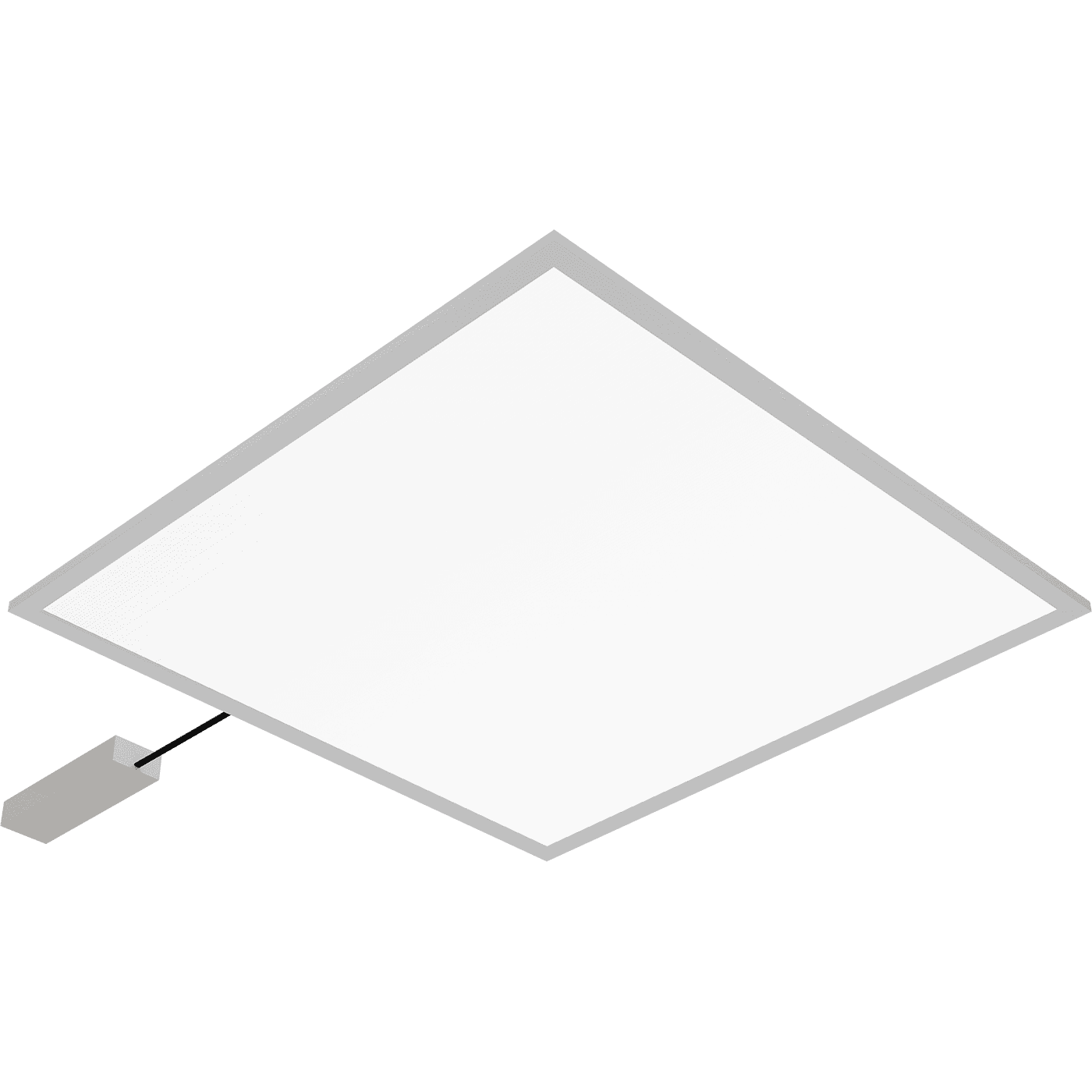

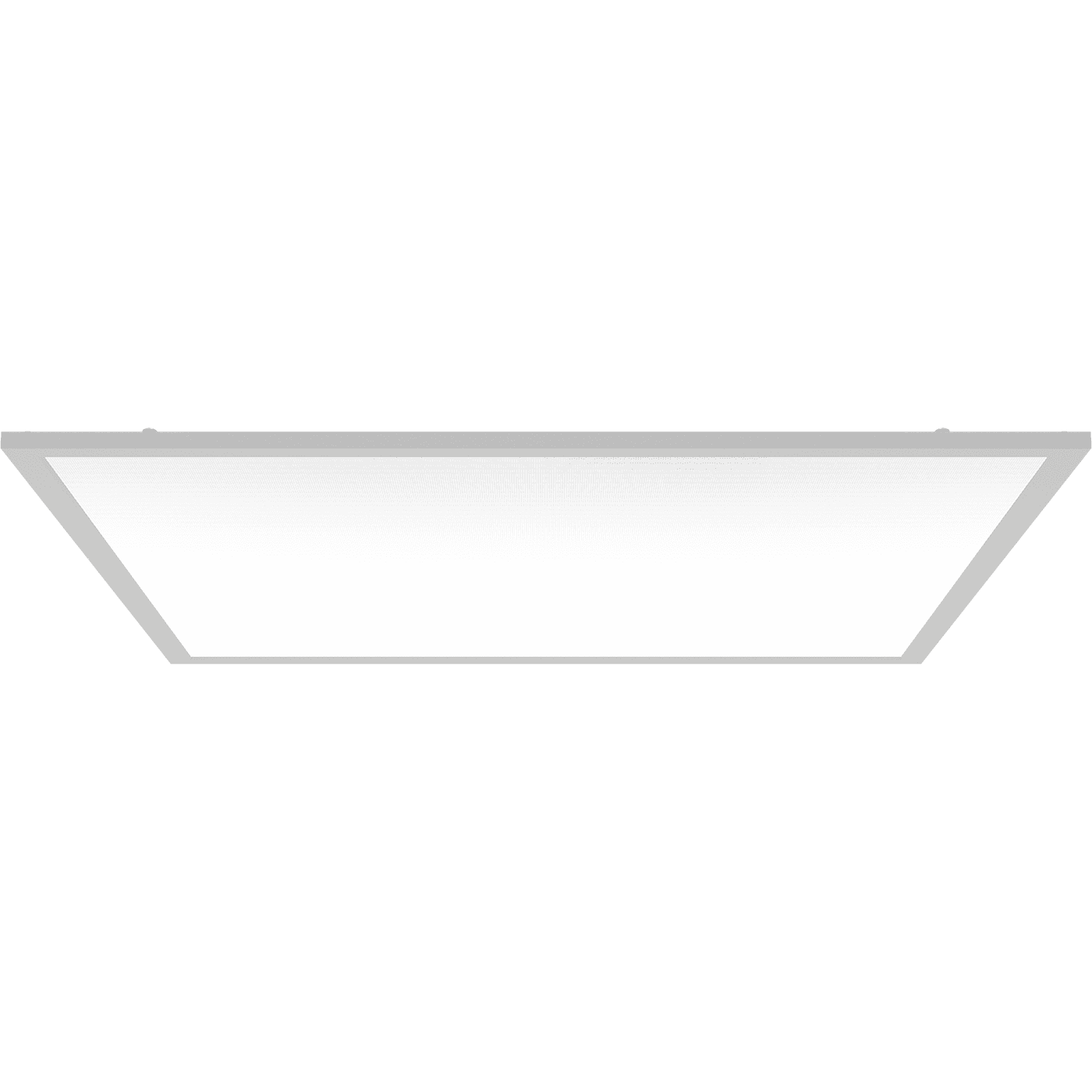

SLIM LED 595 (40) STANDARD HFD 4000K

archive
archive
SLIM LED 595 (40) STANDARD HFD 4000K
add to favorites
40 Wluminaire power
4000 lmlight flow
100 lm/Wenergy efficiency
code1704000390
color temperature4000
beam angleD120
number of lamps1
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. recessed ceiling
  6. SLIM LED
  7. SLIM LED 595 (40) STANDARD HFD 4000K
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
luminaire power
40 W
electric shock protection
II
power factor
> 0,95
supply voltage
230 V
electrical
luminaire power
40 W
electric shock protection
II
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
1.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
material
Алюминий
weight
2.5 kg
length, mm
595 mm
width, mm
595 mm
height, mm
11 mm
housing color
Белый
installation length, mm
575 mm
installation width, mm
575 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1704000390
illuminating
color rendition index (CRI)
>80
light flow
4000 lm
flickering factor
<1%
energy efficiency
100 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
LMS options
dimming
DALI
model files
model files

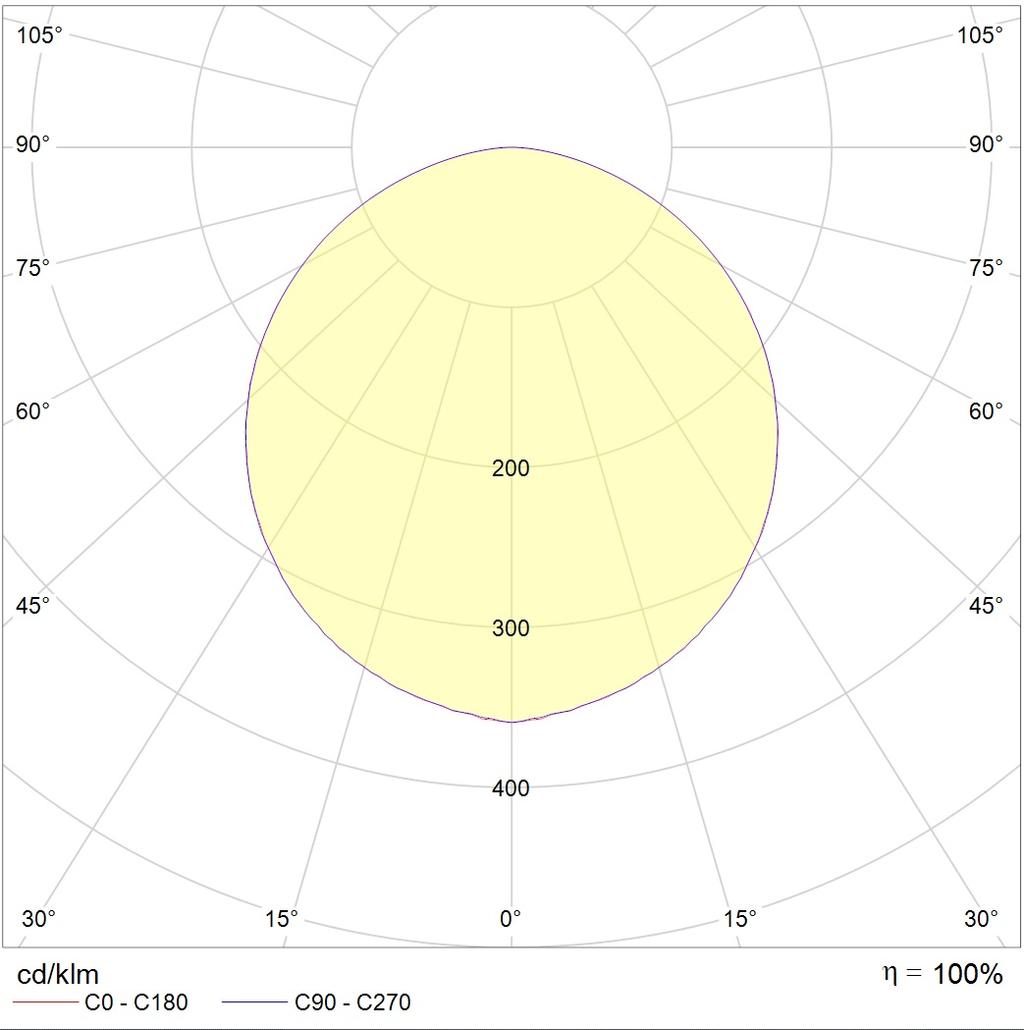

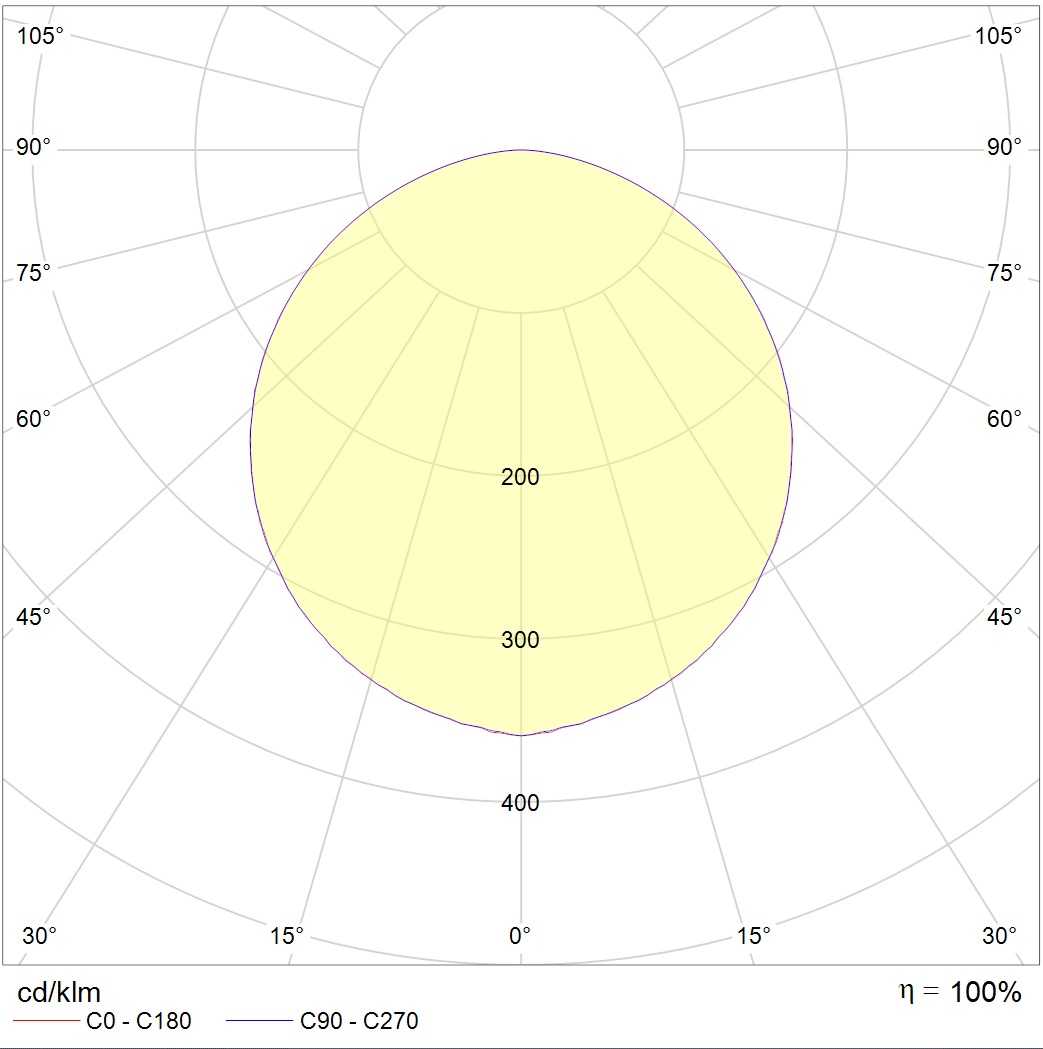

photometric files
ies134.1 kB
jpg116.2 kB
ldt83.7 kB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
photometric files
ies134.1 kB
jpg116.2 kB
ldt83.7 kB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
