SLIM LED 595 (40) STANDARD EM 4000K
SLIM LED 595 (40) STANDARD EM 4000K
44 Wluminaire power
3800 lmlight flow
86 lm/Wenergy efficiency
code
1704000400
color temperature
4000 K
beam angle
D120
performance factor
100
- main page
- catalog
- by product type
- interior lighting
- ceiling
- without IP protection
- SLIM LED
- SLIM LED 595 (40) STANDARD EM 4000K
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
energy efficiency
86 lm/Wcolor rendition index (CRI)
>80light flow
3800 lmflickering factor
<1%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
86 lm/W
color rendition index (CRI)
>80
light flow
3800 lm
flickering factor
<1%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
160 µs
power factor
> 0,95
luminaire power
44 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
1.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
length
596 mm
width
596 mm
height
11 mm
installation length
575 mm
installation width
575 mm
weight
3.8 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Алюминий
housing color
Белый
mounting type
lamp socket
LED
number of lamps
1
ballast
Драйвер
Type roof
emergency
emergency power supply
Нет
operating time in emergency mode
1 h
luminous flux in emergency mode
22% lm
common
temperature range
от +5 до +35 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
warranty
36 month
energy efficiency class
A
code
1704000400
package
Package contents
Светильник - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
model files
model files

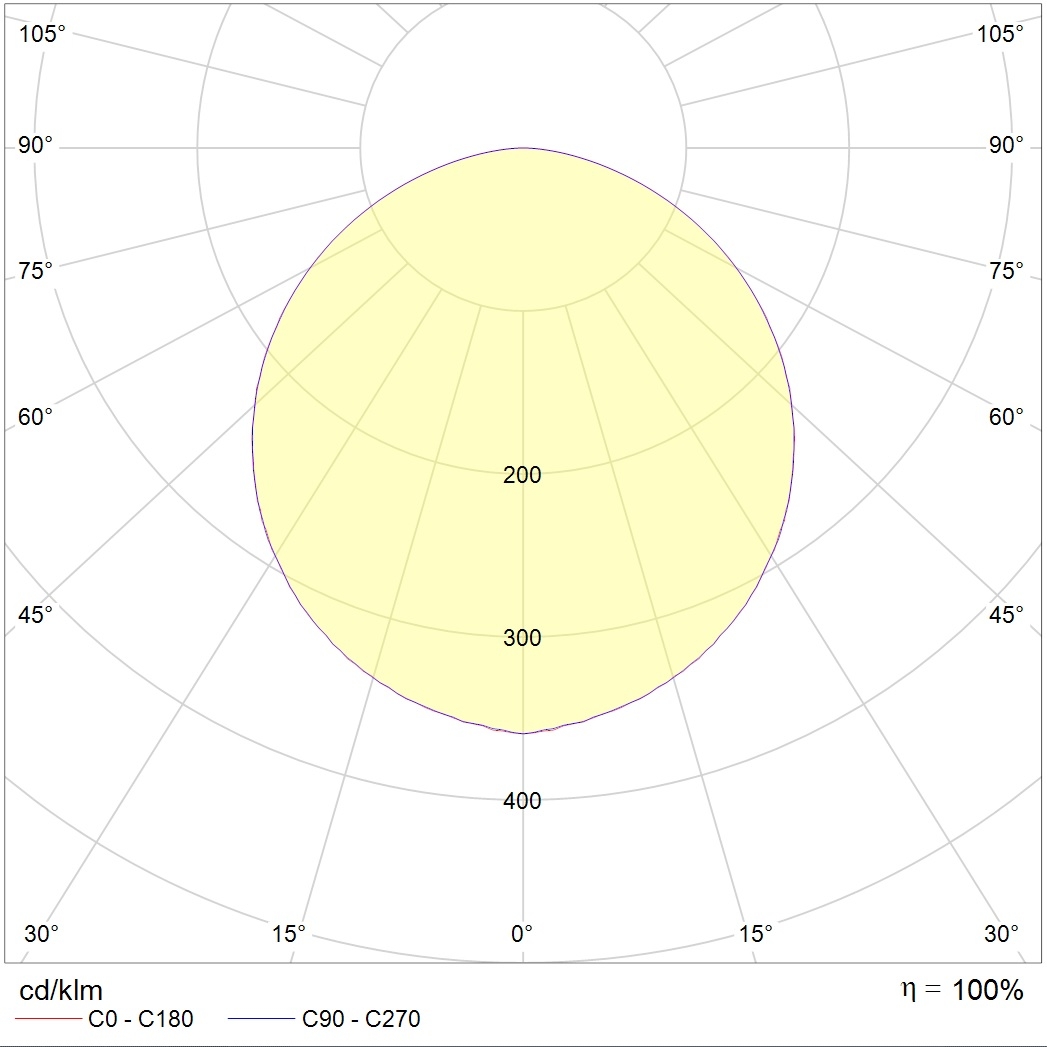

photometric files
documents
сертификаты
photometric files
ies134.1 kB
jpg115.4 kB
ldt83.7 kB
csv439 B
documents
passport1.4 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
