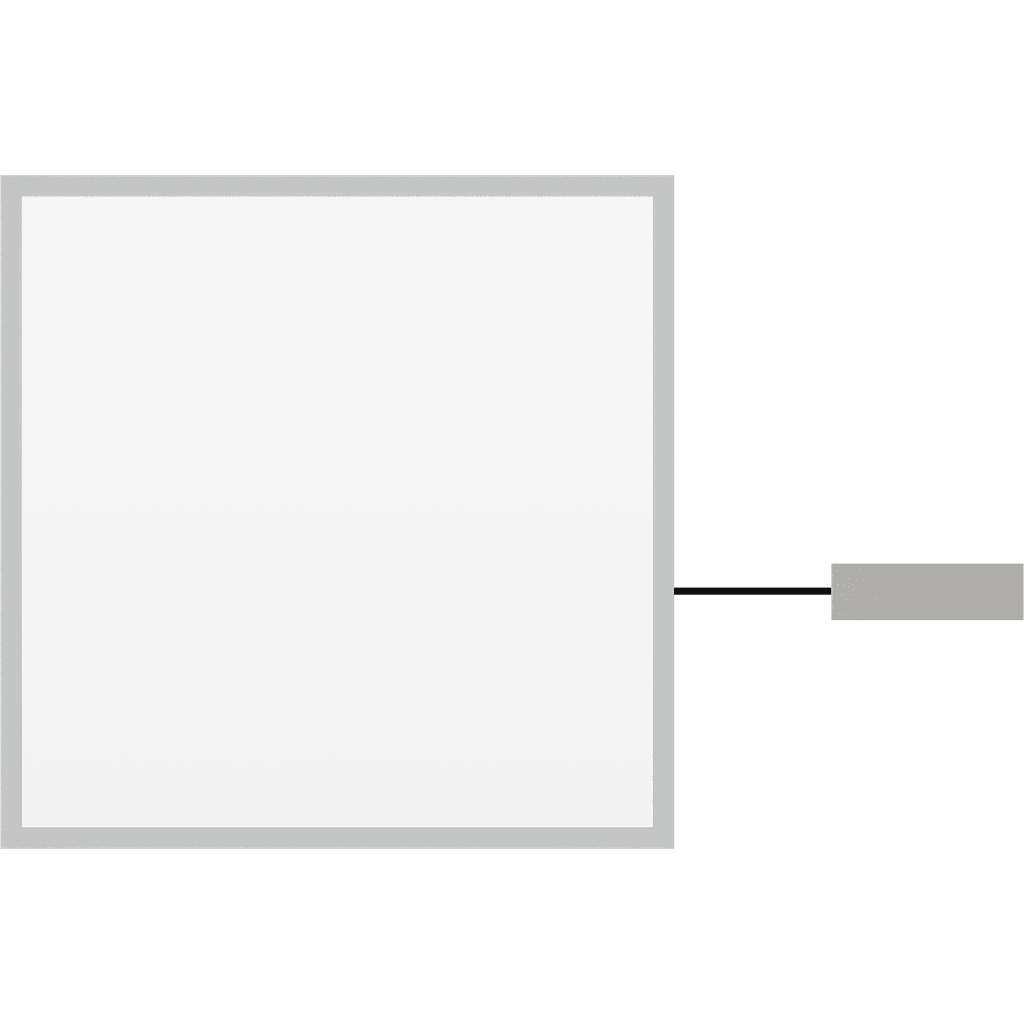

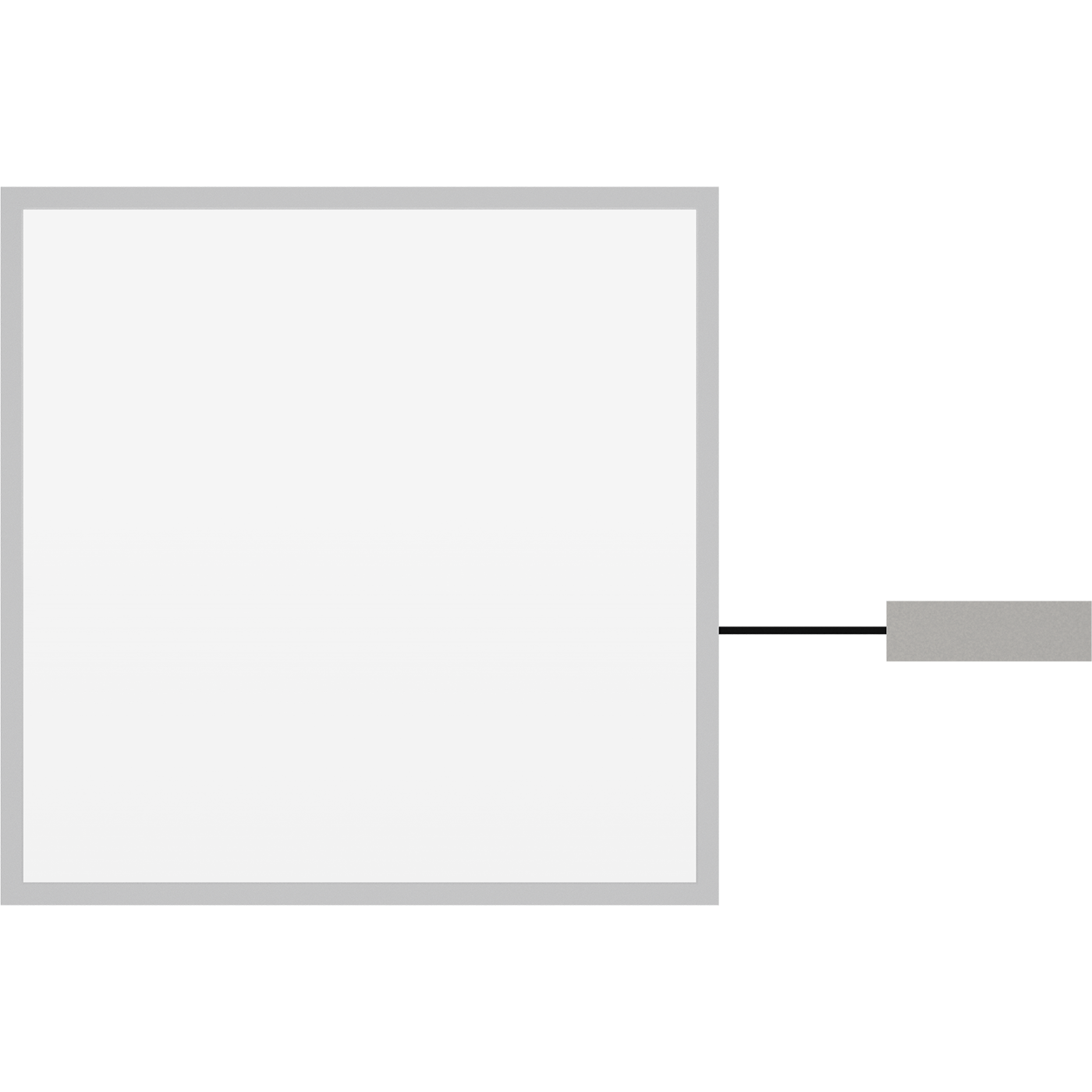

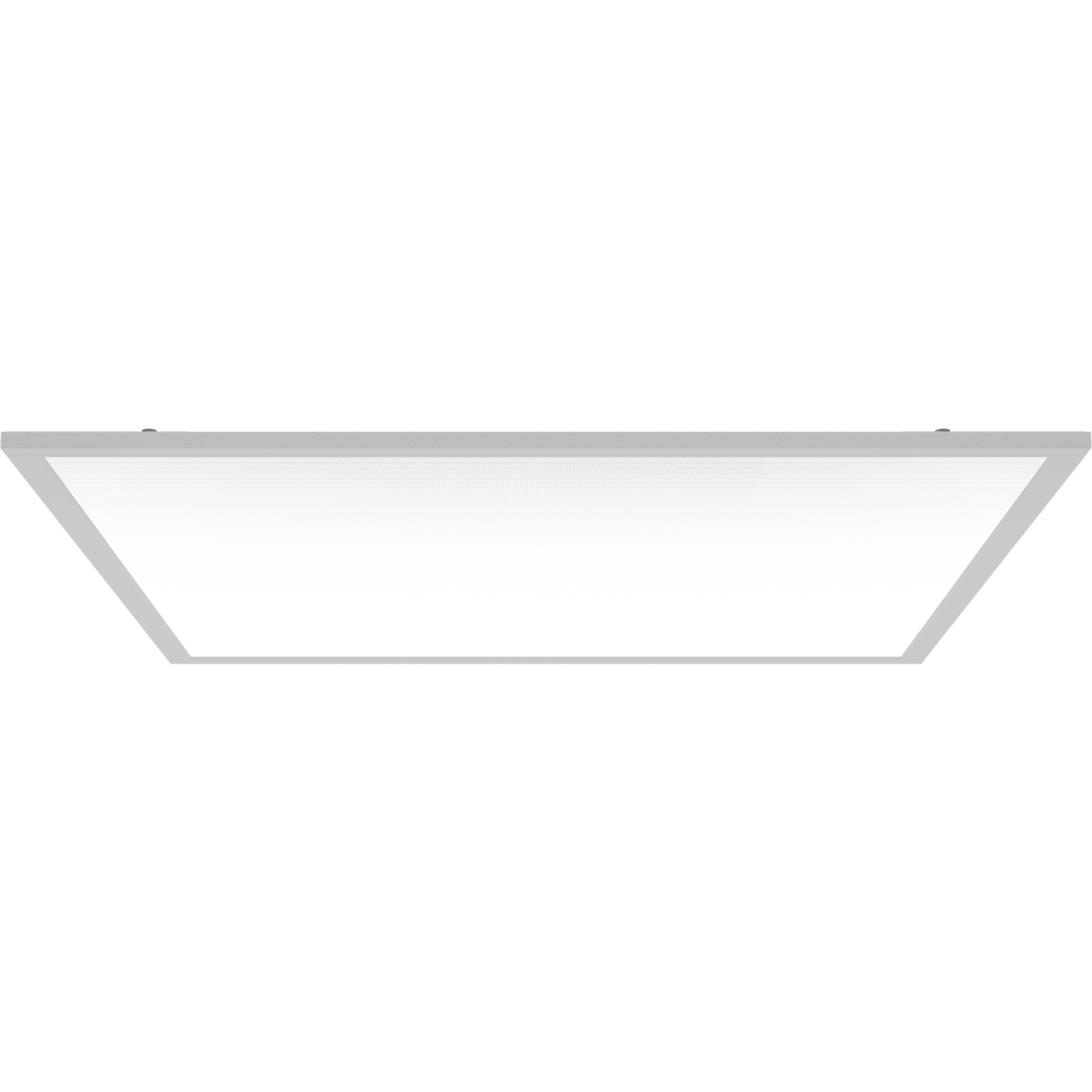

SLIM LED 595 3000K
archive
archive
SLIM LED 595 3000K
32 Wluminaire power
3200 lmlight flow
100 lm/Wenergy efficiency
code1704000550
color temperature3000
beam angleD120
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
starting current
60 Astarting current pulse time, µs
400 mksrated supply voltage, alternating current
230 Vsupply voltage, alternating current
198-264 Vluminaire power
32 Welectric shock protection
IIpower factor
> 0,95supply voltage
230 Velectrical
starting current
60 A
starting current pulse time, µs
400 mks
rated supply voltage, alternating current
230 V
supply voltage, alternating current
198-264 V
luminaire power
32 W
electric shock protection
II
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
1.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
material
Алюминий
weight
4.9 kg
length, mm
596 mm
width, mm
596 mm
height, mm
11 mm
housing color
Белый
installation length, mm
575 mm
installation width, mm
575 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1704000550
illuminating
color rendition index (CRI)
>80
light flow
3200 lm
flickering factor
<5%
energy efficiency
100 lm/W
beam angle
D120
color temperature
3000
light source type
LED
emission color
Белый
