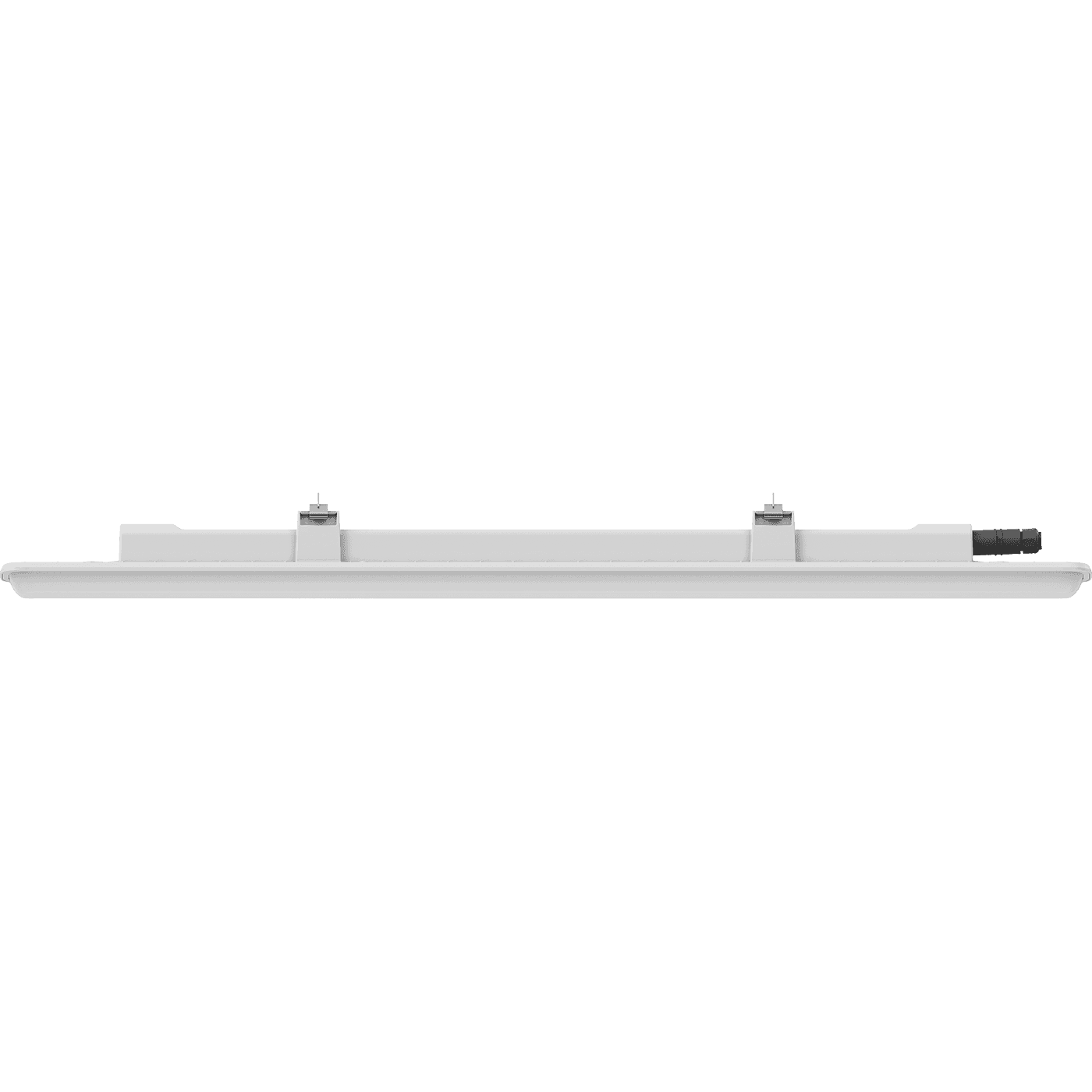

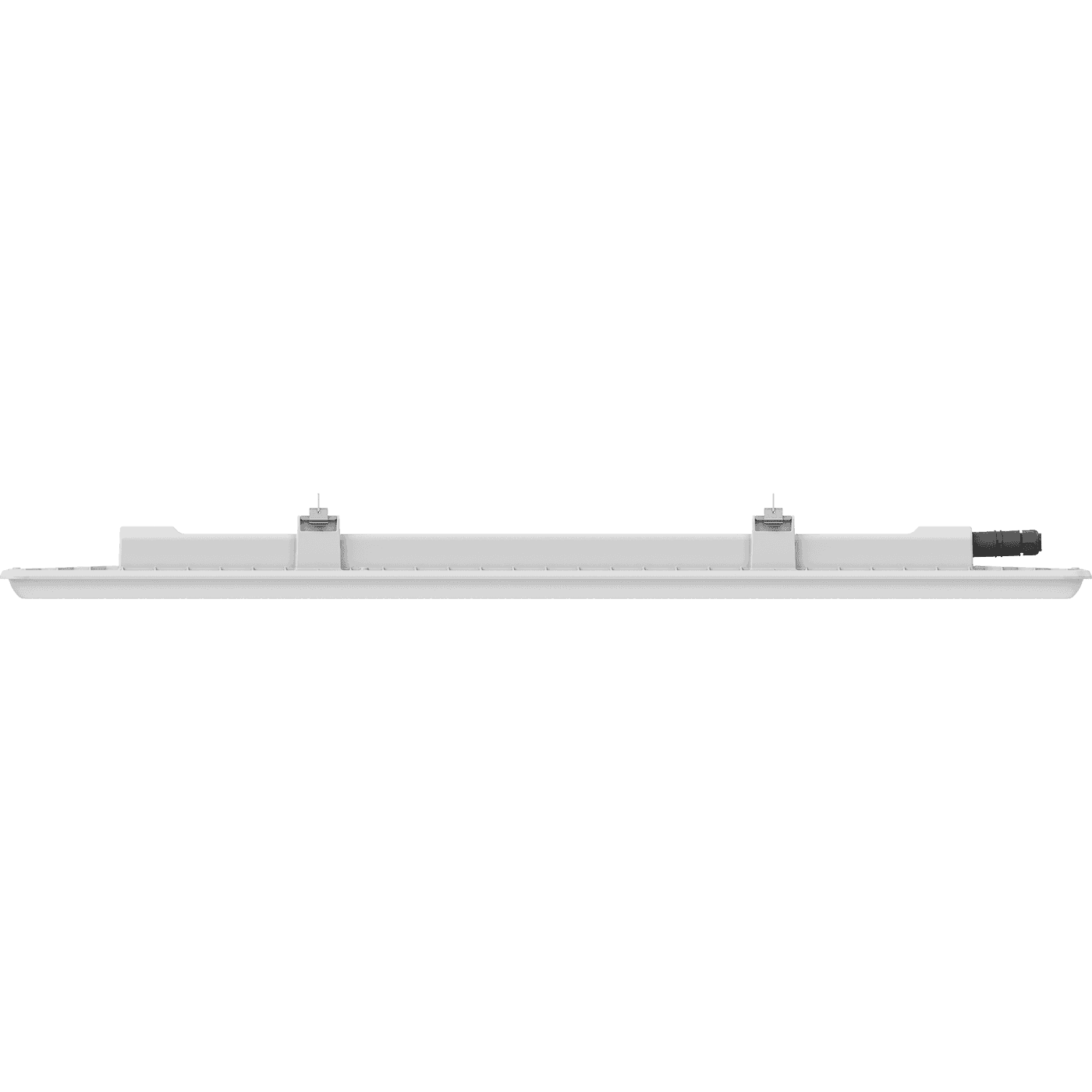

SLICK.PRS LED 40 (PC/SMC) 5000K
SLICK.PRS LED 40 (PC/SMC) 5000K
42 Wluminaire power
6600 lmlight flow
157 lm/Wenergy efficiency
code
1631003280
color temperature
5000 K
beam angle
D120
old name
SLICK.PRS LED 40 (PС/SMC) 5000K
performance factor
100
weight
1.75 kg
- main page
- catalog
- by product type
- interior lighting
- ceiling
- IP protected
- SLICK PC/SMC
- SLICK.PRS LED 40 (PC/SMC) 5000K
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
energy efficiency
157 lm/Wcolor rendition index (CRI)
>80light flow
6600 lmflickering factor
<1%beam angle
D120color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
157 lm/W
color rendition index (CRI)
>80
light flow
6600 lm
flickering factor
<1%

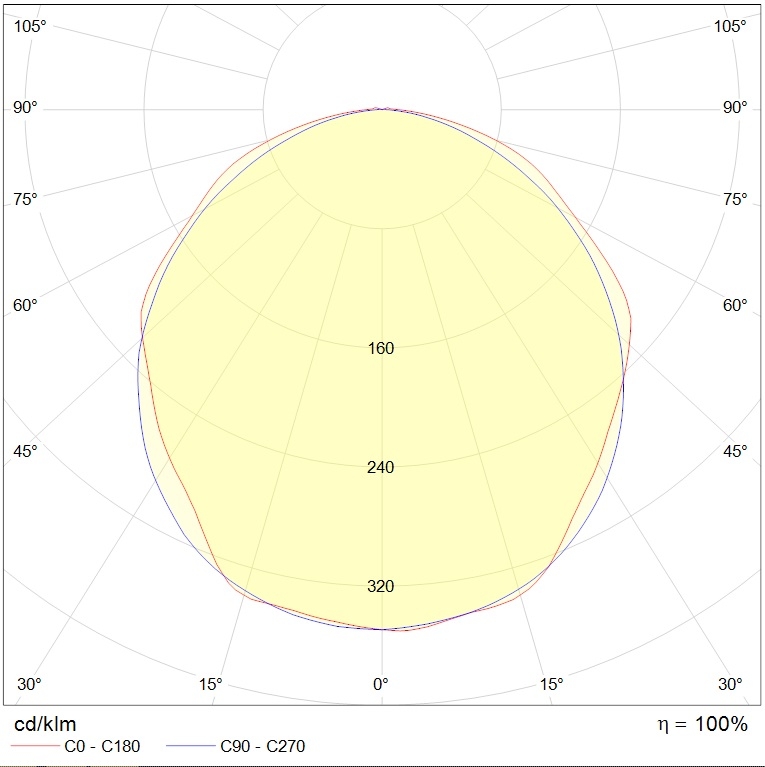

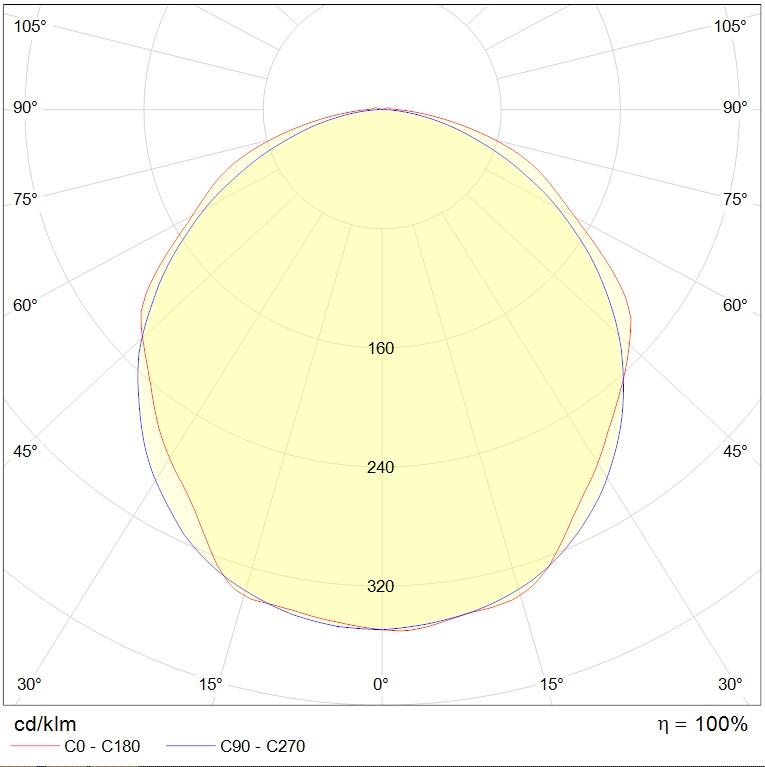

beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
1500 µs
power factor
> 0,96
luminaire power
42 W
electric shock protection
II
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
3 A
constructional
length
1200 mm
width
85 mm
height
90 mm
installation length
500 mm
weight
1.75 kg
ingress protection (IP)
IP66/IP69
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-ІІ
material
Пластик
housing color
Серый
mounting type
lamp socket
LED
number of lamps
1
ballast
Драйвер
Type roof
emergency
emergency power supply
Нет
common
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A++
code
1631003280
package
Package contents
Светильник - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
Установочные пластины - 2 шт.
Скобы подвеса - 2 шт.
Розетка коннектора - 1 шт.
model files
model files
photometric files
documents
сертификаты
photometric files
ies107.1 kB
jpg84.6 kB
ldt71.9 kB
csv435 B
documents
passport1.2 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011300.7 kB
Declaration of Conformity EAEU TR 037/2016300.5 kB
